基于 HBV模型的太子河流域径流变化情景预估
刘鸣彦 1( ),孙凤华 2( ),侯依玲 1,赵春雨 1,周晓宇 1
  1. 1. 中国气象局沈阳大气环境研究所,辽宁 沈阳 110166
    2. 沈阳区域气候中心,辽宁 沈阳 110166
  • 收稿日期:2018-12-29 修回日期:2019-04-20 出版日期:2019-06-10
  • 通讯作者: 孙凤华 E-mail:imlmy730@163.com;sfh3910839@sina.com
  • 基金资助:
    辽宁省科学技术计划项目“暴雨诱发的山洪灾害风险动态评估技术研究——以抚顺地区为例”(20180551217);中国气象局沈阳大气环境研究所开放基金课题“太子河流域水资源量变化特征及对生态环境的影响研究”(2017SYIAE10)

Runoff Change in Taizihe River Basin Under Future Climate Change Based on HBV Model

Mingyan Liu 1( ),Fenghua Sun 2( ),Yiling Hou 1,Chunyu Zhao 1,Xiaoyu Zhou 1

  1. 1. Institute of Atmospheric Environment, China Meteorological Administration, Shenyang 110166, China
    2. Regional Climate Center of Shenyang, Shenyang 110166, China
  • Received:2018-12-29 Revised:2019-04-20 Online:2019-06-10 Published:2019-07-05
  • Contact: Fenghua Sun E-mail:imlmy730@163.com;sfh3910839@sina.com
  • About author:Liu Mingyan(1987-), female, Shenyang City, Liaoning Province, Engineer. Research areas include climate change research and disaster risk assessment. E-mail: imlmy730@163.com
  • Supported by:
    Foundation item: Project supported by the Liaoning Science and Technology Project “Study on dynamic assessment technology of flood disaster risk caused by rainstorm-taking Fushun as an example”(NO. 20180551217);The Open Foundation of the China Meteorological Administration Shenyang Atmospheric Environment Research Institute “Study on variation characteristics of water resources in Taizihe River Basin and its impact on ecological environment”(NO. 2017SYIAE10)

以太子河流域为研究区域,采用HBV水文模型对流域的水文过程进行模拟,并选取RegCM4.4区域气候模式输出的平均气温和降水数据来驱动HBV水文模型,模拟逐日径流过程,分析RCP4.5排放情景下未来太子河流域径流的演变。结果表明,HBV水文模型在太子河流域模拟效果较好,率定期与验证期Nash效率系数与确定性系数均在0.60以上,模型基本模拟出了洪水对降水的响应过程。RCP4.5情景下,2021—2070年太子河流域年平均气温呈持续升温趋势,流域降水和年径流深度呈微弱减少趋势。相较于基准期,年径流深度将增多9.79%,夏季和秋季径流深度上升明显。径流分位数的变化表明,峰值极端径流和枯水极端径流均较基准期有不同程度的增多,未来太子河流域发生极端洪涝的可能性较高。

Taking the Taizihe River Basin located in Liaoning Province as a study area, we applied HBV hydrological model to simulate the hydrological process of this river basin with the support of observed daily precipitation, mean temperature, hydrological data in Xiaolinzi hydrologic station, and global digital elevation model data from SRTM3, land utilization types, etc. According to the simulation results of daily runoff, the possible impact of future climate change on runoff was analyzed through forcing HBV model by RegCM4.4 dynamic downscaled climatic data. The results show that HBV model performed generally well for daily simulation of the Taizihe River Basin with Nash Sutcliffe coefficient and deterministic coefficient being all over 0.60 in the calibration period and validation period, and the response of flooding to precipitation were simulated better. This indicates the HBV model can be successfully applied to the Taizihe River Basin. Mean temperature will increase obviously with persistent rising trend by RegCM4.4 model in 2021-2070 under RCP4.5 scenario. Annual precipitation and runoff depth are expected to reduce a bit. Compared with the baseline period (1986-2005), annual runoff depth will increase by 9.79%. At the same time, the runoff depth will increase significantly in summer and autumn. The variation of runoff quantile indicates that both peak extreme runoff and dry extreme runoff will increase to different degrees than that in the baseline period. In the future, the Taizihe River Basin will be likely to experience extreme flooding.

中图分类号:

图1 太子河流域高程、气象站及水文站分布
Fig.1 Distribution of elevationweather stations and hydrological station in Taizihe River Basin
表1 土壤持水力
Table1 The value of field capacity
表2 HBV水文模型最优参数值
Table 2 The optimal values of HBV model
图2 率定期模拟和实测径流深度及降水量曲线

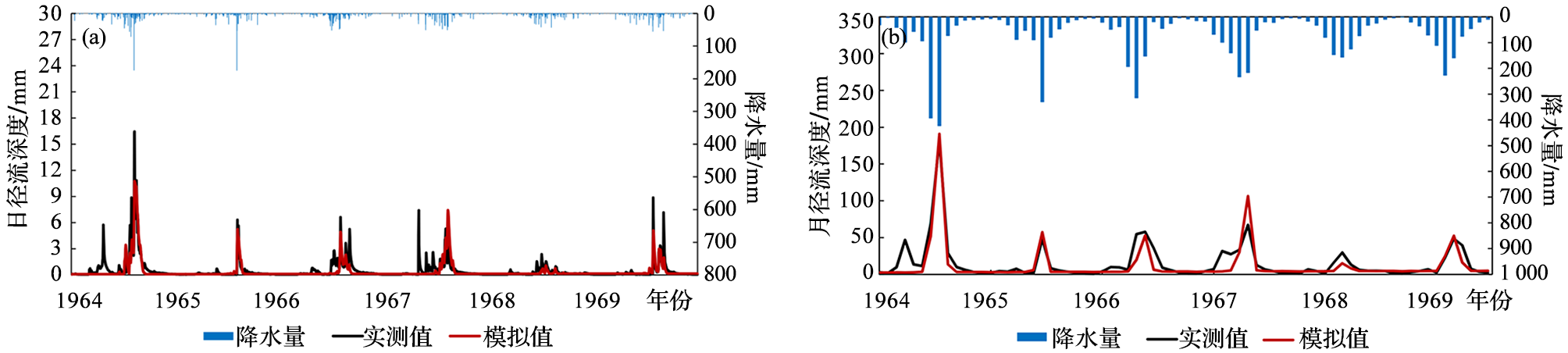

Fig.2 The observed and simulated runoff curves and daily precipitation for the calibration period
表3 太子河率定期与验证期模拟结果
Table 3 The simulation results in the calibration and validation period
图3 验证期模拟和实测径流深度及降水量曲线

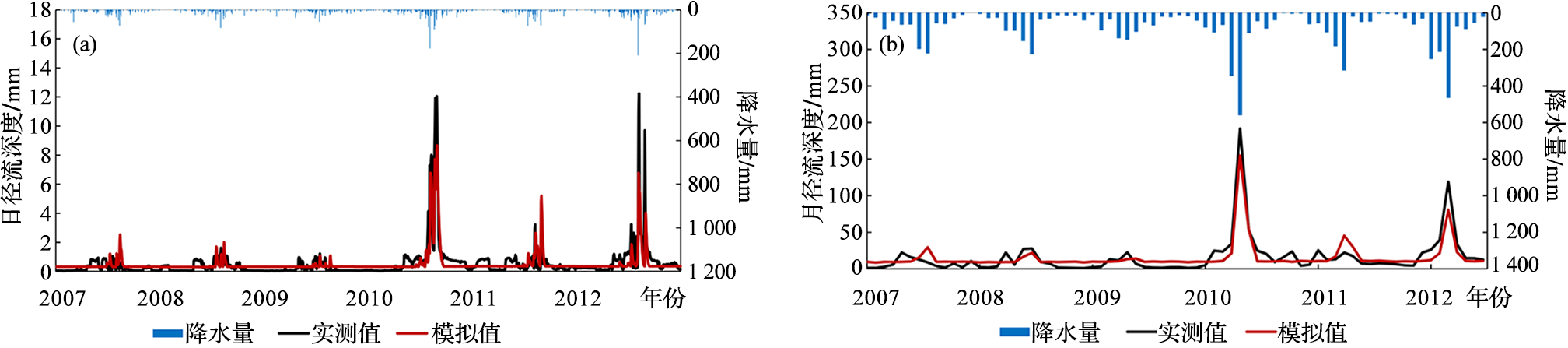

Fig.3 The observed and simulated runoff curves and daily precipitation for the validation period
图4 19802016年观测的太子河流域年平均气温和降水量变化

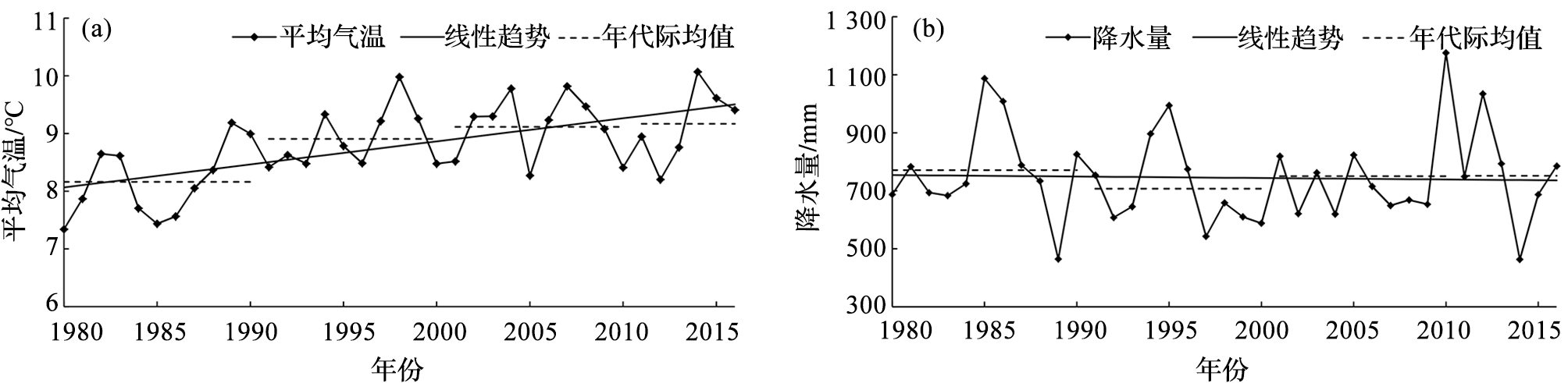

Fig.4 Temporal variations of annual mean temperature and precipitation during 1980-2016
图5 19802070年预估模拟的太子河流域年平均气温和降水量变化

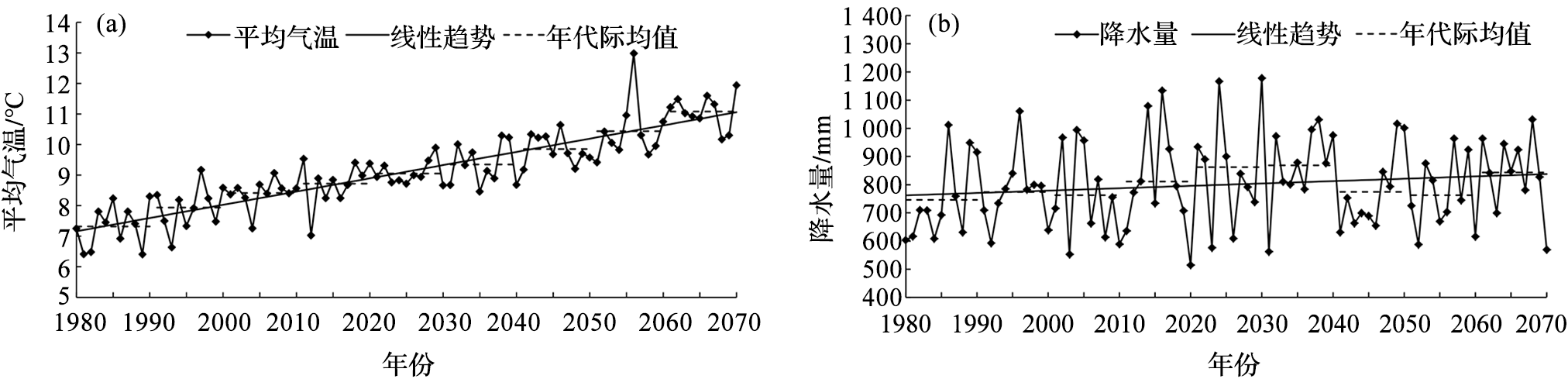

Fig.5 Temporal variations of annual mean temperature and precipitation during 1980-2070
图6 太子河流域平均气温与降水量的逐月变化

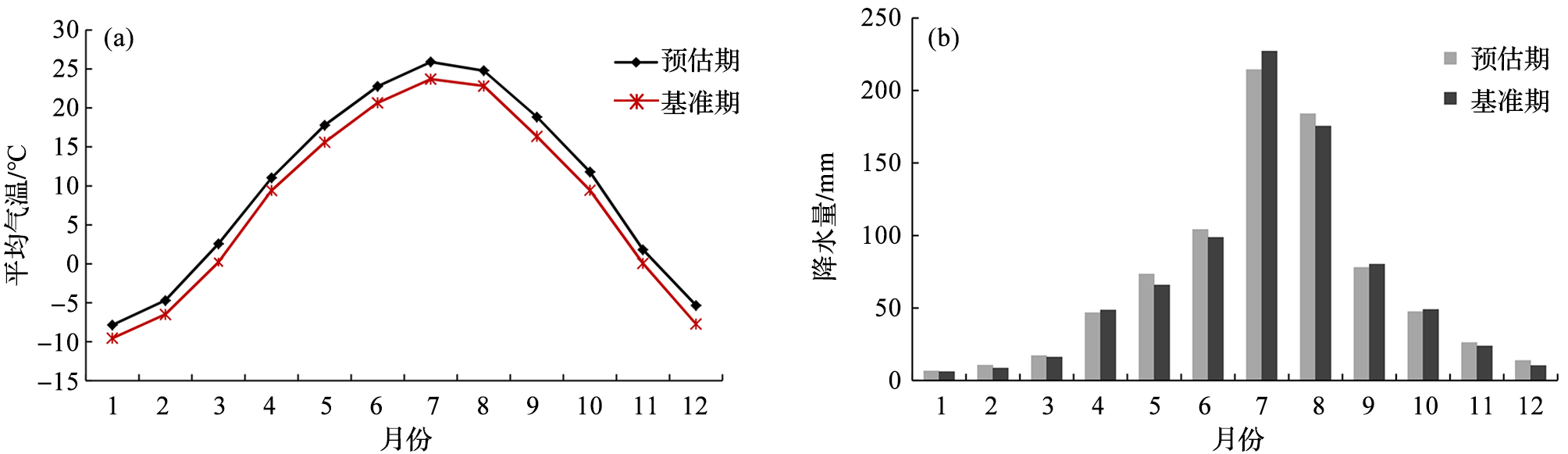

Fig.6 Monthly variations of temperature and precipitation
表4 20212070年气温和降水相对于基均期( 19862005年)的变化
Table 4 Annual and seasonal temperature and precipitation changes from 2021 to 2070 ( relative to from 1986 to 2005)
图7 20212070年太子河流域径流深度的年际变化

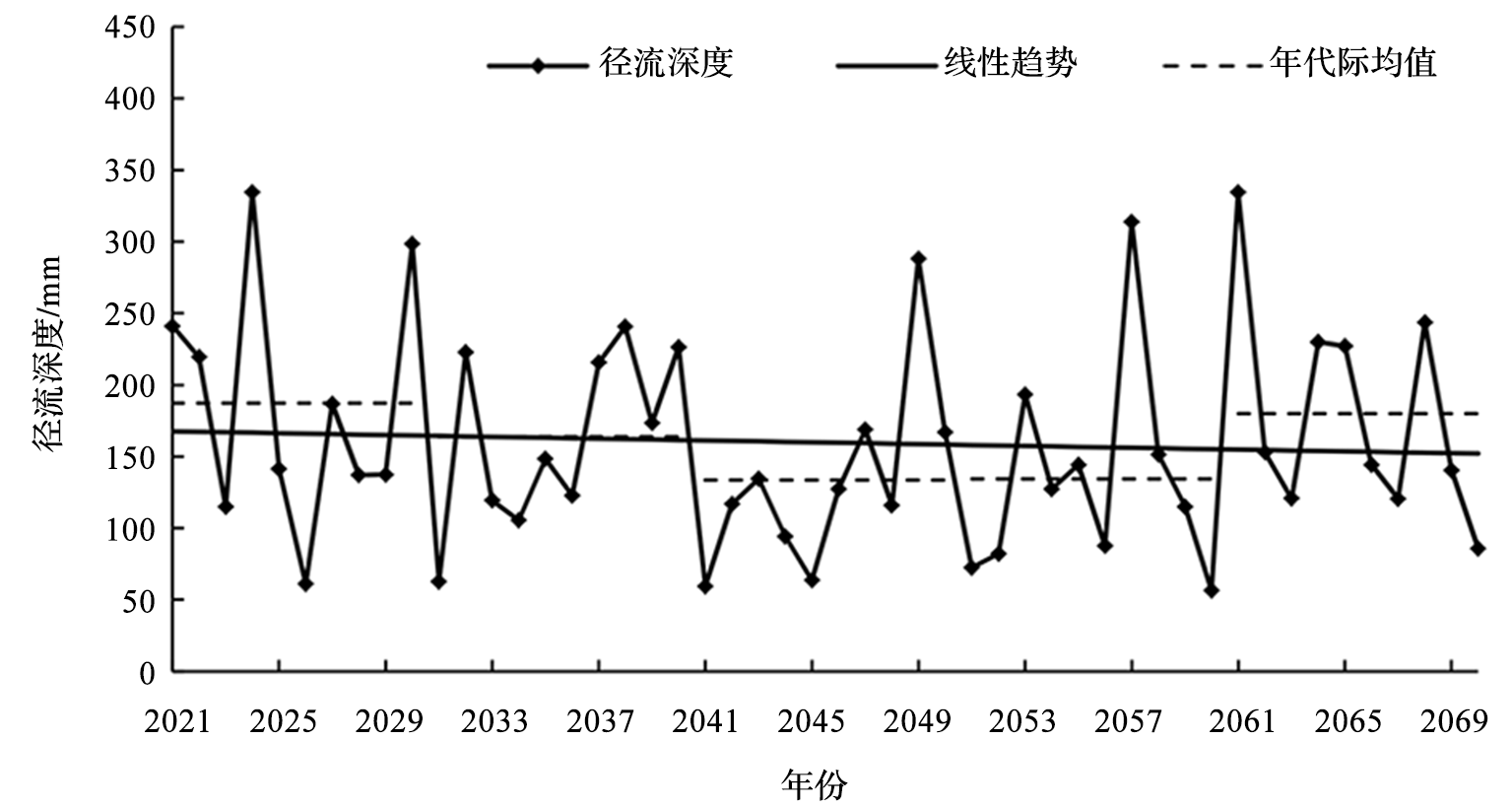

Fig.7 Temporal variations of runoff depth during 2021-2070
表5 不同年代径流模比系数
Table 5 Model ratio coefficients of runoff in different years
表6 20212070年径流深度相对于基准期( 19862005年)的变化
Table 6 Annual and seasonal runoff depth percentage changes from 2021 to 2070 relative to from 1986 to 2005)
图8 太子河流域径流深度的逐月变化

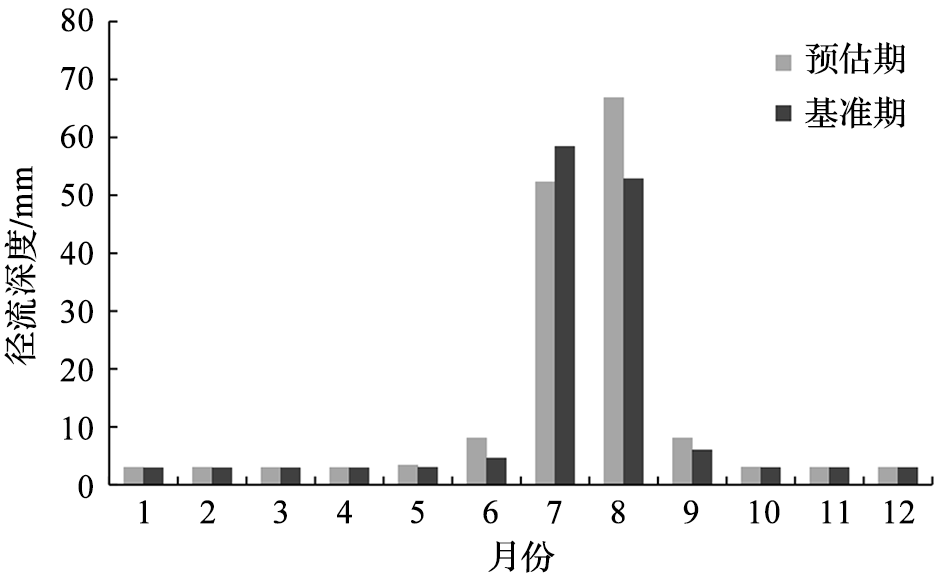

Fig.8 Monthly variations of runoff depth
