地球科学进展 ›› 2017, Vol. 32 ›› Issue (7): 731 -743. doi: 10.11867/j.issn.1001-8166.2017.07.0731

上一篇    下一篇

干旱区内流河流域长时间尺度水循环重建与模拟——以石羊河流域为例
李育( ), 刘媛
  1. 兰州大学西部环境教育部重点实验室,兰州大学资源环境学院,兰州大学干旱区水循环与水资源研究中心,甘肃 兰州 730000
  • 收稿日期:2017-03-15 修回日期:2017-06-25 出版日期:2017-07-20
  • 基金资助:
    国家自然科学基金面上项目“石羊河流域千年尺度垂直地带性规律与定量重建模型构建”(编号:41571178)和“风成沉积环境与水循环对流域性千年尺度气候变化的响应——以石羊河流域为例”(编号:41371009)资助

Long-term Reconstructions and Simulations of the Hydrological Cycle in the Inland Rivers, Arid China: A Case Study of the Shiyang River Drainage Basin

Yu Li( ), Yuan Liu

  1. Key Laboratory of Western China’s Environmental Systems(Ministry of Education), College of Earth and Environmental Sciences, Center for Hydrologic Cycle and Water Resources in Arid Region,Lanzhou University,Lanzhou 730000,China
  • Received:2017-03-15 Revised:2017-06-25 Online:2017-07-20 Published:2017-07-20
  • About author:

    First author:Li Yu(1981-), male, Lanzhou City, Gansu Province, Professor. Reserch area include paleoclimate change.E-mail:liyu@lzu.edu.cn

  • Supported by:
    Foundation Item:Project supported by the National Natural Science Foundation of China “Construction of millennium scale vertical zonality laws and quantitative reconstruction model in the Shiyang River drainage basin”(No.41571178) and “The response of aeolian sediments environment and hydrologic cycle to millennial-scale climate change of basin: A case study of the Shiyang River drainage basin”(No.41371009)

干旱区内流河流域水循环是干旱区古气候研究的热点,前人做了大量研究,但大部分研究主要利用气候代用指标重建古气候与古环境演化规律,长时间尺度模拟与重建对比研究较少。以石羊河流域为研究对象,在石羊河流域古环境记录基础上结合古气候模拟、全新世古季风模拟、湖泊能量与水量平衡模拟,古降水量和古径流量定量重建等方法,系统地模拟重建全新世时期石羊河流域水循环。可以看出模拟结果与重建结果具有很好的一致性,均指示中全新世是全新世“气候适宜期”。为干旱区流域性气候变化重建与模拟研究提供了新的视角。

Hydrological cycles of inland rivers are highlighted in paleoclimate studies of arid regions. A great number of studies have been published in this regard, but most of the studies have mainly used climate proxies to reconstruct the evolution of paleoclimate and paleoenvironment, and there have been little long-term simulation and reconstruction experiments. Concerning this issue, we systematically carried out the long-term reconstruction and simulation experiments of hydrological cycle based on paleoenvironment records of the Shiyang River drainage basin with a lot of methods such as paleoclimate simulations, the Holocene monsoon simulations, lake water and energy balance model and quantitative reconstruction of paleo-precipitation and paleo-runoff. The results showed that the simulation results had a good consistency with the reconstruction results, indicating that mid-Holocene was “climatic optimum” in the Holocene. This research provided a new perspective for reconstruction and simulation studies of climate change in arid areas.

中图分类号:

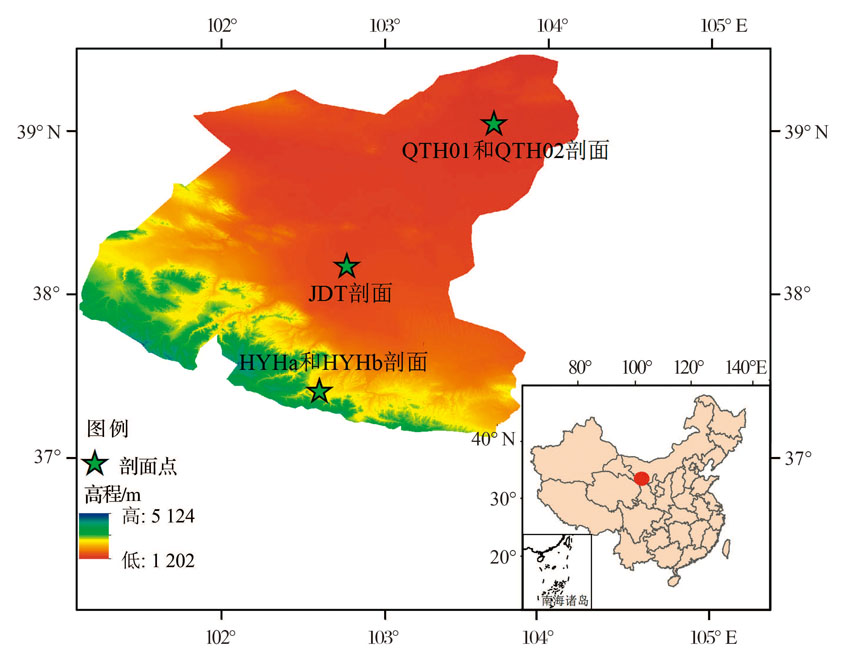

图1 石羊河流域上游、中游、下游不同地貌单元环境记录分布图
Fig.1 The locations of HYH, JDT and QTH records in the Shiyang River drainage basin
表1 CCSM3.0气候模型早、中晚全新世的模拟边界值
Table 1 Boundary conditions used for CCSM3.0 model experiments at 8.5 ka, 6 ka and PI
表2 石羊河流域水陆面积与陆面面积分布
Table 2 The land surface area and water surface area of Shiyang River drainage area

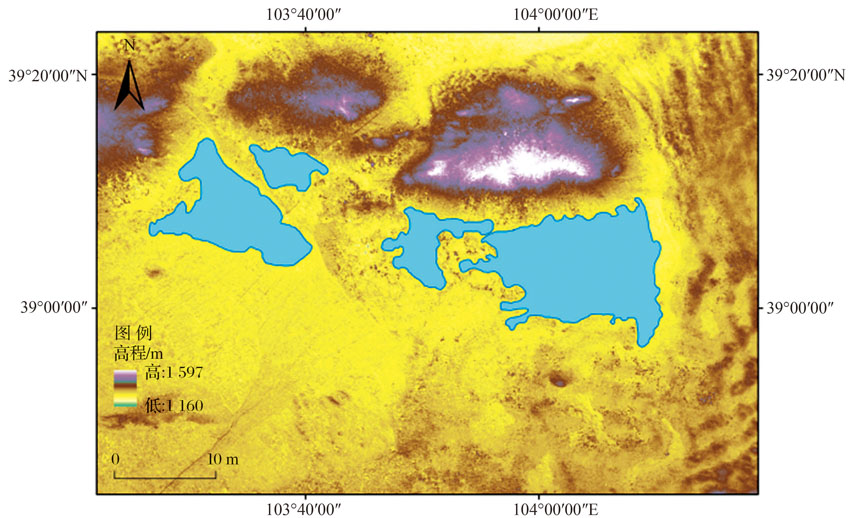

图2 石羊河终闾湖全新世面
Fig.2 The terminal lake scope of Shiyang River drainage area during the Holocene
表3 全新世期间所有古气候参数
Table 3 The paleoclimate parameters of Shiyang River drainage area during the Holocene

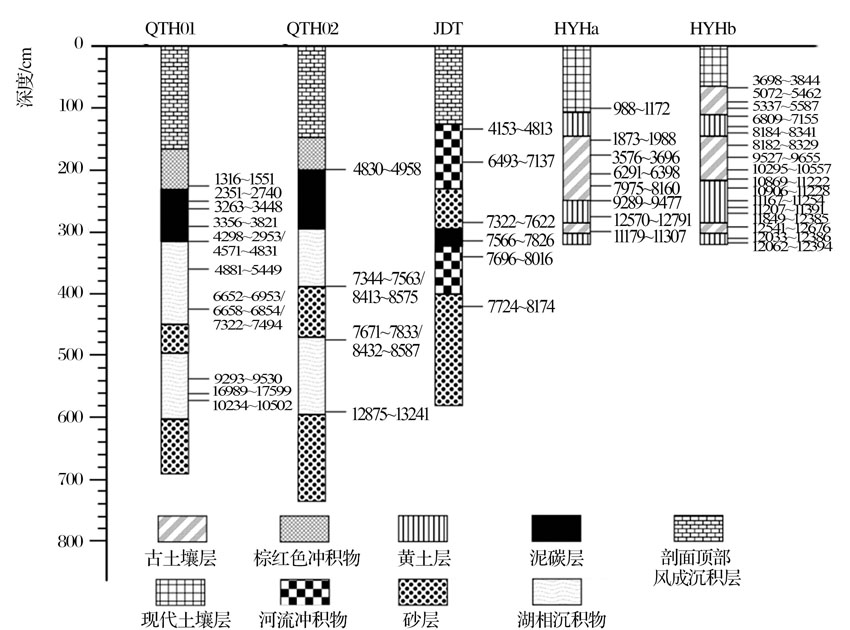

图3 HYHa,HYHb,JDT和QTH01,QTH02剖面岩性和校正后的 14C 年代结果(cal a BP)
Fig.3 Lithology and the calibrated 14C dates (cal a BP) for the HYHa,HYHb,JDT和QTH01,QTH02 sections

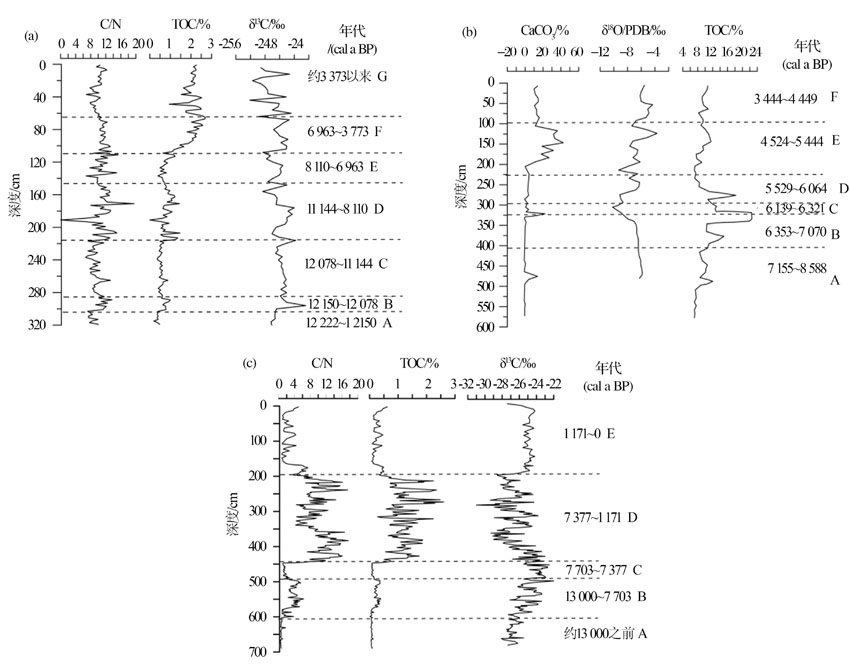

图4 石羊河流域上游、中游、下游剖面地球化学指标数据示意图
(a),(b) [ 13 ],(c)分别为上游、中游、下游剖面
Fig.4 Geochemical proxies for upstream、middle stream and downstream sections in the Shiyang River drainage basin
(a), (b) [ 13 ] and (c) indicate upstream section,middle stream section and downstream section, respectively

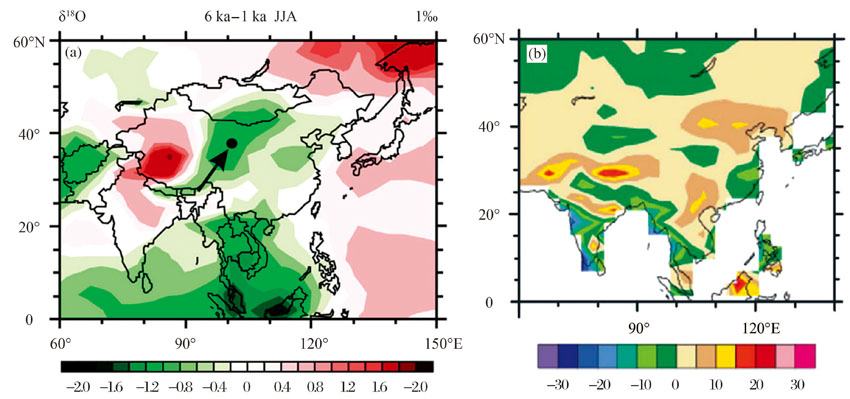

图5 TRACE模型模拟的东亚中全新世(6 ka)和晚全新世(1 ka)间降水加权的夏季(JJA) δ 18O值分布差异(a) [ 7 ]以及CCSM3.0系统模拟的中全新世(6 ka)和晚全新世(1 ka)间降水差异(b)
Fig.5 The precipitation weighted summer (JJA) δ 18O distribution difference between 6 ka and 1 ka in East Asia in TRACE model(a) [ 7 ]and precipitation difference(cm) between 6 ka and 1 ka in East Asia in CCSM3.0(b)

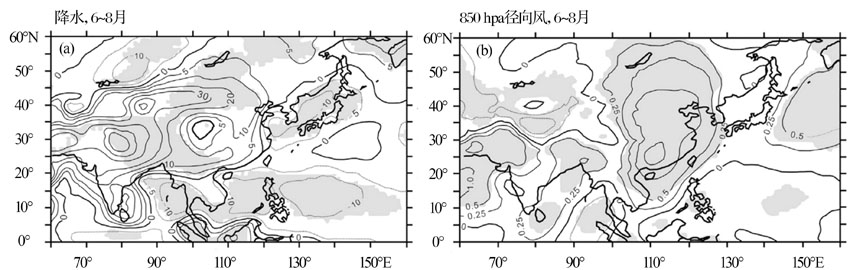

图6 PMIP3模型耦合模拟的中全新世(6~0 ka)夏季(JJA)降水(%)(a)和850 hPa经向风(m/s)对轨道驱动力的响应(b) [ 7 , 46 ]
Fig.6 The ensemble mean of the PMIP3 models with equal weight indicating changes of summer precipitation (%) (6~0 ka) (a) and 850 hPa meridional wind (m/s) of JJA (6~0 ka) (b) in response to orbital forcing in the mid-Holocene [ 7 , 46 ]

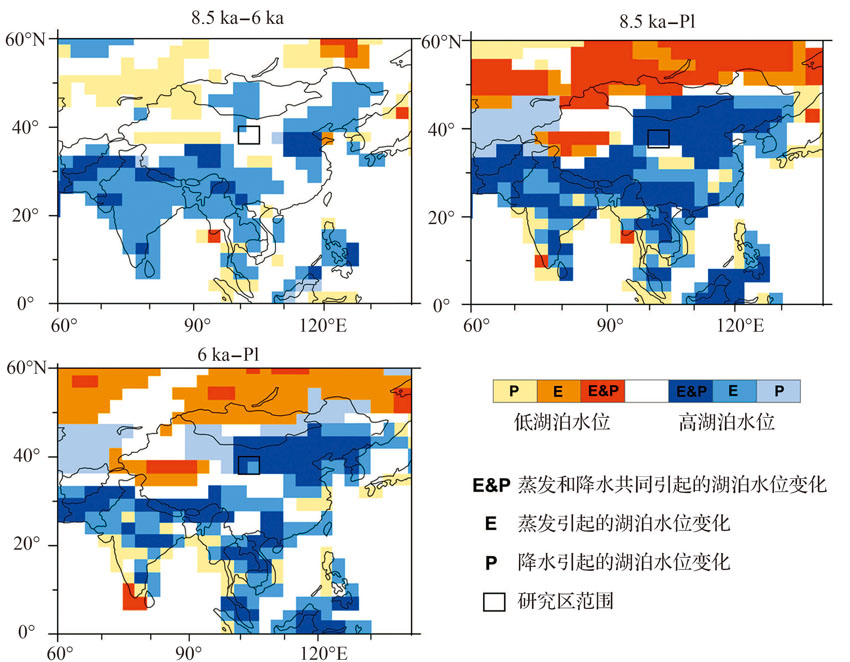

图7 湖泊能量与水量平衡模型模拟的全新世以来湖泊水位高低变化及其原因
深橘色代表降水和表面蒸发共同引起的湖泊水位下降,橘色代表湖泊表面蒸发量增加引起的湖泊水位下降,黄色分别代表降水减少引起的湖泊水位下降;深蓝色代表降水和表面蒸发共同引起的湖泊水位上升,蓝色代表湖泊表面蒸发量降低引起的湖泊水位上升,浅蓝色代表降水增加引起的湖泊水位上升
Fig.7 The results and reasons of lake-level changes based on the lake water & energy balance model since the Holocene
The dark orange, orange, light orange mean the decreased lake level caused by the combined effects of decreased precipitation and lake increased evaporation, increased lake evaporation, decreased precipitation, respectively; the dark blue, blue, light blue mean the increased lake level caused by the combined effects of increased precipitation and decreased lake evaporation, decreased lake evaporation, and increased precipitation, respectively; the white color of grid cells means no lake level change
表4 全新世时期石羊河流域古降水与古径流
Table 4 Paleoprecipitation and runoff of the Shiyang River drainage area during the Holocene
[1] Allen M R, Ingram W J.Constraints on future changes in climate and the hydrologic cycle[J].Nature, 2002, 419(6 903): 224-232.
[2] Gat J R.Oxygen and hydrogen isotopes in the hydrologic cycle[J].Earth and Planetary Sciences, 1996, 24(24): 225-262.
[3] Chen F, Xu Q, Chen J, et al.East Asian summer monsoon precipitation variability since the Last Deglaciation[J]. Scientific Reports, 2015, 5: 11 186.
[4] Zhao Y, An C B, Mao L, et al.Vegetation and climate history in arid western China during MIS2: New insights from pollen and grain-size data of the Balikun lake, eastern Tien Shan[J]. Quaternary Science Reviews, 2015, 126: 112-125.
[5] An Z, Colman S M, Zhou W, et al.Interplay between the Westerlies and Asian monsoon recorded in lake Qinghai sediments since 32 ka[J]. Scientific Reports, 2012, 2(8): 619.
[6] Zhou W, Liu T, Wang H, et al.Geological record of meltwater events at Qinghai Lake, China from the past 40 ka[J]. Quaternary Science Reviews, 2016, 149: 279-287.
[7] Liu Z, Wen X, Brady E C, et al.Chinese cave records and the East Asia Summer Monsoon[J]. Quaternary Science Reviews, 2014, 83(1): 115-128.
[8] Liu X, Vandenberghe J, An Z, et al.Grain size of Lake Qinghai sediments: Implications for riverine input and Holocene monsoon variability[J]. Palaeogeography Palaeoclimatology Palaeoecology, 2016, 449: 41-51.
[9] An Z, Clemens S C, Shen J, et al.Glacial-interglacial Indian summer monsoon dynamics[J]. Science, 2011, 333(6 043): 719-723.
[10] Li Y, Wang N, Morrill C, et al. Millennial-scale erosion rates in three inland drainage basins and their controlling factors since the Last Deglaciation, arid China[J]. Palaeogeography Palaeoclimatology Palaeoecology, 2012,365/366(9): 263-275.
[11] Mischke S, Lai Z, Long H, et al.Holocene climate and landscape change in the northeastern Tibetan Plateau foreland inferred from the Zhuyeze Lake record[J]. Holocene, 2016, 26(4):643-654.
[12] Yu L P, Lai Z P.Holocene climate change inferred from stratigraphy and OSL chronology of aeolian sediments in the Qaidam Basin, northeastern Qinghai-Tibetan Plateau[J]. Quaternary Research, 2014, 81(3): 488-499.
[13] Zhang H C, Ma Y Z, Wunnemann B, et al.A Holocene climatic record from arid northwestern China[J].Palaeogeography Palaeoclimatology Palaeoecology, 2000, 162(3): 389-401.
[14] Bibi M H, Ahmed F, Ishiga H.Distribution of arsenic and other trace elements in the Holocene sediments of the Meghna River Delta, Bangladesh[J].Environmental Geology, 2006, 50(8): 1 243-1 253.
[15] Li Y, Wang N A, Cheng H Y, et al.Holocene environmental change in the marginal area of the Asian monsoon: A record from Zhuye lake, NW China[J]. Boreas, 2009, 38(2): 349-361.
[16] Li Y,Wang N A,Morrill C,et al.Environmental change implied by the relationship between pollen assemblages and grain-size in N.W.Chinese lake sediments since the Late Glacial[J].Review of Palaeobotany & Palynology,2009,154(1/4):54-64.
[17] Long H, Lai Z P, Fuchs M, et al. Timing of Late Quaternary palaeolake evolution in Tengger Desert of northern China and its possible forcing mechanisms[J]. Global & Planetary Change, 2012, 92/93(4): 119-129.
[18] Herzschuh U.Palaeo-moisture evolution in monsoonal Central Asia during the last 50 000 years[J]. Quaternary Science Reviews, 2006, 25(1/2): 163-178.
[19] An C B, Feng Z D, Barton L.Dry or humid? Mid-Holocene humidity changes in arid and semi-arid China[J]. Quaternary Science Reviews, 2006, 25(3): 351-361.
[20] Qin B, Yu G.Implications of lake level variations at 6 ka and 18 ka in mainland Asia[J].Global & Planetary Change, 1998, 18(1/2): 59-72.
[21] Yu G, Xue B, Liu J, et al.LGM lake records from China and an analysis of climate dynamics using a modelling approach[J].Global & Planetary Change, 2003, 38(3/4): 223-256.
[22] Huo Z L, Feng S Y, Kang S Z, et al.Effect of climate changes and water-related human activities on annual stream flows of the Shiyang River Basin in arid north-west China[J].Hydrological Processes, 2008, 22(16): 3 155-3 167.
[23] Liu Y, Li Y.Quantitative reconstruction of precipitation and runoff during MIS 5a, MIS 3a, and Holocene, arid China[J].Theoretical & Applied Climatology, 2016,24(2): 1-8.
[24] Chen Fahu, Zhu Yan, Wunemann B, et al.Abrupt Holocene changes of the Asian monsoon at millennial-and centennial-scales: Evidence from lake sediment document in Minqin Basin, NW China[J].Chinese Science Bulletin, 2001, 46(23): 1 414-1 419.
[陈发虎, 朱艳, Wunemann B, 等. 民勤盆地湖泊沉积记录的全新世千百年尺度夏季风快速变化[J]. 科学通报, 2001, 46(17): 1 414-1 419.]
[25] Jiang Qingfeng, Shen Ji, Liu Xingqi, et al.Environmental changes recorded by lake sediments fromlake Jili, Xinjiang during the past 2500 years[J].Journal of Lake Sciences, 2010, 22(1): 119-126.
[蒋庆丰, 沈吉, 刘兴起, 等.2.5 ka来新疆吉力湖湖泊沉积记录的气候环境变化[J]. 湖泊科学, 2010, 22(1): 119-126.]
[26] Li Y, Wang Y, Zhang C.Interactions among millennial-scale geomorphic processes in different parts of a drainage basin, arid China[J].Physical Geography, 2015,36(5): 1-28.
[27] Li Y, Zhang C, Wang Y.The verification of millennial-scale monsoon water vapor transport channel in northwest China[J].Journal of Hydrology, 2016, 536: 273-283.
[28] Li Y,Wang N A,Zhang C Q,et al.Early Holocene environment at a key location of the northwest boundary of the Asian summer monsoon:A synthesis on chronologies of Zhuyelake,Northwest China[J]. Journal of Arid Land,2014,6(5):511-528.
[29] Li Y, Morrill C.A Holocene East Asian winter monsoon record at the southern edge of the Gobi Desert and its comparison with a transient simulation[J].Climate Dynamics, 2015, 45(5/6): 1 219-1 234.
[30] Li Y, Xu L.Asynchronous Holocene Asian monsoon vapor transport and precipitation[J]. Palaeogeography Palaeoclimatology Palaeoecology, 2016, 461: 195-200.
[31] Wang Y, Li Y, Zhang C.Holocene millennial-scale erosion and deposition processes in the middle reaches of inland drainage basins, arid China[J].Environmental Earth Sciences, 2016, 75(6) :1-15.
[32] Li Yu, Wang Yue, Zhang Chengqi, et al.Changes of sedimentary facies and Holocene environments in the middle reaches of inland rivers, arid China: A case study of the Shiyang River[J].Geographical Research, 2014, 33(10): 1 866-1 880.
[李育, 王岳, 张成琦,等. 干旱区内陆河流域中游地区全新世沉积相变与环境变化——以石羊河流域为例[J]. 地理研究, 2014, 33(10): 1 866-1 880.]
[33] Li Yu, Wang Naiang, Li Zhuolun, et al.The relationship among organic geochemical proxies and their palaeoenvironmental significances in the Zhuye Lake sediments[J]. Journal of Glaciology and Geocryology, 2011, 33(2): 334-341.
[李育, 王乃昂, 李卓仑,等. 河西猪野泽沉积物有机地化指标之间的关系及古环境意义[J]. 冰川冻土, 2011, 33(2): 334-341.]
[34] Li Yu, Wang Naiang, Li Zhuolun, et al.Holocene palynological records and their responses to the controversies of climate system in the Shiyang River drainage basin[J].Chinese Science Bulletin, 2011, 56(6): 535-546.
[李育, 王乃昂, 李卓仑,等. 石羊河流域全新世孢粉记录及其对气候系统响应争论的启示[J]. 科学通报, 2011,56(2): 161-173.]
[35] Zhang Chengqi, Li Yu, Zhou Xuehua, et al.A sedimentological interpretation of the inverse correlation between saline mineral and detritals mineral in the Late Quaternary lake sediments[J].Journal of Glaciology and Geocryology, 2015, 37(1): 95-108.
[张成琦, 李育, 周雪花,等. 晚第四纪湖泊沉积物盐类与碎屑矿物反相关关系的沉积学解释[J]. 冰川冻土, 2015, 37(1): 95-108.]
[36] Berger A.Long-term variations of caloric insolation resulting from the Earth’s orbital elements[J].Quaternary Research, 1978, 9(2): 139-167.
[37] Fluckiger J, Dallenbach A, Blunier T, et al.Variations in atmospheric N2O concentration during abrupt climatic changes[J]. Science, 1999, 285(5 425): 227-230.
[38] Flückiger J, Monnin E, Stauffer B, et al. High-resolution Holocene N2O ice core record and its relationship with CH4 and CO2[J]. Global Biogeochemical Cycles, 2002, 16(1): 10-1-10-8.
[39] Monnin E, Steig E J, Siegenthaler U, et al.Evidence for substantial accumulation rate variability in Antarctica during the Holocene, through synchronization of CO2, in the Taylor Dome, Dome C and DML ice cores[J]. Earth & Planetary Science Letters, 2004, 224(1/2): 45-54.
[40] Peltier W R.Global glacial isostasy and the surface of the ice-age Earth: The ICE-5G (VM2) model and Grace[J].Annual Review of Earth and Planetary Sciences, 2004, 20(32): 111-149.
[41] Jin Liya, Bette L O.Advances of PMIP in the last 10 years and its key themes of future research plan[J].Quaternary Sciences, 2009, 29(6): 1 015-1 024.
[靳立亚, Bette L O.近10年来“国际古气候模拟比较计划(PMIP)”回顾和未来古气候模拟研究热点[J]. 第四纪研究, 2009, 29(6): 1 015-1 024.]
[42] Wang T, Wang H, Jiang D.Mid-Holocene East Asian summer climate as simulated by the PMIP2 models[J]. Palaeogeography Palaeoclimatology Palaeoecology, 2010, 288(4): 93-102.
[43] Mason I M, Guzkowska M A J, Rapley C G, et al. The response of lake levels and areas to climatic change[J].Climatic Change, 1994, 27(2): 161-197.
[44] Hostetler S W, Bartlein P J.Simulation of lake evaporation with application to modeling lake level variations of Harney-Malheur Lake, Oregon[J].Water Resources Research, 1990, 26(10): 2 603-2 612.
[45] Budyko M.Climate and Life[M].New York USA: Academic Press, 1974.
[46] Zheng W, Wu B, He J, et al.The East Asian Summer Monsoon at mid-Holocene: Results from PMIP3 simulations[J]. Climate of the Past Discussions, 2013, 8(4): 3 251-3 276.
[47] Chen Jian, Lu Dinghuang.Division of monsoon climatic regions in China[J]. Biomedical and Environmental Science, 1981,(4): 1-8.
[陈健, 陆鼎煌. 中国季风气候区域的划分[J]. 北京林业大学学报, 1981,(4): 1-8.]
[48] Wang B, Ding Q.Changes in global monsoon precipitation over the past 56 years[J].Geophysical Research Letters, 2006, 33(6): 272-288.
[49] Liu J, Kuang X Y, Wang B, et al.Centennial variations of the global monsoon precipitation in the Last Millennium: Results from ECHO-G Model[J]. Journal of Climate, 2009, 22: 2 356-2 371.
[50] Chen F H, Yu Z C, Yang M L, et al.Holocene moisture evolution in arid central Asia and its out-of-phase relationship with Asian monsoon history[J]. Quaternary Science Reviews, 2008, 27(3): 351-364.
[51] Li Y, Morrill C.Multiple factors causing Holocene lake-level change in monsoonal and arid central Asia as identified by model experiments[J]. Climate Dynamics, 2010, 35: 1 119-1 132.
[52] Wang Keli, Jiang Hao, Zhao Hongyan.Atmospheric water vapor transport from westerly and monsoon over the Northwest China[J]. Advances in Water Science, 2005, 16(3): 432-438.
[王可丽, 江灏, 赵红岩. 西风带与季风对中国西北地区的水汽输送[J]. 水科学进展, 2005, 16(3): 432-438.]
[53] Li Jijun.The patterns of environmental changes since Late Pleistocene in northwestern China[J]. Quaternary Sciences, 1990,(3): 197-204.
[李吉均. 中国西北地区晚更新世以来环境变迁模式[J]. 第四纪研究, 1990,(3): 197-204.]
[54] Chen F H, Cheng B, Zhao Y, et al.Holocene environmental change inferred from a high-resolution pollen record, lake Zhuyeze, arid China[J]. Holocene, 2006, 16(5): 675-684.
[55] Li Y, Wang N A, Li Z L, et al.Comprehensive analysis of lake sediments in Yanchi Lake of Hexi Corridor since the late glacial[J]. Acta Geographica Sinica, 2013, 68(7): 933-944.
[56] Zhu L, Zhen X, Wang J, et al.A ~30,000-year record of environmental changes inferred from Lake Chen Co, southern Tibet[J]. Journal of Paleolimnology, 2009, 42(3): 343-358.
[57] Wang R L, Scarpitta S C, Zhang S C, et al.Later Pleistocene/Holocene climate conditions of Qinghai-Xizhang Plateau (Tibet) based on carbon and oxygen stable isotopes of Zabuye Lake sediments[J].Earth and Planetary Science Letters, 2002, 203(1): 461-477.
[58] Shen J, Liu X, Wang S, et al.Palaeoclimatic changes in the Qinghai Lake area during the last 18,000 years[J]. Quaternary International, 2005, 136(1): 131-140.
[59] Dykoski C A, Edwards R L, Cheng H, et al.A high-resolution, absolute-dated Holocene and deglacial Asian monsoon record from Dongge Cave, China[J]. Earth and Planetary Science Letters, 2005, 233(1/2): 71-86.
[60] Yancheva G, Nowaczyk N R, Mingram J, et al.Influence of the intertropical convergence zone on the East Asian monsoon[J]. Nature, 2007, 445(7 123): 74-77.
