降水观测误差修正研究进展

doi:10.11867/j.issn.1001-8166.2017.07.0723

地球科学进展 ›› 2017, Vol. 32 ›› Issue (7): 723 -730. doi: 10.11867/j.issn.1001-8166.2017.07.0723

降水观测误差修正研究进展

张乐乐 ^1, ²(

), 高黎明 ^1, ², 赵林 ³, 乔永平 ³, 史健宗 ³

1.青海师范大学生命与地理科学学院,青海西宁 810008
2.青海省自然地理与环境过程重点实验室,青海西宁 810008
3. 中国科学院西北生态环境资源研究院青藏高原冰冻圈观测研究站/冰冻圈科学国家重点实验室,甘肃兰州 730000

收稿日期:2017-03-19 修回日期:2017-06-26 出版日期:2017-07-20
基金资助:
国家自然科学基金青年科学基金项目“青藏高原腹地雨量筒降水观测误差的修正”(编号:41705139);青海省基础研究计划项目“青海湖流域植被退化的生态水文效应研究”(编号:2017-ZJ-951Q)资助

Review on Correction of Errors in Precipitation Measurement

Lele Zhang ^1, ²( ), Liming Gao ^1, ², Lin Zhao ³, Yongping Qiao ³, Jianzong Shi ³

1.School of Life Science and Geography, Qinghai Normal University, Xining 810008, China
2.Qinghai Province Key Laboratory of Phyical Geography and Environmental Process, Qinghai Normal University, Xining 810008, China
3.Cryosphere Research Station on the Qinghai-Tibet Plateau, State Key Laboratory of Cryosheric Sciences, Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou 730000, China

Received:2017-03-19 Revised:2017-06-26 Online:2017-07-20 Published:2017-07-20
About author:
First author:Zhang Lele(1986-), male, Xin’an City, He’nan Province, Lecturer. Research areas include hydrology and surface processes in cold regions.E-mail:zhang1986lele@163. Com
Supported by:
Project supported by the National Natural Science Foundation of China “Bias correction of precipitation measured by rain gauges in the interior Qinghai-Tibetan Plateau”(No.41705139);Basic Research Project of Qinghai Province “Ecological and hydrological effects of vegetation degradation in Qinghai Lake Basin” (No.2017-ZJ-951Q)

全文 ( 3 ) 下载PDF ( 948 )

获取准确的降水量是研究气候变化以及水文循环的基础,国内外学者针对雨量筒降水量捕捉率不足的问题做了大量工作。对近几十年来国内外降水量对比观测及雨量筒降水量修正方面的研究进行综述,认为目前对液态降水修正方案较为成熟,但是对固态降水尚未形成一个统一的修正标准。主要原因在于目前的降水量修正方案缺少对降水微过程的考虑。充分考虑降水微过程是给出包含物理意义降水量修正方案的关键。另外,更为细致的降水类型判定方案以及对微量降水事件的记录也是确定降水修正方案需要重点解决的问题。

关键词: 雨量筒, 降水类型, 动力损失, 降水量修正

Accurate precipitation is the basis for better understanding the climate change and water cycle process. The domestic and foreign scholars have done a great deal of work for the insufficient catch rate of rain gauges. A review of recent studies on correction of errors in precipitation measurement was given in this paper. It is considered that the correction scheme for liquid precipitation is mature at present, but there is not a uniform standard for solid precipitation correction. The main reason is that the current precipitation correction schemes are lack of consideration of precipitation micro process. The full consideration of the precipitation micro process is the key to the correction of precipitation with physical significance. In addition, more detailed precipitation type determination and the record of light precipitation events are also key problems to determine the precipitation correction scheme.

Key words: Rain gauge, Precipitation type, Precipitation dynamic loss, Precipitation correction.

中图分类号:

P332.1

表1 不同雨量筒降水观测误差修正方案

Table 1 Correction scheme of rainfall observation error for different rain gauges

雨量筒	防风圈	修正方案			参考文献
雨量筒	防风圈	固态		混合态	液态
Geonor	有	CE=exp(-0.2WS)	-	-	[45]
Geonor	有	CE=1.01exp(-0.09WS)	-	-	[46]
NWS 8-inch	无	CE=exp(4.606-0.157WS^1.28)	CE=100.77-8.34WS	CE=exp(4.605-0.062WS^0.58)	[47]
NWS 8-inch	有	CE=exp(4.606-0.036WS^1.75)	CE=101.04-5.62WS	CE=exp(4.606-0.041WS^0.69)	[47]
NWS 8-inch	有	CE=102.421+12.847WS-6.125T_mean	CE=107.73+6.013WS-7.802T_mean	-	[48]
Tretyakov	有	CE=101.9-10.3WS	CE=100.4-6.7WS	-	[49]
Tretyakov	有	CE=103.1-8.67WS+0.3T_max	CE=96.99-4.46WS+0.88T_max+0.22T_min	CE=100-4.77WS^0.56	[50]
Hellmann	无	CE=100-11.95WS+0.55WS²	CE=100-8.16WS+0.45WS²	CE=100-4.37WS+0.35WS²	[51]
Hellmann	无	CE=100-19.45WS+1.13WS²	CE=96.63-0.98WS+0.41WS²-7.802T_mean	-	[52]
Nipher	有	CE=100-1.98WS-0.44WS²	CE=97.29-3.18WS+0.58T_max-0.67T_min	-	[52]

表1 不同雨量筒降水观测误差修正方案

Table 1 Correction scheme of rainfall observation error for different rain gauges

雨量筒	防风圈	修正方案			参考文献
雨量筒	防风圈	固态		混合态	液态
Geonor	有	CE=exp(-0.2WS)	-	-	[45]
Geonor	有	CE=1.01exp(-0.09WS)	-	-	[46]
NWS 8-inch	无	CE=exp(4.606-0.157WS^1.28)	CE=100.77-8.34WS	CE=exp(4.605-0.062WS^0.58)	[47]
NWS 8-inch	有	CE=exp(4.606-0.036WS^1.75)	CE=101.04-5.62WS	CE=exp(4.606-0.041WS^0.69)	[47]
NWS 8-inch	有	CE=102.421+12.847WS-6.125T_mean	CE=107.73+6.013WS-7.802T_mean	-	[48]
Tretyakov	有	CE=101.9-10.3WS	CE=100.4-6.7WS	-	[49]
Tretyakov	有	CE=103.1-8.67WS+0.3T_max	CE=96.99-4.46WS+0.88T_max+0.22T_min	CE=100-4.77WS^0.56	[50]
Hellmann	无	CE=100-11.95WS+0.55WS²	CE=100-8.16WS+0.45WS²	CE=100-4.37WS+0.35WS²	[51]
Hellmann	无	CE=100-19.45WS+1.13WS²	CE=96.63-0.98WS+0.41WS²-7.802T_mean	-	[52]
Nipher	有	CE=100-1.98WS-0.44WS²	CE=97.29-3.18WS+0.58T_max-0.67T_min	-	[52]

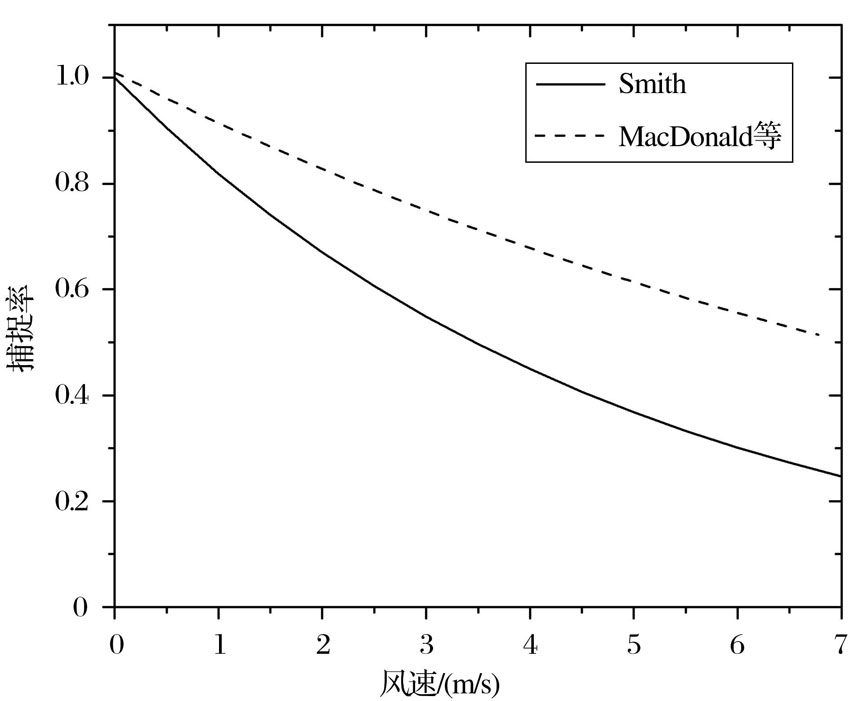

图1 2种Geonor T-200B固态降水量修正方案的差异性

Fig.1 The difference of two kinds of Geonor T-200B solid precipitation correction schemes

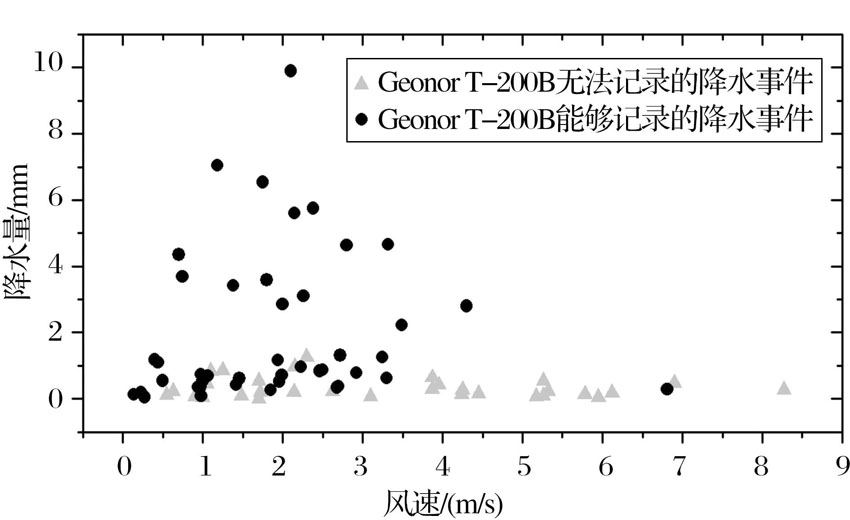

图2 不同风速下Geonor T-200B雨量筒对降水事件的记录情况

Fig.2 Precipitation threshold that can be detected by the Geonor T-200B under different wind conditions

表2 2012年北麓河地区不同强度降水发生的概率

Table 2 Probability of occurrence of different intensity precipitation in 2012

	总降水天数	日降水量 <1 mm的概率	日降水量 <0.5 mm的概率	日降水量 <0.1 mm的概率
年	223	55%	44%	25%
冷季	98	80%	68%	45%
暖季	125	35%	25%	10%

表2 2012年北麓河地区不同强度降水发生的概率

Table 2 Probability of occurrence of different intensity precipitation in 2012

	总降水天数	日降水量 <1 mm的概率	日降水量 <0.5 mm的概率	日降水量 <0.1 mm的概率
年	223	55%	44%	25%
冷季	98	80%	68%	45%
暖季	125	35%	25%	10%

[1]	Wanders N, Pan M, Wood E F.Correction of real-time satellite precipitation with multi-sensor satellite observations of land surface variables[J].Remote Sensing of Environment, 2015, 160: 206-221.
[2]	Prein A F, Gobiet A.Impacts of uncertainties in European gridded precipitation observations on regional climate analysis[J].International Journal of Climatology, 2017, 37(1): 305-327.
[3]	Guo Ruifang, Liu Yuanbo.Multi-satellite retrieval of high resolution precipitation: An overview[J]. Advances in Earth Science, 2015, 30(8):891-903.
	[郭瑞芳, 刘元波. 多传感器联合反演高分辨率降水方法综述[J]. 地球科学进展, 2015, 30(8):891-903.]
[4]	Wang Lei, Chen Rensheng, Song Yaoxuan.Study of statistical characteristics of wet season hourly rainfall at hulu watershed with Γ function in Qilian Mountains[J]. Advances in Earth Science, 2016, 31(8):840-848.
	[王磊, 陈仁升, 宋耀选. 基于Γ函数的祁连山葫芦沟流域湿季小时降水统计特征[J]. 地球科学进展, 2016, 31(8):840-848.]
[5]	Trenberth K E.Changes in precipitation with climate change[J]. Climate Research, 2011, 47(47):123-138.
[6]	Blunden J, Arndt D S. State of the climate in2015[J].Bulletin of the American Meteorological Society, 2016, 97(8): Si-S275.
[7]	Kochendorfer J, Rasmussen R, Wolff M,et al.The quantification and correction of wind-induced precipitation measurement errors[J]. Hydrology and Earth System Sciences, 2017, 21(4): 1 973-1 989.
[8]	Nešpor V, Sevruk B.Estimation of wind-induced error of rainfall gauge measurements using a numerical simulation[J]. Journal of Atmospheric and Oceanic Technology, 1999, 16(4): 450-464.
[9]	Yang D, Ohata T.A bias-corrected Siberian regional precipitation climatology[J]. Journal of Hydrometeorology, 2001, 2(2): 122-139.
[10]	Thériault J M, Rasmussen R, Ikeda K,et al.Dependence of snow gauge collection efficiency on snowflake characteristics[J]. Journal of Applied Meteorology and Climatology, 2012, 51(4): 745-762.
[11]	Teng J, Potter N J, Chiew F H S,et al. How does bias correction of regional climate model precipitation affect modelled runoff?[J]. Hydrology and Earth System Sciences, 2015, 19(2): 711-728.
[12]	Michelson D B.Systematic correction of precipitation gauge observations using analyzed meteorological variables[J].Journal of Hydrology, 2004, 290(3): 161-177.
[13]	Cai Y, Jin C, Wang A,et al.Comprehensive precipitation evaluation of TRMM 3B42 with dense rain gauge networks in a mid-latitude basin, northeast, China[J]. Theoretical and Applied Climatology, 2016, 126(3/4): 659-671.
[14]	Jiang S, Ren L, Yong B,et al.Evaluation of latest TMPA and CMORPH precipitation products with independent rain gauge observation networks over high-latitude and low-latitude basins in China[J]. Chinese Geographical Science, 2016, 26(4): 439-455.
[15]	Nkiaka E, Nawaz N R, Lovett J C.Evaluating global reanalysis precipitation datasets with rain gauge measurements in the Sudano-Sahel region: Case study of the Logone catchment, Lake Chad Basin[J]. Meteorological Applications, 2017,24(1):9-18.
[16]	Førland E J, Allerup P, Dahlström B,et al.Manual for operational correction of Nordic precipitation data[J]. DNMI-Reports, 1996, 24(96): 66.
[17]	Goodison B, Yang D.In Situ Measurements of Solid Precipitation in High Latitudes: The Need for Correction[R].World Meteorological Organization-Publications-WMO TD, 1996: 3-17.
[18]	Yang D, Kane D L, Hinzman L D, et al.An evaluation of the Wyoming gauge system for snowfall measurement[J]. Water Resources Research, 2000, 36(9): 2 665-2 677.
[19]	Bogdanova E G, Ilyin B M, Dragomilova I V.Application of a comprehensive bias-correction model to precipitation measured at Russian North Pole drifting stations[J].Journal of Hydrometeorology, 2002, 3(6): 700-713.
[20]	Allis J A, Harris B, Sharp A L.A comparison of performance of five rain-gage installations[J]. Journal of Geophysical Research, 1963, 68(16): 4 723-4 729.
[21]	Goodison B E, Metcalfe J R.Canadian snow gauge experiment: Recent results[C]∥Proceedings of the 50th Annual Western Snow Conference,1982, 50: 192-195.
[22]	Yang D, Kane D, Zhang Z,et al.Bias corrections of long-term (1973-2004) daily precipitation data over the northern regions[J]. Geophysical Research Letters, 2005, 32(19),doi:10.1029/2005GL024057.
[23]	Sugiura K, Ohata T, Yang D,et al.Application of a snow particle counter to solid precipitation measurements under Arctic conditions[J]. Cold Regions Science and Technology, 2009, 58(1): 77-83.
[24]	Yang D, Simonenko A.Comparison of winter precipitation measurements by six tretyakov gauges at the valdai experimental site[J].Atmosphere-Ocean, 2014, 52(1):39-53.
[25]	WMO. Annotated Bibliography on Precipitation Measurement Instruments[R]. WHO/IHD.Projects Report 17, 1973, WMO-No. 343, 1-278.
[26]	Sevruk B, Hamon W R.International Comparison of National Precipitation Gauges with A Reference Pit Gauge[M].Secretariat of the World Meteorological Organization, 1984.
[27]	Sugiura K, Yang D, Ohata T.Systematic error aspects of gauge-measured solid precipitation in the Arctic, Barrow, Alaska[J]. Geophysical Research Letters, 2003, 30(4),doi:10.1029/2002G2015547.
[28]	Rodda J C .The rainfall measurement problem[R]∥Reports and Discussions. IAHS General Assembly of Berne, IAHS Publication,1967,78:215-231.
[29]	He Xiaobo, Ye Baisheng, Ding Yongjian,et al.Bias correction for precipitation mesuament in Tanggula Mountain Tibetan Plateau[J]. Advances in Water Science, 2009, 20(3): 403-408.
	[何晓波, 叶柏生, 丁永建. 青藏高原唐古拉山区降水观测误差修正分析[J]. 水科学进展, 2009, 20(3): 403-408.]
[30]	Bourgouin P.A method to determine precipitation types[J].Weather & Forecasting, 2000, 15(5):583-592.
[31]	Chen R, Liu J, Song Y.Precipitation type estimation and validation in China[J].Journal of Mountain Science, 2014, 11(4): 917-925.
[32]	Yang D, Goodison B E, Metcalfe J R,et al.Accuracy of NWS 80 standard nonrecording precipitation gauge: Results and application of WMO intercomparison[J]. Journal of Atmospheric & Oceanic Technology, 1998, 15(1):54.
[33]	Collins W D, Rasch P J, Boville B A,et al. Description of the NCAR Community Atmosphere Model (CAM 3.0)[Z]. Boulder, Colorado: National Center for Atmospheric Research, 2004, tn-464+str(TN-485+STR).
[34]	Hock R, Holmgren B.A distributed surface energy-balance model for complex topography and its application to Storglaciären, Sweden[J].Journal of Glaciology, 2005, 51(172):25-36.
[35]	Gao X, Ye B S, Zhang S Q,et al.Glacier runoff variation and its influence on river runoff during 1961-2006 in the Tarim River Basin, China[J]. Science in China (Series D), 2010, 53(6): 880-891.
[36]	Fassnacht S R.Estimating Alter-shielded gauge snowfall undercatch, snowpack sublimation, and blowing snow transport at six sites in the coterminous USA[J]. Hydrological Processes, 2004, 18(18):3 481-3 492.
[37]	Yamazaki T.A one-dimensional land surface model adaptable to intensely cold regions and its applications in Eastern Siberia[J].Journal of the Meteorological Society of Japan, 2001, 79(6):1 107-1 118.
[38]	Koistinen J, Saltikoff E.Experience of customer products of accumulated snow, sleet and rain[C]∥COST 75 Advanced Weather Radar Systems, International Seminar, Locarno, Switzerland, 1998.
[39]	Ding B, Yang K, Qin J,et al.The dependence of precipitation types on surface elevation and meteorological conditions and its parameterization[J]. Journal of Hydrology, 2014, 513: 154-163.
[40]	Wang Lei, Li Xiuping, Zhou Jing, et al.Hydrological modelling over the Tibetan Plateau: Current status and perspective[J]. Advances in Earth Science, 2014, 29(6):674-682.
	[王磊,李秀萍,周璟,等.青藏高原水文模拟的现状及未来[J].地球科学进展,2014, 29(6):674-682.]
[41]	Sevruk B, Ondrs M, Chvíla B.The WMO precipitation measurement intercomparisons[J].Atmospheric Research, 2009, 92(3): 376-380.
[42]	Struzer L R.Practicability analysis of rain gauge international comparison test results[J].Transmission Voyeykov Main Geophysical Observatory, 1971, 260: 77-94.
[43]	Nitu R, Rasmussen R, Hendrikx J,et al.A global experiment to improve observations of snow: The World Meteorological Organization Solid Precipitation Intercomparison Experiment (WMO-SPICE)[C]∥AGU Fall Meeting Abstracts,2012, 1: 1261.
[44]	Yang D.Double Fence Intercomparison Reference (DFIR) vs. bush gauge for “true” snowfall measurement[J].Journal of Hydrology, 2014, 509: 94-100.
[45]	Smith C D.Correcting the wind bias in snowfall measurements made with a Geonor T-200B precipitation gauge and alter wind shield[C]∥87th American Meteorological Society Annual Meeting. San Antonio, TX, 2007.
[46]	MacDonald J, Pomeroy J W. Gauge undercatch of two common snowfall gauges in a prairie environment[C]∥Proceedings of the 64th Eastern Snow Conference,2007, 29: 119-126.
[47]	Yang D, Goodison B E, Ishida S, et al.Adjustment of daily precipitation data at 10 climate stations in Alaska: Application of World Meteorological Organization intercomparison results[J]. Water Resources Research, 1998, 34(2):241-256.
[48]	Yang D, Goodison B E, Metcalfe J R,et al.Quantification of precipitation measurement discontinuity induced by wind shields on national gauges[J]. Water Resources Research, 1999, 35(2): 491-508.
[49]	Yang D, Goodison B E, Metcalfe J R,et al.Accuracy of tretyakov precipitation gauge: Result of wmo intercomparison[J]. Hydrological Processes, 1995, 9(8):877-895.
[50]	Zhang Y, Ohata T, Yang D,et al.Bias correction of daily precipitation measurements for Mongolia[J]. Hydrological Processes, 2004, 18(16): 2 991-3 005.
[51]	Yang D, Ishida S, Goodison B E,et al.Bias correction of daily precipitation measurements for Greenland[J]. Journal of Geophysical Research: Atmospheres, 1999, 104(D6): 6 171-6 181.
[52]	Goodison B E, Louie P Y T, Yang D. WMO Solid Precipitation Measurement Intercomparison[M]. Geneva: World Meteorological Organization, 1998.
[53]	Thériault J M, Rasmussen R, Petro E,et al.Impact of wind direction, wind speed, and particle characteristics on the collection efficiency of the Double Fence Intercomparison Reference[J]. Journal of Applied Meteorology & Climatology, 2015, 54(9),doi:10.1175/JAMC-D-15-00341.
[54]	Garrett T J, Yuter S E.Observed influence of riming, temperature, and turbulence on the fallspeed of solid precipitation[J].Geophysical Research Letters, 2015, 41(18):6 515-6 522.
[55]	Rasmussen R M, Hallett J, Purcell R,et al.The hotplate precipitation gauge[J]. Journal of Atmospheric and Oceanic Technology, 2011, 28(2): 148-164.
[56]	Fischer A P.The Measurement factors in estimating snowfall derived from snow cover surfaces using acoustic snow depth sensors[J].Journal of Applied Meteorology & Climatology, 2011, 50(3):681-699.
[57]	Ye B, Yang D, Ding Y,et al.A bias-corrected precipitation climatology for China[J]. Journal of Hydrometeorology, 2004, 5(6): 1 147-1 160.
[58]	Ding Y, Yang D, Ye B,et al.Effects of bias correction on precipitation trend over China[J]. Journal of Geophysical Research: Atmospheres, 2007, 112(D13),doi:10.1029/2006JD007938.
[59]	Ren Zhihua, Li Wei, Lei Yong,et al.A comparison experiment of solid precipitation measurement and its primary results[J]. Meteorological Monthly, 2007, 33(10):96-101.
	[任芝花, 李伟, 雷勇,等. 降水测量对比试验及其主要结果[J]. 气象, 2007, 33(10):96-101.]
[60]	Guan Yeli, Yang Baohua, Li Qing.Comparative analysis on rainfall observation by weighing sensor and manual method[J].Meteorological, Hydrological and Marine Instruments, 2015, 32(2):76-78.
	[管叶莉, 杨保华, 李青. 称重与人工观测降水对比分析[J]. 气象水文海洋仪器, 2015, 32(2):76-78.]
[61]	Yang Daqing, Jiang Tong, Zhang Yinsheng,et al.Analysis and correction of errors in precipitation measurement at the head of Urumqi River, Tianshan[J]. Journal of Glaciology and Geocryology, 1988, 10(4): 384-400.
	[杨大庆, 姜彤, 张寅生,等. 天山乌鲁木齐河源降水观测误差分析及其改正[J]. 冰川冻土, 1988, 10(4): 384-400.]
[62]	Yang Daqing, Shi Yafeng, Kang Ersi,et al.Results of solid precipitation measurement intercomparison in the alpine area of Urumqi River Basin[J]. Chinese Science Bulletin, 1990, 35(22):1 734-1 737.
	[杨大庆, 施雅风, 康尔泗,等. 乌鲁木齐河源高山区固态降水对比测量的主要结果[J]. 科学通报, 1990, 35(22):1 734-1 737.]
[63]	Ma Y, Zhang Y, Yang D,et al.Precipitation bias variability versus various gauges under different climatic conditions over the Third Pole Environment (TPE) region[J]. International Journal of Climatology, 2015, 35(7):1 201-1 211.
[64]	Zhang Lele, Jiao Keqin, Zhao Lin, et al.Observation and comparative analysis of the precipitation in the Beiluhe region, Tibetan Plateau[J]. Journal of Glaciology and Geocryology, 2013, 35(1):30-39.
	[张乐乐, 焦克勤, 赵林,等. 青藏高原北麓河地区降水量观测与对比分析[J]. 冰川冻土, 2013, 35(1):30-39.]
[65]	Zhao Qiudong, Ye Baisheng, He Xiaobo,et al.Bias correction of daily precipitation measured by Geonor T-200B precipitation gauge in Tanggula Mountain[J]. Plateau Meteorology, 2014, 33(2):452-459.
	[赵求东, 叶柏生, 何晓波,等. 唐古拉山区Geonor T-200B雨雪量计日降水观测误差修正[J]. 高原气象, 2014, 33(2):452-459.]
[66]	Chen R, Liu J, Kang E, et al.Precipitation measurement intercomparison in the Qilian Mountains, north-eastern Tibetan Plateau[J]. The Cryosphere, 2015, 9(5): 1 995-2 008.
