中等地温场、长深埋期石英砂岩类储层成岩作用与孔隙度演化模式——以鄂尔多斯盆地延安地区下石盒子组为例
张创 1( ), 罗然昊 1, *( ), 张恒昌 1, 周雪 1, 王成龙 1, 邢华 2, 钱成 2
  1. 1.延长油田股份有限公司志丹采油厂,陕西 延安 717500
    2. 陕西延长石油(集团)有限责任公司,陕西 西安 710075
  • 收稿日期:2017-03-24 修回日期:2017-05-08 出版日期:2017-07-20
  • 通讯作者: 罗然昊 E-mail:zhangchuang530@126.com;1419592269@qq.com
  • 基金资助:
    国家自然科学基金项目“特低渗透双重介质砂岩微观孔隙结构的定量表征”(编号:41102081)资助

Diagenesis and Porosity Evolution Model of the Quartzose Sandstone Reservoir with Moderate Palaeogeothermal, Long Period of Large Buried-depth:A Case Form the Lower Shihezi Reservoir in Yan’an, Ordos Basin

Chuang Zhang 1( ), Ranhao Luo 1, *( ), Hengchang Zhang 1, Xue Zhou 1, Chenglong Wang 1, Hua Xing 2, Cheng Qian 2

  1. 1.Zhidan Oil Production Plant, Yanchang Oil Field Co., Ltd., Shaanxi Yan’an 717500, China
    2.Shaanxi Yanchang Petreleum(Group) Co., Ltd., Xi’an 710075, China
  • Received:2017-03-24 Revised:2017-05-08 Online:2017-07-20 Published:2017-07-20
  • Contact: Ranhao Luo E-mail:zhangchuang530@126.com;1419592269@qq.com
  • About author:

    First author:Zhang Chuang(1981-),male,Weinan City,Shaanxi Province,Senior engineer. Research areas include oil & gas reservoir development geology.E-mail:zhangchuang530@126.com

  • Supported by:
    Project supported by the National Natural Science Foundation of China“Quantitative characterization on micro-pore struture in the dual media sandstone of ultra-low permeability”(No.41102081)

以鄂尔多斯盆地延安地区下石盒子组储层为研究对象,在储层成岩作用、埋藏史与热史研究的基础上,应用动力学模型与作用模拟方法分析了该区孔隙度演化史。结果表明,中等地温场、长深埋期煤系地层内的石英砂岩类储层,成岩早期孔隙介质呈酸性而缺乏早期碳酸盐胶结物,压实损失孔隙度较大;溶蚀作用产生了一定的次生孔隙,但长深埋期、较高地温环境下溶蚀产物沉淀为更为稳定的次生石英和黏土矿物,加之含铁碳酸盐胶结物的胶结与交代,造成粒间孔隙大量封闭的同时,又充填了部分溶孔;压实损失孔隙度较大的情况下,石英次生加大的普遍发育及黏土矿物与含铁碳酸盐胶结物的充填,往往造成此类储层为低渗—超低渗储层。

This research took Lower Shihezi Reservoir in Yan’an, Ordos Basin as research object. Based on the achievement of former scholars, the article first analyzed burial history and palaeogeothermal history. Furthermore, it analyzed the diagenesis characteristics and divided the diagenetic stages through the application of test data, such as thin section, SEM, cathode luminescence, x-ray diffraction, homogenization temperature of fluid inclusion, etc. Finally, the article analyzed and identified the initial porosity model and various kinds of porosity evolution model in the process of diagenetic, optimized the suitable method of Lower Shihezi Reservoir, established a calculation method that the porosity of reservoir increased in the process of dissolution by applying the effect simulation, simulated porosity evolution of reservoir in research area and analyzed the porosity evolution model. The results showed that the reservoir of quartzose sandstone with moderate palaeogeothermal, long period of large buried-depth, carbonate cement was absent in early phase in the coal measure strata, and the porosity loss by compaction was substantial. Though secondary porosity was generated by dissolution, the quartz and clay mineral were precipitated from dissolution mass, which filled intergranular pores and dissolved pores. In addition to substantial porosity loss by compaction, the filling of massive quartz overgrowth, clay mineral, and ferrocarbonatite, always made such reservoirs to be low or ultra-low permeability reservoirs.

中图分类号:

图1 鄂尔多斯盆地研究区地理位置图
Fig.1 Research area in Yan’an, Ordos Basin
图2 延安地区下石盒子组储层埋藏史和热史
(a) 埋藏史;(b) 热演化史
Fig.2 Burial history and palaeogeothermal history of Lower Shihezi reservoir in Yan’an
(a)Burial history;(b)Palaeogeothermal history
表1 延安地区下石盒子组骨架颗粒矿物组合(单位:%)
Table 1 The skeleton particle mineral composition of,Lower Shihezi reservoir in Yan’an (unit:%)
表2 延安地区下石盒子组填隙物矿物组合(单位:%)
Table 2 The matrix mineral composition of Lower Shihezi reservoir in Yan’an (unit:%)
图3 延安地区下石盒子组储层成岩现象与矿物
Fig.3 Diagenesis phenomenon and minerals of Lower Shihezi reservoir in Yan’an

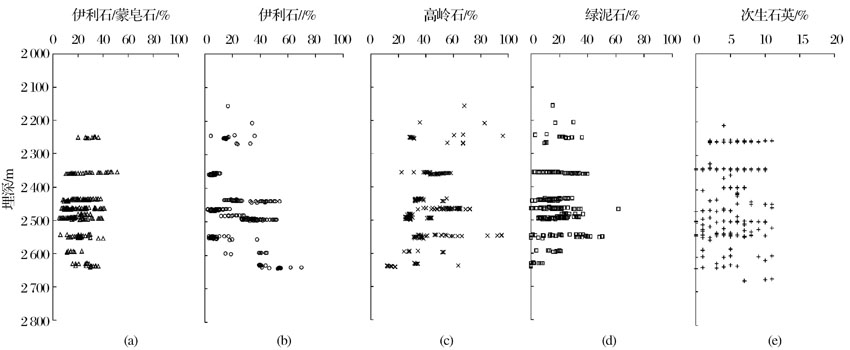

图4 黏土矿物、次生石英与深度关系
Fig.4 The relation between clay mineral, secondary quartz and depth
图5 自生石英流体包裹体均一温度直方图
Fig.5 The histogram of authigenic quartz fluid inclusion in the same temperature
图6 碳酸盐胶结物与次生石英包裹体均一温度(延223井,2 244.91 m)
Fig.6 The histogram of carbonate cement and secondary quartz fluid inclusion in the same temperature (Yan 223 well,2 244.91 m)
图7 延安地区下石盒子组储层成岩阶段划分
Fig.7 The division of diagenetic stage of Lower Shihezi reservoir in Yan’an
表3 岩屑与其他碎屑含量统计表(单位:%)
Table 3 The content of rock debris and other debris (unit:%)
图8 延安地区下石盒子组储层孔隙度演化史
Fig.8 Porisity evolution history of Lower Shihezi reservoir in Yan’an
