基于水文模型的蒸散发数据同化实验研究

doi:10.11867/j.issn.1001-8166.2014.09.1075

流域蒸散发定量估算一直是水科学领域的研究前沿,水文模型和遥感反演是当前估算区域蒸散发的常用手段。研究通过数据同化,集成水文模型和遥感模型的优势,耦合遥感蒸散发到水文模型中以实现多源数据下的蒸散发数据同化。选择北京市沙河流域为研究区,分布式时变增益水文模型作为模型算子,基于集合卡尔曼滤波同化算法,利用双层遥感模型模拟的蒸散发同化水文模型,并基于地面通量站观测的日蒸散发进行验证。结果表明,同化结果与观测数据相比平均绝对百分比误差较同化前减少,精度进一步提升,且当遥感观测输入频繁时精度改善明显。研究证明基于水文模型的蒸散发数据同化系统,是一种可实现输出精度更高和时序连续的区域蒸散发的新型模式。该成果将进一步丰富创新蒸散发估算的学科内容,为准确理解区域水循环规律提供科学依据。

关键词: 蒸散发, 遥感反演, 水文模型, 集合卡尔曼滤波, 数据同化

The quantitative estimation of watershed Evapotranspiration (ET) has been an international frontier in water sciences for a long time. Hydrological models and remote sensing ET models are usually used to estimate regional ET at different spacetime scales, but these two methods are obviously insufficient to obtain precise and continuous regional ET. The hydrological models have the capability to simulate time-continuous daily or monthly ET processes, but the accuracy is not high compared with remote sensing ET models. The applicability of remote sensing ET models based on surface energy balance is restricted by the lack of high frequency and high resolution thermal data. A compromise between these two methodologies is represented by improving the optimization of hydrological models on the basis of a new ET series, which are produced by Data Assimilation (DA) scheme combining sparse remote estimates into the hydrological model. This study aimed to integrate the advantages of the two models to simulate the daily ET processes in Shahe River basin, Beijing. For this progect, the distributed hydrological model was fist constructed and the daily hydrological processes of 19992007 simulated. Then, the Ensemble Kalman Filter (EnKF) was used to assimilate the ET series calculated by remote sensing retrieval into the hydrological model to adjust the simulation. The results show that the ET estimation accuracy is improved after the data assimilation, and the MAPE between the DSMbased ETs and LASbased ETs in the study area is reduced. The integrated method is proved better, and improves the hydrology modeling accuracy. Therefore, the project successfully develops a new land surface ET mode with the advantages of hydrological model and remote sensing ET model, and the study founds the new method could simulate regional ET with high accuracy and continuous time series. The new land surface ET model not only follows the surface energy balance, but also meets the regional water balance, and has more perfect water thermal coupling mechanism. The study will further enrich the content of ET estimation disciplines, and provide a scientific basis for better understanding of the laws of regional water cycle.

Key words: Evapotranspiration, Remote sensing retrieval, Hydrological model, Ensemble Kalman filter, Data assimilation.

中图分类号:

P332. 2

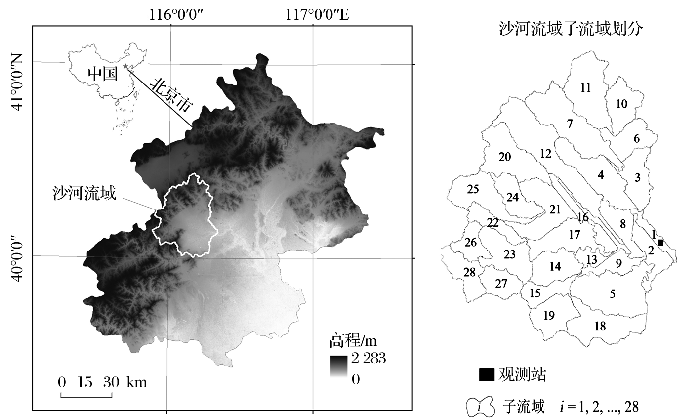

图1 研究区示意图需要彩色印刷

Fig.1 Map of the study area

表1 研究收集的数据信息

Table 1 The data list for the study

数据类型	数据名称	年份	备注
遥感影像	Landsat TM	1999—2007	美国地质调查局(USGS: http://glovis.usgs.gov),30 m分辨率
DEM	沙河流域DEM	2005	中科院资源环境科学数据中心,30 m分辨率
土地利用	沙河流域土地利用图	2005	中科院资源环境科学数据中心,1:10万
土壤类型	沙河流域土壤类型图	2000	中科院资源环境科学数据中心,1:100万
雨量数据	流域站点日降雨量	1990—2007	北京水文总站,十三陵等6站日降雨量
流量数据	流域站点日流量	1990—2007	北京水文总站,沙河闸站日流量
水位数据	流域站点日水位	1990—2007	北京水文总站,沙河闸等主要监测断面
水库管理资料	流域内水库调度方案	1990—2007	北京水科所,王家园、响潭、十三陵、沙河水库等
气象数据	北京站气象数据	1990—2007	常规观测,昌平、海淀气象站等
实测ET	水热通量观测数据	2002—2007	沙河流域下游小汤山地面通量观测站

表1 研究收集的数据信息

Table 1 The data list for the study

数据类型	数据名称	年份	备注
遥感影像	Landsat TM	1999—2007	美国地质调查局(USGS: http://glovis.usgs.gov),30 m分辨率
DEM	沙河流域DEM	2005	中科院资源环境科学数据中心,30 m分辨率
土地利用	沙河流域土地利用图	2005	中科院资源环境科学数据中心,1:10万
土壤类型	沙河流域土壤类型图	2000	中科院资源环境科学数据中心,1:100万
雨量数据	流域站点日降雨量	1990—2007	北京水文总站,十三陵等6站日降雨量
流量数据	流域站点日流量	1990—2007	北京水文总站,沙河闸站日流量
水位数据	流域站点日水位	1990—2007	北京水文总站,沙河闸等主要监测断面
水库管理资料	流域内水库调度方案	1990—2007	北京水科所,王家园、响潭、十三陵、沙河水库等
气象数据	北京站气象数据	1990—2007	常规观测,昌平、海淀气象站等
实测ET	水热通量观测数据	2002—2007	沙河流域下游小汤山地面通量观测站

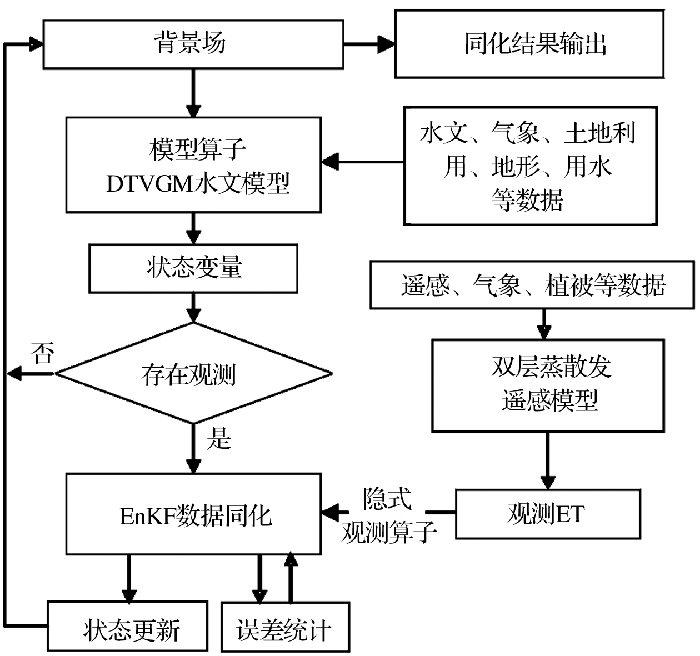

图2 流域蒸散同化技术路线图

Fig.2 The schematic framework of watershed evapotranspiration data assimilation

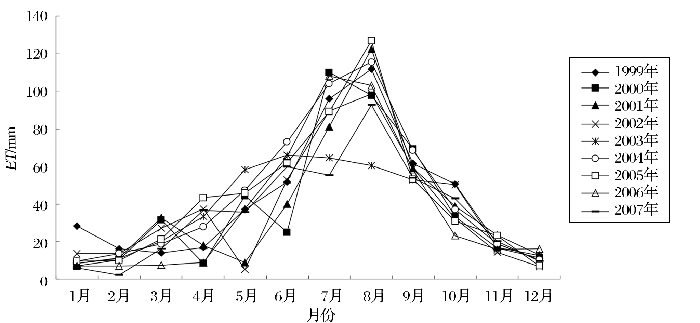

图3 DTVGM模拟流域月蒸散量(1999—2007年)

Fig.3 The monthly ET simulated by DTVGM with out data assimilation (1999-2007)

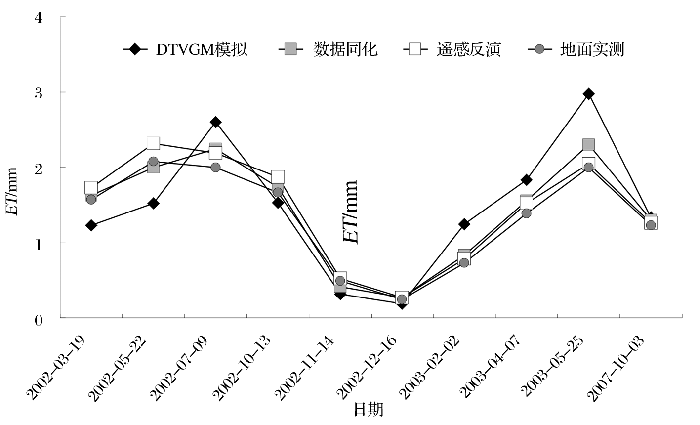

图4 不同方式获得的区域日蒸散发比较

Fig.4 The ET of typical day by different method

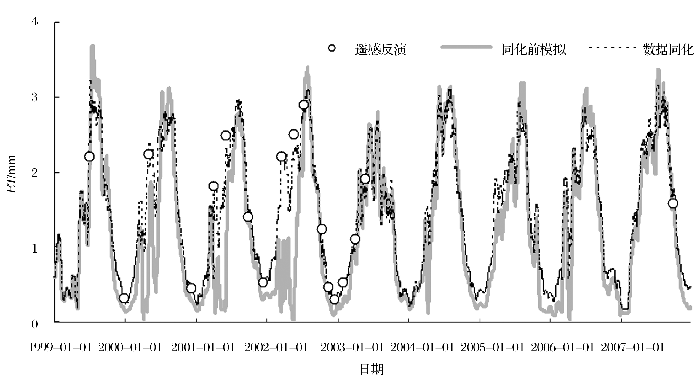

图5 1999—2007年沙河流域逐日流域平均蒸散发(5日移动均线)

Fig.5 Average daily ET processes in the Shahe river basin in 1999-2007 (5 days moving average curve)

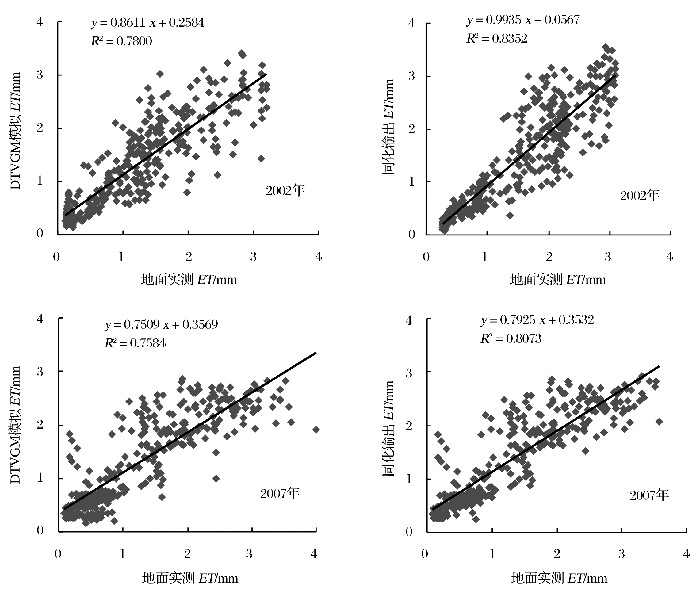

图6 日蒸散发的DTVGM模拟和同化结果比较(2002年、2007年)

Fig. 6 The comparation of ET in typical days through DTVGM and data assimilation (2002, 2007)

表2 DTVGM模拟、数据同化输出与ET-Watch模型估算的年蒸散发比较

Table 2 The Comparation of yearly ET simulated by DTVGM, DA and ET-Watch

年份	同化前年ET(mm)	模拟相对误差(%)	同化后年ET(mm)	同化相对误差(%)	ET-Watch结果(mm)
2002	452.18	12.74	564.78	1.90	575.50
2003	454.78	-4.52	450.56	-3.42	435.12
2004	543.82	-12.09	506.31	-4.18	485.15
2005	501.09	10.85	520.25	8.04	562.05

表2 DTVGM模拟、数据同化输出与ET-Watch模型估算的年蒸散发比较

Table 2 The Comparation of yearly ET simulated by DTVGM, DA and ET-Watch

年份	同化前年ET(mm)	模拟相对误差(%)	同化后年ET(mm)	同化相对误差(%)	ET-Watch结果(mm)
2002	452.18	12.74	564.78	1.90	575.50
2003	454.78	-4.52	450.56	-3.42	435.12
2004	543.82	-12.09	506.31	-4.18	485.15
2005	501.09	10.85	520.25	8.04	562.05

[1]	Cammalleri C, Agnese C, Ciraolo G, et al. Actual evapotranspiration assessment by means of a coupled energy/hydrologic balance model: Validation over an olive grove by means of scintillometry and measurements of soil water contents[J]. Journal of Hydrology, 2010, 392(1/2): 70-82.
[2]	Liu C, Zhang D, Liu X, et al. Spatial and temporal change in the potential evapotranspiration sensitivity to meteorological factors in China (1960-2007)[J]. Journal of Geographical Sciences, 2012, 22(1): 3-14.
[3]	Cheng Guodong, Zhao Wenzhi. Green water and its research progresses[J]. Advances in Earth Science, 2006, 21(3): 221-227.
	程国栋, 赵文智. 绿水及其研究进展[J]. 地球科学进展, 2006, 21(3): 221-227.
[4]	Zhang Wanchang, Gao Yongnian. Estimation of regional evapotranspiration using two source energy balance model and ETM+ imagery[J]. Scientia Geographica Sinica, 2009, 29(4): 523-528.
	张万昌, 高永年. 区域土壤植被系统蒸散发二源遥感估算[J]. 地理科学, 2009, 29(4): 523-528.
[5]	Zhang Jincun, Rui Xiaofang. Discussion of theory and methods for building a distributed hydrologic model[J]. Advances in Water Science,2007, 18(2): 286-292.
	张金存, 芮孝芳. 分布式水文模型构建理论与方法述评[J]. 水科学进展, 2007, 18(2): 286-292.
[6]	Song X, Zhan C, Kong F, et al. Advances in the study of uncertainty quantification of large-scale hydrological modeling system[J]. Acta Geographica Sinica, 2011, 21(5): 801-819.
[7]	Liang Shunlin,Li Xin,Xie Xianhong. Land Surface Observation, Modeling and Data Assimilation[M]. Beijing: Higher Education Press, 2013.
	梁顺林,李新,谢先红. 陆面观测、模拟和数据同化[M]. 北京: 高等教育出版社,2013.
[8]	Zhang Ronghua, Du Junping, Sun Rui. Review of estimation and validation of regional evapotranspiration based on remote sensing[J]. Advances in Earth Science, 2012, 27(12): 1 295-1 307.
	张荣华, 杜君平, 孙睿. 区域蒸散发遥感估算方法及验证综述[J]. 地球科学进展, 2012, 27(12): 1 295-1 307.
[9]	Chen H, Yang D, Hong Y, et al. Hydrological data assimilation with the Ensemble Square-Root-Filter: Use of streamflow observations to update model states for real-time flash flood forecasting[J]. Advances in Water Resources, 2013, 59: 209-220.
[10]	Gong Peng. Some essential questions in remote sensing science and technology[J]. Journal of Remote Sensing, 2009, 13(1): 13-23.
	宫鹏. 遥感科学与技术中的一些前沿问题[J]. 遥感学报, 2009, 13(1): 13-23.
[11]	Xie X, Zhang D. Data assimilation for distributed hydrological catchment modeling via ensemble Kalman filter[J]. Advances in Water Resources, 2010, 33(6): 678-690.
[12]	Li Xin, Huang Chunlin, Che Tao, et al. Advance and prospect of land surface data assimilation research in China[J]. Progress in National Science, 2007, 17(2): 163-173.
	李新, 黄春林, 车涛, 等. 中国陆面数据同化系统研究的进展与前瞻[J]. 自然科学进展, 2007, 17(2): 163-173.
[13]	Xiong Chunhui, Zhang Lifeng, Guan Jiping, et al. Development and application of ensemble-variational data assimilation methods[J]. Advances in Earth Science, 2013, 28(6): 648-656.
	熊春晖, 张立凤, 关吉平, 等. 集合—变分数据同化方法的发展与应用[J]. 地球科学进展, 2013, 28(6): 648-656.
[14]	Wang Wen, Kou Xiaohua. Methods for hydrological data assimilation and advances of assimilating remotely sensed data into rainfall-runoff models[J]. Journal of Hohai University (Natural Sciences), 2009, 37(5): 556-562.
	王文, 寇小华. 水文数据同化方法及遥感数据在水文数据同化中的应用进展[J]. 河海大学学报:自然科学版, 2009, 37(5): 556-562.
[15]	Wang D, Cai X. Optimal estimation of irrigation schedule-an example of quantifying human interferences to hydrologic processes[J]. Advances in Water Resourses, 2007, 30(8): 1 844-1 857.
[16]	Moradkhami M. Review: Hydrologic remote sensing and land surface data assimilation[J]. Sensors, 2008, 8(5): 2 986-3 004.
[17]	Schuurmans M, Troch A, Veldhuizen A, et al. Assimilation of remotely sensed latent heat flux in a distributed hydrological model[J]. Advances in Water Resources, 2003, 26(2): 151-159.
[18]	Pan M, Wood E, Wójcik R, et al. Estimation of regional terrestrial water cycle using multi-sensor remote sensing observations and data assimilation[J]. Remote Sensing of Environment, 2008, 112(4): 1 282-1 294.
[19]	Qin C, Jia Y, Su Z, et al. Integrating remote sensing information into a distributed hydrological model for improving water budget predictions in large-scale basins through data assimilation[J]. Sensors, 2008, 8(7): 4 441-4 465.
[20]	Pipunic C, Walker P, Western A. Assimilation of remotely sensed data for improved latent and sensible heat flux prediction: A comparative synthetic study[J]. Remote Sensing of Environment, 2008, 112(4): 1 295-1 305.
[21]	Xia J, Wang G, Tan G, et al. Development of distributed time-variant gain model for nonlinear hydrological systems[J]. Science in China (Series D), 2005, 48(6): 713-723.
[22]	Yin Jian,Wang Huixiao,Zhan Chesheng,et al. Land surface heat in the Shahe River Basin derived from emote sensing data[J]. Journal of Beijing Normal University(Natural Science), 2012, 48(5): 566-571.
	尹剑,王会肖,占车生,等.沙河流域地表通量的定量遥感估算[J].北京师范大学学报:自然科学版, 2012, 48(5): 566-571.
[23]	Zhang R, Tian J, Su H, et al. Two improvements of an operation al two-layer model for terrestrial surface heat flux retrieval[J]. Sensors, 2008, 8(10): 6 165-6 187.
[24]	Zhan Chesheng, Yin Jian, Wang Huixiao, et al. The regional evapotranspiration estimation using a two-layer model based on quantitative remote sensing in Shahe River Basin[J].Journal of National Resource, 2013, 28(1): 161-170.
	占车生, 尹剑, 王会肖, 等. 基于双层模型的沙河流域蒸散发定量遥感估算[J]. 自然资源学报, 2013, 28(1): 161-170.
[25]	Jia Kun,Yao Yunjun,Wei Xiangqin,et al. A review on fractional vegetation cover estimation using remote sensing[J]. Advances in Earth Science, 2013, 28(7): 774-782.
	贾坤, 姚云军, 魏香琴, 等. 植被覆盖度遥感估算研究进展[J]. 地球科学进展, 2013, 28(7): 774-782.
[26]	Xia Jun, Ye Aizhong, Wang Rui, et al. Large scale distributed hydrological model of inter-basin water transfer and its application[J]. South-to-North Water Diversion and Water Science & Technology, 2011, 9(1): 1-7, 95.
	夏军, 叶爱中, 王蕊, 等. 跨流域调水的大尺度分布式水文模型研究与应用[J]. 南水北调与水利科技, 2011, 9(1): 1-7, 95.
[27]	Huang Chunlin, Li Xin. Experiments of soil moisture data assimilation system based on ensemble kalman filter[J]. Plateau Meteorology, 2006, 25(4): 665-671.
	黄春林, 李新. 基于集合卡尔曼滤波的土壤水分同化试验[J]. 高原气象, 2006, 25(4): 665-671.
[28]	Huang Chunlin, Li Xin. Sensitivity analysis on land data assimilation scheme of soil moisture[J]. Advances in Water Science, 2006, 17(4): 457-465.
	黄春林, 李新. 土壤水分同化系统的敏感性试验研究[J]. 水科学进展, 2006, 17(4): 457-465.
[29]	Duan Q, Sorooshian S, Gupta V. Effective and efficient global optimization for conceptual rainfall-runoff models[J]. Water Resources Research,1992, 28(4): 1 015-1 031.
[30]	Wu Bingfang, Xiong Jun, Yan Na’na, et al. ET-Watch for monitoring regional evapotranspiration with remote sensing[J]. Advances in Water Science, 2008, 19(5): 671-678.
	吴炳方, 熊隽, 闫娜娜, 等. 基于遥感的区域蒸散量监测方法——ET-Watch[J]. 水科学进展, 2008, 19(5): 671-678.
