地球科学进展 ›› 2019, Vol. 34 ›› Issue (2): 124 -139. doi: 10.11867/j.issn.1001-8166.2019.02.0124

上一篇    下一篇

大气硝酸盐中氮氧稳定同位素研究进展
秦瑞( ),史贵涛 *( ),陈振楼
  1. 1. 华东师范大学地理科学学院,地理信息科学教育部重点实验室,上海 200241
  • 收稿日期:2018-08-23 修回日期:2018-12-20 出版日期:2019-02-10
  • 通讯作者: 史贵涛 E-mail:843128305@qq.com;gtshi@geo.ecnu.edu.cn
  • 基金资助:
    国家自然科学基金项目“东南极冰盖中山站至昆仑站断面雪层中NO 3 - 的沉积后机制研究:δ15N、δ18O和Δ17O证据”(编号:41576190)资助.

Review of the Study on the Stable Isotopes of Nitrogen and Oxygen in Atmospheric Nitrate

Rui Qin( ),Guitao Shi *( ),Zhenlou Chen

  1. 1. Key Laboratory of Geographic Information Science Ministry of Education, School of Geographic Sciences, East China Normal University, Shanghai 200241, China
  • Received:2018-08-23 Revised:2018-12-20 Online:2019-02-10 Published:2019-03-26
  • Contact: Guitao Shi E-mail:843128305@qq.com;gtshi@geo.ecnu.edu.cn
  • About author:Qin Rui(1991-), female, Lankao City, Henan Province, Master student. Research areas include stable isotope in environment. E-mail:843128305@qq.com|Shi Guitao (1982-), male, Zaozhuang City, Shandong Province, Professor. Research areas include polar environment. E-mail: gtshi@geo.ecnu.edu.cn
  • Supported by:
    Project supported by the National Natural Science Foundation of China “Investigating mechanisms of post-depositional processing of nitrate in the snowpack on the traverse from coastal Zhongshan station to inland Kunlun station, East Antarctica: Evidence of δ15N, δ18O and Δ17O”(No. 41576190);Project supported by the National Natural Science Foundation of China “Investigating mechanisms of post-depositional processing of nitrate in the snowpack on the traverse from coastal Zhongshan station to inland Kunlun station, East Antarctica: Evidence of δ15N, δ18O and Δ17O” (No. 41576190).

受人类活动和工农业快速发展的影响,大气硝酸盐(NO 3 - )污染越来越严重且已成为世界范围内的环境问题之一。探究大气NO 3 - 的稳定同位素组成(δ15N,δ18O和Δ17O),可以为深入理解大气氮循环、有效控制大气NO 3 - 污染提供有力依据。综述了目前大气NO 3 - 不同来源NOx的δ15N值、NO 3 - 的δ15N季节变化特征及主要影响因素,总结了大气中不同氧化剂的δ18O值和Δ17O值,归纳了全球范围内部分大气NO 3 - 中δ18O值和Δ17O值的时空分布特征及可能影响因素,回顾了NO 3 - 同位素分析测试技术的主要进展,在前期工作基础上提出未来大气NO 3 - 稳定同位素研究应更多关注NO 3 - 的氧化生成机制(不同类型氧化剂同位素组成时空差异)、不同NOx来源的δ15N组成、借助化学模型开展大气NO 3 - 循环过程等方面的研究。

Due to the emissions from intensive human activities and rapid development of industry and agriculture, atmospheric nitrate (NO 3 - ) contamination is becoming more serious and now is a worldwide environmental problem. The isotopic compositions of NO 3 - 15N, δ18O and Δ17O) can deliver more information than the concentration alone, i.e., the nitrogen and oxygen isotopes can suggest the sources of NO 3 - and oxidation capability of the atmosphere, providing a powerful tool for investigating atmospheric nitrogen cycling and atmospheric NO 3 - pollution control. The δ15N of different sourced NO 3 - in the atmosphere, as well as the seasonal variation of δ15N (NO 3 - ) and the associated mechanisms were reviewed. In addition, the oxygen isotopes of various oxidants and NO 3 - 18O and Δ17O) in the atmosphere were summarized, and the global distribution patterns of the oxygen isotopes of NO 3 - were discussed. Lastly, the available analysis techniques of isotopic compositions of NO 3 - were reviewed. Based on the research progress of NO 3 - isotopes in the atmosphere, it was suggested that further investigations should focus on measuring the isotopic compositions of oxidants and NOx from different sources, characterizing the production mechanisms of NO 3 - , as well as investigating chemical recycling between NOx and NO 3 - with the aid of atmospheric chemical models.

中图分类号:

表1 不同来源 NOxδ15N
Table 1 The δ 15N values of NOx from different sources
表2 不同氧化剂的 δ18O值和 Δ17O
Table 2 The δ 18O and Δ 17O values of different oxidants
氧化剂种类 δ18O/ Δ17O/ 研究方法与原理 研究区域或方式 参考文献
O3 24.9 利用NO 2 - 涂层,O3+NO 2 - →O2+ NO 3 - DomeC [ 67 ]
95.2 34.3 数据插值模拟 实验室模拟 [ 14 ]
115.0 23.0, 26.0 利用NO 2 - 涂层,O3+NO 2 - →O2+ NO 3 - 50°S~50°N [ 68 , 69 ]
75.0~85.0 32.0~37.0 利用NO 2 - 涂层,O3+NO 2 - →O2+ NO 3 - 美国加利福尼亚 [ 70 ]
38.0 光化学平衡模型模拟 中纬度对流层 [ 66 ]
109.0 26.0 低温试验法,T=-218 ,O3+Xe→O2+O 美国对流层 [ 71 ]
117.0 25.0 低温试验法,T=-218 ,O3+Xe→O2+O 德国海德堡市 [ 72 ]
90.0 32.0 放电O3→O2+O,质谱仪分析 实验室实验 [ 73 ]
O2 23.2 -0.4 盒子模型预测 实验室模型预测 [ 74 ]
23.4 -0.5

基于GC色谱柱提取纯化空气中O2后,

MAT253分析

全球尺度 [ 74 ]
23.9 -0.5 CoF3+H2O→O2,多接口质谱分析 实验室校正实验 [ 75 ]
23.9 -0.5 CoF3+H2O→O2,多接口质谱分析 实验室实验 [ 76 ]
23.5 -0.3 O2+BrF5→O2+其他,MAT251分析 实验室实验 [ 77 ]
23.8 CO2 ? H2O (H2+O2),质谱仪分析 [ 78 ]
23.5 O2→CO2 ? H2O,质谱仪分析 [ 79 ]
OH -40.0~-60.2 (凝聚相) 0.0 模拟假设δ18O (OH)=δ18O (H2O) 南极高原 [ 50 ]
-69.1~-81.3 (气相) 0.0 模拟假设δ18O (OH)=δ18O (H2O)(v) 南极高原 [ 50 ]
<-50.0 0.0 模拟假设δ18O (OH)=δ18O (H2O) 北极对流层 [ 80 ]
RO2 0.0 美国普罗维登斯 [ 45 ]
0.0 北半球地方 [ 81 ]
BrO 30.0~42.0 Br+O3→BrO+O2,理论计算 北极加拿大阿勒特 [ 16 ]
44.0 边界层大气,蒙特卡洛算法 北极阿勒特北部海岸 [ 82 ]

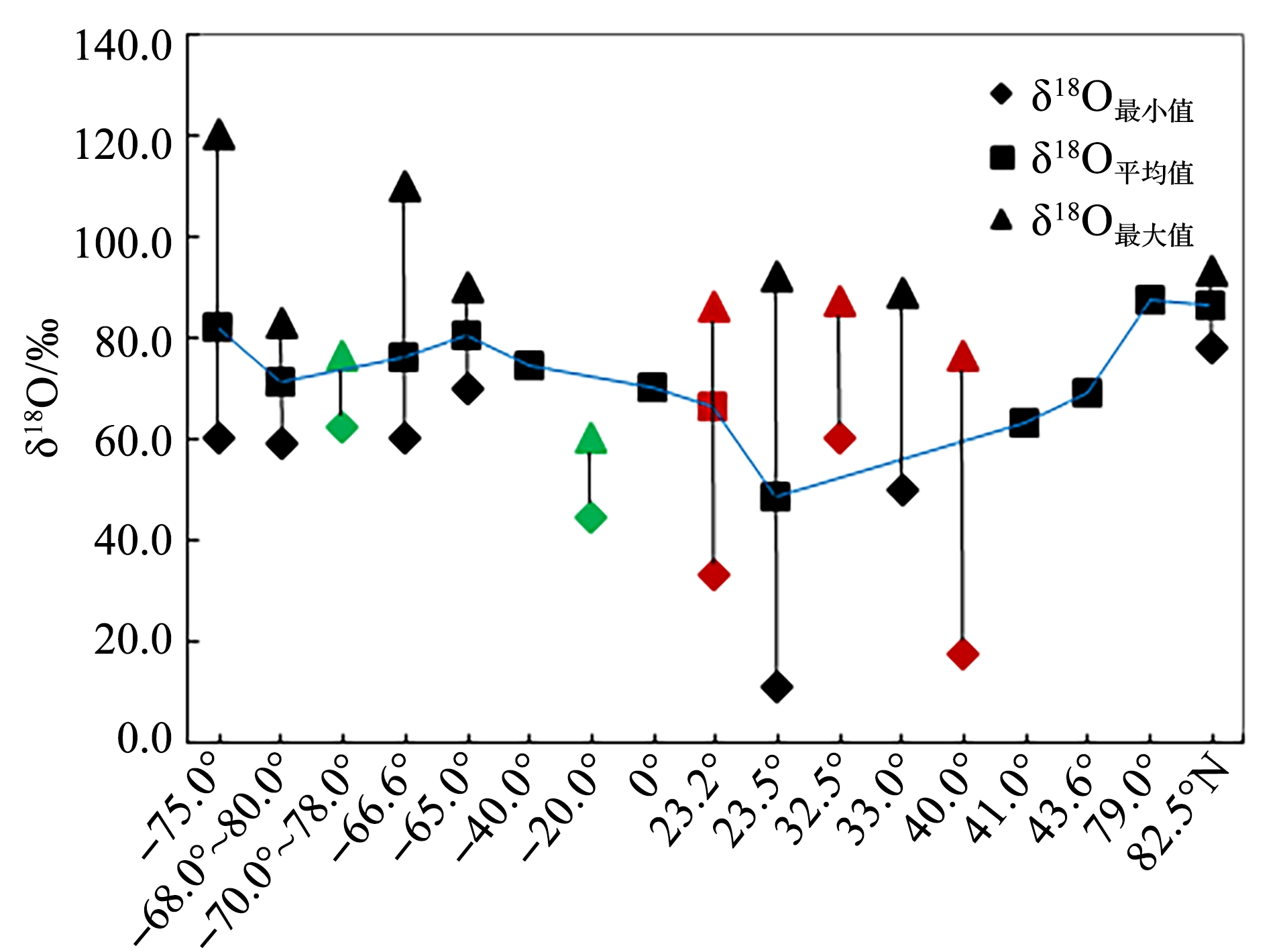

图1 大气中δ18O-NO 3 - 纬度梯度分布情况[ 13 , 16 , 31 , 32 , 33 , 34 , 50 , 58 , 85 , 86 , 88 , 95 , 96 , 97 , 98 , 99 ]
Fig.1 The distributions of δ18O-NO 3 - of the atmosphere in different latitudes [ 13 , 16 , 31 , 32 , 33 , 34 , 50 , 58 , 85 , 86 , 88 , 95 , 96 , 97 , 98 , 99 ]
图2 大气中Δ17O-NO 3 - 纬度梯度分布情况[ 13 , 16 , 31 , 32 , 33 , 34 , 50 , 58 , 60 , 67 , 85 , 88 , 94 , 95 , 97 , 98 , 106 , 108 ]
Fig.2 The distributions of Δ17O-NO 3 - of the atmosphere in different latitudes [ 13 , 16 , 31 , 32 , 33 , 34 , 50 , 58 , 60 , 67 , 85 , 88 , 94 , 95 , 97 , 98 , 106 , 108 ]
