地球科学进展 ›› 2026, Vol. 41 ›› Issue (1): 61 -72. doi: 10.11867/j.issn.1001-8166.2026.005

研究论文 上一篇    下一篇

冰碛坝铠甲层块石起动机理试验研究
刘洋(), 赵雪帆, 常鸣, 余斌
  1. 成都理工大学 地质灾害防治与地质环境保护全国重点实验室,四川 成都 610059
  • 收稿日期:2025-08-25 修回日期:2025-11-25 出版日期:2026-01-10
  • 基金资助:
    地质灾害防治与地质环境保护国家重点实验室自主研究课题(SKLGP2023Z013);成都理工大学珠峰科学研究计划2.0资助

Experimental Study on the Starting Mechanism of Boulders at the Moraine Dam Armored Layer

Yang Liu(), Xuefan Zhao, Ming Chang, Bin Yu

  1. State Key Laboratory of Geohazard Prevention and Geoenvironment Protection, Chengdu University of Technology, Chengdu 610059, China
  • Received:2025-08-25 Revised:2025-11-25 Online:2026-01-10 Published:2026-03-10
  • About author:Liu Yang, research areas include the mechanism of glacial lake outburst and its prevention and control. E-mail: liuyang2012@cdut.edu.cn.
  • Supported by:
    the State Key Laboratory of Geohazard Prevention and Geoenvironment Protection Independent Research Project(SKLGP2023Z013);Chengdu University of Technology Mount Qomolangma Scientific Research Program 2.0

冰湖溃决会引发突发性洪水与泥石流,直接冲毁下游基础设施、威胁生命财产安全,并破坏生态环境,探明冰湖溃决机制对灾害预警及防治至关重要。冰碛坝作为溃决过程中的关键天然屏障,其表层“铠甲层”直接决定了冰碛坝的抗侵蚀能力与整体稳定性。为研究冰碛坝铠甲层表面大块石的起动机理,以西藏别隆措冰碛湖为原型,通过水槽试验探明块石起动的关键机制。基于大块石在涌浪下以滚动起动为主的观测事实,建立了考虑附加力与上覆推力的滚动起动流速公式。结果表明:块石在涌浪作用下的起动过程可分为单颗粒滑移或滚动、局部动态失稳及整体溃决式起动3种模式,且起动行为与冰崩涌浪规模、块石粒径、容重、暴露度以及坝坡坡度等因素密切相关。铠甲层块石起动流速公式实用性好,解决了传统公式忽略颗粒形状差异、采用平槽泥沙推导并将块石简化为均质球体等与实际情况不符的问题。该计算模型能够较准确地预测起动流速,可用于分析冰碛坝铠甲层块石在涌浪等水流作用下的起动问题。未来研究应聚焦冰碛坝铠甲层的失稳机制,通过试验、野外观测与数值模拟揭示其在水力与冻融作用下的破坏阈值,建立耦合该过程的溃决动力学模型,发展基于结构状态的预警方法。

Glacial lake outburst floods represent a classic chain-reaction disaster in high-mountain regions, frequently triggering sudden floods and debris flows that severely threaten downstream infrastructure and ecological security. Against the backdrop of global warming and ongoing glacial retreat, the frequency and scale of such disasters are increasing, yet the underlying mechanisms and dynamic processes remain incompletely understood. Deepening our understanding of glacial lake outburst flood mechanisms and evolutionary patterns not only enhances regional disaster warning and risk prevention capabilities but also provides crucial scientific insights into catastrophic processes within mountainous systems under climate change. As the key natural barrier during outbursts, the surface “armor layer” of morainic dams directly determines the dam's erosion resistance and overall stability. To investigate the initiation mechanism of large boulders on the armor layer of glacial moraines, the Bielong Co glacial lake in Xizang was used as a prototype. Water channel experiments were conducted to clarify the key mechanisms of boulder initiation. Based on observations showing that large boulders primarily initiate movement through rolling under surge waves, a rolling initiation velocity formula was established, accounting for additional forces and overburden thrust. Results indicate that the initiation process of boulders under surge waves can be categorized into three modes: single-particle sliding or rolling, localized dynamic instability, and overall catastrophic initiation. The initiation behavior is closely related to factors such as the scale of the ice avalanche surge wave, boulder grain size, bulk density, exposure degree, and dam slope gradient. The initiation velocity formula for armor layer boulders demonstrates high practicality, addressing shortcomings of traditional formulas that neglect particle shape variations, rely on flat-channel sediment dynamics derivations, and simplify boulders as homogeneous spheres, approaches inconsistent with reality. This computational model accurately predicts initiation velocities and can be applied to analyze the initiation of armor layer boulders in glacial till dams under surge wave and other flow conditions. Future research should focus on the microstructural characteristics and initiation mechanisms of the armor layer. By integrating field observations, experimental simulations, and numerical analysis, it is essential to systematically investigate its mechanical response and progressive failure process under sustained seepage, water level fluctuations, and freeze-thaw cycles, with particular emphasis on revealing the governing principles of armor layer shear strength and permeability stability controlled by particle gradation, cementation degree, and structural integrity, and elucidating the dynamic thresholds from localized erosion to overall failure. Building on these findings, we develop a coupled dynamic model that simulates the entire ice-lake outburst process, incorporating the initiation mechanism of the armor layer. This work advances a dynamic disaster risk assessment system based on real-time monitoring of dam structural conditions and multi-parameter early warning indicators. Consequently, it provides critical theoretical support and scientific tools for precise early warning and risk prevention of ice lake outbursts.

中图分类号:

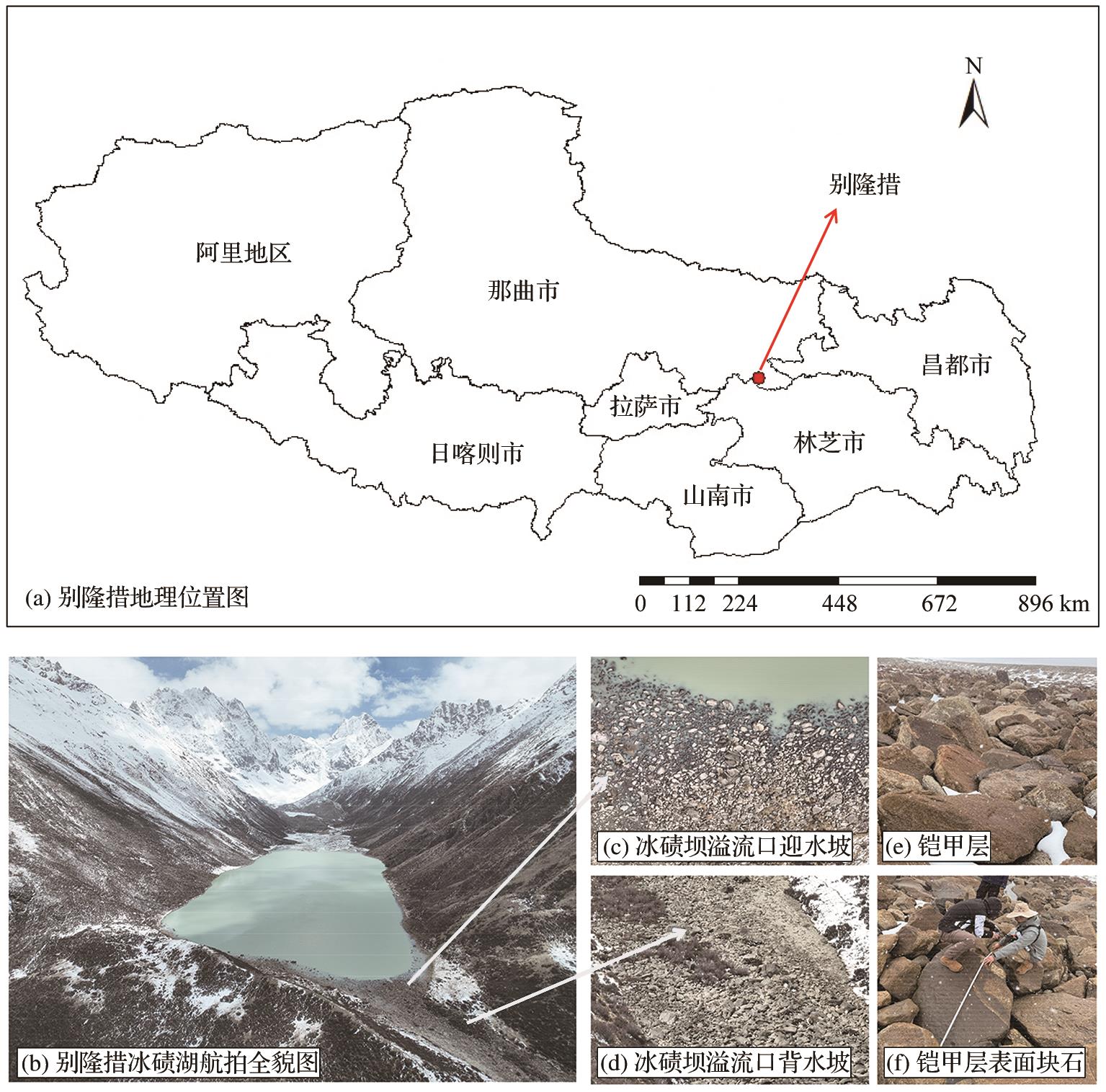

图1 西藏别隆措冰碛湖概况及其位置
Fig. 1 General overview and location of Bielong Co Glacial Lake in Xizang

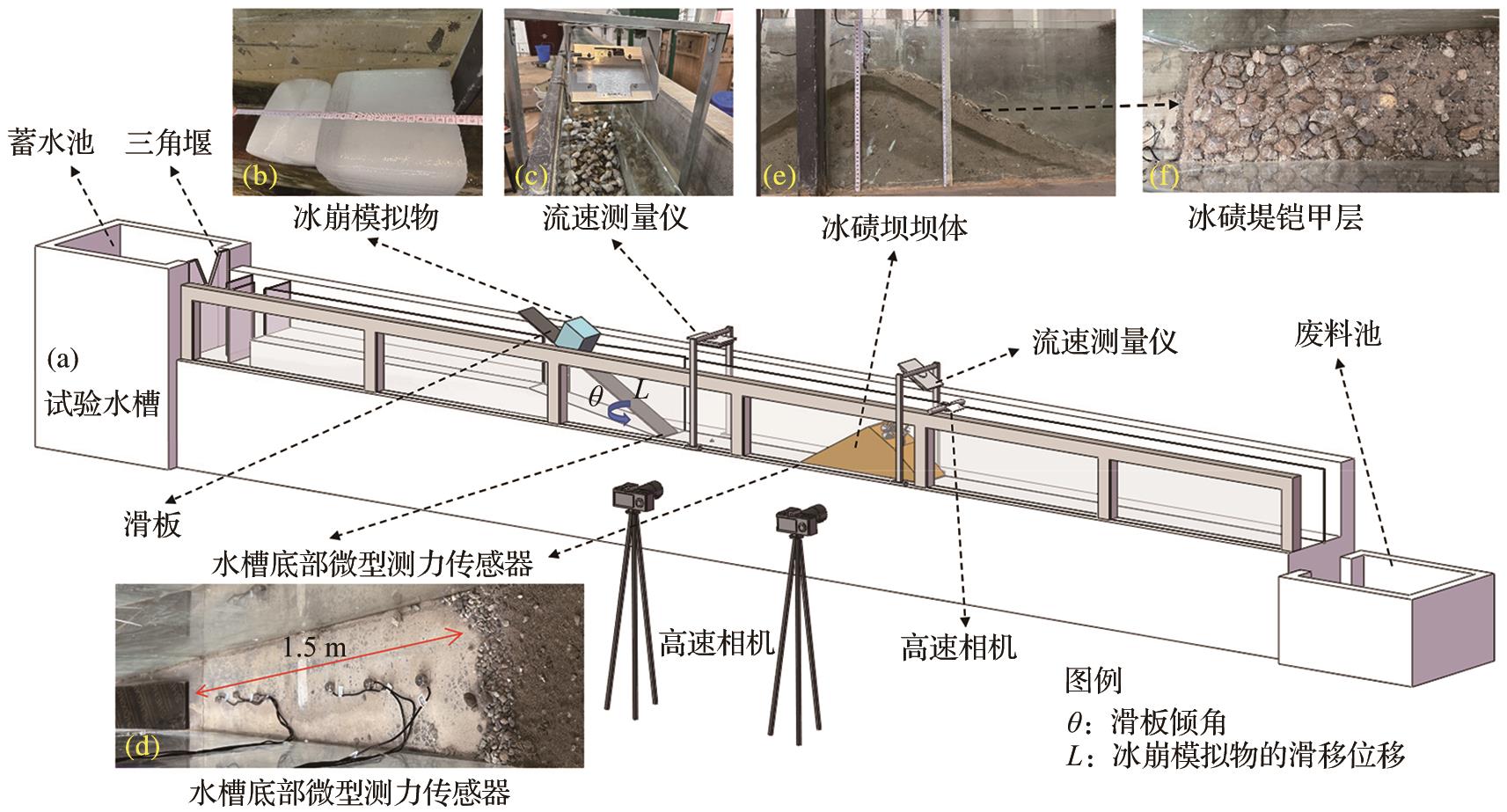

图2 冰碛坝铠甲层块石起动物理试验装置图
Fig. 2 Schematic diagram of physical test device for incipient motion of boulders in armor layer of moraine dam

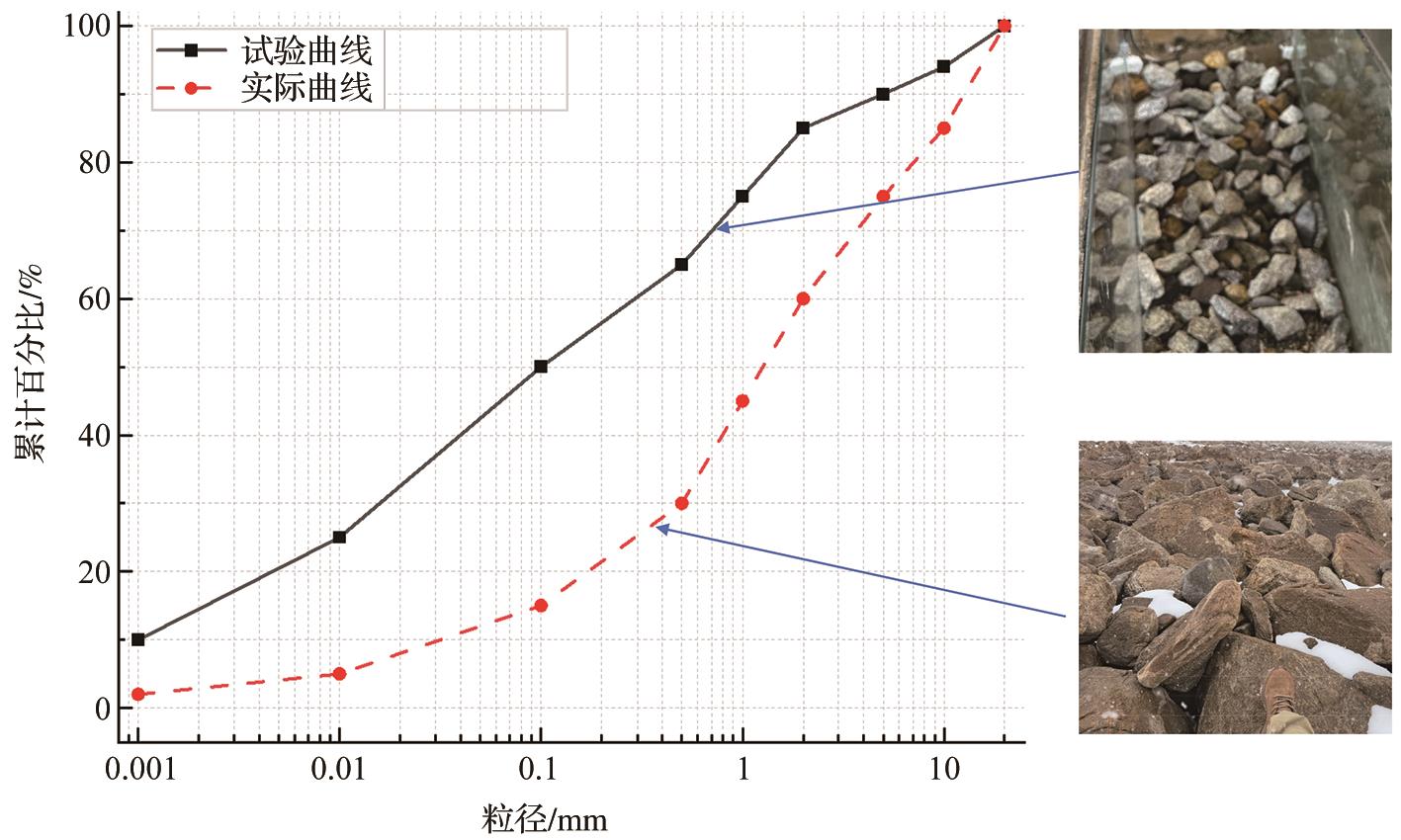

图3 西藏别隆措冰碛坝的颗粒级配曲线
Fig. 3 Particle grading curve of moraine dam in Bielong Co in Xizang
表1 冰碛坝铠甲层块石起动物理试验变量参数设计
Table 1 Design of variable parameters for physical test on incipient motion of boulders in armor layer of moraine dam

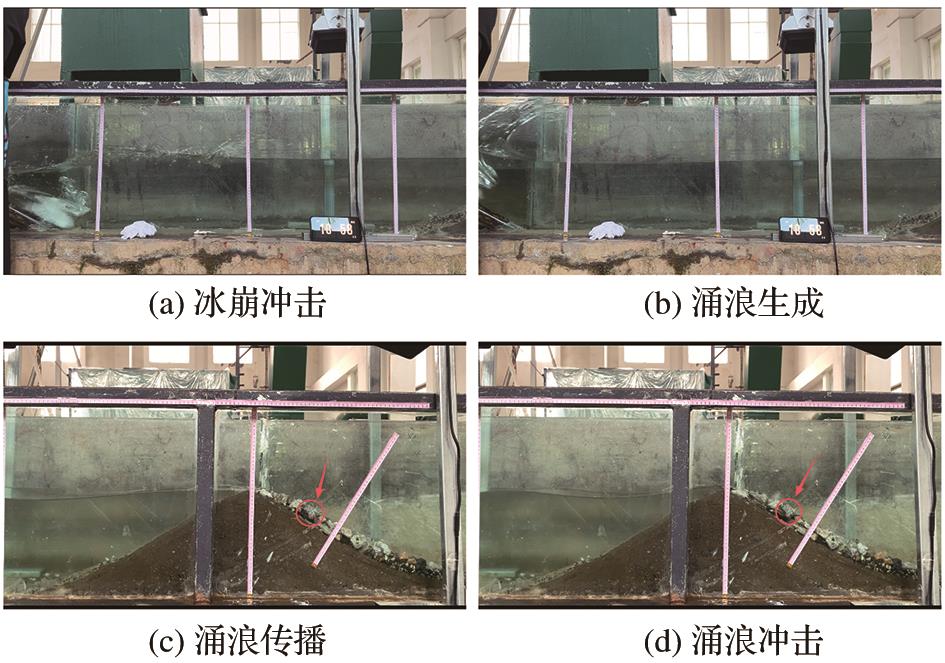

图4 冰崩涌浪的波浪的形状和演化规律
Fig. 4 The shape and evolution law of the wave of ice collapse surge

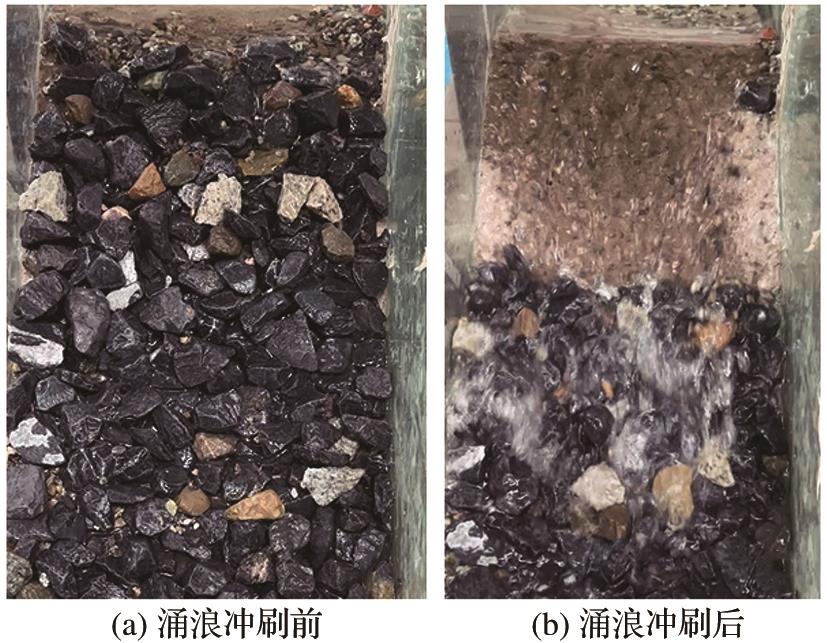

图5 冰碛坝铠甲层起动试验中单颗粒滑动或滚动
Fig. 5 Sliding or rolling of single particles in the incipient motion test of the armor layer of a moraine dam

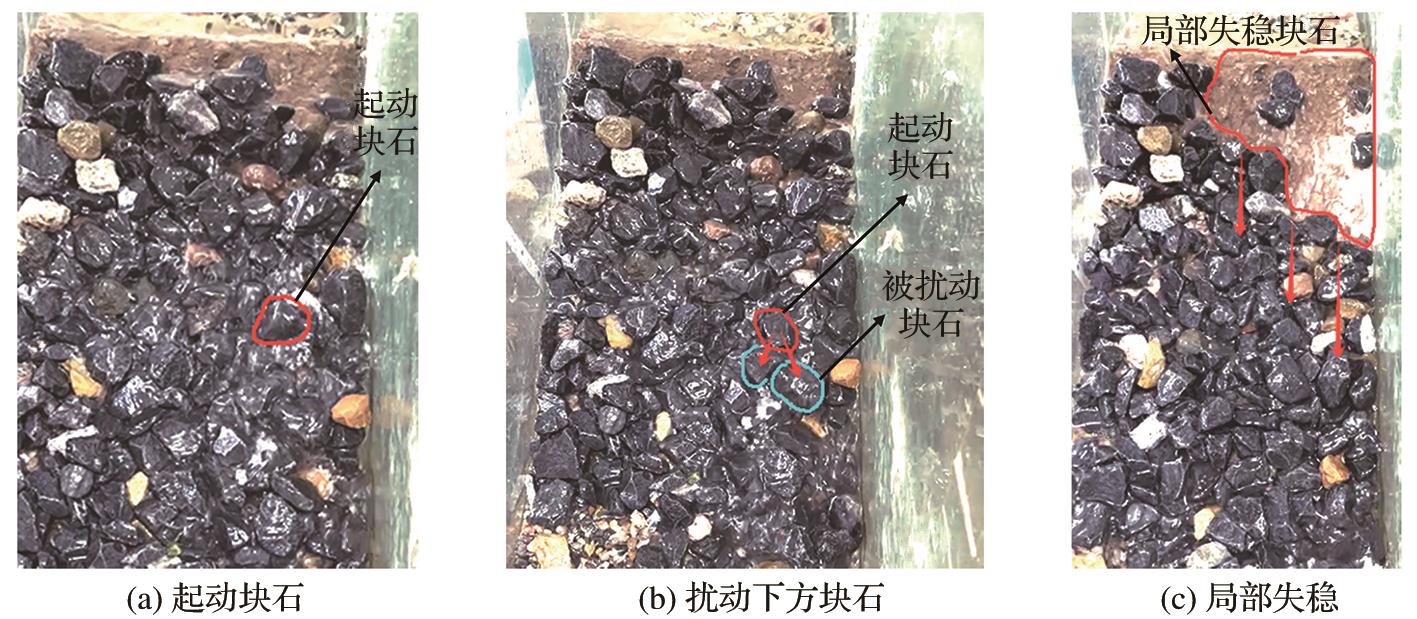

图6 冰碛坝铠甲层起动试验中局部动态失稳阶段
Fig. 6 Stage of local dynamic instability in the incipient motion test of the armor layer of a moraine dam

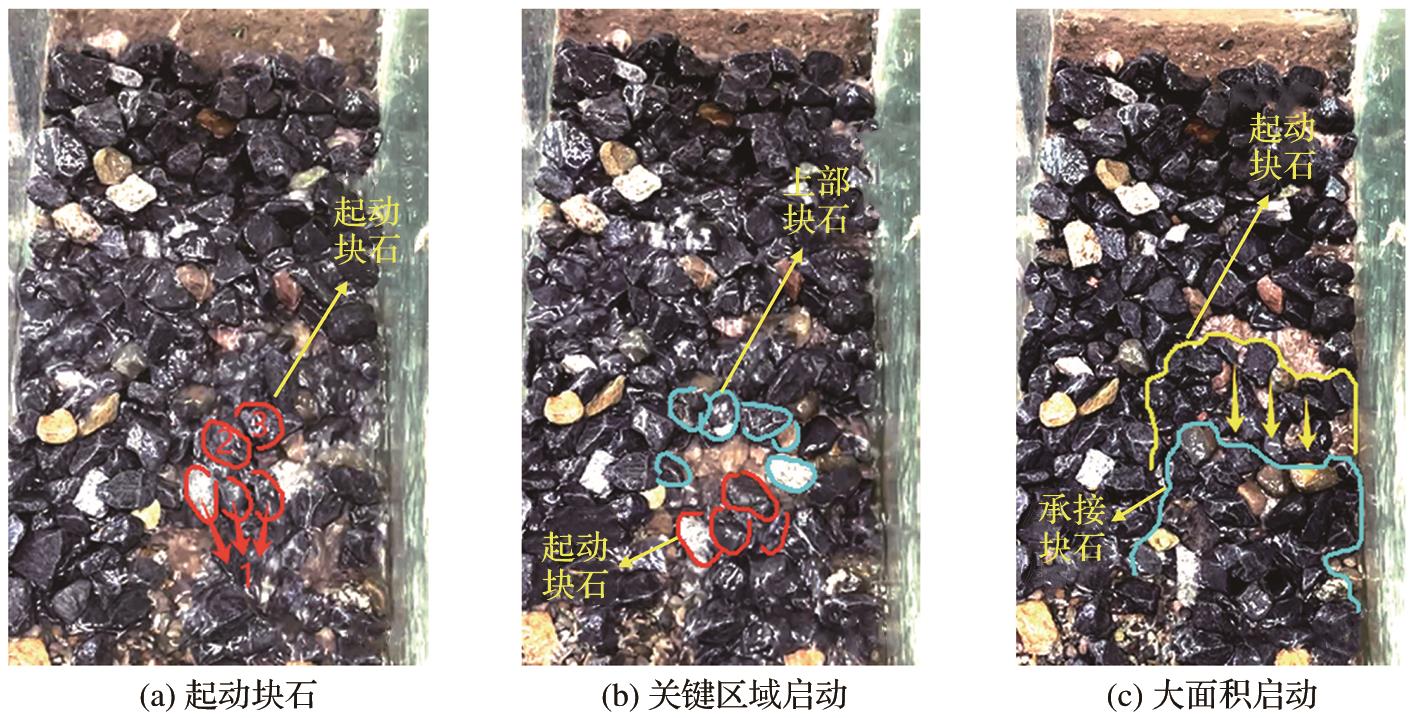

图7 冰碛坝铠甲层起动试验中整体溃决式起动模式
Fig. 7 Integral breaching-type incipient motion mode in the incipient motion test of the armor layer of a moraine dam

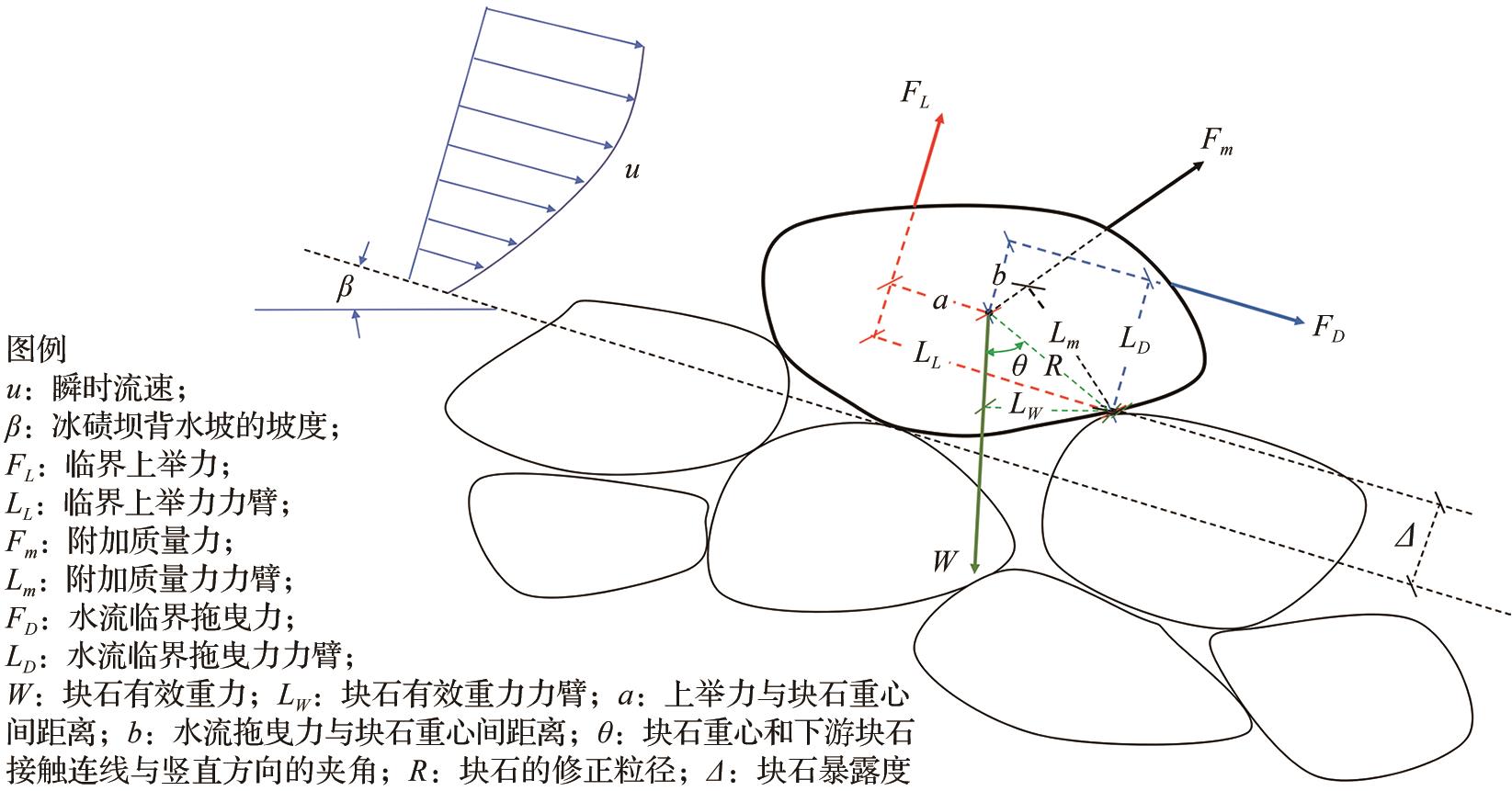

图8 铠甲层块石受力分析图
Fig. 8 Force analysis of armor layer boulders
表2 部分起动模式起动流速计算
Table 2 Calculation table of starting velocity in partial starting mode

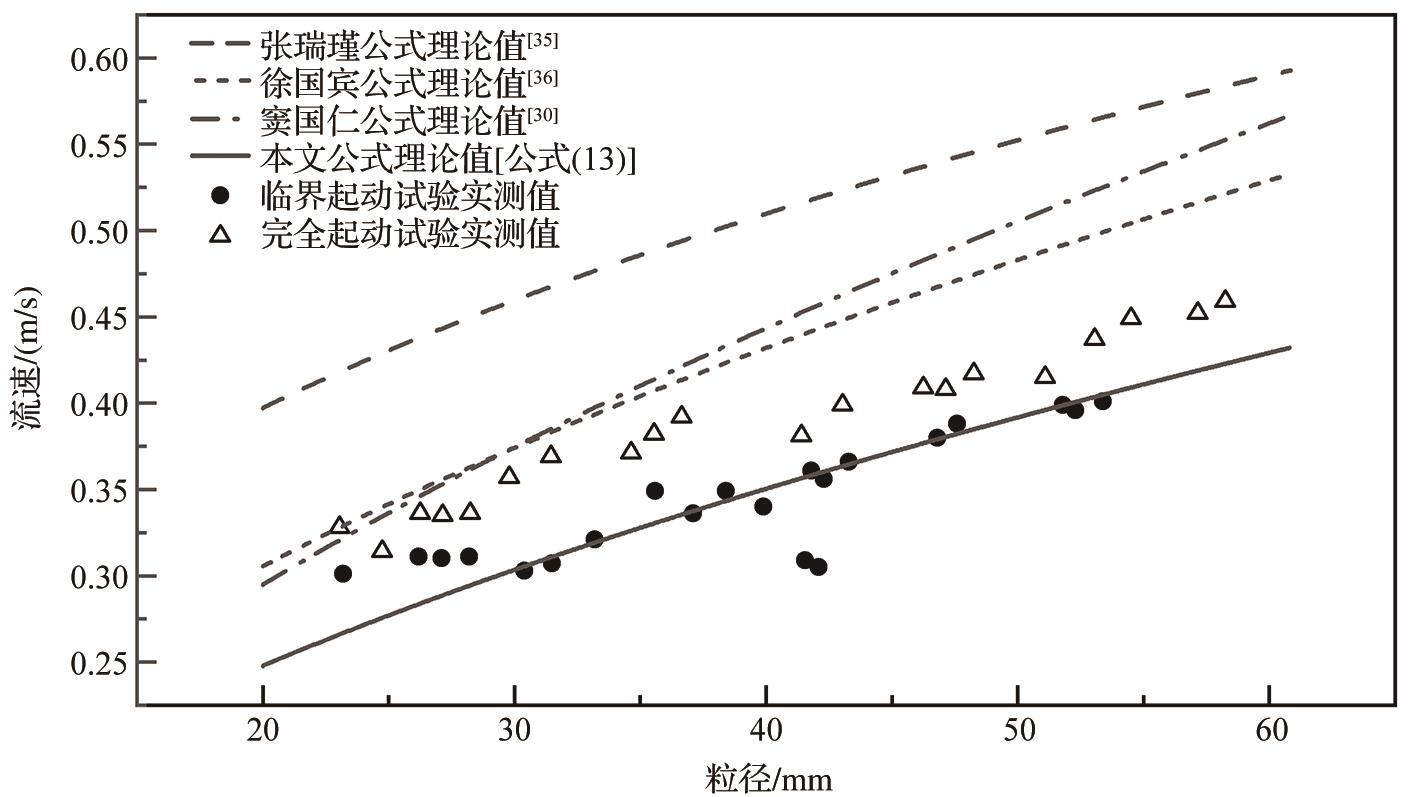

图9 本文公式和代表性公式计算值与试验值对比
Fig. 9 Comparison of calculated values and test values between the formula in this paper and the representative formula
[1] Liu Shiyin, Ding Yongjian, Li Jing, et al. Glaciers in response to recent climate warming in western China[J]. Quaternary Sciences200626(5): 762-771.
刘时银, 丁永建, 李晶, 等. 中国西部冰川对近期气候变暖的响应[J]. 第四纪研究200626(5): 762-771.
[2] Liu Jiankang, Zhang Jiajia, Gao Bo, et al. An overview of glacial lake outburst flood in Tibet, China[J]. Journal of Glaciology and Geocryology201941(6): 1 335-1 347.
刘建康, 张佳佳, 高波, 等. 我国西藏地区冰湖溃决灾害综述[J]. 冰川冻土201941(6): 1 335-1 347.
[3] Yao Xiaojun, Liu Shiyin, Sun Meiping, et al. Study on the glacial lake outburst flood events in Tibet since the 20th century[J]. Journal of Natural Resources201429(8): 1 377-1 390.
姚晓军, 刘时银, 孙美平, 等. 20世纪以来西藏冰湖溃决灾害事件梳理[J]. 自然资源学报201429(8): 1 377-1 390.
[4] Hambrey M J, Quincey D J, Glasser N F, et al. Sedimentological, geomorphological and dynamic context of debris-mantled glaciers, Mount Everest (Sagarmatha) region, Nepal[J]. Quaternary Science Reviews200928(11/12): 1084.
[5] Zhou Luxu, Liu Jiankang, Chen Long. Risk analysis and evaluation of glacier lake outburst in traffic route of southeast Tibet(Linzhi)[J]. Journal of Natural Disasters202029(3): 162-172.
周路旭, 刘建康, 陈龙. 藏东南交通干线(林芝段)冰湖溃决危险性分析与评价[J]. 自然灾害学报202029(3): 162-172.
[6] Haeberli W, Huggel C, Kääb A, et al. The Kolka-Karmadon rock/ice slide of 20 September 2002: an extraordinary event of historical dimensions in North Ossetia, Russian Caucasus[J]. Journal of Glaciology200450(171): 533-546.
[7] Zhang G Q, Yao T D, Xie H J, et al. An inventory of glacial lakes in the Third Pole region and their changes in response to global warming[J]. Global and Planetary Change2015131: 148-157.
[8] Lee E, Carrivick J L, Quincey D J, et al. Accelerated mass loss of Himalayan glaciers since the Little Ice Age[J]. Scientific Reports202111(1): 1-8.
[9] Liu Jingjing, Cheng Zunlan, Li Yong, et al. A study of the outburst form of the end-moraine lake in Tibet[J]. Earth Science Frontiers200916(4): 372-380.
刘晶晶, 程尊兰, 李泳, 等. 西藏终碛湖溃决形式研究[J]. 地学前缘200916(4): 372-380.
[10] Shi Zhenming, Zhou Mingjun, Peng Ming, et al. Research progress on overtopping failure mechanisms and breaching flood of landslide dams caused by landslides and avalanches[J]. Chinese Journal of Rock Mechanics and Engineering202140(11): 2 173-2 188.
石振明, 周明俊, 彭铭, 等. 崩滑型堰塞坝漫顶溃决机制及溃坝洪水研究进展[J]. 岩石力学与工程学报202140(11): 2 173-2 188.
[11] Jiang Xiangang. Experimental study on the breaching process of natural dams[D]. Beijing: Chinese Academy of Sciences,2016.
蒋先刚. 堰塞坝溃决过程实验研究[D]. 北京:中国科学院大学,2016.
[12] Van Der Meer J W, Allsop N W H, Bruce T, et al. EurOtop manual: wave overtopping of sea defences and related structures[M]. 2nd ed. European Union2018.
[13] Wang Xin, Liu Shiyin. An overview of researches on moraine-dammed lake outburst flood hazards[J]. Journal of Glaciology and Geocryology200729(4): 626-635.
王欣, 刘时银. 冰碛湖溃决灾害研究进展[J]. 冰川冻土200729(4): 626-635.
[14] Jiang Zhongxin, Cui Peng, Jiang Liangwei. Critical hydrologic condition for overflow burst of moraine lake[J]. Journal of Railway Engineering Society200421(4): 21-26.
蒋忠信, 崔鹏, 蒋良潍. 冰碛湖漫溢型溃决临界水文条件[J]. 铁道工程学报200421(4): 21-26.
[15] He Wenshe, Fang Duo, Lei Xiaozhang, et al. Study on incipient velocity of uniform sand[J]. Yangtze River200233(5): 37-38, 47.
何文社, 方铎, 雷孝章, 等. 均匀沙起动流速研究[J]. 人民长江200233(5): 37-38, 47.
[16] Yang Jurui, Fang Duo, He Wenshe, et al. Study on laws of incipient motion for non-uniform sediment[J]. Journal of Hydraulic Engineering200233(10): 82-86.
杨具瑞, 方铎, 何文社, 等. 非均匀沙起动规律研究[J]. 水利学报200233(10): 82-86.
[17] Pang B, Yang Z J, Wu Z Y, et al. Investigation on the breach mechanism of ice-containing blockage dams: insights into the impact of ice melting on overtopping erosion[J]. Engineering Geology2025355: 108250.
[18] Dong G C, Huang F X, Zhou W J, et al. Towards an understanding of dynamics of blue-ice moraines: a case study in the Grove Mountains, East Antarctica[J]. Geomorphology2025480: 109749.
[19] Adhav P, Feng Z T, Ni T, et al. Numerical insights into rock-ice avalanche geophysical flow mobility through CFD-DEM simulation[J]. Computational Particle Mechanics202411(3): 1 403-1 419.
[20] Boston C M, Chandler B M P, Lovell H, et al. The role of topography in landform development at an active temperate glacier in Arctic Norway[J]. Earth Surface Processes and Landforms202348(9): 1 783-1 803.
[21] Westoby M J, Glasser N F, Brasington J, et al. Modelling outburst floods from moraine-dammed glacial lakes[J]. Earth-Science Reviews2014134: 137-159.
[22] Xu Daoming, Feng Qinghua. Dangerous glacial lake and outburst features in Xizang Himalayas[J]. Acta Geographica Sinica198944(3): 343-351, 385-352.
徐道明, 冯清华. 西藏喜马拉雅山区危险冰湖及其溃决特征[J]. 地理学报198944(3): 343-351, 385-352.
[23] Yu Bin, Yang Zhiyi, Peng Qiujian. Experimental study on the breaching of a moraine lake by overflow[J]. Journal of Glaciology and Geocryology202446(5): 1 463-1 480.
余斌, 杨治义, 彭秋建. 冰碛湖溢流溃决实验研究[J]. 冰川冻土202446(5): 1 463-1 480.
[24] Blown I, Church M. Catastrophic lake drainage within the Homathko River Basin, British Columbia[J]. Canadian Geotechnical Journal198522(4): 551-563.
[25] Liu Yang, Zhao Xuefan, Chang Ming, et al. Research on the prevention and control system of moraine dam in the Alpine and high altitude mountains area[J]. Journal of Glaciology and Geocryology202547(2): 342-353.
刘洋, 赵雪帆, 常鸣, 等. 高寒高海拔山区冰碛堤溃决防控体系研究[J]. 冰川冻土202547(2): 342-353.
[26] Duan H Y, Yao X J, Zhang Y, et al. Lake volume and potential hazards of moraine-dammed glacial lakes—a case study of Bienong Co, southeastern Tibetan Plateau[J]. The Cryosphere202317(2): 591-616.
[27] Li Wenping, Cao Shuyou, Liu Xingnian. Effect of grain shape on incipient motion of non-uniform sediment[J]. Advances in Water Science200718(3): 342-345.
李文萍, 曹叔尤, 刘兴年. 泥沙颗粒形状对非均匀沙起动条件的影响[J]. 水科学进展200718(3): 342-345.
[28] Sneed E D, Folk R L. Pebbles in the lower Colorado River, Texas study in particle morphogenesis[J]. The Journal of Geology195866(2): 114-150.
[29] Han Qiwei. Characteristics of incipient sediment motion and incipient velocity[J]. Journal of Sediment Research19827(2): 11-26.
韩其为. 泥沙起动规律及起动流速[J]. 泥沙研究19827(2): 11-26.
[30] Dou Guoren. Incipient motion of coarse and fine sediment[J]. Journal of Sediment Research199924(6): 1-9.
窦国仁. 再论泥沙起动流速[J]. 泥沙研究199924(6): 1-9.
[31] He Wenshe. Study on laws of transport for study on laws of transport for non-uniform sediment[D]. Chengdu: Sichuan University, 2002.
何文社.非均匀沙运动特性研究[D]. 成都:四川大学,2002.
[32] Xing Ru. Research on sediment exposure degree and it’s application in formula of incipient velocity[D]. Yangling: Northwest A&F University, 2016.
邢茹. 床面泥沙暴露度研究及其在起动公式中的应用[D]. 杨凌: 西北农林科技大学, 2016.
[33] Li Rong, Li Yitian, Wang Yingchun. Study on laws of threshold motion for non-uniform sediment [J]. Journal of Sediment Research199924(1):28-33.
李荣,李义天,王迎春.非均匀沙起动规律研究[J].泥沙研究199924(1):28-33.
[34] Shields A. Application of similarity principles and turbulence research to the problem of sediment movement[R]. Washington, DC: National Advisory Committee for Aeronautics, 1936.
[35] Zhang Ruijin. River sediment dynamics[M]. Beijing:Water Resources and Electric Power Press, 1989.
张瑞瑾. 河流泥沙动力学[M]. 北京: 水利电力出版社, 1989.
[36] Xu Guobin. River engineering[M]. Beijing: China Science and Technology Press, 2011.
徐国宾. 河工学[M]. 北京: 中国科学技术出版社, 2011.
