地球科学进展 ›› 2015, Vol. 30 ›› Issue (5): 539 -551. doi: 10.11867/j.issn.1001-8166.2015.05.0539

上一篇    下一篇

白云石化作用及白云岩储层研究进展 *
黄擎宇 1( ), 刘伟 1, 张艳秋 2, 石书缘 1, 王坤 1
  1. 1. 中国石油勘探开发研究院,北京 100083
    2. 中国石油天然气股份有限公司塔里木油田分公司勘探开发研究院, 新疆 库尔勒 841000
  • 出版日期:2015-06-09
  • 基金资助:
    国家科技重大专项“四川、塔里木等盆地及邻区海相碳酸盐岩大油气田形成条件、关键技术及目标评价”(编号:2011ZX05004)资助

Progress of Research on Dolomitization and Dolomite Reservoir

Qingyu Huang 1, Wei Liu 1, Yanqiu Zhang 2, Shuyuan Shi 1, Kun Wang 1

  1. 1. Research Institution of Petroleum Exploration & Development, Petrochina, Beijing 100083, China
    2. Institute of Petroleum Exploration and Development, Tarim Oilfield Company, Petrochina, Korla 841000, China
  • Online:2015-06-09 Published:2015-05-06

白云石化作用和白云岩储层一直都是碳酸盐岩研究中的重要领域。近年来,随着实验分析技术的进步以及油气勘探的深入,对白云岩的研究也取得了诸多进展:①数值模拟技术逐步应用到白云岩研究中,实现了白云石化模式研究由定性到定量的转变;②对微生物白云石化的研究不断加强,识别出了微生物相关白云石的特殊显微形貌特征并对其生物矿化机制进行了分析;③对已有白云石化模式的重新审视:包括对混合水白云石化的修正、对回流白云石化的扩展以及对构造—热液白云石化模式的丰富;④在白云石化与孔隙相关关系的研究中,突破了白云石化增孔的传统认识,逐步强调白云石化在孔隙保存方面的作用;⑤注重研究白云岩结构、成岩环境、原始相带以及白云岩形成之后的溶蚀改造等因素对白云岩储层发育的控制作用。在未来的研究中,应加强3个方面内容,一是对白云岩结构演化规律的定量研究,二是在成岩流体示踪方面要加强对新技术手段(如二元同位素、Mg同位素)的使用,同时注意借鉴成矿流体研究中的成熟技术和方法,三是要加强对深部白云岩储层形成和保存机制的探索。

Dolomitization and dolomite reservoir are vital research fields in carbonate rocks. Recently, there are many progresses in dolomite with the advancement of experimental techniques and development of petroleum exploration, including: ① Numerical simulation is applied to the study of dolomitization model gradually. It achieves a conversion of dolomitization model from qualitative analysis to quantitative description and is beneficial for understanding the migration and range of dolomitizing fluids on the regional level. ② More attention is focused on the research of microbial dolomitization. The morphological features of dolomite associated with microbe and mechanism of biomineralization have been recognized and studied deeply. ③The defects of mixing-zone dolomitization in theory and practice are pointed out, and the application range of this model is limited. ④ The scope of reflux model of dolomitization is extended widely, particularly the reflux of penesaline seawater is considered as a potential for large-scale dolomitization in shallow-burial stage. ⑤The further study of structural controlled hydrothermal dolomitization has come to realize that hydrothermal dolomite can also be associated to convergent settings. The modification of hydrothermal fluids to reservoirs shows characteristics of coexistence of constructive and destructive impacts. The research of relationship between dolomitization and origin of porosity breaks though the traditional knowledge of dolomitization increasing porosity, and emphasizes the ability of dolomitization retaining porosity. ⑥The main controlling factors of dolomite reservoirs are contributed to the dolomite texture, diagenestic environment and dissolution after emplacement of dolomite. Three aspects should be improved in the future investigations. The first is the quantitative study of evolution of dolomite texture. The second is enhancing the employment of latest geochemical techniques such as Clumped isotope and Mg isotope as well as using the mature methods for research of ore-forming fluids. The third is exploring the mechanism of origin and preservation of dolomite reservoirs in deep burial setting.

中图分类号:

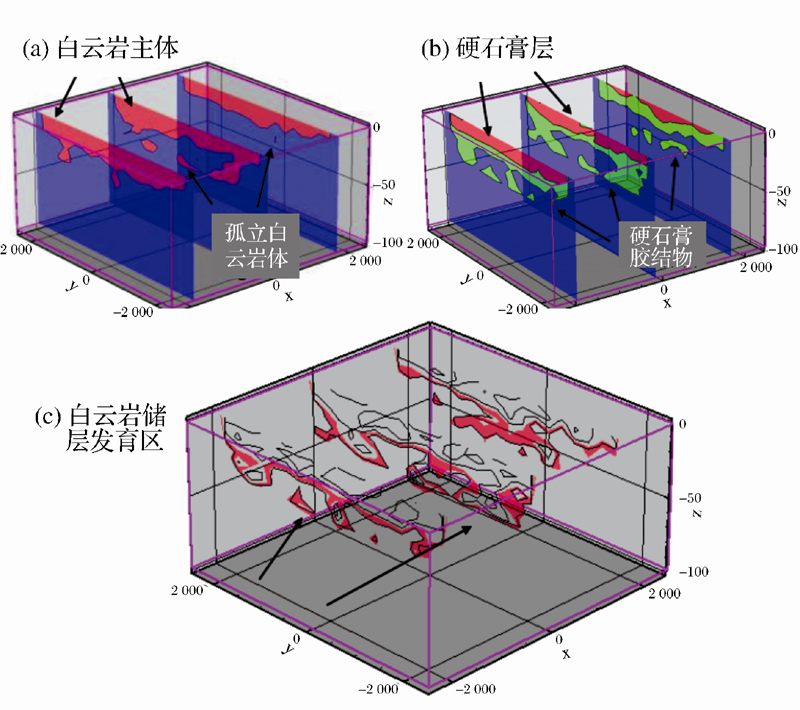

图 1 三维反应—传输模型模拟回流白云石化作用 [ 25 ] (a) 白云岩体分布范围; (b) 膏质胶结物分布范围;(c) 高渗透性白云岩储层分布范围
Fig.1 3D Reaction-Transport Model showing the simulated result of reflux dolomitization [ 25 ] (a) The distribution of dolomite; (b) The distribution of anhydrite;(c) The distribution of high-permeability dolomite reservoir

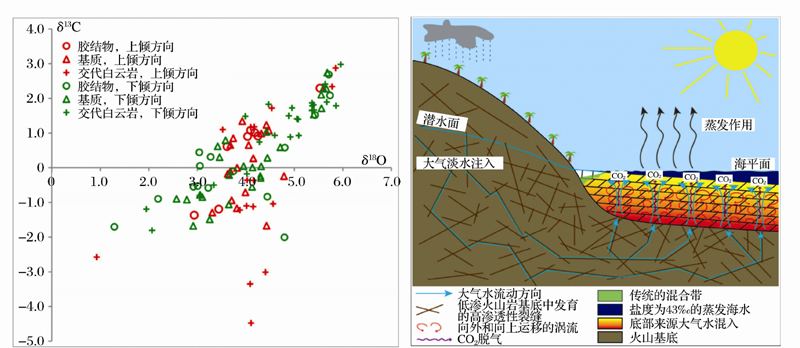

图 2 西班牙东南部中新世混合水白云岩地球化学特征(a)及成因模式(b)(据参考文献[51]修改)
Fig.2 Geochemistry feature (a) and origin model (b) of mixing-zone dolomitization in upper Miocene strata of southeast Spain (modified from reference [51])

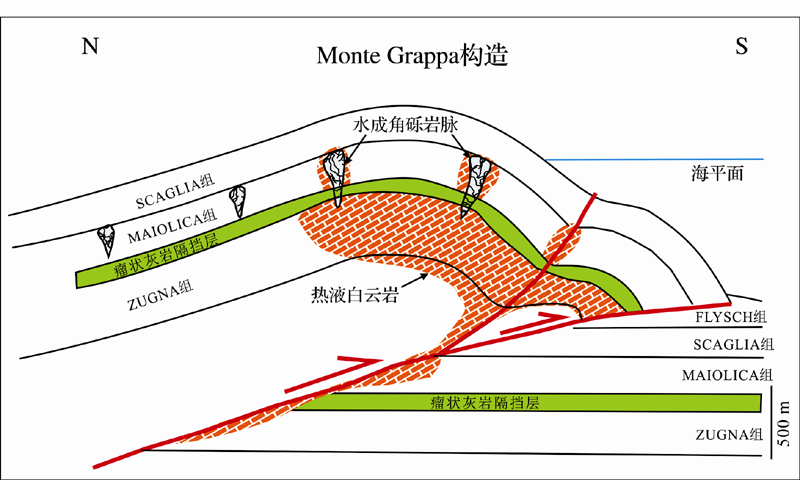

图 3 意大利威尼斯南部阿尔卑斯山脉侏罗系与挤压构造有关的热液白云石化作用模式图(据文献[72]修编)
Fig.3 Model of hydrothermal dolomitization associated to convergent setting in Southern Alps, Italy(modified from reference[72])

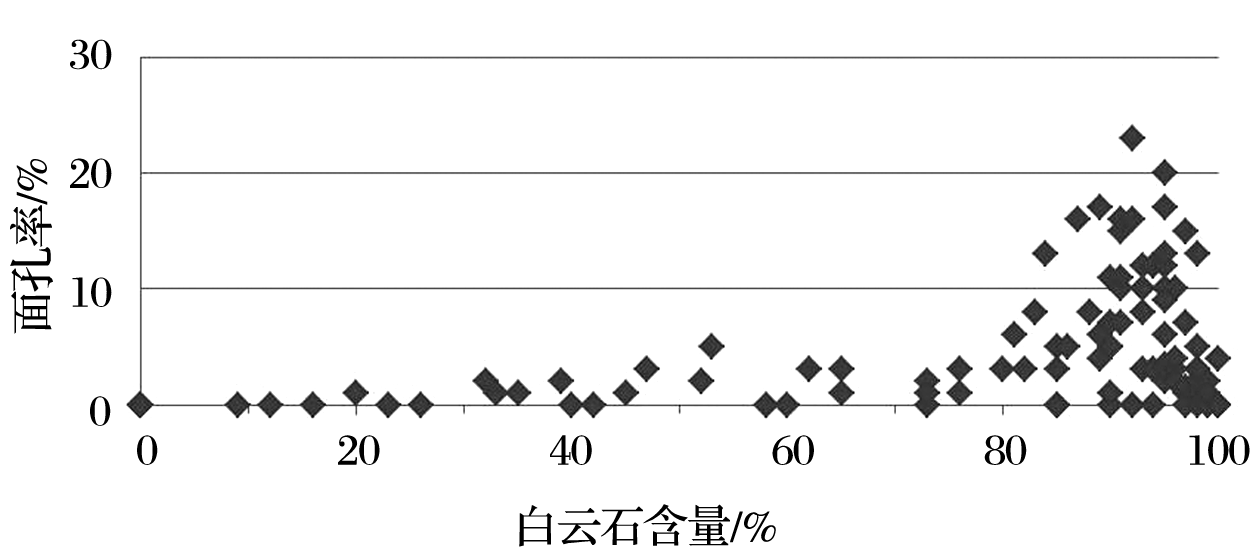

图 4 塔里木盆地下古生界白云石含量与孔隙度关系图
Fig.4 Cross-plot of porosity and content of dolomite in Paleozoic carbonate, Tarim Basin
表 1 塔里木、四川及鄂尔多斯盆地白云岩储层特征、成因及控制因素对比表 [ 11 , 97 ~ 99 ]
Table1 Comparative table of characteristics, origin and controlling factors of dolomite reservoirs in Tarim Basin, Sichuan Basin and Ordos Basin [ 11 , 97 ~ 99 ]
储层类型 分类依据 储层特征 储层成因及主控因素 实例
微生物白云岩储层 物质基础 格架孔、窗格孔、粒间孔、层状溶孔 微生物白云石化、同生/准同生大气水溶蚀、表生岩溶,受微生物结构、古地貌及多期成岩改造控制 四川盆地震旦系灯影组、塔里木盆地寒武系肖尔布拉克组
礁滩白云岩储层 粒间孔、粒间溶孔、铸模孔、粒内孔、溶孔 早期白云石化,同生期大气水溶蚀、埋藏溶蚀叠加,受沉积相、海平面变化、早期油气充注及埋藏溶蚀控制 四川盆地长兴组、飞仙关组台缘鲕滩、龙王庙组台内滩
萨布哈白云岩储层 白云岩成因 膏模孔,膏溶角砾间孔、少量晶间孔和裂缝 萨布哈白云石化、硬石膏沉淀与溶解、白云岩垮塌,受气候和沉积相控制 四川盆地中三叠统雷口坡组一段、鄂尔多斯盆地中部马五段、塔中—巴楚中下寒武统
回流白云岩储层 残余颗粒间孔,晶间孔,晶间溶孔、潜穴孔 准同生-浅埋藏阶段回流白云石化,准同生期大气水选择性溶蚀未云化文石或高镁方解石,受早期白云石化及海平面变化控制 塔里木盆地中—下寒武统、四川盆地黄龙组、飞仙关组、龙王庙组,鄂尔多斯盆地西部马五段
埋藏白云岩储层 晶间孔、晶间溶孔,溶蚀孔洞 埋藏白云石化形成或调整孔隙,并促进孔隙保存,埋藏溶蚀进一步形成晶间溶孔和溶蚀孔洞,受原始沉积相带、白云石化程度及埋藏溶蚀控制 塔里木盆地上寒武—下奥陶统,鄂尔多斯盆地中央隆起区马家沟组四段
热液白云岩储层 溶蚀孔洞,晶间溶孔、少量晶间孔、裂缝 热液溶蚀及破裂作用形成大量溶蚀孔洞缝,热液白云石化形成少量晶间孔,受热流体性质、断层类型及断裂程度控制 塔北塔深1井、古城城探1井寒武系,四川盆地中二叠统
层间岩溶白云岩储层 后期改造 针状溶孔、溶蚀孔洞、溶缝 短期暴露溶蚀,受海平面变化/层序界面控制 塔中-巴楚蓬莱坝组及鹰山组
潜山岩溶白云岩储层 洞穴、溶蚀孔洞、晶间溶孔、角砾间孔、裂缝 长期暴露溶蚀,受构造隆升控制 塔北牙哈地区寒武系、塔中中东部下奥陶统
裂缝白云岩储层 网状破裂缝、溶蚀缝、裂缝扩溶孔、缝合线 溶蚀流体沿裂缝扩溶,受构造活动强度及断裂类型控制 古城地区古隆1井
