地球科学进展 ›› 2015, Vol. 30 ›› Issue (2): 247 -258. doi: 10.11867/j.issn.1001-8166.2015.02.0247

上一篇    下一篇

城市空间扩展非协调性识别的基础理论与实证分析
孙平军 1( ), 修春亮 2( ), 吕飞 1
  1. 1.哈尔滨工业大学建筑学院,哈尔滨 黑龙江 150001
    2.东北师范大学地理科学学院,长春 吉林 130024
  • 出版日期:2015-03-08
  • 基金资助:
    国家自然科学基金项目“流空间视角的哈大巨型城市走廊核心城市空间扩展与区域关联”(编号:41071109)资助

Basic Theory and Empirical Analysis on Non-coordination Identification of Urban Spatial Expansion

Pingjun Sun 1( ), Chunliang Xiu 2( ), Fei Lü 1

  1. 1. School of Architecture, Harbin Institute of Technology, Harbin 150001, China
    2. School of Geography Sciences, Northeast Normal University, Changchun 130024, China
  • Online:2015-03-08 Published:2015-02-20

针对当前国内外现有城市空间扩展研究因数据和方法的制约而相对缺乏合理性评价以及伴随快速城镇化进程推进的我国城市空间扩展引发了一系列区域可持续发展问题的现实背景,试图基于逆向思维和问题诊断视角构建一座由非协调病理诊断通向协调发展道路的桥梁,从非协调性视角构建城市空间扩展合理性评价指标体系;内涵上具体表征为城市建设用地总量控制非协调性、城市建设用地与农用地、生态用地配比结构非协调性以及城市建设用地空间配置非协调性3个层面。并在此基础上,以2008年中国246个地级市为样本单元展开实证分析。期间从分区(经济区划)、分类(行政等级、道路交通、城市规模、城市属性、气候条件、地形条件等)的思维对其内在规律性进行了揭示、归纳与汇总。结果表明该识别体系较为合理,揭示结果与现实情况相吻合,可以作为认知城市空间扩展,缓解人多地少的基本国情和人地矛盾冲突,促进土地资源的集约高效、合理利用和区际公平可持续发展的理论依据。

Based on the backgrounds of the lack of rational evaluation due to the constraint of data and methods, and of a series problems of regional sustainable development caused by urban expansion of rapid urbanization in current research of urban expansion at home and abroad, this paper attempted to build a bridge from the pathology of non-coordinated development to coordinated development from the perspective of reverse thinking and problem diagnosis, and then constructed a reasonable evaluation index system of urban space from the perspective of non-coordination. Specific characterization was the three levels, i.e. non-coordination of the total control of urban construction land, non-coordination of ratio nonconforming structure in urban construction land and agricultural land, ecological land, as well as the non-coordination of space allocation in established urban construction land. On the basis of these, an empirical analysis in 246 prefecture-level cities of China in 2008 was made. By partitioning (economic division) and classification (administrative level, road transport, urban scale, urban properties, weather conditions, terrain conditions, etc.), its inherent regularity was revealed, summarized and aggregated. Results showed that the identification system was reasonable and the results coincided with reality, which could serve as the theoretical basis for the basic national conditions where there are conflicts between manland relationships, for the promotion of intensive, efficient and rational use of land resources and for sustainable development among inter-districts.

中图分类号:

表1 2004—2008年中国城市建设用地总量增长弹性系数
Table 1 Growth elasticity of China's total urban construction land(2004-2008)
表2 2000—2008年中国人均粮食产量与人均GDP的增长弹性系数
Table 2 Growth elasticity of China's per capita grain output and GDP per capita (2000-2008 )
表 3 2000—2008年中国生态环境问题变化情况
Table 3 Changes of ecological environmental problems in China(2000-2008)

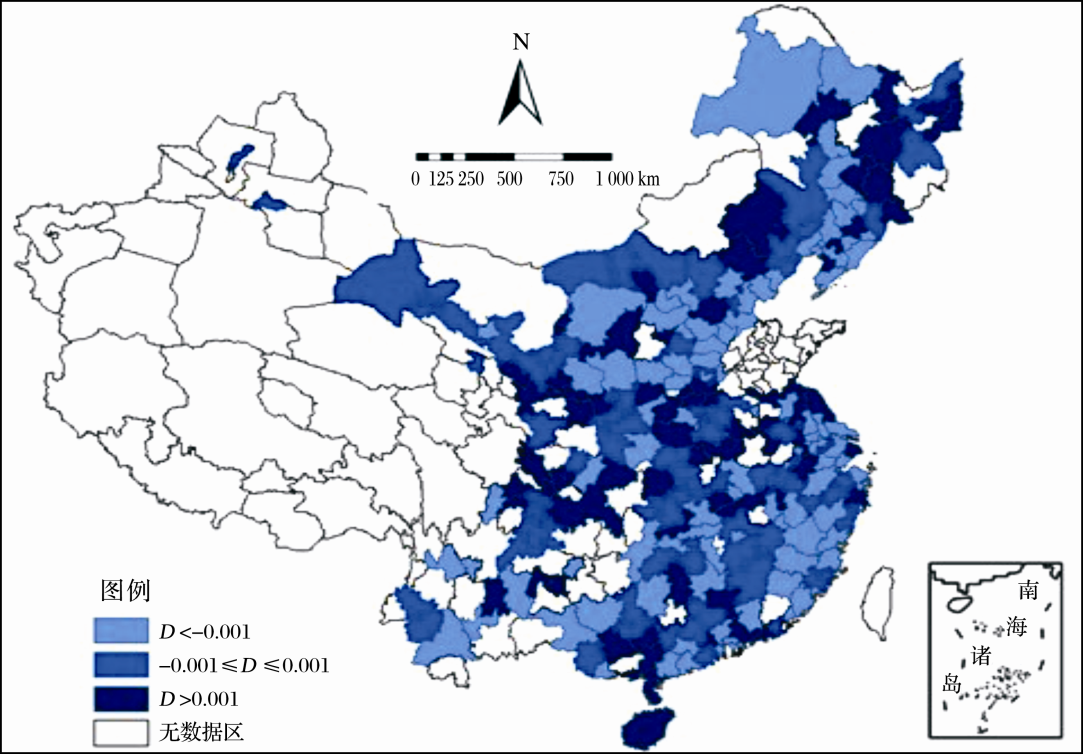

图1 中国城市建设用地空间配置之区际功能非匹配性的分类 注:D<-0.001为相对滞后型;-0.001≤D≤0.001为基本协调型;D>0.001为相对超前型
Fig.1 Functional mismatching classification of China’s urban construction land space allocation D<-0.001 stands for relative lag type; -0.001≤D≤0.001 stands for basic coordination type; D>0.001 stands for relative advanced type
表4 四大区域城市建设用地投入的点垂距 D值和 M值的平均数
Table 4 Mean of point vertical distance D and M values of urban construction land in four regions
表5 中国城市建设用地空间配置之区际功能非匹配性的特征分类
Table 5 Feature classification of space allocation inter-district non-matching of Chinese urban construction land
表6 四大区域城市化耦合非协调度的平均得分
Table 6 The average score of the non-coordinated degree of coupling in four regional urbanization
表7 人口—经济—空间城市化耦合非协调度的特征分类
Table 7 Characteristics classification of non-coordination degree among population - economy - space urbanization
表 8 城市建设用地增长弹性系数分类特征汇总
Table 8 Summary of growth elasticity classification feature of urban construction land

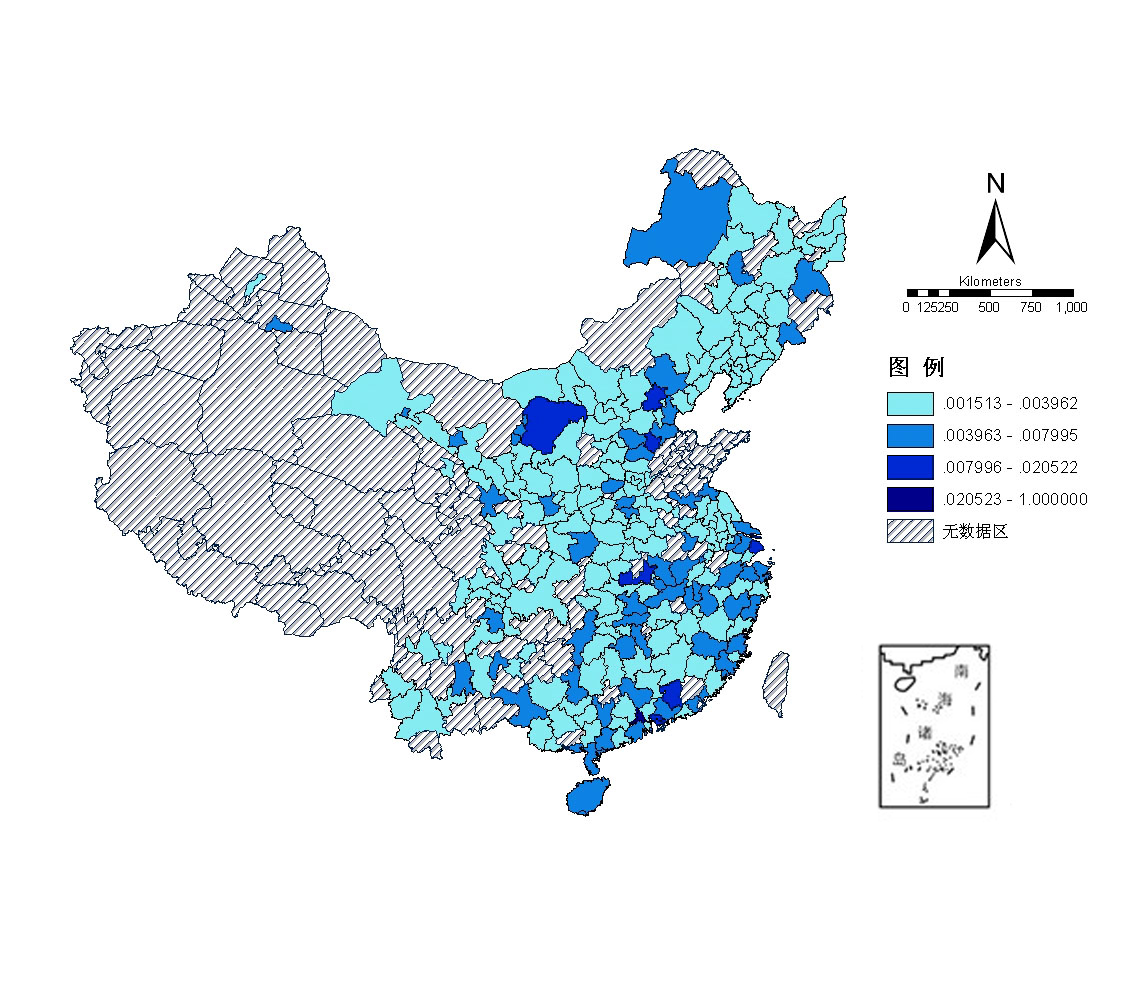

图2 中国城市建设用地空间配置非协调性评价结果
Fig.2 The results of non-coordination of China's urban construction land space allocation
表 9 中国城市建设用地空间配置非协调性分类特征汇总
Table 9 Classification feature’s summary of space allocation non-coordination of China's urban construction land
[1] Sun Pingjun, Feng Xiaoping, Sun Hong, et al.Comparative analysis of characteristics, effects and driving factors of urban sprawl in Changchun-Jilin during 2000-2009[J]. Progress in Geography, 2013, 32(3): 381-388.
[孙平军, 封小平, 孙宏, 等. 2000—2009年长春、吉林城市蔓延特征、效应与驱动力比较研究[J].地理科学进展, 2013, 32(3): 381-388.]
[2] Guo Yueting, Liao Heping, Peng Zheng.Progress in research on urban expansion of China[J].Progress in Geography, 2009, 28(3): 370-375.
[郭月婷, 廖和平, 彭征.中国城市空间拓展研究动态[J].地理科学进展, 2009, 28(3): 370-375.]
[3] Sun Pingjun, Ding Sibao, Xiu Chunliang.Dynamic evolution research on non-conformity of urban construction land input in China[J]. Scientia Geographica Sinica, 2012, 32(9): 1 047-1 054.
[孙平军, 丁四保, 修春亮. 中国城镇建设用地投入非协调性的动态演变研究[J].地理科学, 2012, 32(9): 1 047-1 054.]
[4] Yao Shimou, Guan Chiming, Wang Shuguo, et al.The research on new characteristics of urbanization and the strategy of regional space construction in China[J]. Advances in Earth Science,2007, 22(3): 271-280.
[姚世谋, 管驰明, 王书国, 等. 我国城市化发展的新特点及其区域空间建设策略[J].地球科学进展, 2007, 22(3): 271-280.]
[5] Hall P.Cities of Tomorrow: An Intellectual History of Urban Planning and Design in the Twentieth Century[M]. Victoria, Australia:Blackwell Publishers, 2002.
[6] Brueckner J K, Fansler D A.The economics of urban Sprawl: Theory and evidence on the spatial sizes of cities[J].Review of Economics and Statistics, 1983,(65): 479-482.
[7] Johnson S R.Urban spatial structure: An analysis with a varying coefficient model[J]. Journal of Urban Economics,1980, 7(2):141-154.
[8] Ji C Y, Liu Q, Sun D, et al.Monitoring urban expansion with remote sensing in China[J]. International Journal of Remote Sensing, 2001, 22(8): 1 441-1 455.
[9] Roberto C, Maria C G, Paolo R.Urban mobility and urban form: The social and environmental costs of different patterns of urban expansion[J]. Ecological Economics, 2002, 40(2): 199-216.
[10] Brueckner J K.Urban sprawl: Diagnosis and remedies[J].International Regional Science Review, 2000, 23(2):160-171.
[11] Lin Tao, Li Xinhu, Zhang Guoqin, et al.Dynamic analysis of island urban spatial expansion and its determinants: A case study of Xiamen Island[J]. Acta Geographica Sinica, 2010, 65(6): 715-726.
[吝涛, 李新虎, 张国钦, 等. 厦门岛城市空间扩张特征及其影响因素分析[J].地理学报, 2010, 65(6): 715-726.]
[12] Liu J Y, Zhan J Y, Deng X Z.Spatio-temporal patterns and driving forces of urban land expansion in China during the economic reform era[J]. Ambio: A Journal of the Human Environment, 2005, 34(6):450-455.
[13] Zhang Hengyi.Study on the Spatial Allocative Efficiency of Interprovincial Construction Land in China[D]. Hangzhou: Zhejiang University, 2011.
[张恒义. 中国省际建设用地空间配置效率研究[D].杭州: 浙江大学, 2011.]
[14] Liu Xinwei, Zhang Dingxiang, Chen Baiming.Characteristics of China’s town-level land usein rapid urbanization stage[J]. Acta Geographica Sinica, 2008, 63(3): 301-310.
[刘新卫, 张定祥, 陈百明. 快速城镇化过程中的中国城镇土地利用特征[J].地理学报, 2008, 63(3): 301-310.]
[15] Sun Pingjun, Xiu Chunliang.Progress in research on urban spatial expansion of China[J]. Areal Research and Development, 2014, 33(4): 46-52.
[孙平军, 修春亮. 中国城市空间扩展研究进展[J].地域研究与开发, 2014, 33(4): 46-52.]
[16] Li K Y.Research on the urban spatial expansion under administrative district adjustment—A case study of Panyu district, Guangzhou[J]. Ecological Geography, 2010, 30(1): 22-26.
[17] Ding C, Zhao X.Assessment of urban spatial-growth patterns in China during rapid urbanization[J]. Chinese Economy, 2011, 44(1): 46-71.
[18] Li Jialin, Xu Jiqin, Li Weifang, et al.Spatio-temporal characteristics of urbanization area growth in the Yangtze River Delta[J]. Acta Geographica Sinica, 2007, 62(4): 437-447.
[李加林, 许继琴, 李伟芳, 等. 长江三角洲地区城市用地增长的时空特征分析[J].地理学报, 2007, 62(4): 437-447.]
[19] Che Qianjin, Duan Xuejun, Guo Yao, et al.Urban spatial expansion process, pattern and mechanismin Yangtze River Delta[J]. Acta Geographica Sinica, 2011,66(4): 446-456.
[车前进, 段学军, 郭垚, 等.长江三角洲地区城镇空间扩展特征及机制[J].地理学报, 2011,66(4): 446-456.]
[20] Song Y, Knaap G J.Measuring urban form: Is Portland winning the war on sprawl[J]. Journal of the American Planning Association,2004, 70(2): 210-225.
[21] Frenkel A, Ashkenazi M. The Integrated Sprawl Index: Measuring the Urban Landscape in Israel[EB/OL].(2014-06-25)[2014-06-25].
URL
[22] Burchell R W, Shad N A.The evolution of the sprawl debate in the United States[J]. West Northeast, 1999, 5(2):137-160.
[23] Zhou Yixing.Urbanization rate is not the sooner the better[J]. Scientific Decision Making,2005, (8): 30-33.
[周一星. 城镇化速度不是越快越好[J]. 科学决策, 2005, (8): 30-33.]
[24] Wang S J, Fang C L, Ma H T, et al.Spatial differences and multi-mechanism of carbon footprint based on GWR model in provincial China[J]. Journal of Geographical Sciences, 2014, 24(4): 612-630.
[25] Sun Pingjun, Ding Sibao, Wang Ying.Non-conformity analysis of urban construction land input in China[J].World Regional Studies, 2012, 21(1): 49-57.
[孙平军, 丁四保, 王颖. 中国城镇建设用地投入的非协调性研究[J].世界地理研究, 2012, 21(1): 49-57.]
[26] Peng Jian, Liu Yanxu, Pan Yajing, et al.Study on the correlation between ecological risk due to natural disaster and landscape pattern-process: Review and prospect[J]. Advances in Earth Science, 2014, 29(10): 1 186-1 196.
[彭建, 刘焱序, 潘雅婧,等. 基于景观格局—过程的城市自然灾害生态风险研究:回顾与展望[J].地球科学进展, 2014, 29(10): 1 186-1 196.]
[27] Li Zhijun, Liu Haiyan, Liu Jisheng.Imbalance analysis of rural infrastructure construction in China[J]. Scientia Geographica Sinica, 2010, 30(6): 839-846.
[李志军, 刘海燕, 刘继生. 中国农村基础设施建设投入不平衡性研究[J].地理科学, 2010, 30(6): 839-846.]
[28] Sun P J, Song W, Xiu C L, et al.Non-coordination in China’s urbanization: Assessment and affecting factors[J]. Chinese Geographical Science, 2013, 23(6): 729-739.
[29] Sun Pingjun, Ding Sibao, Xiu Chunliang.Analysis of the coordination of population-economy-space in Beijing[J]. Urban Planning, 2012, 36(5): 38-45.
[孙平军, 丁四保, 修春亮. 北京市人口—经济—空间城市化耦合协调性分析[J].城市规划, 2012, 36(5): 38-45.]
[30] Dang Jianhua, Wahap Halik, Zhang Yuping, et al.A brief analysis of the situations of the urbanization development and the coordination in arid area[J]. Advances in Earth Science, 2014, 29(3): 420-428.
[党建华, 瓦哈甫.哈力克, 张玉萍, 等. 干旱区绿洲城市城镇化发展状况及协调性浅析——以吐鲁番地区为例[J].地球科学进展, 2014, 29(3): 420-428.]
[31] Sun Pingjun, Zeng Liang, Xiu Chunliang, et al.Reflections on eco-city planning of Shenbei Puhe new city based on the winter city characteristics[J]. Urban Planning, 2013, 37(7): 46-52.
[孙平军, 曾亮, 修春亮, 等. 基于寒地特征的沈北蒲河生态城市规划思考[J].城市规划, 2013, 37(7): 46-52.]
[32] Chen Wei.Discrimination of the concept of our country’s mountainous city[J]. Huazhong Architecture, 2001, 19(3): 55-58.
[陈玮. 对我国山地城市概念的辨析[J].华中建筑, 2001, 19(3): 55-58.]
[33] Lu Dadao.The proposition to avoid the over advance and inappropriate construction of China’s transport infrastructures[J]. Scientia Geographica Sinica, 2012, 32(1):2-11.
[陆大道. 关于避免中国交通建设过度超前的建议[J].地理科学, 2012, 32(1):2-11.]
