京津石多机场系统航空流运行结构及其对比研究
张菁 1, 2, 3( ),路紫 1, 2( ),杜欣儒 1, 2,杜晓辉 4,高玉健 5
  1. 1.河北师范大学资源与环境科学学院,河北 石家庄 050024
    2.河北省环境演变与生态建设实验室,河北 石家庄 050024
    3.首都师范大学附属中学永定分校,北京 102308
    4.河北师范大学旅游系,河北 石家庄 050024
    5.交通运输部规划研究院,北京 100028
  • 收稿日期:2020-05-16 修回日期:2020-11-03 出版日期:2020-12-10
  • 通讯作者: 路紫 E-mail:zhangjingerv@163.com;luzi@hebtu.edu.cn
  • 基金资助:
    国家自然科学基金项目“数据通信支持的空域资源配置模型与机制”(41671121)

The Air Flow Operation Structure of Jing-Jin-Shi Multi-Airport System and Its Comparative Study

Jing Zhang 1, 2, 3( ),Zi Lu 1, 2( ),Xinru Du 1, 2,Xiaohui Du 4,Yujian Gao 5

  1. 1.School of Resource and Environment Sciences,Hebei Normal University,Shijiazhuang 050024,China
    2.Hebei Key Laboratory of Environmental Change and Ecological Construction,Shijiazhuang 050024,China
    3.Yongding Branch School of High School Attached to Capital Normal University,Beijing 102308,China
    4.Department of Tourism,Hebei Normal University,Shijiazhuang 050024,China
    5.Transport Planning and Research Institute,Ministry of Transport,Beijing 100028,China
  • Received:2020-05-16 Revised:2020-11-03 Online:2020-12-10 Published:2021-02-09
  • Contact: Zi Lu E-mail:zhangjingerv@163.com;luzi@hebtu.edu.cn
  • About author:Zhang Jing (1992-), female, Handan City, Hebei Province, Master student. Research areas include aviation geography and development of airspace utilization. E-mail: zhangjingerv@163.com
  • Supported by:
    the National Natural Science Foundation of China "The model and mechanisms of airspace configuration supported by data communication"(41671121)

跟踪过滤京津石多机场系统实时航迹点数据,搭建包括航迹网络、航迹簇流量模式、航迹管交叉空域和航迹相态4个方面的多机场系统航空流运行结构集成检测框架,经分类、分组、分层、分相对邻近流、并发流、多变量流、集体流进行检测发现:由少量中心航迹形成主导性流向,4组航迹簇流量模式持续时间均较长且存在时间窗口集中与分散分布差异,在航迹管交叉空域表现为穿越关系并可同时共享同一空域单元,航迹相态受航空流参与量和航空网络影响而发生时序变化。与纽约多机场系统对比,中心航迹偏少且流向域面较窄、航迹簇流量模式和航迹管交叉空域持续集中时间较长且可变性较小、航迹拥堵相出现频率更高。大兴机场加入后将新增中心航迹、消减时间窗口峰值并引发形成新的交叉空域。揭示出航空地理市场的基础性作用,可为多机场系统空域动态配置与系统协调提供决策支持。

The real-time flight trajectory data of Jing-Jin-Shi multi-airport system was obtained by tracking and filtering, and an integrated detection framework for air flow operation structure of multi-airport system including trajectory network, trajectory cluster flow pattern, trajectory tube in crossing airspace and trajectory phase state was built. Through classification, grouping, layered and phased detection of adjacent flow, concurrent flow, multivariable flow and collective flow, it is found that: A small number of central trajectories can form a dominant air flow operation. The four groups of trajectory cluster flow patterns all last for a long time and there are differences in the concentration and dispersion of sliding windows. The spatio-temporal interaction of air traffic flow among the trajectory tube in crossing airspace is shown as a crossing relationship and also shares the same airspace unit at the same time. Besides, the phase state changes due to the influence of air flow participation and aviation network. Compared with the New York multi-airport system in the United States, the central trajectories are less and the flow direction area is narrower. Secondly, the trajectory cluster flow pattern and the trajectory tube in crossing airspace have longer concentration time and less variability, and the trajectory congestion is more likely and more frequent. The participation of Beijing Daxing International Airport will increase the central trajectories, reduce the peak value of sliding windows and also make the new crossing airspace. This research reveals the fundamental role of the aviation geographic market, which can provide decision-making for the dynamic airspace configuration and coordination of multi-airport system.

中图分类号:

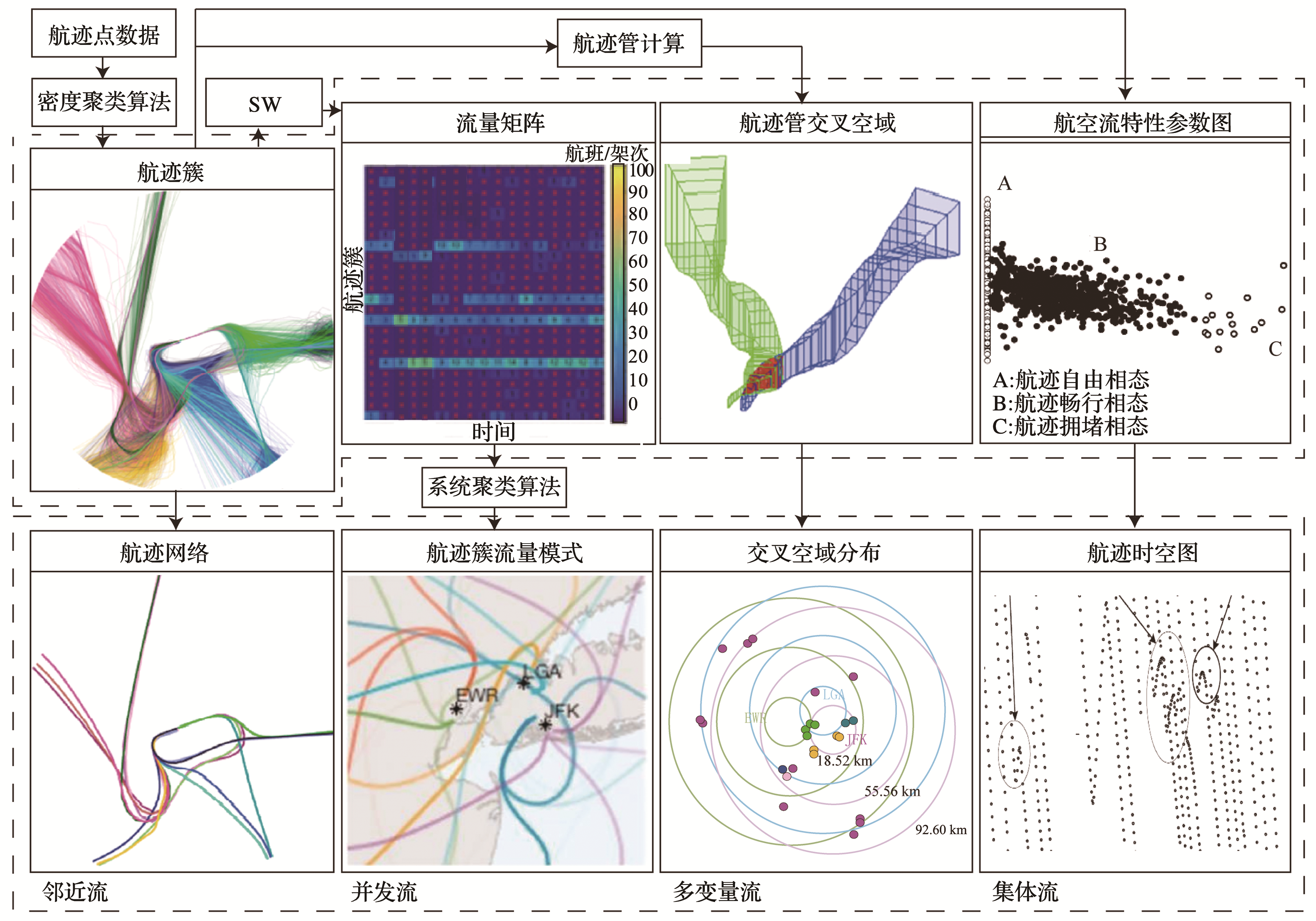

图1 MASAFOS集成检测过程与方法(据参考文献[ 11 , 14 ]修改)
Fig.1 The integrated detection process and method for AFOS of MAS modified after references [11,14])

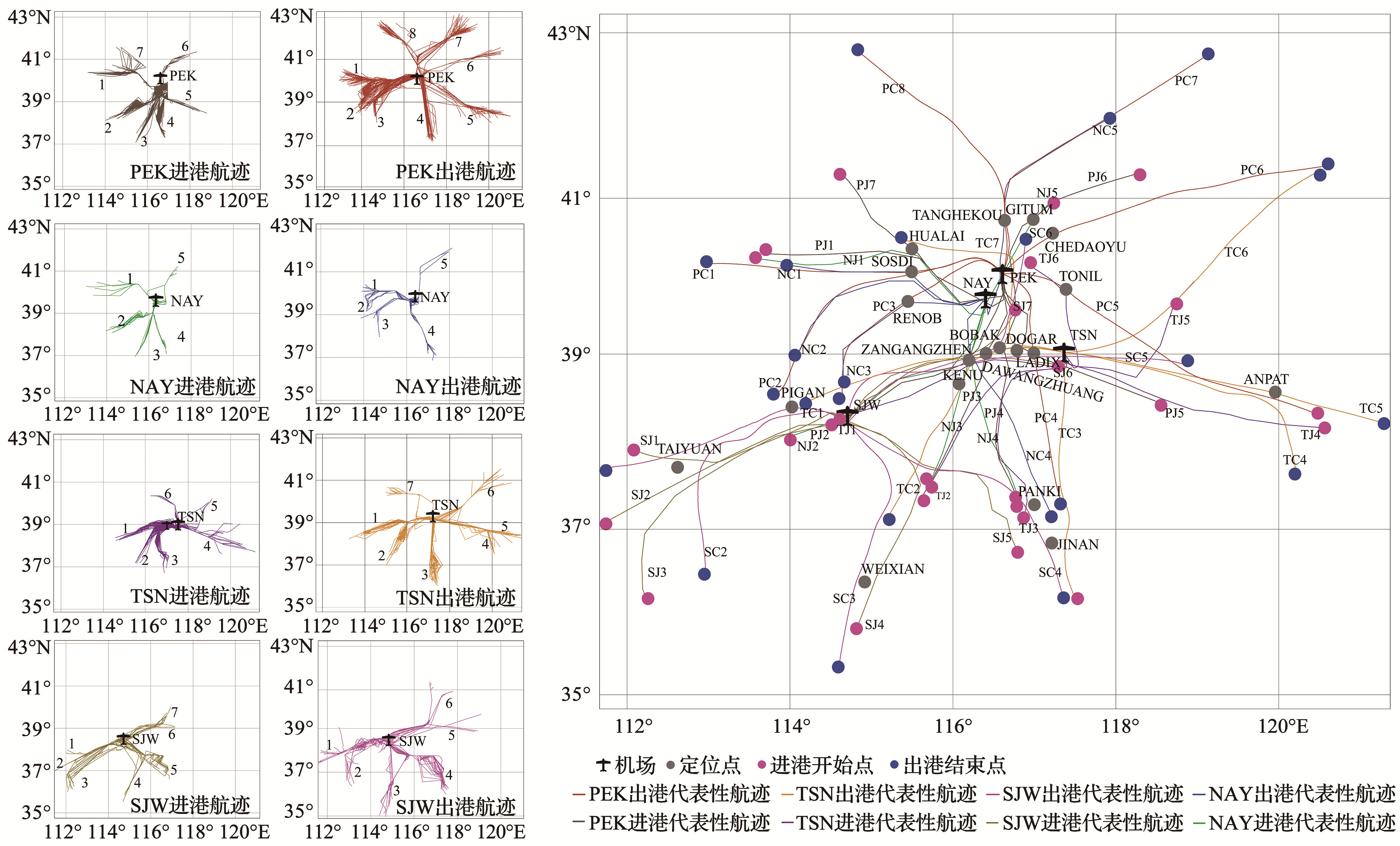

图2 京津石MAS进出港航班的航迹簇与航迹网络
Fig.2 Trajectory clusters and its network of Jing-Jin-Shi MAS inbound and outbound flights

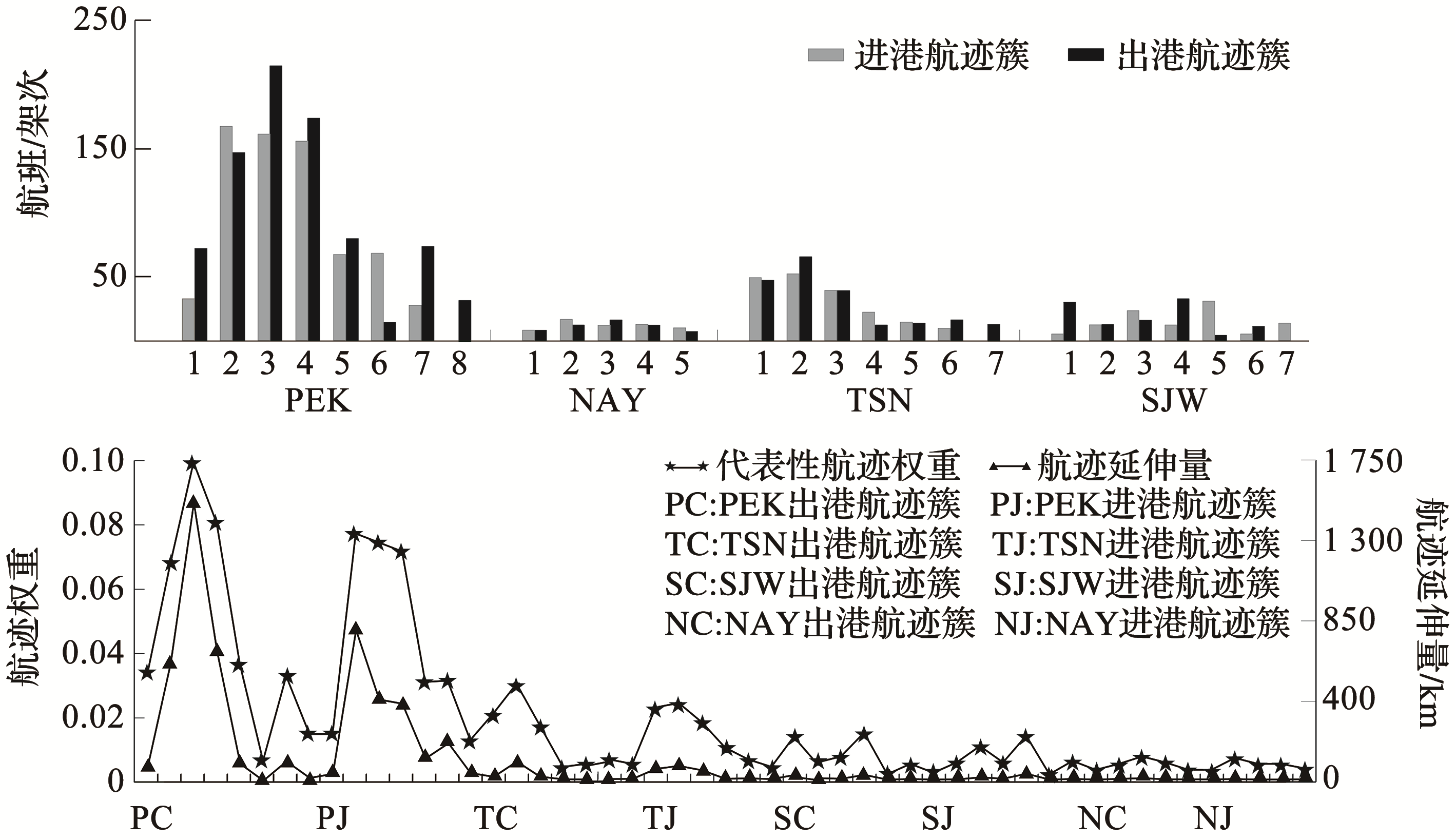

图3 京津石MAS航迹簇流量与航迹网络度量指标
Fig.3 Jing-Jin-Shi MAS trajectory flow and metrics of its network

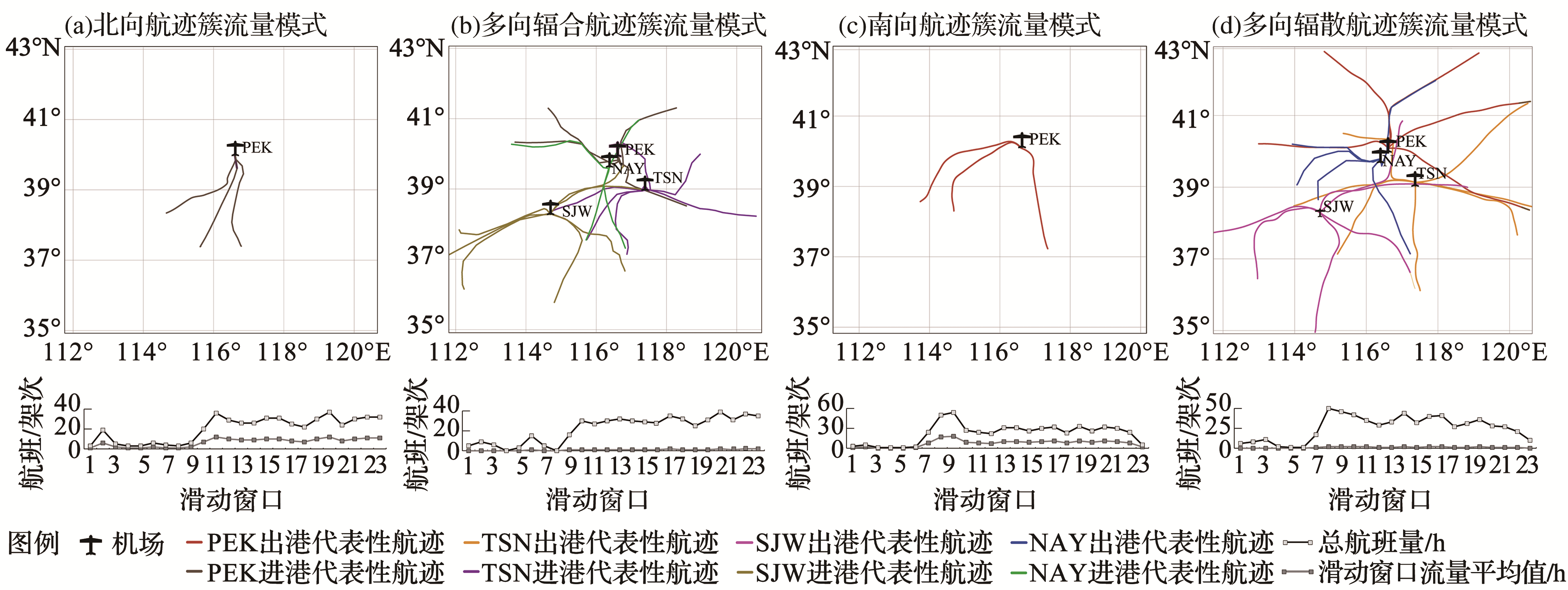

图4 基于SW的京津石MAS航迹簇流量模式
Fig.4 Jing-Jin-Shi MAS trajectory cluster flow pattern based on sliding window

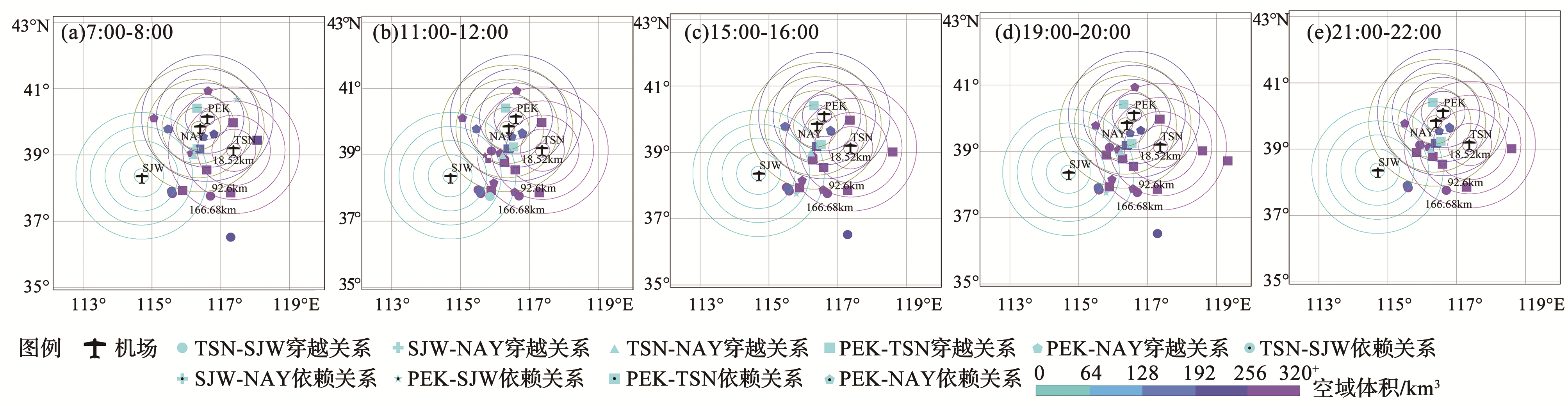

图5 京津石MAS航迹管交叉空域时空相互作用及其关系指示
Fig.5 Spatio-temporal interaction and relationship indication of Jing-Jin-Shi MAS trajectory tube crossing airspace

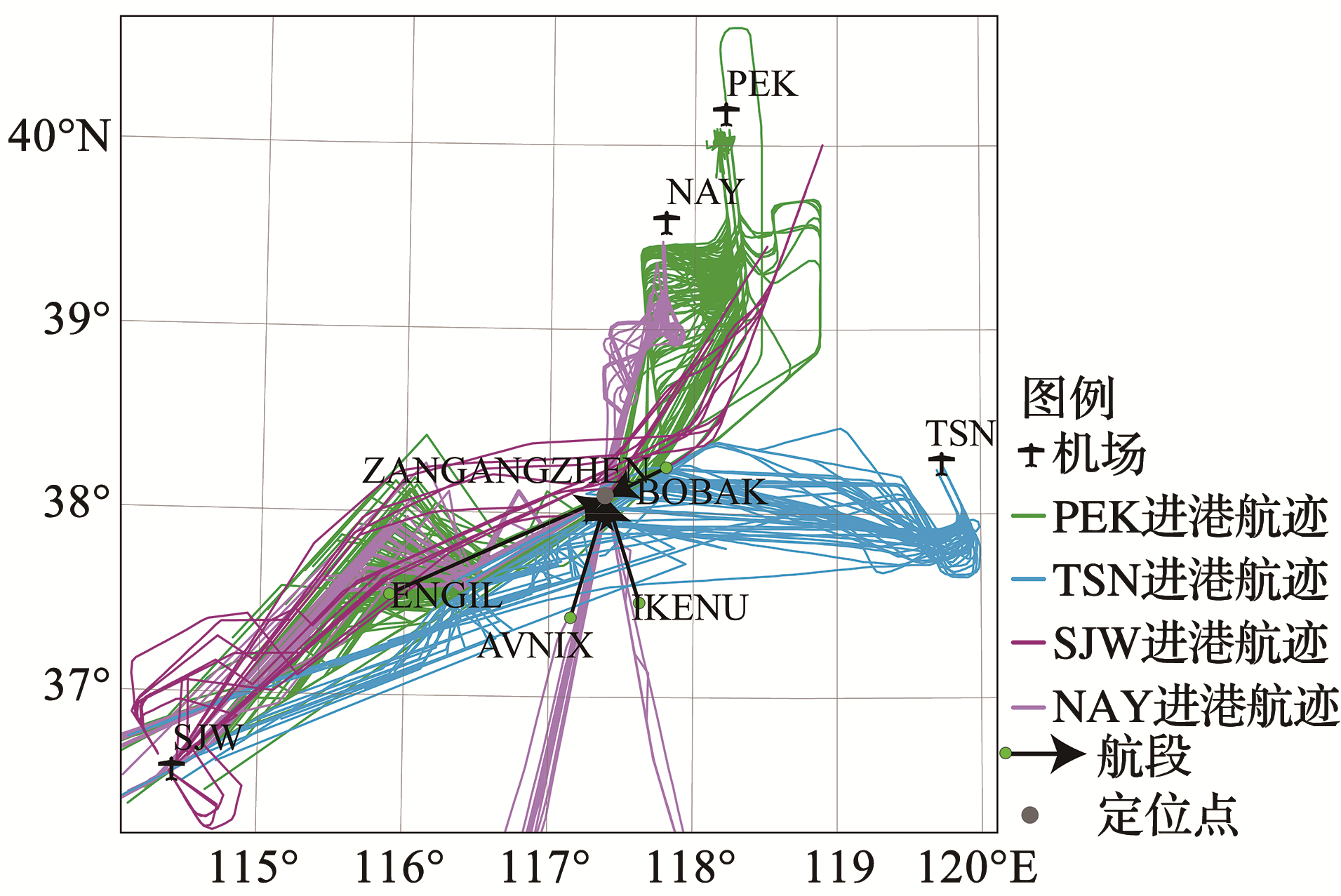

图6 ZANGANGZHEN关联航段航迹图
Fig6 Associated segment trajectory map of ZANGANGZHEN
图7 ZANGANGZHEN关联航段航空流特性参数图及航迹时空图
Fig.7 The characteristic parameter map and trajectory spatio-temporal map of air flow in the associated segment of ZANGANGZHEN
