基于三维激光扫描仪的青藏铁路风沙工程效益评价

doi:10.11867/j.issn.1001-8166.2014.10.1197

三维激光扫描技术是近年来发展起来的新型空间信息测量技术。将三维激光扫描技术应用于青藏铁路沿线风沙工程防护体系的效益评价中,通过对铁路沿线典型防沙措施积沙形态特征、断面蚀积廓线以及蚀积量的精确测量发现：砾石方格内垂直铁路方向易形成稳定凹曲面,且方格两侧沙埂处积沙较多,中心部位积沙较少,固沙效果显著。阻沙栅栏有效防护距离为栅栏高度的12倍,单位宽度拦截沙量高达14.93 m3,设置防护体系时,阻沙栅栏间隔应保持其高度的9~12倍。研究结论为青藏铁路沿线风沙综合防护体系的措施选择、结构优化和合理布局提供技术支撑。

关键词: Rocky checkerboard sand barriers, Sand fences, Sand damages, Protective benefit.

3D laser scanning has been a new technology in measurement of spatial information in recent years. In this paper, this technology was applied tentatively to the efficiency evaluation of the protective system of sand drift control engineering along Qinghai-Tibet Railway. The sand control efficiency of the system was evaluated by accurately measuring the morphology of sand deposition over the typical sand drift control measures, aeolian erosion and deposition profiles of the cross-section and quantities of erosion and deposition using the 3D laser scanning technology. The concave surface of rocky checkerboard sand barriers easily formed along the perpendicularly direction to the railway. Sand accumulation occured more on the sides of rocky checkerboard than its center. The effective distance of sand fences was about 12 H and sand-blocking volume was 14.93 m³ per 1 m width. Therefore, the space of sand fences should remain 9~12 H in the construction of protective systems. The objective of this study is to extend this technology to the measurement of sand disaster threatening other railways, buildings and engineering measures and to the evaluation of the protective efficiency of their control systems, thus eventually providing technical support to the measure selection, structure optimization and rational distribution of the integrative sand drift control system.

Key words: 砾石方格, 阻沙栅栏, 风沙灾害, 防护效益

中图分类号:

P931.3

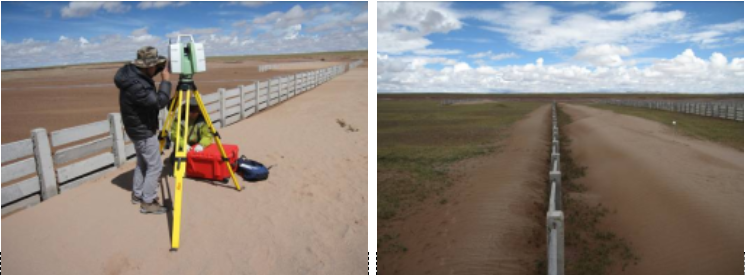

图1 青藏铁路北麓河段防护体系风沙堆积体三维测量

Fig. 1 3D Leica ScanStation (C10) used in the Beiluhe section along the Qinghai-Tibet Railway

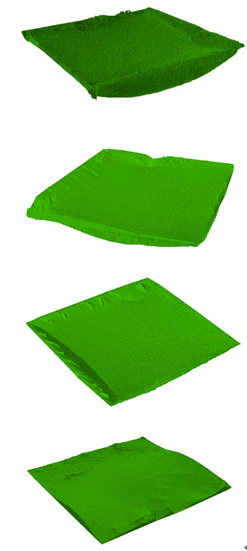

图2 生成砾石方格TIN模型

Fig. 2 TIN model of rocky checkerboard-liked sand barrier along the Qinghai-Tibet Railway

表1 青藏铁路沿线主要站点年均风况

Table 1 Annual wind regimes in the stations along the Qinghai-Tibet Railway

站名	大风日数/d	年均风速/(m/s)	最大风速/(m/s)
格尔木	22.4	2.7	26
五道梁	135.5	3.9	31
沱沱河	167.8	4.1	32
安多	148.8	4.1	38
那曲	97.8	2.9	24
当雄	66.4	2.8	20
拉萨	32.4	2.1	32

表1 青藏铁路沿线主要站点年均风况

Table 1 Annual wind regimes in the stations along the Qinghai-Tibet Railway

站名	大风日数/d	年均风速/(m/s)	最大风速/(m/s)
格尔木	22.4	2.7	26
五道梁	135.5	3.9	31
沱沱河	167.8	4.1	32
安多	148.8	4.1	38
那曲	97.8	2.9	24
当雄	66.4	2.8	20
拉萨	32.4	2.1	32

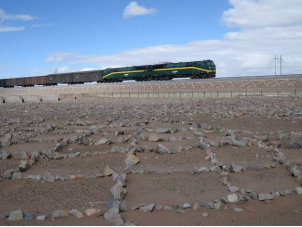

图3 青藏铁路沿线砾石方格

Fig. 3 Rocky checkerboard-liked sand barrier along Qinghai-Tibet Railway

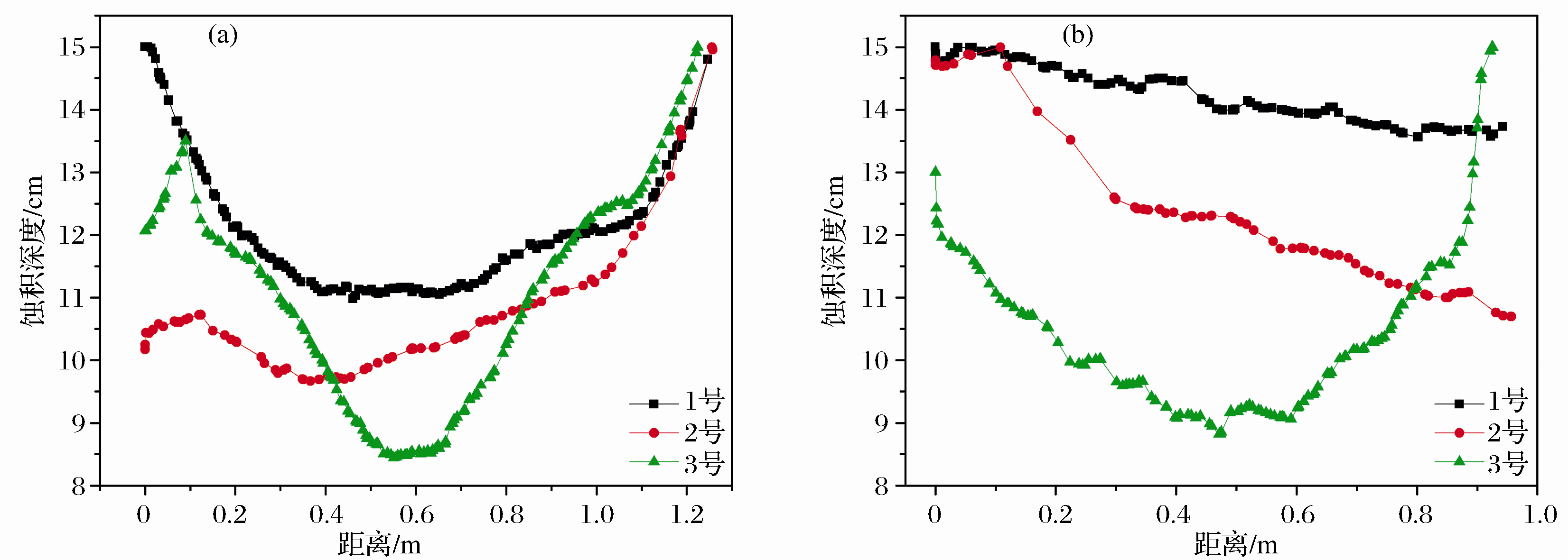

图4 砾石方格风沙蚀积断面形态

Fig. 4 Aeolian erosion and deposition profiles of rocky checkerboard-liked sand barrier

图5 砾石方格风沙堆积体体积计算示意图

Fig. 5 Schematic diagram of volume calculation of rocky checkerboard-liked sand barrier

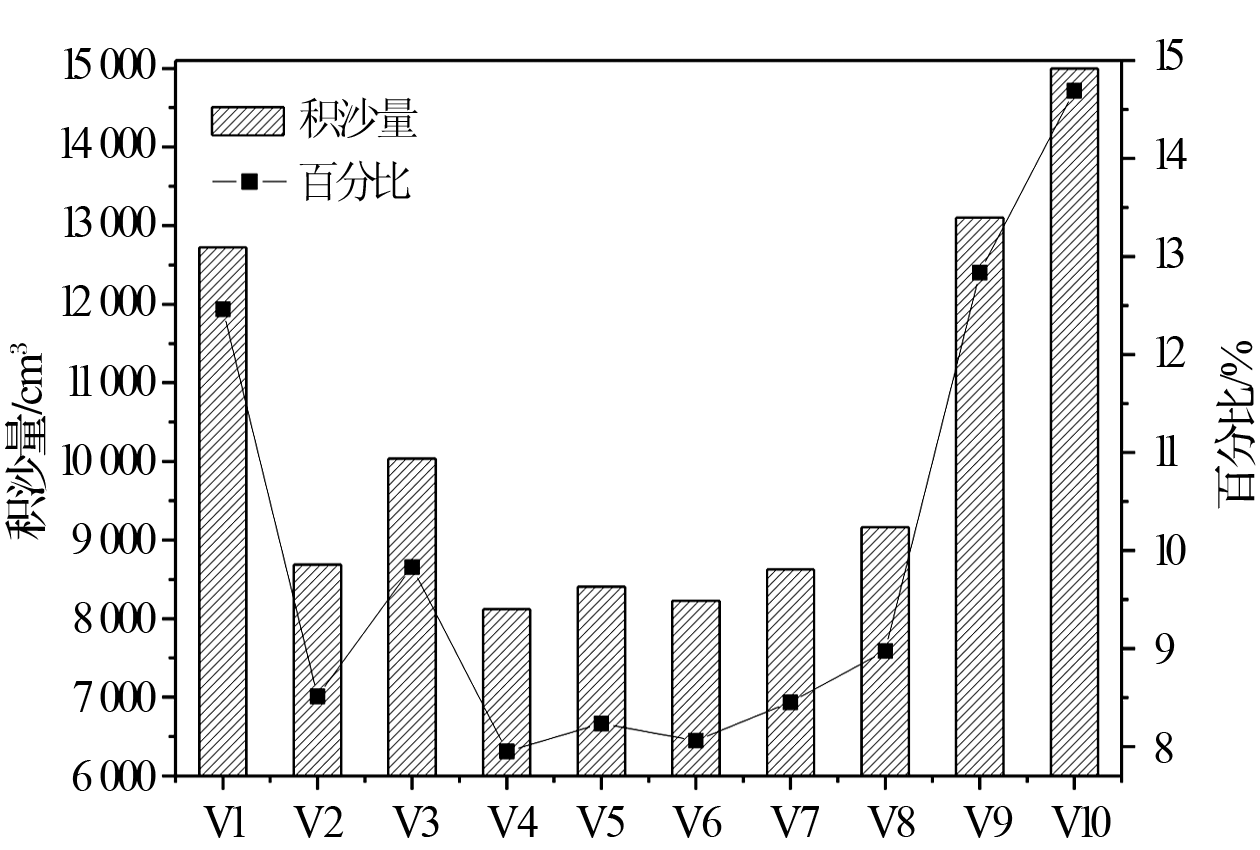

图6 砾石方格沙障内积沙量

Fig. 6 Volume of deposition in the rocky checkerboard-liked sand barrier

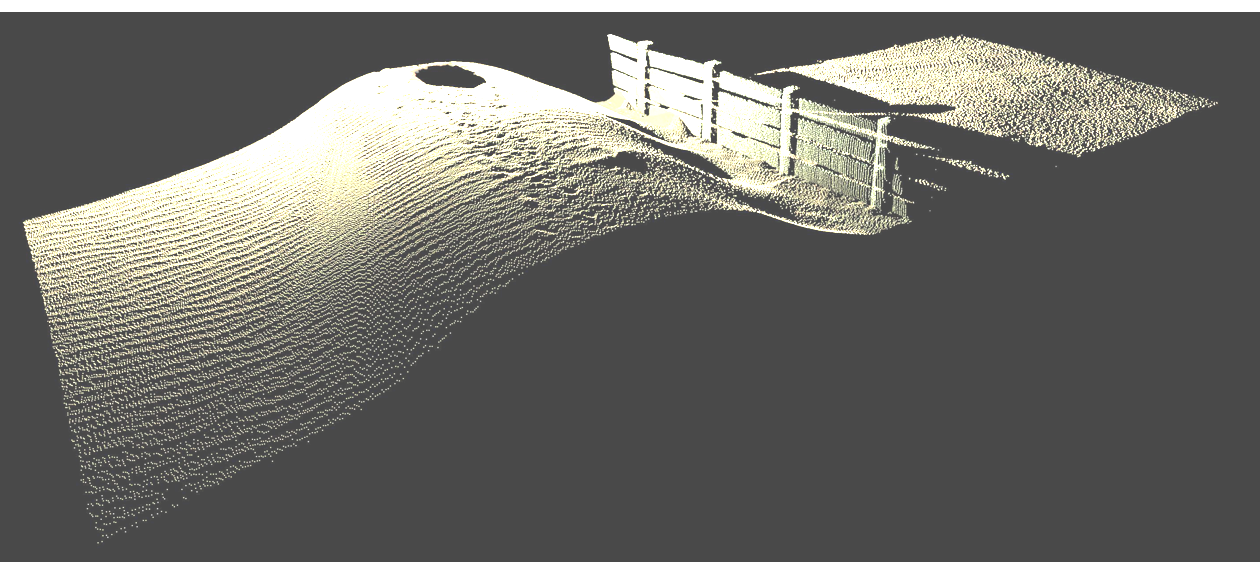

图7 阻沙栅栏3D地貌激光扫描实景

Fig. 7 Aeolian deposition around sand-blocking fences scanned by the 3D Leica ScanStation

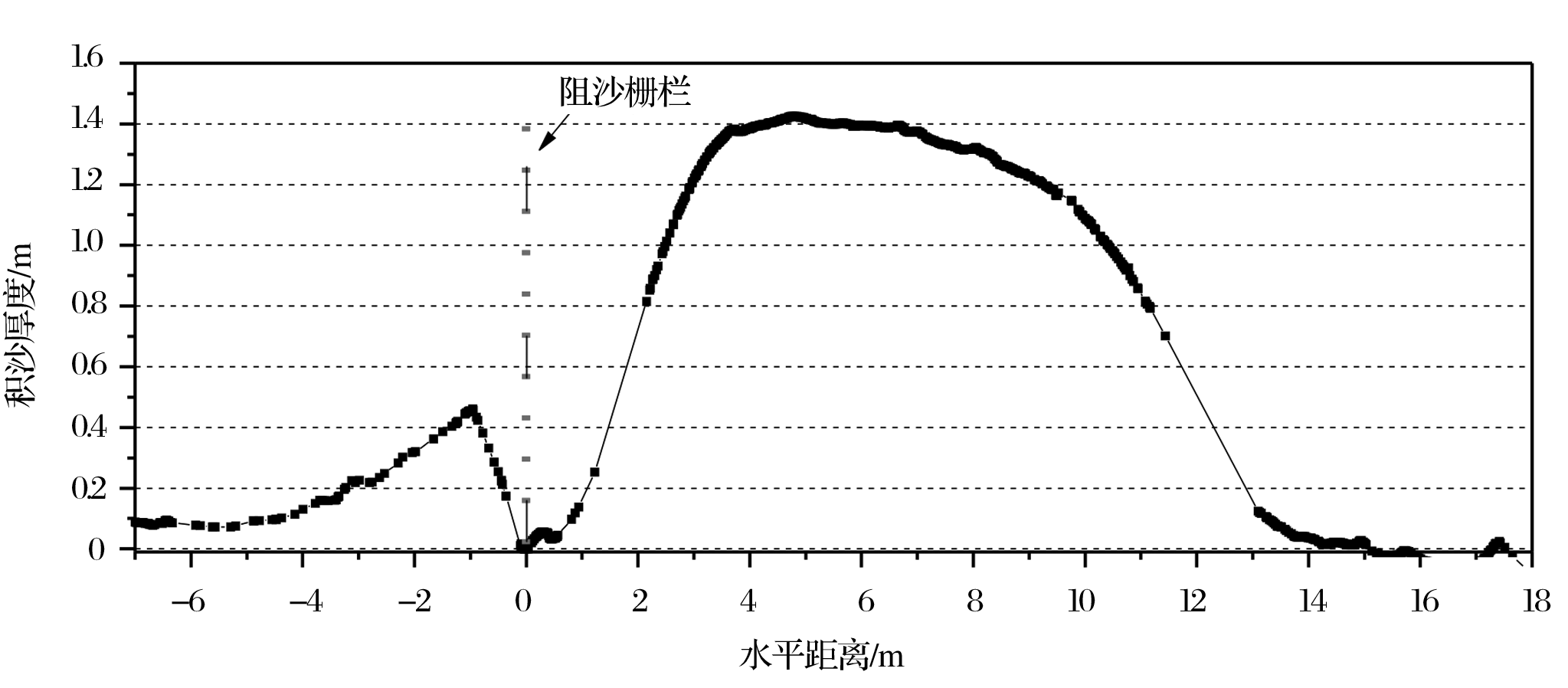

图8 阻沙栅栏积沙断面形态

Fig. 8 Aeolian erosion and deposition profiles of sand-blocking fences

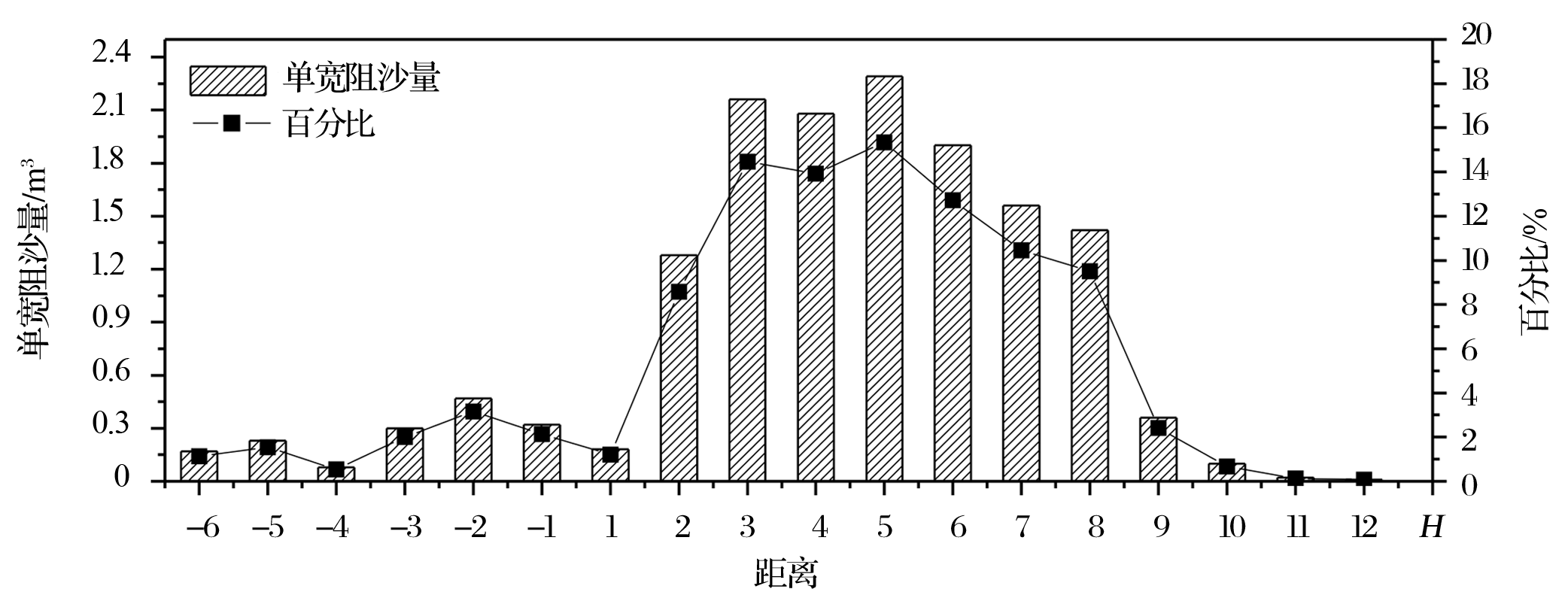

图 9 阻沙栅栏两侧单宽阻沙量及百分比

Fig. 9 Volume of deposition around sand-blocking fences
