崩岗泥砂流粒度特性及流体类型分析——以广东五华县莲塘岗崩岗为例

doi:10.11867/j.issn.1001-8166.2014.07.0810

崩岗泥砂流是降雨过程中在崩岗流域内形成的一种固液两相流,是崩岗侵蚀泥沙向外输移的主要方式,泥砂流流体类型的判别也是崩岗治理的依据之一。通过野外考察与现场采样,对崩岗泥砂流的粒度组成特性进行了分析。结果表明,泥砂流容重介于1.16~1.60 t/m³之间,含沙量为257.03~960.55 kg/m³,且均自沟道上部至下部逐渐降低。泥砂流浆体以粉砂和黏粒物质为主。随着容重的增加,粒度曲线由单峰型转变为与风化壳土体类似的双峰型,呈现无分选搬运的特点,且流体粒度逐渐粗化。泥砂流固体物质中值粒径与流体容重有较好的线性正相关关系。通过对泥砂流与泥石流和黄土丘陵沟壑区高含沙水流粒度特性的对比后发现,泥砂流属于高含沙水流向泥石流过渡的中间类型,但与泥石流具有更为密切的关系,可以认为泥砂流是广义泥石流的一个亚类,即崩岗型泥石流。

关键词: 崩岗侵蚀, 粒度组成, 泥砂流, 高含沙水流, 泥石流

Mud sand flow is a kind of solid-liquid two-phase flow formed in collapsing hill and gully basin during rainfall. It is the main way to export erosion product. The discrimination of its fluid type is one of the collapsing hill and gully control theoretical basis. This paper analyzed the basic characteristics of mud sand flow like grain size and so on through fieldwork and sampling. The results show that the density of mud sand flow is between 1.16~1.60 t/m³ and the solids content is between 257.03~960.55 kg/m³, both of which decrease from the upper to the lower channel. The slurry of mud sand flow is composed mainly of silt and clay. As the density increases, the particle size distribution curve transforms from a single peak to the bimodal distribution similar to the weathering crust with no sorting, and the grain size of mud sand flow becomes coarser which shows a well positive linear correlation between the sediment median particle diameter and density of mud sand flow. The comparison during mud sand flow, hyperconcentrated flow and debris flow shows that collapsing hill and gully mud sand flow, which belongs to an intermediate class between hyperconcentrated flow and debris flow, has a closer link with debris flow. Therefore, mud sand flow can be considered as a sub-class of generalized debris flow that may be called as collapsing hill and gully type debris flow.

Key words: Collapsing hill and gully erosion, Grain size, Mud sand flow, Hyperconcentrated flow, Debris flow.

中图分类号:

P934

图1 发育旺盛的莲塘岗崩岗崩口地貌

Fig.1 Full-developed outlet topography of Liantanggang collapsing hill and gully

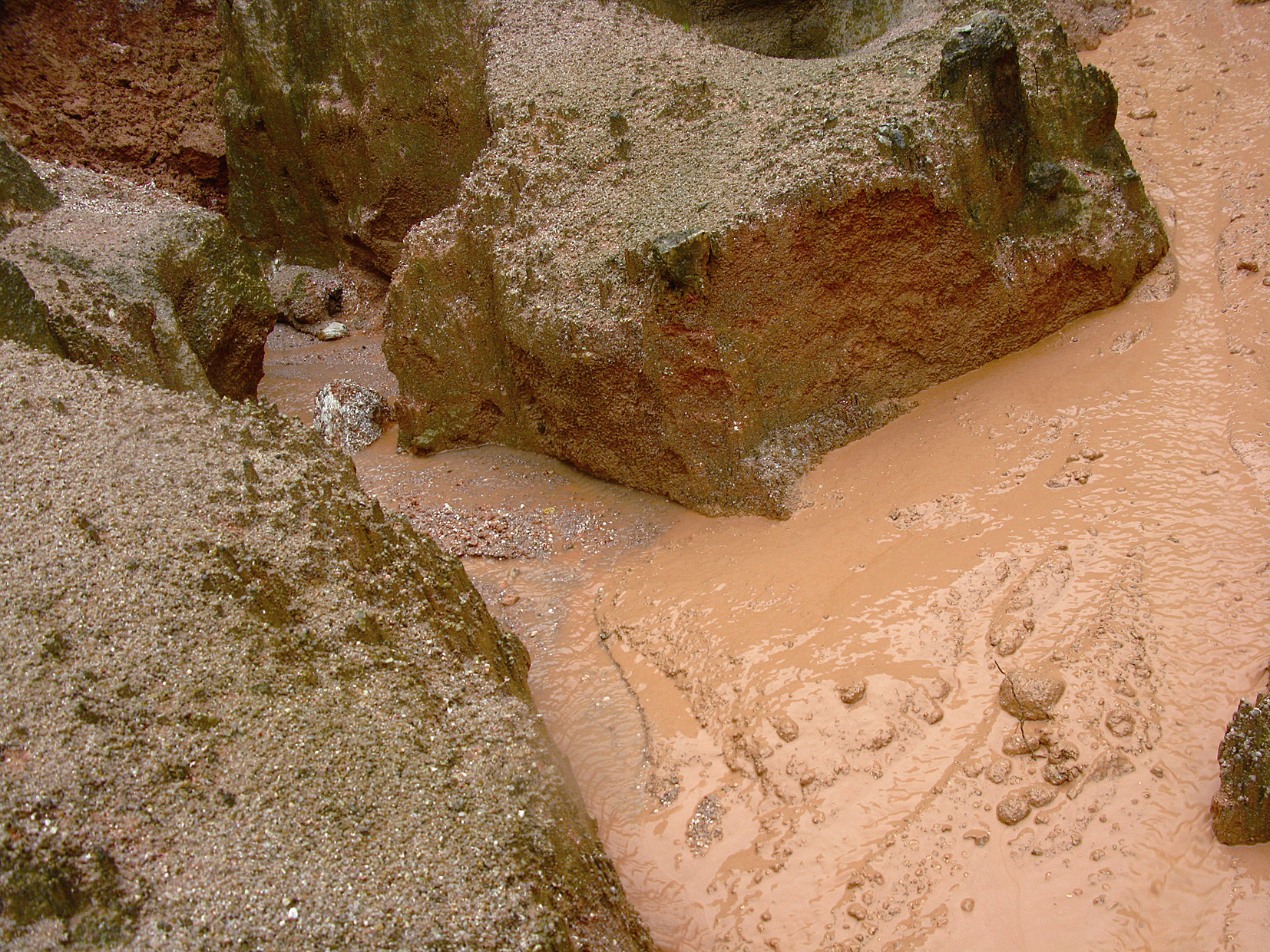

图2 莲塘岗崩岗泥砂流（2013年5月21日）

Fig.2 Mud sand flow of Liantanggang collapsing hill and gully (May 21,2013)

表1 莲塘岗崩岗泥砂流容重和含沙量

Table 1 Mud sand flow specific density and sediment concentration of Liantanggang collapsing hill and gully

编号	取样日期	取样部位	容重 /(t/m³)	含沙量 /(kg/m³)
1	2013-05-21	支沟沟头	1.30	490.18
2		支沟汇合处	1.18	288.63
3		主沟出口处	1.16	257.03
4		泥砂流前锋	1.60	960.55
5	2013-07-14	主沟道上部<br/>主沟道上部<br/>主沟道下部<br/>主沟道下部	1.34	546.19
6			1.31	504.39
7			1.22	357.76
8			1.20	319.45

表1 莲塘岗崩岗泥砂流容重和含沙量

Table 1 Mud sand flow specific density and sediment concentration of Liantanggang collapsing hill and gully

编号	取样日期	取样部位	容重 /(t/m³)	含沙量 /(kg/m³)
1	2013-05-21	支沟沟头	1.30	490.18
2		支沟汇合处	1.18	288.63
3		主沟出口处	1.16	257.03
4		泥砂流前锋	1.60	960.55
5	2013-07-14	主沟道上部<br/>主沟道上部<br/>主沟道下部<br/>主沟道下部	1.34	546.19
6			1.31	504.39
7			1.22	357.76
8			1.20	319.45

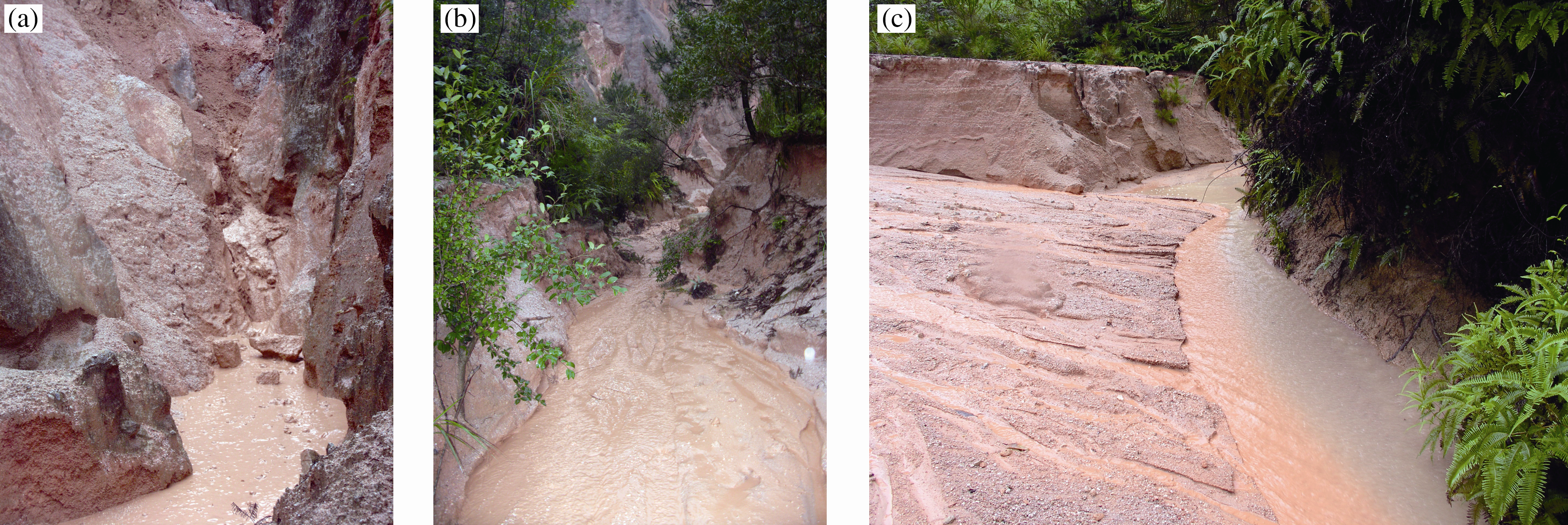

图3 莲塘岗崩岗主沟自沟头至沟口泥砂流容重逐渐变小、含沙量逐渐降低（a）沟头;（b）沟道中部;（c）沟口

Fig.3 Mud sand flow specific density and sediment concentration decreased from the head to the outlet in the main ditch of Liantanggang collapsing hill and gully (a) Gully head; (b) Gully central; (c) Gully outlet

图4 莲塘岗崩岗泥砂流前锋堆积体（2013年5月21日）

Fig.4 Mud sand flow front accumulation of Liantanggang collapsing hill and gully (May 21, 2013)

表2 莲塘岗崩岗泥砂流固体物质及风化壳粒度组成

Table 2 Grain size of mud sand flow and weathering crust of Liantanggang collapsing hill and gully

编<br/>号	组成含量	砾粒<br/>d>2mm	粗砂<br/>0.5~2mm	中砂<br/>0.25~0.5mm	细砂<br/>0.075~0.25mm	粉砂<br/>0.005~0.075mm	黏粒<br/>d<0.005mm	中值粒径<br/>mm
1	重量含量%<br/>含沙量kg/m³	32.26<br/>158.13	8.28<br/>40.59	4.95<br/>24.26	8.14<br/>39.90	31.87<br/>156.22	14.48<br/>70.98	0.128
2	重量含量%<br/>含沙量kg/m³	11.93<br/>34.43	1.19<br/>3.43	1.68<br/>4.85	5.33<br/>15.38	59.92<br/>172.95	19.94<br/>57.55	0.016
3	重量含量%<br/>含沙量kg/m³	12.71<br/>32.67	2.40<br/>6.17	1.05<br/>2.70	4.09<br/>10.51	51.00<br/>131.09	28.75<br/>73.90	0.012
4	重量含量%<br/>含沙量kg/m³	50.90<br/>488.92	13.87<br/>133.23	2.88<br/>27.66	3.91<br/>37.56	19.71<br/>189.32	8.73<br/>83.86	2.000
5	重量含量%<br/>含沙量kg/m³	43.36<br/>236.83	10.96<br/>59.86	4.40<br/>24.03	7.71<br/>42.11	23.44<br/>128.03	10.14<br/>55.38	0.827
6	重量含量%<br/>含沙量kgcm³	37.59<br/>189.60	8.62<br/>43.48	2.60<br/>13.11	4.55<br/>22.95	29.83<br/>150.46	16.81<br/>84.79	0.173
7	重量含量%<br/>含沙量kg/m³	34.79<br/>124.46	4.42<br/>15.81	4.34<br/>15.53	8.32<br/>29.77	33.94<br/>121.42	14.19<br/>50.77	0.094
8	重量含量%<br/>含沙量kg/m³	34.84<br/>111.30	3.02<br/>9.65	4.57<br/>14.60	9.73<br/>31.08	32.73<br/>104.56	15.11<br/>48.27	0.099
崩岗风化壳土体<br/>机械组成/%		26.87	23.60	5.94	7.28	24.15	12.17	0.525

表2 莲塘岗崩岗泥砂流固体物质及风化壳粒度组成

Table 2 Grain size of mud sand flow and weathering crust of Liantanggang collapsing hill and gully

编<br/>号	组成含量	砾粒<br/>d>2mm	粗砂<br/>0.5~2mm	中砂<br/>0.25~0.5mm	细砂<br/>0.075~0.25mm	粉砂<br/>0.005~0.075mm	黏粒<br/>d<0.005mm	中值粒径<br/>mm
1	重量含量%<br/>含沙量kg/m³	32.26<br/>158.13	8.28<br/>40.59	4.95<br/>24.26	8.14<br/>39.90	31.87<br/>156.22	14.48<br/>70.98	0.128
2	重量含量%<br/>含沙量kg/m³	11.93<br/>34.43	1.19<br/>3.43	1.68<br/>4.85	5.33<br/>15.38	59.92<br/>172.95	19.94<br/>57.55	0.016
3	重量含量%<br/>含沙量kg/m³	12.71<br/>32.67	2.40<br/>6.17	1.05<br/>2.70	4.09<br/>10.51	51.00<br/>131.09	28.75<br/>73.90	0.012
4	重量含量%<br/>含沙量kg/m³	50.90<br/>488.92	13.87<br/>133.23	2.88<br/>27.66	3.91<br/>37.56	19.71<br/>189.32	8.73<br/>83.86	2.000
5	重量含量%<br/>含沙量kg/m³	43.36<br/>236.83	10.96<br/>59.86	4.40<br/>24.03	7.71<br/>42.11	23.44<br/>128.03	10.14<br/>55.38	0.827
6	重量含量%<br/>含沙量kgcm³	37.59<br/>189.60	8.62<br/>43.48	2.60<br/>13.11	4.55<br/>22.95	29.83<br/>150.46	16.81<br/>84.79	0.173
7	重量含量%<br/>含沙量kg/m³	34.79<br/>124.46	4.42<br/>15.81	4.34<br/>15.53	8.32<br/>29.77	33.94<br/>121.42	14.19<br/>50.77	0.094
8	重量含量%<br/>含沙量kg/m³	34.84<br/>111.30	3.02<br/>9.65	4.57<br/>14.60	9.73<br/>31.08	32.73<br/>104.56	15.11<br/>48.27	0.099
崩岗风化壳土体<br/>机械组成/%		26.87	23.60	5.94	7.28	24.15	12.17	0.525

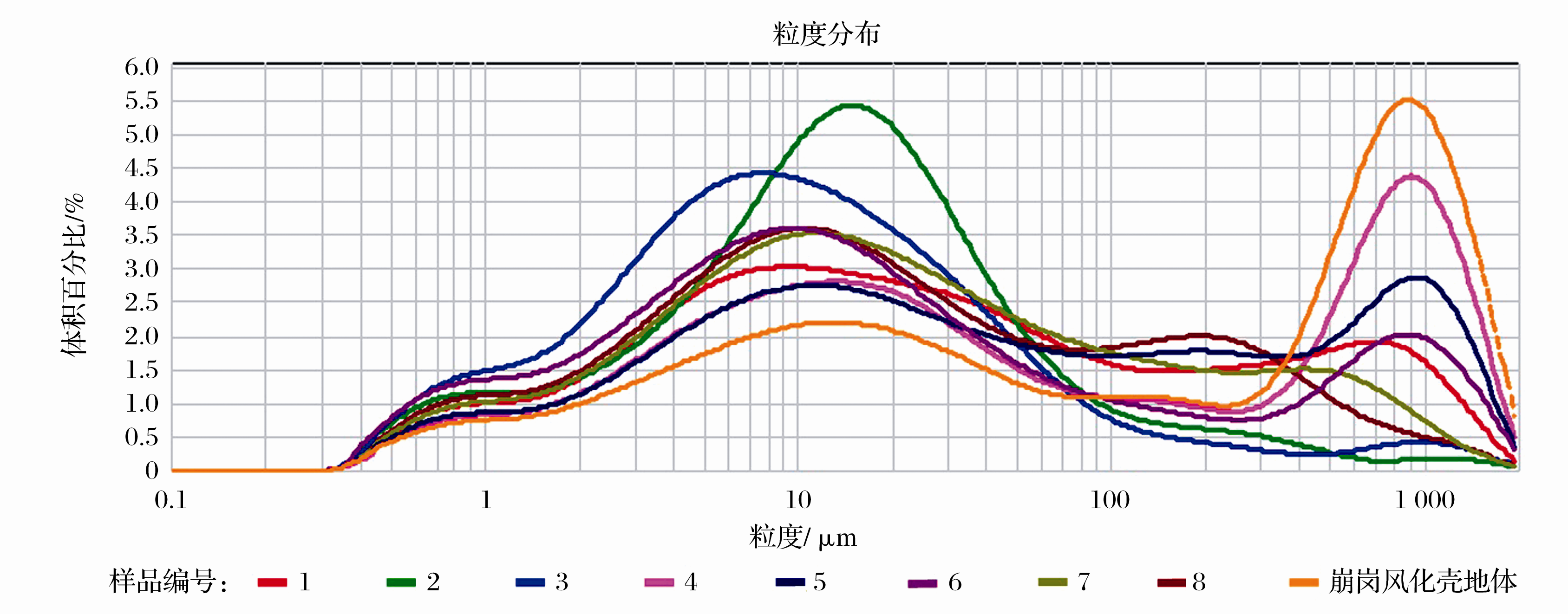

图5 莲塘岗崩岗泥砂流固体物质粒度分布曲线

Fig.5 Particle size distribution curve of mud sand flow of Liantanggang collapsing hill and gully

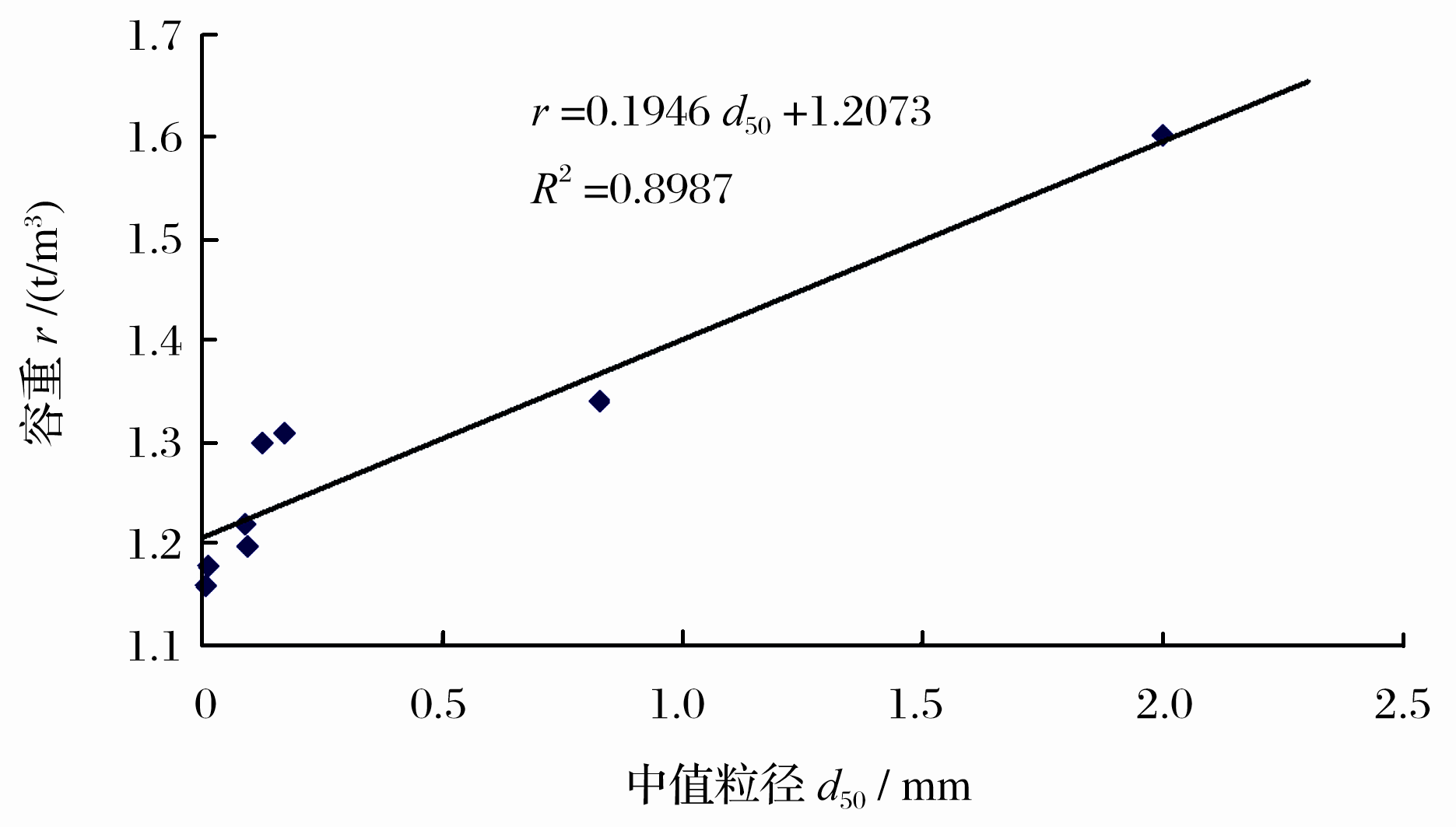

图6 莲塘岗崩岗泥砂流固体物质中值粒径与容重的关系

Fig.6 Relationship between sediment median particle diameter and specific density of mud sand flow of Liantanggang collapsing hill and gully

图7 莲塘岗崩岗泥砂流的冲刷作用

Fig.7 Scour of mud sand flow of Liantanggang collapsing hill and gully

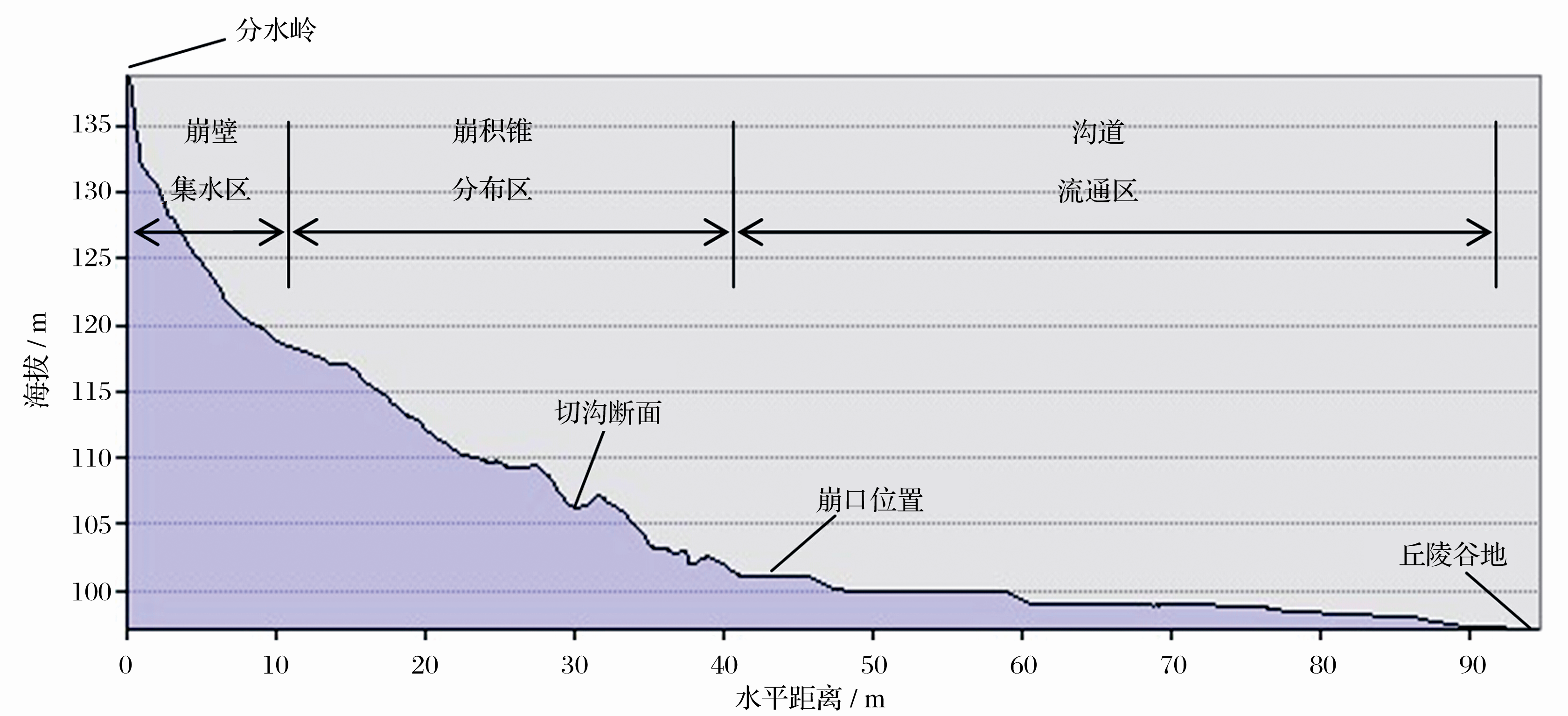

图8 莲塘岗崩岗纵剖面图

Fig.8 Longitudinal section of Liantanggang collapsing hill and gully

图9 莲塘岗崩岗沟谷侵蚀形成的沟间陡脊地形

Fig.9 Gully erosion formed steep ridge in Liantanggang collapsing hill and gully

表3 泥砂流、高含沙水流和泥石流特性的比较

Table 3 Properties compared between mud sand flow, hyperconcentrated flow and debris flow

类别	高含沙水流	崩岗泥砂流	泥石流
类别	高含沙水流	崩岗泥砂流	稀性	亚黏性	黏性
容重 t/m³	1.3~1.85以上	1.16~1.60	1.46~1.85	1.85~2.00	2.00~2.40
中值粒径 mm	<0.025	0.012~2.0	0.012~0.026	0.028~1.5	1.5~13.5
粒度分布曲线类型	单峰	单峰、双峰	单峰	双峰	双峰
d>2mm颗粒百分含量 %	<2	11~50	2~80
粒径范围	黏粒、粉砂	黏粒、砂粒、细砾	黏粒、砂粒、砾石、漂砾
物质基础	第四系黄土堆积物	花岗岩风化壳	破碎岩石及未成岩松散土层

表3 泥砂流、高含沙水流和泥石流特性的比较

Table 3 Properties compared between mud sand flow, hyperconcentrated flow and debris flow

类别	高含沙水流	崩岗泥砂流	泥石流
类别	高含沙水流	崩岗泥砂流	稀性	亚黏性	黏性
容重 t/m³	1.3~1.85以上	1.16~1.60	1.46~1.85	1.85~2.00	2.00~2.40
中值粒径 mm	<0.025	0.012~2.0	0.012~0.026	0.028~1.5	1.5~13.5
粒度分布曲线类型	单峰	单峰、双峰	单峰	双峰	双峰
d>2mm颗粒百分含量 %	<2	11~50	2~80
粒径范围	黏粒、粉砂	黏粒、砂粒、细砾	黏粒、砂粒、砾石、漂砾
物质基础	第四系黄土堆积物	花岗岩风化壳	破碎岩石及未成岩松散土层

[1]	China Physical Geography Editorial Committee of Chinese Academy of Science. China Physical Geography·Geomorphology[M]. Beijing: Science Press, 1980.
	[中国科学院《中国自然地理》编辑委员会. 中国自然地理·地貌[M]. 北京: 科学出版社, 1980.]
[2]	Wu Zheng. Introduction to Geomorphology[M]. Guangzhou: Guangdong Higher Education Press, 1999.
	[吴正. 地貌学导论[M]. 广州: 广东高等教育出版社, 1999.]
[3]	Liu Xilin, Lian Haiqing. Distribution choices of elevation and slope orientation of collapsing hills[J]. Bulletin of Soil and Water Conservation, 2011, 3(4): 32-36.
	[刘希林, 连海清. 崩岗侵蚀地貌分布的海拔高程与坡向选择性[J]. 水土保持通报, 2011, 3(4): 32-36.]
[4]	Ding Yongjian, Zhou Chenghu, Shao Ming’an, et al. Studies of Earth surface processes: Progress and prospect[J]. Advances in Earth Science, 2013, 28(4): 407-419.
	[丁永建, 周成虎, 邵明安, 等. 地表过程研究进展与趋势[J]. 地球科学进展, 2013, 28(4): 407-419.]
[5]	Qiu Shijun. The process and mechanism of red Earth slope disintegration erosion[J]. Bulletin of Soil and Water Conservation, 1994, 14(6): 31-39.
	[邱世钧. 红土坡地崩岗侵蚀过程与机理[J]. 水土保持通报, 1994, 14(6): 31-39.]
[6]	Wu Zhifeng, Li Dingqiang, Qiu Shijun. Systematic analysis of slope disintegration erosion landform in South China[J]. Bulletin of Soil and Water Conservation, 1999, 19(5): 24-26.
	[吴志峰, 李定强, 邱世钧. 华南水土流失区崩岗侵蚀地貌系统分析[J]. 水土保持通报, 1999, 19(5): 24-26.]
[7]	Li Siping. A study on characteristics of rock-soil and countermeasures of the collapsed mound formation[J]. Journal of Soil Water Conservation, 1992, 1(3): 68-74.
	[李思平. 广东省崩岗侵蚀规律和防治的研究[J]. 自然灾害学报, 1992, 1(3): 68-74.]
[8]	Xiong Chuanxiang, Wang Tao, Lu Xiaobing. Meso-mechanical simulation of slope disintegration erosion under rainfall[J]. Journal of Mountain Science, 2013, 31(6): 710-715.
	[熊传祥, 王涛, 鲁晓兵. 降雨作用下崩岗型成细观机理模拟[J]. 山地学报, 2013, 31(6): 710-715.]
[9]	Zhang Dalin, Liu Xilin. Application of 3D laser scanning to monitoring the landform changes of collapsing hill and gully: A case study of Liantanggang collapsing hill and gully in the Wuhua County of Guangdong[J]. Tropical Geography, 2014, 34(2): 133-140.
	[张大林, 刘希林. 应用三维激光扫描监测崩岗侵蚀地貌变化——以广东五华县莲塘岗崩岗为例[J]. 热带地理, 2014, 34(2): 133-140.]
[10]	Jiang Fangshi, Huang Yanhe, Lin Jinshi, et al. The dynamic characteristics of soil detachment of slumping deposit by surface runoff in Benggang[J]. Journal of Soil and Water Conservation, 2013, 27(1): 86-89.
	[蒋芳市, 黄炎和, 林金石, 等. 坡面水流分离崩岗崩积体土壤的动力学特征[J]. 水土保持学报, 2013, 27(1): 86-89.]
[11]	Xu Jiongxin. Hyperconcentrated flow in the Southern China granite region and the implications in geomorphology[J]. Journal of Sediment Research, 1992, (2): 12-19.
	[许炯心. 华南花岗岩地区的高含沙水流及其地貌学意义[J]. 泥沙研究, 1992, (2): 12-19.]
[12]	Shen Canshen. The study of the breach-down-hill of granite area and the water and sand loss forecast[J]. Supplement to the Journal of Sun Yat Sen University, 1993, (2): 12-19.
	[沈灿燊. 广东亚热带花岗岩崩岗和水沙流失预报模型[J]. 中山大学学报论丛, 1993, (2): 12-19.]
[13]	Lin Jinshi, Huang Yanhe, Zhang Xubin, et al. Apportioning typical collapsing hill’s erosion sediment sources of granite region in Southern China[J]. Journal of Soil and Water Conservation, 2012, 26(3): 53-57.
	[林金石, 黄炎和, 张旭斌, 等. 南方花岗岩区典型崩岗侵蚀产沙来源分析[J]. 水土保持学报, 2012, 26(3): 53-57.]
[14]	Liu Xilin, Zhang Dalin, Jia Yaoyao. Soil physical properties of collapsing hill and gully and their indications for soil erosion: An example of Liantanggang collapsing hill and gully in Wuhua County of Guangdong[J]. Advances in Earth Science, 2013, 28(7): 802-811.
	[刘希林, 张大林, 贾瑶瑶. 崩岗地貌发育的土体物理性质及其土壤侵蚀意义——以广东五华县莲塘岗为例[J]. 地球科学进展, 2013, 28(7): 802-811.]
[15]	Liu Xilin, Mo Duowen. Debris flow and its subject attribute[J]. Journal of Natural Disasters, 2001, 10(3): 1-6.
	[刘希林, 莫多闻. 论泥石流及其学科性质[J]. 自然灾害学报, 2001, 10(3): 1-6.]
[16]	Tang Chuan, Zhang Shucheng. Study progress and expectation for initiation mechanism and prediction of hydraulic-driven debris flows[J]. Advances in Earth Science,2008, 23(8): 787-793.
	[唐川, 章书成. 水力类泥石流起动机理与预报研究进展与方向[J]. 地球科学进展, 2008, 23(8): 787-793.]
[17]	Shao Lianfen, Peng Zuwu, Wang Shuonan, et al. Classification of “7.24” rainstorm debris flow based on start-up model in Luanchuan County of He’nan China[J]. Journal of Mountain Science, 2013, 31(3): 334-341.
	[邵莲芬, 彭祖武, 王硕楠, 等. 栾川7. 24 暴雨泥石流启动模式分类[J]. 山地学报, 2013, 31(3): 334-341.]
[18]	Kang Zhicheng,Li Zhuofen,Ma Ainai,et al. Debris Flow in China[M]. Beijing: Science Press, 2004.
	[康志成,李焯芬,马蔼乃,等. 中国泥石流研究[M]. 北京: 科学出版社, 2004.]
[19]	Fei Xiangjun,Shu Anping. Movement Mechanism and Disaster Control for Debris Flow[M]. Beijing:Tsinghua University Press, 2004.
	[费祥俊,舒安平. 泥石流运动机理与灾害防治[M]. 北京: 清华大学出版社, 2004.]
[20]	Zhang Dalin, Liu Xilin. Evolution and phases division of collapsed gully erosion landform[J]. Journal of Subtropical Resources and Environment, 2011, 6(2): 23-28.
	[张大林, 刘希林. 崩岗侵蚀地貌的演变过程及阶段划分[J]. 亚热带资源与环境学报, 2011, 6(2): 23-28.]
[21]	Shu Anping, Fei Xiangjun. Carrying capacity of hyperconcentrated flow[J]. Science in China(Series G), 2008, 38(6): 653-667.
	[舒安平, 费祥俊. 高含沙水流挟沙能力[J]. 中国科学:G辑, 2008, 38(6): 653-667.]
[22]	Qian Ning,Wan Zhaohui. Sediment Movement Mechanics[M]. Beijing: Science Press, 1983.
	[钱宁,万兆惠. 泥沙运动力学[M]. 北京: 科学出版社, 1983.]
[23]	Ma Dongtao, Cui Peng, Zhang Jinshan, et al. Formation causes and features of mudflows in the Loess Plateau, China[J].Arid Land Geography, 2005, 28(4): 435-440.
	[马东涛, 崔鹏, 张金山, 等. 黄土高原泥流灾害成因及特征[J]. 干旱区地理, 2005, 28(4): 435-440.]
