基于腹地划分的中国城市群空间影响范围识别

doi:10.11867/j.issn.1001-8166.2014.03.0352

城市群空间影响范围的界定是认清城市群内中心城市与腹地、城市与城市间相互关联的基础。采用主成分分析法计算中国287个地级及以上城市的结节性指数,利用累积耗费距离法和k阶数据场,综合测度了交通可达性与空间场能,根据场强“取大”原则对城市腹地进行了划分,依据城市腹地范围界定了城市群的空间影响范围。结果表明:①中国地级以上城市最大和最小结节性指数相差157.53倍,城市平均可达时间为193.43 min,场能平均值为5 412,最大和最小城市腹地相差3 751倍;② 23个城市群中,空间影响范围最大的是北疆城市群,空间平均场强最大的是中原城市群;③城市群在空间上呈现为发育程度不同的“11+9+3”的分布格局和逆时针90°旋转的“β”型城市群连绵带发展格局;④基于腹地划分的城市群空间影响范围充分考虑了现实的交通网络和地形地貌特点,实现了对广域空间范围内城市腹地范围和城市群空间影响范围的定量测度。

关键词: 城市群, 城市腹地, 空间场能, 可达性, 中国

The delimitation of the sphere of spatial influence of urban agglomerations is essential for understanding the interrelationship between city and its hinterland,as well as city and city. However,to date,there is no coincident,efficient,and credible methodological system and set of techniques to identify Chinese urban agglomeration. In this research,the principal components analysis method was used to calculate urban nodality index with the indicators system. With the application of raster cost weighted distance method and k-order data fields,this paper attempts to comprehensively measure the regional accessibility and the spatial field of cities at prefecture level or above in China. Then the spatial field intensity of cities in 2010 was measured by the field model and the urban hinterlands were divided by using the maximization principle of the field strength. Finally,the spatial influence sphere of urban agglomerations were divided according to the urban hinterlands and under the correlation analysis. The results show that it is simple and vivid to measure the urban hinterland area of prefecture-level cities or above and the spatial influence sphere of urban agglomerations by using the GIS tools. The introduction of field-strength model takes full account of the dual effects of the city comprehensive scale and road traffic conditions within the range of urban hinterlands,which is closer to reflecting the actual urban development. According to the result of delimitation,it would form“11+9+3”national urban agglomerations spatial structure system comprised of 11 compliance urban agglomerations,9 urban concentrated areas,3 urban agglomeration potential areas and“β”shaped urban agglomerations continuous band.

Key words: Urban agglomeration, Urban hinterland, Spatial field, Accessibility, China.

中图分类号:

P963

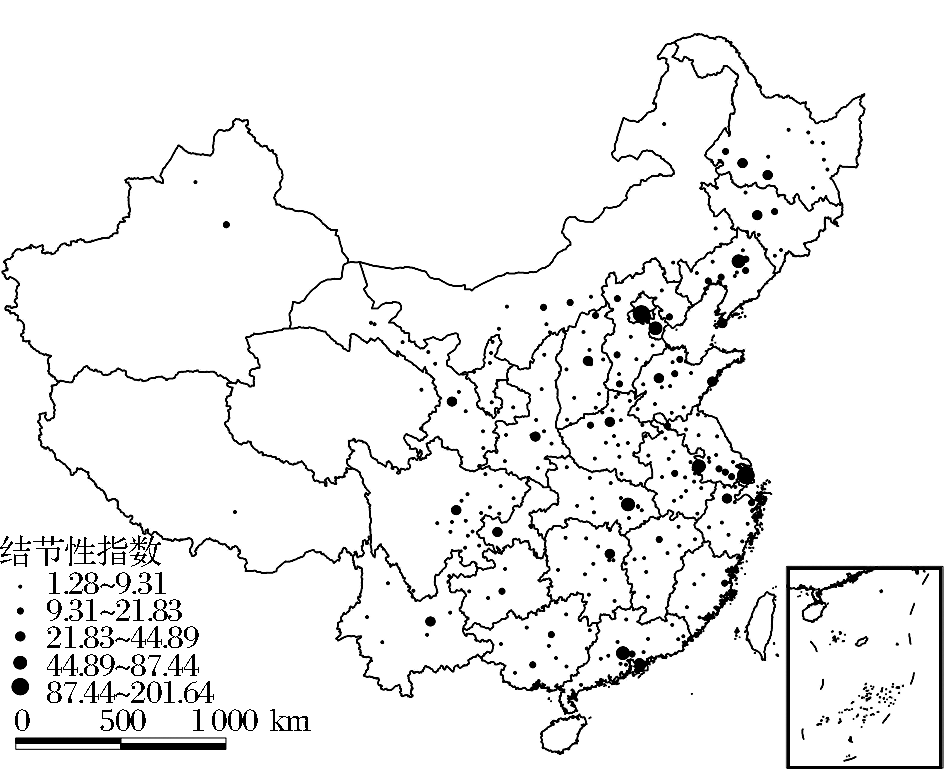

图1 中国城市的结节性指数分级

Fig.1 Nodality index of cities for different grading in China

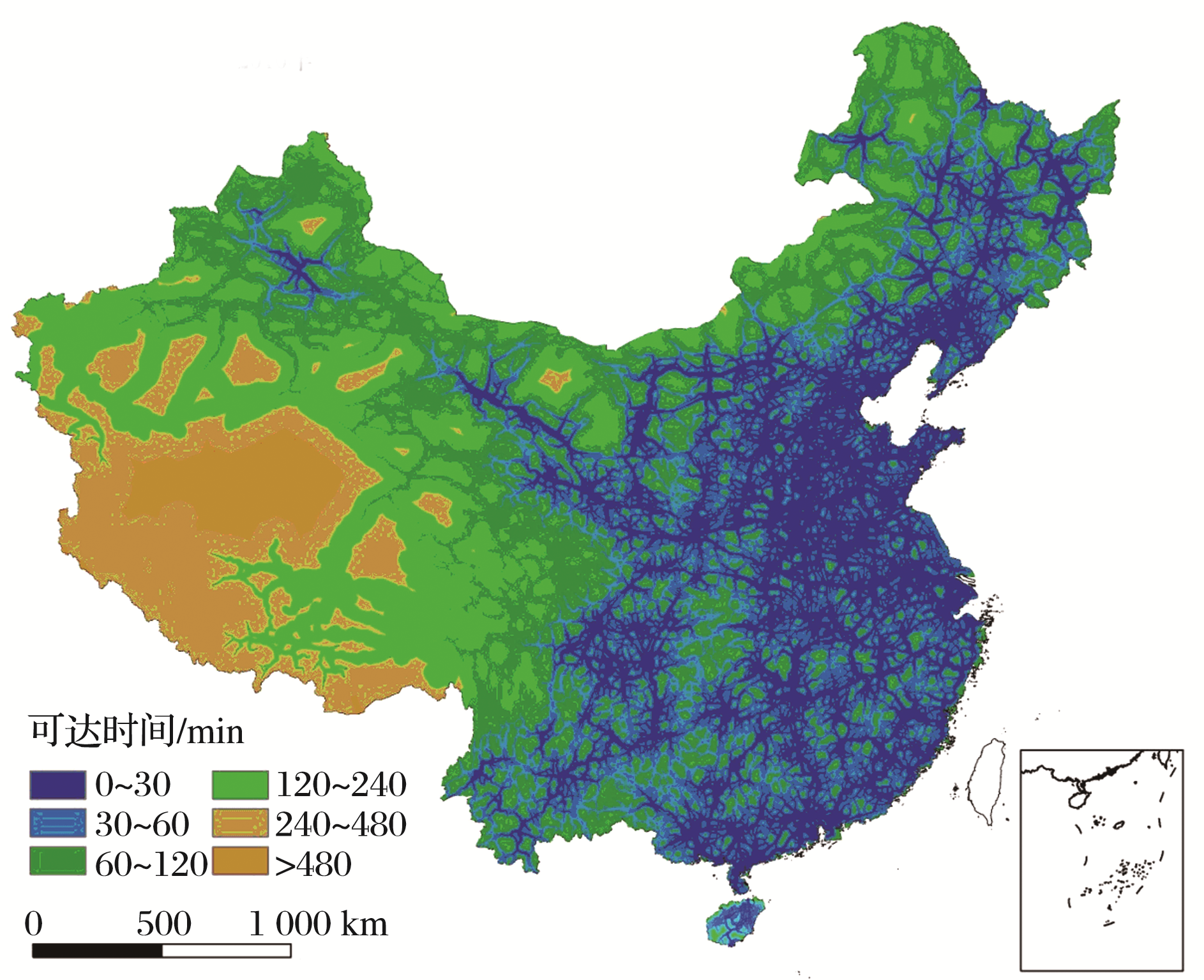

图2 中国地级以上城市不同时间圈的可达性分布图 hour circles in China

Fig.2 Accessibility distribution in different

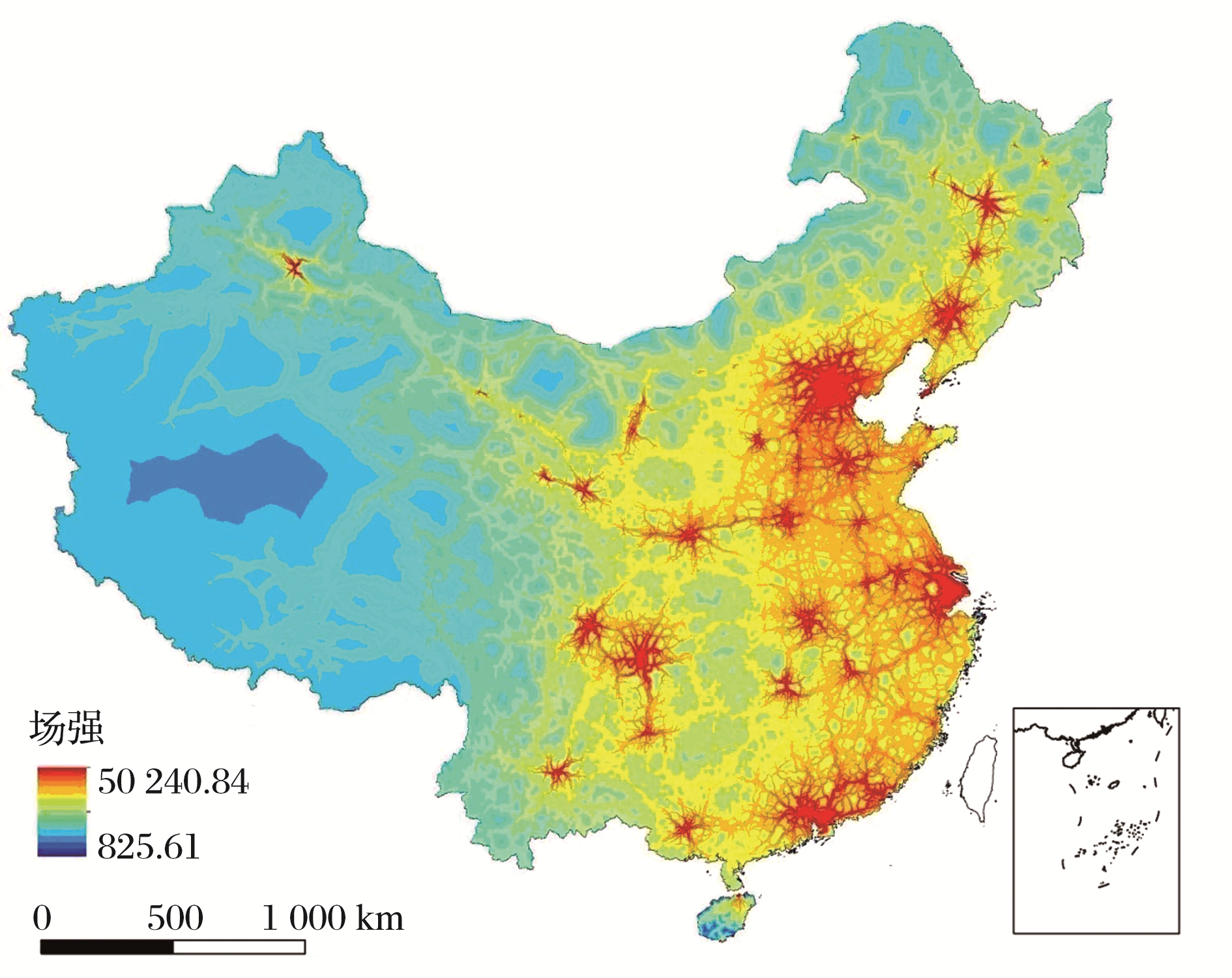

图3 中国空间场能的分布格局

Fig.3 Spatial pattern of spatial field in China

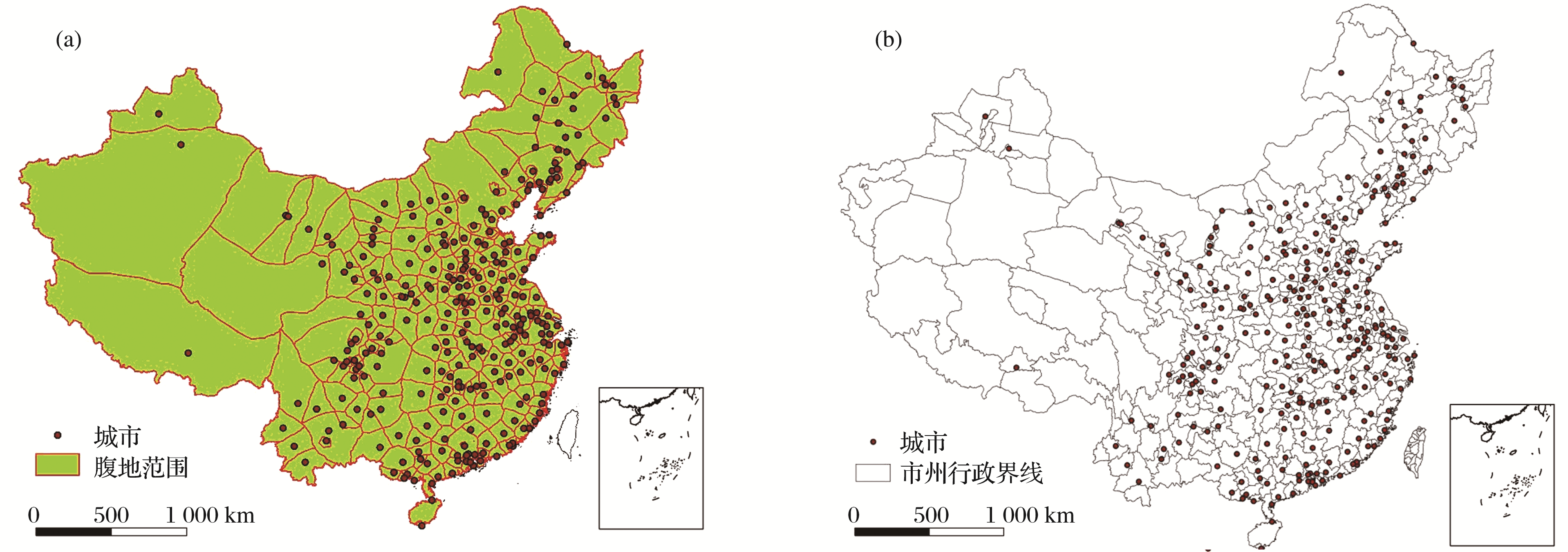

图4 中国地级以上城市腹地(a)及与行政区对比(b)

Fig.4 Urban hinter land area and administrative region of cities at prefecture level or above in China

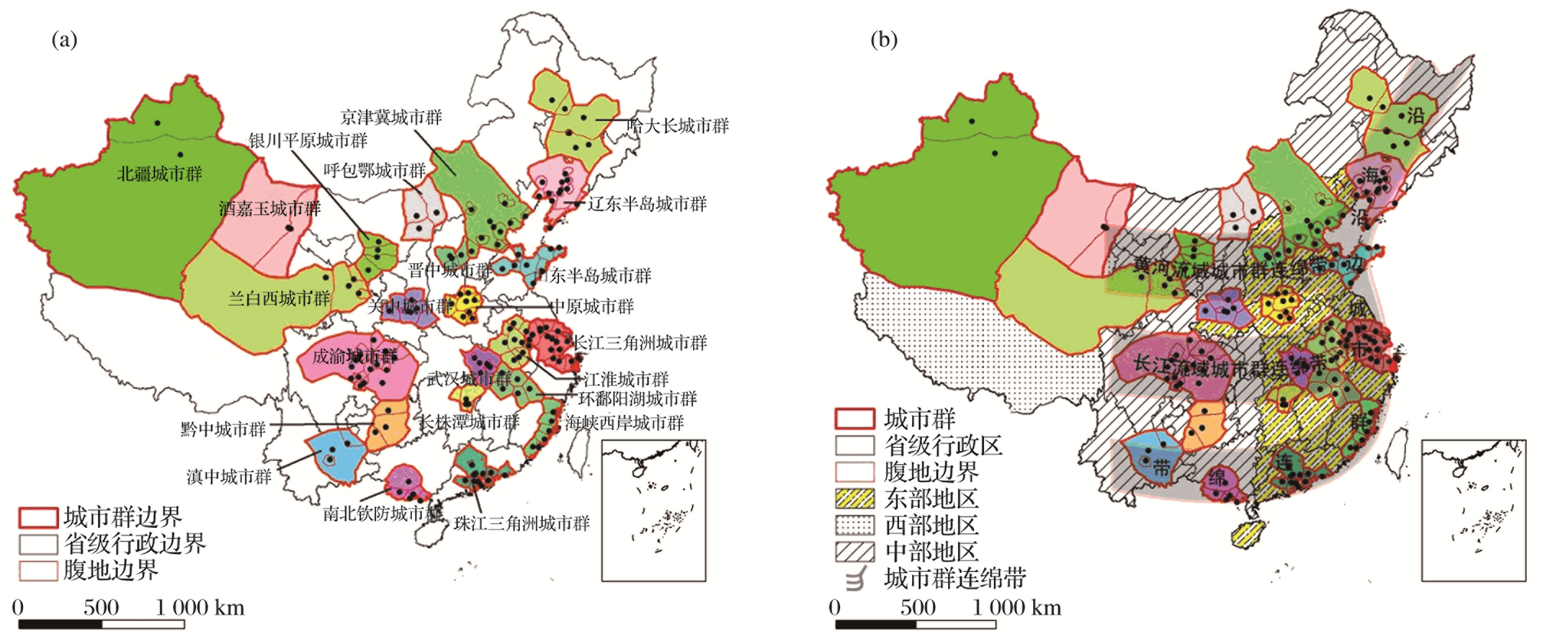

图5 中国城市群空间影响范围

Fig.5 Sphere of spatial influence of urban agglomerations in China

[1]	Fang Chuanglin, Guan Xingliang. Comprehensive measurement and spatial distinction of input-output efficiency of urban agglomerations in China[J]. Acta Geographica Sinica,2011,66(8):1 011-1 022.
	[方创琳,关兴良.中国城市群投入产出效率的综合测度与空间分异[J].地理学报,2011,66(8):1 011-1 022.]
[2]	Chen Qunyuan,Song Yuxiang. Method of dividing the boundary of urban agglomerations[J]. Scientia Geographica Sinica,2010,30(5):660-666.
	[陈群元,宋玉祥.城市群空间范围的综合界定方法研究[J].地理科学,2010,30(5):660-666.]
[3]	Gottmann J. Megalopolis or the urbanization of the northeastern seaboard[J]. Economic Geography,1957,33(7):189-200.
[4]	Brady S M. The Irish Urban System and Its Dynamics[R]. Dubin: Department of the Environment and Local Government, 2000.
[5]	Mu L,Wang X. Population landscape: A geometric approach to study spatial patterns of the US urban hierarchy[J]. The International Journal of Geographical Information Science, 2006, 20(6): 649-667.
[6]	Fragkias M, Seto K C. Evolving rank-size distributions of intra-metropolitan urban clusters in South China[J]. Computers, Environment and Urban Systems, 2009, 33(3): 189-199.
[7]	Fang Chuanglin. Research progress and general definition about identification standard of urban agglomeration space[J].Urban Planning Forum,2009,32(4):1-6.
	[方创琳.城市群范围识别标准的研究进展与基本判断[J].城市规划学刊,2009,32(4):1-6].
[8]	Zhang Qian,Hu Yunfeng,Liu Jiyuan,et al. Identification of urban clusters in China based on assessment of transportation accessibility and socio-economic indicators[J]. Acta Geographica Sinica,2011,66(6):761-770.
	[张倩,胡云锋,刘纪远,等.基于交通、人口和经济的中国城市群识别[J].地理学报,2011,66(6):761-770.]
[9]	Xue Junfei,Chen Wen,Cao Youhui. The definition of urban concentrated areas and the relations with the national main function areas of China[J]. Geographical Research,2013,32(1):146-156.
	[薛俊菲,陈雯,曹有挥.中国城市密集区空间识别及其与国家主体功能区的对接关系[J].地理研究,2013,32(1):146-156.]
[10]	Tong Zhongxian. The classification of urban agglomeration in central China[J]. Urban Problems,2011,30(7):20-25.
	[童中贤.中部地区城市群空间范围界定[J].城市问题,2011,30(7):20-25.]
[11]	Jia Zhuo, Chen Xingpeng,Yang Jingheng,et al. Discussion on ranged space and spatial development strategy of Lan-Bai-Xi urban agglomeration[J]. Journal of Northwest Normal University(Natural Science),2013,49(3):110-114.
	[贾卓,陈兴鹏,杨璟恒,等.兰白西城市群空间范围界定和空间发展战略研究[J].西北师范大学学报:自然科学版,2013,49(3):110-114.]
[12]	Wu Aizhi,Li Guoping,Sun Tieshan,et al. Study on spatial dimension of global city-region of Beijing[J]. Urban Studies,2012,19(1):64-69.
	[吴爱芝,李国平,孙铁山,等.北京世界城市区域的空间范围划分研究[J].城市发展研究,2012,19(1):64-69.]
[13]	Huang Jianyi,Zhang Pingyu,Liu Yi. The change of urban economic influence regions in Heilongjiang Province since 1990[J]. Economic Geography,2010,30(7):1 118-1 123.
	[黄建毅,张平宇,刘毅. 1990年以来黑龙江省城市经济影响区范围变化研究[J].经济地理,2010,30(7):1 118-1 123.]
[14]	Dong Qing,Li Yujiang,Liu Haizhen. Research on the spatial distribution and division of urban agglomerations in China[J].Urban Studies,2008,15(6):70-75.
	[董青,李玉江,刘海珍.中国城市群划分与空间分布研究[J].城市发展研究,2008,15(6):70-75.]
[15]	Song Dianxing,Yan Junping,Pei Bo. The urban economic influence area and spatial organization in northwest China[J]. Journal of Northwest University(Natural Science Edition),2012,42(2):318-333.
	[宋佃星,延军平,裴博.西北地区城市经济影响区与空间组织研究[J].西北大学学报:自然科学版,2012,42(2):318-333.]
[16]	Guan Xingliang, Fang Chuanglin,Luo Kui. Regional economic development disparity of China: An application of spatial field[J]. Scientia Geographica Sinica,2012,32(2):1 055-1 064.
	[关兴良,方创琳,罗奎.基于空间场能的中国区域经济发展差异评价[J].地理科学,2012,32(2):1 055-1 064.]
[17]	Fan Jie, Li Pingxing. Analysis on the future energy consumption and preliminary discussion on carbon emission of China from the perspective urbanization[J]. Advances in Earth Science,2011,26(1):57-65.
	[樊杰,李平星. 基于城市化的中国能源消费前景分析及对碳排放的相关思考[J].地球科学进展,2011,26(1):57-65. ]
[18]	Chen Yingxue,Zhen Feng,Wang Bo,et al. A study of internet information asymmetry relations among Chinese cities based on the micro-blog platform[J]. Advances in Earth Science,2012,27(12):1 353-1 362.
	[陈映雪,甄峰,王波,等. 基于微博平台的中国城市网络信息不对称关系研究[J]. 地球科学进展,2012,27(12):1 353-1 362.]
[19]	Preston R E. Two centrality models[J].Yearbook of Association of Pacific Coast Geographers, 1970,32:59-78.
[20]	Jin Cheng,Lu Yuqi,Zhang Li,et al. An analysis of accessibility of scenic spots based on land traffic network[J]. Geographical Research,2009,28(1):246-258.
	[靳诚,陆玉麒,张莉,等. 基于路网结构的旅游景点可达性分析[J].地理研究,2009,28(1):246-258.]
[21]	Lu Zhongjin. China Traffic Map[M]. Beijing:Sinomap Press,2011.
	[芦仲进.中国交通全图[M].北京:中国地图出版社,2011.]
[22]	National Bureau of Statistics. China City Statistical Yearbook[M]. Beijing:China Statistics Press,2011.
	[国家统计局.中国城市统计年鉴[M].北京:中国统计出版社,2011.]
[23]	Pan Jinghu, Shi Peiji,Dong Xiaofeng. Measurements for urban hinterland area of cities at prefecture level or above in China[J]. Acta Geographica Sinica,2008,63(6):635-645.
	[潘竟虎,石培基,董晓峰. 中国地级以上城市腹地的测度分析[J].地理学报,2008,63(6):635-645.]
[24]	Haggett P,Cliff A D,Frey A E. Locational Analysis in Human Geography[M]. London: Edward Arnold,1977.
[25]	Fang Chuanglin,Yao Shimou,Liu Shenghe. Development Report of Chinese Agglomerations in 2010[M]. Beijing:Science Press,2011:96-106.
	[方创琳,姚士谋,刘盛和. 2010中国城市群发展报告[M].北京:科学出版社,2011:96-106.]
