陕北地区河川基流的时空演变规律

doi:10.11867/j.issn.1001-8166.2015.07.0802

陕北地区地下水关系复杂,且与地表水交换十分频繁,给区域水资源评价与利用提出了严峻的挑战。通过估算陕北风沙区高家堡水文站和黄土区高石崖、曹坪水文站的基流量过程,分析了各站基流序列与对应区域的面降水序列的演化趋势及变异驱动关系;研究了其多时间尺度变化特征。结果表明：①风沙区地下水对径流补给量远大于黄土区;②不同地区的河川基流量均显著减少,主要受人类活动驱动;③各站基流量的周期及丰枯变化与其面降水量序列的周期变化在中小尺度上响应较为密切;④风沙区降水—径流关系较黄土区更为不稳定,原因在于其受到地下水蓄滞和侧向补给的影响更显著。在变化环境下的影响,风沙区水循环过程将更趋复杂多变,因此水资源评价中必须考虑地下水的影响。

关键词: 河川基流, 趋势变化, 周期波动, 陕北地区

The interaction between groundwater and surface water in northern Shaanxi is quite complicated and frequent under the influence of regional hydrogeological condition and human intervention. These performances bring serious challenges to regional water resources assessment and utilization. The river baseflow process at Gaojiabu Station in windy desert region, Gaoshiya and Caoping Station in loess region were taken as research objects, and their variation trends and change points in the river baseflow series were analyzed in this paper. In addition, to explore the cause of the baseflow change, this research compared their correlations with precipitations in the same area respectively from two aspects of flow variation and multitimescale characteristics. The results show that: ①groundwater recharges for river flow in windy desert region significantly exceed those in loess region; ②baseflows of all the rivers in the study area reducing significantly are mainly determined by human intervention such as the extensive pumping of groundwater; ③periodic changes of baseflow in each station response closely to precipitation change on meso-scale and small-scales; ④precipitation-runoff relationships in windy desert regions are much more complicated and unstable than loess region, which is mainly because of its more significant impact from groundwater storage and the lateral recharge change. Under the changing environment, the water cycle in windy desert regions would be in complexity and variability. Therefore, it is recommended that, groundwater changes need to be considered in regional water resources assessment.

Key words: River baseflow, Variation tendency, Periodic fluctuation, Northern Shaanxi.

中图分类号:

P343.1

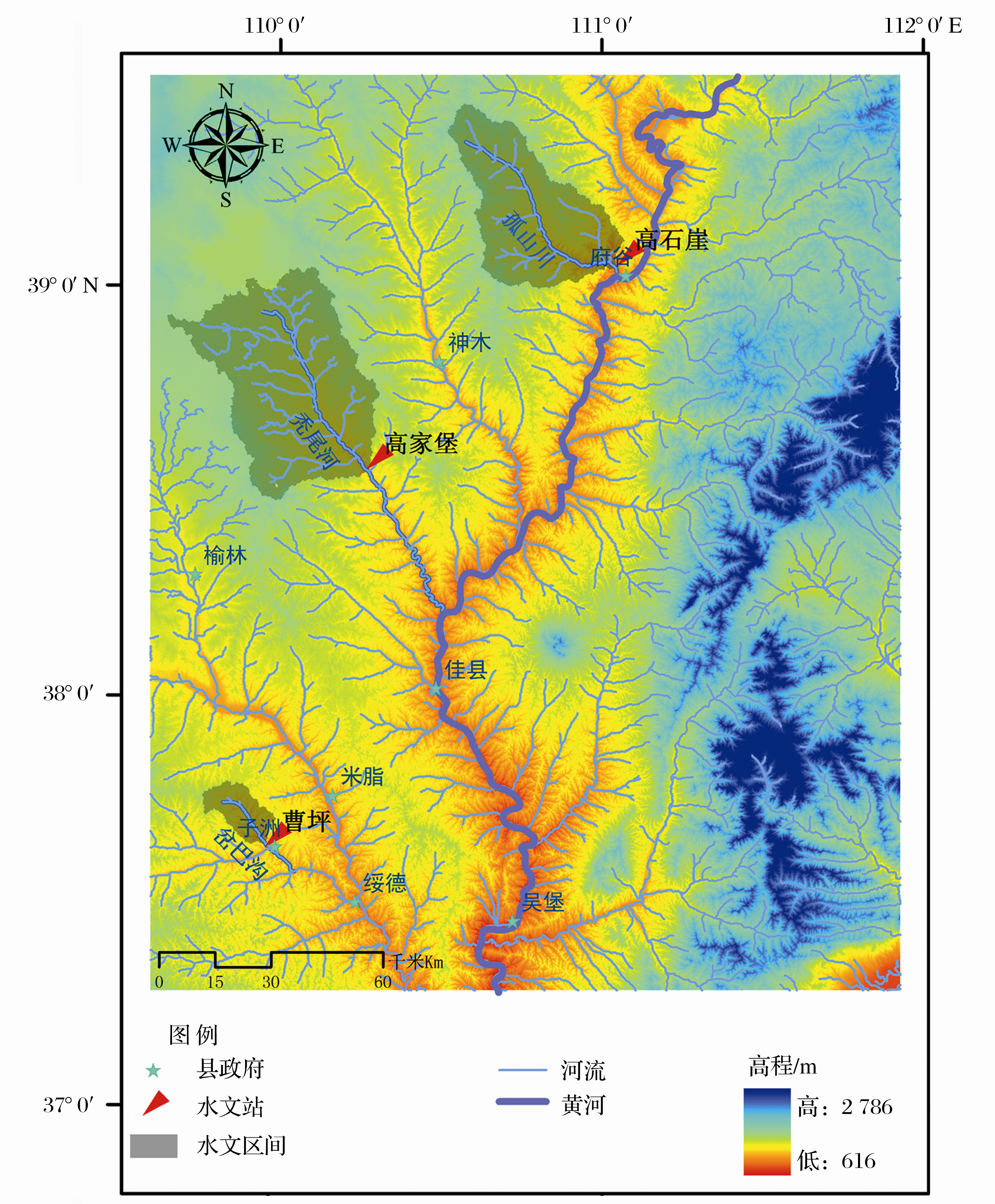

图1 各水文站点分布图

Fig.1 Distribution of hydrological stations to study

表1 各站基流及径流统计

Table1 Statistics of baseflow and runoff in each station

站点	时间	基流量均值/万m³	基流深均值/mm	径流量均值/万m³	径流深均值/mm	基径比/%
高石崖	1956—1969	1 730.2	13.7	11 262.1	63.0	15.4
	1970—1979	1 291.5	10.2	9 632.4	76.3	13.4
	1980—1989	655.5	5.2	5 547.0	43.9	11.8
	1990—1999	416.0	3.3	5 233.0	41.4	8.0
	2000—2010	221.7	1.8	1 567.9	12.4	14.1
	1956—2010	914.4	7.2	6 891.7	54.6	13.3
曹坪	1971—1979	288.2	15.4	855.7	45.8	33.7
	1980—1989	250.5	13.4	693.7	37.1	36.1
	1990—1999	215.2	11.5	777.8	41.6	27.7
	2000—2010	144.9	7.8	456.1	24.4	31.8
	1971—2010	221.2	11.8	685.8	36.7	32.3
高家堡	1967—1979	22 165.7	105.8	34 574.4	165.0	64.1
	1980—1989	16 314.1	77.9	24 377.7	116.4	66.9
	1990—1999	16 241.2	77.5	22 466.1	107.2	72.3
	2000—2010	13 767.4	65.7	17 678.6	84.4	77.9
	1967—2010	17 389.7	83.0	25 281.1	120.7	68.8

表1 各站基流及径流统计

Table1 Statistics of baseflow and runoff in each station

站点	时间	基流量均值/万m³	基流深均值/mm	径流量均值/万m³	径流深均值/mm	基径比/%
高石崖	1956—1969	1 730.2	13.7	11 262.1	63.0	15.4
	1970—1979	1 291.5	10.2	9 632.4	76.3	13.4
	1980—1989	655.5	5.2	5 547.0	43.9	11.8
	1990—1999	416.0	3.3	5 233.0	41.4	8.0
	2000—2010	221.7	1.8	1 567.9	12.4	14.1
	1956—2010	914.4	7.2	6 891.7	54.6	13.3
曹坪	1971—1979	288.2	15.4	855.7	45.8	33.7
	1980—1989	250.5	13.4	693.7	37.1	36.1
	1990—1999	215.2	11.5	777.8	41.6	27.7
	2000—2010	144.9	7.8	456.1	24.4	31.8
	1971—2010	221.2	11.8	685.8	36.7	32.3
高家堡	1967—1979	22 165.7	105.8	34 574.4	165.0	64.1
	1980—1989	16 314.1	77.9	24 377.7	116.4	66.9
	1990—1999	16 241.2	77.5	22 466.1	107.2	72.3
	2000—2010	13 767.4	65.7	17 678.6	84.4	77.9
	1967—2010	17 389.7	83.0	25 281.1	120.7	68.8

表2 趋势检验与秩和检验统计表

Table 2 Statistics of trend test and rank-sum test

站点	Z统计值	变化率/(mm/a)	Z统计值	变化率/(mm/a)	秩和检验结果
站点	基流		降水		基流	降水
高石崖	-6.69	-0.24	-1.13	-1.08	1981	无
曹坪	-4.44	-0.22	1.83	2.57	1997	无
高家堡	-6.26	-1.19	-0.33	-0.24	1985	无

表2 趋势检验与秩和检验统计表

Table 2 Statistics of trend test and rank-sum test

站点	Z统计值	变化率/(mm/a)	Z统计值	变化率/(mm/a)	秩和检验结果
站点	基流		降水		基流	降水
高石崖	-6.69	-0.24	-1.13	-1.08	1981	无
曹坪	-4.44	-0.22	1.83	2.57	1997	无
高家堡	-6.26	-1.19	-0.33	-0.24	1985	无

表3 各站基流周期与降水周期对比

Table 3 Comparison of baseflow cycle and precipitation cycle in each station

站点	基流周期
高石崖	3	9	18	28
曹坪	6	14
高家堡	3	25
站点	降水周期
高石崖	3	10	24
曹坪	5	9	14	24
高家堡	3	9	19

表3 各站基流周期与降水周期对比

Table 3 Comparison of baseflow cycle and precipitation cycle in each station

站点	基流周期
高石崖	3	9	18	28
曹坪	6	14
高家堡	3	25
站点	降水周期
高石崖	3	10	24
曹坪	5	9	14	24
高家堡	3	9	19

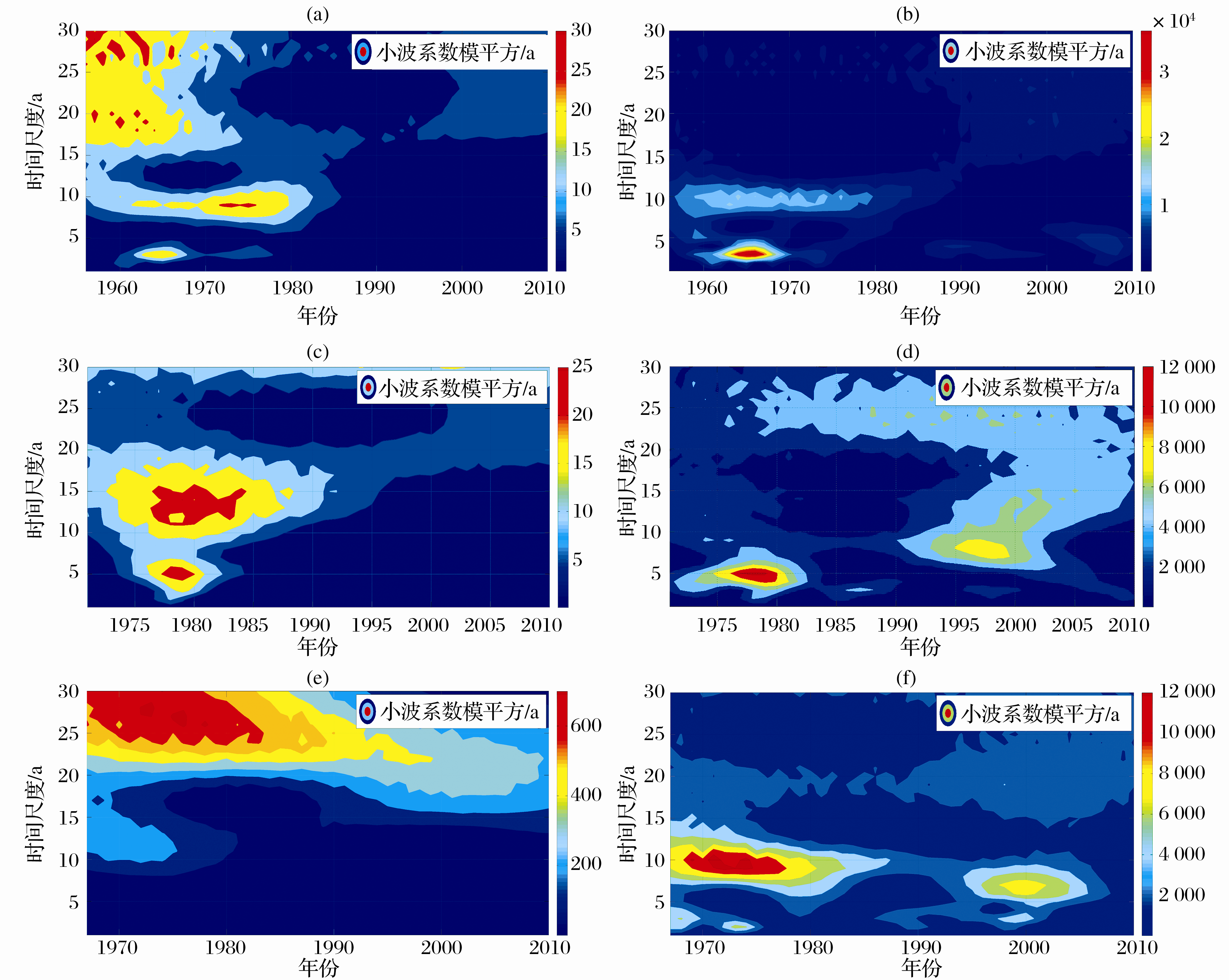

图2 各站基流和降水序列小波变换系数模平方等值线图
(a)高石崖基流;(b)高石崖降水;(c)曹坪基流;(d)曹坪降水;(e)高家堡基流;(f)高家堡降水

Fig.2 Modulus square contour of the wavelet coefficients of baseflow and precipitation
Baseflow (a) and precipitation (b) in Gaoshiya station; Baseflow (c) and precipitation (d) in Caoping station; Baseflow (e) and precipitation (f) in Gaojiabu station

图3 各站基流和降水序列小波变换系数模平方等值线图
(a)高石崖基流;(b)高石崖降水;(c)曹坪基流;(d)曹坪降水;(e)高家堡基流;(f)高家堡降水

Fig.3 Real part contour of the wavelet coefficients of baseflow and precipitation
Baseflow (a) and precipitation (b) in Gaoshiya station; Baseflow (c) and precipitation (d) in Caoping station; Baseflow (e) and precipitation (f) in Gaojiabu station
