北冰洋酸化指标——海水文石饱和度变异的研究进展
  <sup>*</sup>

doi:10.11867/j.issn.1001-8166.2014.05.0569

文石饱和度(Ω_文石)是评估海洋酸化及对海洋钙质生物影响的重要指标之一。海洋吸收CO₂引起海洋酸化,导致Ω_文石显著下降。模式研究预测表明北冰洋表层海水将成为最先出现Ω_文石小于1的世界大洋。本文通过对北冰洋Ω_文石有关研究进行归纳总结,重点阐述了北冰洋Ω_文石的分布特征,讨论海-气CO₂交换过程、融冰过程以及生物过程等因素对北冰洋Ω_文石分布的影响,展望未来的变化趋势和提出一些关键的科学问题。

关键词: 文石饱和度, 海洋酸化, 模型预测, 海冰融化, 北冰洋

：Aragonite saturation state (Ω_arg) is a key parameter to assess the calcifying marine organisms’ impacts of ocean acidification. Oceans are becoming more acidic and lend to the decreased of the aragonite saturation state. The Arctic Ocean is an important part of the global ocean system with a unique larger continental shelve and rupit sea ice declineing. Model simulations have presented the Arctic Ocean are expected to become the first undersaturated (Ω_arg <1) in deep oceans. However, there are still no enough adequate data to be gained due to geological politics and harsh environments. This paper attempts to summarize some?conclusion?and?implications?of?the?research, focused the spatial and temporal distributions of Ω_arg and to discuss their driving factors, including sea-air CO₂ exchange, sea ice melt, biological processes etc.. The tendency of Ω_arg in the context of Arctic Ocean acidification and sea-ice retreat are also touched upon.

Key words: Aragonite saturation state, Ocean acidification, Model simulations, Rapid sea-ice retreat, Arctic Ocean.

中图分类号:

P734
P76

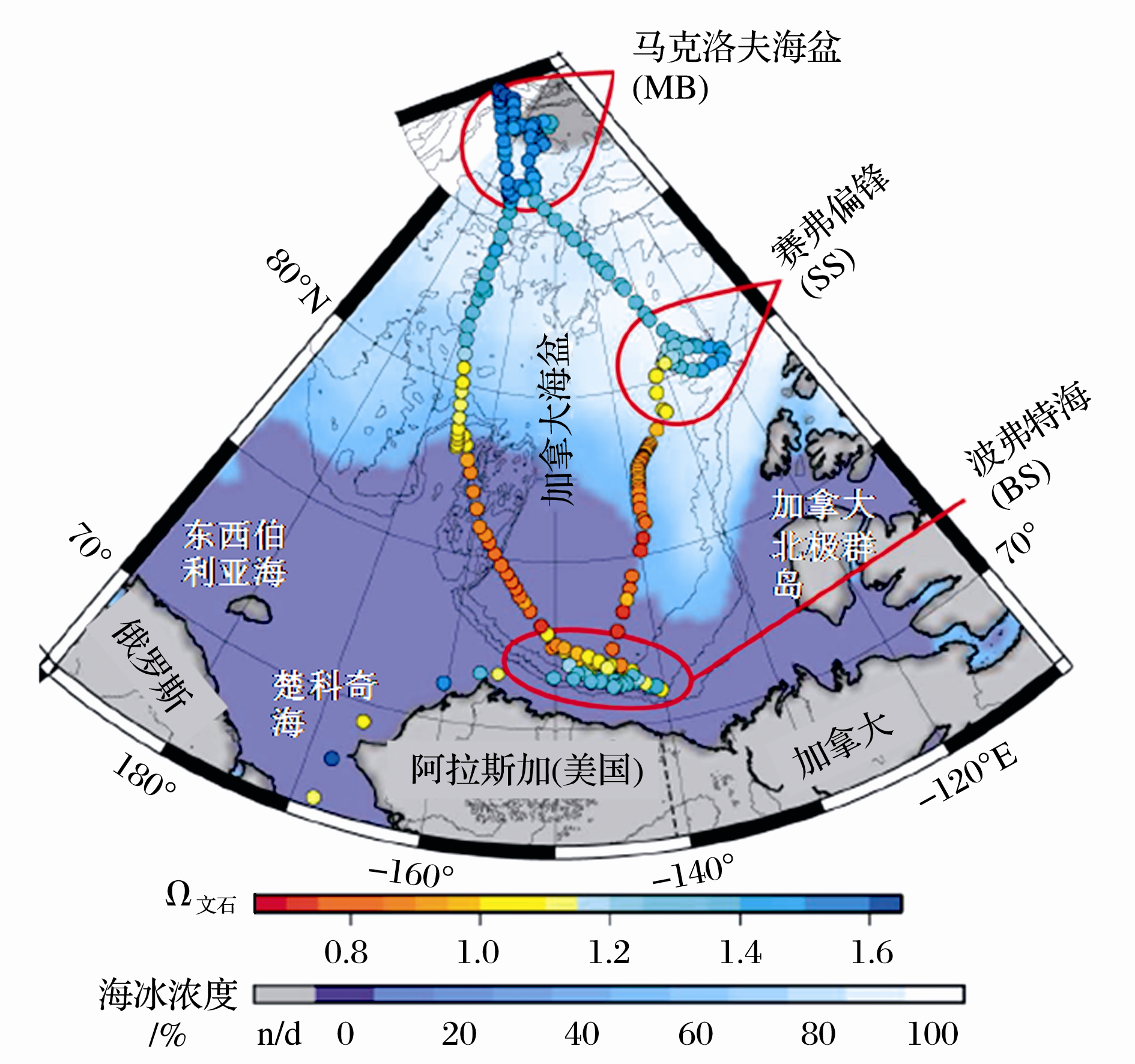

图1 西北冰洋 Ω _文石平面分布 ^{[

18
]}

Fig 1. Surface distribution of Ω _arg in the Western Arctic Ocean ^{[

18
]}

图2 北太平洋和北冰洋 Ω _arg断面分布 ^{[

26
]} 航次站位以北太平洋温哥华岛为起点,环绕北美洲北部沿岸,途经NP(北太平洋)、BS(白令海)、CS(楚科奇海)、CB(加拿大海盆)、CAA(加拿大北极群岛)、BB表示巴芬湾和LS(拉布拉多海),最终到达北大西洋北部纽芬兰。灰色部分表示海底地形,黑色圆点表示采样站位和层位

Fig 2. Distribution of Ω _arg in the North Pacific and Western Arctic Ocean ^{[

26
]} Hydrographic stations were occupied around northern North America The transect, starting from Vancouver Island in the North Pacific and ending at Newfoundland in the North Atlantic, crosses seven hydrographical domains: NP. North Pracific; CS. Chukchi Sea; BS. Bering Sea; CB. Canada Basin; CAA.Canadian Arctic Archipelago; BB. Baffin Bay; LS. Labrador Sea

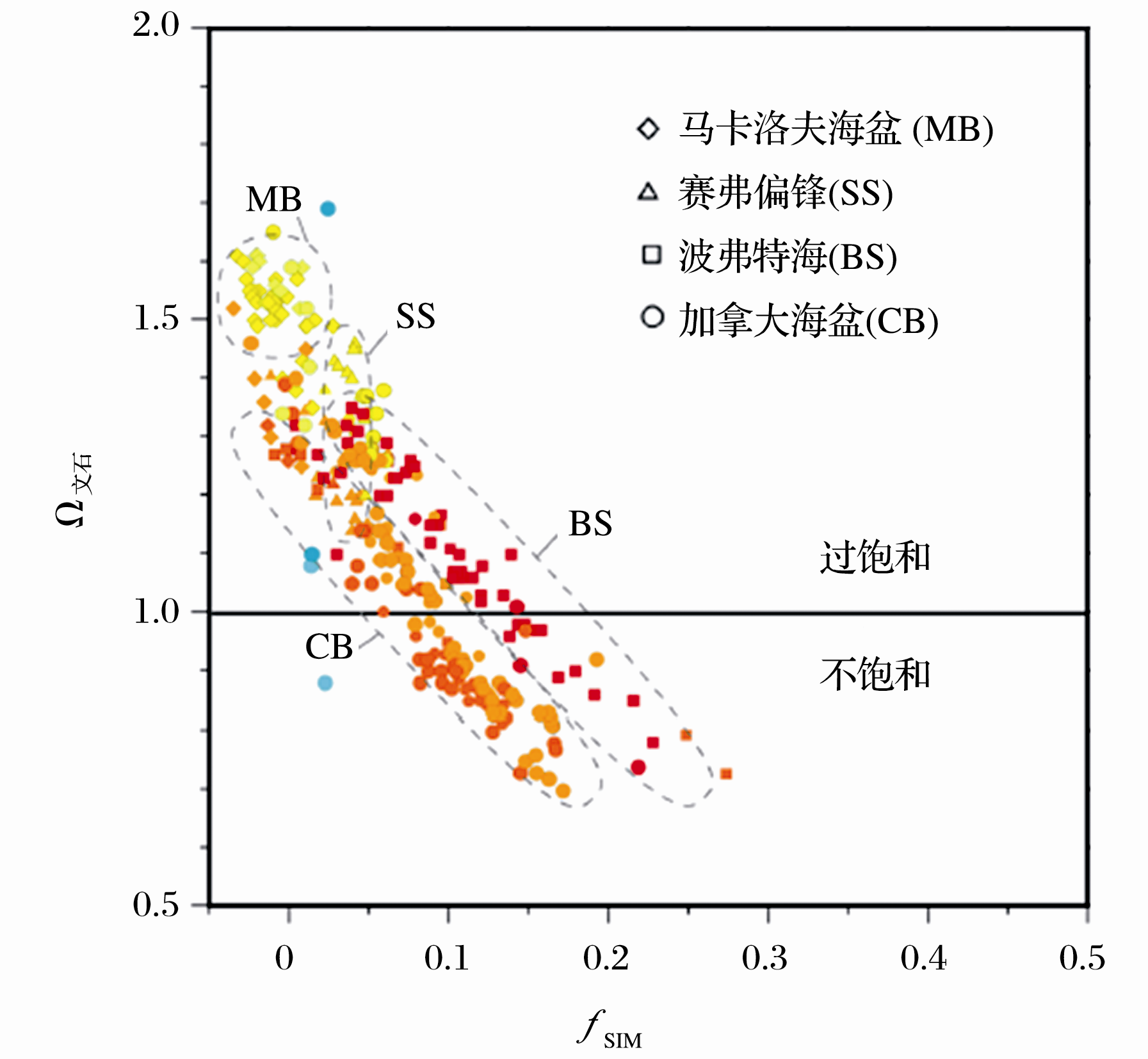

图3 北冰洋加拿大海盆 Ω _文石与融冰水比例(f _SIM)关系 ^{[

18
]}

Fig 3. Relationship between Ω _aragoniteand f _SIM in the surface water of Canadian Basin ^{[

18
]}

[1]	Solomon S, Qin D, Manning M, et al. Intergovernmental Panel on Climate Change (IPCC): Climate change 2007: The physical science basis[M]. Contribution of Working Group I to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change.
	, 2007.
[2]	Indermühle A, Stocker T, Joos F, et al. Holocene carbon-cycle dynamics based on CO2 trapped in ice at Taylor Dome, Antarctica[J]. Nature, 1999, 398(6 723): 121-126.
[3]	US NOAA/ESRL. Trends in Atmospheric Carbon Dioxide[R/OL]. 2014[2014-02-16]. . URL
[4]	Sabine C L, Feely R A, Gruber N, et al. The oceanic sink for anthropogenic CO2[J]. Science, 2004, 305(5682): 367-371.
[5]	Doney S C, Fabry V J, Feely R A, et al. Ocean acidification: The other CO2 problem[J]. Marine Science, 2009,(1): 169-192.
[6]	Royal Society. Ocean Acidification due to Increasing Atmospheric Carbon Dioxide[R]. London: The Royal Society, 2005.
[7]	Orr J C, Fabry V J, Aumont O, et al. Anthropogenic ocean acidification over the twenty-first century and its impact on calcifying organisms[J]. Nature, 2005, 437(7059): 681-686.
[8]	Fabry V J, McClintock J B, Mathis J T, et al. Ocean acidification at high latitudes: The bellweather[J]. Oceanography, 2009, 22: 160-171.
[9]	Steinacher M, Joos F, Frolicher T, et al. Imminent ocean acidification in the Arctic projected with the NCAR global coupled carbon cycle-climate model[J]. Biogeosciences, 2009, 6: 515-533.
[10]	Riebesell U, Zondervan I, Rost B, et al. Reduced calcification of marine plankton in response to increased atmospheric CO2[J]. Nature, 2000, 407(6 802): 364-367.
[11]	Su Xiang, Liu Chuanlian. Effects of ocean acidification on Coccolithophores[J]. Advances in Earth Science, 2012, 27(11): 1274-1280.
	[苏翔,刘传联. 海洋酸化对颗石藻的影响[J]. 地球科学进展, 2012, 27(11): 1274-1280.]
[12]	Key R M, Kozyr A, Sabine C L, et al. A global ocean carbon climatology: Results from Global Data Analysis Project (GLODAP)[J]. Global Biogeochemical Cycles, 2014, 18: 4031, doi: 10.1029/2004GB002247.
[13]	Feely R A, Sabine C L, Hernandez-Ayon J M, et al. Evidence for upwelling of corrosive "acidified" water onto the continental shelf[J]. Science, 2008, 320(5882): 1490-1492.
[14]	McNeil B I,Matear R J. Southern ocean acidification: A tipping point at 450 ppm atmospheric CO2[J]. Proceedings of the National Academy of Sciences of the United States of America, 2008, 105: 18 860-18 864.
[15]	Yamamoto-Kawai M, McLaughlin F A, Carmack E C, et al. Aragonite undersaturation in the Arctic Ocean: Effects of ocean acidification and sea ice melt[J]. Science, 2009, 326(5956): 1098-1100.
[16]	Bates N, Mathis J. The Arctic Ocean marine carbon cycle: Evaluation of air-sea CO2 exchanges, ocean acidification impacts and potential feedbacks[J]. Biogeosciences, 2009, 6(6): 2433-2459.
[17]	Cai W J, Chen L, Chen B, et al. Decrease in the CO2 uptake capacity in an ice-free Arctic Ocean Basin[J]. Science, 2010, 329(5 991): 556-559.
[18]	Robbins L L, Wynn J G, Lisle J T, et al. Baseline monitoring of the Western Arctic Ocean estimates 20% of the Canadian Basin surface waters are undersaturated with respect to aragonite[J]. PLoS One, 2013, 8(9):e73796, doi:10.1371/journal.pone.0073796.
[19]	Yamamoto A, Kawamiya M, Ishida A, et al. Impact of rapid sea-ice reduction in the Arctic Ocean on the rate of ocean acidification[J]. Biogeosciences, 2012, 9(6): 2 365-2 375.
[20]	Hunt B, Pakhomov E, Hosie G, et al. Pteropods in southern ocean ecosystems[J]. Progress in Oceanography, 2008, 78(3): 193-221.
[21]	Comeau S, Alliouane S, Gattuso J. Effects of ocean acidification on overwintering juvenile Arctic pteropods Limacina helicina[J]. Marine Ecology Progress Series, 2012, 456: 279-284.
[22]	Mucci A. The solubility of calcite and aragonite in seawater at various salinities, temperatures, and one atmosphere total pressure[J]. American Journal of Science, 1983, 283(7): 780-799.
[23]	Pelletier G J, Lewis E, Wallace D W R. CO2SYS.XLS: A Calculator for the CO2 System in Seawater for Microsoft Excel/VBA. Version 17[R]. Olympia (Washington): Washington State Department of Ecology, 2012.
[24]	Jutterstrm S, Anderson L G. The saturation of calcite and aragonite in the Arctic Ocean[J]. Marine Chemistry, 2005, 94: 101-110.
[25]	Bates N R, Mathis J T, Cooper L W. Ocean acidification and biologically induced seasonality of carbonate mineral saturation states in the western Arctic Ocean[J]. Journal of Geophysical Research: Oceans, 2009, 114: C11007, doi:10.1029/2008JC004862.
[26]	Yamamoto-Kawai M, McLaughlin F, Carmack E. Ocean acidification in the three oceans surrounding northern North America[J]. Journal of Geophysical Research: Oceans, 2013, 118(11): 6 274-6 284.
[27]	Bates N, Orchowska M, Garley R, et al. Summertime calcium carbonate undersaturation in shelf waters of the western Arctic Ocean—How biological processes exacerbate the impact of ocean acidification[J]. Biogeosciences, 2013, 10(8): 5 281-5 309.
[28]	Chierici M, Fransson A. Calcium carbonate saturation in the surface water of the Arctic Ocean: Undersaturation in freshwater influenced shelves[J]. Biogeosciences, 2009, 6(11): 2 421-2 431.
[29]	Popova E, Yool A, Coward A, et al. Regional variability of acidification in the Arctic: A sea of contrasts[J]. Biogeosciences Discussions, 2013, 10(2): 2 937-2 965.
[30]	Yamamoto-Kawai M, McLaughlin F, Carmack E. Effects of ocean acidification, warming and melting of sea ice on aragonite saturation of the Canada Basin surface water[J]. Geophysical Research Letters, 2011, 38(3), doi:10.1029/2010GL045501.
[31]	Swift J H, Jones E P, Aagaard K, et al. Waters of the Makarov and Canada Basins[J]. Deep Sea Research Part II: Topical Studies in Oceanography, 1997, 44:1503-1529.
[32]	McLaughlin F A, Carmack E C. Deepening of the nutricline and chlorophyll maximum in the Canada Basin interior, 2003-2009[J]. Geophysical Research Letters, 2010, 37(24), doi:10.1029/2010GL045459.
[33]	Carmack E C, McLaughlin F A, Vagle S, et al. Structures and property distributions in the three oceans surrounding Canada in 2007: A basis for a long-term ocean climate monitoring strategy[J]. Atmosphere-Ocean, 2010, 48(4): 211-224.
[34]	Stroeve J, Holland M M, Meier W, et al. Arctic sea ice decline: Faster than forecast[J]. Geophysical Research Letters, 2007, 34(9): L09501, doi:10.1029/2007GL029703.
[35]	Maslanik J, Fowler C, Stroeve J, et al. A younger, thinner Arctic ice cover: Increased potential for rapid, extensive sea-ice loss[J]. Geophysical Research Letters, 2007, 34(24): L24501, doi:10.1029/2007GL032043.
[36]	Giles K A, Laxon S W, Ridout A L. Circumpolar thinning of Arctic sea ice following the 2007 record ice extent minimum[J]. Geophysical Research Letters, 2008, 35(22): L22502, doi:10.1029/2008GL035710.
[37]	Comiso J C, Parkinson C L, Gersten R, et al. Accelerated decline in the Arctic Sea ice cover[J]. Geophysical Research Letters, 2008, 35(1): L01703, doi:10.1029/2007GL031972.
[38]	Bates N R, Best M H, Hansell D A. Spatio-temporal distribution of dissolved inorganic carbon and net community production in the Chukchi and Beaufort Seas[J]. Deep Sea Research Part II: Topical Studies in Oceanography, 2005, 52(24): 3 303-3 323.
[39]	[JP2]Moran S, Kelly R, Hagstrom K, et al. Seasonal changes in POC export flux in the Chukchi Sea and implications for water column-benthic coupling in Arctic shelves[J]. Deep Sea Research Part II: Topical Studies in Oceanography, 2005, 52(24): 3427-3451.
[40]	Mathis J T, Pickart R S, Byrne R H, et al. Storm-induced upwelling of high pCO2 waters onto the continental shelf of the western Arctic Ocean and implications for carbonate mineral saturation states[J]. Geophysical Research Letters, 2012,39: L07606, doi:10.1029/2012GL051574.
[41]	Wang M, Overland J E. A sea ice free summer Arctic within 30 years?[J]. Geophysical Research Letters,2009,36: L07502, doi:10.1029/2009GL037820.
[42]	Liu J, Song M, Hortonc R M, et al. Reducing spread in climate model projections of a September ice-free Arctic[J]. Proceedings of the National Academy of Sciences of the United States of America, 2013, doi:10.1073/pnas.1219716110.
[43]	Mu Longjiang, Zhao Jinpin. Variability of the Greenland Sea ice edg[J]. Advances in Earth Science, 2013, 28(6): 709-717.
	[牟龙江,赵进平. 格陵兰海海冰外缘线变化特征分析[J]. 地球科学进展, 2013, 28(6): 709-717.]
