黄土高原土壤干层研究进展与展望

土壤干层发生机理及其生态环境效应是土壤物理学和生态学及其交叉领域的重要科学问题,也是我国黄土高原开展生态文明建设,实现可持续发展面临的重大生态环境问题之一.通过回顾土壤干层研究取得的重要进展,包括土壤干层的概念与特征,评价指标,形成原因与危害,不同尺度时空分异特征及调控对策等,针对黄土高原水资源短缺和植被退化现状,提出土壤干层研究面临的机遇和挑战,包括建立统一的土壤干层动力学量化指标,干层内土壤水分对植物生长的有效性,土壤干层强度对土壤--植被--大气传输体(SVATs)中水分运移的影响,土壤干层发生发展过程和时空演变规律,土壤干层预测模型及其调控机制.此外,土壤干层的研究应结合当前植被恢复与生态文明建设的国家需求.在气候变化和剧烈人类活动背景下,开展黄土高原土壤干燥化与土壤水资源影响及其调控对策研究,将是水科学与生态学领域长期面临的科学问题之一.

关键词: 黄土区, 深层土壤, 土壤干燥化, 土壤水分, 植被建设

Studies on the formation of a Dried Soil Layer (DSL) and its effect on eco-environment are important issues of soil science as well as ecology. It is also critical for the construction of ecological civilization and the sustainable development in the Loess Plateau of China. In view of the serious shortage of water resource and to the potential degradation of restored vegetation, this paper proposed the challenge and opportunity of the research on DSL and made some recommendations for future studies on DSL. The development of dynamic indices for characterizing DSL, the availability of soil moisture in DSL to vegetation, the impact of the intensity of DSL on water transport processes in Soil-Vegetation-Atmosphere-Transfer system (SVATs), the formatting processes of DSL and its spatiotemporal patterns, and the modeling of DSL were reviewed. Based on the literature of related studies, researches on DSL were commented in this paper. They included its concept and dynamic characteristics, its quantified indices, its formation, its damages on ecoenvironment, its distribution on various scales and controlling factors. In addition, researches on DSL should be targeted on the goal of the national vegetation restoration and the construction of ecological civilization. With the climate change and intensive human activities, carrying out the research on the effects of soil desiccation on soil water resource and its regulation is of importance to water sciences and water resource in the region.

Key words: The Loess Plateau region, Deep soil, Soil desiccation, Soil water, Vegetation construction.

中图分类号:

P934

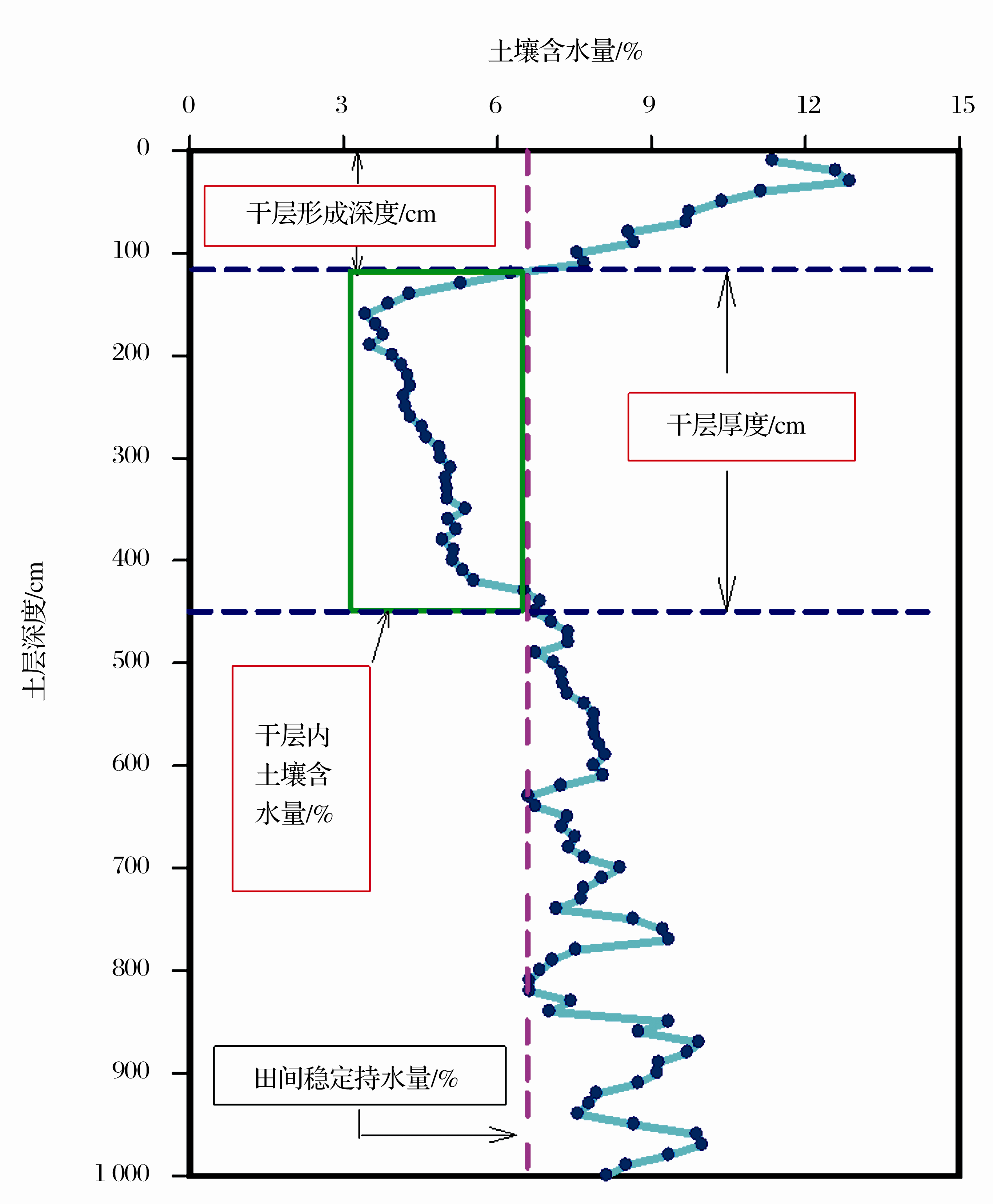

图1 土壤干层量化指标在剖面上的示意图(干层厚度,形成深度,干层内土壤含水量和田间稳定持水量)
数据于2008年10月17日采自宁夏固原县柠条林地 ^{[

7
]}

Fig.1 Schematic of the Dried Soil Layer (DSL) evaluation indices in the soil profile (thickness, forming depth, mean soil water content and stable field capacity)
In this example, data was collected on October 17, 2008, for a soil under C. korshinskii, in Guyuan County, Ningxia, in the semiarid region ^{[

7
]}

图2 黄土高原种植20余年的"小老头树"林
(a)小叶杨树高仅有4~6 m,胸径仅为5~8 cm,而正常条件下20年生树高可达15~20 m,胸径20~25 cm;(b)"小老头树"连片死亡

Fig.1 Pictures showing the "little-old-man" tree with 20-year-stand age in the Loess Plateau
(a)The height and DBH of little old man trees was 4~6 m and 5~8 cm, respectively, while their normal height and DBH was 15~20 m and 20~25 cm, respectively;(b)The death of the "little-old-man trees"

[1]	Li Yushan.The properties of water cycle in soil and their effect on water cycle for land in the Loess region[J]. Acta Ecologica Sinica, 1983, 3(2): 91-101.
	[李玉山. 黄土区土壤水分循环特征及其对陆地水分循环的影响[J]. 生态学报, 1983, 3(2): 91-101.]
[2]	Chen H S, Shao M A, Li Y Y.Soil desiccation in the Loess Plateau of China[J]. Geoderma,2008, 143(1/2): 91-100.
[3]	Huang M B, Gallichand J.Use of the shaw model to assess soil water recovery after apple trees in the gully region of the Loess Plateau, China[J]. Agricultural Water Management,2006, 85(1/2): 67-76.
[4]	Li J, Chen B, Li X F, et al.Effects of deep soil desiccation on artificial forestlands in different vegetation zones on the Loess Plateau of China[J]. Acta Ecologica Sinica, 2008, 28(4): 1 429-1 445.
[5]	Wang Li, Shao Ming'an, Zhang Qingfeng. Distribution and characters of soil dry layer in north Shaanxi Loess Plateau[J]. Chinese Journal of Applied Ecology,2004, 15(3): 436-442.
	[王力, 邵明安, 张青峰. 陕北黄土高原土壤干层的分布和分异特征[J]. 应用生态学报, 2004, 15(3): 436-442.]
[6]	Wang Y Q, Shao M A, Liu Z P.Large-scale spatial variability of dried soil layers and related factors across the entire Loess Plateau of China[J]. Geoderma,2010, 159(1/2): 99-108.
[7]	Wang Y Q, Shao M A, Zhu Y J, et al.Impacts of land use and plant characteristics on dried soil layers in different climatic regions on the Loess Plateau of China[J]. Agricultural and Forest Meteorology,2011, 151(4): 437-448.
[8]	Wang Y Q, Shao M A, Shao H B.A preliminary investigation of the dynamic characteristics of dried soil layers on the Loess Plateau of China[J]. Journal of Hydrology, 2010, 381(1/2): 9-17.
[9]	Jia X X, Shao M A, Zhang C C, et al.Regional temporal persistence of dried soil layer along south-north transect of the Loess Plateau, China[J]. Journal of Hydrology, 2015, 528: 152-160.
[10]	Markewitz D, Devine S, Davidson E A, et al.Soil moisture depletion under simulated drought in the Amazon: Impacts on deep root uptake[J].New Phytologist, 2010, 187(3): 592-607.
[11]	Robinson N, Harper R, Smettem K.Soil water depletion by eucalyptus spp. Integrated into dryland agricultural systems[J]. Plant and Soil, 2006, 286(1): 141-151.
[12]	Yang Wenzhi, Tian Junliang.Essential exploration of soil aridization in Loess Plateau[J]. Acta Pedologica Sinica, 2004, 41(1): 1-6.
	[杨文治, 田均良. 黄土高原土壤干燥化问题探源[J]. 土壤学报, 2004, 41(1): 1-6.]
[13]	Hou Qingchun, Han Ruilian, Han Shifeng.Initial exploration of dried soil layer in artificial forests and grassland in Loess Plateau[J]. Soil and Water Conservation in China,1999,(5): 11-14.
	[侯庆春, 韩蕊莲, 韩仕峰. 黄土高原人工林草地"土壤干层"问题初探[J]. 中国水土保持, 1999,(5): 11-14.]
[14]	Zhao Jingbo, Zhou Qi, Hou Yongjian.Effect of dried layer of soil ecological environmental reconstruction[J].Journal of Shaanxi Normal University (Natural Science Edition), 2003, 31(4): 93-97, 109.
	[赵景波, 周旗, 侯甬坚. 黄土高原土壤干层对生态环境建设的影响[J]. 陕西师范大学学报:自然科学版, 2003, 31(4): 93-97, 109.]
[15]	Zhao Jingbo, Du Juan, Zhou Qi, et al.The soil dried layers under apple trees planation near Xi'an City[J]. Acta Ecologica Sinica, 2005, 25(8): 2 115-2 120.
	[赵景波, 杜鹃, 周旗, 等. 西安附近苹果林地的土壤干层[J]. 生态学报, 2005,25(8):2 115-2 120.]
[16]	Wang Q X, Fan X H, Qin Z D, et al. Changes trends of temprature and precipitation in the Loess Platau region of China, 1961-2010[J]. Global and Planetary Change, 2012, 92/93(4): 138-147.
[17]	Li Yuyuan, Shao Ming'an. Climatic change, vegetation evolution and low moisture layer of soil on the Loess Plateau[J]. Journal of Arid Land Resources and Environment, 2001, 15(1): 72-77.
	[李裕元, 邵明安. 黄土高原气候变迁,植被演替与土壤干层的形成[J]. 干旱区资源与环境, 2001, 15(1): 72-77.]
[18]	Breshears D D, Cobb N S, Rich P M, et al.Regional vegetation die-off in response to global-change-type drought[J]. Proceedings of the National Academy of Sciences of the United States of America, 2005, 102(42): 15 144-15 148.
[19]	Czerepko J.A long-term study of successional dynamic in the forest wetlands[J]. Forest Ecology and Management, 2008, 255(3/4): 630-642.
[20]	Wang L, Wei S P, Shao H B, et al.Simulated water balance of forest and farmland in the hill and gully region of the Loess Plateau of China[J]. Plant Biosystem,2012, 146(4): 226-243.
[21]	Chen L D, Wei W, Fu B J, et al.Soil and water conservation on the Loess Plateau in China: Review and perspective[J].Progress in Physical Geography,2007, 31(4): 389-403.
[22]	Li Yuyuan, Shao Ming'an. Degradation process and plant diversity of alfalfa grassland in North Loess Plateau of China[J]. Chinese Journal of Applied Ecology,2005, 16(12): 2 321-2 327.
	[李裕元, 邵明安. 黄土高原北部紫花苜蓿草地退化过程与植物多样性研究[J]. 应用生态学报, 2005, 16(12): 2 321-2 327.]
[23]	Huang Mingbin, Yang Xinmin, Li Yushan.Hydro-ecological effect of the soil dry layer as affected by biota use in the Loess Plateau[J]. Chinese Journal of Eco-Agriculture,2003, 11(3): 113-116.
	[黄明斌, 杨新民, 李玉山. 黄土高原生物利用型土壤干层的水文生态效应研究[J]. 中国生态农业学报, 2003, 11(3): 113-116.]
[24]	Li Yushan.Effect of forest on water circle on the Loess Plateau[J]. Journal of Natural Resources,2001, 16(5): 427-432.
	[李玉山. 黄土高原森林植被对陆地水循环影响的研究[J]. 自然资源学报, 2001, 16(5): 427-432.]
[25]	Bae S, Inyang H I, De Brito Galval T C, et al. Soil desiccation rate integration into empirical dust emission models for polymer suppressant evaluation[J]. Journal of Hazardous Materials, 2006, 132(1): 111-117.
[26]	Fu Bojie, Zhao Wenwu, Chen Liding.Progress and perspective of geographical-ecological processes[J]. Acta Geographica Sinica,2006, 61(11): 1 123-1 131.
	[傅伯杰, 赵文武, 陈利顶. 地理--生态过程研究的进展与展望[J]. 地理学报, 2006, 61(11): 1 123-1 131.]
[27]	Guo Zhongsheng, Shao Ming'an. Soil water carrying capacity of vegetation and soil desiccation in artificial forestry and grassland in semi-arid regions of the Loess Plateau[J]. Acta Ecologica Sinica,2003, 23(8): 1 640-1 647.
	[郭忠升, 邵明安. 半干旱区人工林草地土壤旱化与土壤水分植被承载力[J]. 生态学报, 2003, 23(8): 1 640-1 647.]
[28]	Fu Bojie, Yang Zhijian, Wang Yanglin, et al.Model of soil moisture spatial distribution in loess hilly-gully slope[J]. Science in China (Series D),2001, 31(3): 185-191.
	[傅伯杰, 杨志坚, 王仰麟, 等. 黄土丘陵坡地土壤水分空间分布数学模型[J]. 中国科学:D辑, 2001, 31(3): 185-191.]
[29]	Wang Zhiqiang, Liu Baoyuan, Zhang Yan.Effects of different vegetation types on soil moisture in deep loess soil profiles[J]. Acta Geographica Sinica,2008, 63(7): 703-713.
	[王志强, 刘宝元, 张岩. 不同植被类型对厚层黄土剖面水分含量的影响[J]. 地理学报, 2008, 63(7): 703-713.]
[30]	Han Shifeng, Li Yushan, Shi Yujie, et al.The characteristics of soil moisture resources on the Loess Plateau[J]. Bulletin of Soil and Water Conservation,1990, 10(1): 36-43.
	[韩仕峰, 李玉山, 石玉杰, 等. 黄土高原土壤水分资源特征[J]. 水土保持通报, 1990, 10(1): 36-43.]
[31]	Wang Li, Shao Ming'an, Wang Quanjiu, et al. Review of research on soil desication in the Loess Plateau[J]. Transactions of the CSAE,2004, 20(5): 27-31.
	[王力, 邵明安, 王全九, 等. 黄土区土壤干化研究进展[J]. 农业工程学报, 2004, 20(5): 27-31.]
[32]	Zhang Chencheng, Shao Ming'an, Wang Yunqiang. Spatial distribution of dried soil layers under different vegetation types at slope scale in loess region[J]. Transactions of the CSAE,2012, 28(17): 102-108.
	[张晨成,邵明安,王云强.黄土区坡面尺度不同植被类型下土壤干层的空间分布[J]. 农业工程学报, 2012, 28(17): 102-108.]
[33]	He Fuhong, Huang Mingbin, Dang Tinghui.Distribution characteristic of dried soil layer in Wangdonggou watershed in gully region of the Loess Plateau[J]. Journal of Natural Resources,2003, 18(1): 30-36.
	[何福红, 黄明斌, 党廷辉. 黄土高原沟壑区小流域土壤干层的分布特征[J]. 自然资源学报, 2003, 18(1): 30-36.]
[34]	He Fuhong, Huang Mingbin, Dang Tinghui.Soil water distribution characteristics in Wangdonggou watershed in gully region of the Loess Plateau[J]. Bulletin of Soil and Water Conservation, 2002, 22(4): 6-9.
	[何福红, 黄明斌, 党廷辉. 黄土高原沟壑区小流域土壤水分空间分布特征[J]. 水土保持通报, 2002, 22(4): 6-9.]
[35]	Li J, Chen B, Li X F, et al.Effects of deep soil desiccation on artificial forestlands in different vegetation zones on the Loess Plateau of China[J].Acta Ecologica Sinica,2008, 28(4): 1 429-1 445.
[36]	Ma Yuxi, Yang Wenzhi, Han Shifeng, et al.On the growth dynamics of locust in the Loess Plateau[J]. Journal of Soil and Water Conservation,1990, 4(2): 26-32.
	[马玉玺, 杨文治, 韩仕峰, 等. 黄土高原刺槐生长动态研究[J]. 水土保持学报, 1990, 4(2): 26-32.]
[37]	Cheng Guodong, Zhao Chuanyan.An integrated study of ecological and hydrological processes in the inland river basin of the arid regions, China[J]. Advances in Earth Science,2008, 23(10): 1 005-1 012.
	[程国栋, 赵传燕. 干旱区内陆河流域生态水文综合集成研究[J]. 地球科学进展, 2008, 23(10): 1 005-1 012.]
[38]	Wang Genxu, Qian Ju, Cheng Guodong.Current situation and prospect of the ecological hydrology[J]. Advances in Earth Science,2001,16(3): 314-323.
	[王根绪, 钱鞠, 程国栋. 生态水文科学研究的现状与展望[J]. 地球科学进展, 2001,16(3): 314-323.]
[39]	Han Lanying, Zhang Qiang, Jia Jianying, et al.Hydrological and ecological modeling in Shiyang River Basin[J]. Chinese Journal of Soil Science,2014, 45(2): 352-357.
	[韩兰英, 张强, 贾建英, 等. 石羊河流域土壤含水量生态水文模型研究[J]. 土壤通报, 2014, 45(2): 352-357.]
[40]	Xia Y Q, Shao M A.Soil water carrying capacity for vegetation: A hydrologic and biogeochemical process model solution[J]. Ecological Modelling,2008, 214(2/4): 112-124.
[41]	Liu W Z, Zhang X C, Dang T H, et al.Soil water dynamics and deep soil recharge in a record wet year in the southern Loess Plateau of China[J]. Agricultural Water Management,2010, 97(8): 1 133-1 138.
[42]	Wang X L, Sun G J, Jia Y, et al.Crop yield and soil water restoration on 9-year-old alfalfa pasture in the semiarid Loess Plateau of China[J]. Agricultural Water Management, 2008, 95(3): 190-198.
[43]	Wang X C, Li J, Tahir M N, et al.Validation of the EPIC model and its utilization to research the sustainable recovery of soil desiccation after alfalfa (Medicago sativa L.) by grain crop rotation system in the semi-humid region of the Loess Plateau[J]. Agriculture Ecosystems & Environment,2012, 161: 152-160.
[44]	Li Y S, Huang M B.Pasture yield and soil water depletion of continuous growing alfalfa in the Loess Plateau of China[J]. Agriculture, Ecosystems & Environment,2008, 124(1/2): 3-12.
[45]	Liu B X, Shao M A.Modeling soil-water dynamics and soil-water carrying capacity for vegetation on the Loess Plateau, China[J].Agricultual Water Management,2015, 159(2): 176-184.
