基于变分模态分解的机器学习模型择优风速预测系统
摆玉龙( ),路亚妮,刘名得
  1. 西北师范大学物理与电子工程学院,甘肃 兰州 730070
  • 收稿日期:2021-05-20 修回日期:2021-08-01 出版日期:2021-09-10
  • 基金资助:
    国家自然科学基金项目“基于尺度空间理论和地统计学的数据同化观测误差研究”(41861047)

Wind Speed Forecasting System Based on Variational Mode Decomposition and the Optimal Machine Learning Models

Yulong BAI( ),Yani LU,Mingde LIU

  1. College of Physics and Electrical Engineering,Northwest Normal University,Lanzhou 730070,China
  • Received:2021-05-20 Revised:2021-08-01 Online:2021-09-10 Published:2021-10-15
  • About author:BAI Yulong (1973-), male, Huining County, Gansu Province, Professor. Research areas include data assimilation and control theory and applications. E-mail: baiyulong@nwnu.edu.cn
  • Supported by:
    the National Natural Science Foundation "Research on observation error of data assimilation based on scale space theory and geostatistics"(41861047)

精准的风速预报对风力发电系统具有重要意义,但风速信号自身固有的随机性使其波动复杂且不可控,以往的研究采用单一或固定的组合模型很难把握风速序列的特征。提出一种基于分解的机器学习模型择优风速预测系统,采用变分模态分解算法降低原始风速序列的复杂度。进而利用模糊神经网络、非线性自回归神经网络、Elman神经网络、反向传播神经网络和自回归差分移动平均模型构成机器学习模型择优系统,分别对子序列的验证集进行预测,通过均方根误差等性能指数选择其最优模型,提高了整体模型的预测精度。试验采用宁夏地区4个站点的实测风速数据,仿真实验结果表明,所提模型相比于单模型以及较新的深度学习组合模型,具有更高的预测精度。

Due to the limited reserves of traditional energy and the excessive use of non-renewable energy, the global carbon emissions seriously accelerate the global greenhouse effect. Compared with traditional energy, wind energy is a kind of green renewable energy. Accurate wind speed prediction is of great significance to wind power generation system, but the inherent randomness of wind speed signal makes its fluctuation complex and uncontrollable. It is difficult to grasp the characteristics of wind speed series using single or fixed hybrid models in previous studies. Therefore, a wind speed forecasting system is proposed based on decomposition and the optimal machine learning models. First, the Variational Mode Decomposition (VMD) algorithm is used to decompose the original wind speed sequence into several sub-sequences. Then, five models of Fuzzy Neural Network (FNN), Nonlinear Auto-regressive Neural Network (NARX), Elman neural network, Back Propagation Neural Network (BPNN) and Auto-regressive integrated Moving Average model (ARIMA), are selected to construct a machine learning model selection system and predict the validation set of sub-sequences, respectively. The root mean square error (RMSE) is used to select the optimal model and the final prediction result is obtained by summing up the predicted values of each sub-sequence. The measured wind speed data from four stations in Ningxia Hui Autonomous Region was used in the experiment. The sampling height was 70 meters and the time interval was 15 minutes. Three groups of comparison models were established to verify the prediction effect of the proposed model. The first group: five single models used in this experiment: FNN, NARX, Elman, BPNN and ARIMA; The second group: five hybrid models based on VMD decomposition: VMD-FNN, VMD-NARX, VMD-Elman, VMD-BPNN and VMD-ARIMA; The third group: newer hybrid models of deep learning: Improved Complete Ensemble Empirical Mode Decomposition (ICEEMDAN)-Long Short-Term Memory (LSTM) and ICEEMDAN-Gated Recurrent Unit (GRU). The experimental results indicate that the proposed model is superior to other baseline models. The VMD decomposition method can effectively reduce the complexity of the original wind speed sequence. For different sub-sequences after decomposition, the optimal method of machine learning model can capture the sequence features and obtain the optimal prediction results.

中图分类号:

图1 FNN模型的系统框图
Fig. 1 System chart of FNN

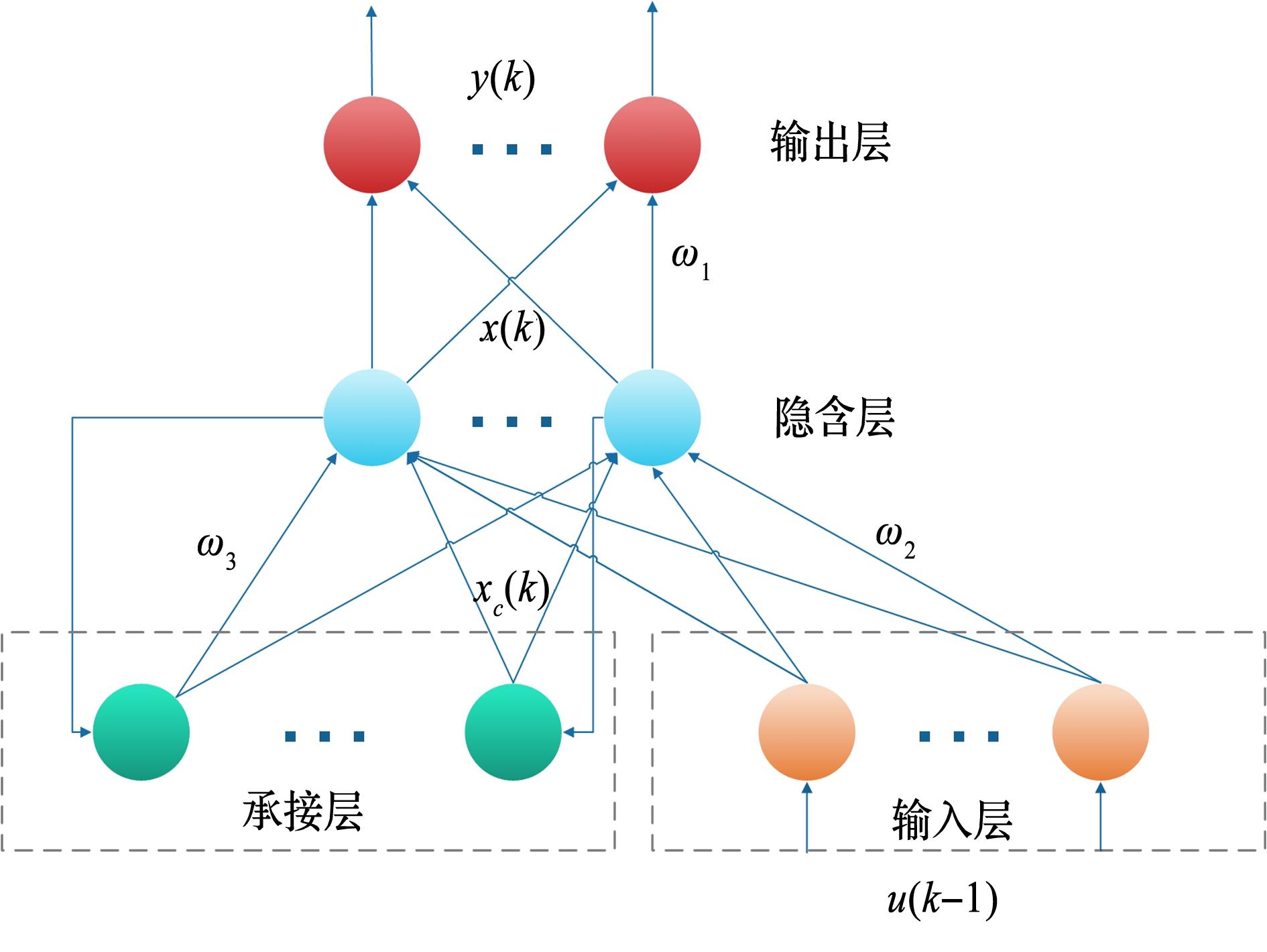

图2 Elman神经网络结构图
Fig. 2 Structure chart of Elman neural network

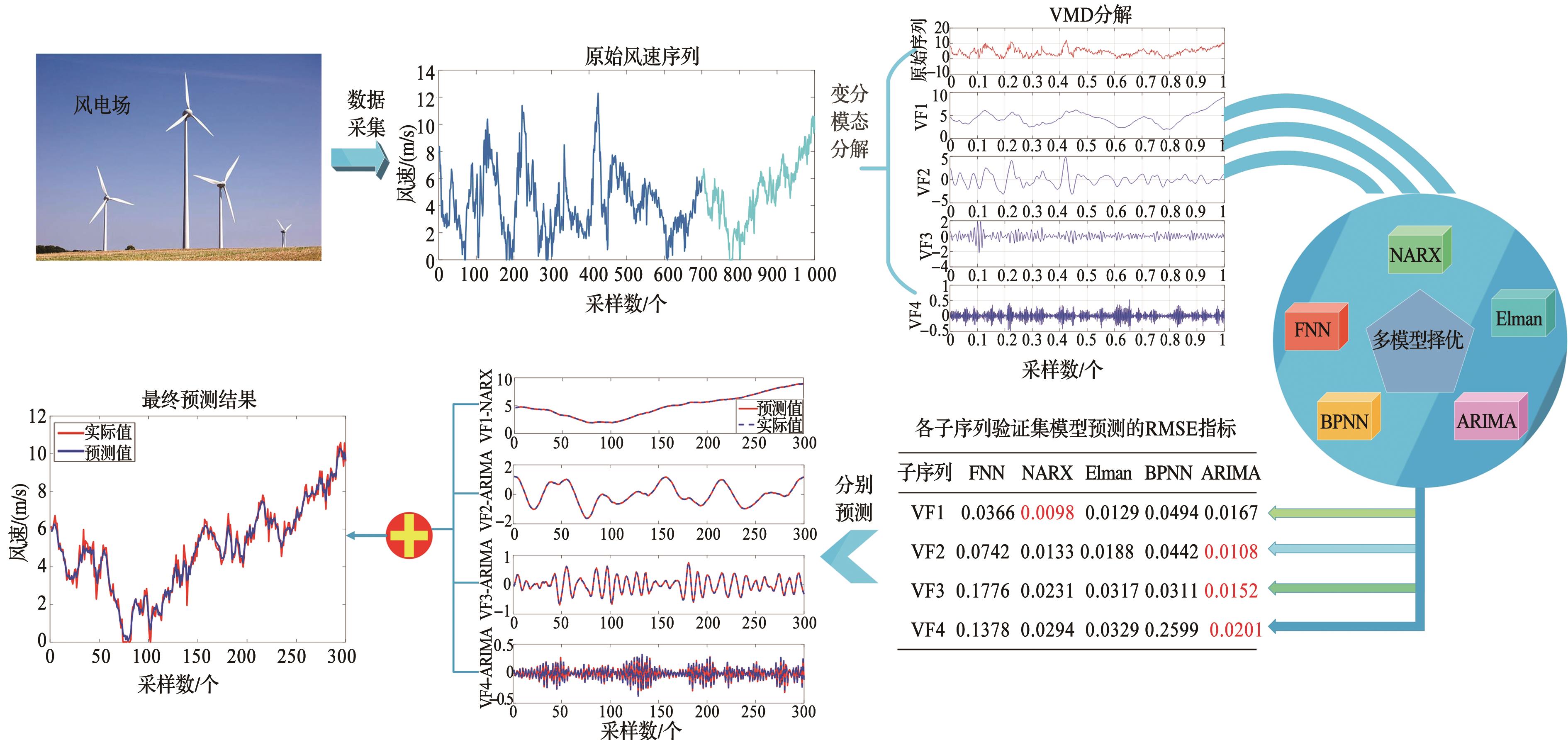

图3 基于VMD择优系统的预测框图
Fig. 3 Flowchart of a prediction system based on VMD and machine learning
图4 数据位置信息图及风速序列曲线
Fig. 4 Data position information graph and wind speed sequence curve
表1 风速数据特征信息
Table 1 Wind speed data characteristic information

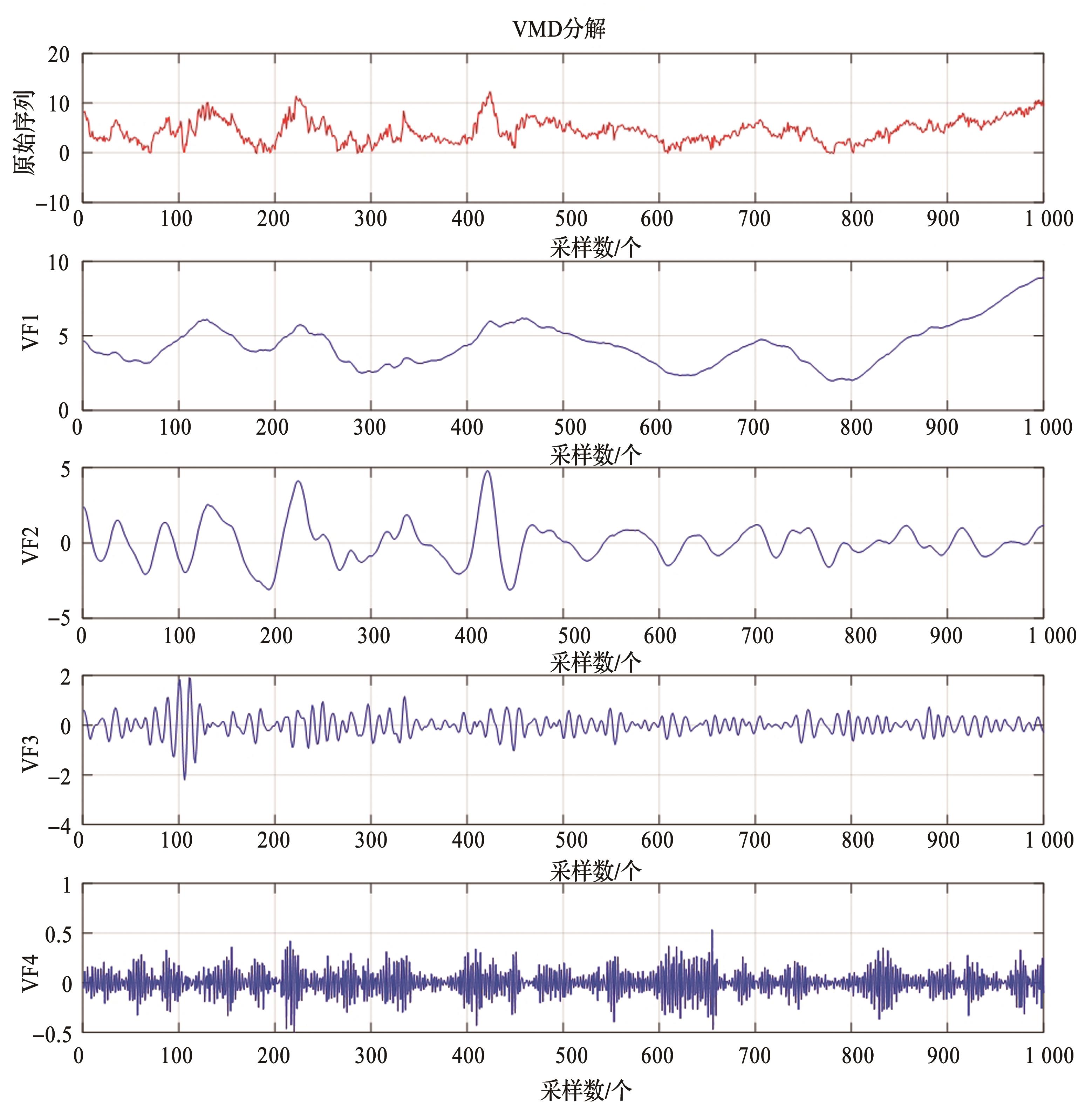

图5 序列1VMD分解得到的子序列
Fig. 5 Sub-sequence 1 obtained by VMD decomposition
表2 序列 1各子序列验证集模型预测的 RMSE指标
Table 2 Each sub-sequence verifies the RMSE index predicted by the model set of sequence 1

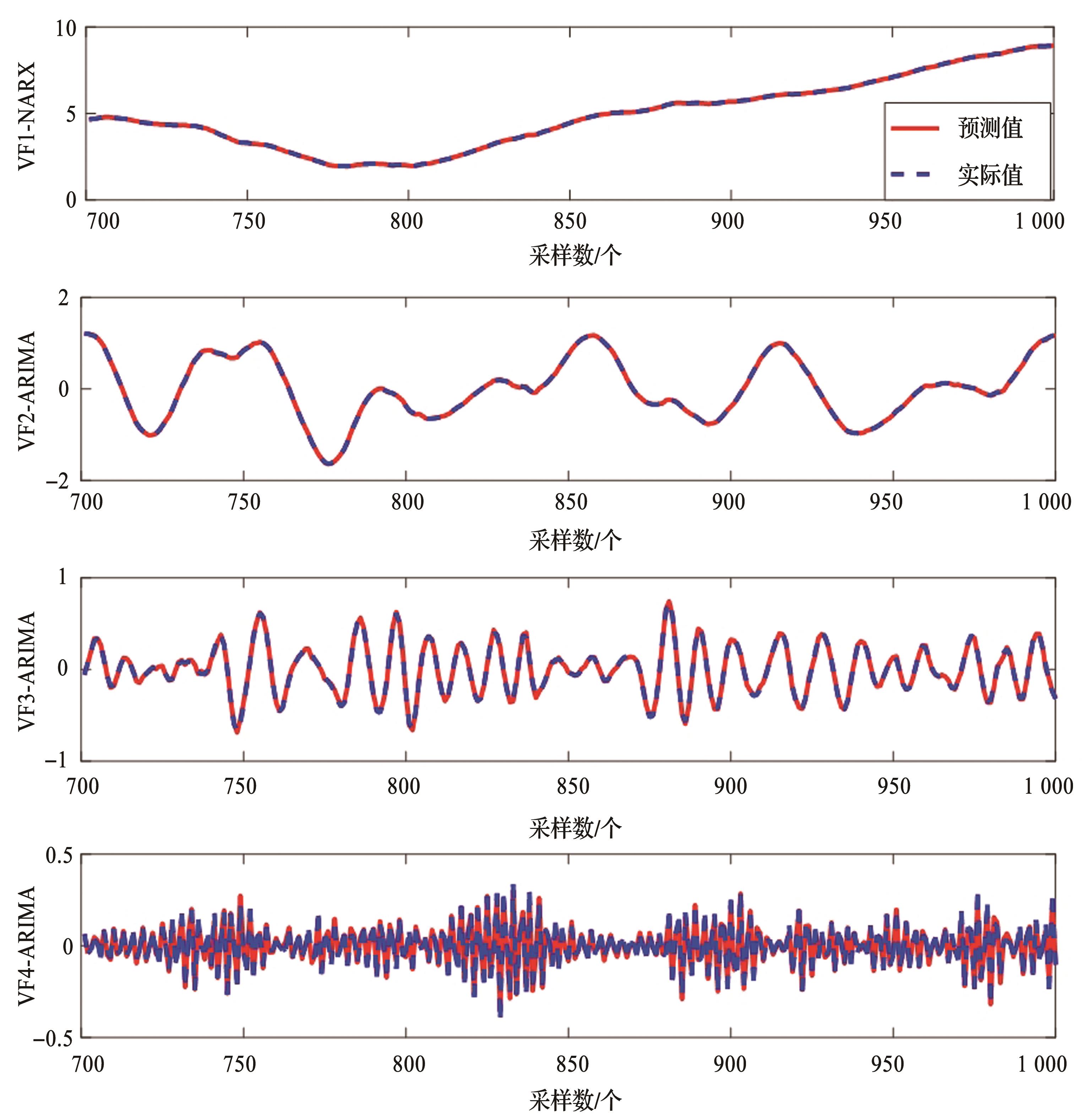

图6 各子序列测试集的预测结果
Fig. 6 The prediction results of each sub-sequence

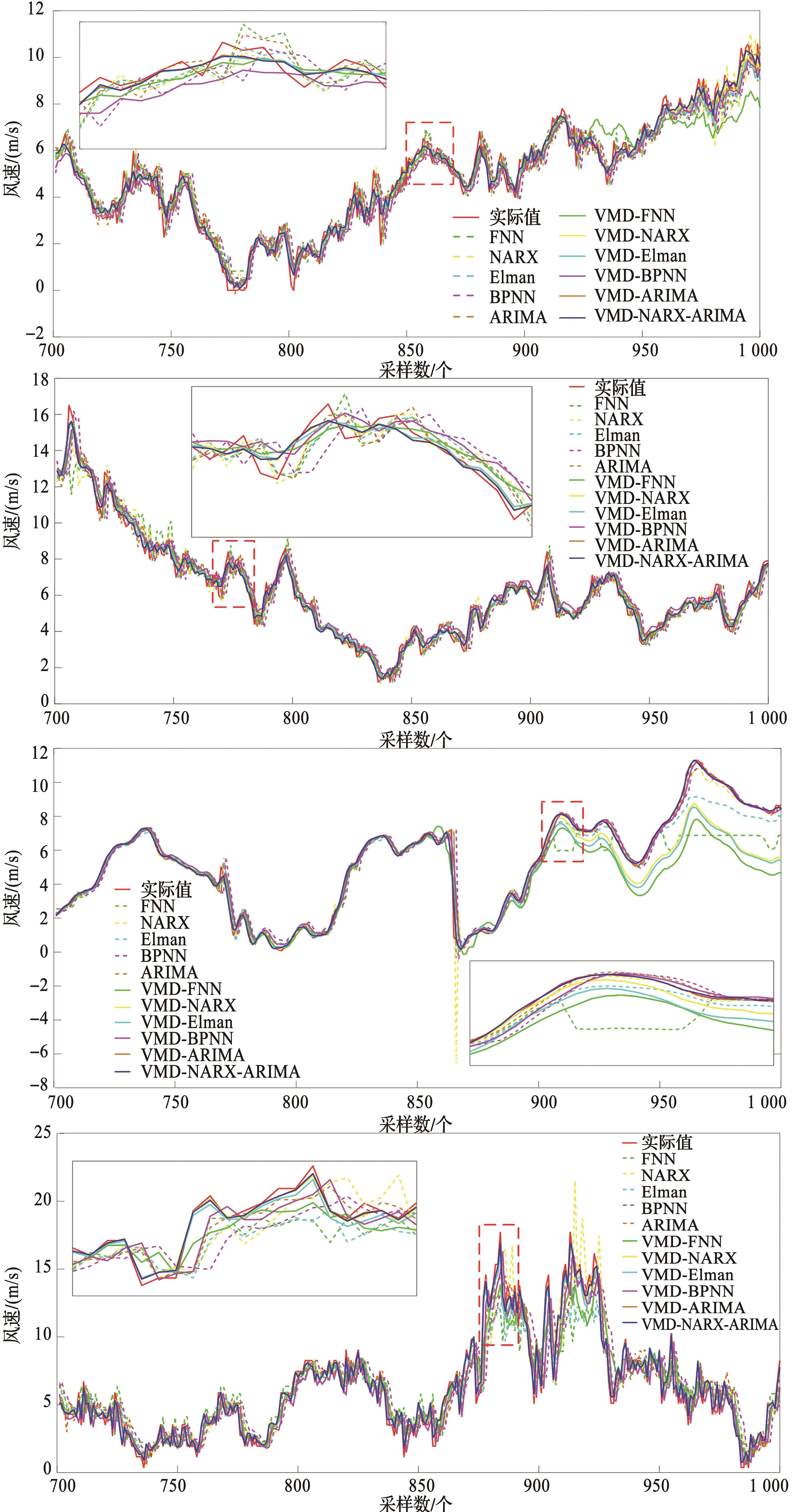

图7 4组风速数据预测对比
Fig. 7 Comparison of four groups of wind speed data forecast

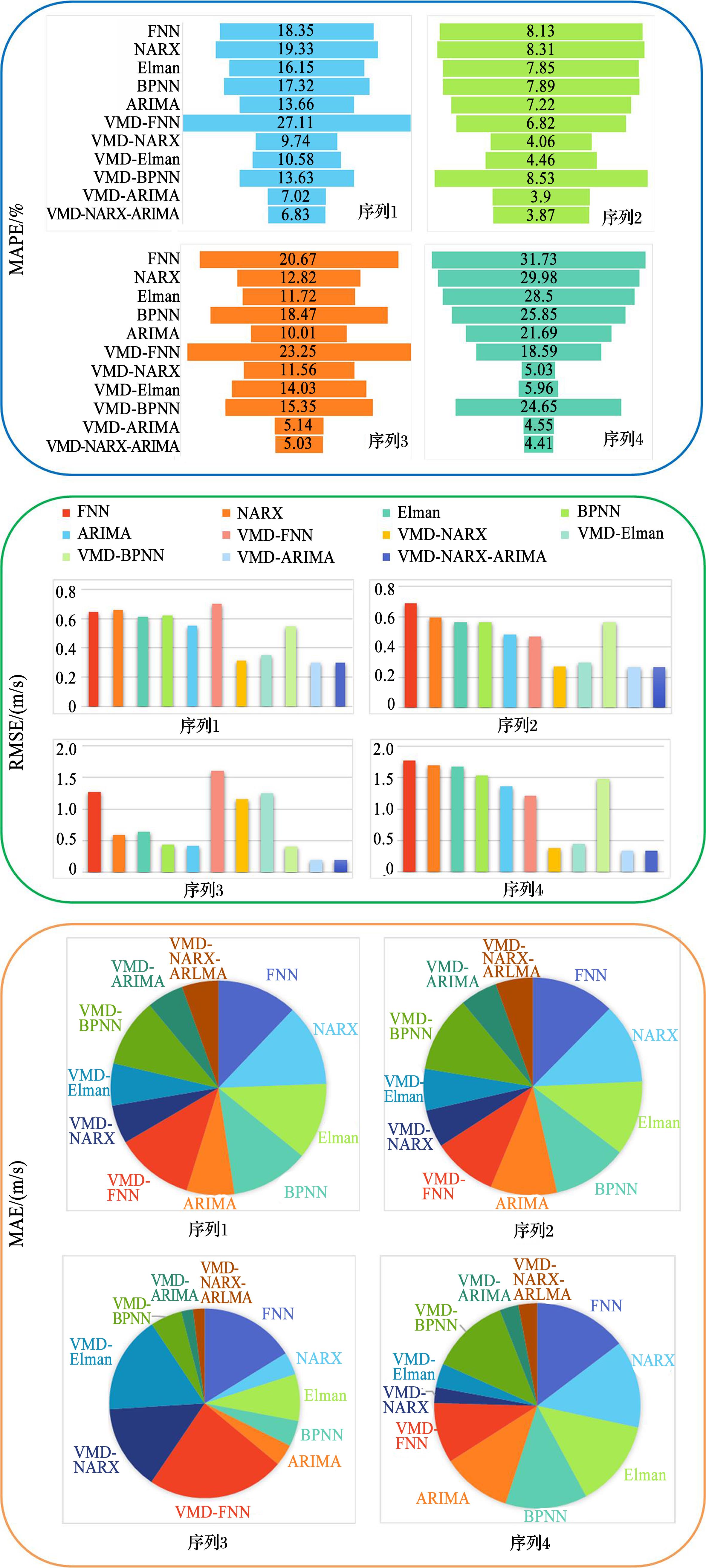

图8 4组序列的误差指标图:MAPERMSEMAE
Fig. 8 The error indicators of four groups of sequences were MAPE RMSE and MAE
表3 各序列相关预测误差指标
Table 3 Correlation prediction error index of each sequence
序列 模型 RMSE/(m/s) MAPE/% MAE/(m/s) 序列 模型 RMSE/(m/s) MAPE/% MAE/(m/s)

1

FNN 0.6463 18.35 0.5094

2

FNN 0.6896 8.13 0.4686
NARX 0.6563 19.33 0.5212 NARX 0.5950 8.31 0.4519
Elman 0.6127 16.15 0.4871 Elman 0.5625 7.85 0.4210
BPNN 0.6213 17.32 0.4947 BPNN 0.5625 7.89 0.4192
ARIMA 0.5491 13.66 0.3019 ARIMA 0.4803 7.22 0.3734
VMD-FNN 0.7016 27.11 0.4971 VMD-FNN 0.4711 6.82 0.3623
VMD-NARX 0.3156 9.74 0.2453 VMD-NARX 0.2737 4.06 0.2127
VMD-Elman 0.3511 10.58 0.2684 VMD-Elman 0.2975 4.46 0.2344
VMD-BPNN 0.5457 13.63 0.4348 VMD-BPNN 0.5633 8.53 0.4301
VMD-ARIMA 0.2996 7.02 0.2337 VMD-ARIMA 0.2688 3.90 0.2099
ICEEMDAN-LSTM [ 36 ] 0.3306 7.85 0.2619 ICEEMDAN-LSTM [ 36 ] 0.3990 5.96 0.3153
ICEEMDAN-GRU[ 36 ] 0.2412 5.58 0.1914 ICEEMDAN-GRU [ 36 ] 0.2246 3.52 0.1727
VMD-NARX-ARIMA 0.2982 6.83 0.2319 VMD-NARX-ARIMA 0.2670 3.87 0.2091

3

FNN 1.2672 20.67 0.6966

4

FNN 1.7746 31.73 1.3013
NARX 0.5936 12.82 0.1666 NARX 1.6968 29.98 1.2249
Elman 0.6365 11.72 0.3436 Elman 1.6806 28.50 1.2248
BPNN 0.4428 18.47 0.1894 BPNN 1.5349 25.85 1.1403
ARIMA 0.4176 10.01 0.1582 ARIMA 1.3684 21.69 0.9719
VMD-FNN 1.6047 23.25 1.0088 VMD-FNN 1.2072 18.59 0.8476
VMD-NARX 1.1591 11.56 0.6276 VMD-NARX 0.3856 5.03 0.2208
VMD-Elman 1.2498 14.03 0.7190 VMD-Elman 0.4460 5.96 0.3355
VMD-BPNN 0.4059 15.35 0.2300 VMD-BPNN 1.4769 24.65 1.1013
VMD-ARIMA 0.1948 5.14 0.0864 VMD-ARIMA 0.3425 4.55 0.2643
ICEEMDAN-LSTM [ 36 ] 0.2952 8.62 0.2131 ICEEMDAN-LSTM [ 36 ] 1.0671 16.24 0.8088
ICEEMDAN-GRU[ 36 ] 0.2223 5.76 0.0758 ICEEMDAN-GRU [ 36 ] 0.7932 11.96 0.6007
VMD-NARX-ARIMA 0.1936 5.03 0.0851 VMD-NARX-ARIMA 0.3374 4.41 0.2627
