二氧化碳地质封存与利用工程废弃井技术的现状与进展

doi:10.11867/j.issn.1001-8166.2016.03.0225.

地球科学进展 ›› 2016, Vol. 31 ›› Issue (3): 225 -235. doi: 10.11867/j.issn.1001-8166.2016.03.0225.

李琦(

), 宋然然, 匡冬琴, 卢绪涛, 李小春

中国科学院武汉岩土力学研究所岩土力学与工程国家重点实验室, 湖北武汉 430071

收稿日期:2016-02-03 修回日期:2016-03-01 出版日期:2016-03-20
基金资助:
国家自然科学基金面上项目“酸气—咸水作用下岩石特异性破坏机理研究”(编号:41274111);环境保护部环境规划院科研计划专题任务“CCUS示范项目封存环境风险评估试点研究”(编号:2015A111)资助

Status and Advances of Abandoned Process of Wells for CO ₂ Geological Storage

Qi Li( ), Ranran Song, Dongqin Kuang, Xutao Lu, Xiaochun Li

State Key Laboratory of Geomechanics and Geotechnical Engineering, Institute of Rock and Soil Mechanics,Chinese Academy of Sciences, Wuhan 430071, China

Received:2016-02-03 Revised:2016-03-01 Online:2016-03-20 Published:2016-03-10
About author:
First author:Li Qi (1972-), male, Qingzhou City, Shandong Province,Professor. Researche areas include carbon dioxide geological utilization and storage (CCUS) and acid gas injection (AGI).E-mail:qli@whrsm.ac.cn
Supported by:
Project supported by the National Natural Science Foundation of China “Failure mechanism of rock under acid gas and saline water interaction” (No.41274111);The Chinese Academy for Environmental Planning, Ministry of Environmental Protection of the People’s Republic of China “Environmental risk assessment of CCUS demonstration project: A pilot study”(No.2015A111)

全文 ( 18 ) 下载PDF ( 1427 )

随着二氧化碳(CO₂)地质封存(CCS)与利用(CCUS)相关工程的快速进展,CO₂封存场地的废弃井能否有效地封堵残余的CO₂成为一项亟待解决的课题。目前,国内外在油气领域的废弃井作业已经有具体成熟的技术和丰富的经验,但是在CCS/CCUS领域,针对CO₂作业井(包括CO₂注入井和CO₂监测井)的废弃作业国际上仅有少量公开实例,国内尚为空白。首先,总结国外发达国家(荷兰、美国和加拿大等)关于CO₂作业井废弃所需的要求、材料以及实例经验中的监测要求;其次,归纳国内油气行业废弃井作业的技术现状;最后,总结CO₂作业井废弃作业与常规废弃井作业的不同之处,并提出未来CO₂作业井废弃作业建议。该研究对即将封井的神华CCS示范项目的废弃作业具有重要意义。

关键词: CO2地质封存与利用, 废弃井, 注入井, 水泥塞, CO2泄漏风险

With the rapid development of CO₂ geological storage and utilization (CCS/CCUS), the abandoned well in the sites of CCS/CCUS projects is becoming an important subject to be solved to check whether it can effectively block the residual CO₂ or not. Up to now, the abandoned process of wells in the field of oil and gas in China and abroad have gained mature operation technology and rich experience. However, in the field of CCS/CCUS, there is only a small number of global public instances about the abandoned process of operational wells of CO₂ including CO₂ injection wells and CO₂ monitoring wells, and the domestic instance is still blank. In this paper, we firstly summarized the required demands, materials, cases of operational experiences, and monitoring requirements of the abandoned process of operational wells of CO₂ in the developed countries, e.g. the Netherlands, the United States and Canada. Then, we figured out the status of the abandoned process of domestic wells in oil and gas industry. Finally, we concluded the differences of the abandoned process between operational wells of CO₂ and traditional wells of oil and gas, and proposed some recommendations for the abandoned process of operational wells of CO₂ in the current and future CCS/CCUS projects in China. This study has important implications for the upcoming abandoned process of all the operational wells at Shenhua CCS demonstration site in 2016.

Key words: CO2 geological storage and utilization, Abandoned well, Injection well, Cement plug, CO2 leakage risk.

中图分类号:

P618.13

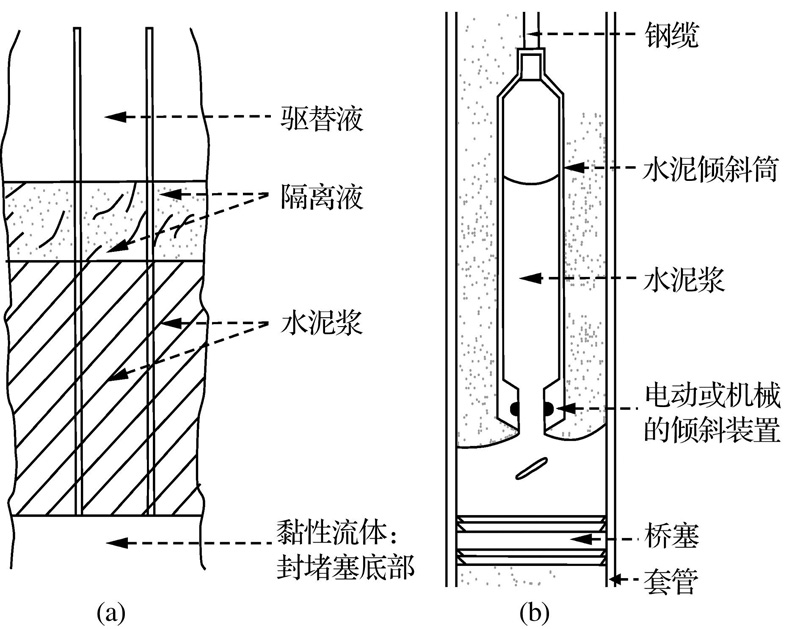

图1 平衡塞法(a)和倾筒法(b) ^{[

4
]}

Fig.1 Balanced plug method (a) and dump bailer method (b) ^{[

4
]}

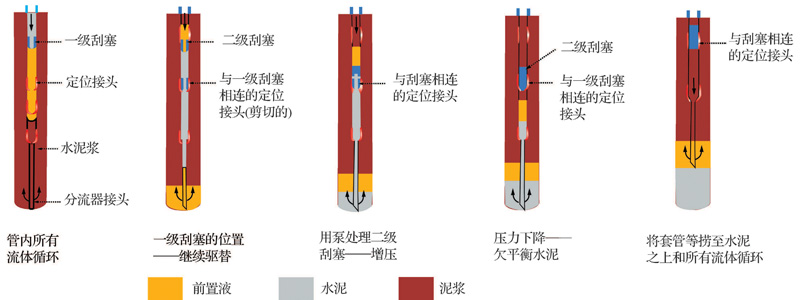

图2 双塞注水泥法 ^{[

4
]}

Fig.2 Two-plug method ^{[

4
]}

表1 研究的6个泄漏案例中的泄漏发生率 ^{[

13
]}

Table 1 Occurrence of well leakage reported in six case studies ^{[

13
]}

案例样品	发生率详情
大样研究	在美国,约7 000口无人照应井中的6.1%泄漏率: 6.1%的井<35 t/a,90%的井<200 t/a
	在墨西哥湾,约30 000口井中的11.6%通过套管柱发生泄漏
	在加拿大阿尔伯塔省实验区,约20 000口井中的9.8%; 6.3%的井泄漏的气体是通过土壤运移的,与套管泄漏的比例差不多是1∶ 1
小样研究	250口井中的15%套管柱失效
	在墨西哥湾,26口井中的85%
	在美国加州Santa Fe Springs油田,50口井中的75%

表1 研究的6个泄漏案例中的泄漏发生率 ^{[

13
]}

Table 1 Occurrence of well leakage reported in six case studies ^{[

13
]}

案例样品	发生率详情
大样研究	在美国,约7 000口无人照应井中的6.1%泄漏率: 6.1%的井<35 t/a,90%的井<200 t/a
	在墨西哥湾,约30 000口井中的11.6%通过套管柱发生泄漏
	在加拿大阿尔伯塔省实验区,约20 000口井中的9.8%; 6.3%的井泄漏的气体是通过土壤运移的,与套管泄漏的比例差不多是1∶ 1
小样研究	250口井中的15%套管柱失效
	在墨西哥湾,26口井中的85%
	在美国加州Santa Fe Springs油田,50口井中的75%

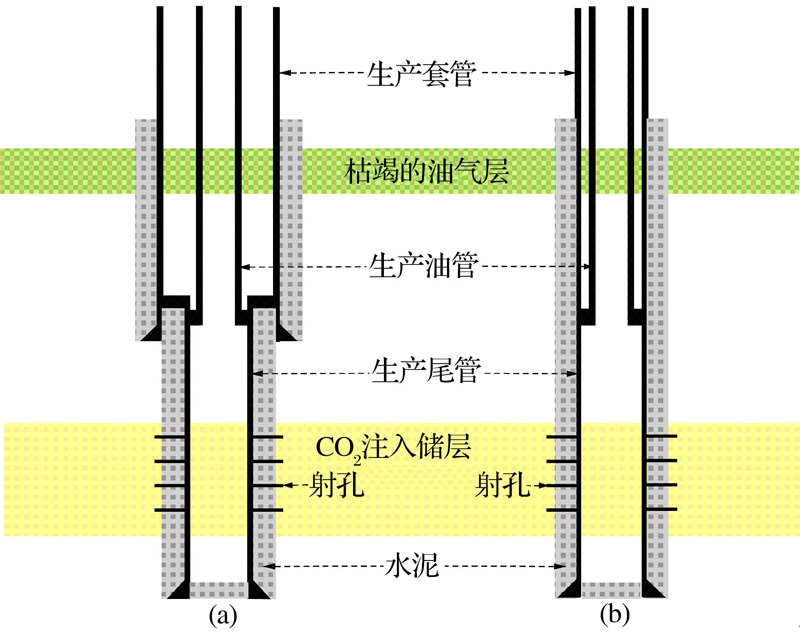

图3 CO ₂注入井的设计
(a)2个套管柱;(b)单一套管柱

Fig.3 Design of CO ₂ injection well
(a) Two casing string option; (b) One casing string option

表2 API推荐的CO ₂注入井设计和施工所需的材料 ^{[

15
]}

Table 2 Materials recommended by API for design and construction of CO ₂ injection well ^{[

15
]}

组件	材料
采油树(下井仪月检)	316SS,无电镀镍,蒙乃尔合金
阀门充填物和封隔器	聚四氟乙烯塑料,尼龙
井头(下井仪月检)	316SS,无电镀镍,蒙乃尔合金
油管	玻璃制加强环氧基树脂—有衬板的黑金钢石钢,内部有塑料涂层的黑金刚石钢,抗腐蚀性合金
油管接缝密封	密封环,有涂层的丝扣和垫圈
开/关工具,侧面短节	镀镍的水下的零件,316SS
封隔器	内部有淬硬的橡胶等。镀镍的水下的零件;在老井,为了改进密封已磨损的套管,部分采用抗腐蚀合金
水泥和水泥添加物	API水泥和/或抗酸性水泥

表2 API推荐的CO ₂注入井设计和施工所需的材料 ^{[

15
]}

Table 2 Materials recommended by API for design and construction of CO ₂ injection well ^{[

15
]}

组件	材料
采油树(下井仪月检)	316SS,无电镀镍,蒙乃尔合金
阀门充填物和封隔器	聚四氟乙烯塑料,尼龙
井头(下井仪月检)	316SS,无电镀镍,蒙乃尔合金
油管	玻璃制加强环氧基树脂—有衬板的黑金钢石钢,内部有塑料涂层的黑金刚石钢,抗腐蚀性合金
油管接缝密封	密封环,有涂层的丝扣和垫圈
开/关工具,侧面短节	镀镍的水下的零件,316SS
封隔器	内部有淬硬的橡胶等。镀镍的水下的零件;在老井,为了改进密封已磨损的套管,部分采用抗腐蚀合金
水泥和水泥添加物	API水泥和/或抗酸性水泥

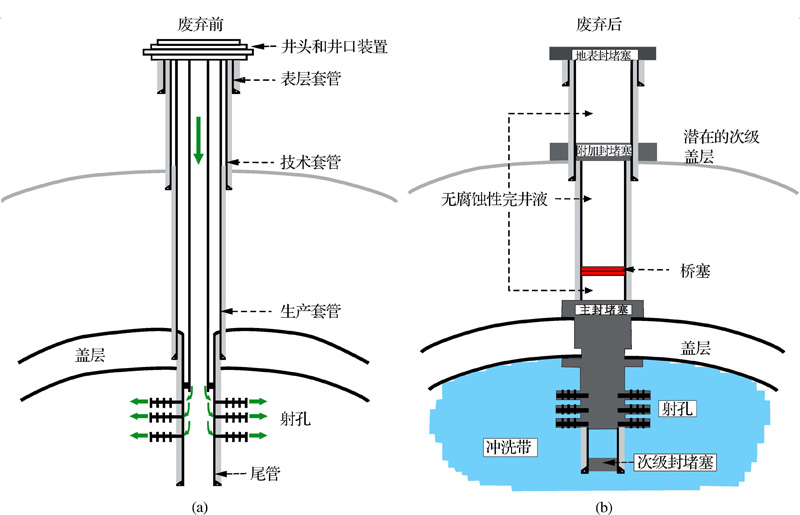

图4 在用饼状封堵塞之前(a)和之后(b)的CO ₂地质封存的注入井 ^{[

13
,

17
]}

Fig.4 CO ₂ injection well before (a)and after abandonment (b)using a pancake-type plug ^{[

13
,

17
]}

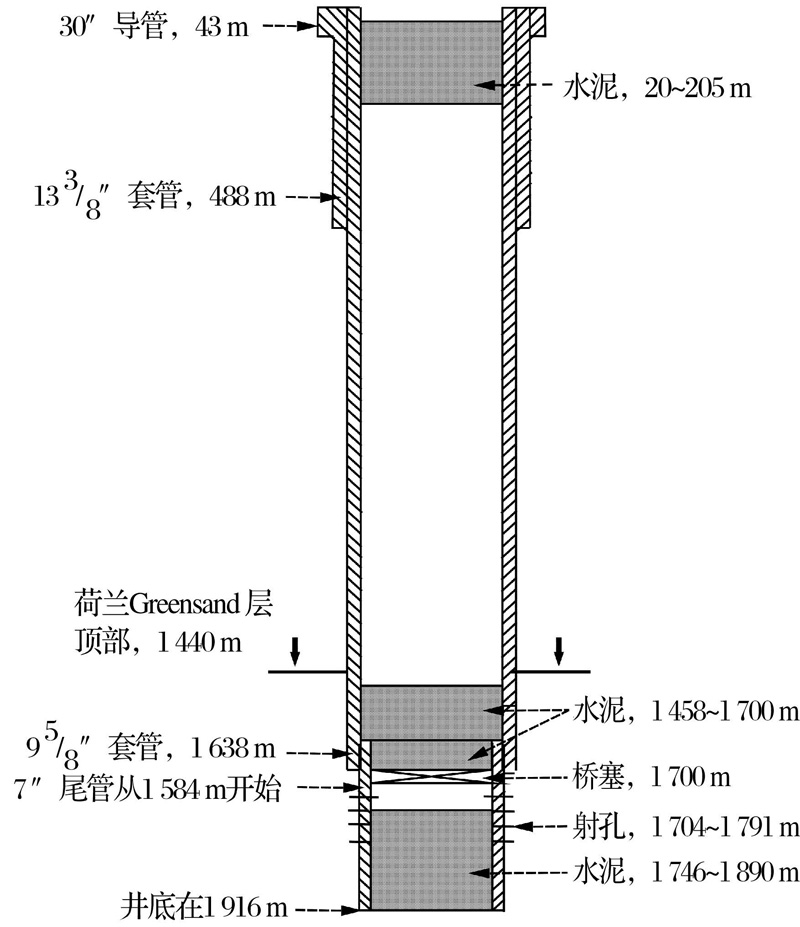

图5 LIR-47井废弃后的示意图
显示在CO ₂封存目标储层的盖层深度处缺乏一个废弃塞

Fig.5 Schematic diagram of well LIR-47 after abandonment
Showing the absence of an abandonment plug at the depth of the caprock (Holland Greensand)

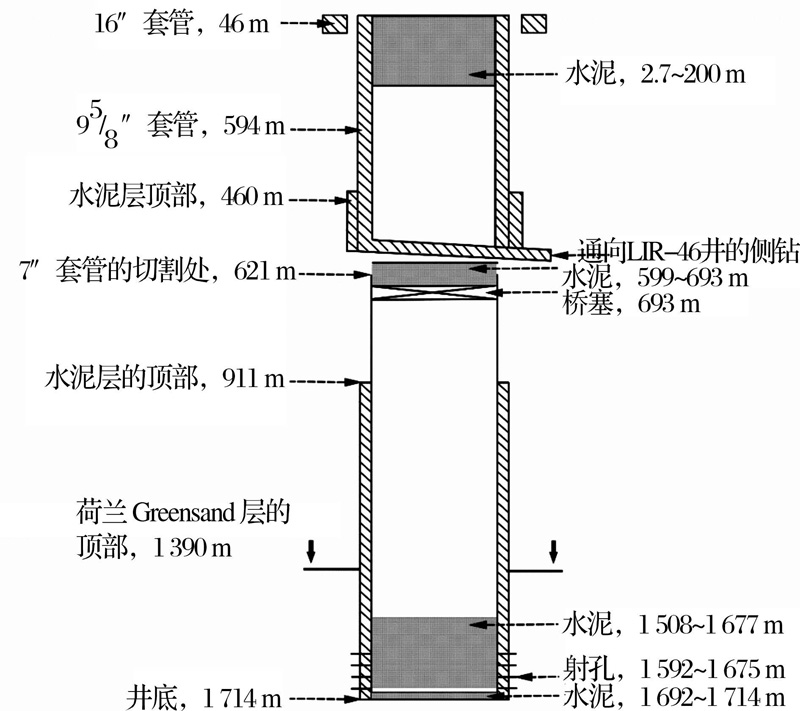

图6 LIR-7井废弃后的示意图

Fig.6 Schematic diagram of well LIR-7 after abandonment

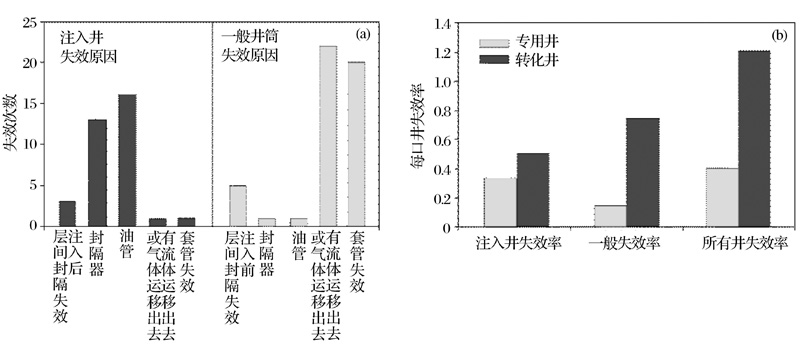

图7 酸气回注井和CO ₂注入井的失效对比
(a)失效模式统计;(b)根据注入井类型统计的失效率

Fig.7 Comparison of failure in acid gas injection wells and CO ₂ injection wells
(a)Number of failure according to different types of failure; (b)Failure per well according to different types of injection wells, i.e. the well from built on purpose or converted

表3 淡水层监控建议方案一览表

Table 3 Recommended monitoring scheme for freshwater formations

流体运移能力	监控参数	监控要求
流体运移能力	监控参数	初始时期	监控时期
最小	液面或压力变化	3个月	5年
最小	监控开采方式的改变	需要时
小	压力变化	3个月	1年
小	套管试压	3个月	5年
中等	压力变化	3个月	1月
中等	套管试压	3个月	1年
强		实时监控,立即评估处理

表3 淡水层监控建议方案一览表

Table 3 Recommended monitoring scheme for freshwater formations

流体运移能力	监控参数	监控要求
流体运移能力	监控参数	初始时期	监控时期
最小	液面或压力变化	3个月	5年
最小	监控开采方式的改变	需要时
小	压力变化	3个月	1年
小	套管试压	3个月	5年
中等	压力变化	3个月	1月
中等	套管试压	3个月	1年
强		实时监控,立即评估处理

[1]	Li Qi, Liu Guizhen, Zhang Jian, et al.Status and suggestion of environmental monitoring for CO2 geological storage[J].Advances in Earth Science,2013, 28(6): 718-727.
	[李琦, 刘桂臻, 张建, 等. 二氧化碳地质封存环境监测现状及建议[J]. 地球科学进展, 2013, 28(6): 718-727.]
[2]	Yang Yang, Ma Jinfeng, Li Lin.Research progress of 4D multicomponent seismic monitoring technique in carbon capture and storage[J].Advances in Earth Science,2015,30(10):1 119-1 126.
	[杨扬, 马劲风, 李琳.CO2地质封存四维多分量地震监测技术进展[J]. 地球科学进展,2015, 30(10):1 119-1 126.]
[3]	Wei Xiaochen, Li Qi, Xing Huilin, et al.Mechanism of underground fluid injection induced seismicity and its implications for CCS projects[J].Advances in Earth Science,2014, 29(11): 1 226-1 241.
	[魏晓琛, 李琦, 邢会林, 等. 地下流体注入诱发地震机理及其对CO2地质封存工程的启示[J]. 地球科学进展, 2014, 29(11): 1 226-1 241.]
[4]	Nelson E B, Guillot D. WellCementing, Second Edition[M]. Texas: Schlumberger, 2006.
[5]	Liu Lancui, Li Qi.USA regulation on injection well of CO2 geological sequestration[J].Low Carbon World,2013,(1):42-52.
	[刘兰翠,李琦. 美国关于二氧化碳地质封存井的要求[J]. 低碳世界, 2013,(1): 42-52.]
[6]	CO2CARE Consortium. CO2 Site Closure Assessment Research (CO2CARE): Deliverable D5.4 Best Practice Guidelines[R]. CO2CARE Report. Edinburg, UK: British Geological Survey. 2013.
[7]	National Energy Technology Laboratory (NETL). Carbon Dioxide Enhanced Oil Recovery: Untapped Domestic Energy Supply and Long Term Carbon Storage Solution[R]. Pittsburgh, PA:NETL. 2010.
[8]	Hovorka S D, Tinker S W.EOR as sequestration: Geoscience perspective[C]∥The Symposium on the Role of Enhanced Oil Recovery in Accelerating the Deployment of Carbon Capture and Storage. GCCC Digital Publication Series,2010, 23: 10-12.
[9]	Syed T, Cutler T.Well integrity technical and regulatory considerations for CO2 injection wells[C]∥SPE International Conference on Health, Safety and Environment in Oil and Gas Exploration and Production. Rio de Janeiro, Brazil,2010,doi: 10.2118/125839-MS.
[10]	Guen Y L, Poupard O, Loizzo M.Optimization of plugging design for well abandonment—Risk management of long-term well integrity[J].Energy Procedia,2009, 1: 3 587-3 594.
[11]	Parker M E, Meyer J P, Meadows S P.Carbon dioxide enhanced oil recovery injection operations technologies[J]. Energy Procedia,2009, 1: 3 141-3 148,doi:10.1016/j.egypro.2009.02.096.
[12]	IEA Greenhouse Gas R&D Programme (IEAGHG). Corrosion and Materials Selection in CCS Systems[R]. IEAGHG Report 2010/03. Cheltenham, UK: IEAGHG,2010.
[13]	Loizzo M, Akemu O A P, Jammes L, et al. Quantifying the risk of CO2 leakage through wellbores[J].SPE Drilling & Completion,2011, 26(3): 324-331.
[14]	Shang Wanning, Qiao Yulong, Yan Zhao, et al.Corrosion law of oil tubings and prevention countermeasures in gas wells of the Jingbian gas field, Ordos Basin[J]. Natural Gas Industry,2013, 33(2):115-120.
	[尚万宁, 乔玉龙, 闫昭, 等.鄂尔多斯盆地靖边气田气井油管腐蚀规律与防腐对策[J]. 天然气工业,2013, 33(2):115-120.]
[15]	Meyer J P.Summary of Carbon Dioxide Enhanced Oil Recovery (CO2EOR) injection well technology[R]∥Contek Solutions Prepared Background Report for the American Petroleum Institute (API). Plano, Texas:Contek Solutions,2007.
[16]	Carlsen I M, Abdollahi J.Permanent Abandonment of CO2 Storage Wells[R].Oslo:SINTEF Report 54523300,2007.
[17]	Randhol P, Valencia A K, Taghipour A, et al. Ensuring Well Integrity in Connection with CO2 Injection[R].Oslo:SINTEF Report 31.6920.00/02/07,2007.
[18]	Den Dulk J L. Mining Regulation of the Netherlands 2003[S]. 2011.
[19]	IEA Greenhouse Gas R&D Programme (IEAGHG). Long Term Integrity of CO2 Storage-well Abandonment[R].Cheltenham, UK: IEAGHG,2009.
[20]	Hovorka S D, Dovorka C, Knox P R, et al.Capacity assessment of the Frio formation, Texas[R]∥The GEO-SEQ Project Results,2004:66-77.
[21]	Hovorka S D, Dovorka C, Holtz M H.Testing Efficiency of Storage in the Subsurface: Frio Brine Pilot Experiment, 2004[C]∥Greenhouse Gas Control Technologies 7. Vancouver, Canada: IEAGHG,2004.
[22]	Texas Secretary of State. Texas Administrative Code, Title 16: Economic Regulation, Part 1: Railroad Commission of Texas, Chapter 3: Oil and Gas, Rule 3.14 Plugging[S].2007.
[23]	Carey J W, Wigand M, Chipera S J, et al.Analysis and performance of oil well cement with 30 years of CO2 exposure from the SACROC unit, West Texas, USA[J].International Journal of Greenhouse Gas Control,2007,1(1):75-85.
[24]	Bachu S, Watson T L.Possible indicators for CO2 leakage along wells[C]∥Greenhouse Gas Control Technologies 8. Trondheim, Norway,2006.
[25]	Bachu S, Watson T L.Review of failures for wells used for CO2 and acid gas injection in Alberta, Canada[J]. Energy Procedia,2009, 1(1): 3 531-3 537.
[26]	Energy Resources Conservation Board. Directive 020: Well abandonment guide[S]. Calgary, Alberta, Canada. 2010.
[27]	National Development and Reform Commission. Well Abandonment and Inactive Well Practices SY/T-6646-2006[S]. 2006.
	[国家发展和改革委员会. 废弃井及长停井处置指南SY/T-6646-2006[S].2006.]
[28]	Kuang Dongqin, Li Qi, Chen Zheng’ao, et al.Global status of well abandonment regulations related to CCUS projects and its implications to China[J].Natural Gas and Oil,2015, 33(4):37-42.
	[匡冬琴, 李琦, 陈征澳, 等. 全球CCUS废弃井法规现状及其对中国的启示[J].天然气与石油,2015,33(4): 37-42.]
[29]	Feng Yuewei.Strategic thinking about abandoned wells[J].China Petrochem,2011,(16):28-29.
	[冯跃威. 战略思考废弃井[J]. 中国石油石化,2011,(16):28-29.]
[30]	Zhang Qihua.Why is wells abandoned[J].China Petrochem,2011,(16):20-22.
	[张起花. 废弃井因何而废[J].中国石油石化, 2011,(16): 20-22.]
[31]	Zhang Qihua.Abandonment wells have samsara[J].China Petrochem,2011, 16: 26-27.
	[张起花. 废弃井也有轮回[J]. 中国石油石化,2011, 16: 26-27.]
[32]	Xu Jincheng, Liu Xingwan, Chen Mingsheng, et al.Study and application for evaluating technology of old well reexamination in Zhaoao oilfield[J].Mud Logging Engineering,2004,15(4): 34-39.
	[徐进成, 刘行万, 陈明胜, 等. 老井复查评价技术在赵凹油田的研究与应用[J]. 录井工程, 2004, 15(4): 34-39.]
[33]	Zhang Mingjun, Liu Xingwan, Chen Mingsheng.The method and applied result of the old well reexamination in He’nan oilfield[J]. Mud Logging Engineering,2011, 22(1): 38-41.
	[张明俊, 刘行万, 陈明胜. 河南油田老井复查评价方法及应用效果[J]. 录井工程, 2011, 22(1): 38-41.]
[34]	Duan Zhonghui.Technical approach of using the abandoned oil well for exploitation of groundwater in Shanbei oilfield[J].Coal Geology of China,2000, 12(1): 42-43.
	[段中会. 陕北油田利用废弃油井开采地下水的技术思路[J]. 中国煤田地质, 2000, 12(1): 42-43.]
[35]	Bai Baoguo.Technical measures of exploitation of groundwater by abandoned oil well in the northern Shaanxi[J]. Shaanxi Coal,2008,(4):46-47.
	[白保国. 利用废弃油井开采陕北地下水的技术措施[J].陕西煤炭, 2008,(4):46-47.]
[36]	Wang Zhaobin.Controversy on abandoned wells to produce electricity[J].Energy,2013,(12):68-69.
	[王赵宾. 争议废弃井发电[J].能源, 2013,(12):68-69.]
[37]	Kan Changbin, Qi Faqing, Yu Xiaocong, et al.Exploting geothermal energy from the abandoned well[J].Renewable Energy Resources,2008, 26(1): 90-92.
	[阚长宾, 亓发庆, 于晓聪, 等. 利用废弃油井开发地热能[J].可再生能源, 2008,26(1): 90-92.]
[38]	Wang Zhiqiang.The battle of “abandoned wells” in Xinjiang[J].China Entrepreneur,2005,15:33-35.
	[王志强. 新疆“废弃井”争夺战[J].中国企业家, 2005, 15: 33-35.]
