地球科学进展

地球科学进展 ›› 2015, Vol. 30 ›› Issue (7): 834 -845. doi: 10.11867/j.issn.1001-8166.2015.07.0834

上一篇

1982—2006年祁连山植被覆盖的时空变化特征研究
陈京华, 贾文雄*( ), 赵珍, 张禹舜, 刘亚荣
  1. 西北师范大学地理与环境科学学院,甘肃 兰州 730070
  • 出版日期:2015-07-20
  • 基金资助:
    国家自然科学基金项目“祁连山植被变化及其对气候响应的敏感性研究”(编号： 41161017);甘肃省自然科学基金计划项目“祁连山地区极端气候变化与气象灾害预警研究”(编号：1107RJZA248)资助

Research on Temporal and Spatial Variation Characteristics of Vegetation Cover in Qilian Mountains from 1982 to 2006

Jinghua Chen, Wenxiong Jia( ), Zhen Zhao, Yushun Zhang, Yarong Liu

  1. College of Geography and Environment Science, Northwest Normal University, Lanzhou 730070, China
  • Online:2015-07-20 Published:2015-07-20
全文 ( 8 ) 下载PDF ( 1503 )

基于祁连山地区1982—2006年的GIMMS NDVI数据,采用最大值合成法、均值法、斜率分析法、相关分析法,研究了祁连山植被覆盖的时空变化及其与气候因子的相关性。结果表明:①祁连山植被NDVI总体上自西向东递增,呈现东多西少的分布格局;②25a间植被NDVI变化存在明显的空间差异,表现为中西部地区植被NDVI增加,植被覆盖整体上呈增加趋势;③25a间祁连山不同季节植被NDVI变化存在明显的空间差异,夏季植被NDVI增加面积最大,其次为秋季、春季,植被NDVI减少面积最多的为冬季,而各季节植被NDVI增加区集中分布在青海南山、布哈河流域等地,植被NDVI减少区集中分布在乌鞘岭、冷龙岭及达坂山等地;④祁连山月平均NDVI与气温和降水的相关性极显著,可见气温和降水是影响祁连山植被NDVI变化的主要因子,局部地区密集的人类活动也是影响植被NDVI变化的重要因素。

关键词: GIMMS NDVI, 植被覆盖, 时空变化, 祁连山

Based on GIMMS NDVI data of Qilian Mountains region during 1982-2006, using the maximum synthesis, mean method, slope analysis and correlation analysis, the spatial and temporal changes of vegetation cover and its correlations with climatic factors were studied in Qilian Mountains. The results showed that: ①Vegetation NDVI of Qilian Mountains increases from west to east in general, showing the distribution pattern of much more vegetation in east regions than in west regions; ②Vegetation NDVI of Qilian Mountains has generally increased in the past twenty five years, but there are obvious spatial differences, especially vegetation NDVI of middle and east regions increase obviously; ③There have been obvious differences on spatial variation of seasonal NDVI in the past twenty five years in Qilian Mountains, and the increased area of vegetation NDVI is the largest in summer, followed by autumn, spring, but the most reduced area of vegetation NDVI is in winter. The regions of increased vegetation NDVI concentrate on southern mountain of Qinghai Province and in Buha River Basin, while the regions of reduced vegetation NDVI concentrate on Wushaoling, Lenglongling and Daban mountain in each season; ④The correlations between monthly average vegetation NDVI and temperature and precipitation are very significant, which indicates that temperature and precipitation are the main factors affecting the change of vegetation NDVI in Qilian Mountains, but intensive human activities are also important factors affecting the change of vegetation NDVI in some areas.

Key words: GIMMS NDVI, Vegetation cover, Temporal and spatial changes, Qilian Mountains.

中图分类号:

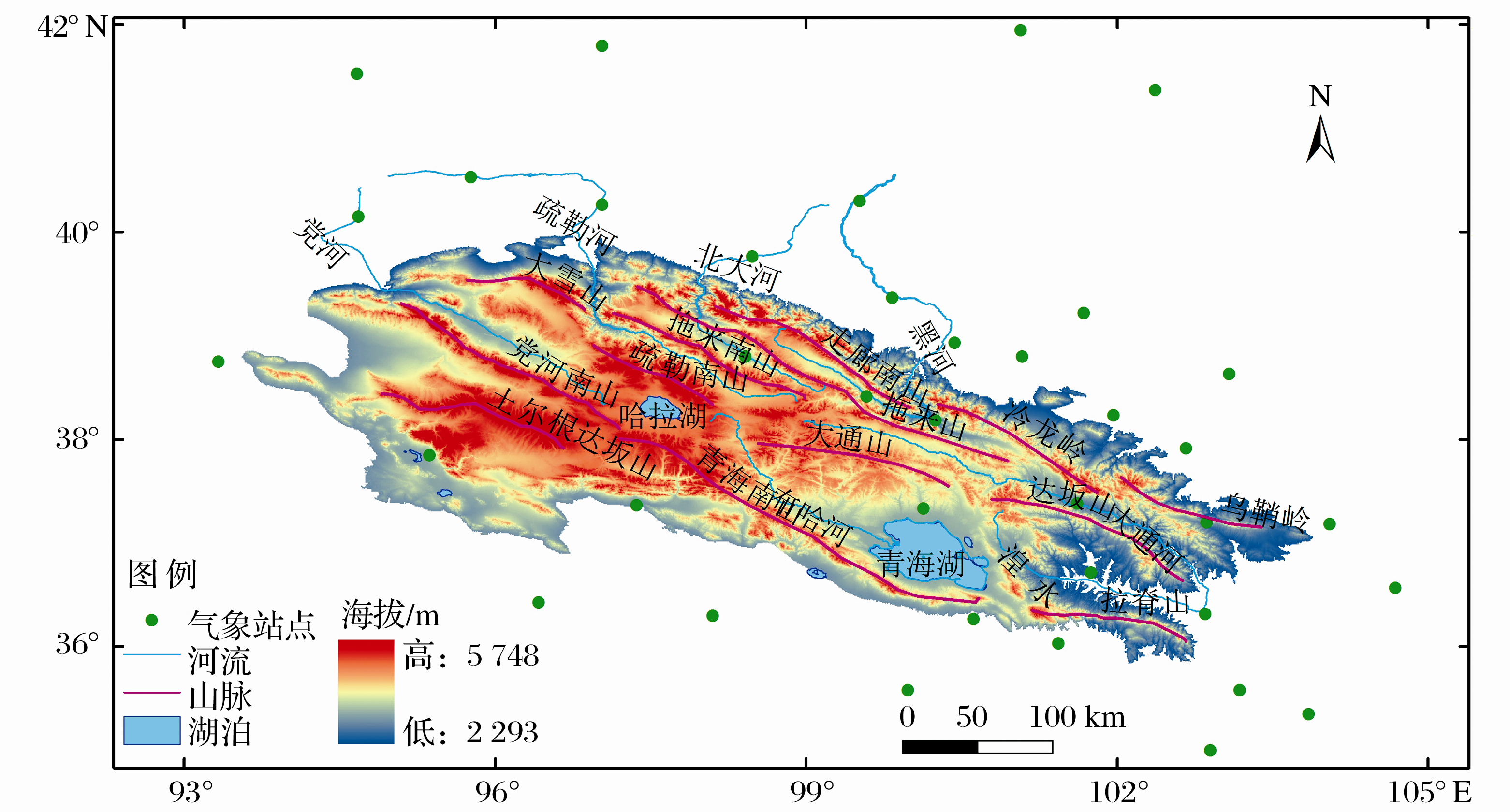

图1 祁连山的区位及气象站的分布图
Fig.1 Location and distribution of meteorological stations of Qilian Mountains
表1 祁连山2000—2006年GIMMS NDVI和MODIS NDVI的相关性
Table1 Correlation between NDVI MODIS and NDVI GIMMS in Qilian Mountains from 2000 to 2006
年份 2000年 2001年 2002年 2003年 2004年 2005年 2006年
相关系数 0.979** 0.965** 0.980** 0.981** 0.947** 0.971** 0.970**

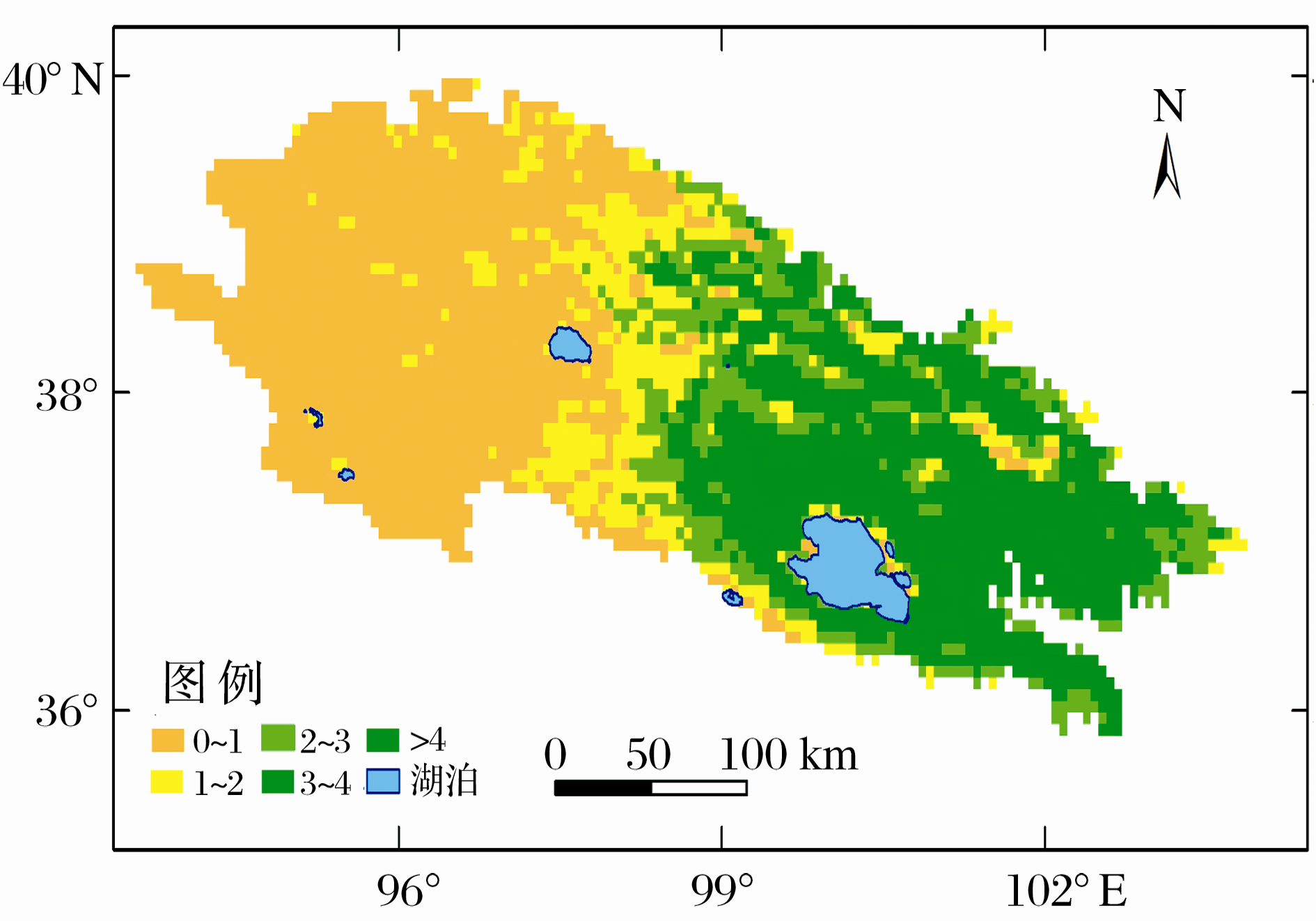

图2 祁连山年累计平均NDVI的空间分布图
Fig.2 Distribution of annual cumulative average NDVI in Qilian Mountains

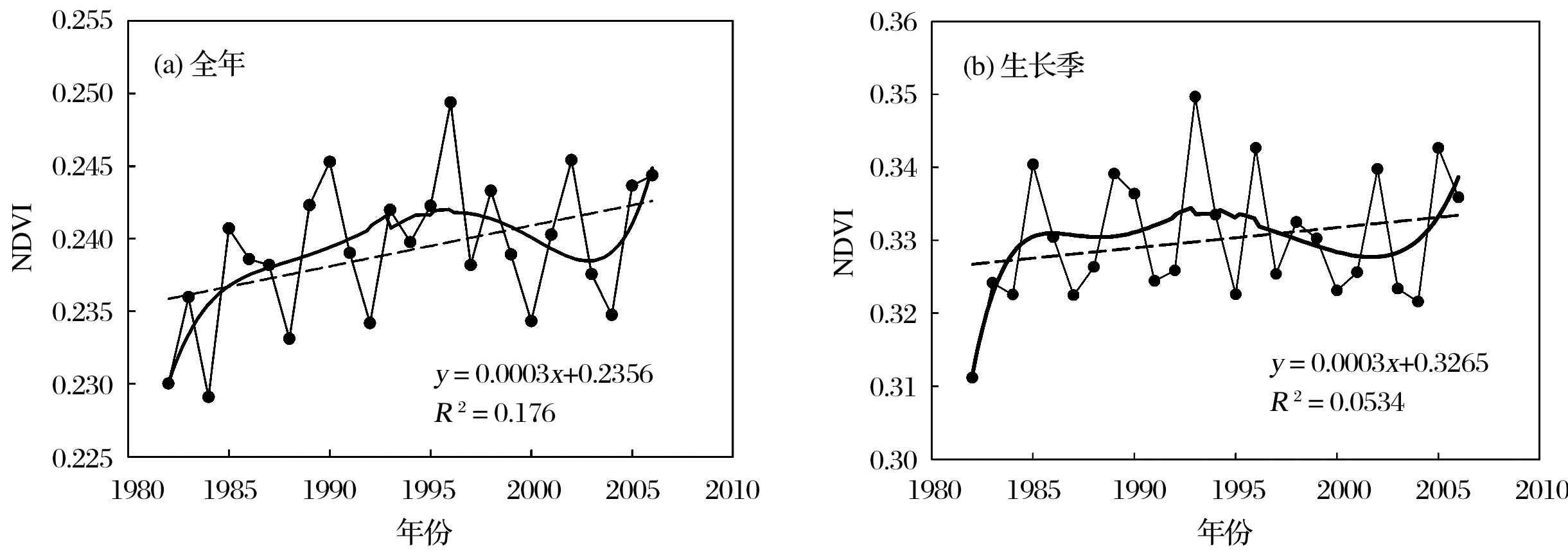

图3 祁连山年 NDVI和生长季NDVI年际变化趋势
Fig.3 Change trends of annual and growing season NDVI in Qilian Mountains
图4 祁连山各季节NDVI的年际变化趋势
Fig.4 Change trends of seasonal NDVI in Qilian Mountains

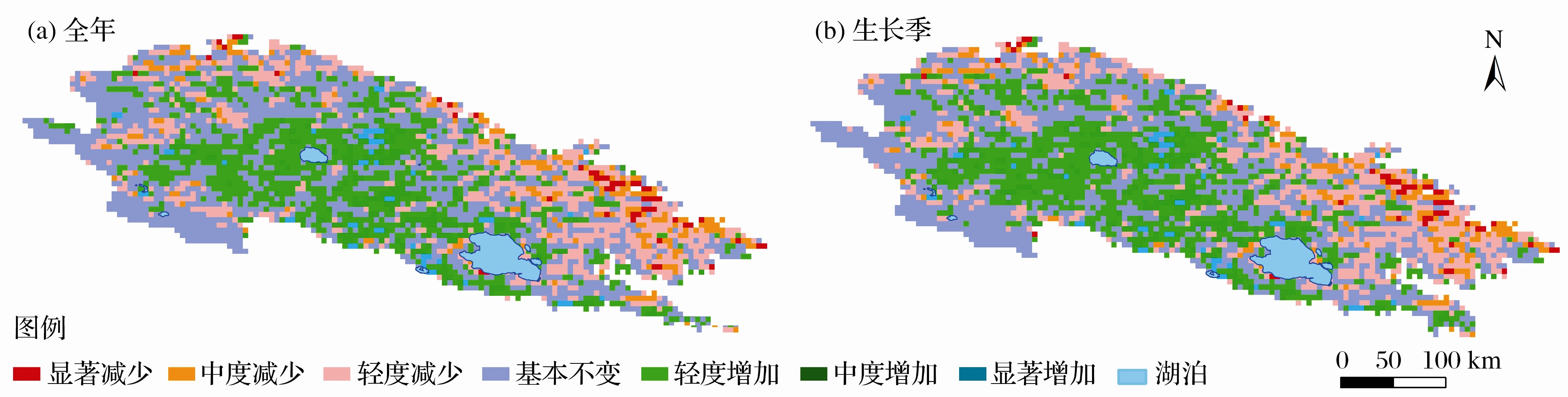

图5 1982—2006年祁连山年NDVI和生长季NDVI的空间变化
Fig.5 Spatial variations of annual and growing season NDVI in Qilian Mountains from 1982 to 2006
表2 1982—2006年祁连山年和生长季NDVI年际变化趋势统计
Table 2 Statistics on variation trends of annual and growing season NDVI in Qilian Mountains from 1982 to 2006
斜率范围 等级变化 年植被 生长季植被
面积/km2 比例/％ 面积/km2 比例/％
<-0.005 显著减少 2558 1.36 2652 1.41
-0.005~-0.003 中度减少 10476 5.57 10326 5.49
-0.003~-0.001 轻度减少 37409 19.89 35604 18.93
-0.001~0.001 基本不变 79445 42.24 77640 41.28
0.001~0.003 轻度增加 45045 23.95 46700 24.83
0.003~0.005 中度增加 10438 5.55 12394 6.59
>0.005 显著增加 2708 1.44 2765 1.47

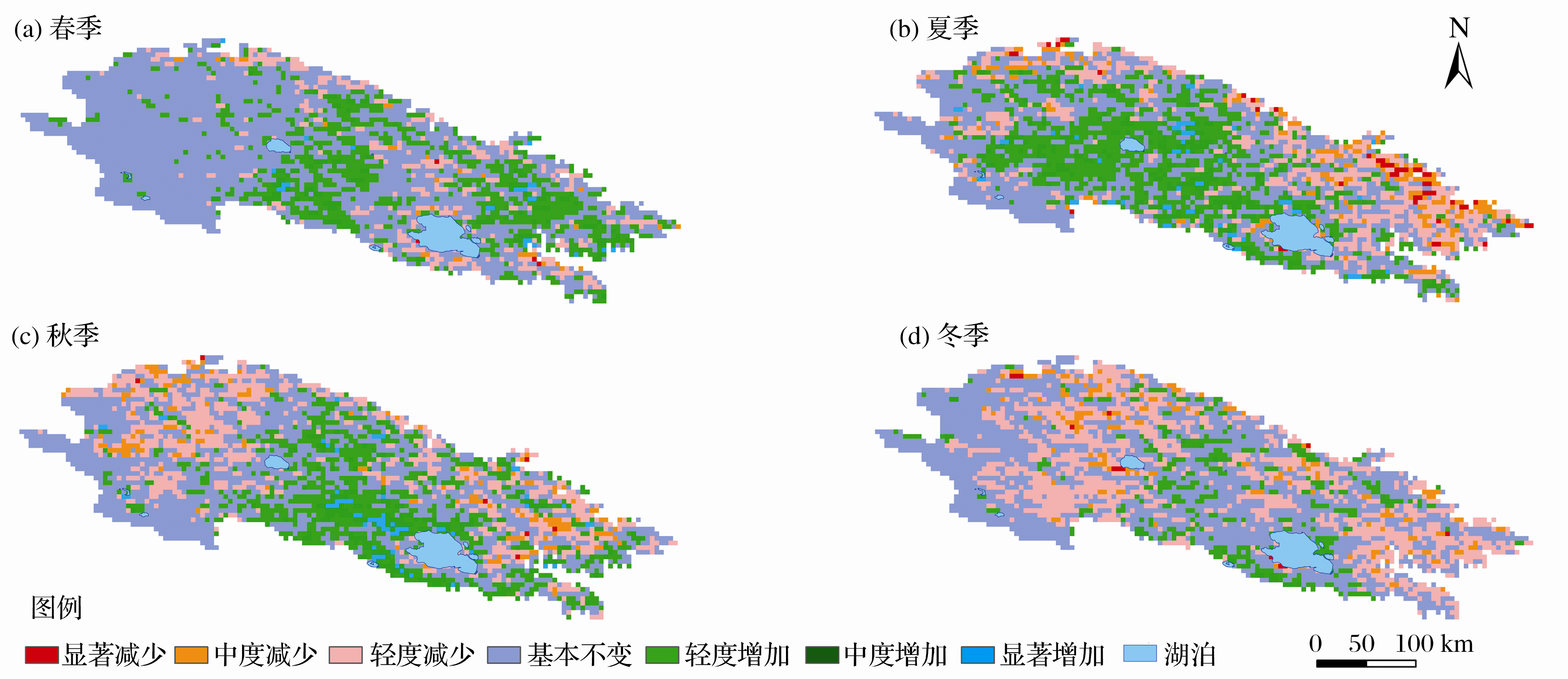

图6 1982—2006年祁连山各季节NDVI的空间变化
Fig.6 Spatial variations of seasonal NDVI in Qilian Mountains from 1982 to 2006
表3 1982-2006年祁连山各季节NDVI变化趋势统计
Table 3 Statistics on variation trends of seasonal NDVI in Qilian Mountains from 1982 to 2006
斜率范围 等级变化 春季 夏季 秋季 冬季
面积/km2 比例/％ 面积/km2 比例/％ 面积/km2 比例/％ 面积/km2 比例/％
<-0.005 显著减少 207 0.11 2464 1.31 357 0.19 696 0.37
-0.005~-0.003 中度减少 1862 0.99 10438 5.55 8576 4.56 8821 4.69
-0.003~-0.001 轻度减少 17905 9.52 34606 18.4 41020 21.86 57571 30.61
-0.001~0.001 基本不变 121068 64.37 78749 41.87 87514 46.53 100510 53.44
0.001~0.003 轻度增加 38218 20.32 45892 24.4 36168 19.23 17548 9.33
0.003~0.005 中度增加 7467 3.97 13034 6.93 11228 5.97 2652 1.41
>0.005 显著增加 1354 0.72 2915 1.55 3216 1.71 245 0.13

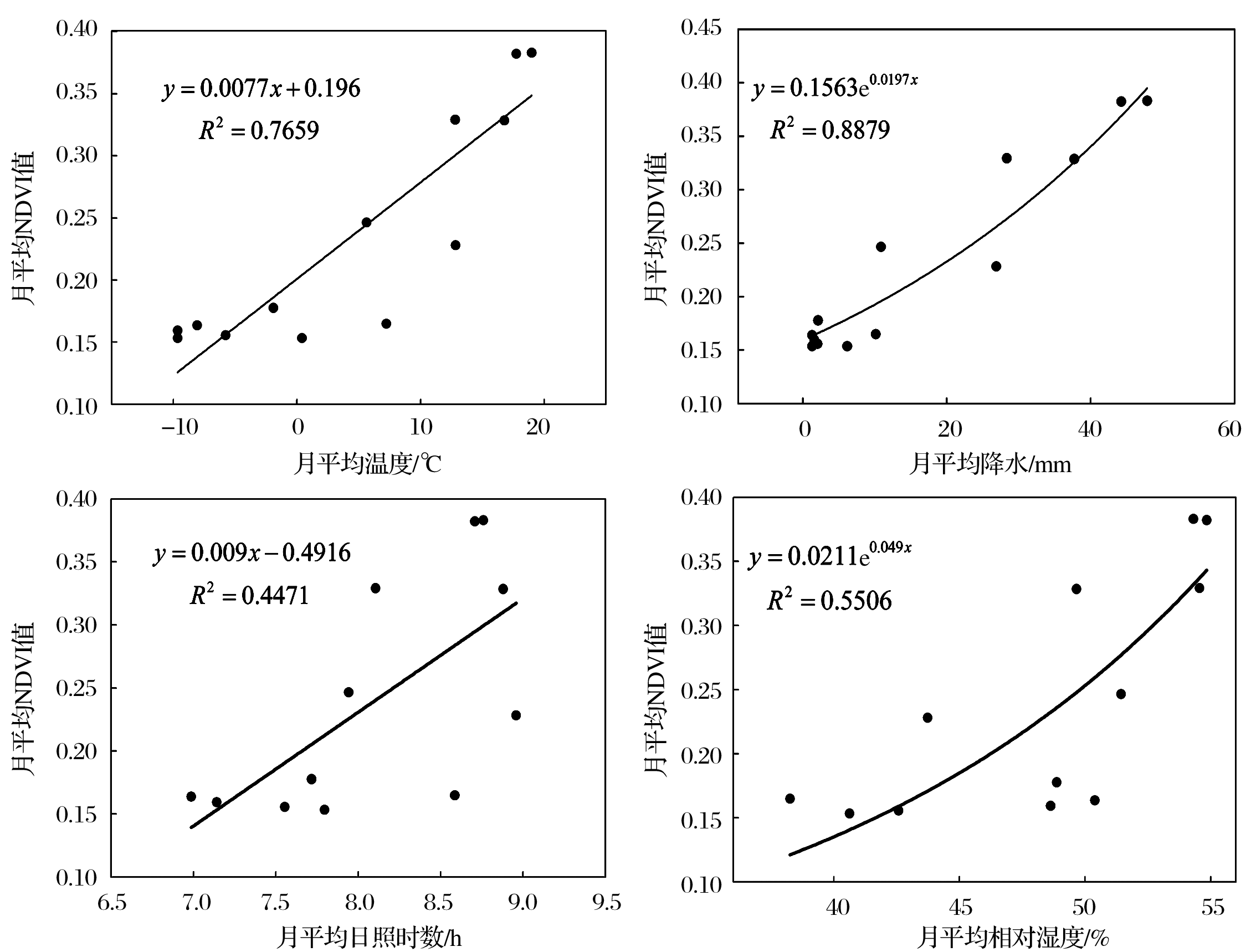

图7 祁连山月平均NDVI与月平均气温、降水、日照时数和相对湿度的相关性
Fig. 7 Correlations between monthly average NDVI with monthly mean temperature, precipitation, sunshine hour and relative humidity in Qilian Mountais
表4 祁连山各季节 NDVI与气候因子的相关性分析
Table4 Correlation analysis between seasonal NDVI and climatic factors in Qilian Mountains
不同季节平均NDVI 降水 气温
前期 同期 前期与同期累积 前期 同期 前期与同期累积
春季NDVI 0.428* 0.319 0.310 0.208 0.178 0.220
夏季NDVI 0.334 0.034 0.148 0.150 0.292 0.198
秋季NDVI 0.323 0.251 0.321 0.358 0.390 0.390
冬季NDVI -0.293 -0.266 -0.354 0.505* 0.364 0.439*
[1] Li Hongquan, Fan Guangzhou, Zhou Dingwen, et al.Character of spring vegetation change in the Qinghai-Tibet Plateau and its influence on summer air temperature[J]. Scientia Geographica Sinica,2008, 28(2): 259-265.
[李洪权,范广洲,周定文,等. 青藏高原春季植被变化特征及其对夏季气温的影响[J]. 地理科学, 2008, 28(2):259-265.]
[2] Roerink G J, Menenti M, Soepboer W, et al.Assessment of climate impact on vegetation dynamics by using remote sensing[J]. Physics and Chemistry of the Earth, Parts A/B/C,2003, 28(1): 103-109.
[3] Jia Kun, Yao Yunjun, Wei Xiangqin, et al.A review on fractional vegetation cover estimation using remote sensing[J]. Advances in Earth Science, 2013, 28(7): 774-782.
[贾坤,姚云军,魏香琴,等. 植被覆盖度遥感估算研究进展[J]. 地球科学进展, 2013, 28(7): 774-782.]
[4] Wang J, Li B, Yu W.Analysis of vegetation trend and their causes during recent 30 years in Inner Mongolia Autonomous Region[J]. Journal of Arid Land Resources and Environment, 2012, 26(2): 132-137.
[5] Yin H, Li Z, Wang Y, et al.Assessment of desertification using time series analysis of hyper-temporal vegetation indicator in Inner Mongolia[J]. Acta Geographica Sinica, 2011, 66(5): 653-661.
[6] Song F, Xing K, Liu Y, et al.Monitoring and assessment of vegetation variation in Northern Shaanxi based on MODIS/NDVI[J]. Acta Ecologica Sinica, 2011, 31(2): 354-363.
[7] Nemani R, Keeling C, Hashimoto H.Climate-driven increases in global terrestrial net primary production from 1982 to 1999[J]. Science, 2003, 300(5 625):1 560-1 562.
[8] Fang J, Piao S, He J, et al.Increasing terrestrial vegetation activity in China,1982-1999[J]. Science in China (Series C), 2004, 55(3): 229-240.
[9] Cui Linli, Shi Jun, Yang Yinming, et al.Ten-day response of vegetation NDVI to the variations of temperature and precipitation in eastern China[J]. Acta Geographica Sinica, 2009, 64(7): 850-860.
[崔林丽,史军,杨引明,等. 中国东部植被NDVI对气温和降水的旬响应特征[J]. 地理学报, 2009, 64(7): 850-860.]
[10] Liu Junhui, Gao Jixi, Wang Wenjie, et al.Variations of vegetation coverage and its relations to global climate changes on the Tibetan Plateau during 1981-2005[J]. Journal of Mountain Science, 2013, 31(2): 234-242.
[刘军会,高吉喜,王文杰,等. 青藏高原植被覆盖变化及其与气候变化的关系[J]. 山地学报, 2013, 31(2): 234-242.]
[11] Li Zhen, Yan Fuli, Fan Xiangtao.The variability of NDVI over Northwest China and its relation to temperature and precipitation[J]. Journal of Remote Sensing, 2005, 9(3): 308-313.
[李震,阎福礼,范湘涛. 中国西北地区NDVI变化及其与温度和降水的关系[J]. 遥感学报, 2005, 9(3): 308-313.]
[12] Sun Hongyu, Wang Changyao, Niu Zheng, et al.Analysis of the vegetation cover change and the relationship between NDVI and environmental factors by using NOAA time series data[J]. Journal of Remote Sensing, 1998, 13(3): 204-210.
[孙红雨,王长耀,牛铮,等. 中国地表植被覆盖变化及其与气候因子关系:基于NOAA时间序列数据分析[J]. 遥感学报, 1998, 13(3): 204-210.]
[13] Wu Yongli, Li Zhicai, Wang Yunfeng, et al.Responses of vegetation index (NDVI) in typical ecological areas of Shanxi Province to climate change[J]. Chinese Journal of Ecology, 2009, 28(5): 925-932.
[武永利,李智才,王云峰,等. 山西典型生态区植被指数(NDVI)对气候变化的响应[J]. 生态学杂志, 2009, 28(5): 925-932.]
[14] Li Yuechen, Gong Peng, Liu Chunxia, et al.Vegetation cover changes and correlation with climatic factors in Northern China during 1982-1999[J]. Resources Science, 2006, 28(2): 109-117.
[李月臣,宫鹏,刘春霞,等. 北方13省1982—1999年植被变化及其与气候因子的关系[J]. 资源科学, 2006, 28(2): 109-117.]
[15] Dai Shengpei, Zhang Bo, Wang Haijun, et al.Spatiotemporal variation of vegetation NDVI in the Qilian Mountains during the period from 1999 to 2007[J]. Arid Zone Research, 2007, 27(4): 585-591.
[戴声佩,张勃,王海军,等. 1999—2007年祁连山区植被指数时空变化[J]. 干旱区研究, 2007, 27(4): 585-591.]
[16] Dai Shengpei, Zhang Bo, Wang Qiang, et al.Variation in grassland vegetation NDVI and its ten-day response to temperature and precipitation in the Qilian Mountains[J]. Resources Science, 2010, 32(9): 1 769-1 776.
[戴声佩,张勃,王强,等. 祁连山草地植被NDVI变化及其对气温降水的旬响应特征[J]. 资源科学, 2010, 32(9): 1 769-1 776.]
[17] Yang Guojing, Xiao Duning, Zhao Chengzhang.GIS-based analysis on the forest landscape patterns in the Qilian Mountain[J]. Arid Zone Research, 2004, 21(1): 27-32.
[杨国靖,肖笃宁,赵成章. 基于GIS的祁连山森林景观格局分析[J]. 干旱区研究, 2004, 21(1): 27-32.]
[18] Wang Jianlei, Li Yingnian, Du Mingyuan, et al.The features of microclimate and vegetation distribution on the Southern Lenglongling, Qilian Mountains[J]. Journal of Mountain Science, 2009, 27(4): 418-426.
[王建雷,李英年, 杜明远,等. 祁连山冷龙岭南坡小气候及植被分布特征[J]. 山地学报, 2009, 27(4): 418-426.]
[19] Wang Haijun, Zhang Bo, Jin Xiaohua, et al.Spatio-temporal variations analysis of air temperature and precipitation in Qilian Mountainous region based on GIS[J]. Journal of Desert Research, 2009, 29(6): 1 196-1 202.
[王海军,张勃,靳晓华,等. 基于GIS的祁连山区气温和降水的时空变化分析[J]. 中国沙漠, 2009, 29(6): 1 196-1 202.]
[20] Dai Shengpei, Zhang Bo.Ten-day response of vegetation NDVI to the variations of temperature and precipitation in Qilian Mountains based on GIS[J]. Ecology and Environmental Sciences, 2010, 19(1): 140-145.
[戴声佩,张勃. 基于GIS的祁连山植被NDVI对气温降水的旬响应分析[J]. 生态环境学报, 2010, 19(1): 140-145.]
[21] Zhang Yaozong.Climatic Variation over Qilian Mountain Region in Last 50 Years[D]. Lanzhou: Northwest Normal University, 2009.
[张耀宗. 近50年来祁连山地区的气候变化[D]. 兰州:西北师范大学, 2009.]
[22] Jin Bowen, Kang Ersi, Song Kechao, et al.Eco-hydrological function of mountain vegetation in the Hei River Basin, Northwest China[J]. Journal of Glaciology and Geocryology, 2003, 25(5): 580-584.
[金博文,康尔泗,宋克超,等. 黑河流域山区植被生态水文功能的研究[J]. 冰川冻土, 2003, 25(5): 580-584.]
[23] Niu Yun, Jing Wenmao.Study of soil different quality under main vegetation types in Qilian Mountains (North Slope)[J]. Research of Soil and Water Conservation, 2008, 15(4): 258-263.
[牛贇,敬文茂. 祁连山北坡主要植被下土壤异质性研究[J]. 水土保持研究, 2008, 15(4): 258-263.]
[24] Wang Zhaoli, Chen Xiaohong, Li Yan.Spatio-temporal changes of NDVI in the Pearl River Basin[J]. Ecologic Science, 2006, 25(4): 303-307.
[王兆礼,陈晓宏,李艳. 珠江流域植被覆盖时空变化分析[J]. 生态科学, 2006, 25(4): 303-307.]
[25] Fang Jingyun, Piao Shilong, He Jinsheng, et al.The trend of vegetation coverage in China is increasing in recent 20 years[J].Science in China (Series C), 2003, 33(6): 554-565.
[方精云,朴世龙,贺金生,等. 近20年来中国植被活动在增强[J]. 中国科学:C辑, 2003, 33(6): 554-565.]
[26] Fang Ce, Mao Dehua, Yang Faxiang, et al.Xinjiang Geomorphology Introduction[M]. Beijing: Meteorological Press, 1994:78-84.
[方策,毛德华,杨发相,等. 新疆地貌概论[M]. 北京:气象出版社, 1994: 78-84.]
[27] Chen Yunhao, Li Xiaobing, Chen Jin, et al.The change of NDVI time series based on change vector analysis in China, 1983-1992[J]. Journal of Remote Sensing, 2002, 6(1): 12-18.
[陈云浩,李晓兵,陈晋,等. 1983—1992年中国陆地植被NDVI演变特征的变化矢量分析[J]. 遥感学报, 2002, 6(1): 12-18.]
[28] Zhang Lianzhi, Li Ming, Wu Zhengfang, et al.Vegetation cover change and its mechanism in Northeast China based on SPOT/NDVI data[J]. Journal of Arid Land Resources and Environment, 2011, 25(1): 171-175.
[张莲芝,李明,吴正方,等. 基于SPOTNDVI的中国东北地表植被覆盖动态变化及其机理研究[J]. 干旱区资源与环境, 2011, 25(1): 171-175.]
[29] Song Yi, Ma Mingguo.Study on vegetation cover change in northwest China based on SPOT VEGETATION data[J]. Journal of Desert Research, 2007, 27(1): 89-93.
[宋怡,马明国. 基于SPOT VEGETATION数据的中国西北植被覆盖变化分析[J]. 中国沙漠, 2007, 27(1): 89-93.]
[30] Ma Mingguo, Wang Jian, Wang Xuemei.Advance in the inter-annual variability of vegetation and its relation to climate based on remote sensing[J]. Journal of Remote Sensing, 2006, 10(3): 421-431.
[马明国,王建,王雪梅. 基于遥感的植被年际变化及其与气候关系研究进展[J]. 遥感学报, 2006, 10(3): 421-431.]
[31] Dai Shengpei, Zhang Bo, Wang Haijun.Spatio-temporal change of vegetation index NDVI in Northwest China and its influencing factors[J]. Journal of Geo-information Science, 2010, 12(3): 315-321.
[戴声佩,张勃,王海军. 中国西北地区植被NDVI的时空变化及其影响因子分析[J]. 地球信息科学学报, 2010, 12(3): 315-321.]
[32] Wang Qiang, Zhang Bo, Dai Shengpei, et al.Analysis of the vegetation cover change and its relationship with factors in the Three-North Shelter Forest Program[J]. China Environmental Science, 2012, 32(7): 1 302-1 308.
[王强,张勃,戴声佩,等. 三北防护林工程区植被覆盖变化与影响因子分析[J]. 中国环境科学, 2012, 32(7): 1 302-1 308.]
[33] Suo Yuxia, Wang Zhengxing, Liu Chuang, et al.Relationship between NDVI and precipitation and temperature in Middle Asia during 1982-2002[J]. Resources Science, 2009, 31(8): 1 422-1 429.
[索玉霞,王正兴,刘闯,等. 中亚地区1982年至2002年植被指数与气温和降水的相关性分析[J]. 资源科学, 2009, 31(8): 1 422-1 429.]
[34] Piao S, Fang J, Zhou L, et al.Interannual variations of monthly and seasonal Normalized Difference Vegetation Index (NDVI) in China from 1982 to 1999[J]. Journal of Geophysical Research, 2003, 108(D14): 4 401.
[35] Zhang Geli, Zhang Hongbin, Zhou Caiping, et al.Responses of vegetation changes to climatic variations in Hulun Buir grassland in past 30 years[J]. Acta Geographica Sinica, 2001, 66(1): 47-58.
[张戈丽,张宏斌,周才平,等. 近30年来呼伦贝尔地区草地植被变化对气候变化的响应[J]. 地理学报, 2001, 66(1): 47-58.]
[36] Ren Guoyu, Ren Yuyu, Li Qingxiang, et al.An overview on global land surface air temperature change[J]. Advances in Earth Science, 2014, 29(8): 934-946.
[任国玉,任玉玉,李庆祥,等. 全球陆地表面气温变化研究现状、问题和展望[J]. 地球科学进展, 2014, 29(8): 934-946.]
[37] Jia Wenxiong, He Yuanqing, Li Zongxing, et al.The regional difference and catastrophe of climatic change in Qilian Mt. Region[J]. Journal of Geographical Sciences, 2008, 63(3): 257-269.
[贾文雄,何元庆,李宗省,等. 祁连山区气候变化的区域差异特征及突变分析[J]. 地理学报, 2008, 68(3): 257-269.]
[38] Liu Yang, Wei Zhigang.Comparison of the precipitation cycle and trend in different areas of Northern China in recent 50 years[J]. Advances in Earth Science, 2012, 27(3): 337-346.
[刘扬,韦志刚. 近50年中国北方不同地区降水周期趋势的比较分析[J]. 地球科学进展, 2012, 27(3): 337-346.]
[39] Xu Haojie, Yang Taibao, Zeng Biao.Spatial-temporal changes of vegetation in Qilian Mountains from 2000 to 2010 based on MODIS NDVI data and its affecting factors[J]. Journal of Arid Land Resources and Environment, 2012, 26(11): 87-91.
[徐浩杰,杨太保,曾彪 . 2000—2010年祁连山植被 MODIS NDVI 的时空变化及影响因素[J]. 干旱区资源与环境, 2012, 26(11): 87-91.]
[40] Wu Zhengli, Jia Wenxiong, Liu Yarong, et al.Change of vegetation coverage in the Qilian Mountains in recent 10 years[J]. Arid Zone Research, 2014, 31(1): 80-87.
[武正丽,贾文雄,刘亚荣,等. 近10a来祁连山植被覆盖变化研究[J].干旱区研究, 2014, 31(1): 80-87.]
