地球科学进展 ›› 2026, Vol. 41 ›› Issue (3): 313 -327. doi: 10.11867/j.issn.1001-8166.2026.021

研究论文 上一篇    下一篇

基于SBAS-InSAR的青藏铁路沿线冻土区形变监测及预测分析
刘军彦1(), 李根军1(), 王世杰2, 祁月基1, 郑磊1
  1. 1.中国地质调查局西宁自然资源综合调查中心,青海 西宁 810000
    2.兰州交通大学 测绘与地理信息学院,甘肃 兰州 730070
  • 收稿日期:2025-07-03 修回日期:2026-02-02 出版日期:2026-03-10
  • 通讯作者: 李根军 E-mail:3258174509@qq.com;ligenjun2008@163.com
  • 基金资助:
    中国地质调查局地质调查项目(DD20220101301);自然资源综合调查指挥中心科技创新基金项目(KC20240014)

Deformation Monitoring and Prediction Analysis of Permafrost Areas Along the Qinghai-Xizang Railway Based on SBAS-InSAR

Junyan Liu1(), Genjun Li1(), Shijie Wang2, Yueji Qi1, Lei Zheng1

  1. 1.China Geological Survey Xining Natural Resources Comprehensive Survey Center, Xining 810000, China
    2.Faculty of Geomatics, Lanzhou Jiaotong University, Lanzhou 730070, China
  • Received:2025-07-03 Revised:2026-02-02 Online:2026-03-10 Published:2026-05-06
  • Contact: Genjun Li E-mail:3258174509@qq.com;ligenjun2008@163.com
  • About author:Liu Junyan, research area includes surface remote sensing monitoring. E-mail: 3258174509@qq.com
  • Supported by:
    the Geological Survey Project of the China Geological Survey(DD20220101301);The Science and Technology Innovation Fund Project of the Comprehensive Natural Resources Survey Command Center(KC20240014)

青藏铁路跨越约550 km的多年冻土区,铁路安全运营的关键取决于冻土层稳定性。选择铁路冻土段沿线2022年10月至2024年12月的Sentinel-1A升降轨数据,利用SBAS-InSAR技术反演形变特征并分析驱动因子,融合多模型优势构建预测模型并分析。结果表明:①铁路沿线视线(Line of Sight)向升降轨形变速率分别为-35~42 mm/a和-36.5~30 mm/a;在忽略南北向地表形变前提下,垂直和东西向平均速率分别为-1.62 mm/a和2.31 mm/a,表现为下沉和向东运动。②基于“热力—水文—地形”耦合分析,各因子与形变速率均呈正相关,地表温度与活动层厚度为主控因素,贡献度为62.4%;坡度(21.4%)决定形变的方向;气温(16.2%)通过地表能量转换间接驱动。气温和地温升高引发活动层增厚导致融沉,在坡度作用下转化为坡向蠕滑位移。③基于分层阈值法识别出3类形变强度区,其中强形变区威胁路基稳定,中形变区存在冻土蠕滑风险,弱形变区形变受河流作用控制。特征点时序分析揭示了冻土区典型的季节性冻胀融沉规律及水热与沉积叠加影响。④预测分析了P1~P7共7个特征点的形变趋势。结果表明,混合模型在各特征点上的预测精度均优于单一模型,周期性特征点未来6个月的形变趋势与实际形变高度吻合,在所选特征点上表现出良好的预测性能。研究结果验证了该方法在冻土区铁路沿线形变监测中的应用潜力,可为铁路稳定性评估与路基维护提供参考。

The Qinghai-Xizang Railway spans more than 550 kilometers of permafrost regions, and the key to the safe operation of the railway depends on the stability of the permafrost layer. Therefore, this paper selects Sentinel-1A ascending and descending orbit data along the railway permafrost section from October 2022 to December 2024, uses the SBAS-InSAR technique to invert deformation characteristics and analyze the driving factors; combines the advantages of multiple models to build a prediction model and conducts an analysis. The results show: ① The Line of Sight (LOS) deformation rates along the railway for ascending and descending orbits are -35~42 mm/a and -36.5~30 mm/a, respectively; neglecting north-south surface deformation, the average vertical and east-west rates are -1.62 mm/a and 2.31 mm/a, showing subsidence and eastward movement; ② Based on the “thermal-hydrological-topographic” coupling analysis, all factors are positively correlated with the deformation rate. Surface temperature and active layer thickness are the main controlling factors, contributing 62.4%. Slope (21.4%) determines the direction of deformation. Temperature (16.2%) indirectly drives through surface energy conversion. The increase in temperature and ground temperature leads to the thickening of the active layer, causing thaw settlement, which is transformed into slope creep displacement under the influence of slope. ③ Three types of deformation intensity zones were identified using the stratified threshold method. Among them, the strong deformation zone threatens the stability of the embankment, the medium deformation zone has the risk of permafrost creep, and the weak deformation zone’s deformation is controlled by river action. The time series analysis of characteristic points reveals the typical seasonal freeze-thaw settlement pattern in the permafrost region and the superimposed influence of water, heat, and sedimentation. ④ The deformation trends of seven characteristic points P1 to P7 were predicted and analyzed. The results show that the hybrid model has higher prediction accuracy than the single model at each characteristic point. The deformation trends of periodic characteristic points in the next six months are highly consistent with the actual deformation, demonstrating good prediction performance at the selected characteristic points. The research results verify the application potential of this method in deformation monitoring along the railway in permafrost regions and can provide a reference for railway stability assessment and embankment maintenance.

中图分类号:

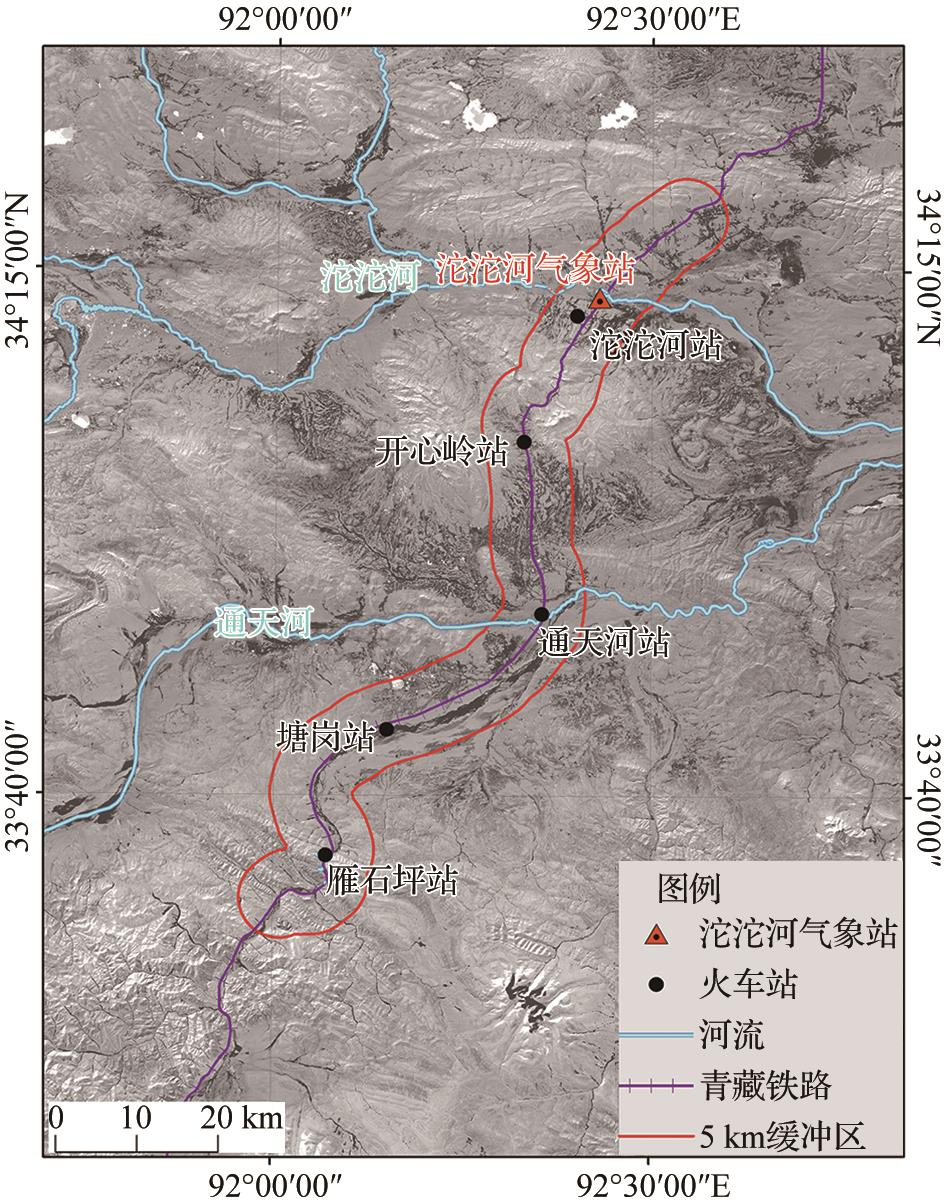

图1 青藏铁路沱沱河—雁石坪段沿线概况
Fig. 1 Overview of the Tuotuo River-Yanshiping Section of the Qinghai-Xizang Railway
表1 Sentinel-1A升降轨数据参数
Table 1 Parameters of Sentinel-1A ascending and descending orbits data

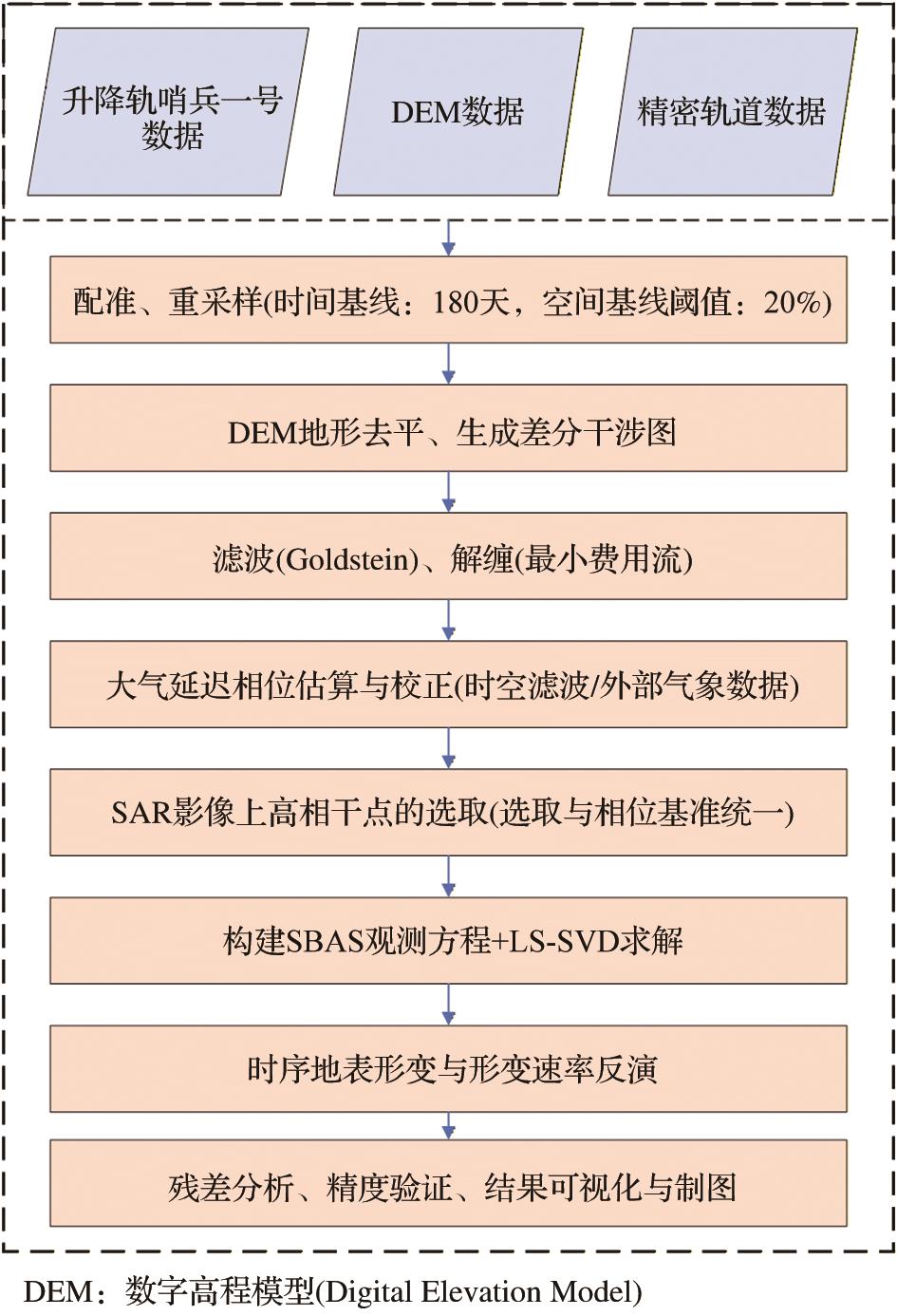

图2 地表形变信息提取流程
Fig. 2 Extraction procedure of surface deformation information

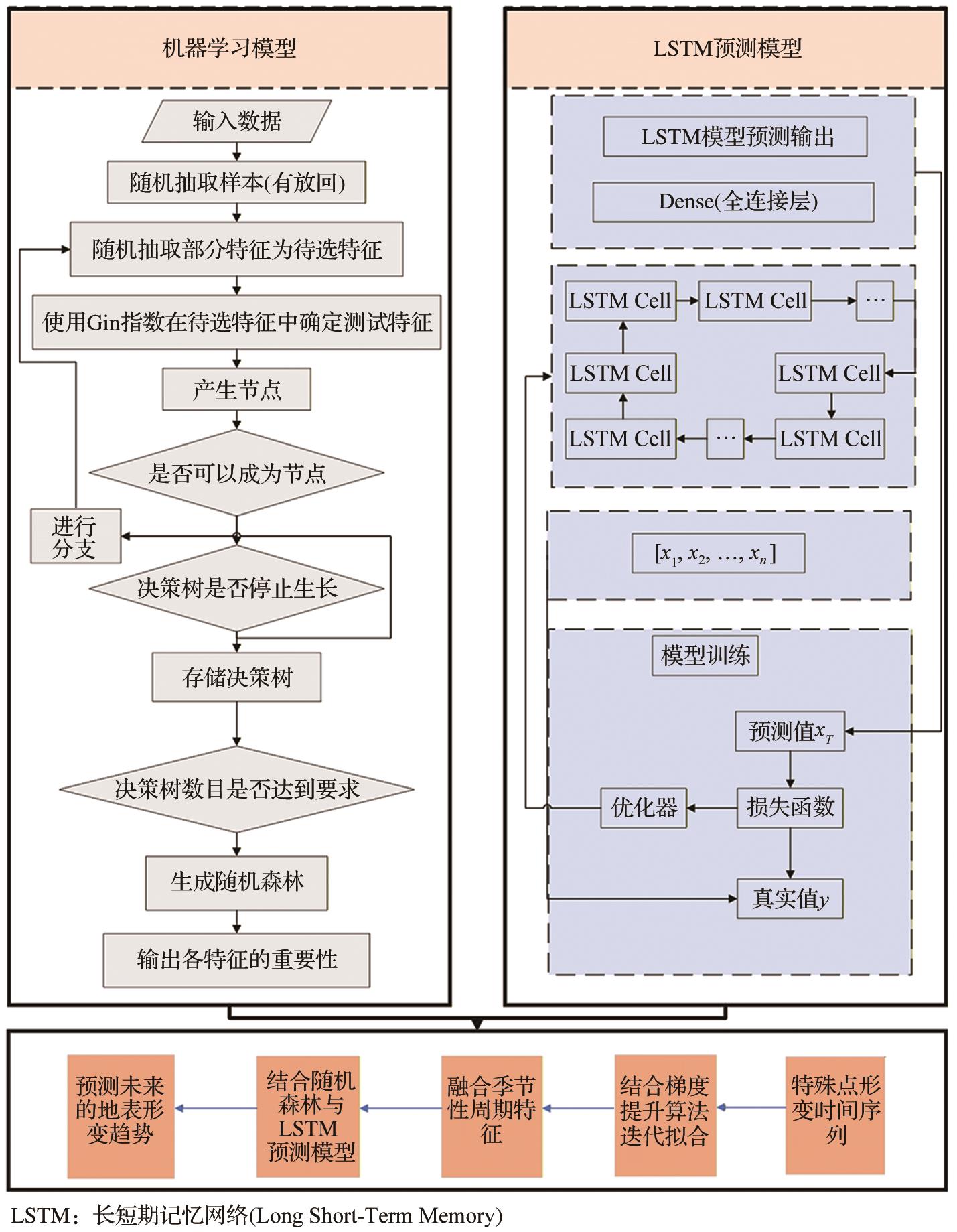

图3 预测模型构建及形变时间序列预测流程
Fig. 3 Predictive model construction and deformation time series prediction process
表2 不同区域升降轨平均形变速率对比 (mm/a)
Table 2 Comparison of average deformation rates between ascending and descending orbits in different regions

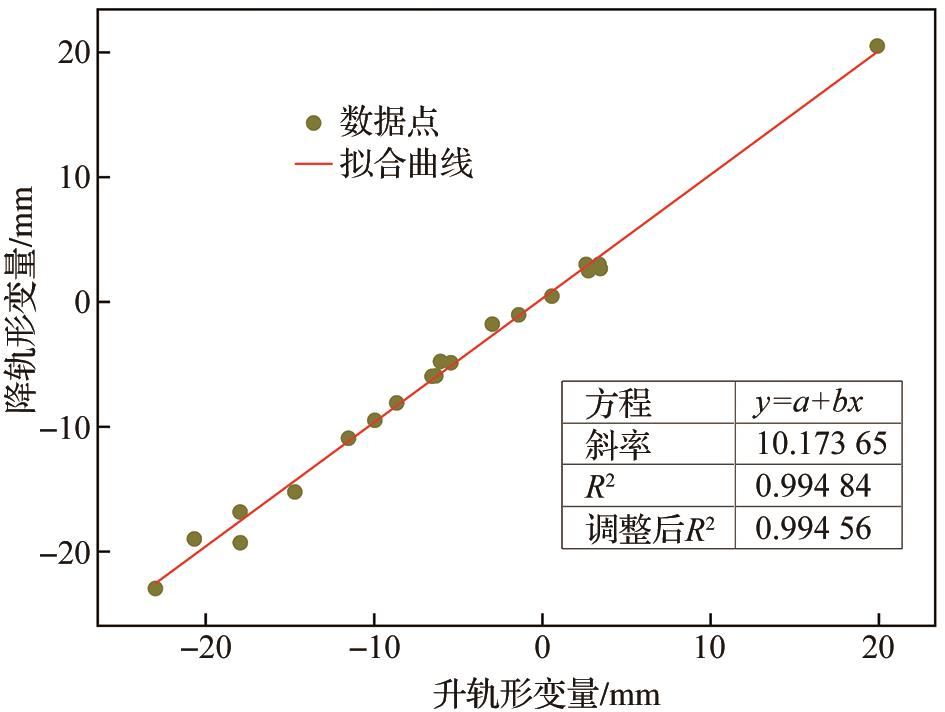

图4 Sentinel-1A升降轨数据精度交叉验证
Fig. 4 Cross-validation of Sentinel-1A ascending and descending orbits data accuracy

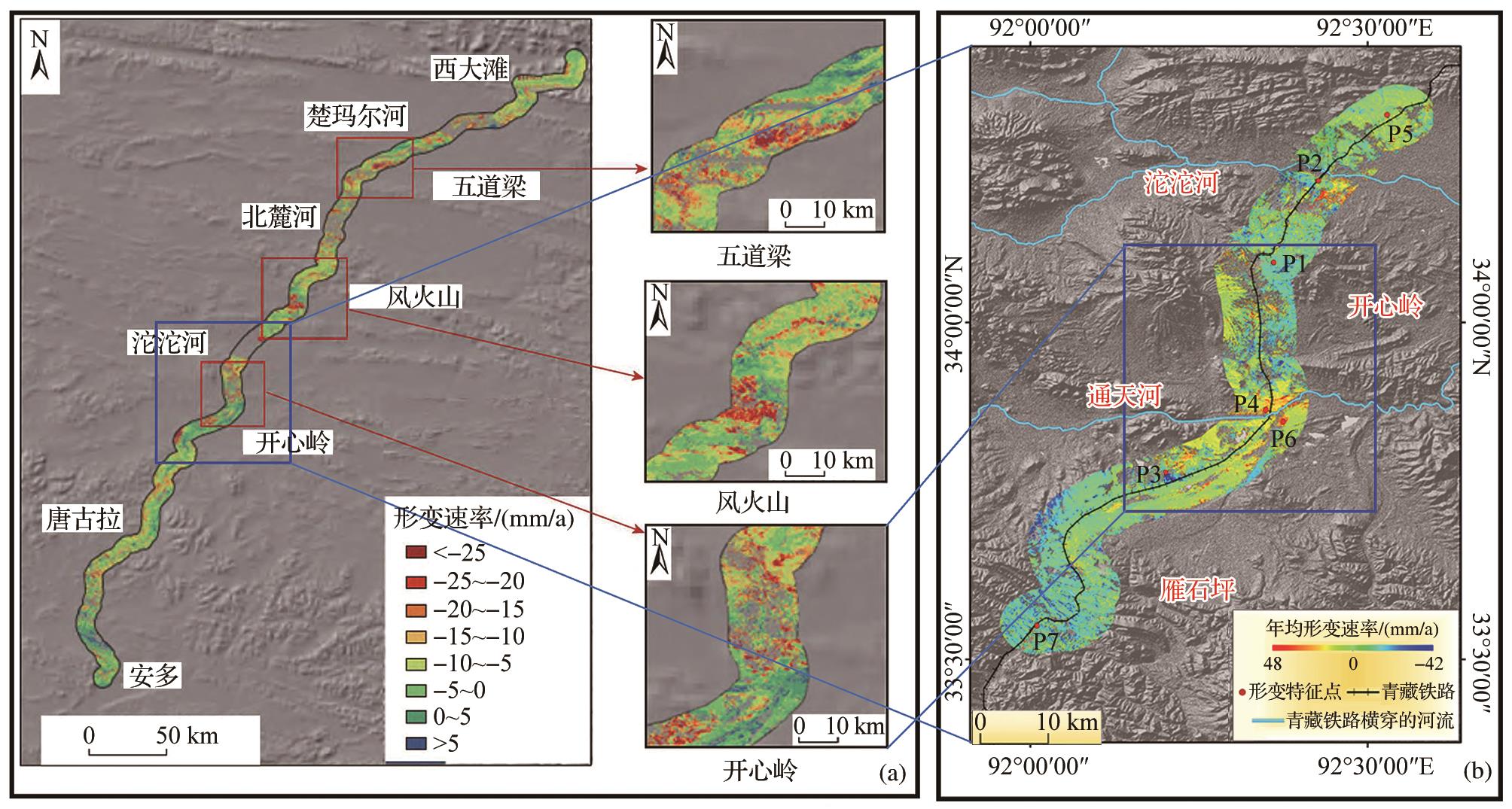

图5 本文形变速率与已有研究结果空间分布特征对比
(a)张正加等13在2017—2018年青藏铁路工程走廊形变特征空间分布和典型形变区域;(b)本文形变空间分布特征。
Fig. 5 Comparison of spatial distribution of deformation rates between this article and previous research results
(a) The spatial distribution of deformation characteristics and typical deformation zones along the Qinghai-Xizang Railway Corridor during 2017-2018, as reported by Zhang Zhengjia et al.13;(b) Illustrates the spatial distribution of deformation characteristics in this study.

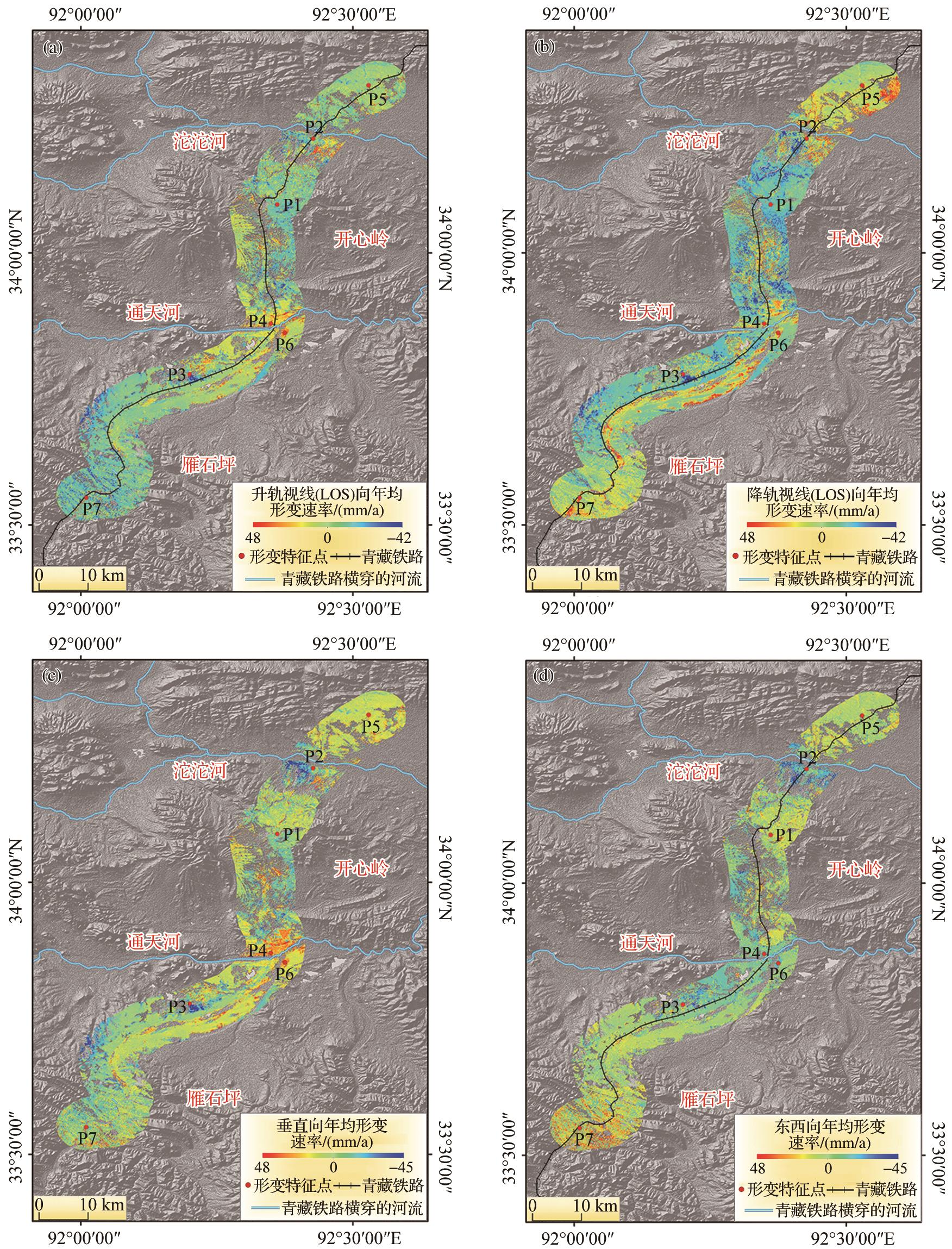

图6 青藏铁路沱沱河—雁石坪段沿线形变速率图
Fig. 6 Deformation rate map of the Tuotuo River-Yanshiping Section of the Qinghai-Xizang Railway

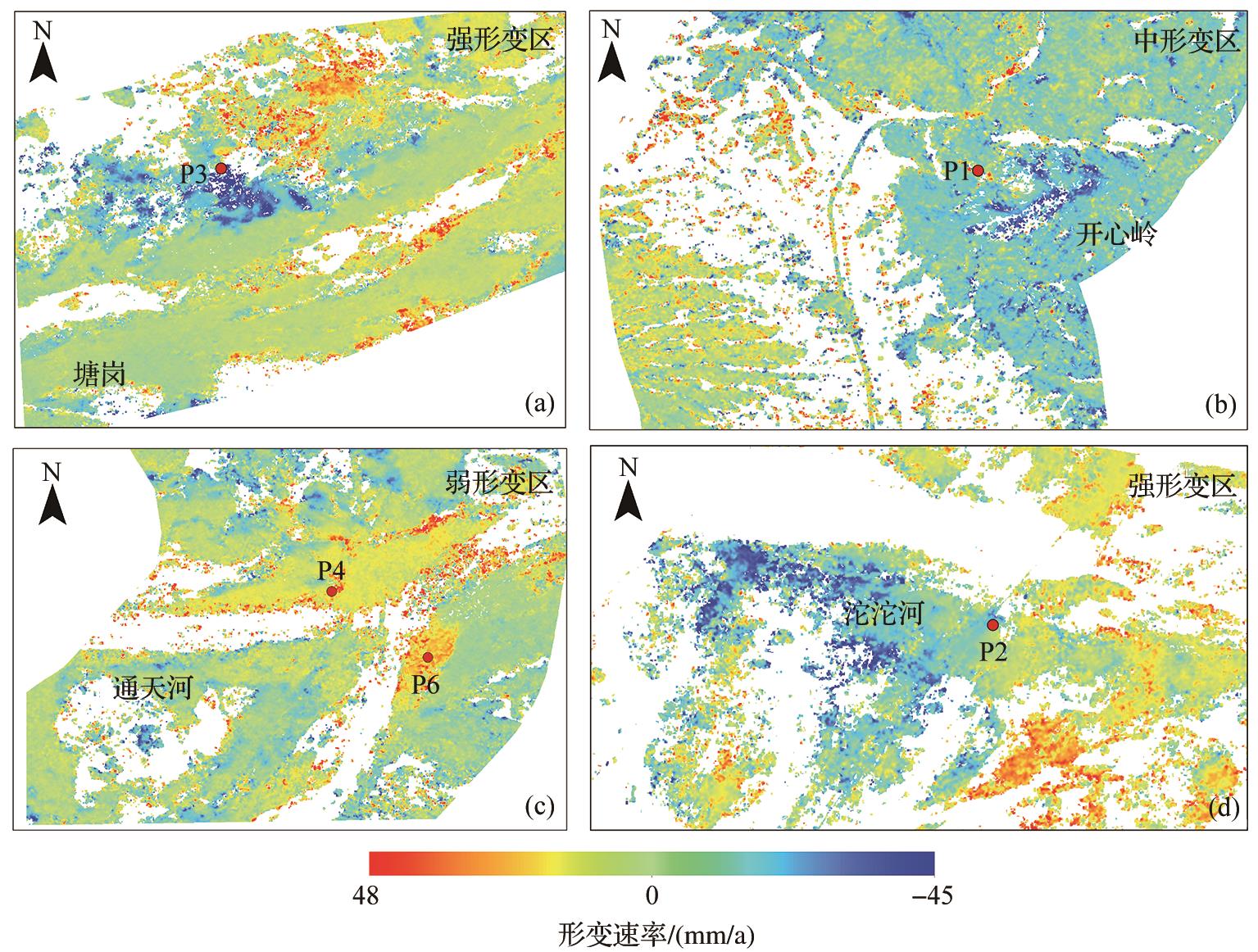

图7 青藏铁路腹地冻土典型区域形变速率图
Fig. 7 Deformation rates map of the typical permafrost areas in the hinterland of the Qinghai-Xizang Railway

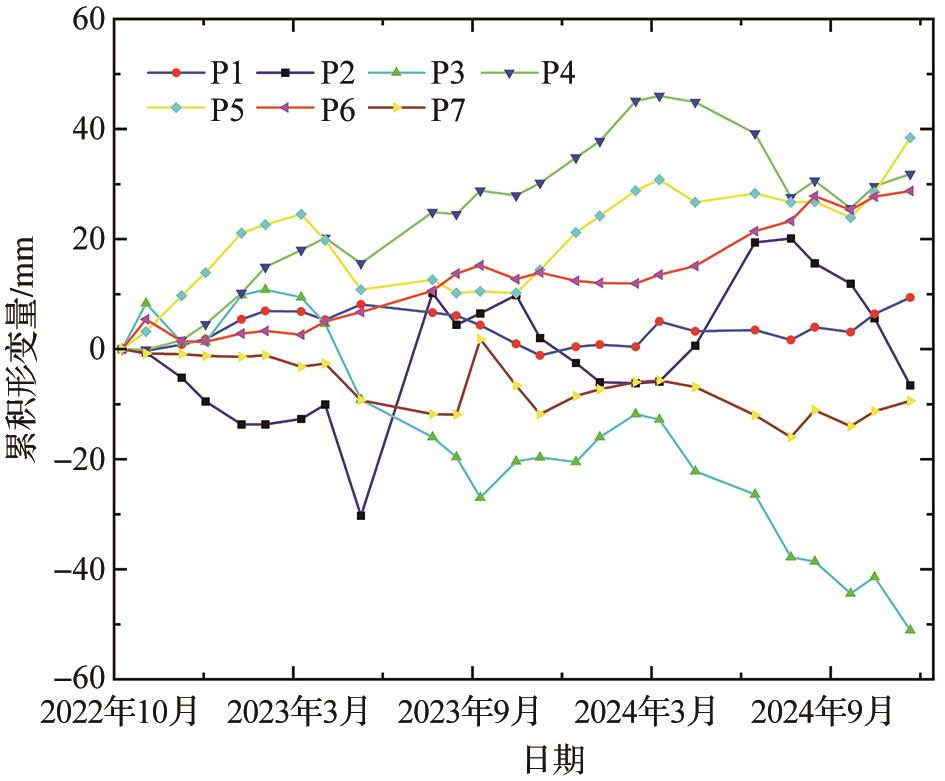

图8 青藏铁路腹地冻土典型区域特殊点形变累积形变量时间序列
Fig. 8 Time series of cumulative deformation amounts of special points in typical permafrost regions in the hinterland of the Qinghai-Xizang Railway

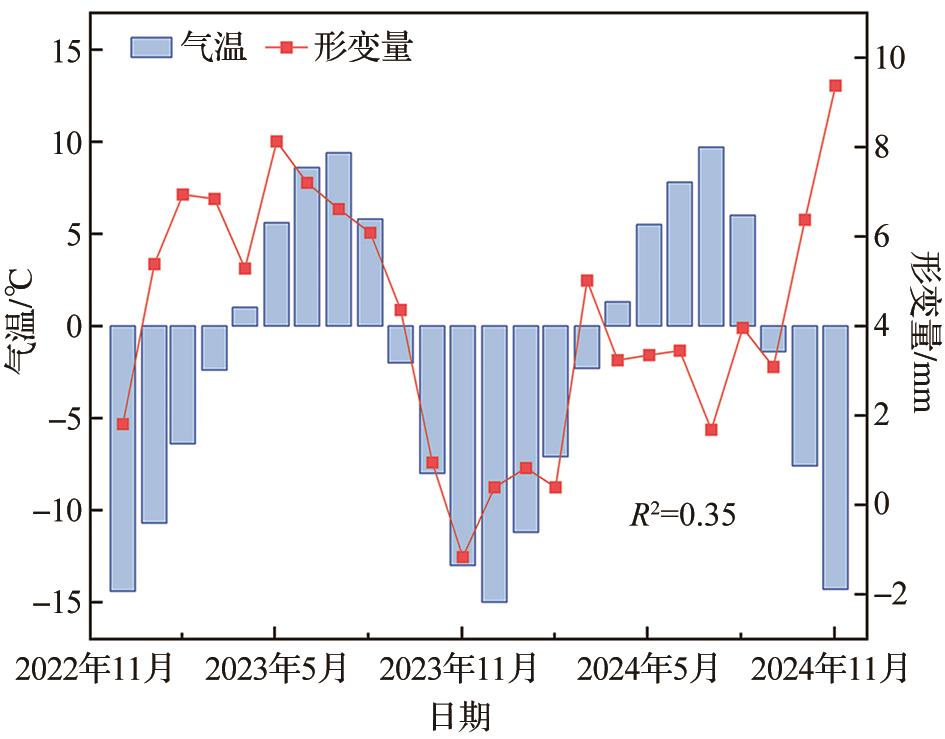

图9 青藏铁路腹地冻土区气温与地表形变趋势的相关性
Fig. 9 The correlation between temperature and surface deformation trends in the permafrost region in hinterland of the Qinghai-Xizang Railway

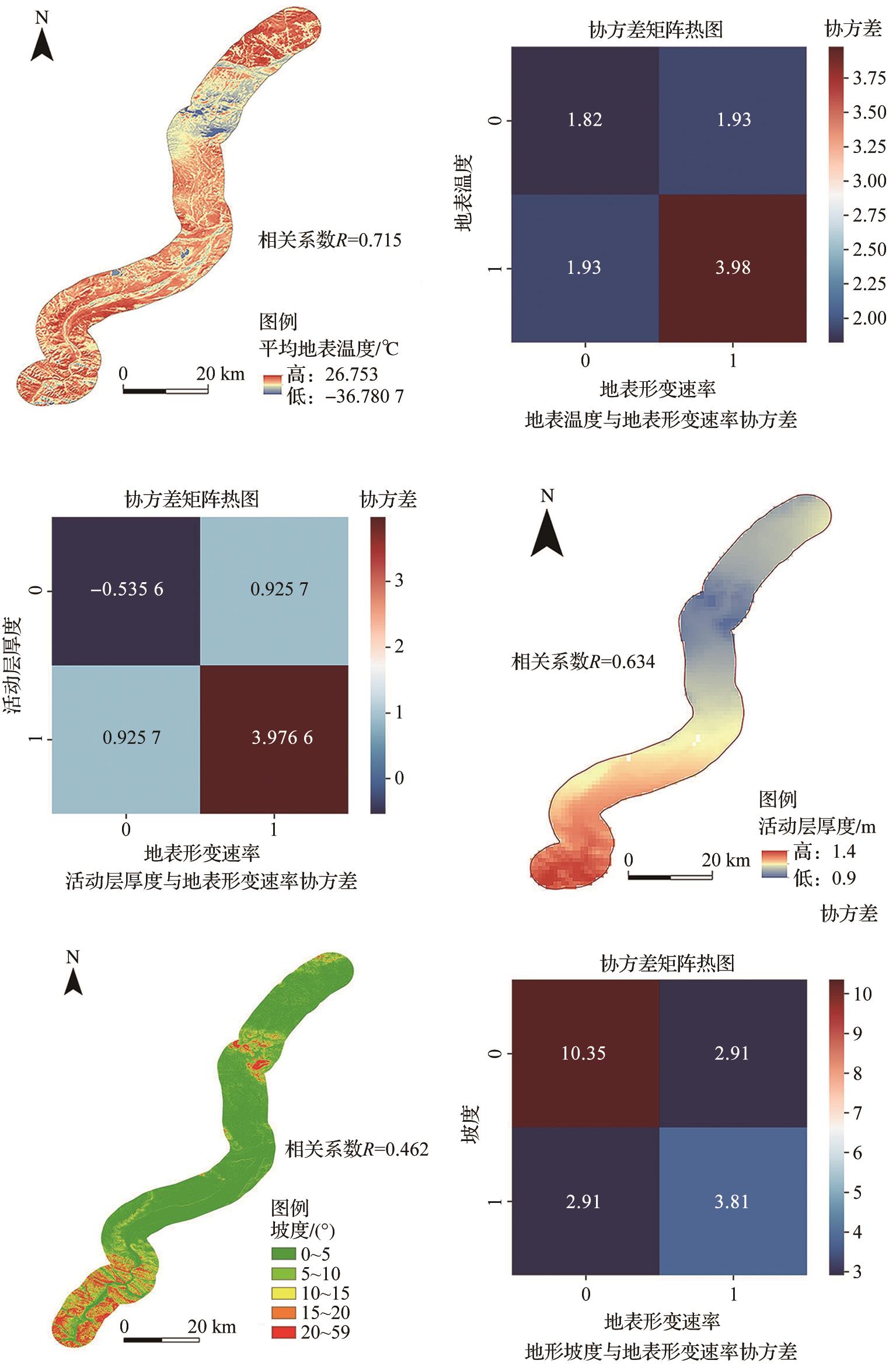

图10 地温、活动层厚度、地形坡度与地表形变的相关关系
Fig. 10 The correlation between ground temperatureactive layer thicknessterrain slopeand surface deformation

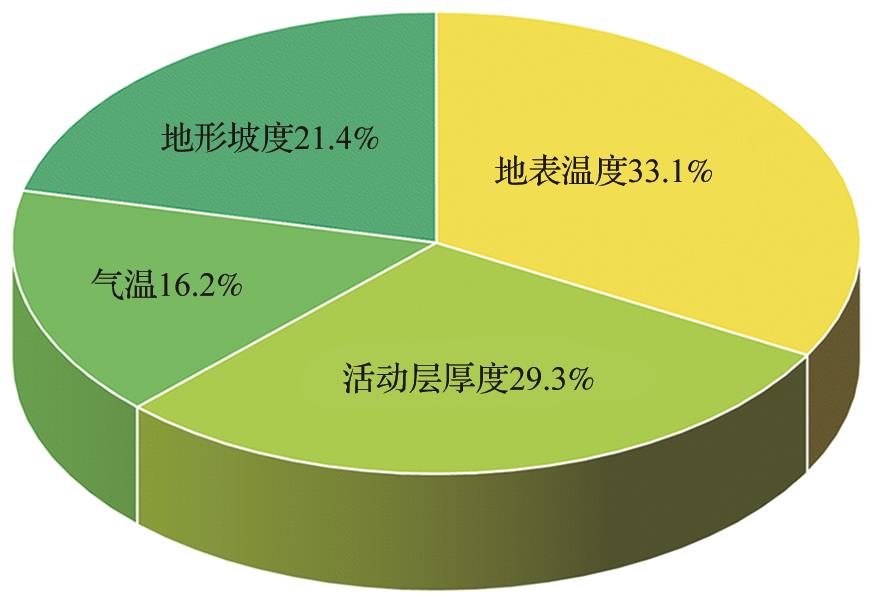

图11 各因子对地表形变的贡献度
Fig. 11 Contribution of various factors to surface deformation

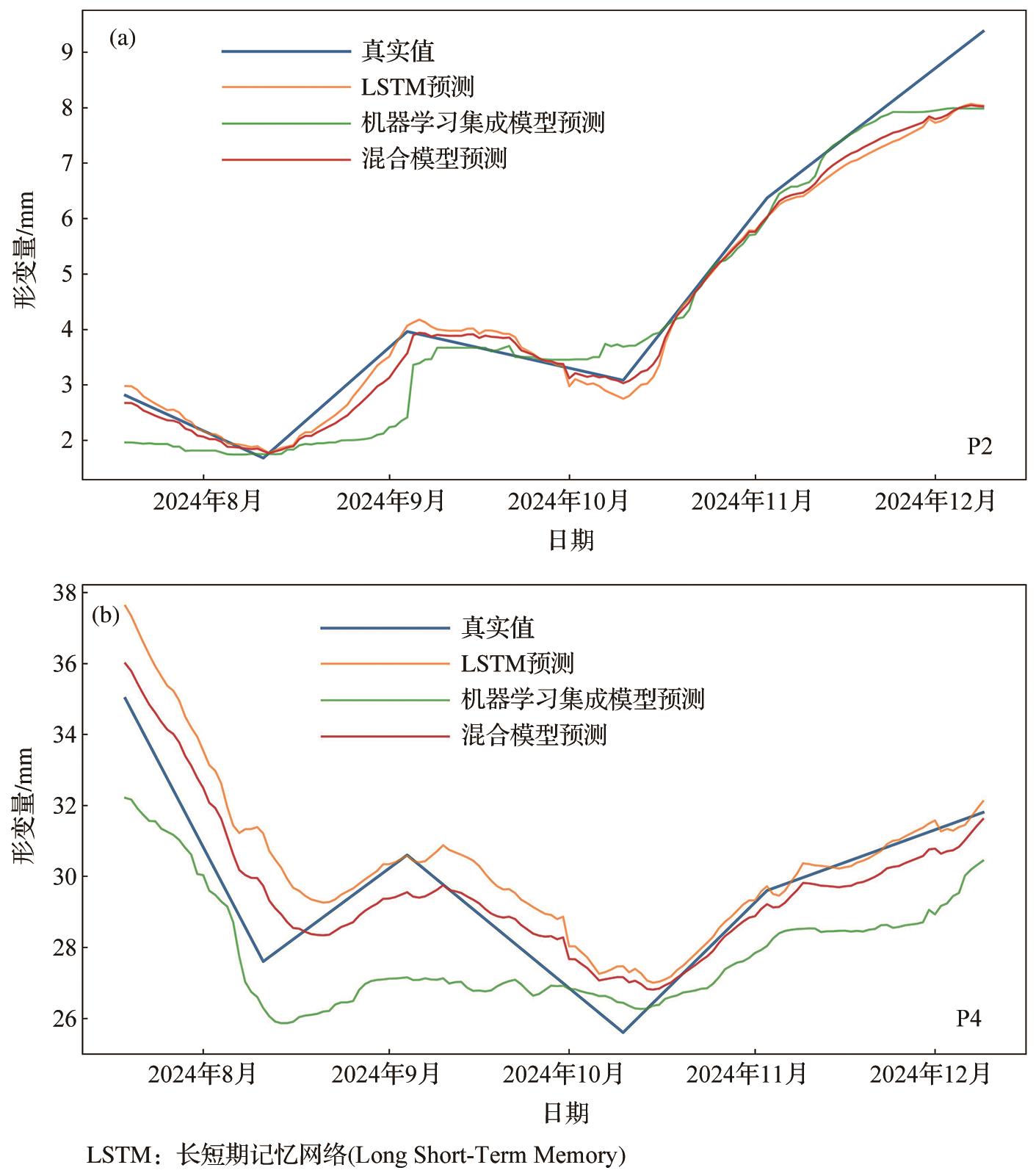

图12 P2P4特征点测试集预测效果
Fig. 12 Prediction results of deformation points P2 and P4
表3 各模型预测效果评估 (mm)
Table 3 Evaluation of prediction performance of various models

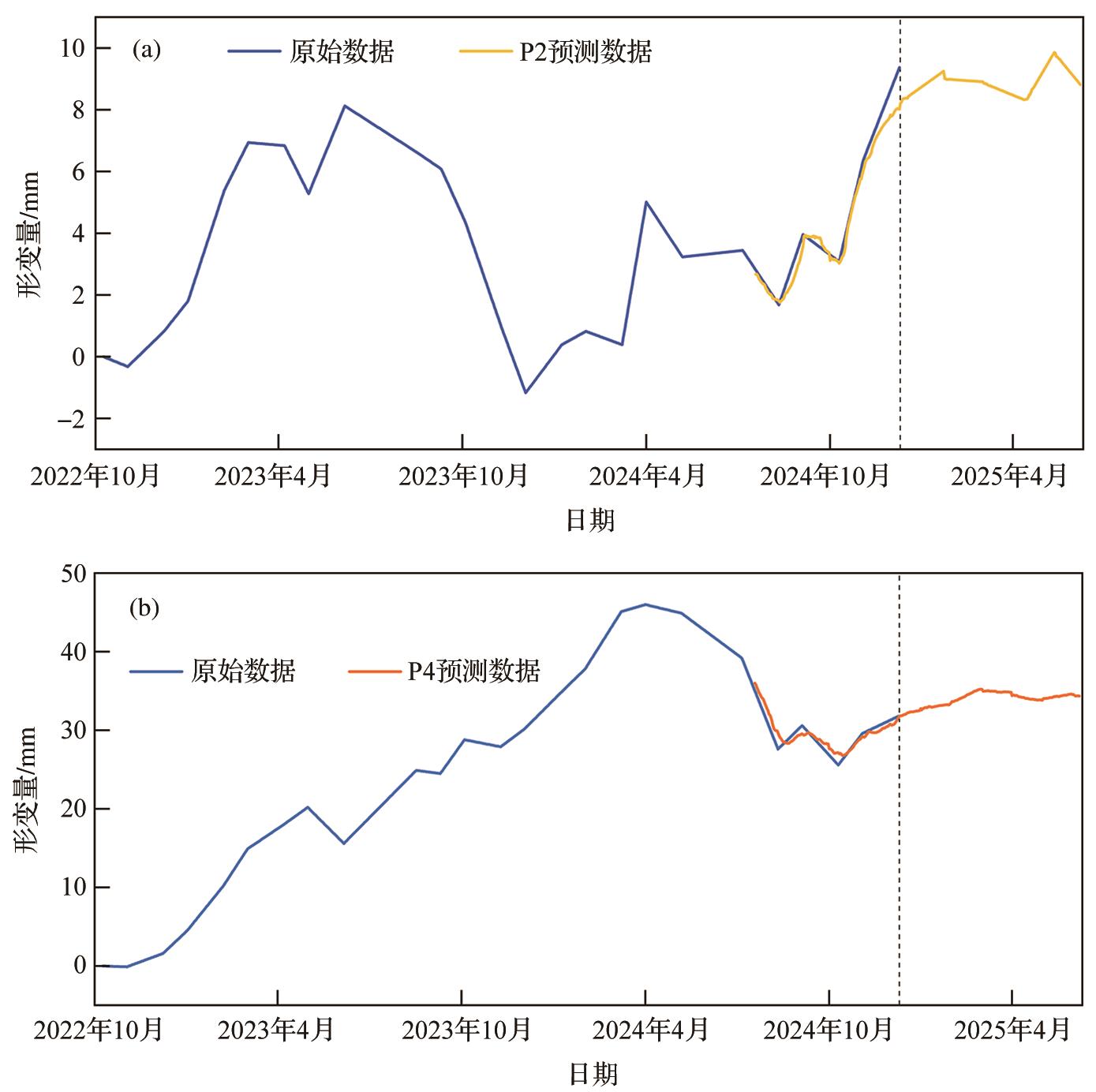

图13 P2P4特征点时间序列混合模型预测值
Fig. 13 Predicted values from the P2 and P4 feature point time series mixture model
[1] Zhao L, Zou D F, Hu G J, et al. Changing climate and the permafrost environment on the Qinghai-Tibet (Xizang) Plateau[J]. Permafrost and Periglacial Processes202031(3):396-405.
[2] Chang Y, Lyu S H, Luo S Q, et al. Estimation of permafrost on the Tibetan Plateau under current and future climate conditions using the CMIP5 data[J]. International Journal of Climatology201838(15): 5 659-5 676.
[3] Chen F L, Lin H, Zhou W, et al. Surface deformation detected by ALOS PALSAR small baseline SAR interferometry over permafrost environment of Beiluhe section, Tibet Plateau, China[J]. Remote Sensing of Environment2013138: 10-18.
[4] Chen J, Wu T H, Zou D F, et al. Magnitudes and patterns of large-scale permafrost ground deformation revealed by Sentinel-1 InSAR on the central Qinghai-Tibet Plateau[J]. Remote Sensing of Environment2022268: 112778.
[5] Zhang Z J, Wang M M, Wu Z J, et al. Permafrost deformation monitoring along the Qinghai-Tibet Plateau engineering corridor using InSAR observations with multi-sensor SAR datasets from 1997-2018[J]. Sensors201919(23): 5306.
[6] Lindley S J, Handley J F, McEvoy D, et al. The role of spatial risk assessment in the context of planning for adaptation in UK urban areas[J]. Built Environment200733(1): 46-69.
[7] Wang Z J, Li S S. Detection of winter frost heaving of the active layer of Arctic permafrost using SAR differential interferograms[C]// IEEE 1999: international geoscience and remote sensing symposium. Hamburg, Germany: IGARSS' 991999: 1946-1948.
[8] Fulati Gulimire, Zhang Xuexia, Hu Yunzhe, et al. Monitoring and analysis of seasonal surface deformation in the black soil region of the Songnen Plain from 2016 to 2021[J]. Progress in Geography202443(6): 1 203-1 218.
古丽米热·甫拉提, 张学霞, 胡韵哲, 等. 2016—2021年松嫩平原黑土区季节性地表形变监测与分析[J]. 地理科学进展202443(6): 1 203-1 218.
[9] Berardino P, Fornaro G, Lanari R, et al. A new algorithm for surface deformation monitoring based on small baseline differential SAR interferograms[J]. IEEE Transactions on Geoscience and Remote Sensing200240(11): 2 375-2 383.
[10] Du Qingsong. InSAR-based study for surface deformation monitoring and stability evaluation in permafrost areas of Qinghai-Tibet Engineering Corridor in the Qinghai-Tibet Plateau, China[J]. Acta Geodaetica et Cartographica Sinica202453(7): 1 463.
杜青松. 基于InSAR的青藏工程走廊多年冻土区地表形变监测及稳定性评价研究[J]. 测绘学报202453(7): 1 463.
[11] Buchelt S, Blöthe J H, Kuenzer C, et al. Deciphering small-scale seasonal surface dynamics of rock glaciers in the Central European Alps using DInSAR time series[J]. Remote Sensing202315(12): 2982.
[12] Huo T B, He Y, Liu Y X, et al. InSAR-based surface deformation analysis and trend prediction in permafrost areas along the Qinghai-Tibet railway using sentinel-1A and environmental factors[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing202518: 9 297-9 320.
[13] Zhang Zhengjia, Lin Hong, Chen Fulong, et al. Risk assessment of permafrost thawing along Qinghai-Tibet engineering corridor integration ground deformation[J]. Journal of Geo-Information Science202426(11): 2 552-2 566.
张正加, 林洪, 陈富龙, 等. 顾及形变信息的青藏铁路工程走廊融沉风险评估[J]. 地球信息科学学报202426(11): 2 552-2 566.
[14] He Y, Huo T B, Gao B H, et al. Thaw slump susceptibility mapping based on sample optimization and ensemble learning techniques in Qinghai-Tibet railway corridor[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing202417: 5 443-5 459.
[15] Xia Xingni, Zhao Lin, Wang Lingxiao, et al. Deformation analysis of permafrost in the Xidatan-Kunlun Pass region based on SBAS-InSAR technology[J]. Journal of Glaciology and Geocryology202345(6): 1 716-1 729.
夏星旎, 赵林, 汪凌霄, 等. 基于SBAS-InSAR技术的西大滩—昆仑垭口地区多年冻土形变分析[J]. 冰川冻土202345(6): 1 716-1 729.
[16] Yang Sha, Wang Qijie, Li Jiachen, et al. InSAR estimation of permafrost active layer thickness considering soil conduction-convection heat transfer effect[J]. Chinese Journal of Geophysics202467(7): 2 568-2 581.
杨沙, 王琪洁, 李佳晨, 等. 顾及土壤热传导—对流效应的InSAR冻土活动层厚度估计[J]. 地球物理学报202467(7): 2 568-2 581.
[17] Jia Shichao, Zhang Tingjun, Fan Chengyan, et al. Research progress of InSAR technology in permafrost[J]. Advances in Earth Science202136(7): 694-711.
贾诗超, 张廷军, 范成彦, 等. InSAR技术多年冻土研究进展[J]. 地球科学进展202136(7): 694-711.
[18] Zhang Z J, Lin H, Wang M M, et al. A review of satellite synthetic aperture radar interferometry applications in permafrost regions: current status, challenges, and trends[J]. IEEE Geoscience and Remote Sensing Magazine202210(3): 93-114.
[19] Cui Jian, Geng Xu, Li Yonghui, et al. Time-series InSAR monitoring of surface deformation and analysis of seasonal deformation laws in Huanxiling Oilfield[J/OL]. Geology in China20251-11 (2025-05-07)[2025-05-25]. .
崔健, 耿旭, 李永辉, 等. 欢喜岭油田地表形变时序InSAR监测和季节性形变规律分析[J/OL]. 中国地质20251-11 (2025-05-07)[2025-05-25]. .
[20] Zhang Yiming, Tang Yulei, Feng Junbo. Predicting and analysing glaciers in the Qinghai-Xizang Plateau: a random forest model[J]. Arid Land Geography202548(8): 1 342-1 352.
张毅明, 汤宇磊, 冯俊波. 基于随机森林模型的青藏高原冰川预测及分析[J]. 干旱区地理202548(8): 1 342-1 352.
[21] Sun Xiwen, He Xiaoxing, Lu Tieding, et al. Mix variational mode decomposition long short-term memory for predicting of reservoir surface displacement and deformation[J]. Journal of National University of Defense Technology202547(3): 151-161.
孙喜文, 贺小星, 鲁铁定, 等. 混合变分模态长短期记忆网络水库表面位移形变预测[J]. 国防科技大学学报202547(3): 151-161.
[22] Zhou Huayun, Zhao Lin, Tian Liming, et al. Monitoring and analysis of surface deformation in the permafrost area of Wudaoliang on the Tibetan Plateau based on Sentinel-1 data[J]. Journal of Glaciology and Geocryology201941(3): 525-536.
周华云, 赵林, 田黎明, 等. 基于Sentinel-1数据对青藏高原五道梁多年冻土区地面形变的监测与分析[J]. 冰川冻土201941(3): 525-536.
[23] Wang J, Wang C, Zhang H, et al. Freeze-thaw deformation cycles and temporal-spatial distribution of permafrost along the Qinghai-Tibet railway using multitrack InSAR processing[J]. Remote Sensing202113(23): 4744.
