近期冰川表面径流系数变化的影响因素----以天山乌鲁木齐河源1号冰川为例

采用水量平衡法计算得到天山乌鲁木齐河源1号冰川1982--2014年物质平衡值,与实测物质平衡值对比分析发现:①水量平衡法适用于冰川区多年物质平衡的计算,其中1号冰川1982--2014年计算值与实测值误差在1%以内,与之对应的山岩区和冰面径流系数分别为0.7和0.85.②1982--2005年的物质平衡值与实测物质平衡值高度相关,且误差较小,在这一阶段径流系数能较好地反映冰川区的产流情况;而2005--2014年计算得到的物质平衡值与实测物质平衡值之间有较大差距,且变化趋势差异明显,说明这一阶段径流系数受一些因素影响存在较大的波动.选取误差较大的2005--2008年和误差较小的1996--1999年进行逐月分析,发现在夏平衡中,计算结果普遍要高于实测物质平衡值.分析认为水热条件的改变以及相应的冰川产流系数的变化是导致这一差异的主要原因.分析结果表明在长时间尺度上利用水量平衡计算冰川物质平衡值准确度较高.

关键词: 水量平衡法, 物质平衡, 径流系数, 冰面蒸发, 乌鲁木齐河源1号冰川

The mass balance of Urumqi Glacier No.1 (Glacier No.1) was calculated by water balance method and direct measurement method respectively. Water balance method is a kind of calculating method, which studies about the relationship between storage, supply and consumption of water resource in a certain area in a certain period of time (Time for this research is a mass balance year).Mass balance calculated by this method and acquired by filed observation was compared and analyzed. Therefore we got their correlation and expected to apply it to other high latitude and altitude areas.Mass balance and glacial runoff data of Urumqi Glacier No.1 used in this research were acquired from Annual Report of Tianshan Glacier Station, and that started observing in 1959.The data used by this study is collected from 1982-2014. The data of runoff was measured by the hydrology station of Urumqi Glacier No.1 Glacier, which is located in the lower reaches of the glacier about 300 m, and catchment area is about 3.34 km².The data of precipitation and runoff was provided by Daxigou Meteorological Station located in the altitude of 3 539 m, which is distant from the terminus of Urumqi No.1 Glacier about 3 km.Through the comparison of these two kinds of methods, we found that: ①It is better to use water balance method to calculate the mass balance in long time series. The result of water balance method was 1% different from the result of direct measurement during 1982-2014, and the corresponding glacier runoff coefficients were 0.7 and 0.85, respectively. ②The results of water balance method during 1982-2005 had a high correlation with the direct measurements, and the error was relatively small. Besides that, the glacier runoff coefficient reflected the glacier runoff well. However, there were obvious differences between the two kinds of methods during 20052012 which showed that the glacier runoff coefficients changed a lot. According to analyzing the two periods of 2005 to 2008 with large error and 1996 to 1999 with small error, we found that the results of water balance method were generally higher than that of the direct measurement in summer. The analysis showed that the changes of water conditions and the corresponding in the glacier runoff coefficient were the main reasons for these differences.The data of precipitation and runoff in the study area was combined with the measured mass balance data, and their potentially internal relationship was found, which could be used to acquire the meteorological data easily and to deduce the mass balance data which is difficult to be acquired. This conclusion is helpful to extending the study area from a single glacier or basin to a large regional scale. Limited to the shortage of data, for the example, this study only discusses the single glacier, Urumqi Glacier No.1. Overall, this study shows that using the potential of water balance method can compute the data of glacier mass balance more accurate on long time scale.

Key words: Water balance, Mass balance, The coefficient of runoff, Ice evaporation, Urumqi Glacier No.1.

中图分类号:

P343.6

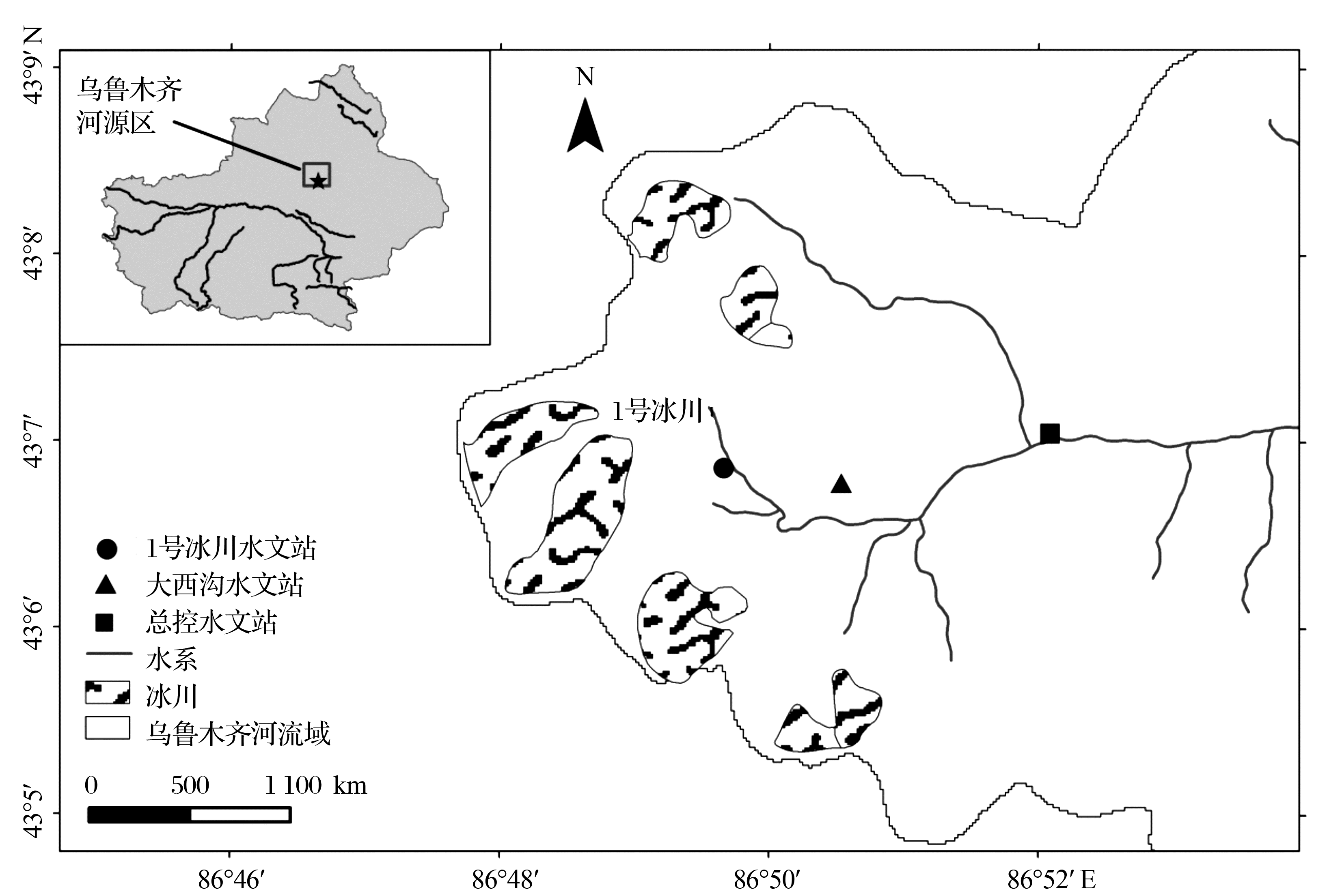

图1 乌鲁木齐河源1号冰川及水文观测点的地理位置

Fig.1 Location of Urumqi Glacier No.1 at the headwaters of Urumqi River and hydrological stations

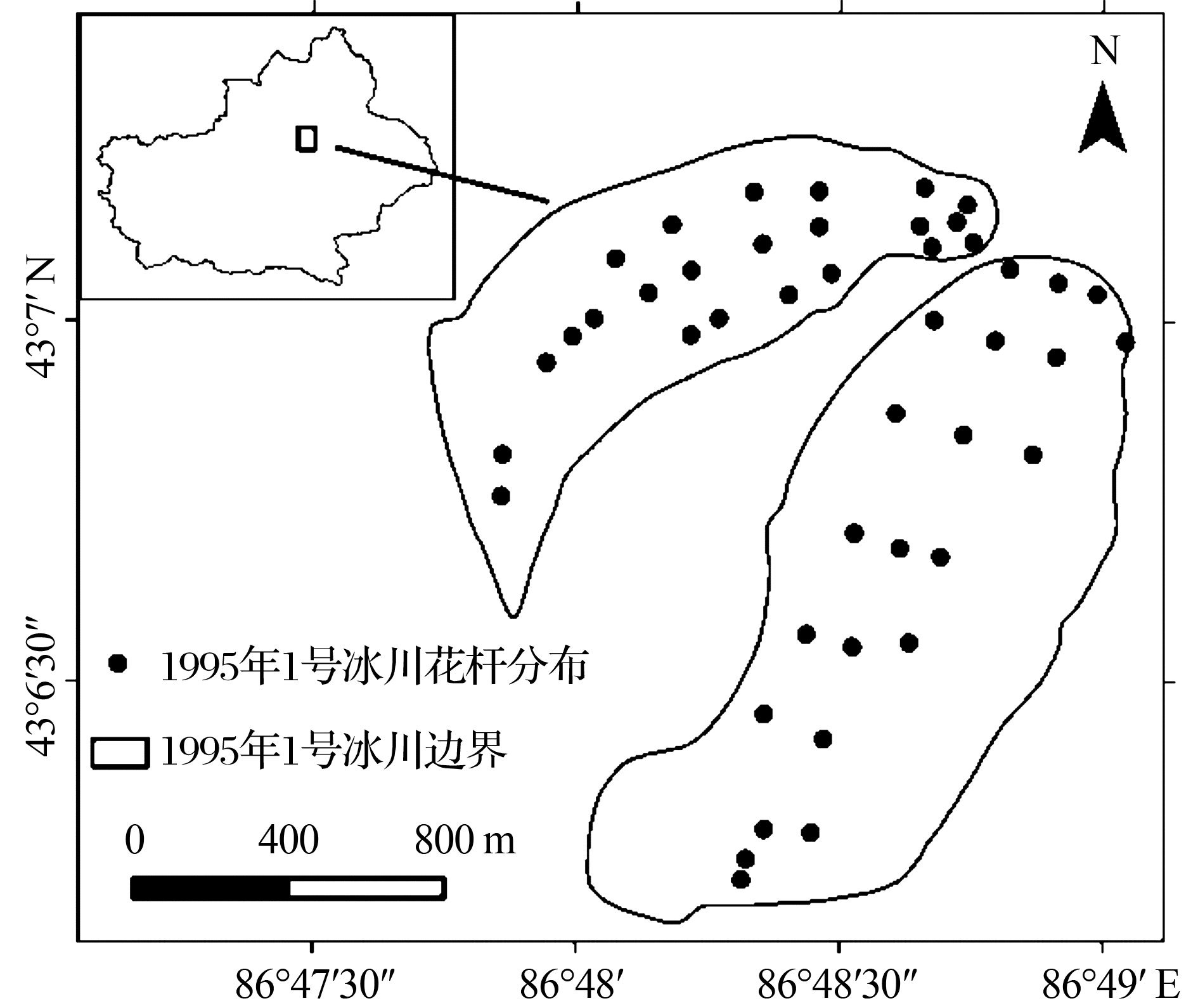

图2 乌鲁木齐河源1号冰川1995年花杆点

Fig.2 Distribution of the measured stakes on the Urumqi Glacier No.1 in 1995

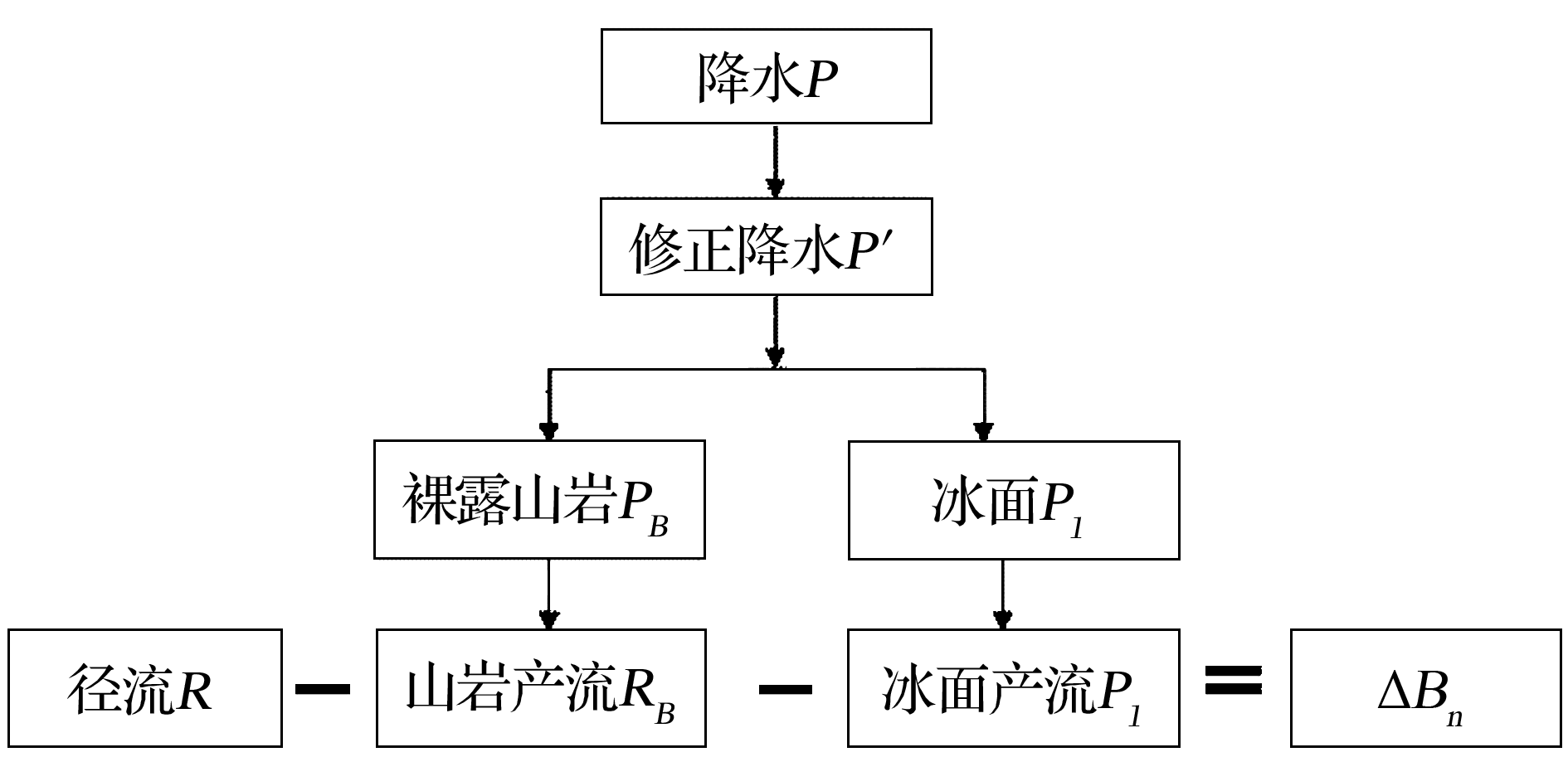

图3 水量平衡法流程图

Fig.3 Flow chart of water balance method

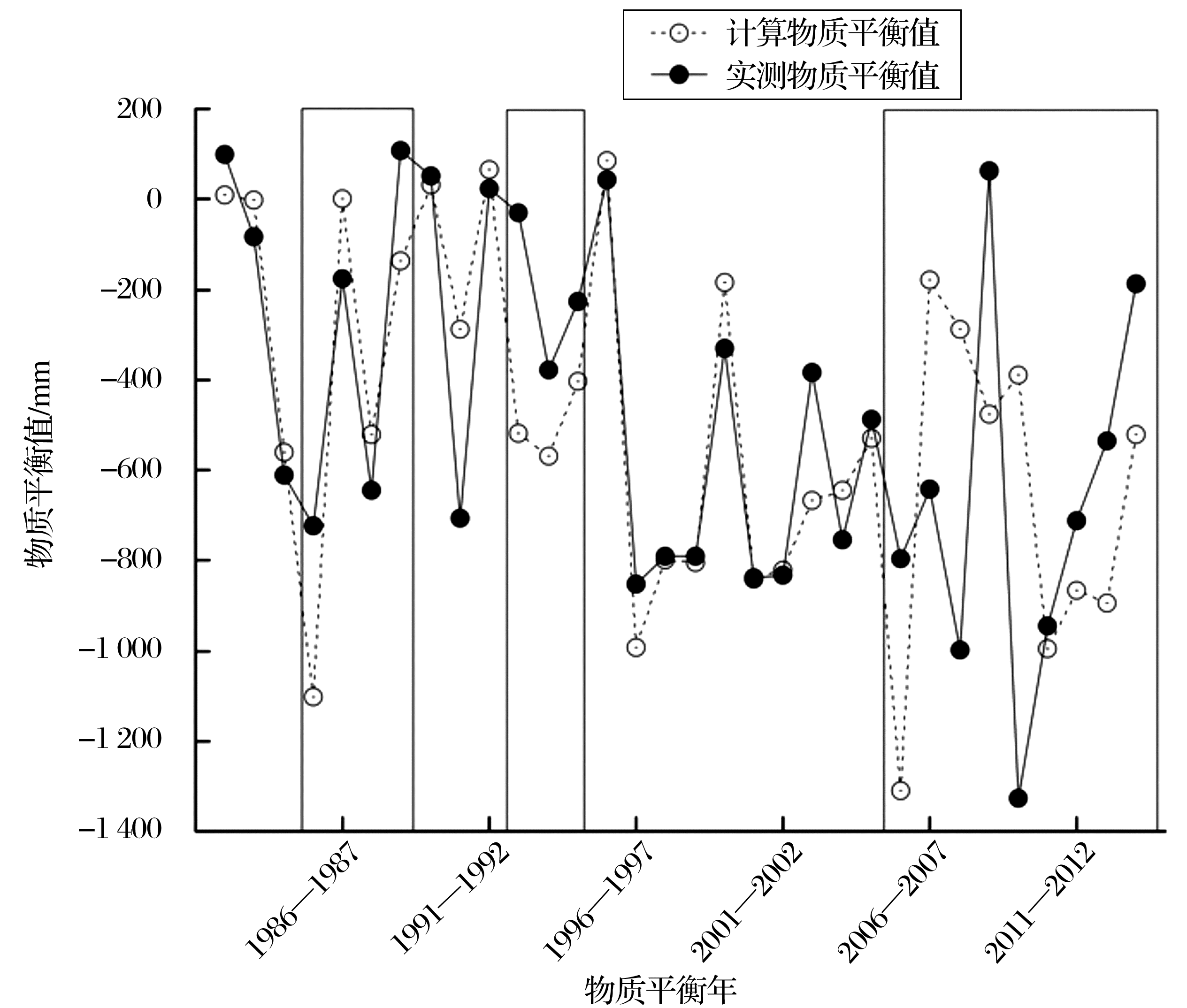

图4 实测物质平衡值和水量平衡法计算物质平衡值对比图

Fig 4. Comparison of the mass balance calculated by water balance method and measurement

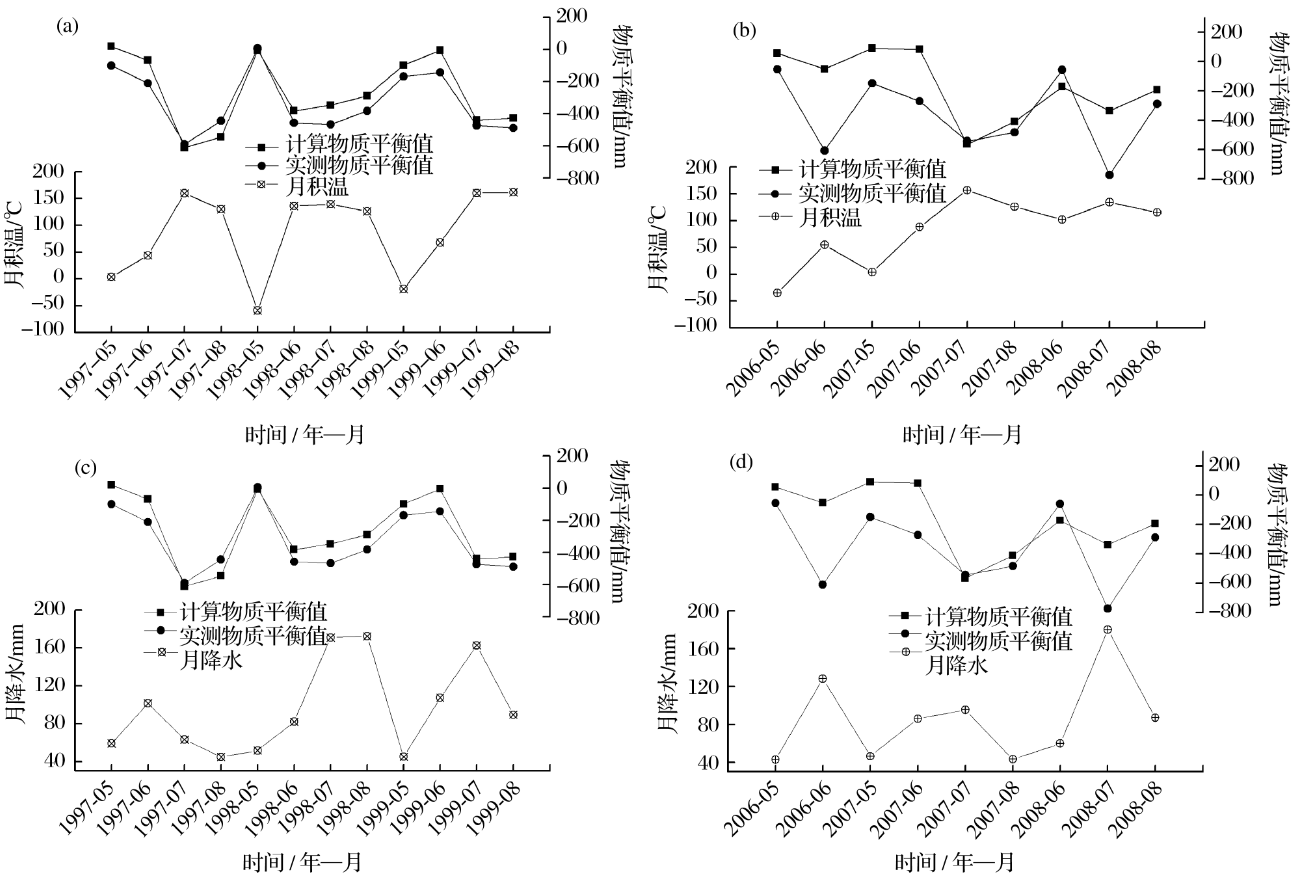

图5 1997--1999年(a),(c)和2006--2008年(b),(d)夏季物质平衡值与月累积气温,降水的关系图

Fig 5. Relationships between mass balance, precipitation and temperature in summer of 1997-1999 (a),(c)and 2006-2008(b),(d)

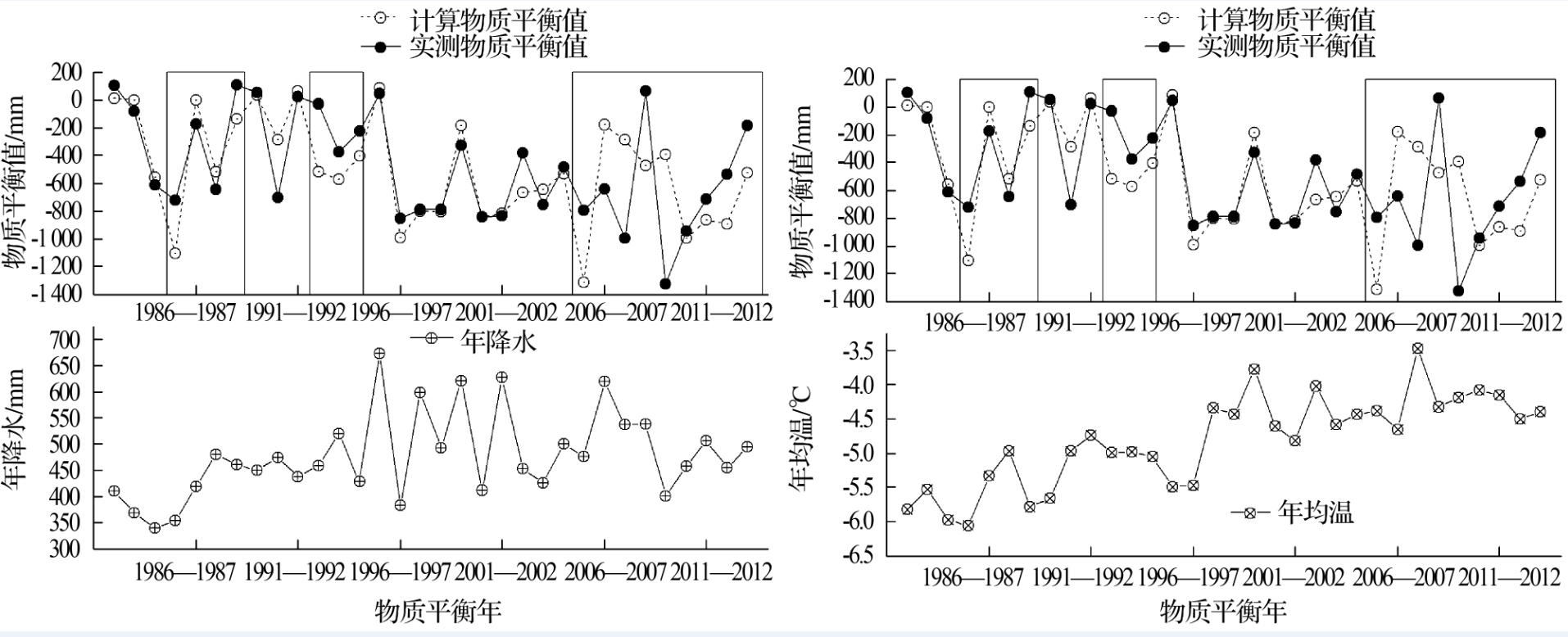

图6 实测与计算物质平衡值对比图和年降水,年均温的关系图

Fig 6. Relationships between mass balance and annual average of precipitation and temperature

[1]	Qin Dahe, Ding Yongjian.Cryospheric changes and their impacts: Present, trends and key issues[J].Advances in Climate Change Research,2009,5(4): 187-195.
	[秦大河, 丁永建. 冰冻圈变化及其影响研究----现状,趋势及关键问题[J]. 气候变化研究进展, 2009,5(4): 187-195.]
[2]	Ageta Y, Higuchi K.Estimation of mass balance components of a summer-accumulation type glacier in the Nepal Himalaya[J]. Geografiska Annaler (Series A),1984,66(3): 249-255.
[3]	Luo Guangxiao, Liu Li, Wu Liping.Analysis on the hydrologic properties of Yiwu River valley[J].Arid Land Geography,1999, 22(1): 47-52.
	[骆光晓, 刘莉,吴力平. 伊吾河流域水文特性分析[J]. 干旱区地理, 1999, 22(1): 47-52.]
[4]	Li Zhongqin, Li Kaiming, Wang Lin.Study on recent glacier changes and their impact on water resources in Xin Jiang, North Western China[J].Quaternaty Sciences,2010, 30(1): 96-106.
	[李忠勤, 李开明, 王林. 新疆冰川近期变化及其对水资源的影响研究[J]. 第四纪研究, 2010, 30(1): 96-106.]
[5]	Yang Zhenniang, Zeng Qunzhu.Glacier Hydrology[M]. Chongqing: Chongqing Press, 2001.
	[杨针娘,曾群柱. 冰川水文学[M].重庆:重庆出版社, 2001.]
[6]	Qin Dahe.Glossary of Cryosphere Science[M]. Beijing: China Meteorological Press,2014.
	[秦大河. 冰冻圈科学词典[M].北京:气象出版社,2014.]
[7]	Xie Zichu, Liu Chaohai.Introduction of Glacial Science[M]. Shanghai: Shanghai Popular Science Press,2010.
	[谢自楚,刘潮海.冰川学导论[M]. 上海:上海科学普及出版社, 2010.]
[8]	Han Tianding, Liu Shiyin, Ding Yongjian, et al.A characreristics mass balance of Glacier No.1 at the headwaters of the Urumuqi River, Tianshan Mountains[J]. Advances in Earth Science, 2005, 20(3):298-303.
	[韩添丁, 刘时银, 丁永建,等. 天山乌鲁木齐河源1号冰川物质平衡特征[J]. 地球科学进展, 2005, 20(3):298-303.]
[9]	Chen Rensheng, Yang Yong, Han Chuntan, et al.Field experimental research on hydrological function over several typical underlying surfaces in the cold regions of western China[J]. Advances in Earth Science,2014, 29(4):507-514.
	[陈仁升, 阳勇, 韩春坛,等. 高寒区典型下垫面水文功能小流域观测试验研究[J]. 地球科学进展, 2014, 29(4):507-514.]
[10]	Zhang Shifeng, Jia Shaofeng.Water balance and security study in the Haihe Basin[J]. Journal of Natural Resources,2003, 18(6):684-691.
	[张士锋, 贾绍凤. 海河流域水量平衡与水资源安全问题研究[J]. 自然资源学报, 2003, 18(6):684-691.]
[11]	Zhang Guofei, Li Zhongqin, Wang Wenbin,et al.A positive mass balance appeared at Urumuqi Glacier No. 1 in 2009[J].Arid Land Geography,2013, 36(2): 263-268.
	[张国飞, 李忠勤, 王文彬, 等. 乌鲁木齐河源 1 号冰川 2009 年出现物质正平衡[J]. 干旱区地理, 2013, 36(2): 263-268.]
[12]	Tianshan Glaciological Station.Annual Report of Tianshan Glaciological Station: Vol. 5[R]. Lanzhou: Tianshan Glaciological Station, CAS,1982.
	[天山冰川站. 天山冰川站年报: 5卷[R]. 兰州: 中国科学院天山站,1982.]
[13]	Tianshan Glaciological Station.Annual Report of Tianshan Glaciological Station: Vol. 20[R]. Lanzhou: Tianshan Glaciological Station, CAS,2012.
	[天山冰川站. 天山冰川站年报: 20卷[R]. 兰州: 中国科学院天山站,2012.]
[14]	Tianshan Glaciological Station.Annual Report of Tianshan Glaciological Station: Vol. 18[R]. Lanzhou: Tianshan Glaciological Station, CAS,2008.
	[天山冰川站. 天山冰川站年报: 18卷[R]. 兰州: 中国科学院天山站,2008.]
[15]	Li Zhongqin, Shen Yongping, Wang Feiteng, et al.Response of melting ice to climate change in the Glacier No.1 at the headwater of Urumuqi River, Tianshan Mountain[J].Advances in Climate Change Research, 2007, 3(3): 132-137.
	[李忠勤, 沈永平, 王飞腾, 等. 天山乌鲁木齐河源 1 号冰川消融对气候变化的响应[J]. 气候变化研究进展, 2007, 3(3): 132-137.]
[16]	Shi Yafeng, Liu Chaohai, Wang Zongtai.The Concise Catalogue of Chinese Glacier[M].Shanghai: Shanghai Poular Science Press,2005.
	[施雅风, 刘潮海, 王宗太. 简明中国冰川编目[M].上海:上海科学普及出版社,2005.]
[17]	Shangguan D, Liu S, Ding Y, et al.Glacier changes during the last forty years in the Tarim Interior River Basin, northwest China[J]. Progress in Natural Science,2009, 19(6): 727-732.
[18]	Wu Shanshan, Yao Zhijun, Jiang Liguang, et al.Method review of modem glacier volume change[J]. Advances in Earth Science,2015, 30(2):237-246.
	[吴珊珊, 姚治君, 姜丽光,等. 现代冰川体积变化研究方法综述[J]. 地球科学进展, 2015, 30(2):237-246.]
[19]	Li Xiangying, Li Zhongqin, Chen Zhenghua, et al.Seaspnal variations and elution processes of pH and electrical conductivity in snow pits on Glacier No.1 at the Urumqi River head Tianshan[J]. Advances in Earth Science,2006, 21(5):487-495
	[李向应, 李忠勤, 陈正华,等. 天山乌鲁木齐河源1号冰川雪坑中pH值和电导率的季节变化及淋溶过程[J]. 地球科学进展, 2006, 21(5):487-495.]
[20]	Yang Huian, Li Zhongqin, Ye Baisheng, et al.Study on mass balance and process of Glacier No.1 at the headwaters of the Urumqi River in the past 44 years[J].Arid Land Geography, 2005, 28(1): 76-80.
	[杨惠安, 李忠勤, 叶柏生, 等. 过去44 年乌鲁木齐河源一号冰川物质平衡结果及其过程研究[J]. 干旱区地理, 2005, 28(1): 76-80.]
[21]	Li Wenyun, Zhang Wei, Ge Jianmin, et al.Analysis method and application of water balance[J]. Resources Protection, 2012, 27(6): 83-87.
	[李文运, 张伟, 戈建民, 等. 水量平衡分析方法及应用[J]. 水资源保护, 2012, 27(6): 83-87.]
[22]	Wu Mingyuan, Zhan Daojiang, Ye Shouze.Engineering Hydrology[M].Beijing: China Water & Power Press,1987.
	[吴明远,詹道江, 叶守泽.工程水文学[M].北京:中国水利水电出版社,1987.]
[23]	Yang Zhenniang.Glacier water resources in China[J]. Resources Science, 1987,(1): 46-55.
	[杨针娘. 中国冰川水资源[J]. 资源科学, 1987,(1): 46-55.]
[24]	Yang Daqing, Jiang Tong, Zhang Yinsheng, et al.Analysis and correction of errors in precipitation measurement at the head of Urumqi River, Tianshan[J].Journal of Glaciology and Geocryology, 1988,(4):384-399.
	[杨大庆, 姜彤, 张寅生,等. 天山乌鲁木齐河源降水观测误差分析及其改正[J]. 冰川冻土, 1988,(4):384-399.]
[25]	Yang Zhenniang.The Hydrology in Cold Regions of China[M].Beijing: Science Press,2002.
	[杨针娘. 中国寒区水文[M]. 北京:科学出版社,2002.]
[26]	Pei Tesen, Zhang Xiangsong.Glacier Physic[M].Beijing: Science Press,1987.
	[佩特森, 张祥松. 冰川物理学[J].北京:科学出版社,1987.]
[27]	Li Zhongqin, Han Tianding, Jing Zhefan, et al.A summary of 40-year observed variation facts of climate and Glacier No.1 at headwater of Urumqi River, Tianshan, China[J]. Journal of Glaciology and Geocryology, 2003, 25(2): 117-123.
	[李忠勤, 韩添丁, 井哲帆, 等. 乌鲁木齐河源区气候变化和 1 号冰川40a观测事实[J]. 冰川冻土, 2003, 25(2): 117-123.]
[28]	Sun Meiping, Yao Xiaojun, Li Zhongqin, et al.Hydrological process of glacier and snow melting and runoff in Urumqi River source region, eastern Tianshan Mountains, China[J]. Acta Geographica Sinica,2014, 69(7):945-957.
	[孙美平, 姚晓军, 李忠勤, 等. 天山东段冰雪消融与产汇流水文过程[J]. 地理学报, 2014, 69(7):945-957.]
[29]	Richardson S D, Reynolds J M.An overview of glacial hazards in the Himalayas[J]. Quaternary International,2000, 65: 31-47.
[30]	Chhetri M P.Disaster management in Nepal: Problems and solutions[R]∥Natural Disaster Management. Leicester: Tudor Rose Holdings Ltd., 1999: 223.
[31]	Clarke G K C. Glacier outburst floods from "Hazard Lake", Yukon, and the problem of flood magnitude prediction[J]. Journal of Glaciology, 1982, 28: 3-21.
[32]	Pu Zongchao, Zhang Shanqing, Li Jinglin, et al.Change characteristics of reference crop Evapotranspiration in Urumqi River Basin[J]. Desert and Qasis Meteorology, 2008,2(1):41-45.
	[普宗朝, 张山清, 李景林,等. 乌鲁木齐河流域参考作物蒸散量时空变化特征[J]. 沙漠与绿洲气象, 2008,2(1):41-45.]
