地球科学进展 doi: 10.11867/j.issn.1001-8166.2025.101



奈曼天然碱矿开采—加工过程中的技术挑战与应对策略
马渊1,邵建欣2,闫艺航1,刘程琳1,杨颖1*,于建国1
  1. (1. 华东理工大学 国家盐湖资源综合利用工程技术研究中心,上海 200237;2. 中国石油辽河石油勘探局有限公司,辽宁 盘锦 124010)
  • 基金资助:
    国家自然科学基金项目(编号:U25A201445)资助.

Technical Challenges and Strategies in the Mining and Processing of Naiman Trona Deposit

MA Yuan1, SHAO Jianxin2, YAN Yihang1, LIU Chenglin1,YANG Ying1, YU Jianguo1

  1. (1. National Engineering Research Center for Integrated Utilization of Salt Lake Resources, East China University of Science and Technology, Shanghai 200237, China;2. Liaohe Petroleum Exploration Bureau Co., Ltd., Panjin Liaoning 124010, China)
  • About author:MA Yuan, research areas include high-efficiency separation and comprehensive utilization of brine resources. E-mail: Y11210001@mail.ecust.edu.cn
  • Supported by:
    Project supported by the National Natural Science Foundation of China (Grant No. U25A201445).

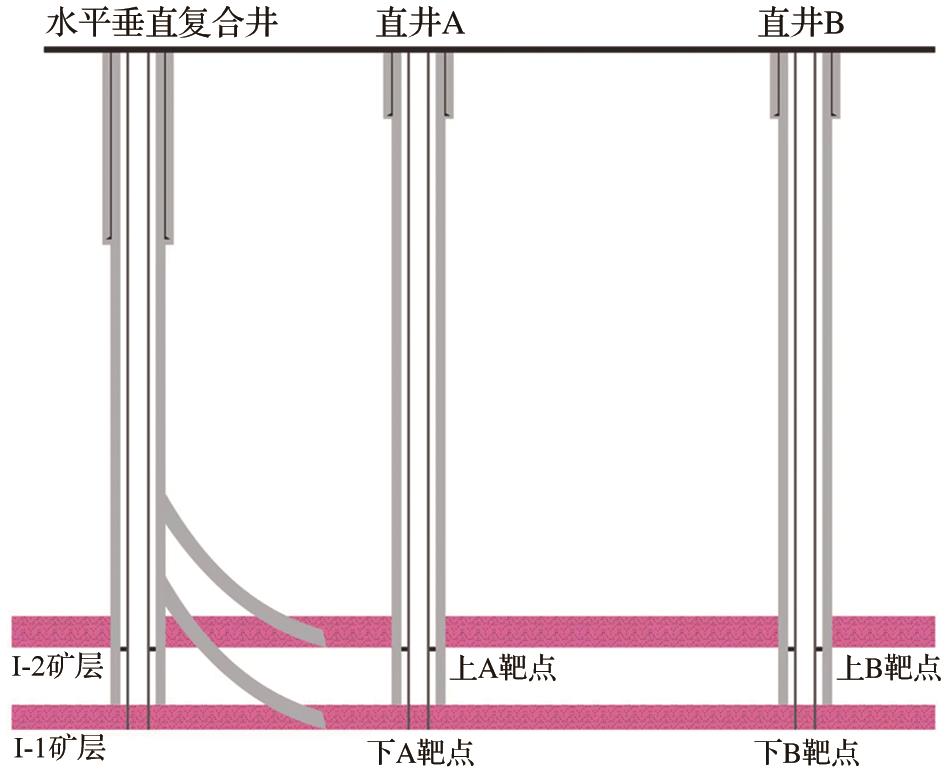

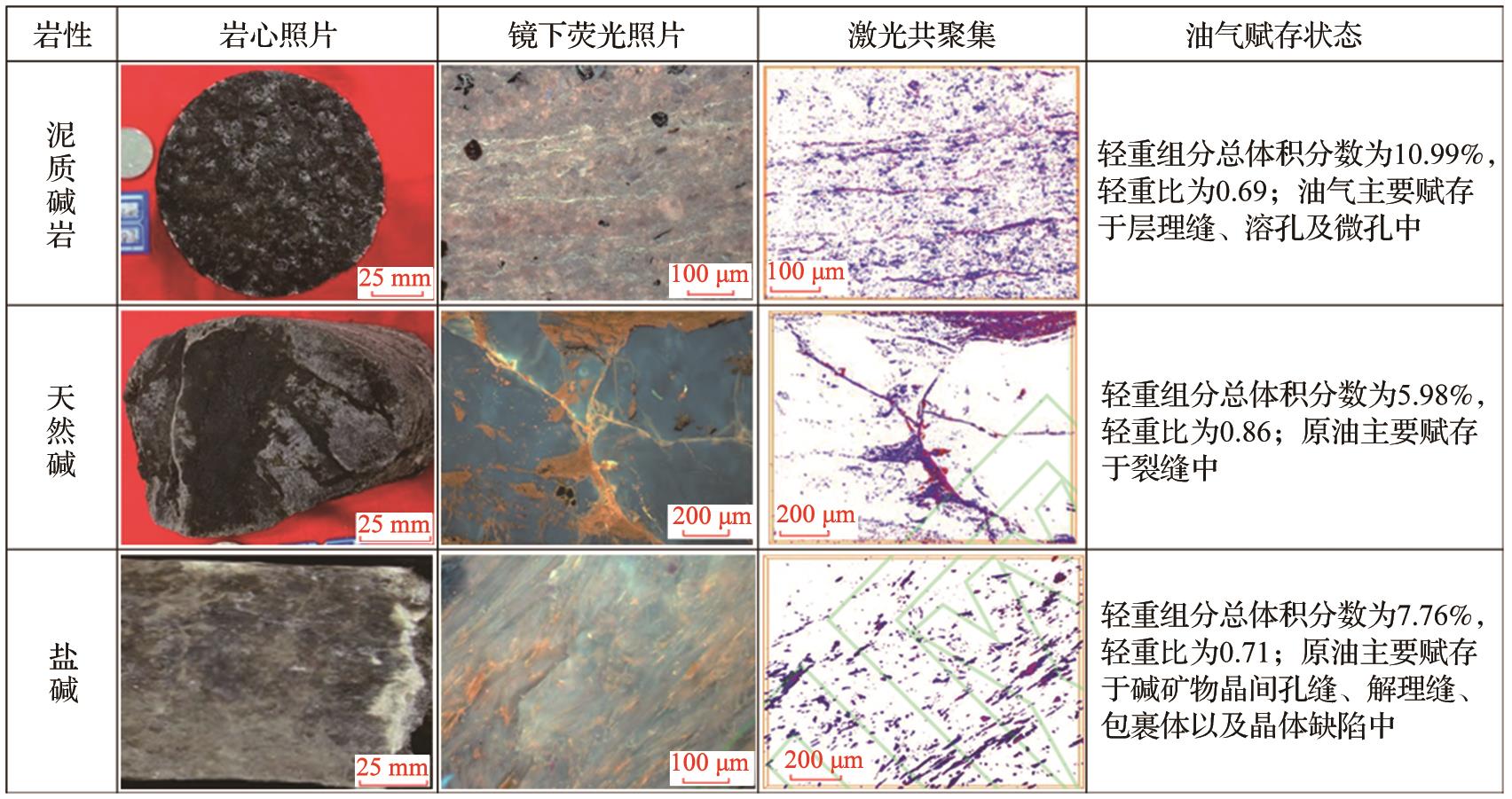

2023 年内蒙古奈曼旗发现了世界第二、亚洲第一的特大型天然碱矿,探明天然碱资源量约20.99 亿吨,为我国纯碱产业结构调整带来重要机遇。全面回顾了国内外天然碱的发展现状,阐释我国纯碱产业唯有大幅提升天然碱比重才能具有国际竞争力。针对奈曼天然碱矿共伴生油气储量高、盐碱伴生、埋藏深、倾角大等独特赋存特征,系统总结了其开发过程中面临的三大核心工程技术挑战:①奈曼天然碱矿油气富集于碱、盐矿层的晶格、裂隙和周围泥岩的孔隙、层理缝中,在溶采过程中会造成石油严重乳化;②奈曼天然碱矿中近一半资源量为中低含盐天然碱矿,目前尚未掌握低成本的盐碱高效分离技术;③奈曼天然碱矿埋藏深、倾角大,存在漏斗区块,导致水平井建井困难。未来研究应聚焦高效绿色破乳剂研发、盐碱共伴生资源综合利用,以及多学科融合下的高精度水平井建井技术,助力奈曼天然碱矿高效开发利用。
Abstract:In 2023, the Naiman trona deposit in Inner Mongolia was discovered, representing the secondlargest natural soda ash deposit in the world and the largest in Asia, with proven natural soda ash resources estimated at approximately 2.099 billion tons. This discovery presents a significant opportunity for the restructuring of China's soda ash industry. The global and domestic development status of natural soda ash was comprehensively reviewed, highlighting the necessity for China’s soda ash industry to significantly increase its reliance on natural soda ash in order to enhance its international competitiveness. Considering the distinctive geological characteristics and resource distribution of the Naiman trona deposit, characterized by high associated oil and gas reserves, co-occurrence with salt and soda, deep burial, and steep inclination, three major engineering challenges during the development process were posed. ① Hydrocarbons are enriched within the crystal lattices and fracture networks of trona and halite layers, as well as within the pore spaces and bedding fractures of the surrounding mudstone, resulting in severe oil emulsification during solution mining. ②Nearly half of the Naiman trona deposit is composed of low-to-moderate salinity trona, for which cost-effective and high-efficiency salt-soda separation technologies have yet to be developed.③ The engineering complexity of horizontal well construction is markedly increased by deep burial depth, steep formation dip, and the occurrence of funnel-shaped structural blocks. Future research should prioritize the development of high-performance and environmentally benign demulsifiers, the integrated and coordinated utilization of co-occurring salt and soda resources, and the high-precision horizontal well construction technologies enabled by multidisciplinary integration, thereby supporting the efficient and sustainable exploitation of the Naiman trona deposit.

中图分类号:

[1] 罗婷, 张永庆, 郑明贵, 董娟. 中国钾盐资源安全评估与预警研究[J]. 地球科学进展, 2022, 37(6): 575-587.
[2] 杨福强,陈科贵,黄长兵,陈愿愿,李进,马小林. PSO-LIBSVM在钾盐矿层识别中的应用研究[J]. 地球科学进展, 2019, 34(7): 757-764.
[3] 陈科贵, 李进, 黄长兵, 陈愿愿, 王刚, 刘阳. BP神经网络在富钾卤水中的应用研究[J]. 地球科学进展, 2018, 33(6): 614-622.
[4] 陈科贵, 吴刘磊, 陈愿愿, 王刚. 基于支持向量机的川中杂卤石分类识别研究[J]. 地球科学进展, 2016, 31(10): 1041-1046.
[5] 黄建国,李虎杰,李文杰,董 磊. 贵州戈塘金矿萤石微量元素特征及钐—钕测年[J]. 地球科学进展, 2012, 27(10): 1087-1093.
[6] 张西营,马海州,韩元红. 泰国—老挝呵叻高原钾盐矿床研究现状及展望[J]. 地球科学进展, 2012, 27(5): 549-556.
[7] 马培华. 中国盐湖资源的开发利用与科技问题[J]. 地球科学进展, 2000, 15(4): 365-375.
[8] 李清春, 杨剑, 杨雪, 裴家学, 郭镜, 黄勇, 葛祥英, 昝博文, 夏时斌, 邵建欣, 高畅, 庞力源, 唐永杰. 奈曼超大型天然碱矿发现的意义与启示[J]. 地球科学进展, 0, (): 1-.
[9] 禚喜准, 杨雪, 邵建欣, 庞力源, 王立成, 付文钊, 郭鹏超. 开鲁盆地奈曼超大型天然碱矿床的相带分布与形成机制[J]. 地球科学进展, 0, (): 1-.
