基于航磁数据的三维地质建模研究
侯征 1( ), 王天意 1, 于长春 2, 熊盛青 2, 邸龙 1
  1. 1. 河北地质大学勘查技术与工程学院,河北 石家庄 050031
    2.中国国土资源航空物探遥感中心,北京 100083
  • 收稿日期:2017-10-10 修回日期:2017-12-25 出版日期:2018-03-20
  • 基金资助:
    *国家重点研发计划项目“综合航空物探地球物理探测系统集成方法技术研究”(编号:2017YFC0602201);河北地质大学博士科研启动基金项目“基于三维地质建模的深部矿致异常信息提取方法研究”(编号:BQ2017055)资助.

Study of 3D Geological Modeling Based on Aeromagnetic Data

Zheng Hou 1( ), Tianyi Wang 1, Changchun Yu 2, Shengqing Xiong 2, Long Di 1

  1. 1.School of Exploration Technology and Engineering, Hebei GEO University, Shijiazhuang 050031, China
    2.China Aero Geophysical Survey and Remote Sensing Center for Land and Resources, Beijing 100083, China
  • Received:2017-10-10 Revised:2017-12-25 Online:2018-03-20 Published:2018-05-02
  • About author:

    First author:Hou Zheng(1980-),male, Hohhot City, Inner Mongolia, Lecturer. Research areas includ the aeromagnetic data processing and interpretation, geophysical nonlinear joint inversion.E-mail:hou_zheng@163.com

  • Supported by:
    Project supported by the National Key R & D Project Sub Project “Research on integrated method and technology of integrated geophysical exploration system for Aero geophysical exploration”(No.2017YFC0602201);HeBei GEO University Scientific Research Fund of Doctoral “Extracting technology of deep mine abnormal information based of 3D geological modeling”(No.BQ2017055).
全文 ( 6 ) 下载PDF ( 657 )

随着浅地表矿床发现的难度增大,资源勘查深度增加,三维建模技术在深部找矿中作用更加突出。三维地质模型的精确程度直接决定了对地质背景及成矿条件的认知程度,为此提出了一套基于航磁资料处理与三维可视化相结合的三维地质建模技术。对研究区选取适当剖面进行二维反演,获得各剖面地质模型。通过剖面相连法构建各地质单元的三维地质模型后,引入起伏地形三维块体磁场正演技术,对构建的三维初始模型正演计算,从而获取全区三维地质模型及各地质单元的航磁异常理论响应。与实测结果对比分析后,合理添加地质约束条件,重新修正模型,使得构建的模型最大程度接近实际情况,这样模型既能很好地反映地质信息,又能满足观测场与理论场的拟合误差最小,最大限度发挥地质学家的经验和对区域地质的理解。利用主块体和次级块体思想对地质体进行剖分建模,在保证模型精度的同时,减少总的模型块体个数,大幅提高模型正演运算速度,有效解决三维反演建模方法在建模过程中对模型复杂度和规模的限制,可方便构建形态复杂、不同规模的三维地质模型。并将该方法应用于湖北大冶铁矿区,构建大冶铁矿研究区三维地质模型,验证了该方法的可行性及合理性。

关键词: 三维地质建模, 航磁, 位场模拟, 大冶铁矿

With the increasing difficulty of finding the shallow surface deposit and the increasing depth of resources exploration, three-dimensional modeling technology is more apparent in deep prospecting, and its accuracy directly determines the cognitive degree of geological body and metallogenic condition. For this, we put forward a set of the extraction technology of abnormal information combined with aeromagnetic data processing with three-dimensional geological modeling. Inversing the selected profile of the study area and obtaining each profile geological model, we built three-dimensional geological model of geological units by the method of profile linked, using undulating terrain three-dimensional block magnetic field forward techniques to model the three-dimensional geological model of the whole area, and obtained the forward modeling results of the whole three-dimensional geological model and the geological unit. After the comparative analysis with the test result, adding reasonable geological constraints and revising model, through adjusting for many times, we made the model maximum close to the actual situation. The model can well reflect the geological information and make minimum fitting error of observations and theoretical field, with which geologists can use the most of their experience and get more regional geological understanding. Using the thought of main block and secondary block to subdivision modeling of geological body, on the condition of ensuring the accuracy of model, the number of the total model block decreased and the multi-window and multi-geological body parallel computing method were used to improve the modeling speed, effectively solve the limitation problem of the model complexity in the process of the three-dimensional inversion modeling method, and easily form complex and different sizes three-dimensional geological model. We applied this method to the Hubei Daye area, constructed the three-dimensional geological model of Daye Iron Mine, and verified the feasibility and rationality of this method.

Key words: Three-dimensional Geological Modeling, Aeromagnetic, Potential field simulation, Daye iron ore.

中图分类号:

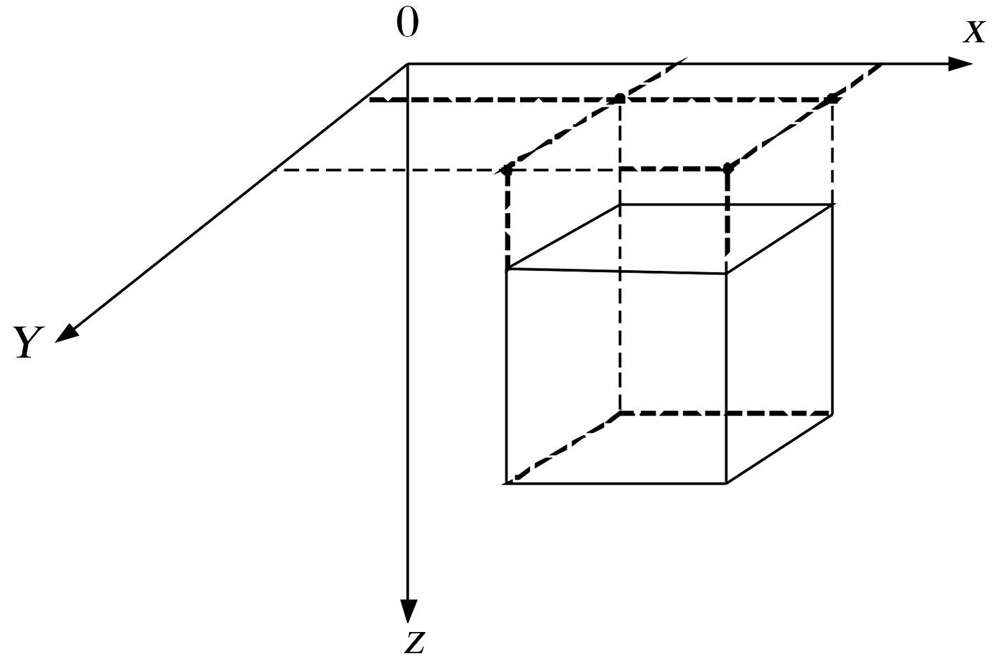

图1 长方体模型解析 “奇点”示意图
Fig.1 Analytic singularity of the cuboid model
图2 长方体组合模型示意图
Fig.2 Sketch map of cuboid combination model

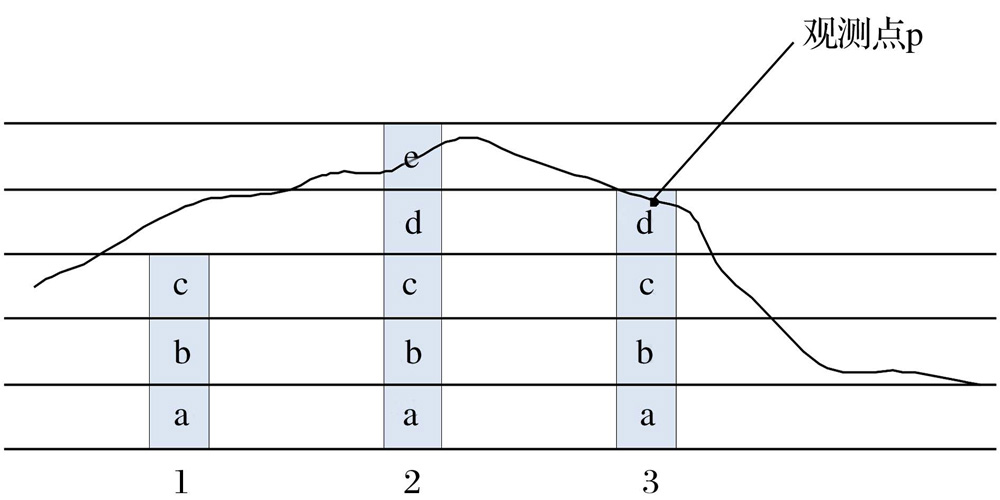

图3 曲面上观测点与模型单元空间关系示意图
Fig.3 Spatial relation between observation points on curved surface and model unit

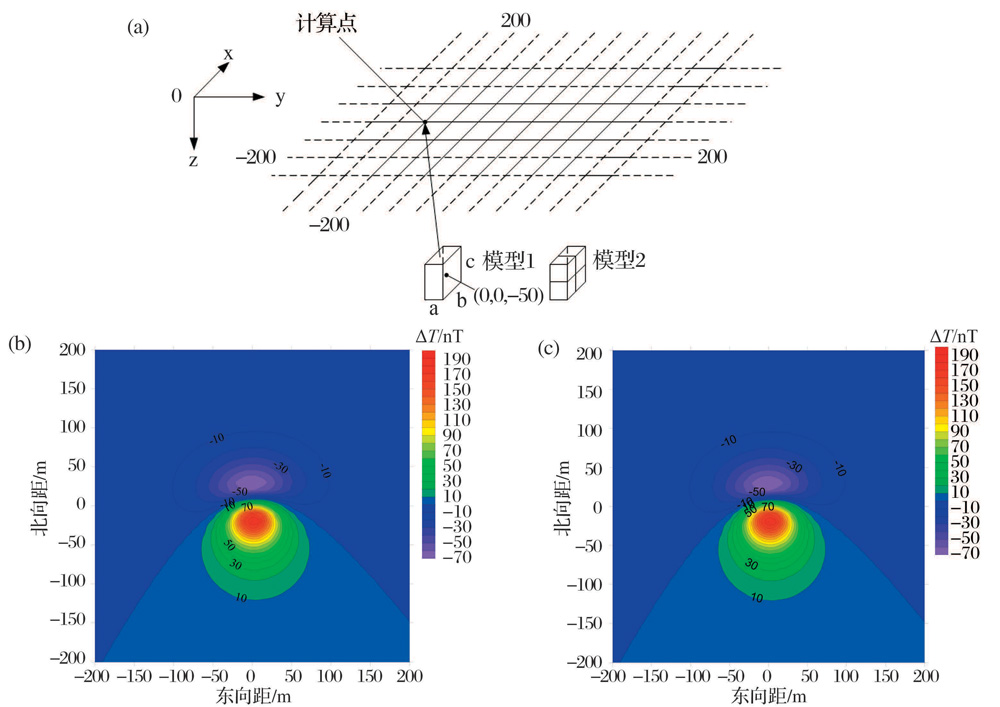

图4 观测点位于块体上方时模型示意图及正演计算结果
(a) 模型1和模型2示意图;(b) 模型1正演计算结果;(c)模型2正演计算结果
Fig.4 The model sketch and forward calculation results of observation point above the block
(a)Schematic diagram of model 1 and model 2; (b)Forward calculation results of model 1; (c)Forward calculation results of model 2

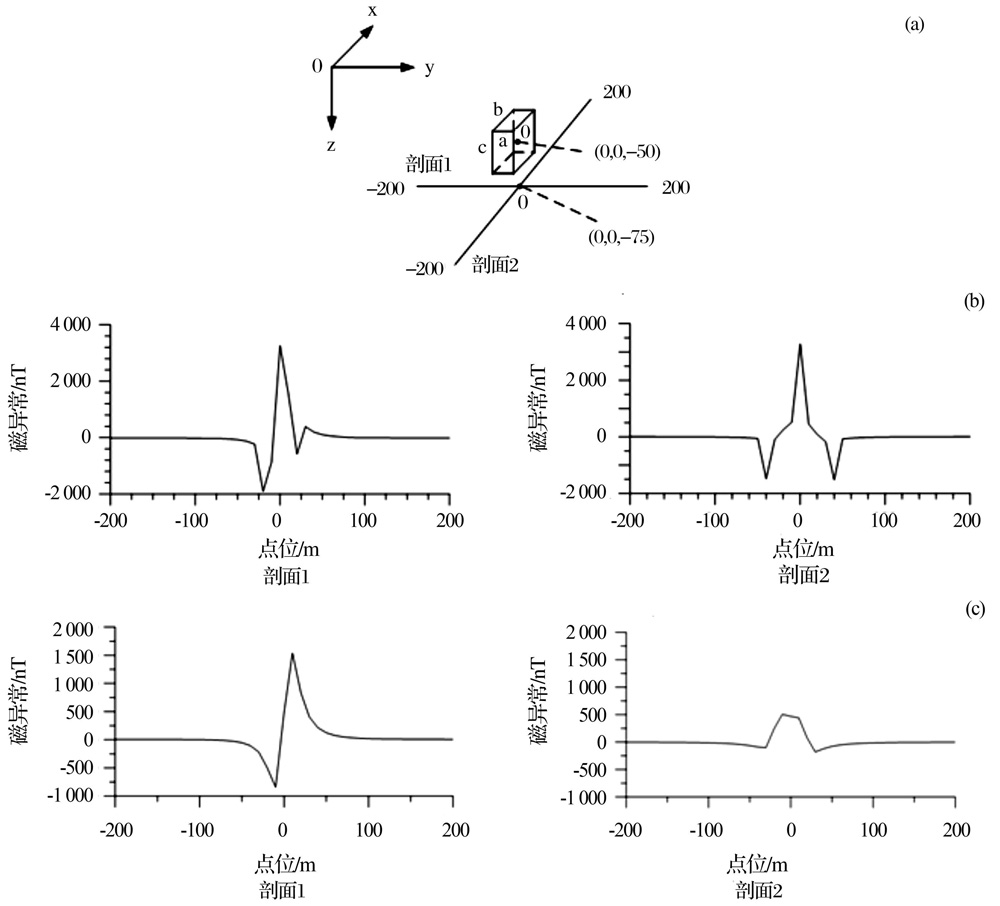

图5 观测点位于块体下方时模型示意图及正演计算结果
(a)模型单元与观测剖面示意图; (b)剖面1和剖面2正演计算结果; (c)改正后剖面1和剖面2正演计算结果
Fig.5 The model sketch and forward calculation results of observation point below the block
(a) Schematic diagram of model unit and observation section; (b)Forward calculation results of section 1 and section 2;(c)Forward calculation results after correction of section 1 and section 2
图6 岩体实体模型
Fig.6 Solid model of rock mass

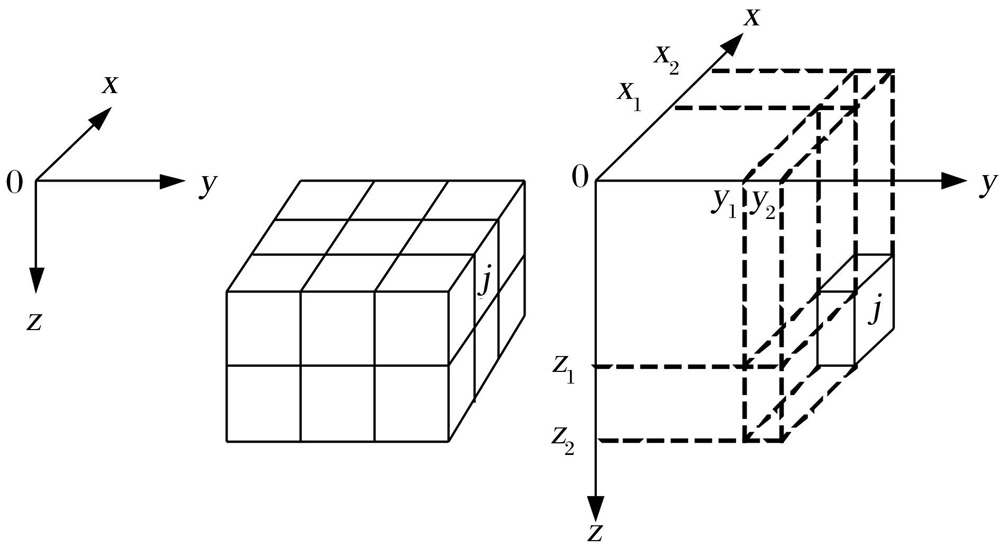

图7 三级剖分块体模型及参数
Fig.7 Three stage split block model and parameters
表1 试验模型参数
Table 1 Test model parameters
参数
名称		 磁化强度
/(A/m)		 磁偏角
/°		 磁倾角
/°		 地磁偏角
/°		 地磁倾角
/°
地质体1 1.5 -3.3 45.6 -3.3 45.6
地质体2 1.8 -3.3 45.6 -3.3 45.6
地质体3 1.75 -3.3 55.2 -3.3 45.6
矿体 200 72.8 25 -3.3 45.6

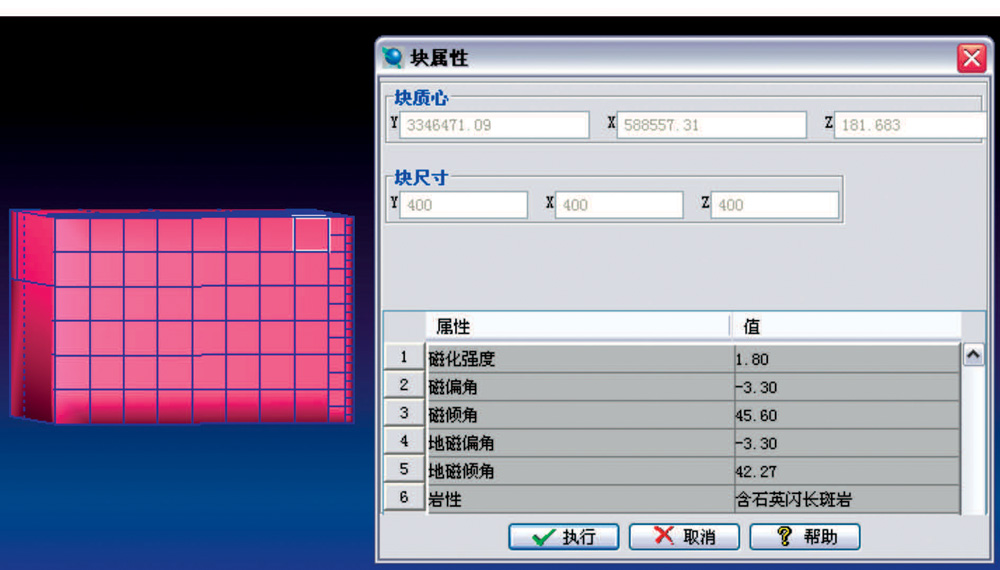

图8 试验模型
Fig.8 Test model

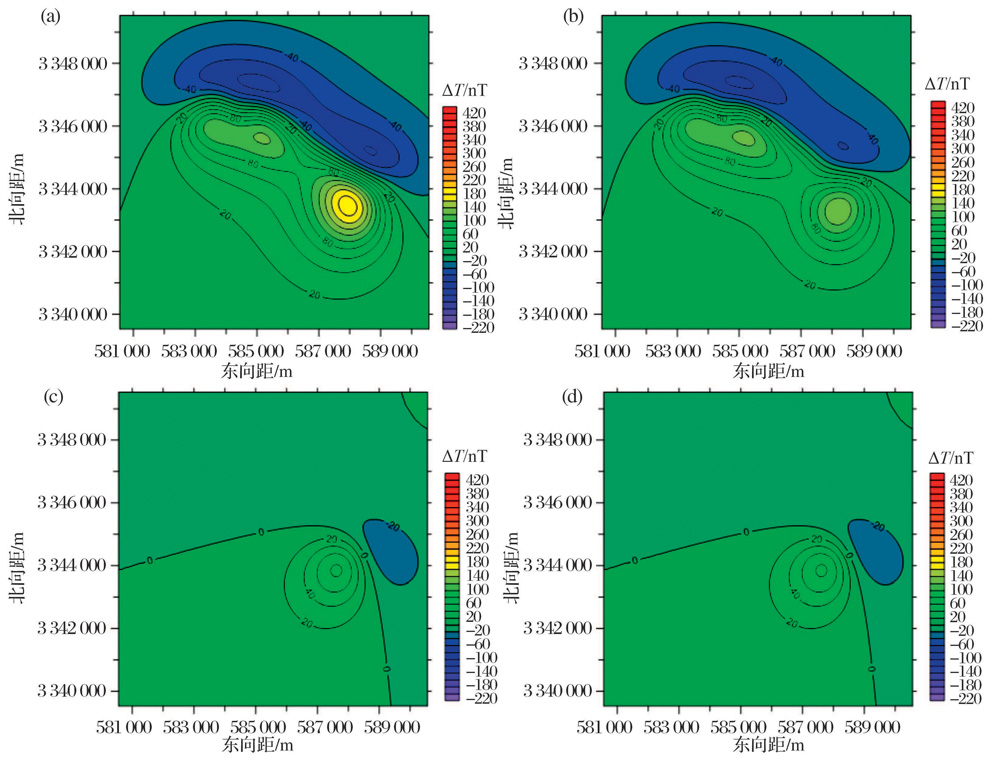

图9 试验模型正演结果
(a)模型1正演结果;(b)模型2正演结果;(c)模型1减去模型2结果;(d)矿体正演结果
Fig.9 Forward results of test model
(a)Forward results of model 1;(b)Forward results of model 2;(c)Forward results of model 1 minus model 2;(d)Forward results of orebody

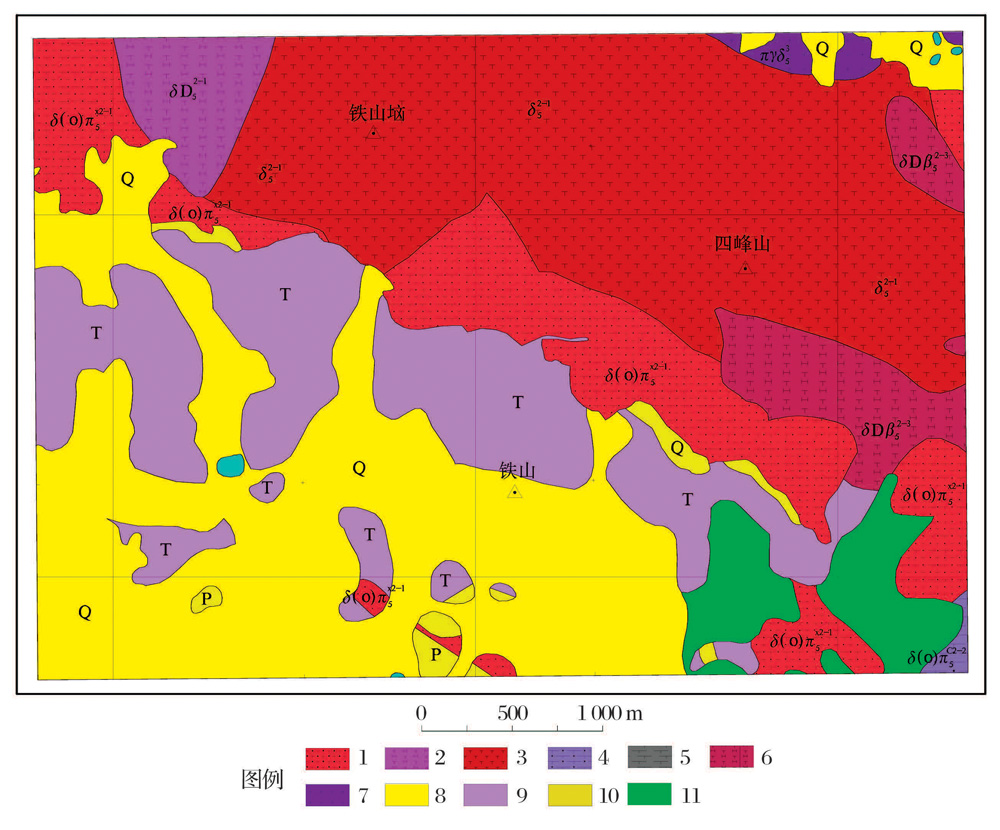

图10 湖北大冶铁矿研究区地质简图
1.含石英闪长斑岩;2.透辉石闪长岩;3.闪长岩;4.粗斑含石英闪长斑岩;5.巨斑状闪长岩;6.黑云母透辉石闪长岩;7.斑状花岗闪长岩;8.第四系;9.三叠系灰岩;10.二叠系地层;11.废石堆
Fig.10 Geology map of Daye iron ore
1:Quartz diorite porphyry; 2:Diopside diorite; 3:Diorite; 4:Coarse stain quartz diorite porphyry; 5:Porphyritic diorite; 6:Biotite diopside diorite; 7:Porphyritic granodiorite; 8:Quaternary; 9:Triassic limestone; 10:Permian strata; 11:Waste dumps
表2 研究区岩(矿)石磁性参数统计表
Table 2 The results of rock (ore) magnetic susceptibility
岩性 磁化率/10-5 SI 剩余磁化强度/(A/m) 磁倾角I
/°
范围 常见值 范围 常见值
沉积岩类 0~55 21 - - -
斑状花岗闪长岩 517~1 916 1 074 0.21~0.50 0.33 51
透辉石闪长岩 750~2 314 1 458 0.12~0.71 0.40 45
细斑含石英闪长斑岩 462~3 528 1 568 0.3~3.19 1.05
粗斑含石英闪长斑岩 343~2 591 1 741 0.3~3.46 1.20 54
闪长岩 909~2 808 1 829 0.27~2.49 1.36 48
黑云母透辉石闪长岩 5 249~11 640 6 899 0.4~5.46 3.07 42
磁铁矿 9 007~175 180 85 805 5.59~87.62 43.24 75
矽卡岩 11 189~102 000 29 956 - - -

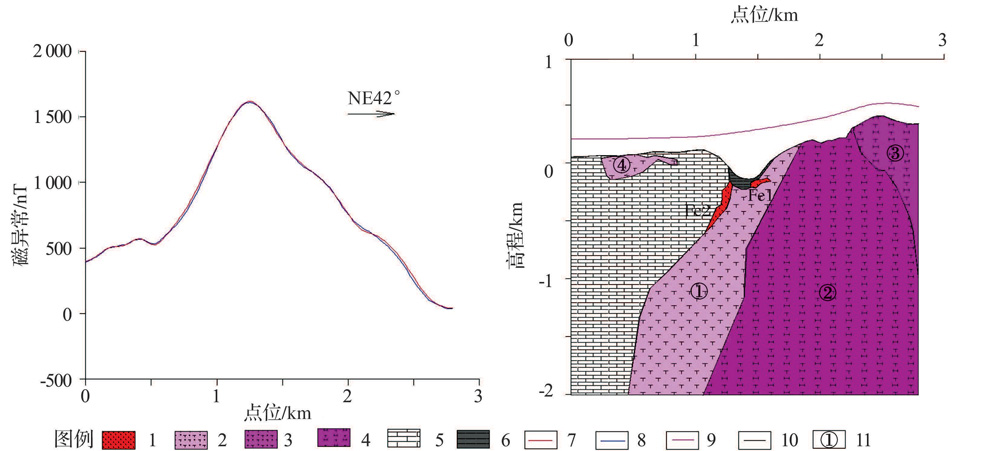

图11 P11剖面反演结果
1.推断矿体;2.含石英闪长斑岩;3. 闪长岩;4. 黑云母透辉石闪长岩;5. 大理岩;6.采空区;7. 观测曲线;8. 计算曲线;9. 飞行高度线;10. 地形线;11. 模型体序号
Fig.11 P11 profile inversion results
1. Inferred orebody; 2:Quartz diorite porphyry; 3:Diorite; 4:Biotite diopside diorite; 5:Griotte; 6:Goaf; 7:Observation curve;8:Computed curve; 9:Flight line; 10:Topographic line; 11:Model body serial number
表3 P11剖面反演模型物性参数表
Table 3 Physical property parameter list of P11 profile inversion model
序号 磁性体类型 磁化倾角
/°		 磁化强度
/(10-2 A/m)		 走向延伸
/km		 磁化偏角
/°
1 含石英闪长斑岩 45.6 130 4 -3.3
2 黑云母透辉石闪长岩 45.6 400 2 -3.3
3 透辉石闪长岩 45.6 220 4 -3.3
4 含石英闪长斑岩 45.6 130 4 -3.3
Fe1 推断磁铁矿 65 15 000 0.6 10
Fe2 推断磁铁矿 65 15 000 0.3 10

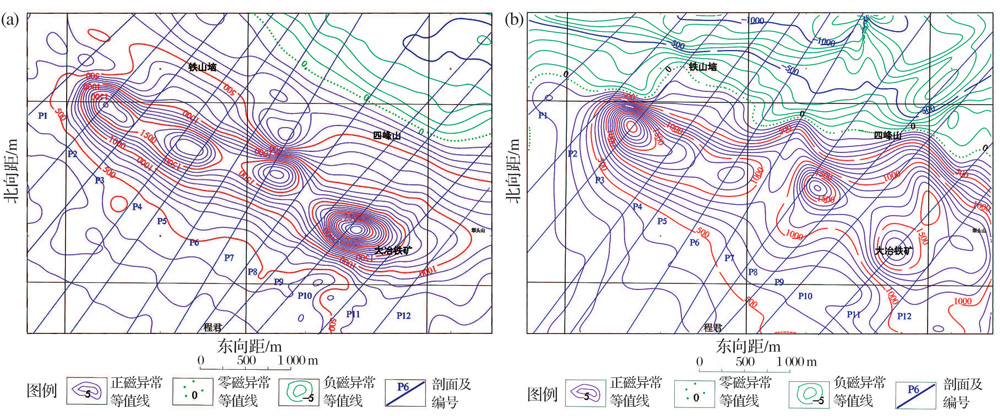

图12 实测结果与三维地质初始模型正演△ T等值线平面图
(a) 实测△ T结果; (b) 三维地质初始模型正演△ T结果
Fig.12 The △ T contour plane graph of measured results and forward with the 3D geological initial model
(a) The measured results of △ T; (b) The 3D geological initial model forward results of △ T

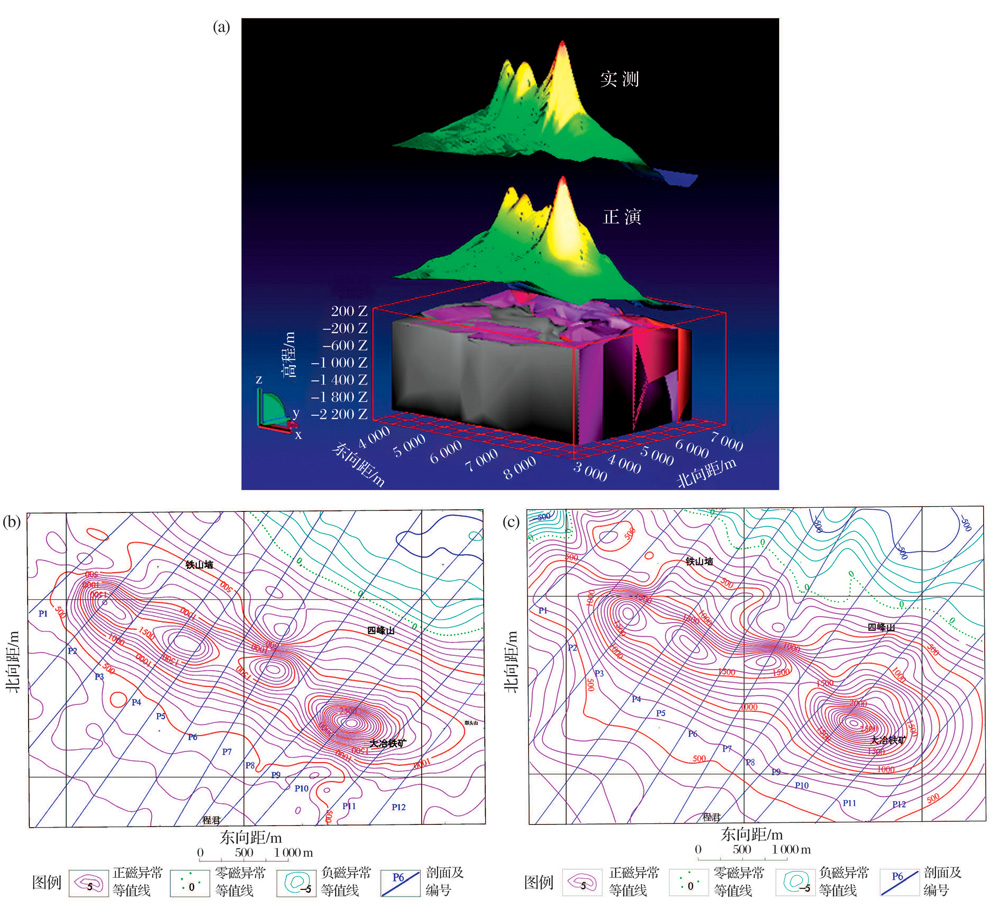

图13 研究区三维地质模型
(a)三维地质模型与△ T立体图;(b)实测△ T结果;(c)修正后模型后正演△ T结果; 1.大理岩;2.含石英闪长斑岩;3.黑云母透辉石闪长岩;4.闪长岩;5.透辉石闪长岩;6.斑状花岗闪长岩;7.矿体
Fig.13 3D geological model of the study area
(a) 3D geological model and △ T value; (b) The measured results of △ T; (c) The modified model forward results of △ T; 1:Griotte; 2:Quartz diorite porphyry; 3:Biotite diopside diorite; 4:Diorite; 5:Diopside diorite; 6:Porphyritic granodiorite; 7:Orebody
