地球科学进展  2017, Vol. 32 Issue (8): 850-858    DOI: 10.11867/j.issn.1001-8166.2017.08.0850
应用地球化学专辑
北京市冬季、春季PM10和PM2.5中元素地球化学特征
王的, 冯海艳*, 景慧敏
中国地质大学(北京)地球科学与资源学院,北京 100083
Elements’ Geochemical Characteristics of PM10 and PM2.5 in Beijing During Winter and Spring
Wang Di, Feng Haiyan*, Jing Huimin
School of Geosciences and Resources,China University of Geosciences,Beijing 100083,China
 全文: PDF(3059 KB)   HTML
摘要:

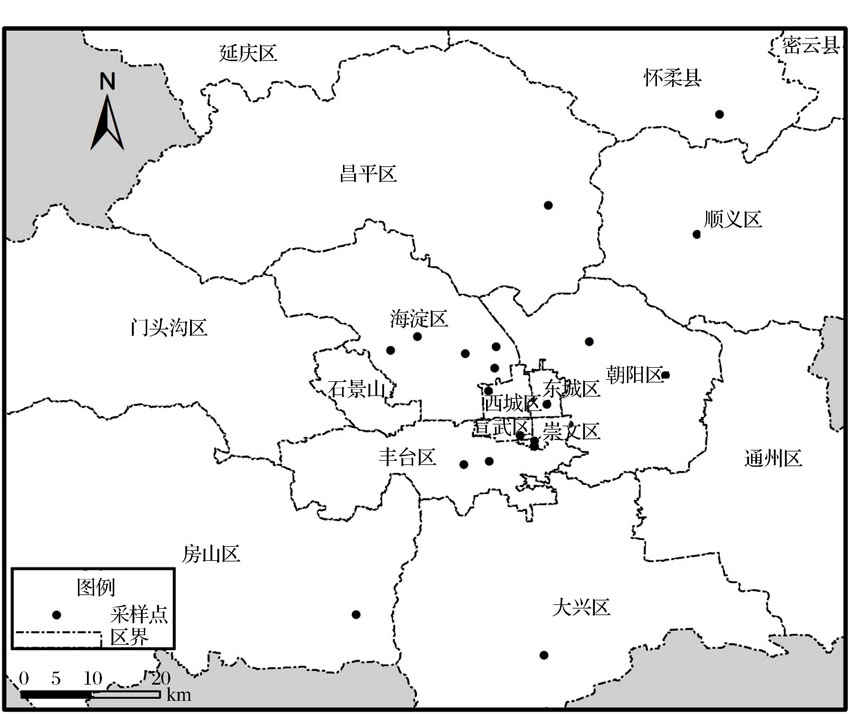

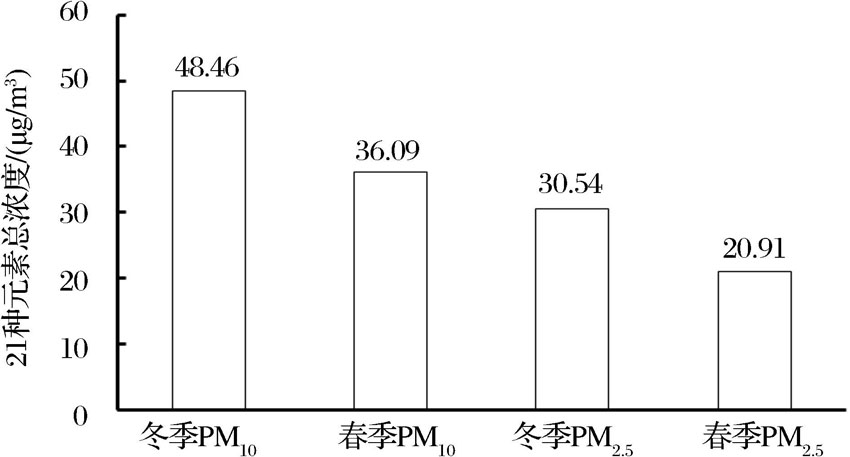

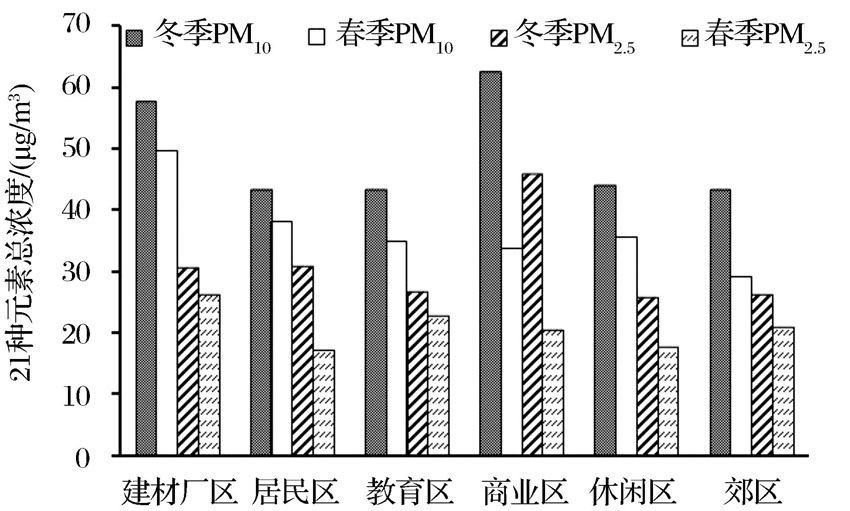

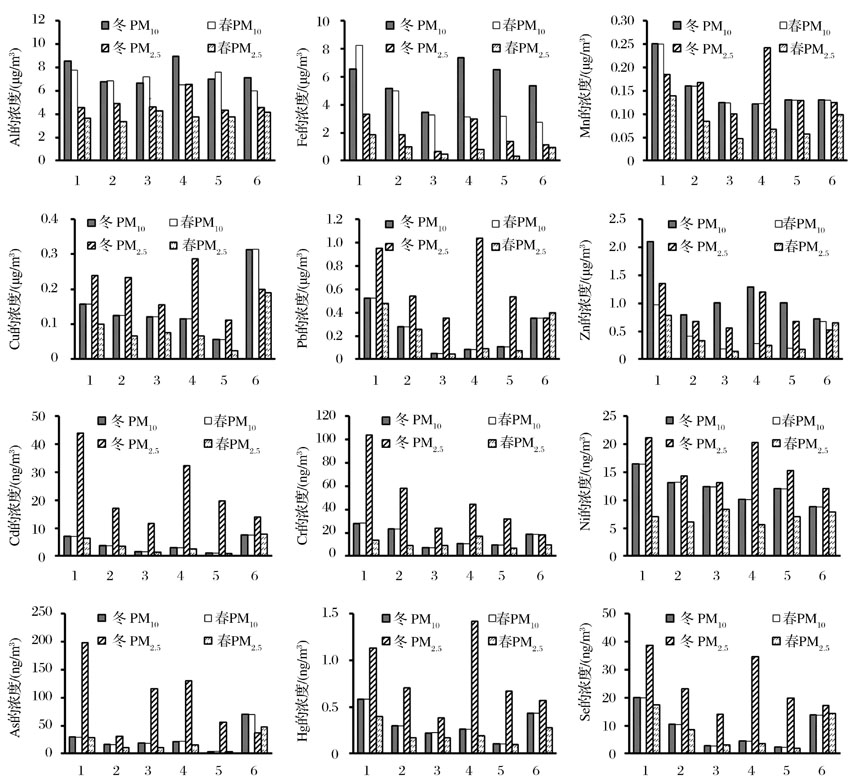

使用TH1500C智能中流量(80~120 L/min)大气采样器采集了北京市区5个功能区和郊区的大气颗粒物(TSP/PM10/PM2.5)样品,利用电感耦合等离子体质谱仪和原子荧光谱仪分析测试了大气颗粒物中Al,Fe,Mn,As,Hg,Cd,和Cr等21种元素,并通过计算元素的富集因子探讨了大气颗粒物中元素的来源。结果表明,冬季大气颗粒物PM10中Cd,Cr,As,Hg的浓度比春季的分别增幅233%,306%,298%和141%;在PM2.5中的增幅分别为442%,309%,310%和256%。Cd,Cr,As,Hg和Se等元素均表现出在PM2.5中富集的趋势,并且其在冬季的浓度明显高于春季。认为冬季燃煤取暖对大气颗粒物中的污染元素贡献较大,主要贡献元素为Cd,As和Hg。

关键词: PM2.5春季冬季PM10燃煤取暖
Abstract:

From 2012 to 2013, heavy haze frequently hit Beijing in spring and winter. The fine atmospheric particulates can be inhaled by people, and remain in the respiratory tract and lung for quite a long time. The heavy metal elements in the particles are harmful, and even carcinogenic to human bodies. Therefore, it is necessary to master the geochemical characteristics and the temporal and spatial distribution of the heavy metal elements in atmospheric particles. The atmospheric particulates (TSP/PM10/PM2.5) were collected by using TH1500C intelligent medium volume (80~120 L/min) air samplers in the five functional areas and suburbs of Beijing, respectively in January 2013 (heating period) and April 2013 (non-heating period). The five functional areas were: building materials factory area, residential area, education area, business area and recreation area, each functional area having three sampling sites, and five in suburbs. The sampling height was 1.5 m above the ground and the distance of the sampling sites to roads exceeded 50 m so as to avoid excessive impact of vehicle exhaust emissions. These samples were analyzed by Inductively Coupled Plasma-Mass Spectrometry (ICP-MS), Inductively Coupled Plasma Optical Emission Spectrometer(ICP-OES)and Atomic Fluorescence Spectrometer (AFS), by which 21 elements including Al, Fe, Mn, As, Hg, Cd, Cr were tested. Based on the comparisons of the concentration and element content variation of atmospheric particulates of these functional areas in and after the heating period, the spatial distribution of atmospheric particulates and the influence of coal combustion on the concentration and composition of atmospheric particulates were revealed. The elements sources of atmospheric particulates were also discussed by computing the enrichment factor of the elements, providing a scientific basis for the air contaminant treatment in Beijing. The results showed that the total concentration of the 21 elements of PM10 and PM2.5 in the functional areas of Beijing in winter was higher than that in spring, the most marked among them being the business area. In winter, the concentration of pollution elements in the building materials factory area and the business area in Beijing was extremely high, and the residential area, education area, recreation area and suburbs where people live were much better, among which the education area was the best. The concentration change of particulates in suburbs was quite smaller in winter and spring than that of the urban area. It also showed that the concentrations of Cd, Cr, As and Hg in PM10 increased by 233%,306%,298%,141%,respectively and the increase in PM2.5 was 442%、309%、310%、256%, respectively. These abovementioned elements show a tendency to accumulate mainly in PM2.5 whose concentrations in winter were significantly higher than those in spring. It indicates that coal heating during winter makes great contributions to the polluting elements in atmosphere and the main polluting particulates are Cd, As and Hg.

Key words: Winter    PM2.5    Coal heating.    PM10    Spring
收稿日期: 2017-02-27 出版日期: 2017-08-20
ZTFLH:  P595
基金资助:

中央高校基本科研业务费专项资金“基于大气颗粒物元素地球化学特征的人体健康风险评价”(编号:2-9-2012-80)资助

通讯作者: 冯海艳(1974-),女,山东济宁人,副教授,主要从事环境和生态地球化学的研究.E-mail:haiyan@cugb.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
王的
景慧敏
冯海艳

引用本文:

王的, 冯海艳, 景慧敏. 北京市冬季、春季PM10和PM2.5中元素地球化学特征[J]. 地球科学进展, 2017, 32(8): 850-858.

Wang Di, Feng Haiyan, Jing Huimin. Elements’ Geochemical Characteristics of PM10 and PM2.5 in Beijing During Winter and Spring. Advances in Earth Science, 2017, 32(8): 850-858.

链接本文:

http://www.adearth.ac.cn/CN/10.11867/j.issn.1001-8166.2017.08.0850        http://www.adearth.ac.cn/CN/Y2017/V32/I8/850

[1] Zhou L, Chen H T, Zhang F. Experimental examination of the effects of atmospheric wet deposition on primary production in the Yellow Sea[J]. Journal of Experimental Marine Biology and Biology ,2000, 249: 111-121.
[2] Li Hong, Yang Xiaoming. Study of the formation and harm of haze[J]. Science & Technology Information , 2012, (25): 41-143.[李洪, 杨小明. 灰霾的形成及其危害探讨[J]. 科技资讯, 2012, (25): 41-143.]
[3] Yang Xinxing, Wei Peng, Feng Lihua. Atmospheric particulate matter PM 2.5 and its controlling countermeasures and measures[J]. Frontier Science , 2013,(3): 20-29.[杨新兴, 尉鹏, 冯丽华. 大气颗粒物PM 2.5 及其控制对策与措施[J].前沿科学, 2013,(3): 20-29.]
[4] Wang Anpu, Yang Shulan, Liu Lijun. Comparison of elemental characteristics of atmospheric particulates in Southwest China and Beijing[J]. Environmental Science , 1991, 12(4): 79-85.[汪安璞, 杨淑兰, 刘丽君. 西南和北京地区大气颗粒物中元素特征的比较[J]. 环境科学, 1991,12(4):79-85.]
[5] Wang Wei, Tang Dagang, Liu Hongjie, et al . Characteristics of PM 2.5 in China[J]. Research of Environmental Science , 2000,(1): 1-6.[王玮, 汤大钢, 刘红杰,等. 中国PM 2.5 污染状况和污染特征的研究[J].环境科学研究, 2000,(1): 1-6.]
[6] Thomas L D K, Hodgson S, Nieuwenhuijsen M, et al . Early kidney damage in a population exposed to cadmium and other heavy metals[J]. Environmental Health Perspectives , 2009, 117(2): 181-184.
[7] Limin S H, Takahashi H, Usup A D, et al. Impacts of haze in 2002 onsocial activity and human health in Palangka Raya[J]. Tropics , 2007, 16:275-282.
[8] Li Yilin. The Relation Between Respiratory Diseasesand Heavy Metals in Air Particulate in Chengdu Area[D]. Chengdu: Chengdu University of Technology, 2009.[李奕霖.成都经济区居民呼吸道疾病与大气尘重金属元素的相关性[D].成都:成都理工大学, 2009.]
[9] Wang C H, Hsiao C K, Chen C L, et al. A review of the epidemiologic literature on the role of environmental arsenic exposure and cardiovascular disease[J]. Toxicology & Applied Pharmacology , 2007, 43: 321-326.
[10] Wang Xuetao. Melting Characteristics and Occurrence and Transference of Heavy Metals During Melting Process of Fly Ashes from Municipal Solid Waste Incinerator[D].Nanjing: Southeast University, 2005.[王学涛.城市生活垃圾焚烧飞灰熔融特性及重金属赋存迁移规律的研究[D]. 南京:东南大学, 2005.]
[11] Schaumann F, Borm P J A, Herbrich A, et al . Metal-rich ambient particles (particulate matter 2.5) cause airway inflammation in healthy subjects[J]. American Journal of Respiratory and Critical Care Medicine , 2004, 170:898-903.
[12] Tan Jihua, Duan Qingchun. Heavy metals in aerosol in China: Pollution, sources, and control strategies[J]. Journal of Graduate University of Chinese Academy of Sciences , 2013, 30(2): 145-155.[谭吉华, 段菁春.中国大气颗粒物重金属污染、来源及控制建议[J].中国科学研究生院学报, 2013, 30(2): 145-155.]
[13] Fang G C, Chang C N, Chu C C, et al . Characterization of particulate metallic elements of TSP, PM 2.5 and PM 2.5-10 aerosols at a farm sampling site in Taiwan, Taichung[J]. Science of the Total Environment , 2003, 308(1/3): 57-166.
[14] Hu Qingjie, Wang Lixia. Effects of lead on female reproductive[J]. Chinese Journal of Primary Medicine and Pharmacy , 2012, (23): 3 595-3 596.[胡清杰, 王丽霞. 铅对女工生殖影响的研究[J].中国基层医药, 2012, (23): 3 595-3 596.]
[15] Hu Z, Shi Y, Niu H, et al. Synthetic musk fragrances and heavy metals in snow samples of Beijing urban area, China[J]. Atmospheric Research , 2012, 104: 302-305.
[16] Zheng Xiaoxia, Zhao Wenji, Guo Xiaoyu. Spatial variations of airborne dust trace elements in Beijing[J]. China Environmental Science , 2015,35(8):2 251-2 260.[郑晓霞, 赵文吉, 郭逍宇. 北京大气降尘中微量元素的空间变异[J]. 中国环境科学, 2015,35(8):2 251-2 260.]
[17] Zhao Chenxi, Wang Yunqi, Wang Yujie, et al. Temporal and spatial distribution of PM 2.5 and PM 10 pollution status and the correlation of particulate matters and meteorological factors during winter and spring in Beijing[J]. Environmental Science ,2014,35(2): 418-427.[赵晨曦, 王云琦, 王玉杰,等. 北京地区冬春 PM 2.5 和PM 10 污染水平时空分布及其与气象条件的关系[J]. 环境科学, 2014, 35(2):418-427.]
[18] Zhou Xueming, Zheng Naijia, Li Yinghong, et al . Chemical characteristics and source of heavy metals in the fine particle in Beijing during 2011-2012[J]. Environmental Science , 2017, 10,doi:10.13227/j.hjkx. 201612115.[周雪明, 郑乃嘉, 李英红,等. 2011—2012北京大气PM 2.5 中重金属的污染特征[J].环境科学, 2017,10,doi:10.13227/j.hjkx.201612115.]
[19] Zhang Linlin, Wang Chao, Dao Xu, et al . Characterization of elements in air particulate matters in Beijing-Tianjin-Hebei megacities, China[J]. China Environmental Science , 2014,34(12):2 993-3 000.[张霖琳, 王超, 刀谞,等. 京津冀地区城市环境空气颗粒物及其元素特征分析[J]. 中国环境科学, 2014,34(12):2 993-3 000.]
[20] Zhang Chaolin, Jin Qihua, Zhou Shengzhen. An introduction of the projects managed by division of atmospheric sciences, Department of Earth Sciences, National Natural Science Foundation of China in 2016[J]. Advances in Earth Science , 2016, 31(12): 1 279-1 284.[张朝林, 金啟华, 周声圳. 2016年度大气科学领域项目评审与研究成果分析[J]. 地球科学进展, 2016, 31(12): 1 279-1 284.]
[21] Lang Fengling, Yan Weiqi, Zhang Quan, et al . Size distribution of atmospheric particle number in Beijing and association with meteorological conditions[J]. China Environmental Science , 2013, 7(33): 1 153-1 159.[郎凤玲, 闫伟奇, 张泉,等. 北京市颗粒物浓度粒径分析特征与气象条件相关性[J].中国环境科学, 2013, 7(33):1 153-1 159.]
[22] Li Haiyan, Shi Anbang. Distribution characteristics and their influencing factors of heavy metals in urban road sediments[J]. Ecology and Environmental Sciences , 2014, 23(11): 1 852-1 860.[李海燕,石安邦.城市地表颗粒物重金属分布特征及其影响因素分析[J]. 生态环境学报, 2014, 23(11): 1 852-1 860.]
[23] Fang Fengman. Research on environmental geochemistry of metal elements in atmospheric particles in China[J]. Ecology and Environment Sciences , 2010, 19(4): 979-984.[方凤满.中国大气颗粒物中金属元素环境地球化学行为研究[J].生态环境学报, 2010, 19(4): 979-984.]
[24] Zhang Renjian, Xu Yongfu, Han Zhiwei.A comparison analysis of chemical composition of aerosols in the dust and non-dust periods in Beijing[J]. Advances in Atmospheric Sciences , 2004, 2(21): 300-305.
[25] Shaheen N, Shah M H, Jaffar M.A study of airborne selected metals and particle size distribution in relation to climatic variables and their source identification[J]. Water , Air & Soil Pollution , 2013, 164(1/4): 275-294.
[26] Hui Zhang. An assessment of heavy metals contributed by industy in urban atmosphere from Nanjing, China[J]. Environmental Monitoring & Assessment , 2009,154(1/4): 451-458.
[27] Pereira PA de P,Lopes A,Carvalho L S, et al. Atmospheric concentrations and dry deposition fluxes of particulate trace metals in Salvador, Bahia, Brazil[J]. Atmospheric Environment , 2007, 41(36): 7 837-7 850.
[28] Yang F, Ye B, He K, et al . Characterization of atmospheric mineral components of PM 2.5 in Beijing and Shanghai, China[J]. Science of the Total Environment , 2005, 343: 221-230.
[29] Lough G C, Schauer J J, Park J S, et al . Emissions of metals associated with motor vehicle roadways[J]. Environmental Science and Technology , 2005,39(3): 826-836.
[30] Mu Tila, Wang Jiajia, Li Na, et al . Feature analysis of metal components of PM 2.5 and PM 10 during sand dust weather[J]. Journal of Environment and Health , 2010, 9(27): 755-759.[木拉提, 王佳佳, 丽娜,等. 沙尘天气期间大气PM 2.5 和PM 10 中部分元素浓度的变化特征[J].环境与健康杂志,2010, 9(27): 755-759.]
[31] Nriagu J O, Pacyna J M. Quantitative assessment of worldwide contamination of air, water and soils by trace metals[J]. Nature , 1988, 333(6 169): 134-139.
[32] Mandal B K, Suzuki K T. Arsenic round the world: A review[J]. Talanta , 2002, 58(1): 201-235.
[33] Lv W, Wang Y X, Querol X, et al . Geochemical and statistical analysis of trace metals in atmospheric particulates in Wuhan, central China[J]. Environmental Geology , 2006, 51(1): 121-132.
[34] Yang Xinxing, Wei Peng, Feng Lihua. Atmospheric particulate matter PM 2.5 and its sources[J]. Frontier Science , 2013, (2): 12-19.[杨新兴, 尉鹏, 冯丽华. 大气颗粒物PM 2.5 及其源解析[J].前沿科学, 2013,(2):12-19.]
[35] Zhou Kai, Ye Youhua, Peng Shaolin, et al. Variations of Total Suspended Particulate (TSP) levels and its relationships with the meteorologieal factors in typical functional regions of Guangzhou, China[C]∥The Fifth Symposium on Young Ecological Workers in China. Guangzhou,2008.[周凯, 叶有华, 彭少麟,等. 广州市不同功能区大气总悬浮颗粒物浓度变化及其与气象因子关系的研究[C]∥第五届中国青年生态学工作者学术研讨会.广州,2008.]
[36] Bi Mutian. Enrichment factor and its application[J]. Environmental Science , 1984, 5(5): 68-70.[毕木天. 关于富集因子及其应用问题[J]. 环境科学, 1984, 5(5):68-70.]
[37] Wang Lin. Determination of particulate matter in the atmosphere by enrichment factor method[C]∥The 2008 Annual Meeting of the Chinese Society for Environmental Science. Beijing,2008.[汪林.富集因子法判定大气中颗粒物来源[C]∥中国环境科学学会2008年学术年会. 北京, 2008.]
[38] Song Yu, Tang Xiaoyan, Fang Chen, et al. Source apportionment on fine particles in Beijing[J]. Environmental Science , 2002, 23 (6): 11-16.[宋宇, 唐孝炎, 方晨,等. 北京市大气细粒子的来源分析[J] . 环境科学, 2002, 23 (6): 11-16.]
[39] Ma Zhaohui, Liang Yunping, Zhang Jian, et al. PM 2.5 profiles of typical sources in Beijing[J]. Acta Scientiae Circumstantiae , 2015, 35(12):4 043-4 052.[马召辉, 梁云平, 张健,等. 北京市典型排放源PM 2.5 成分谱研究[J]. 环境科学学报, 2015, 35(12):4 043-4 052.]
[40] Kang Yanhong, Tian Peng, Zhu Yongchun, et al. Wet-digest method for determination of trace elements in ash and its application[J]. Journal of Shenyang Normal University ( Natural Science ), 2007,25(3):357-360.[康艳红, 田鹏, 朱永春,等. 灰渣的湿法消化法及其利用[J]. 沈阳师范大学学报:自然科学版, 2007, 25(3):357-360.]
[41] Han Lihui, Zhuang Guoshun, Cheng Shuiyuan, et al. Characteristics of re-suspended road dust and its impact on the atmospheric environment in Beijing[J]. Atmospheric Environment , 2007, 41: 7 485-7 499.
