基于生态工程的海岸带全球变化适应性防护策略

doi:10.11867/j.issn.1001-8166.2015.09.0996

在全球变化导致的海平面上升和灾害性气候等压力下,我国海岸带风暴潮、海岸侵蚀、地面沉降等灾害发生频率和强度正在增加,对海岸防护体系的需求日益提高。传统海岸防护工程维护成本高,更新困难,而且可能造成地面沉降、水质恶化、生态退化、渔业资源衰退等后果。基于生态工程的海岸防护提供了抵御海岸带灾害的新理念。修复和重建沙滩、红树林、沼泽湿地、珊瑚礁等海岸带生态系统,可以起到消浪、蓄积泥沙、抬升地面的作用,有效应对全球变化引发的灾害风险,形成更可持续的海岸防护体系。通过分析不同海岸防护技术的优势和限制,认为以生态工程为核心理念构建和管理我国海岸防护体系,才能起到保障社会经济发展和维持生态健康的最佳效果。

关键词: 生态工程, 海岸防护, 海岸带灾害, 海平面上升

Under the pressure of sea level rise and disastrous weather caused by global change, frequency and intensity of coastal hazards such as storm surge, coast erosion, and land subsidence are increasing in China, which requires enhancement of national coastal defense system. Conventional engineering practices of coastal protection are associated with high construction and maintenance cost and difficult to upgrade. Engineering structures have caused severe problems such as land subsidence, water pollution, ecological degradation, and loss of habitats. Ecological engineering based coastal defense provides a new paradigm for protecting coastal communities from natural hazards. Restoration and recovery of coastal ecosystems including beaches, mangroves, salt marshes, and coral reefs provide more sustainable and more cost-effective coastal defense system with tremendous additional ecosystem services. Restoration of vegetation can reduce wave energy, accrete sediment and lift up land surface, which provide adaptation to the hazard risk resulted from sea level rise. Through analyzing the advantages and limits of various types of coastal defense technologies, we argue that ecological engineering should be regarded as a core concept in the construction and management of coastal defense system to achieve optimal operation of socio-economic development and ecosystem conservation.

Key words: Ecological engineering, Shore protection, Coastal hazard, Sea level rise.

中图分类号:

P748

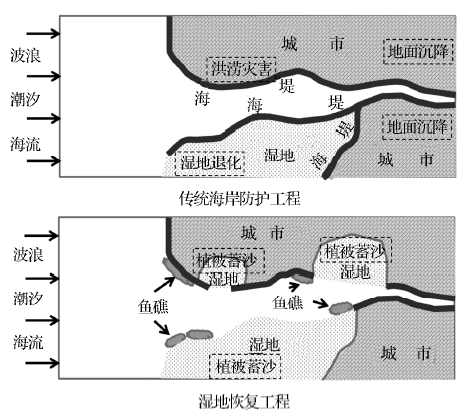

图1

传统海岸防护工程的环境和生态效应

Fig.1 Environmental and ecological impacts of conventional coastal engineering

图2

沙质海岸防护的传统工程和生态工程设计(根据参考文献[ 11 ]修改)

Fig.2 Conventional and ecological engineering design for sandy shore protection (modified after reference [ 11 ])

表1 海岸生态系统各植被类型的泥沙蓄积和地面上升速度(根据参考文献[ 12 ]修改)

Table 1 Sediment accretion and elevation rates in vegetated coastal ecosystems (modified after reference [ 12 ])

植被类型	泥沙蓄积速度 (mm/a)					地面上升速度(mm/a)
植被类型	范围	平均	中位数	标准差	样本数	范围	平均	中位数	标准差	样本数
盐生湿地	0.39~61.1	6.73	5.5	0.7	98	-6.92~25	3.76	2.01	1.33	22
红树林	0.34~20.8	5.47	4.5	0.38	123	-9.5~11.3	1.87	1.4	0.53	58
海草床	0.61~6	2.02	1.48	0.44	12	-5.2~10.2	-0.08	-5.17	5.14	3

表1 海岸生态系统各植被类型的泥沙蓄积和地面上升速度(根据参考文献[ 12 ]修改)

Table 1 Sediment accretion and elevation rates in vegetated coastal ecosystems (modified after reference [ 12 ])

植被类型	泥沙蓄积速度 (mm/a)					地面上升速度(mm/a)
植被类型	范围	平均	中位数	标准差	样本数	范围	平均	中位数	标准差	样本数
盐生湿地	0.39~61.1	6.73	5.5	0.7	98	-6.92~25	3.76	2.01	1.33	22
红树林	0.34~20.8	5.47	4.5	0.38	123	-9.5~11.3	1.87	1.4	0.53	58
海草床	0.61~6	2.02	1.48	0.44	12	-5.2~10.2	-0.08	-5.17	5.14	3

图3 泥质海岸防护的传统工程和生态工程设计(根据参考文献[ 11 ]修改)

Fig.3 Conventional and ecological engineering design for shore protection (modified after reference [ 11 ])

图4 珊瑚礁消波能力(根据参考文献[ 47 ]修改)

Fig.4 Wave attenuation capability of coral reef (modified after reference [ 47 ])

图5 基于生态工程理念的海岸带适应性防护策略(根据参考文献[ 13 ]修改)

Fig.5 Adaptive coastal defense strategy based on concept of ecological engineering (modified after reference [ 13 ])

表2 传统工程和生态工程海岸防护技术的效果与限制比较 (根据参考文献[ 11 ]修改)

Table 2 Potential and limitations of conventional compared with ecosystem-based coastal defense (modified after reference [ 11 ])

受影响变量	传统海岸工程	生态海岸工程
自然栖息地	破坏或退化	保护或恢复
泥沙沉积	停止或扰动（筑堤、筑坝等）,加剧海岸侵蚀	保持
地面沉降	恶化（湿地围填、土壤排水、地下水和油气开采）	因泥沙沉降而减轻
风暴潮	河口三角洲湿地围填减少蓄水和能量耗散,导致风暴潮灾害上升	湿地恢复增强风暴潮灾害抵御能力
长期可持续性	长期固定维护费用高	生态系统可以自我维持
成本-效益	中到高	设计和建设复杂,附加效益高
水质功能	堤坝建设可能导致水体交换能力下降,污染物积累和富营养化	湿地可以净化污水,改善水质
碳储存功能	无	红树林和沼泽是重要的碳库
渔业和养殖	栖息地破坏导致渔业和养殖资源衰退	湿地和渔礁改善渔业种群栖息地
休闲功能	人工景观	自然景观
空间需求	中等	用地量大,在土地成本高的城市区域不适用
工程施工难度	中等	要求很高,需对本地自然状况和生态过程有深入了解
现有实施经验	大量成功经验和失败教训	较少,仍需要深入研究
社会接受程度	广泛接受	仅在少数发达地区被接受
防护效果	工程设计标准	缺乏评判标准
适应区域	适应多数海岸类型	需要根据不同海岸类型针对性设计
健康风险	无	湿地滞水可能导致蚊子等病菌载体生长

表2 传统工程和生态工程海岸防护技术的效果与限制比较 (根据参考文献[ 11 ]修改)

Table 2 Potential and limitations of conventional compared with ecosystem-based coastal defense (modified after reference [ 11 ])

受影响变量	传统海岸工程	生态海岸工程
自然栖息地	破坏或退化	保护或恢复
泥沙沉积	停止或扰动（筑堤、筑坝等）,加剧海岸侵蚀	保持
地面沉降	恶化（湿地围填、土壤排水、地下水和油气开采）	因泥沙沉降而减轻
风暴潮	河口三角洲湿地围填减少蓄水和能量耗散,导致风暴潮灾害上升	湿地恢复增强风暴潮灾害抵御能力
长期可持续性	长期固定维护费用高	生态系统可以自我维持
成本-效益	中到高	设计和建设复杂,附加效益高
水质功能	堤坝建设可能导致水体交换能力下降,污染物积累和富营养化	湿地可以净化污水,改善水质
碳储存功能	无	红树林和沼泽是重要的碳库
渔业和养殖	栖息地破坏导致渔业和养殖资源衰退	湿地和渔礁改善渔业种群栖息地
休闲功能	人工景观	自然景观
空间需求	中等	用地量大,在土地成本高的城市区域不适用
工程施工难度	中等	要求很高,需对本地自然状况和生态过程有深入了解
现有实施经验	大量成功经验和失败教训	较少,仍需要深入研究
社会接受程度	广泛接受	仅在少数发达地区被接受
防护效果	工程设计标准	缺乏评判标准
适应区域	适应多数海岸类型	需要根据不同海岸类型针对性设计
健康风险	无	湿地滞水可能导致蚊子等病菌载体生长

[1]	Ji Zixiu, Shi Yafeng.Sea level rise, coastal disaster, and coastal protection[J]. Journal of Natural Disasters, 1996, 5(2): 60-68.
	[季子修, 施雅风. 海平面上升、海岸带灾害与海岸防护问题[J]. 自然灾害学报 1996, 5(2): 60-68.]
[2]	State Oceanic Administration.Chinese Bulletin of Coastal Disasters[M]. Beijing: State Oceanic Administration, 2014.
	[国家海洋局. 2014年中国海洋灾害公报[M]. 北京:国家海洋局. 2014.]
[3]	Chinese Academy of Sciences. Scientific Problems and Policy Suggestions for the Ecological Safety of the Ocean and Coastal Engineering in China[M]. Beijing: Science Press, 2014.
	[中国科学院.中国海洋与海岸工程生态安全中若干科学问题及对策建议[M]. 北京:科学出版社, 2014.]
[4]	Zuo Qihua, Dou Xiping.Advances of Coastal Engineering in China[M]. Beijing:Ocean Press, 2014:753.
	[左其华,窦希平. 中国海岸工程进展[M]. 北京:海洋出版社, 2014:753.]
[5]	Yang Guishan, Shi Yafeng.Major environmental changes and hazards and strategy of damage-mitigation in the coastal area of China[J]. Journal of Natural Disasters,1999, 8(2): 13-20.
	[杨桂山, 施雅风. 中国海岸地带面临的重大环境变化与灾害及其防御对策[J]. 自然灾害学报, 1999, 8(2): 13-20.]
[6]	He Q, Bertness M D, Bruno J F, et al.Economic development and coastal ecosystem change in China[J]. Scientific Reports, 2014, doi:10.1038/srep05995.
[7]	State Oceanic Administration.Chinese Bulletin of Sea Level[M]. Beijing:State Oceanic Administration, 2014.
	[国家海洋局.2014年中国海平面公报[M].北京:国家海洋局, 2014.]
[8]	Luo Shilong, Cai Feng, Wang Houjie.Development of coastal erosion and management[J]. Advances in Earth Science, 2013,28(11): 1 239-1 247.
	[罗时龙, 蔡锋, 王厚杰. 海岸侵蚀及其管理研究的若干进展[J]. 地球科学进展, 2013,28(11): 1 239-1 247.]
[9]	Woodruff J D, Irish J L, Camargo S J.Coastal flooding by tropical cyclones and sea-level rise[J]. Nature, 2013, 504: 44-52.
[10]	Wong P P, Losada I J, Gattuso J P, et al.Coastal systems and low-lying areas[M]∥Field C B, et al,eds. Climate Change 2014: Impacts, Adaptation, and Vulnerability. Part A: Global and Sectoral Aspects. Contribution of Working Group II to the Fifth Assessment Report of the Intergovernmental Panel of Climate Change. Cambridge, United Kingdom and New York, NY, USA:Cambridge University Press,2014:361-409.
[11]	Temmerman S, Meire P, Bouma T J, et al.Ecosystem-based coastal defence in the face of global change[J]. Nature,2013, 504: 79-83.
[12]	Duarte C M, Losada I J, Hendriks I E, et al.The role of coastal plant communities for climate change mitigation and adaptation[J]. Nature Climate Change, 2013, 3: 961-968.
[13]	Cheong S M, Silliman B, Wong P P, et al.Coastal adaptation with ecological engineering[J]. Nature Climate Change, 2013, 3: 787-791.
[14]	Arkema K K, Guannel G, Verutes G, et al.Coastal habitats shield people and property from sea-level rise and storms[J]. Nature Climate Change, 2013, 3: 913-918.
[15]	Borsje B W, van Wesenbeeck B K, Dekker F, et al. How ecological engineering can serve in coastal protection[J]. Ecological Engineering, 2011, 37: 113-122.
[16]	Work Group of Engineering Design Standard of Seawall. Implementation Guide for Engineering Design Standard of Seawall(SL 435-2008)[M]. Beijing:China Water Power Press, 2009:267.
	[《海堤工程设计规范》编制组.《海堤工程设计规范》(SL 435-2008)实施指南[M]. 北京:中国水利水电出版社, 2009:267.]
[17]	US Army Corps of Engineers(USACE). Coastal Groins and Nearshore Breakwaters[M]. EM 1110-2-1677. Washington DC: USACE, 1992.
[18]	Ji Xiaoqiang, Lu Peidong, Yu Guohua.Application and discussion of detached breakwater in coastal protection[J]. Hydro-Science and Engineering,2011,(1): 35-43.
	[季小强, 陆培东, 喻国华. 离岸堤在海岸防护中的应用探讨[J]. 水利水运工程学报,2011,(1): 35-43.]
[19]	US Army Corps of Engineers(USACE). Coastal Engineering Manual EM 1110-2-1100[M]. Washington DC: USACE, 2008.
[20]	Su Jilan. Protect coastal wetland and manage land reclamation[J]. Man and Biosphere, 2011,(1): I.
	[苏纪兰. 保护滨海湿地,加强围填海管理[J]. 人与生物圈, 2011,(1): I.]
[21]	Day J W, Boesch D F, Clairain E J, et al.Restoration of the Mississippi Delta: Lessons from Hurricanes Katrina and Rita[J]. Science, 2007, 315: 1 679-1 684.
[22]	Tornqvist T E, Meffert D J.Sustaining coastal urban ecosystems[J]. Nature Geoscience, 2008, 1: 805-806.
[23]	Lai S, Loke L H L, Hilton M J, et al. The effects of urbanisation on coastal habitats and the potential for ecological engineering: A Singapore case study[J]. Ocean & Coastal Management,2015, 103: 78-85.
[24]	Bulleri F, Chapman M G.The introduction of coastal infrastructure as a driver of change in marine environments[J]. Journal of Applied Ecology, 2010, 47: 26-35.
[25]	Dafforn K A, Glasby T M, Airoldi L, et al.Marine urbanization: An ecological framework for designing multifunctional artificial structures[J]. Frontiers in Ecology and the Environment, 2015, 13: 82-90.
[26]	Ma Z, Melville D S, Liu J, et al.Rethinking China’s new great wall[J]. Science, 2014, 346: 912-914.
[27]	Cui Lituo, Li Zhiwei.Assessment of ecological environment effects of coastal development in Hebei Province, China[J]. Chinese Journal of Applied Ecology, 2014, 25(7): 2 063-2 070.
	[崔力拓, 李志伟. 河北省沿海开发活动的生态环境效应评估[J]. 应用生态学报, 2014, 25(7): 2 063-2 070.]
[28]	Ibanez C, Day J W, Reyes E.The response of deltas to sea-level rise: Natural mechanisms and management options to adapt to high-end scenarios[J]. Ecological Engineering, 2014, 65: 122-130.
[29]	Munoz-Valles S, Cambrolle J.Successes and failures in the management of coastal dunes of SW Spain: Status analysis nine years after management decisions[J]. Ecological Engineering, 2014, 71: 415-425.
[30]	Lin T Y, Liou J Y.Lessons learned from two coastal dune reconstruction experiments in Taiwan[J]. Journal of Coastal Research, 2013,65: 320-325.
[31]	Zhuang Zhenye, Yang Yanxiong, Liu Huixin.Sandy beach erosion and beach nourishment in circum-Bohai Bay[J]. Marine Geology Frontiers, 2013,29(2): 1-9.
	[庄振业, 杨燕雄, 刘会欣. 环渤海砂质岸侵蚀和海滩养护[J]. 海洋地质前沿, 2013,29(2): 1-9.]
[32]	Lamberti A, Zanuttigh B.An integrated approach to beach management in Lido di Dante, Italy[J]. Estuarine Coastal and Shelf Science, 2005, 62: 441-451.
[33]	van Slobbe E, de Vriend H J, Aarninkhof S, et al. Building with Nature: In search of resilient storm surge protection strategies[J]. Natural Hazards, 2013, 65: 947-966.
[34]	van den Hoek R E, Brugnach M, Hoekstra A Y. Shifting to ecological engineering in flood management: Introducing new uncertainties in the development of a building with nature pilot project[J]. Environmental Science & Policy, 2012, 22: 85-99.
[35]	Han Guangxuan, Zhang Zhidong, Wang Guangmei, et al.Regeneration dynamics of young Pinus thunbergii and ins influencing factors in the coastal protection forests in northern Shandong Peninsula[J]. Chinese Journal of Ecology,2009, 28(6): 1 013-1 020.
	[韩广轩, 张志东, 王光美, 等. 山东半岛北部黑松海防林幼龄植株生长动态及其种群数量特征[J]. 生态学杂志, 2009, 28(6): 1 013-1 020.]
[36]	Zhang Xiaolong, Li Peiying, Li Ping, et al.Present conditions and prospects of study on coastal wetlands in China[J]. Advances in Marine Science, 2005, 23(1): 87-95.
	[张晓龙, 李培英, 李萍,等. 中国滨海湿地研究现状与展望[J]. 海洋科学进展, 2005, 23(1): 87-95.]
[37]	Bilkovic D M, Mitchell M M.Ecological tradeoffs of stabilized salt marshes as a shoreline protection strategy: Effects of artificial structures on macrobenthic assemblages[J]. Ecological Engineering, 2013, 61: 469-481.
[38]	Spencer K L, Harvey G L.Understanding system disturbance and ecosystem services in restored saltmarshes: Integrating physical and biogeochemical processes[J]. Estuarine Coastal and Shelf Science, 2012, 106: 23-32.
[39]	Moeller I, Kudella M, Rupprecht F, et al.Wave attenuation over coastal salt marshes under storm surge conditions[J]. Nature Geoscience, 2014, 7: 727-731.
[40]	Tang Na, Cui Baoshan, Zhao Xinsheng.The restoration of reed (Phragmites australis)wetland in the Yellow River Delta[J]. Acta Ecologica Sinica, 2006, 26(8): 2 616-2 624.
	[唐娜, 崔保山, 赵欣胜. 黄河三角洲芦苇湿地的恢复[J]. 生态学报, 2006, 26(8): 2 616-2 624.]
[41]	Cui B, Yang Q, Yang Z, et al.Evaluating the ecological performance of wetland restoration in the Yellow River Delta, China[J]. Ecological Engineering, 2009, 35: 1 090-1 103.
[42]	Cui Baoshan, Liu Xingtu.Discussion on some basic problems in design of wetland ecosystem[J]. Chinese Journal of Applied Ecology,2001, 12(1): 145-150.
	[崔保山, 刘兴土. 湿地生态系统设计的一些基本问题探讨[J]. 应用生态学报, 2001, 12(1): 145-150.]
[43]	Zhong Qicheng, Du Qin, Zhang Chao, et al.Spatial distribution of root system of different riparian plant configuration modes[J]. Acta Ecologica Sinica,2010, 30(22): 6 135-6 145.
	[仲启铖, 杜钦, 张超, 等. 滨岸不同植物配置模式的根系空间分布特征[J]. 生态学报,2010, 30(22): 6 135-6 145.]
[44]	Liao Baowen, Zhang Qiaomin.Area, distribution and species composition of mangroves in China[J]. Wetland Science,2014, 12(4): 435-440.
	[廖宝文, 张乔民. 中国红树林的分布、面积和树种组成[J]. 湿地科学, 2014, 12(4): 435-440.]
[45]	Lewis R R.Ecological engineering for successful management and restoration of mangrove forests[J]. Ecological Engineering,2005, 24: 403-418.
[46]	Peng Yisheng, Zhou Yanwu, Chen Guizhu.The restoration of mangrove wetland: A review[J].Acta Ecologica Sinica,2008, 28(2): 786-797.
	[彭逸生, 周炎武, 陈桂珠. 红树林湿地恢复研究进展[J]. 生态学报, 2008, 28(2): 786-797.]
[47]	Ferrario F, Beck M W, Storlazzi C D, et al.The effectiveness of coral reefs for coastal hazard risk reduction and adaptation[J]. Nature Communications,2014,doi:10.1038/ncomms4794.
[48]	Pandolfi J M, Connolly S R, Marshall D J, et al.Projecting coral reef futures under global warming and ocean acidification[J]. Science,2011, 333: 418-422.
[49]	Li Yuanchao, Huang Hui, Dong Zhijun, et al.Headway of study on the coral reefs ecological restoration[J]. Acta Ecologica Sinica,2008, 28(10): 5 047-5 054.
	[李元超, 黄晖, 董志军, 等. 珊瑚礁生态修复研究进展[J]. 生态学报, 2008, 28(10): 5 047-5 054.]
[50]	Han Qiuying, Shi Ping.Progress in the study of sea grass ecology[J]. Acta Ecologica Sinica,2008, 28(11): 5 561-5 570.
	[韩秋影, 施平. 海草生态学研究进展[J]. 生态学报, 2008, 28(11): 5 561-5 570.]
[51]	Ondiviela B, Losada I J, Lara J L, et al.The role of seagrasses in coastal protection in a changing climate[J]. Coastal Engineering,2014, 87: 158-168.
[52]	van der Heide T, Govers L L, de Fouw J, et al. A three-stage symbiosis forms the foundation of seagrass ecosystems[J]. Science,2012, 336: 1 432-1 434.
[53]	Huang Huamei, Gao Yang, Wang Yinxia, et al.Review of the current situation of coastal ecological engineering using dredged marine sediments and prospects for potential application in China[J]. Acta Ecologica Sinica, 2012, 32(8): 2 571-2 580.
	[黄华梅, 高杨, 王银霞, 等. 疏浚泥用于滨海湿地生态工程现状及在我国应用潜力[J]. 生态学报, 2012, 32(8): 2 571-2 580.]

[1]	温家洪, 袁穗萍, 李大力, 王璐阳, 张敏, 杜士强. 海平面上升及其风险管理[J]. 地球科学进展, 2018, 33(4): 350-360.
[2]	邵全琴, 樊江文, 刘纪远, 杨帆, 刘华, 杨秀春, 许明祥, 侯鹏, 郭兴健, 黄麟, 李愈哲. 重大生态工程生态效益监测与评估研究[J]. 地球科学进展, 2017, 32(11): 1174-1182.
[3]	罗时龙, 蔡锋, 王厚杰. 海岸侵蚀及其管理研究的若干进展[J]. 地球科学进展, 2013, 28(11): 1239-1247.
[4]	赵文金，万晓樵. 藏南定日地区白垩纪中期地球化学异常对海平面上升的响应[J]. 地球科学进展, 2002, 17(3): 331-338.
[5]	李恒鹏,杨桂山. 全球环境变化海岸易损性研究综述[J]. 地球科学进展, 2002, 17(1): 104-109.
[6]	丁永建,秦大河,叶柏生,刘时银. 陆地表层水贮量变化对海平面上升贡献的综合评估[J]. 地球科学进展, 2001, 16(1): 106-112.
[7]	温家洪. 国际南极冰盖与海平面变化研究述评[J]. 地球科学进展, 2000, 15(5): 586-591.
[8]	李恒鹏,杨桂山. 海平面上升的海岸形态响应研究方法与进展[J]. 地球科学进展, 2000, 15(5): 598-603.
[9]	杨桂山,施雅风. 中国沿岸海平面上升及影响研究的现状与问题[J]. 地球科学进展, 1995, 10(5): 475-482.
[10]	时钟,K.Pye,陈吉余. 潮滩盐沼物理过程的研究进展综述[J]. 地球科学进展, 1995, 10(1): 19-30.
[11]	李从先. 海平面上升对我国沿海低地的影响[J]. 地球科学进展, 1993, 8(6): 26-30.
[12]	杨桂山; 朱季文. 全球海平面上升影响研究的内容、方法与问题[J]. 地球科学进展, 1993, 8(3): 70-76.
