汉江上游晏家棚段全新世古洪水研究
  <sup>*</sup>

doi:10.1167/j.issn.1001-8166.2015.04.0487

通过对汉江上游详尽的野外考察,在湖北郧县晏家棚河段全新世黄土—古土壤地层中发现3层典型古洪水滞流沉积物。在沉积学的基础上,使用OSL技术断代,确定3期特大洪水事件分别在1 000~900 a BP,1 800~1 600 a BP和3 200~2 800 a BP期间发生。采用“古洪水SWD尖灭点高程法”确定这3期古洪水事件的洪峰水位介于176.20~176.73 m。运用ArcGIS耦合HEC-RAS水力模型,推求这3期古洪水事件的洪峰流量介于53 770~55 950 m³/s,并从多种角度验证了该模型计算结果的科学性和合理性。将此结果与实测洪水和历史洪水资料接续,构成万年尺度洪水水文数据序列,得到汉江上游晏家棚河段万年一遇和千年一遇洪水的流量分别为59 100和45 200 m³/s。采用HEC-RAS模型对研究河段进行古洪水模拟,方法科学,结果可靠。将该河段洪水水文数据序列有效地延长到万年尺度,极大地提高了设计洪水的可靠性。

关键词: HEC-RAS模型, 汉江上游, 全新世, 古洪水, 水文学

Three bedsets of typical palaeoflood slackwater deposits (SWDs) were identified in the Holocene loess-soil sequence at Yanjiapeng (YJP) sites along the banks of Yunxian County in the upper Hanjiang River during the detailed investigations. They were studied by field observations and laboratory analysis. These extreme flood events were dated to 1 000~900 a BP, 1 800~1 600 a BP and 3 200~2 800 a BP with the Optically Stimulated Luminescence (OSL) dating in combination with the previously studies in the Hanjiang River. The palaeostages of these flood episodes were 176.20~176.73 m estimated with the elevations of the end-point of these SWDs. HEC-RAS model within an ArcGIS environment showed that the palaeoflood peak discharges ranged from 53 770 to 55 950 m³/s. The hydraulic parameters and the results were tested from different aspects. The results indicated that the palaeoflood peak discharges reconstructed by the HEC-RAS model were reliable and accurate. Besides, flood data series are extended to a 10 000year time scale established by a combination data of the gauged flood, historical flood and palaeoflood in the upper Hanjiang River, which provided the values of 59 100 m³/s and 45 200 m³/s for the 10 000 a and 1 000 a floods, respectively. This paper establishes a new way in hydrological reconstruction of upper Hanjiang River and is considerably significant in water resource management, flood mitigation and hydrological engineering.

Key words: HEC-RAS hydraulic model, Upper Hanjiang River, Holocene, Palaeoflood, Hydrology.

中图分类号:

P331.1

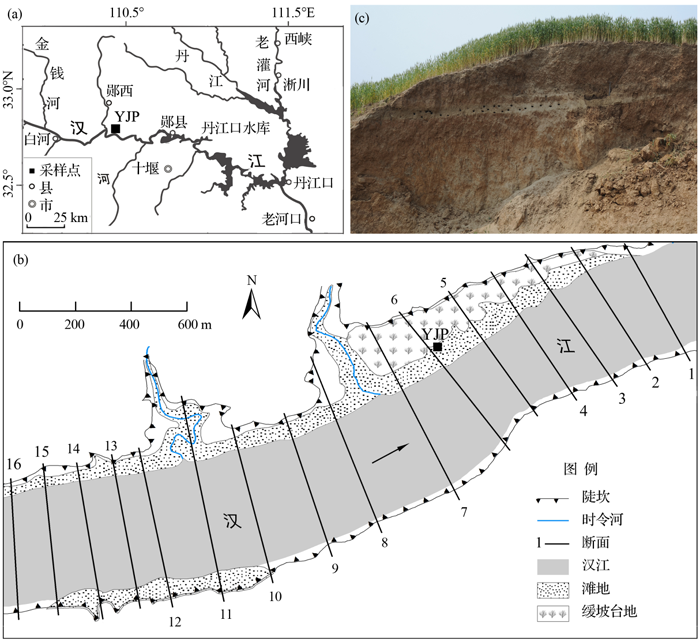

图1 汉江上游郧县晏家棚地点 (a) 研究地点位置; (b)研究河段河槽断面系列; (c)研究剖面照片

Fig.1 Location of the studied site (a) Location of the studied site; (b) Cross-sections in the YJP reach; (c) Photo of YJP profile

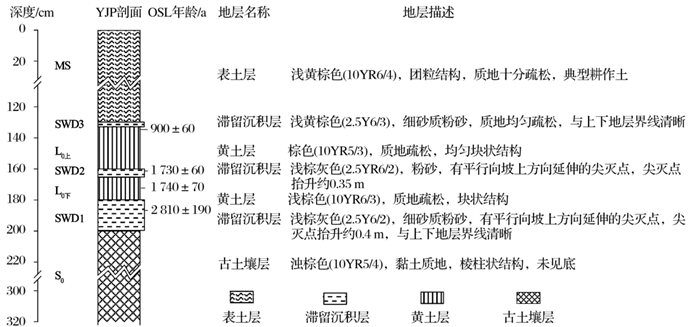

图2 汉江上游郧县晏家棚全新世古洪水滞流沉积物剖面地层划分、描述与年代图

Fig.2 Pedo-stratigraphy subdivision, descriptions and chronology in the YJP profile in the upper Hanjiang River

表1 汉江上游晏家棚剖面OSL测年结果

Table 1 OSL dating results of the sample from the YJP site in the upper Hanjiang River

样品	深度	测试粒径	U	Th	K	含水量	等效剂量	环境剂量	OSL年龄
样品	(cm)	(μm)	(mg/kg)	(mg/kg)	(%)	(%)	De(Gy)	Dy(Gy/ka)	(a)
L_0上	135~140	40~63	2.27±0.09	11.6±0.32	2.02±0.06	20.6	2.82±0.16	3.14±0.07	900±60
SWD2	160~165	40~63	2.06±0.09	10.7±0.31	1.8±0.06	22.4	4.82±0.12	2.79±0.07	1730±60
L_0下	170~175	40~63	2.6±0.10	11.5±0.32	2.01±0.06	22.6	4.90±0.18	2.82±0.05	1740±70
SWD1	180~185	40~63	2.45±0.10	10.2±0.30	2.06±0.06	24.0	6.68±0.80	2.85±0.05	2810±190

表1 汉江上游晏家棚剖面OSL测年结果

Table 1 OSL dating results of the sample from the YJP site in the upper Hanjiang River

样品	深度	测试粒径	U	Th	K	含水量	等效剂量	环境剂量	OSL年龄
样品	(cm)	(μm)	(mg/kg)	(mg/kg)	(%)	(%)	De(Gy)	Dy(Gy/ka)	(a)
L_0上	135~140	40~63	2.27±0.09	11.6±0.32	2.02±0.06	20.6	2.82±0.16	3.14±0.07	900±60
SWD2	160~165	40~63	2.06±0.09	10.7±0.31	1.8±0.06	22.4	4.82±0.12	2.79±0.07	1730±60
L_0下	170~175	40~63	2.6±0.10	11.5±0.32	2.01±0.06	22.6	4.90±0.18	2.82±0.05	1740±70
SWD1	180~185	40~63	2.45±0.10	10.2±0.30	2.06±0.06	24.0	6.68±0.80	2.85±0.05	2810±190

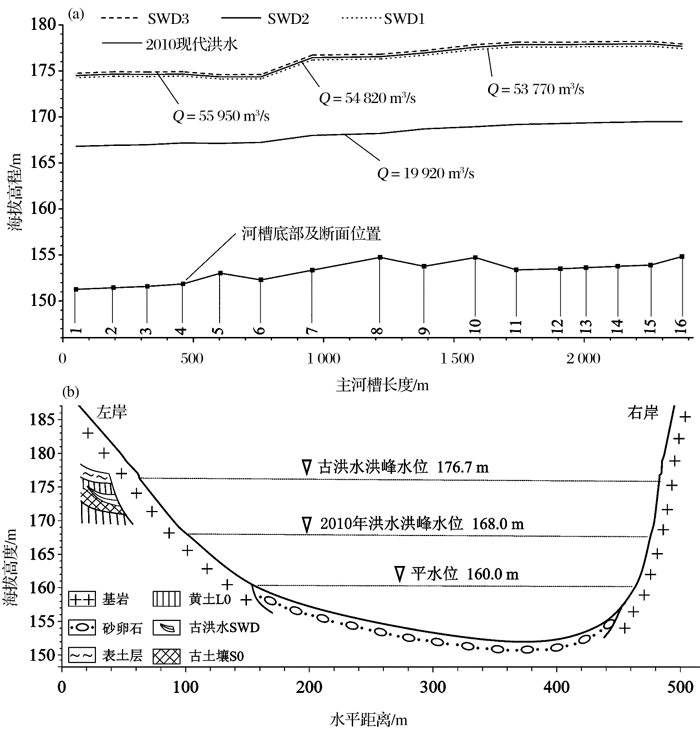

图3 基于HEC-RAS模型建立的汉江上游晏家棚古洪水水面线与7号断面形态

Fig. 3 Calculated flood-surface profiles using HEC-RAS and the 7 ^th cross-section of the channel in the YJP reach along the upper Hanjiang River

表2 汉江上游晏家棚地点古洪水洪峰流量

Table 2 The peak discharge of palaeofloods in YJP reach in the Upper Hanjiang River

洪水期次	指示水位	洪峰流量Q/(m³/s)		差异率/%
洪水期次	指示水位	比降—面积法	HEC-RAS 模型法	差异率/%
SWD3	176.73	52 620	55 950	5.95
SWD2	176.45	51 330	54 820	6.37
SWD1	176.20	50 220	53 770	6.60

表2 汉江上游晏家棚地点古洪水洪峰流量

Table 2 The peak discharge of palaeofloods in YJP reach in the Upper Hanjiang River

洪水期次	指示水位	洪峰流量Q/(m³/s)		差异率/%
洪水期次	指示水位	比降—面积法	HEC-RAS 模型法	差异率/%
SWD3	176.73	52 620	55 950	5.95
SWD2	176.45	51 330	54 820	6.37
SWD1	176.20	50 220	53 770	6.60

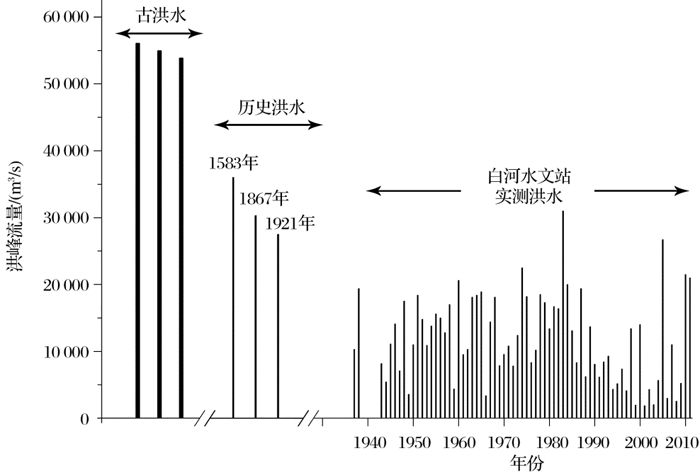

图4 汉江上游晏家棚段万年以来不连续洪水水文数据序列

Fig.4 Peak discharge with Baihe gauge station records, historical period records and palaeoflood records at the YJP reach in the upper Hanjiang River

表3 汉江上游晏家棚地点古洪水洪峰流量对糙率系数的灵敏度测试结果

Table 3 Results of the sensitivity test performed on the hydraulic calculations in the YJP reach in the upper Hanjiang River

洪水期次	洪峰流量Q/(m³/s)			变幅/%
洪水期次	n×1.25	n×1	n×0.75	n×1.25	n×0.75
SWD3	46500	55950	63450	-16.89%	13.40%
SWD2	45530	54820	62180	-16.95%	13.43%
SWD1	44650	53770	61050	-16.96%	13.54%

表3 汉江上游晏家棚地点古洪水洪峰流量对糙率系数的灵敏度测试结果

Table 3 Results of the sensitivity test performed on the hydraulic calculations in the YJP reach in the upper Hanjiang River

洪水期次	洪峰流量Q/(m³/s)			变幅/%
洪水期次	n×1.25	n×1	n×0.75	n×1.25	n×0.75
SWD3	46500	55950	63450	-16.89%	13.40%
SWD2	45530	54820	62180	-16.95%	13.43%
SWD1	44650	53770	61050	-16.96%	13.54%

[1]	Fang Jian, Du Juan, Xu Wei, et al.Advances in the study of climate change impacts on flood disaster[J]. Advances in Earth Science, 2014, 29(9): 1 085-1 093.
	[方建, 杜鹃, 徐伟, 等. 气候变化对洪水灾害影响研究进展[J]. 地球科学进展, 2014, 29(9): 1 085-1 093.]
[2]	Wei Zhudeng, Fang Xiuqi, Su Yun, et al.A review of climatic impacts on Chinese socio-economic development over the past 2000 years[J]. Advances in Earth Science, 2014, 29(3): 336-343.
	[魏柱灯, 方修琦, 苏筠, 等. 过去2000年气候变化对中国经济与社会发展影响研究综述[J]. 地球科学进展, 2014, 29(3): 336-343.]
[3]	Zhu Cheng, Yu Shiyong, Lu Chuncheng, et al.The study of Holocene environmental archaeology and extreme flood disaster in the Three Gorges of the Changjiang River and the Jianghan Plain[J]. Acta Geographica Sinica, 1997, 52(3): 268-278.
	[朱诚, 于世永, 卢春成, 等. 长江三峡及江汉平原地区全新世环境考古与异常洪涝灾害研究[J]. 地理学报, 1997, 52(3): 268-278.]
[4]	Jiang Tong, Shi Yafeng.Global climatic warming, the Yangtze floods and potential loss[J]. Advances in Earth Science, 2003, 18(2): 277-284.
	[姜彤,施雅风. 全球变暖、长江水灾与可能损失[J]. 地球科学进展, 2003, 18(2): 277-284.]
[5]	Liu Peilin.The cyclic geography study on the historical floods in the Yangtze River[J]. Advances in Earth Science, 2000, 15(5): 503-508.
	[刘沛林. 长江流域历史洪水的周期地理学研究[J]. 地球科学进展,2000,15(5):503-508.]
[6]	Wang Guoan.On flood prevention standard of reservoirs in China[J]. Journal of Hydraulic Engineering, 2002, 12: 22-25.
	[王国安. 关于我国水库的防洪标准问题[J]. 水利学报, 2002, 12: 22-25.]
[7]	Baker V R.Palaeoflood hydrology in a global context[J]. Catena, 2006, 66(1/2): 161-168.
[8]	Sheffer N A, Rico M, Enzel Y, et al.The palaeoflood record of the Gardon River, France: A comparison with the extreme 2002 flood event[J]. Geomorphology, 2008, 98(1): 71-83.
[9]	England J J F, Godaire J E, Klinger R E, et al. Paleohydrologic bounds and extreme flood frequency of the Upper Arkansas River, Colorado, USA[J]. Geomorphology, 2010, 124(1): 1-16.
[10]	Huang C C, Pang J L, Zha X C, et al.Extraordinary hydro-climatic events during the period AD 200-300 recorded by slackwater deposits in the upper Hanjiang River valley, China[J]. Palaeogeography, Palaeoclimatology, Palaeoecology, 2013, 374: 274-283.
[11]	Gerardo B, Alfonso S, Yolanda S, et al.Palaeoflood record of the Tagus River (Central Spain) during the Late Pleistocene and Holocene[J]. Quaternary Science Reviews, 2003, 22: 1 737-1 756.
[12]	Alpa S.A mid-late Holocene flood record from the alluvial reach of the Mahi River, western India[J]. Catena, 2007, 70: 330-339.
[13]	Yael J, Tamir G, Yehouda E.Late Holocene upper bounds of flood magnitudes and twentieth century large floods in the ungauged, hyperarid alluvial Nahal Arava, Israel[J]. Geomorphology, 2008, 95: 274-294.
[14]	Brunner G W.HEC-RAS River Analysis System Hydraulic Reference Manual[M]. California, USA: US Army Corps of Engineers HEC, 2010.
[15]	Xie Yuebo, Fei Yuhong, Shen Qipeng.Slack water deposits and flow peak level of a paleoflood[J]. Acta Geoscientia Sinica, 2001, 22(4): 320-323.
	[谢悦波, 费宇红, 沈起鹏. 古洪水平流沉积与水位[J]. 地球学报, 2001, 22(4): 320-323.]
[16]	Shi Fucheng, Yi Yuanjun, Mu Ping.Investigation, Research and Study on the Yellow River Historical Flood[M]. Zhengzhou: Yellow River Water Conservancy Press, 2002.
	[史辅成, 易元俊, 慕平.黄河历史洪水调查、考证和研究[M]. 郑州:黄河水利出版社, 2002.]
[17]	Zhan Daojiang, Xie Yuebo.Palaeoflood Study[M]. Beijing: China Water Power Press, 2001.
	[詹道江, 谢悦波. 古洪水研究[M]. 北京: 中国水利水电出版社,2001.]
[18]	Xie Yuanyun, Li Chang’an, Wang Qiuliang, et al.Sedimentary records of palaeoflood events during the last 3000 years in Jianghan Plain[J]. Scientia Geographica Sinica, 2007, 27(1): 81-84.
	[谢远云, 李长安, 王秋良,等. 江汉平原近3000 年来古洪水事件的沉积记录[J]. 地理科学, 2007, 27(1): 81-84.]
[19]	Huang Chunchang, Li Xiaogang, Pang Jiangli, et al.Palaeoflood sedimentological and hydrological studies on the Yongheguan reach in the Middle Yellow River[J]. Acta Geographica Sinica, 2012, 67(11): 1 493-1 504.
	[黄春长, 李晓刚, 庞奖励, 等. 黄河永和关段全新世古洪水研究[J]. 地理学报, 2012, 67(11): 1 493-1 504.]
[20]	Huang Chunchang, Pang Jiangli, Zha Xiaochun, et al.Prehistorical floods in the Guanzhong Basin in the Yellow River drainage area: A case study along the Qishuihe River valley over the Zhouyuan loess tableland[J]. Science in China(Series D), 2011, 41(11): 1 658-1 669.
	[黄春长, 庞奖励, 查小春, 等. 黄河流域关中盆地史前大洪水研究——以周原漆水河谷地为例[J]. 中国科学:D辑, 2011, 41(11): 1 658-1 669.]
[21]	Zha Xiaochun, Huang Chunchang, Pang Jiangli, et al.The Holocene palaeoflood events in the Yunxi Reach in the upper reaches of Hanjiang River[J]. Acta Geographica Sinica, 2012, 67(5): 671-680.
	[查小春, 黄春长, 庞奖励, 等. 汉江上游郧西段全新世古洪水事件研究[J]. 地理学报, 2012, 67(5): 671-680.]
[22]	Li Xiaogang, Huang Chunchang, Pang Jiangli, et al.Palaeoflood hydrological study in the Baihe reach in the upper reaches of the Hanjiang River[J]. Scientia Gepgraphica Sinica, 2012, 32(8): 971-978.
	[李晓刚, 黄春长, 庞奖励, 等. 汉江上游白河段万年尺度洪水水文学研究[J]. 地理科学, 2012, 32(8): 971-978.]
[23]	Liu Tao, Huang Chunchang, Pang Jiangli, et al.Hydrological reconstructions of the pre-historical great floods in the Wufeng reach of Yunxian County in the upper Hanjiang River[J]. Acta Geographica Sinica, 2013, 68(11): 1 568-1 577.
	[刘涛, 黄春长, 庞奖励, 等.汉江上游郧县五峰段史前大洪水水文学恢复研究[J]. 地理学报, 2013, 68(11): 1 568-1 577.]
[24]	Zheng Shuwei, Pang Jiangli, Huang Chunchang, et al.Palaeoflood hydrological study in the Quyuanhekou reach in the upper reaches of the Hanjiang River[J]. Resources and Environment in the Yangtze Basin, 2013, 22(12):1 608-1 613.
	[郑树伟, 庞奖励, 黄春长, 等. 汉江上游郧县曲远河河口段全新世古洪水水文学状态研究[J]. 长江流域资源与环境, 2013, 22(12):1 608-1 613.]
[25]	Qiao Jing, Pang Jiangli, Huang Chunchang, et al.Palaeoflood hydrological study in the Qianfang section of Yunxian County in the upper reaches of the Hanjiang River[J]. Resources and Environment in the Yangtze Basin, 2012, 21(5): 533-539.
	[乔晶, 庞奖励, 黄春长, 等. 汉江上游郧县前坊段全新世古洪水水文学研究[J]. 长江流域资源与环境, 2012, 21(5): 533-539.]
[26]	Hu Yawei, Pang Jiangli, Huang Chunchang, et al.Hydrological study on holocene palaeoflood at Yunxi section of upper reaches of Hanjiang River[J].Journal of Natural Disasters, 2012, 21(5): 55-62.
	[虎亚伟, 庞奖励, 黄春长, 等. 汉江上游郧西段全新世古洪水水文学研究[J]. 自然灾害学报, 2012, 21(5): 55-62.]
[27]	Ma Yugai, Huang Chunchang, Zhou Yali, et al.OSL dating of the palaeoflood event in the Shangjiahe reach in the upper Hanjiang River Valley[J].Acta Sedimentologica Sinice, 2014, 32(2): 1-8.
	[马玉改, 黄春长, 周亚利, 等. 汉江上游尚家河段全新世古洪水事件光释光测年研究[J]. 沉积学报, 2014, 32(2): 1-8.]
[28]	Zhang Y Z, Huang C C, Pang J L, et al.Holocene palaeofloods related to climatic events in the upper reaches of the Hanjiang River valley, middle Yangtze River Basin, China[J]. Geomorphology, 2013, 195: 1-12.
[29]	Yang Yongde, Zou Ning, Guo Xiwang, et al.Analysis and calculation of design flood at Baihe gauge station in Hanjiang River[J]. Water Resources Research, 1997, 18(3): 36-38.
	[杨永德, 邹宁, 郭希望, 等. 汉江白河水文站设计洪水分析计算[J]. 水资源研究, 1997, 18(3): 36-38.]
[30]	Li Wenhao.Hydrologic characteristics analysis in the upper reaches of Hanjiang River[J]. Journal of Water Resources & Water Engineering, 2004, 15(2): 54-58.
	[李文浩. 汉江上游流域水文特性分析[J]. 水资源与水工程学报, 2004, 15(2): 54-58.]
[31]	Luo Chengzheng.Compilation of Survey Data about Historical Extraordinary Floods in China[M]. Beijing: Chinese Bookstore Press, 2006.
	[骆承政. 中国历史大洪水调查资料汇编[M]. 北京: 中国书店出版社, 2006.]
[32]	Murray A S, Wintle A G.Luminescence dating of quartz using an improved single-aliquot regenerative-dose protocol[J]. Radiation Measurements, 2000, 32(1): 57-73.
[33]	Yang D Y, Ge Y, Xie Y B, et al.Sedimentary records of large Holocene floods from the middle reaches of the Yellow River, China[J]. Geomorphology, 2000, 33(1/2): 73-88.
[34]	School of Water Resource and Hydropower. Hydraulics[M]. Beijing: Higher Education Press, 1968: 335-336.
	[武汉水利电力学院水力学教研室.水力学[M]. 北京: 高等教育出版社,1968: 335-336.]
[35]	Chow V T.Open-channel Hydraulics[M]. New York: McGraw-Hill Book Company, Inc., 1959.
