地球科学进展 ›› 2021, Vol. 36 ›› Issue (5): 528 -535. doi: 10.11867/j.issn.1001-8166.2021.018

新学科·新技术·新发现 上一篇    下一篇

CG6型相对重力仪比例因子两种标定结果比对分析
赵丕( ), 何志堂( ), 罗铖, 康胜军, 史志刚
  1. 自然资源部第一大地测量队,陕西 西安 710054
  • 收稿日期:2020-12-29 修回日期:2021-03-05 出版日期:2021-06-18
  • 通讯作者: 何志堂 E-mail:583954561@qq.com;547060281@qq.com
  • 基金资助:
    国家自然科学基金面上项目“局部地质水文特征对地表重力观测影响研究”(41774093);国家自然科学基金青年科学基金项目“红河断裂带北、中段及邻区现今地壳深部变形的重力学研究”(41604014)

Comparison and Analysis of Two Different Calibration Results of Scale Factor of CG6 Relative Gravimeter

Pi ZHAO( ), Zhitang HE( ), Cheng LUO, Shengjun KANG, Zhigang SHI

  1. The First Geodetic Surveying Brigade of Ministry of Natural Resources,Xi'an 710054,China
  • Received:2020-12-29 Revised:2021-03-05 Online:2021-06-18 Published:2021-07-02
  • Contact: Zhitang HE E-mail:583954561@qq.com;547060281@qq.com
  • About author:ZHAO Pi (1986-), male, Xi'an City, Shaanxi Province, Engineer. Research areas include gravity measurement. E-mail: 583954561@qq.com
  • Supported by:
    the National Natural Science Foundation of China "Research of the effect of local geological and hydrological model on gravity measurement"(41774093);"Study on present deep crust deformation in northern and middle of the Red River fault zone by gravity method"(41604014)

比例因子一直是影响相对重力测量精度的重要因素之一。根据不同方法标定相对重力仪比例因子,对相对重力测量数据进行计算,其结果精度存在一定的不同。利用CG6型相对重力仪比例因子的两种标定结果(重力长基线标定值和测区重力基准点之间标定值),对2019年和2020年中国大陆构造环境监测网络西藏测区相对重力联测数据进行处理,并对结果精度进行比对分析。结果表明,采用在测区重力基准点间标定比例因子计算的成果精度,优于在重力长基线标定比例因子计算的成果精度。

Scale factor is always one of the most important factors which affect the accuracy of relative gravity measurement. The scale factors from different calibration methods are used to calculate the same relative gravity measurement data and therefore the accuracy of the results are different. Based on the different scale factors of CG6 relative gravimeter(Calibration factor calculated by the gravity long baseline or the gravity datum points in the measurement area),the gravity measurement data of Tibet area in Crustal Movement Observation Network of China in 2019 and 2020 were calculated, and then the calculated results is compared and analyzed. The results show that the accuracy calculated by calibrating the scale factor between the gravity datum points in the measurement area is better than that calculated by calibrating the scale factor on the gravity long baseline.

中图分类号:

表1 CG6型相对重力仪固定比例因子表
Table 1 Fixed scale factor of CG6 relative gravimeter
表1 CG6型相对重力仪固定比例因子表
Table 1 Fixed scale factor of CG6 relative gravimeter

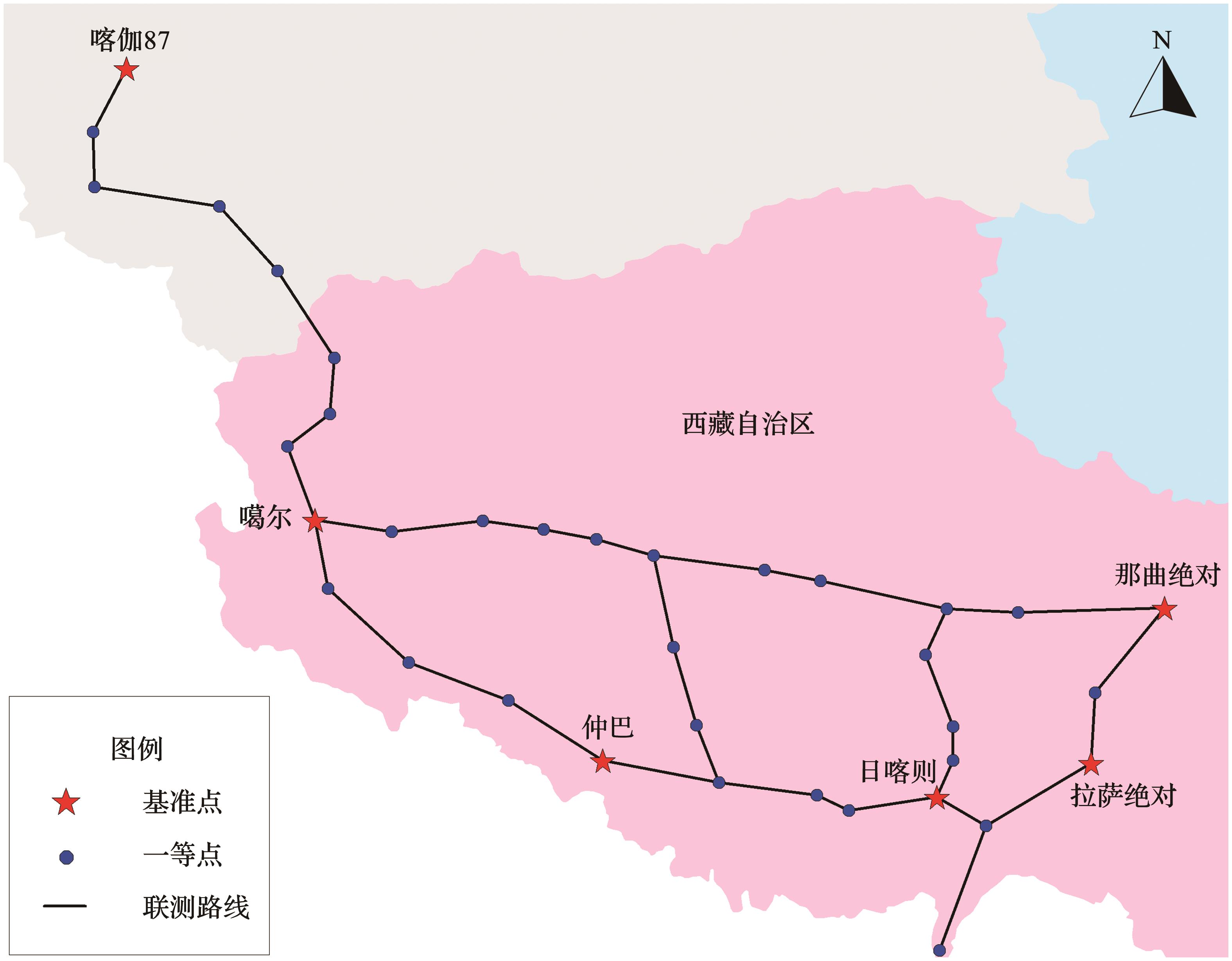

图1 陆态网络西藏测区重力网2019年联测图
Fig.1 Gravity network in Tibet of CMONOC in 2019
图1 陆态网络西藏测区重力网2019年联测图
Fig.1 Gravity network in Tibet of CMONOC in 2019

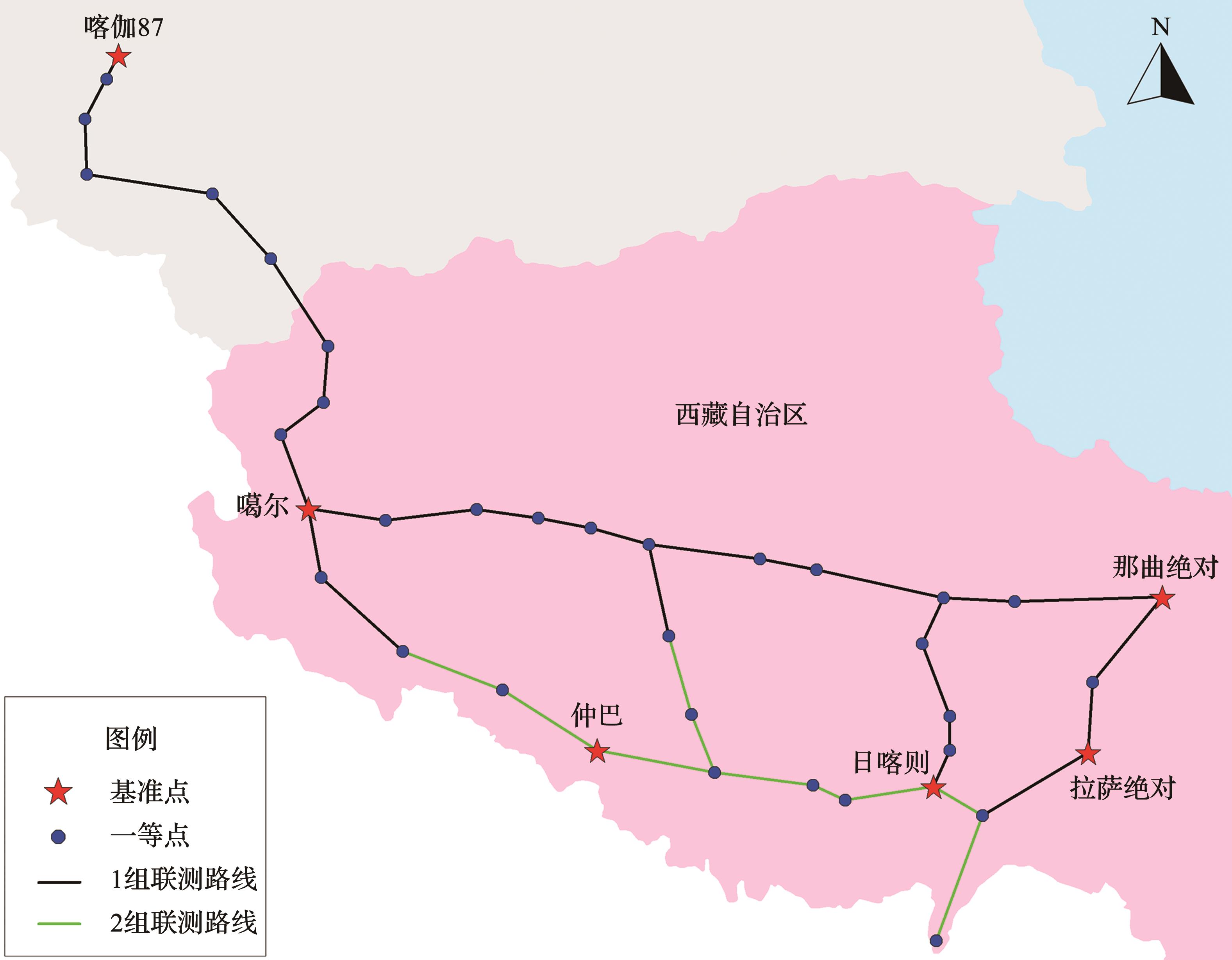

图2 陆态网络西藏测区重力网2020年联测图
Fig.2 Gravity network in Tibet of CMONOC in 2020
图2 陆态网络西藏测区重力网2020年联测图
Fig.2 Gravity network in Tibet of CMONOC in 2020
表2 实测比例因子成果表
Table 2 Measured results of scale factor
表2 实测比例因子成果表
Table 2 Measured results of scale factor
表3 平差后点位精度统计表
Table 3 Statistics of point accuracy after adjustment
序号 点号 点名 2019年精度/(×10-5 m/s2 2020年精度/(×10-5 m/s2
固定 实测 固定 实测
点值平均精度 0.0067 0.0049 0.0131 0.0062
1 65008700 喀伽87 0.0096 0.0066 0.0182 0.0072
2 65008701 喀伽87-1 / / 0.0197 0.0078
3 10508300 阿克美其特 0.0097 0.0067 0.0207 0.0081
4 10524600 麻扎 0.0096 0.0067 0.0203 0.0080
5 10631200 康西瓦 0.0095 0.0066 0.0196 0.0077
6 10237700 甜水海 0.0091 0.0063 0.0188 0.0074
7 10128700 日土 0.0071 0.0049 0.0131 0.0052
8 10127900 噶尔 0.0051 0.0035 0.0088 0.0035
9 10642201 狮泉河重力台 0.0058 0.0040 0.0106 0.0042
10 10234100 夏木 0.0064 0.0044 0.0116 0.0045
11 10234200 多玛 0.0080 0.0055 0.0151 0.0059
12 10632301 松西 0.0087 0.0060 0.0166 0.0065
13 10237400 革吉 0.0062 0.0043 0.0118 0.0046
14 10127200 巴嘎 0.0064 0.0044 0.0116 0.0045
15 10631100 盐湖 0.0068 0.0047 0.0133 0.0052
16 10234000 桑木桑 0.0059 0.0041 0.0106 0.0042
17 10235400 达热布 0.0071 0.0049 0.0140 0.0055
18 10104400 改则 0.0069 0.0048 0.0138 0.0054
19 10129700 仲巴 0.0048 0.0033 0.0085 0.0033
20 10602000 洞错 0.0063 0.0044 0.0125 0.0049
21 10641200 措勤新 0.0065 0.0045 0.0130 0.0051
22 10632200 诺仓 0.0062 0.0043 0.0120 0.0047
23 10641100 拉嘎新 0.0053 0.0037 0.0103 0.0040
24 10213200 拉冲 0.0066 0.0046 0.0127 0.0050
25 10127100 昂仁 0.0057 0.0040 0.0110 0.0043
26 10104900 尼玛 0.0065 0.0045 0.0122 0.0048
27 10601900 拉孜 0.0055 0.0038 0.0101 0.0040
28 20170002 申扎县 0.0063 0.0044 0.0117 0.0046
29 10128000 日喀则 0.0044 0.0030 0.0077 0.0030
30 10106000 亚东 0.0069 0.0048 0.0138 0.0054
31 20170374 雄梅镇 0.0058 0.0040 0.0108 0.0043
32 20170003 南木林 0.0057 0.0040 0.0103 0.0041
33 20170103 仁堆乡 0.0063 0.0044 0.0115 0.0045
34 10233900 江孜 0.0050 0.0034 0.0088 0.0035
35 10104901 班戈 0.0056 0.0039 0.0105 0.0041
36 10642100 拉萨绝对 0.0044 0.0031 0.0078 0.0030
37 10212800 当雄 0.0051 0.0035 0.0094 0.0037
38 10130200 那曲气象局 0.0066 0.0046 0.0119 0.0047
39 10130202 那曲绝对 0.0046 0.0032 0.0082 0.0032
表3 平差后点位精度统计表
Table 3 Statistics of point accuracy after adjustment
序号 点号 点名 2019年精度/(×10-5 m/s2 2020年精度/(×10-5 m/s2
固定 实测 固定 实测
点值平均精度 0.0067 0.0049 0.0131 0.0062
1 65008700 喀伽87 0.0096 0.0066 0.0182 0.0072
2 65008701 喀伽87-1 / / 0.0197 0.0078
3 10508300 阿克美其特 0.0097 0.0067 0.0207 0.0081
4 10524600 麻扎 0.0096 0.0067 0.0203 0.0080
5 10631200 康西瓦 0.0095 0.0066 0.0196 0.0077
6 10237700 甜水海 0.0091 0.0063 0.0188 0.0074
7 10128700 日土 0.0071 0.0049 0.0131 0.0052
8 10127900 噶尔 0.0051 0.0035 0.0088 0.0035
9 10642201 狮泉河重力台 0.0058 0.0040 0.0106 0.0042
10 10234100 夏木 0.0064 0.0044 0.0116 0.0045
11 10234200 多玛 0.0080 0.0055 0.0151 0.0059
12 10632301 松西 0.0087 0.0060 0.0166 0.0065
13 10237400 革吉 0.0062 0.0043 0.0118 0.0046
14 10127200 巴嘎 0.0064 0.0044 0.0116 0.0045
15 10631100 盐湖 0.0068 0.0047 0.0133 0.0052
16 10234000 桑木桑 0.0059 0.0041 0.0106 0.0042
17 10235400 达热布 0.0071 0.0049 0.0140 0.0055
18 10104400 改则 0.0069 0.0048 0.0138 0.0054
19 10129700 仲巴 0.0048 0.0033 0.0085 0.0033
20 10602000 洞错 0.0063 0.0044 0.0125 0.0049
21 10641200 措勤新 0.0065 0.0045 0.0130 0.0051
22 10632200 诺仓 0.0062 0.0043 0.0120 0.0047
23 10641100 拉嘎新 0.0053 0.0037 0.0103 0.0040
24 10213200 拉冲 0.0066 0.0046 0.0127 0.0050
25 10127100 昂仁 0.0057 0.0040 0.0110 0.0043
26 10104900 尼玛 0.0065 0.0045 0.0122 0.0048
27 10601900 拉孜 0.0055 0.0038 0.0101 0.0040
28 20170002 申扎县 0.0063 0.0044 0.0117 0.0046
29 10128000 日喀则 0.0044 0.0030 0.0077 0.0030
30 10106000 亚东 0.0069 0.0048 0.0138 0.0054
31 20170374 雄梅镇 0.0058 0.0040 0.0108 0.0043
32 20170003 南木林 0.0057 0.0040 0.0103 0.0041
33 20170103 仁堆乡 0.0063 0.0044 0.0115 0.0045
34 10233900 江孜 0.0050 0.0034 0.0088 0.0035
35 10104901 班戈 0.0056 0.0039 0.0105 0.0041
36 10642100 拉萨绝对 0.0044 0.0031 0.0078 0.0030
37 10212800 当雄 0.0051 0.0035 0.0094 0.0037
38 10130200 那曲气象局 0.0066 0.0046 0.0119 0.0047
39 10130202 那曲绝对 0.0046 0.0032 0.0082 0.0032

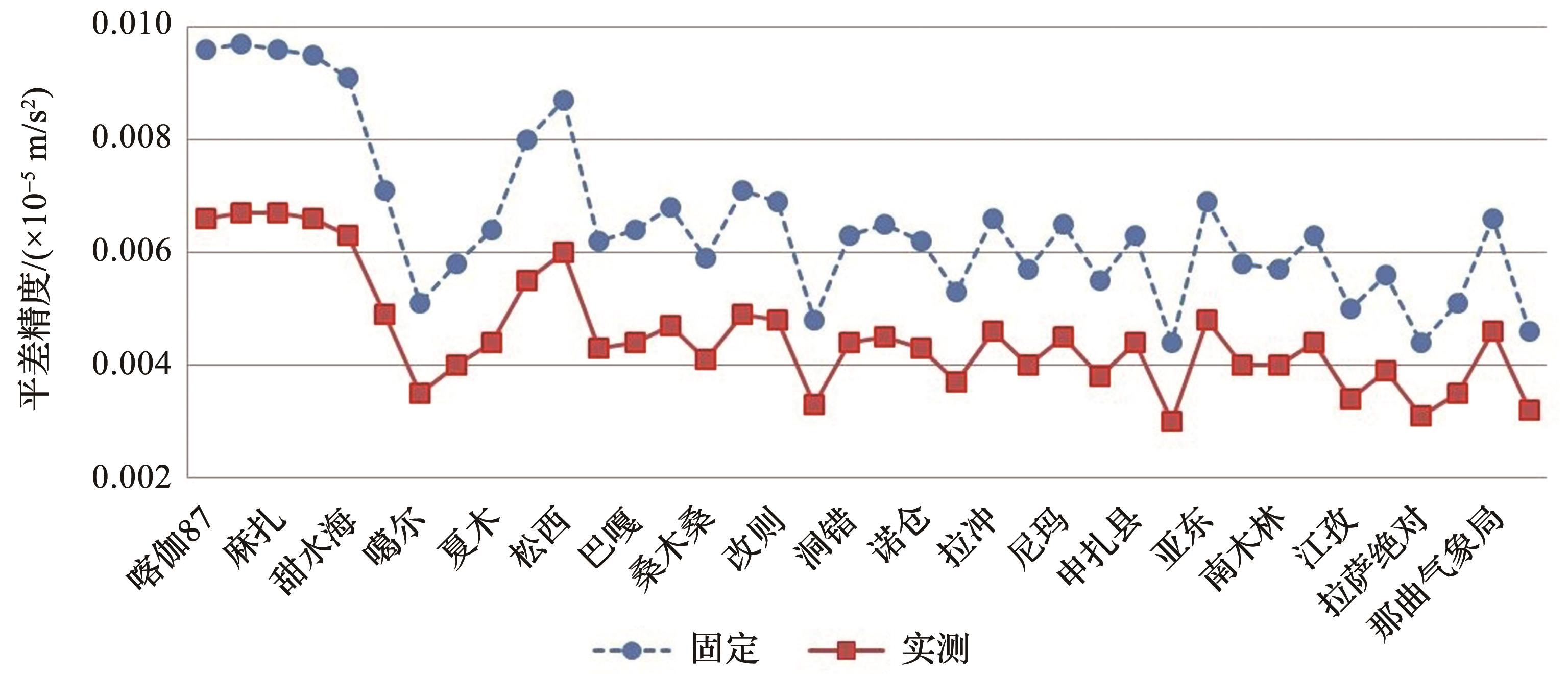

图3 20192种比例因子计算平差精度统计
Fig.3 Statistics of adjustment accuracy by using two kinds of scale factors in 2019
图3 20192种比例因子计算平差精度统计
Fig.3 Statistics of adjustment accuracy by using two kinds of scale factors in 2019

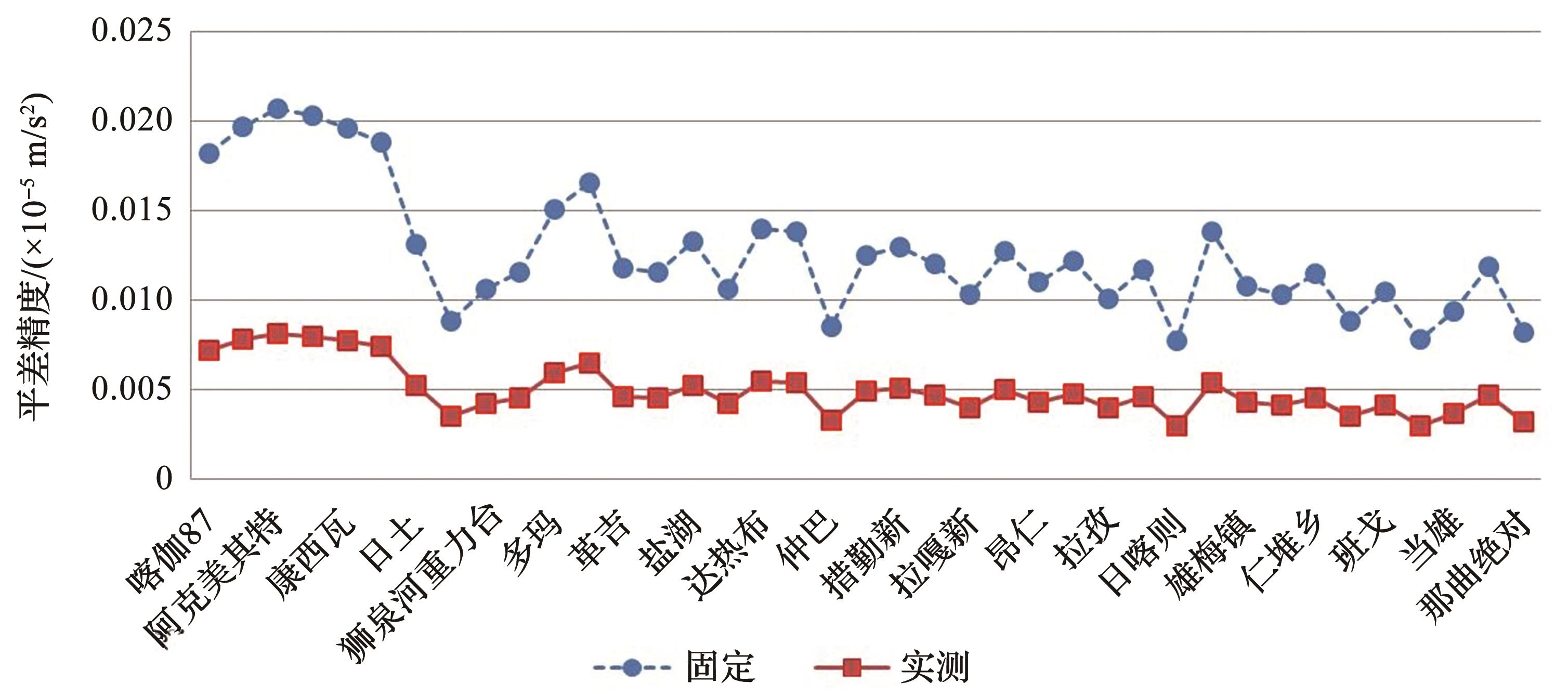

图4 20202种比例因子计算平差精度统计
Fig.4 Statistics of adjustment accuracy by using two kinds of scale factors in 2020
图4 20202种比例因子计算平差精度统计
Fig.4 Statistics of adjustment accuracy by using two kinds of scale factors in 2020
