山区小流域花粉植被土地利用的关系:定量检测人类活动对环境的影响

doi:10.11867/j.issn.1001-8166.2017.09.0972

地球科学进展 ›› 2017, Vol. 32 ›› Issue (9): 972 -982. doi: 10.11867/j.issn.1001-8166.2017.09.0972

沈巍 ¹(

), 许清海 ^2, ^*(

), 李建勇 ³, 李曼玥 ¹, 张攀攀 ², 卢静瑶 ²

1.河北师范大学泥河湾考古研究院,河北石家庄 050024
2.河北师范大学资源与环境科学学院, 河北石家庄 050024
3.中国科学院地球环境研究所,陕西西安 710075

收稿日期:2017-04-08 修回日期:2017-07-24 出版日期:2017-09-20
通讯作者: 许清海 E-mail:linghuizi@gmail.com;xuqinghai@hebtu.edu.cn
基金资助:
国家自然科学基金项目“基于花粉产量定量重建我国6 ka以来的土地覆被(1°×1°)变化”(编号:41630753);中瑞NSFC-STINT合作基金项目“基于花粉的8000年以来中国北温带地区人类活动引起的土地覆被变化对气候模拟的影响”(编号:41611130050)资助

Relationship of Pollen-Vegetation-Land Use in Small Watersheds of Mountain Area: A Tentative Study of Quantitative Detecting Human Activities on Environment

Wei Shen ¹( ), Qinghai Xu ^2, ^*( ), Jianyong Li ³, Manyue Li ¹, Panpan Zhang ², Jingyao Lu ²

1.Institute of Nihewan Archaeology, Hebei Normal University, Shijiazhuang 050024, China
2.College of Resources and Environment Science, Hebei Normal University, Shijiazhuang 050024, China
3.Institute of Earth Environment, Chinese Academy of Sciences, Xi’an 710075, China

Received:2017-04-08 Revised:2017-07-24 Online:2017-09-20 Published:2017-09-20
Contact: Qinghai Xu E-mail:linghuizi@gmail.com;xuqinghai@hebtu.edu.cn
About author:
First author:Shen Wei (1988-), male, Cangnan County, Zhejiang Province, Master student. Research areas include palynology and paleoenvironment.E-mail:linghuizi@gmail.com
Supported by:
Project supported by the National Natural Science Foundation of China “Quantitative reconstruction of land cover (1 ° × 1 °) from 6 ka in China based on pollen productivity”(No.41630753);The Natural Science Foundation of China-STINT Mobility Project Sweden-China “Effects of land cover change on climate simulation caused by human activities in north China’s temperate zone since 8000 years based on pollen data” (No.41611130050)

全文 ( 3 ) 下载PDF ( 706 )

随着全球气候变化研究的深入,以及多种气候系统敏感性模拟,人们越来越认识到人类活动可能是驱动历史时期气候变化的重要因素之一。因此,自21世纪开始,土地覆被变化(Land Cover Change)成为全球气候变化研究和气候模拟的核心和热点。而建立花粉—植被—土地利用的关系可能是定量检测人类活动对自然环境影响的有效途径之一。为此,在石家庄西部太行山区选择了2个小流域,利用拦水坝汇水流域的土地利用状况和花粉组合特征,建立了小流域花粉植被土地利用的定量关系。流域内花粉组合既有自然植被成分,也有农作物花粉类型,较好地反映了流域内花粉—植被—土地利用的关系;随着海拔高度降低,农田面积不断增加,人类活动强度逐渐增大,谷物及蔬菜类花粉也逐渐增多,花粉百分比与土地利用回归分析表明,谷物和蔬菜类花粉百分比与农田面积呈线性正相关,对人类活动具有明显的指示意义。

关键词: 太行山, 小流域, 花粉—植被—土地利用

With the progress of study on global climate change and the sensitivity simulation of various climate systems, human activities might be one of important factors driving climate change in historical periods. Therefore, since the beginning of this century, Land Cover Change has become the currently hot topic of global change research and climate simulation. The establishment of pollen-vegetation-land use relationship may be one of the effective ways to obtain quantitative estimates of human impact on natural environment. Therefore, in the Taihang Mountains,two small watersheds were selected to detect the relationships quantitatively among pollen, vegetation and land-use of small watershed by using pollen data. There are natural vegetation components and crop pollen types in pollen assemblages, which well reflect the relationships among pollen, vegetation and land-use in small watershed. As altitude decreases, the area of farmland, the intensity of human activities and the cereal, vegetable pollen percentages increases. The regression analysis of pollen percentages and land-use indicate that a linear positive relationship exists between the percentages of cereals, vegetables pollens and the area of farmland, which has a significance for human activities.

Key words: Taihang Mountains, Small watershed, Pollen-vegetation-land use.

中图分类号:

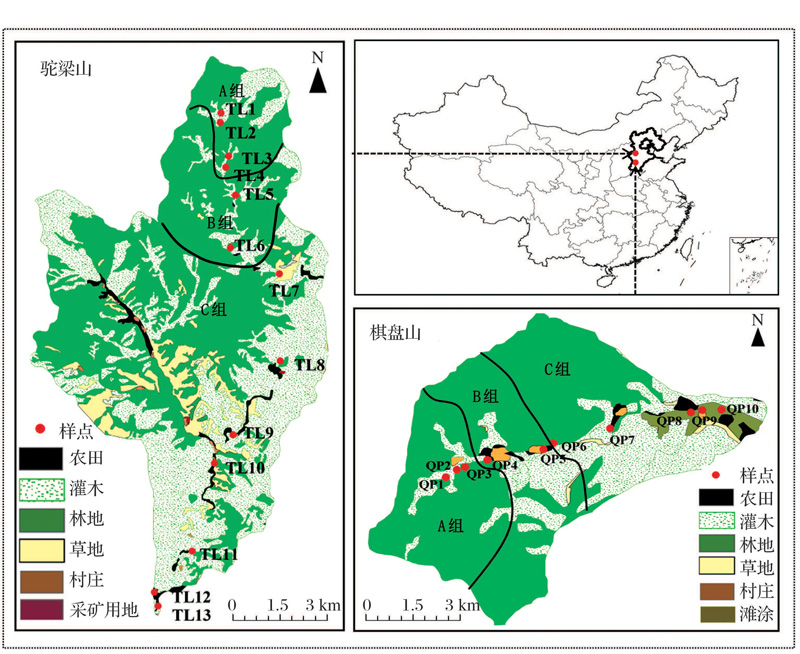

图1 驼梁山和棋盘山流域土地利用及采样点位置分布图
TL.驼梁山;QP.棋盘山

Fig.1 Location of the sediment samples and land use in the Tuoliang Mountain catchment and the Qipan Mountain catchment
TL. Tuoliang Mountain; QP.Qipan Mountain

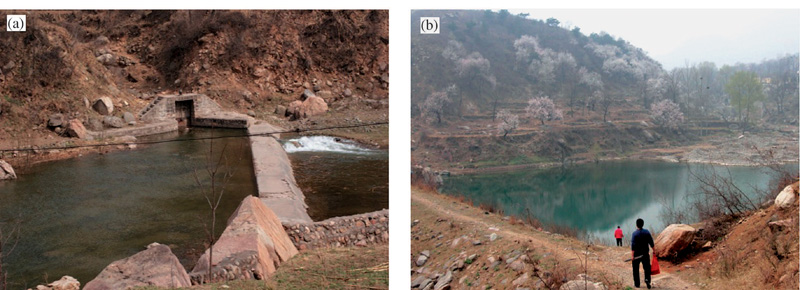

图2 驼梁山流域(a)和棋盘山(b)流域的小拦水坝

Fig.2 Examples of irrigation pools sampled for pollen in the Tuoliang Mountain catchment (a) and the Qipan Mountain catchment (b)

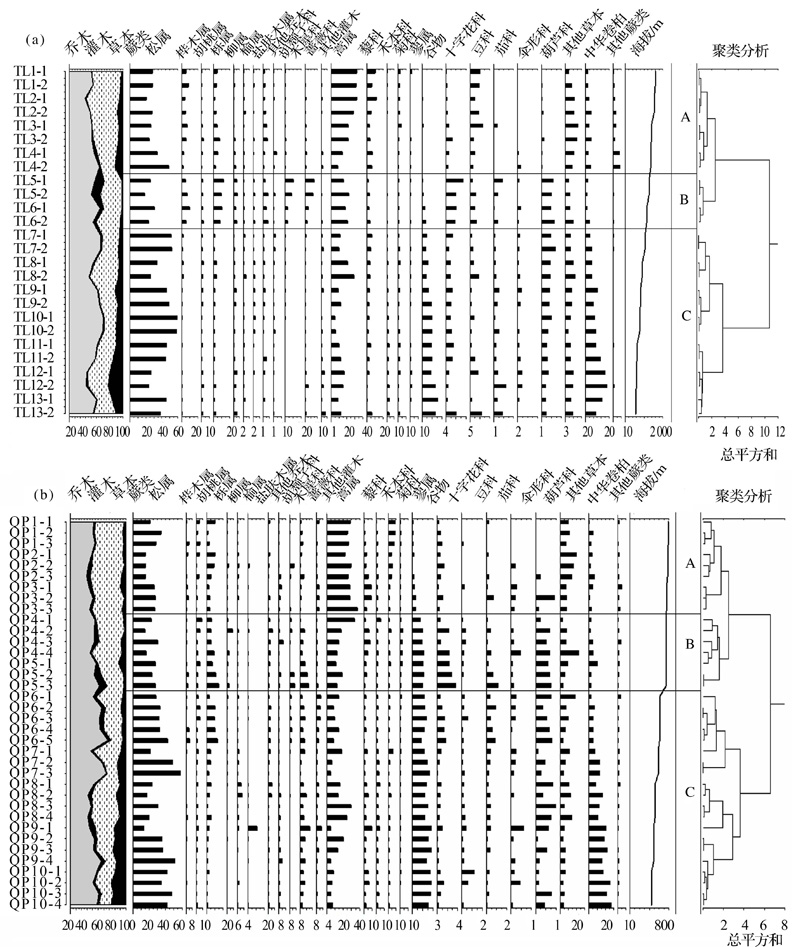

图3 驼梁山流域和棋盘山流域沉积物样品孢粉百分比(%)

Fig.3 Pollen diagrams (%) showing percentage values for the sediment samples in Tuoliang Mountain catchment (a) and Qipan Mountain catchment (b)

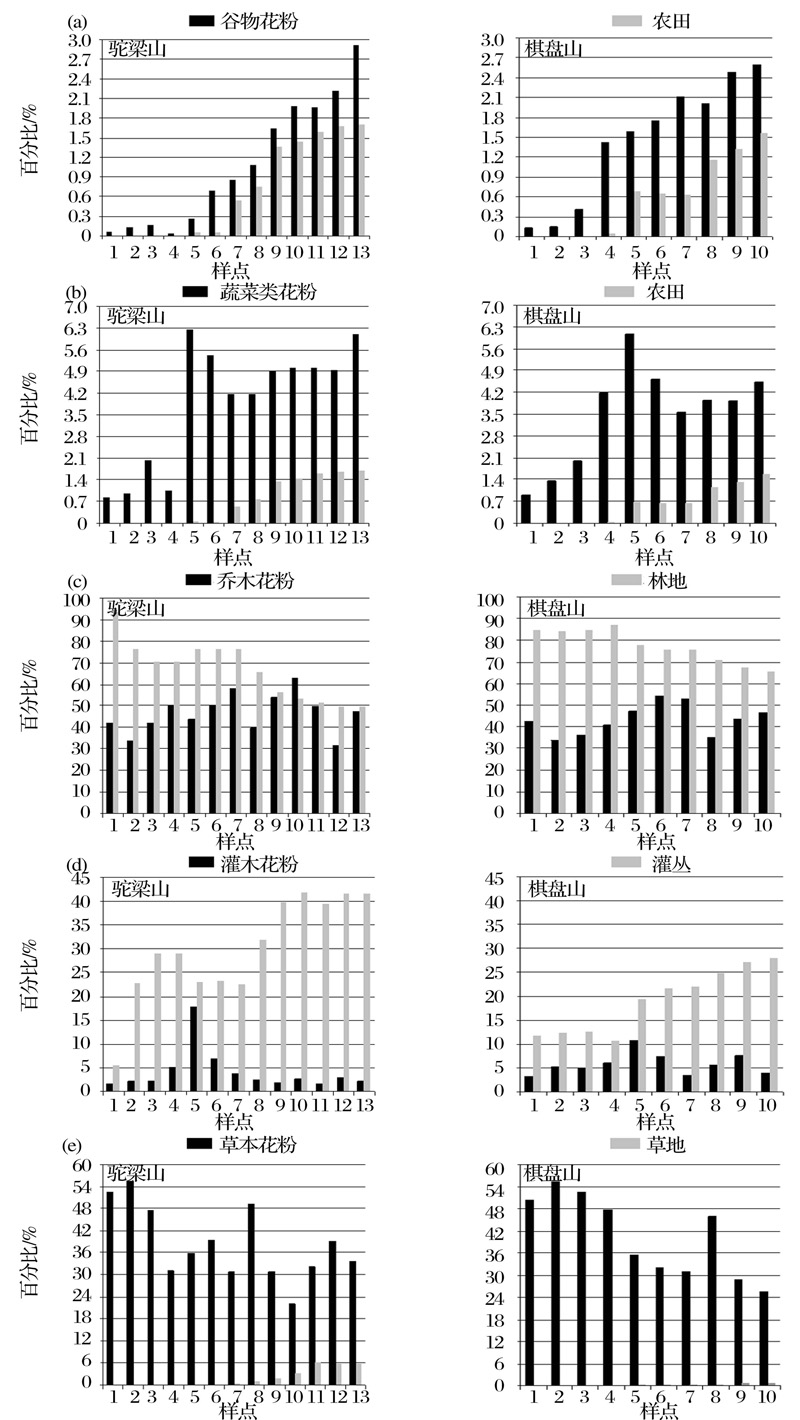

图4 谷物、蔬菜类花粉百分比与农田面积百分比的对比( (a),(b) ),乔木、灌木和草本花粉百分比与植被盖度的对比((c)~(e))
灰色为农田面积或植被盖度,黑色为花粉百分比;TL.驼梁山;QP.棋盘山

Fig.4 Comparisons between pollen percentages and farmland proportions((a),(b)),pollen of aboreal, shrub, herb and vegetation civer((c)~(e))
The gray columns representfarmland and plant proportion,the back columns represent pollen percentage;TL. Tuoliang Moutain; QP.Qipan Mountain

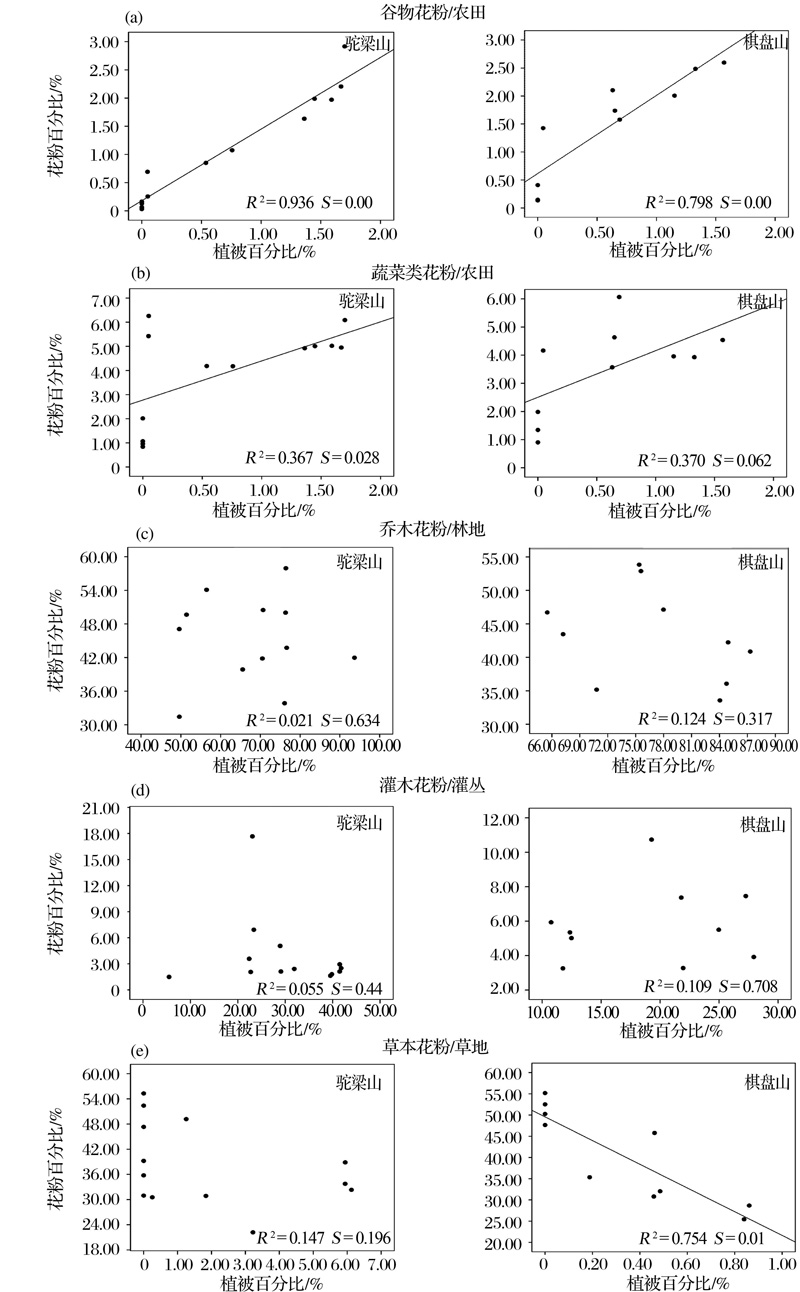

图5 谷物、蔬菜类花粉百分比与农田((a),(b)),乔木、灌木和草地花粉百分比与植物盖度的相关系数((c)~(e))
TL.驼梁山,QP.棋盘山; R>0为正相关; R<0为负相关;| R|越大,相关度越高

Fig.5 Correlations between pollen percentages of cereal and vegetables and farmlands ((a),(b)), between pollen percentages of arboreal, shrub and herb and vegetation cover((c)~(e))
TL. Tuoliang Mountain; QP.Qipan Mountain. R>0 for positive correlation; R<0 for negative correlation;the | R| is bigger, the correlated degree is higher

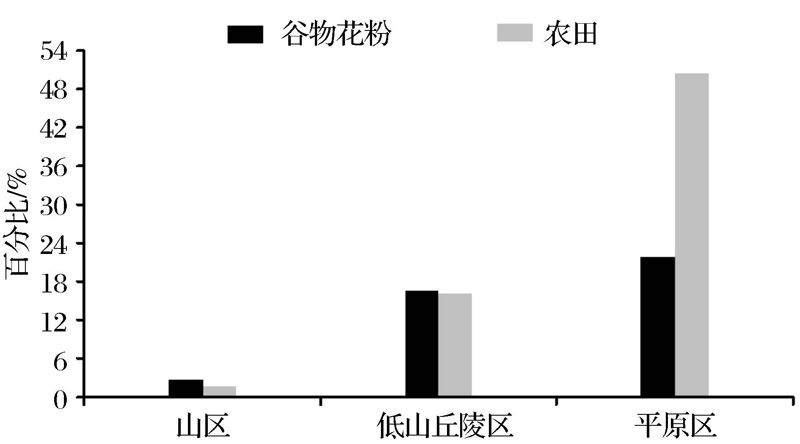

图6 山区、低山丘陵区和平原区谷物花粉百分比与农田百分比对比图

Fig.6 The comparisons between cereal pollen percentages and farmland proportions in mountain area, hilly area and plain area

[1]	Meyer W,Turner B.Changes in Land Use and Land Cover: A Global Perspective[M].London:Cambridge University Press,1994.
[2]	Lambin E,Turner B,Geist H,et al.The causes of land-use and land-cover change:Moving beyond the myths[J].Global Environmental Change,2001,11(4):261-269.
[3]	Huntley B,Prentice I.July temperatures in europe from pollen data 6000 years before present[J].Science,1988,241(4 866):687-690.
[4]	Prentice C,Guiot J,Huntley B,et al.Reconstructing biomes from palaeoecological data: A general method and its application to European pollen data at 0 and 6 Ka[J].Climate Dynamics,1996,12(3):185-194.
[5]	Peyron O,Bégeot C,Brewer S,et al.Late-glacial climatic changes in eastern France (Lake Lautrey) from Pollen, lake-levels, and Chironomids[J].Quaternary Research,2005,64(2):197-211.
[6]	Xu Qinghai,Xiao Jule,Li Yuecong,et al.Pollen-based quantitative reconstruction of holocene climate changes in the Daihai Lake area, Inner Mongolia, China[J].Journal of Climate,2010,23(11):2 856-2 868.
[7]	Crutzen P,Stoermer E.The “Anthropocene”[J].IGBP Newsletter,2000,41:17-18.
[8]	Cao Xianyong,Xu Qinghai,Jing Zhichun,et al.Holocene climate change and human impacts implied from the pollen records in Anyang, Central China[J].Quaternary International,2010,227(1):3-9.
[9]	Sugita S.Theory of quantitative reconstruction of vegetation I: Pollen from large sites reveals regional vegetation composition[J]. The Holocene, 2007, 17(2): 229-241.
[10]	Hebei Provincial Local Records Compilation Committee.Chronicles of Hebei Province[M].Shijiazhuang:Cultural Relics Publishing House,1993:340-345.
	[河北省地方志编纂委员会.河北省志[M].石家庄:文物出版社,1993:340-345.]
[11]	Brown C.Palynological Techniques[M].Baton Rouge:Baton Rouge Press, 1960:186-190.
[12]	Feagri K,Iversen J.Textbook of Pollen Analysis[M].Oxford: Blackwell,1989.
[13]	Grimm E C.Tilia and Tilia. Graph: PC Spread Sheet and Graphics Software for Pollen Data[R].Newsletter: INQUA,Working Group on Data-Handling Methods,1990.
[14]	Liu Jiyuan, Liu Mingliang, Zhuang Dafang, et al. Study on spatial pattern of land-use change in China during1995-2000[J]. Science in China(Series D),2003, 46(4): 373-384,420-422.
[15]	Sugita S.A model of pollen source area for an entire lake surface[J].Quaternary Research,1993,39(2):239-244.
[16]	Pennington W.The origin of pollen in lake sediments: An enclosed lake compared with one receiving inflow streams[J].New Phytologist,1979,83(1):189-213.
[17]	Bonny A P,Allen P V.Pollen recruitment to the sediments of an enclosed lake in Shropshire, England[M]∥Haworth E Y, Lund J W G,eds. Lake Sediments and Environmental History: Studies in Palaeolimnology and Palaeoecology in Honour of Winifred Tutin. Leicester,UK: University of Leicester Press,1984: 231-259.
[18]	Kong Zhaochen,Xu Qinghai,Yang Xiaolan,et al.Spatial and temporal holocene vegetation change from alluvium pollen analysis in the Yinma River Basin of Hebei Province[J].Acta Phytoecologica Sinica,2000,24(6):724-730.
	[孔昭宸,许清海,阳小兰,等.河北卢龙饮马河流域全新世冲积物孢粉分析及对植被时空变化的初步探讨[J].植物生态学报,2000,24(6):724-730.]
[19]	Xu Qinghai,Yang Xiaolan,Yang Zhenjing,et al.Relationship between pollen assemblages and vegetation in alluvial sediments of Luanhe River Basin[J].Journal of Palaeogeography,2004,6(1):69-77.
	[许清海, 阳小兰, 杨振京. 河北滦河流域冲积物花粉与植被关系的研究[J].古地理学报,2004,6(1):69-77.]
[20]	Xu Qinghai,Yang Zhenjing,Yang Xiaolan,et al.Vegetation in the Luanhe River Basin and surrounding areas[J].Acta Phytoecologica Sinica,2005,29(3):344-356.
	[许清海, 杨振京, 阳小兰, 等. 滦河流域及周边地区花粉与植被关系的研究[J].植物生态学报,2005,29(3):344-356.]
[21]	Li Yiyin,Zhou Liping,Cui Haiting.Pollen indicators of human activity[J].Chinese Science Bulletin,2008,53(9):1 281-1 293.
	[李宜垠,周力平,崔海亭.人类活动的孢粉指示体[J].中国科学通报,2008,53(9):1 281-1 293.]
[22]	Sun Xiongwei,Xia Zhengkai.Paleoenvironment changes since mid-holocene revealed by a palynological sequence from Sihenan profile in Luoyang,Henan Province[J].Acta Scientiarum Naturalium Universitatis Pekinensis,2005,41(2):289-294.
	[孙雄伟,夏正楷.河南洛阳寺河南剖面中全新世以来的孢粉分析及环境变化[J].北京大学学报:自然科学版,2005,41(2):289-294.]
[23]	Andersen S.Identification of wild grass and cereal pollen[J].Theoretical & Mathematical Physics,1979,24(24):722-723.
[24]	Lan Shengyin,Xu Zhenxiu.Plant Pollen Stripping Observation Scanning Electron Microscopy[M].Beijing:Science Press,1996:1-48.
	[蓝盛银,徐珍秀.植物花粉剥离观察扫描电镜图解[M].北京:科学出版社,1996:1-48.]
[25]	Xu Qinghai.Pollen Morphology of Common Cultivated Plants in China: Searching for Human Traces in Stratigraphy[M].Beijing:Science Press,2015:10-56.
	[许清海. 中国常见栽培植物花粉形态:地层中寻找人类痕迹之借鉴[M]. 北京:科学出版社, 2015:10-56.]
[26]	Wang Fuxiong,Qian Nanfen,Zhang Yulong,et al.Chinese Plant Pollen Morphology[M].Beijing:Science Press,1995.
	[王伏雄,钱南芬,张玉龙,等.中国植物花粉形态[M].北京:科学出版社,1995.]
[27]	Tong Guobang, Zhao Junpai,Fan Shuxian,et al.Environment changes at the top of Taibai Mountain, Qinling since 1 ka ago[J].Marine Geology & Quaternary Geology,1996,16(4):95-104.
	[童国榜,张俊牌,范淑贤,等.秦岭太白山顶近千年来的环境变化[J].海洋地质与第四纪地质,1996,16(4) :95-104.]
[28]	Li Yuecong,Xu Qinghai,Cao Xianyong,et al.Pollen influx and surface pollen assemblage on the northern slope of Taibai Mountain[J].Geographical Research,2008,27(3) :536-546.
	[李月丛,许清海,曹现勇,等.太白山北坡花粉通量与表土花粉研究[J].地理研究,2008,27(3) :536-546.]
[29]	Kvamme M.Pollen analytical studies of mountain summer farming in western norway[M]∥Birks H H, Birks H J B,eds.The Cultural Landscape, Past, Present, and Future. Cambridge:Cambridge University Press,1988:429-443.
[30]	Xu Qinghai, Li Yuecong,Yang Xiaolan.Surface pollen assemblages of some major forest types in Northern China[J].Quaternary Sciences,2005,25(5):585-597.
	[许清海, 李月丛, 阳小兰, 等. 中国北方几种主要森林群落表土花粉组合特征研究[J].第四纪研究,2005, 25(5):585-597.]
[31]	Pang Ruiming,Xu Qinghai,Ding Wei,et al.Pollen assemblage of farmlands in central and southern Hebei Province[J].Acta Geographica Sinica,2010,65(11):1 345-1 354.
	[庞瑞洺, 许清海, 丁伟,等.河北省中南部农田孢粉组合特征[J].地理学报,2010,65(11):1 345-1 354.]
