EnKF同化的背景误差协方差矩阵局地化对比研究

doi:10.11867/j.issn.1001-8166.2014.10.1175

在集合数据同化中,背景场误差的协方差估计特别重要。通常有限个成员的集合在估计背景误差协方差矩阵时会引入伪相关,从而造成协方差被低估、滤波发散。虽然协方差膨胀的经验性方法能一定程度缓解协方差被低估的问题,但不能消除协方差的伪相关问题。因此,结合EnKF方案探讨2种消除伪相关的局地化方法(协方差局地化方法和局地分析方法),分析这2种局地化方法对背景误差协方差矩阵、增益矩阵、集合转换矩阵以及同化结果的影响。实验结果表明：局地化方法不仅能消除背景误差协方差矩阵的伪相关,还可以增加背景误差协方差矩阵的秩;在“弱”同化强度下,2种局地化方法的增益矩阵和集合转换矩阵相等;随着同化强度的增大,增益矩阵和集合转换矩阵的差异会变大;在不同的同化强度下,2种局地化方法各具特色,相对而言,协方差局地化方法在更新集合均值和集合扰动上具有较强的鲁棒性。研究结论有助于背景场误差协方差的精细分析和估计。

关键词: EnKF, 协方差局地化, 局地分析, 伪相关

In ensemble data assimilation, the estimate of background error covariance is particuarly important. In general, the use of a finite ensemble size for estimating the background error covariance matrix easily introduces spurious correlations, which leads to the underestimation of covariance and filter divergence. Covariance inflation is an empirical method of correcting the underestimation of background error covariance, but it does not help to solve the problem of long-range spurious correlations. Therefore, based on the EnKF scheme, we explored two localization methods to eliminate the spurious correlations, which were the covariance localization method and the local analysis method. We analyzed their impacts on the background error covariance matrix, gain matrix, ensemble transform matrices and data assimilation results. The experimental results have been obtained. That is, the localization method not only can remove the spurious covariance in the background error covariance matrix, but also can increase the rank of the matrix. In a “weak” assimilation, the gain matrix and ensemble transform matrices of two methods are very close, but the differences of the gain matrix and ensemble transform matrices become more evident with the increase of assimilation strength. Under the different strength of assimilation, two localization methods have their own characteristics, and relatively the covariance localization method has stronger robustness on the update of ensemble mean and ensemble anomalies. This study is very helpful for the fine analysis and estimate of the background error covariance.

Key words: EnKF, Covariance localization, Local analysis, Spurious correlations.

中图分类号:

P237

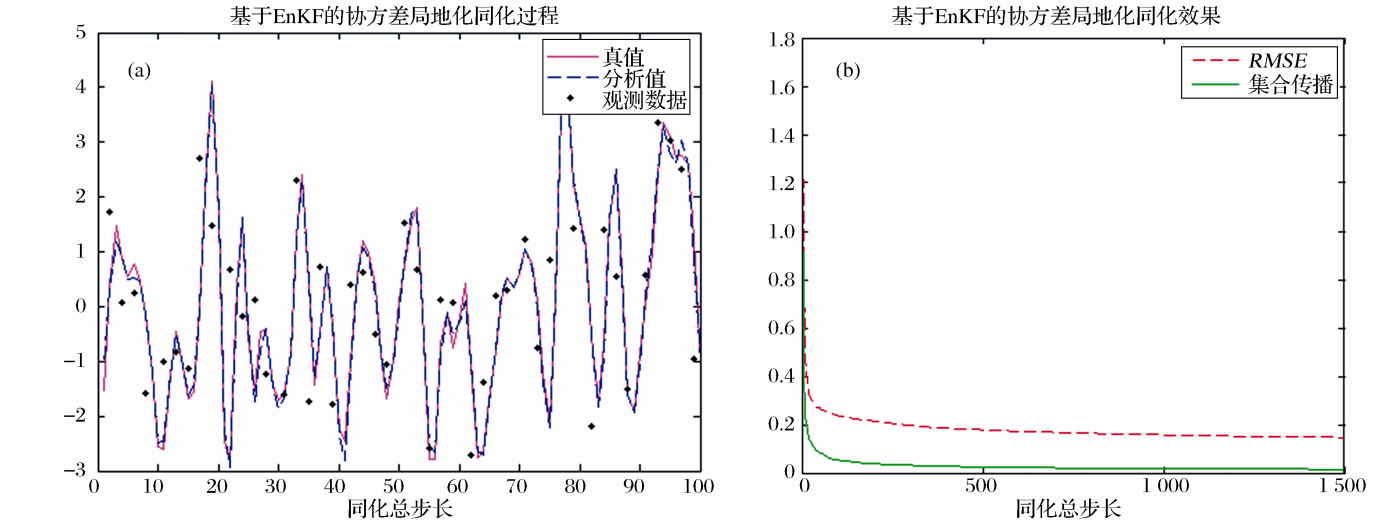

图1 EnKF同化过程和效果图

Fig.1 The process and result of data assimilation based on EnKF

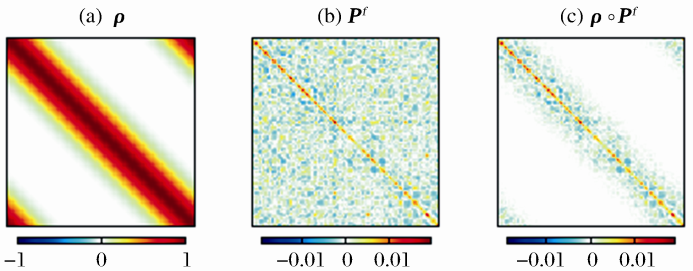

图2 CL对背景误差协方差矩阵 P^f的影响色度条表示矩阵元素的取值范围

Fig.2 CL’s impact on the background error covariance matrix P^f Colorbar in figure 2 denotes the values range of matrix elements

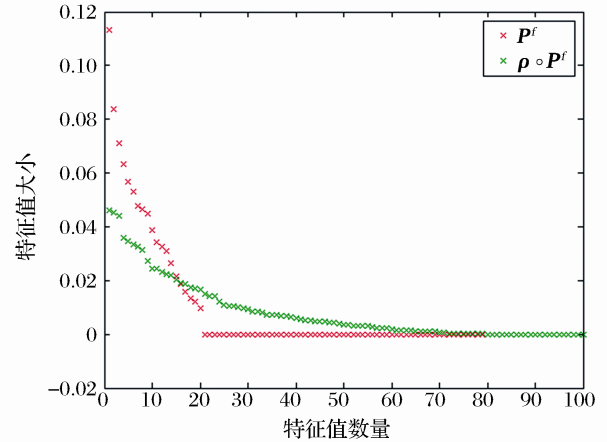

图 3 舒尔积前后背景误差协方差矩阵 P^f的特征值光谱

Fig.3 The eigenvalues spectrum of the background error covariance matrix P^f before and after Schur Product

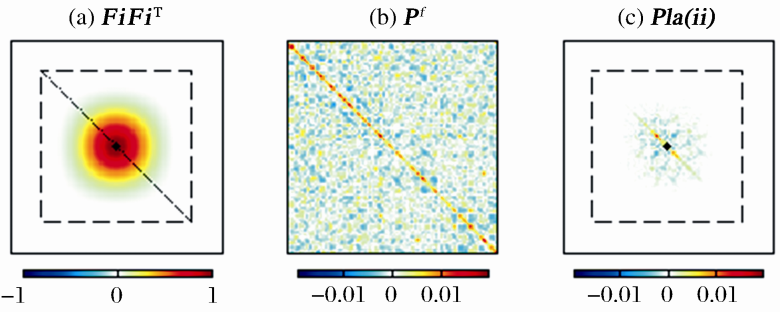

图4 LA对背景误差协方差矩阵 P^f的影响( t=50, i=50) 色度条表示矩阵元素的取值范围

Fig.4 LA's impact on the background error covariance matrix P^f ( t = 50, i= 50) colorbar in figure 4 denotes the values range of matrix elements

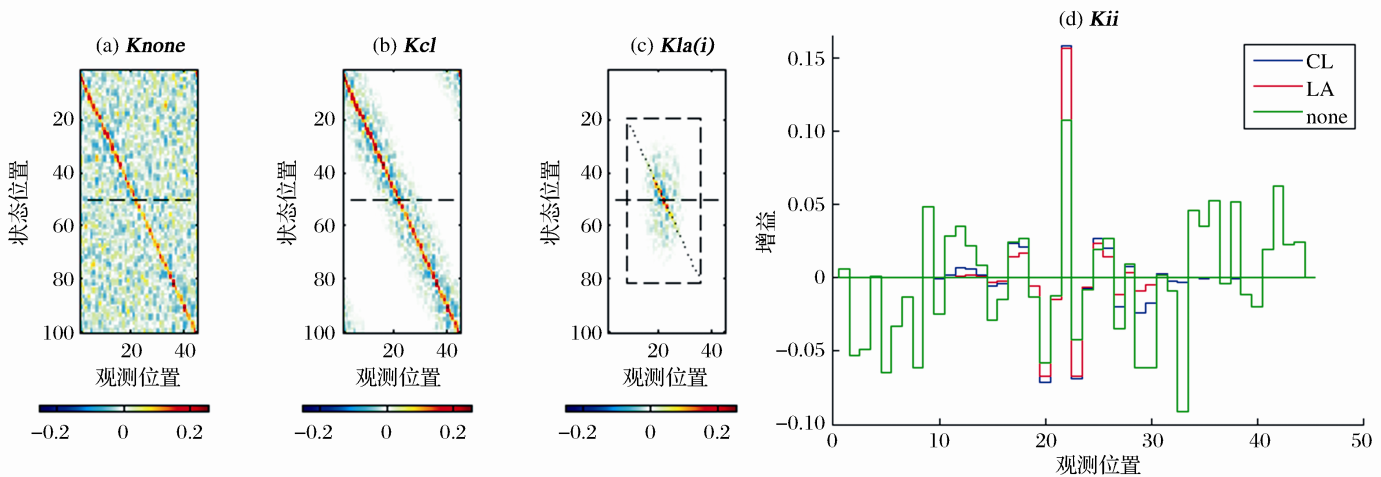

图5 3种增益矩阵 K对比图( R_{obs_variance}= 10) 色度条表示矩阵元素的取值范围

Fig. 5 The contrast of three kinds of gain matrix K ( R_{obs_variance} = 10) Colorbar in figure 5 denotes the values range of matrix elements

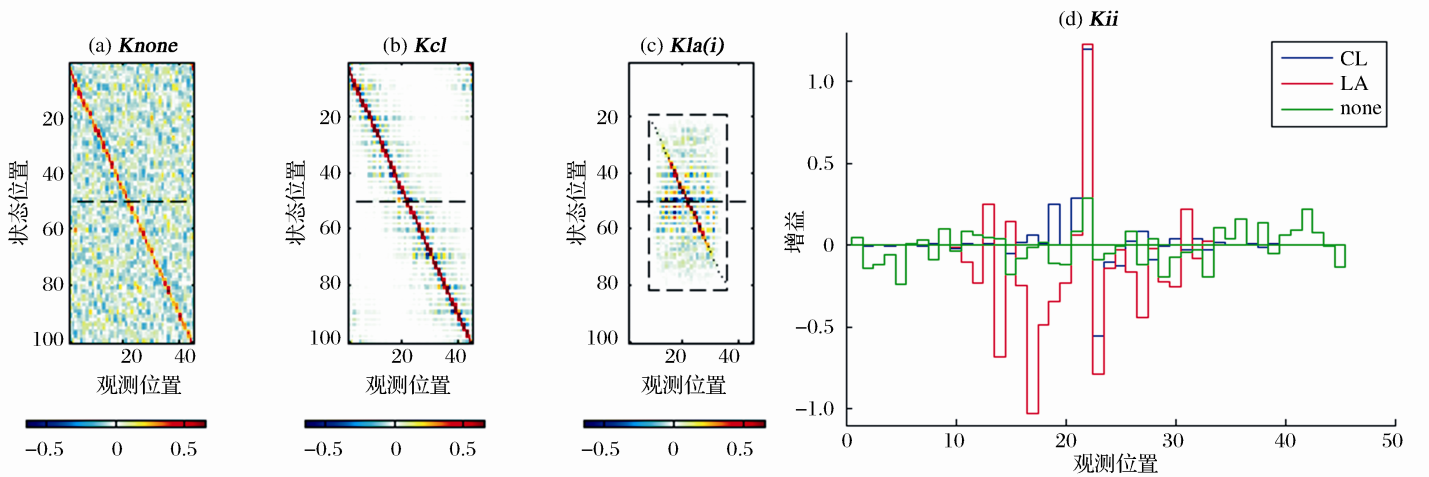

图6 3种增益矩阵 K对比图( R _{obs_variance}= 10 ^-1) 色度条表示矩阵元素的取值范围

Fig.6 The contrast of three kinds of gain matrix K ( R _{obs_variance} = 10 ^-1) Colorbar in figure 6 denotes the values range of matrix elements

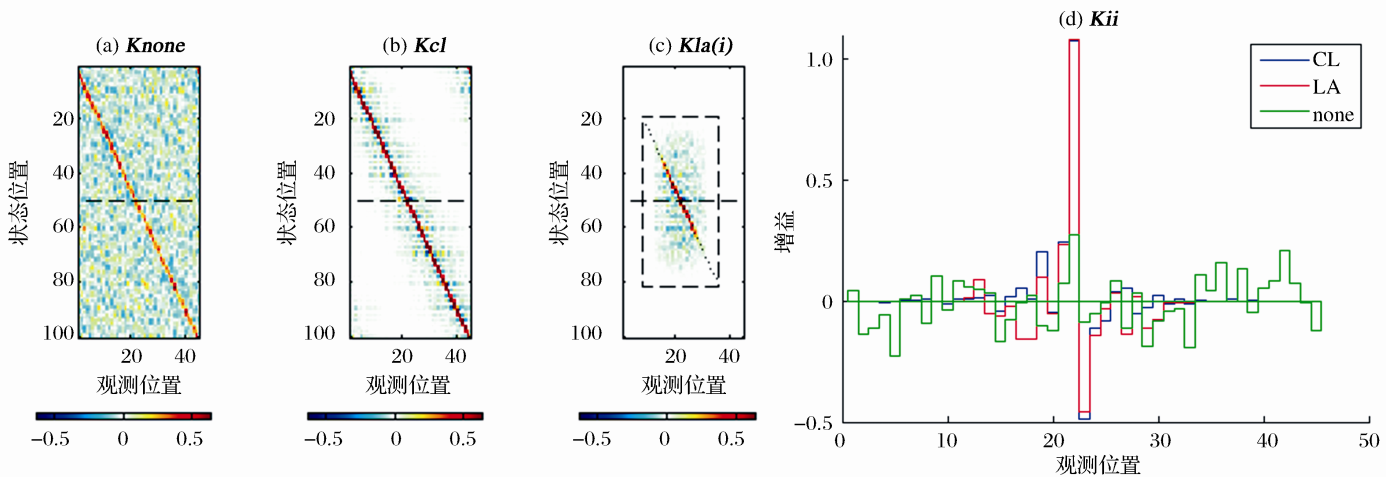

图7 3种增益矩阵 K对比图( R _{obs_variance}= 10 ^-4) 色度条表示矩阵元素的取值范围

Fig.7 The contrast of three kinds of gain matrix K ( R _{obs_variance} = 10 ^-4) Colorbar in figure 7 denotes the values range of matrix elements

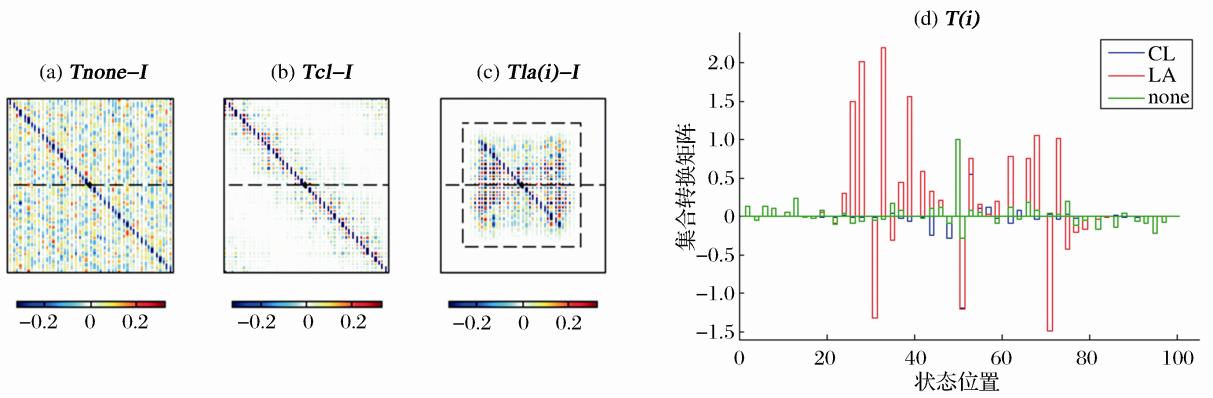

图8 集合转换矩阵 T对比图( R _{obs_variance}=10) 色度条表示矩阵元素的取值范围

Fig.8 The contrast of the ensemble transformation matrix T( R _{obs_variance}= 10) Colorbar in figure 8 denotes the values range of matrix elements

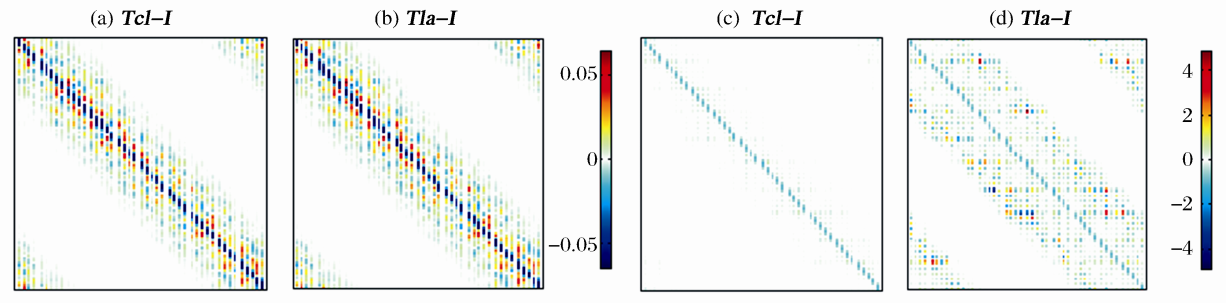

图9 集合转换矩阵 T对比图( R _{obs_variance}= 10 ^-1) 色度条表示矩阵元素的取值范围

Fig.9 The contrast of the ensemble transformation matrix T( R _{obs_variance}= 10 ^-1) colorbar in figure 9 denotes the values range of matrix elements

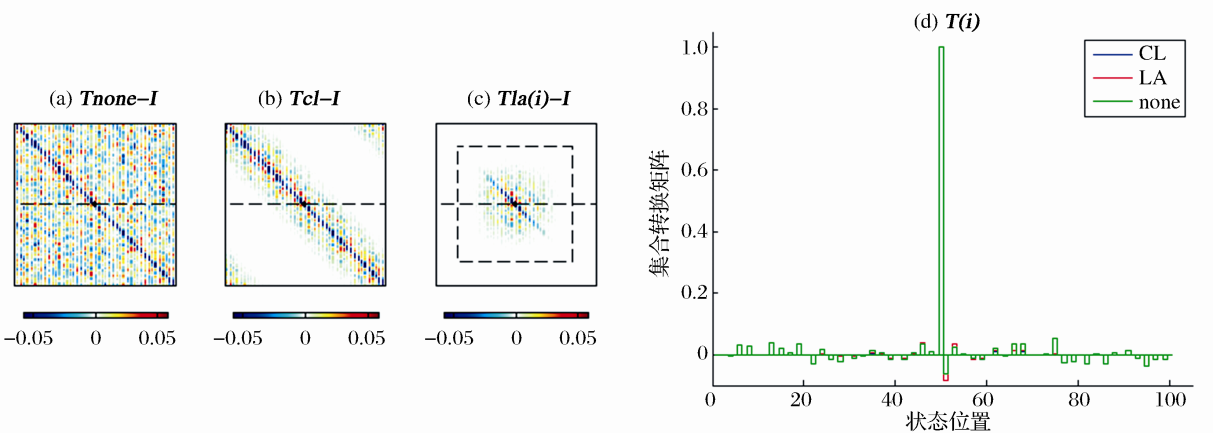

图10 集合转换矩阵 T对比图( R _{obs_variance}= 10 ^-4) 色度条表示矩阵元素的取值范围

Fig.10 The contrast of the ensemble transformation matrix T( R _{obs_variance}= 10 ^-4) colorbar in figure 10 denotes the values range of matrix elements

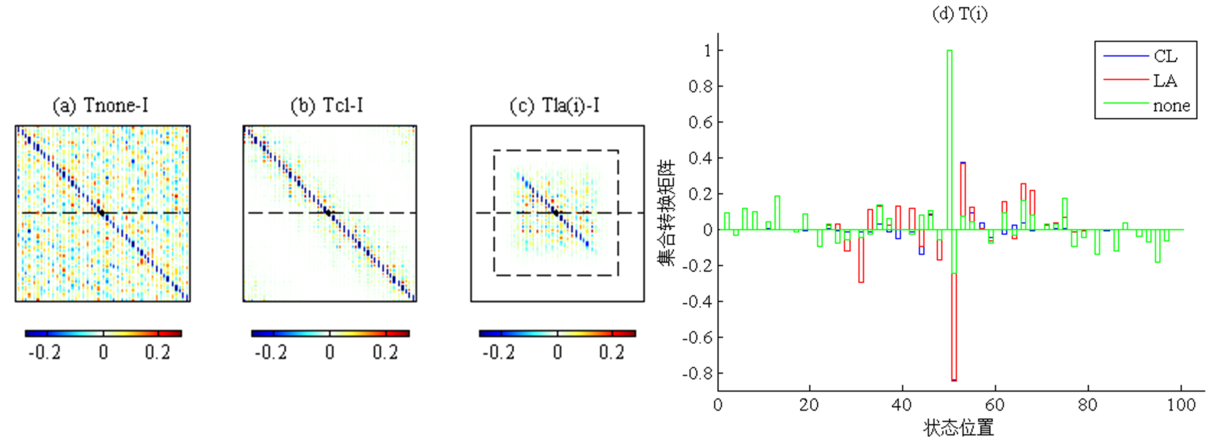

图 11 全局集合转换矩阵 T对比图( R_{obs_variance}= 10和 R_{obs_variance}= 10 ^-4) 色度条表示矩阵元素的取值范围

Fig.11 The contrast of the Global ensemble transformation matrix T( R_{obs_variance}= 10 and R_{obs_variance}= 10 ^-4) colorbar in figure 11 denotes the values range of matrix elements

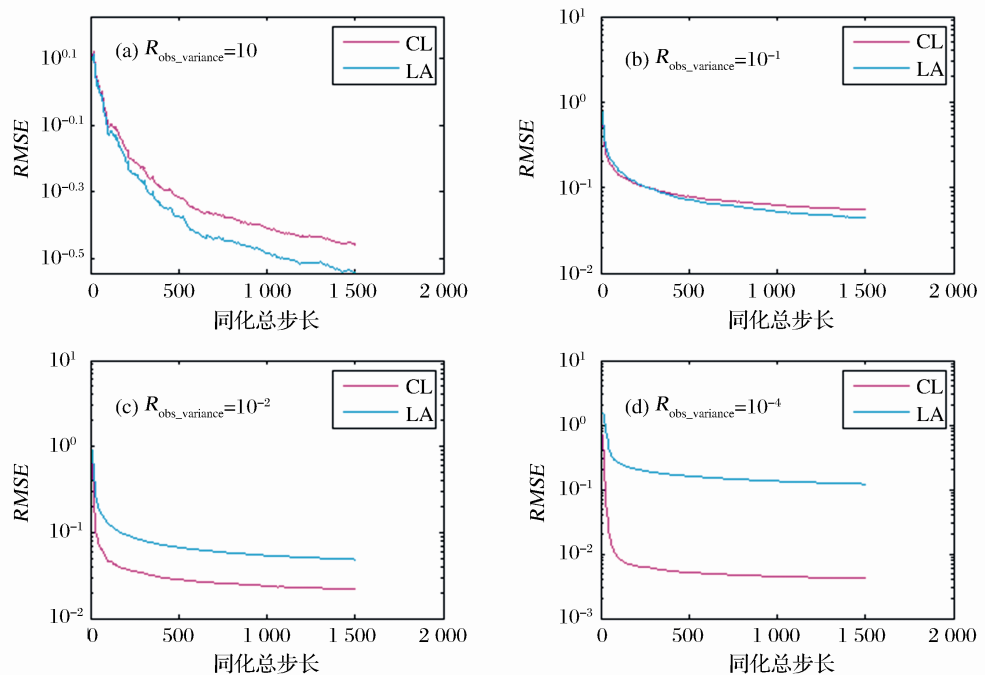

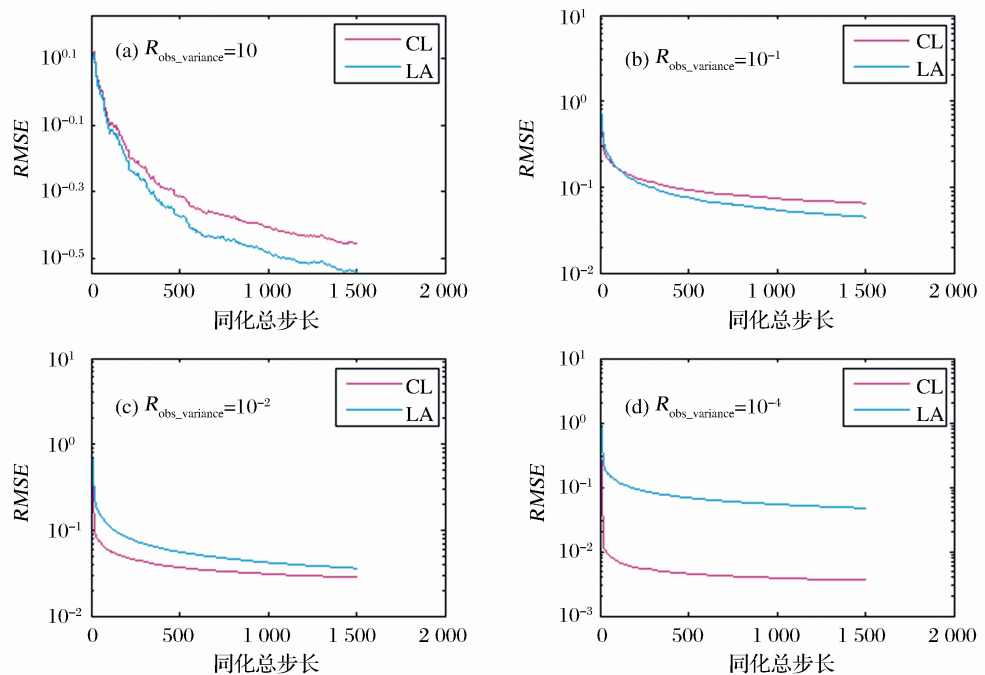

图12 基于EnKF的同化效果图

Fig.12 The data assimilation effect based on EnKF

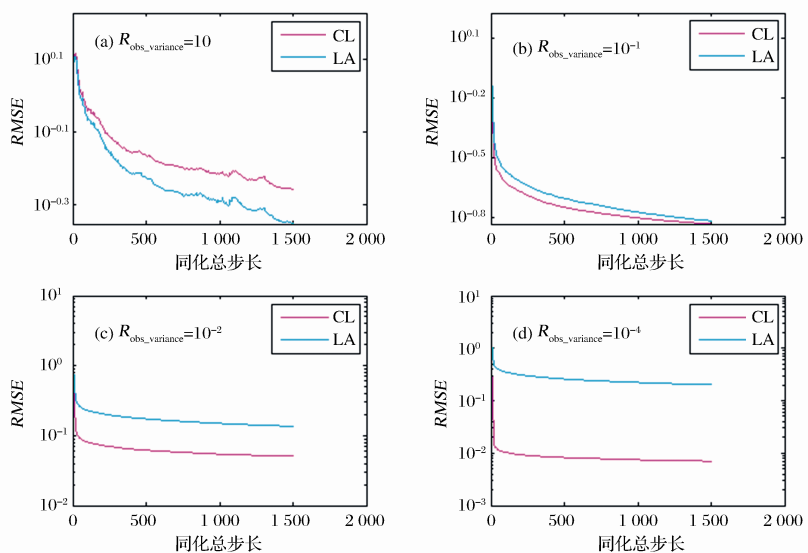

图13 基于EnSRF的同化效果图

Fig.13 The data assimilation effect based on EnSRF

图14 基于DEnKF的同化效果图

Fig.14 The data assimilation effect based on DEnKF
