基于被动微波遥感的积雪深度和雪水当量反演研究进展

肖雄新, 张廷军*

兰州大学资源环境学院,西部环境教育部重点实验室,甘肃 兰州 730000

Passive Microwave Remote Sensing of Snow Depth and Snow Water Equivalent: Overview

Xiao Xiongxin, Zhang Tingjun*

Key Laboratory of Western China’s Environmental Systems (Ministry of Education), College of Earth Environmental Sciences, Lanzhou University, Lanzhou 730000,China

中图分类号:  P426.635

文献标识码:  A

文章编号:  1001-8166(2018)06-0590-16

通讯作者:  *通信作者:张廷军(1957-),男,甘肃庆阳人,教授,主要从事冰冻圈科学研究.E-mail:tjzhang@lzu.edu.cn

收稿日期: 2017-12-11

修回日期:  2018-05-15

网络出版日期:  2018-06-20

版权声明:  2018 地球科学进展 编辑部

基金资助:  *国家重大科学研究计划项目“复杂地形积雪遥感及其多尺度积雪变化研究”(编号:2013CBA01802)国家自然科学基金重大研究计划项目“黑河流域上游多年冻土地表水、地下水过程及其效应研究”(编号: 91325202)资助.

作者简介:

First author:Xiao Xiongxin (1991-), male, Fuping County, Shaanxi Province, Master student. Research areas include remote sensing of snow. E-mail:xiaoxiongxin5118@126.com

作者简介:肖雄新 (1991-),男,陕西富平人,硕士研究生,主要从事积雪遥感研究.E-mail:xiaoxiongxin5118@126.com

展开

摘要

积雪是冰冻圈重要组成要素之一,也是对天气和气候响应最为敏感的自然要素。被动微波能够穿透云层、积雪和大气进行全天候、全天时地工作,在估算积雪深度、雪水当量等积雪参数上有很大优势。综述了国内外基于被动微波遥感的积雪参数反演研究的进展,首先介绍了被动微波遥感监测积雪的基本理论,以及被动微波遥感数据;然后将当前的积雪深度和雪水当量反演算法总结为4类:①基于统计的线性反演算法;②基于微波积雪模型的反演算法;③基于先验知识的非线性反演算法;④数据融合与数据同化。随后介绍了常用的7种积雪数据产品,并讨论了影响积雪深度和雪水当量反演精度的几个因素,最后对未来积雪参数反演研究方向做出了展望。

关键词: 被动微波遥感 ; 积雪深度 ; 雪水当量 ; 积雪产品

Abstract

Snow cover is an informative indicator of climate change because it affects local and regional surface energy and water balance, hydrological processes and climate. Passive Microwave (PM) works all weather and round the clock and penetrates clouds and snow. Passive microwave remote sensing data have been widely applied to retrieving snow depth and snow water equivalent in the past few decades. Recently, the snow depth retrieval study has rapidly developed. This paper reviewed the research progress of snow depth and snow water equivalent inversion algorithm using PM data at home and abroad. Firstly, the basic theory of passive microwave remote sensing snow monitoring and passive microwave remote sensing data were introduced. Then, the current snow depth and snow water equivalent inversion algorithm were summarized into four categories: ① A statistically based linear inversion algorithm; ② An inversion algorithm based on microwave transmission snow model; ③ A nonlinear inversion algorithm based on prior knowledge; ④ Data fusion and data assimilation. Afterwards, the commonly used seven kinds of snow data products were introduced, and several factors affecting the snow depth and the snow water inversion accuracy were discussed. Finally, the possible direction of future snow parameter inversion research was prospected.

Keywords: Passive microwave remote sensing ; Snow depth ; Snow water equivalent ; Snow products.

0

PDF (1346KB) 元数据 多维度评价 相关文章 收藏文章

本文引用格式 导出 EndNote Ris Bibtex

肖雄新, 张廷军. 基于被动微波遥感的积雪深度和雪水当量反演研究进展[J]. 地球科学进展, 2018, 33(6): 590-605 https://doi.org/10.11867/j.issn.1001-8166.2018.06.0590

Xiao Xiongxin, Zhang Tingjun. Passive Microwave Remote Sensing of Snow Depth and Snow Water Equivalent: Overview[J]. Advances in Earth Science, 2018, 33(6): 590-605 https://doi.org/10.11867/j.issn.1001-8166.2018.06.0590

1 引言

积雪是冰冻圈的重要组成部分,是地球气候系统内分布广泛,季节性明显,对天气和气候响应最为敏感的冰冻圈要素。全球大概有5%的降水是以雪的形式降落到地面上[1],南北极地区这一比例可达到50%~90%[2]。积雪主要分布在北半球,北半球冬季(1月)最大积雪面积可以达到4 600万km2,约占陆地面积的50%[3]。融雪作为河流湖泊重要的水资源,蕴藏着体量丰富的淡水资源,并对水循环、水文、气象以及水资源管理起着至关重要的作用。此外,积雪对地表—大气之间的能量交换具有重要的影响,对其下覆土壤具有保温和保湿效应[4],直接影响冬季土壤中CO2的排放和土壤中C和N等矿物元素的存在[5,6]。积雪对于人类生产生活会产生重要的影响,例如,为人类生活提供饮用水和生活用水;带来经济效益,如冬季滑雪娱乐项目等;带来洪水灾害,对铁路、公路、民航等交通运输带来破坏性影响。

积雪范围广泛,但是空间分布具有强的异质性,使得少量的站点很难充分显示大空间尺度上积雪的时空变化特征。卫星观测技术可以提供持续长时间、大范围积雪监测数据,克服了传统积雪实测方法中站点少的局限。到目前为止,积雪的遥感观测已经为水文、气象、防灾减灾和气候变化等领域的研究带来了巨大的便利[7,8,9,10,11]。现在利用光学遥感传感器主要进行积雪面积、积雪反射率等的遥感监测,但是不能有效地估算积雪深度、雪水当量等参数,而且光学遥感受到天气的影响,云在其中起了很大的作用。但是,微波可以穿透云层和积雪层,并且可以探测到积雪下覆地表的信息,具有全天候、大范围监测积雪的特点[11]。基于主动、被动微波遥感成为反演积雪深度和雪水当量的有效方式,具有光学遥感无可比拟的优势[11,12,13,14,15,16,17]

自20世纪70年代以来,国内外学者已经对积雪深度和雪水当量的研究做了大量工作,发展了多种反演方法。本文主要探讨基于被动微波遥感的积雪深度和雪水当量反演研究进展。首先较为详细地介绍利用被动微波遥感监测积雪的理论基础以及目前可用的被动微波遥感数据;然后对前人的积雪深度和雪水当量反演算法总结归纳,并对每种类型的积雪深度和雪水当量反演算法(基于统计的线性算法、基于微波积雪模型的算法、基于先验知识的非线性算法、数据融合与数据同化算法)的研究情况做简要介绍;在此基础上介绍了几种积雪数据产品,以及每种产品的特点和生成的算法;最后探讨了增加反演复杂性以及影响积雪深度和雪水当量反演精度的几个因素,为积雪参数反演研究提供依据。

2 数据和理论基础

2.1 被动微波遥感监测积雪的理论原理

微波的波长一般在0.1~100 cm (300~0.3 GHz)范围内。根据瑞利散射理论,散射波强度与其波长的4次成反比,水粒子组成的云、雾以及沙尘形成的气溶胶等的波长一般比微波的小,所以微波可以穿透云、雾、沙尘等组成的气溶胶层[18,19]。此外,大气对微波的散射、吸收作用也较小,一般情况下大气对微波的影响忽略不计,因此微波在通过大气时具有较高的透射率。这些优点使微波传感器几乎可以在全天时、全天候条件下监测地表所发射的微波信号,获取地表地物的特征数据,最后通过对微波传感器接收到的信息进行分析来估算地物的参数[15,20~22]。微波信号对积雪层具有较高的穿透力,能够穿透一定厚度的积雪,使被动微波遥感应用于积雪深度监测成为可能。在积雪覆盖区,卫星搭载的微波辐射计最终以亮温的形式记录下来自地面的微波辐射能量(亮温Tb)[23,24],其来自于4个部分,可用公式(1)表示(图1):

Tb=Tb1+Tb2+Tb3+Tb4, (1)

式中:Tb1是积雪层下覆地表发射的能量,Tb2是积雪层发射的能量,Tb3是经积雪—地表界面反射的天空辐射,Tb4是经积雪—空气界面反射的天空辐射。

积雪向上微波辐射的能量主要来源于积雪层下覆地表(Tb1)和积雪层内部(Tb2)[24,25]。在积雪微波辐射中,雪颗粒的体散射起着重要作用,会衰减和散射部分积雪向外辐射的能量。积雪的微波辐射特性会随着积雪厚度、积雪粒径[26]、积雪密度、雪温、水分含量[27]、积雪结构以及下垫面介质的变化而改变。积雪深度越大,意味着积雪层内的散射微波信号的粒子越多,就会有越多的能量在穿透积雪层的过程中被吸收或者散射,由此会引起卫星传感器接受的到能量越少,亮温越低[25,28,29]。当积雪融化时,由于积雪层内液态水的存在,积雪的微波辐射能量很大一部分会被吸收而无法穿透积雪层。积雪在能量辐射时,散射作用占主导,其中干雪表现为强散射体,其会随微波频率的增加而散射作用增强[30]

微波辐射理论的提出已有100多年的历史,其应用也日益成熟。研究者发现可以利用积雪对不同频率的敏感性不同来探测地表积雪雪深和雪水当量。Chang等[31]提出积雪粒径的微波辐射向上辐射的能量积雪深度、积雪粒径和积雪密度等的影响,此研究结果为后来的运用微波遥感遥感监测积雪提供了理论基础。

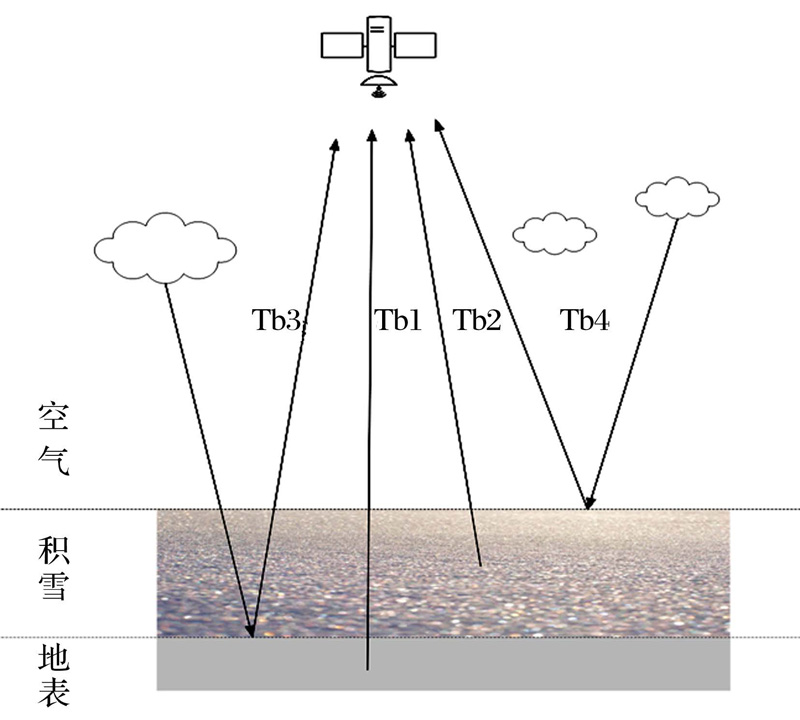

图1   积雪覆盖地表微波辐射

Fig.1   Microwave radiation of the surface with snow cover

2.2 被动微波遥感数据介绍

微波传感器主要接收来自于积雪和其下垫面的辐射能量,传感器以亮温值表示接收到的能量,而积雪的属性信息(如深度、雪水当量)与亮温呈现一定的函数关系。在多年的积雪参数反演研究中,主要用到了国际上已有的星载被动微波传感器包括Nimbus-7 上的SMMR(Scanning Multichannel Microwave Radiometer),DMSP (Defense Meteorological Satellites Program)系列卫星上的SSM/I(Special Sensor Microwave Imager)和SSMIS (Special Sensor Microwave Imager/Sounder),Aqua卫星搭载的AMSR-E(Advanced Microwave Scanning Radiometer-EOS)传感器,GCOM-W1(Global Change Observation Mission-Water)卫星上的AMSR2(Advanced Microwave Scanning Radiometer 2)传感器,以及FY-3系列卫星上的MWRI (Microwave Radiation Imager) 传感器(表1)。

表1   常用被动微波传感器特征参数

Table 1   Parameters summary of passive microwave sensors

传感器卫星平台运行时间频率/GHz极化方式(H,V)瞬间视场/(km×km)
SMMRNimbus 71978.10-1987.086.6H,V136×89
10.7H,V87×57
18.0H,V54×35
21.0H,V47×30
37.0H,V47×30
SSM/IDMSP1987.07-2009.1119.35H,V70×45
22.24V60×40
37.0H,V38×30
85.5H,V16×14
SSMISDMSP2006.12-19.35H,V70×45
22.24V60×40
37.0H,V38×30
91.66H,V38×30
AMSR-EAqua2002.06-2011.106.93H,V75×43
10.65H,V51×39
18.7H,V27×16
23.8H,V32×18
36.5H,V14×8
89.0H,V6×3
AMSR2GCOM-W12012.05-6.93H,V62×35
7.3H,V62×35
10.65H,V42×24
18.7H,V22×14
23.8H,V26×15
36.5H,V12×7
89.0H,V5×3
MWRIFY-3B/3C2010.11-10.65H,V51×85
18.70H,V50×30
23.80H,V27×45
36.50H,V18×30
89.00H,V9×15

新窗口打开

随着1978年搭载于Nimbus卫星和DMSP系列卫星上的被动微波传感器发射,基于被动微波遥感的积雪研究得到了快速发展。SMMR,SSM/I以及SSMIS的仪器特征参数已在表1中列出。相较于SSM/I和SSMIS,2002年发射的Aqua卫星上搭载的AMSR-E传感器具有更高的空间分辨率和更多的频段,其微波频率位于6.9~89 GHz。现在所使用的这4种被动微波传感器数据(SMMR,SSM/I,SSMIS和AMSR-E)都来自美国国家冰雪数据中心(The National Snow and Ice Data Center,NSIDC),为了保证数据最大一致性,对这4种传感器的数据全部采样,以25 km×25 km的等面积可扩充地球格网(Equal-Area Scalable Earth Grid,EASE-Grid)数据格式存储[32],在南北极地区采用的是等面积极地方位投影,全球视角采用的等面积圆柱投影。

我国星载被动微波传感器的发射较晚,2008年发射的风云三号A星(FY-3A)搭载有被动微波成像仪,它是我国首个可以获取积雪参数的业务化卫星。由于仪器自身的问题,FY-3A卫星搭载的MWRI并没有获取连续的观测数据[33]。自2010年FY-3B发射成功后,FY-3B MWRI在轨平稳运行,仪器各方面的性能都优于FY-3A星,最新的MWRI传感器已于2015年搭载于FY-3C卫星发射成功,其现在已经可以提供中国区域乃至全球的积雪参数产品[33,34,35,36,37]。中国气象局已经将FY-3系列的被动微波遥感数据采样成以HDF5格式存储的10 km×10 km的格网[38]。我国FY-3系列卫星搭载的MWRI传感器为现有积雪参数反演研究增加了新的数据源,可作为其他国际通用的被动微波数据的补充。

3 积雪深度和雪水当量反演算法

针对积雪参数(积雪深度和雪水当量)的反演研究已经有大量的成果。积雪深度和雪水当量是2个不同的积雪物理参数,一般情况下当得到其中一个物理量时,就会很容易得到另外一个物理参数。积雪深度和雪水当量之间的转化一般采用如下公式[38,39]:

SWE=SD×ρsnow,(2)

式中:ρsnow为积雪密度,SD为积雪深度,SWE为雪水当量。积雪密度的取值通常有2种方式,一种是使用固定值[29,40,41],即采用一个固定的积雪密度值用于积雪深度和雪水当量的关系转换,如0.24 g/cm3;由于积雪密度在大的空间尺度上具有较强的异质性,不同地区和不同时间内热积雪密度会受风、地形、下垫面植被、时间、气温等的影响而不同,随之就出现了大量针对积雪密度演化的研究工作,进而就有另外一种方法——采用动态积雪密度[42,43,44]进行积雪深度和雪水当量之间的转化,即积雪密度值非固定值,其会随着时间而变化,且/或随积雪类型的变化而出现不同的积雪密度值。

本文将学者们所提出的积雪深度和雪水当量反演算法大致归结为以下几类:基于统计的线性反演算法、基于微波积雪模型的反演算法、基于先验知识的非线性反演算法、数据融合与数据同化算法。

3.1 基于统计的线性反演算法

3.1.1 静态反演算法

积雪深度静态反演算法是国际上应用最为广泛的一种反演算法,最早是由Chang等[24]提出,其假设积雪粒径为0.3 mm,积雪密度为0.3 g/cm3,采用辐射传输模型模拟结果与地面站点观测数据做线性回归分析,最终得到积雪深度与18和37 GHz水平极化亮温差之间的线性关系式(公式(3))。Aschbacher[45]提出SPD(Spectral Polarization Difference)算法,它是基于亮温梯度所提出的积雪深度反演算法,即以19和37 GHz的水平和垂直极化下的亮温差作为回归算法的基础(公式(4)和(5)),其他研究者对SPD算法也做了相关的研究工作[46,47,48]。由于中国区域内的积雪密度相对偏低,而且深霜层较为发育,与北美及其他地区的积雪属性有很大的差异,前期车涛[49]在中国区域内对Chang算法做了初步修订,分别针对SMMR和SMM/I传感器提出了适合中国区域积雪深度反演算法(公式(6)和(7)),此处简称车涛1算法,具体公式见表2

表2   基于亮温梯度的积雪深度静态反演算法

Table 2   The static snow depth retrieval algorithm based on brightness temperature gradient

算法名称算法公式参考文献公式编号
Chang算法SD=1.59×(Tb18h-Tb37h)[24](3)
SPD算法SPD=(Tb19v-Tb37v)+Tb19v-Tb19h)
SD=A0×SPD-A1
[45](4)
(5)
车涛1算法SD=0.78×(Tb18h-Tb37h)+b
SD=0.66×(Tb19h-Tb37h)+b
[49](6)
(7)

注:SD为积雪深度,Tb18h和Tb37h分别为SMMR传感器中18和37 GHz水平极化亮温;Tb19v,Tb19h,Tb37v和Tb37v为SSM/I传感器中19和37 GHz水平垂直极化亮温(下面的公式字母含义与此相同,后面不再赘述),A0=0.68,A1=-0.67;b为补偿值,随月份变化

新窗口打开

在提出仅使用亮温数据的积雪深度反演算法后,由于森林、水体、高程、地形等对积雪属性的变化产生影响,其后又有众多研究者对该算法做了很多的验证和改进工作,形成了基于森林覆盖率、下垫面类型等参数修订的积雪深度静态反演算法。

由于植被会衰减来自积雪的上行微波辐射,植被冠层的存在会增加积雪深度反演的难度。基于上述植被覆盖带来的积雪深度反演问题,Foster等[50]对Chang算法做了修订,认为在不同的地区雪深反演算法不应是一样的,故引入植被覆盖度参数来修订反演算法提高积雪深度的反演精度(公式(8)),随后Foster等[51]又将积雪分类数据和地表覆盖类型数据引入到积雪反演中,并建立新的雪水当量反演方法。针对AMSR-E被动微波数据,有研究者在Chang算法基础上提出了改进的积雪深度反演算法(公式(9)),该算法考虑了森林覆盖度及湿雪对积雪估算的影响[41,52]。我国已有很多研究人员利用微波遥感反演和估算积雪深度或雪水当量,曹梅盛等[53]利用数字地形数据将中国西部地区分成了5个地貌单元(高山、高原、盆地、丘陵和低山),通过对Chang算法的修订得出了利用SMMR微波亮温反演积雪深度的修订算法,并分析了中国西部地区的积雪时空分布特征。车涛等[54]结合森林覆盖度,并剔除湿雪、冻土、降水和寒漠等像元,对公式(5)和(6)做了进一步的修正,得到了新的积雪深度反演算法(公式(10)和(11)),使之在中国区域内具有较小的估算误差。蒋玲梅等[37]利用不同频率的亮温对积雪深度的敏感性不同,使用AMSR-E微波亮温和地面台站数据建立中国区域不同地表覆盖类型下的积雪深度半经验统计反演算法(公式(12)),最后将此算法应用于FY-3B被动微波遥感数据估算中国区域积雪深度,研究结果显示在估算纯像元区域站点实测积雪深度时均方根误差(Root-Mean-Square Error,RMSE)在2~6 cm,而混合像元区域积雪深度反演的残差值分布在-5~+5 cm之内(表3)。

此类使用亮温差与站点实测通过线性回归得到的积雪深度反演公式,适用于对研究区域的积雪属性(积雪粒径、积雪密度等)不了解的情况下,当在反演公式里对森林、地形等影响因子参数化后,在一定程度上也能提高反演的精度。但是此类算法的普适性较差,不同地区的系数会大不相同,因而不能准确为其他地区提供高精度的积雪参数估算结果,而且此类算法并没有考虑积雪物理属性特征的变化。

表3   基于森林覆盖率修订的积雪深度静态反演算法

Table 3   The static snow depth retrieval algorithm based on forest fraction

算法名称算法公式参考文献公式编号
Forest 算法SD=0.78×(Tb18h-Tb37h)/(1-f)[50](8)
AMSR-E 算法SD=f×SDf+(1-f)×SD0[41,52](9)
车涛2算法SD=(0.78×(Tb18h-Tb37h)+b)/(1-f)
SD=(0.66×(Tb19h-Tb37h)+b)/(1-f)
[54](10)
(11)
蒋玲梅算法SD=fgrass×SDgrass+fbarren×SDbarren
+fforest×SDforest+ffarmland×SDfarmland
[37](12)

注:SD为积雪深度,b为补偿值,随月份变化;f为森林覆盖率;SDf根据表示森林区域积雪深度反演公式计算得到的积雪深度;SD0为根据非森林区域的积雪深度反演公式得到的积雪深度。详细的算法信息在参考文献[46,52]中有详细的说明;fgrass,fbarren,fforestffarmland分别为草地、裸地、森林和农田在像元内覆盖度;SDgrass,SDbarren,SDforest和SDfarmland分别为在纯像元内建立对应地表类型下的积雪深度反演算法,公式的详细信息在参考文献[37]有详细介绍

新窗口打开

3.1.2 动态反演算法

动态反演算法是在静态积雪深度反演算法的基础上,考虑了积雪物理属性(积雪粒径和积雪密度等)的变化对微波亮温的影响而做的修正。Josberger等[8]利用温度梯度指数(Temperature Gradient Index, TGI)来描述在积雪上温度梯度的累积效应,用积雪底层和表层的温度差表示温度梯度,它表示了积雪层内积雪粒径增长的一个累积变化指标(公式(13))。研究发现温度梯度指数与亮温差存在一个近似的线性关系,然后就可以利用温度梯度计算积雪深度(公式(14)),一般会假定地表温度为零度。研究结果发现公式(14)在北美平原地区的积雪深度反演精度较高,但在极地地区的精度并不高。Kelly等[55]认为植被的存在会对积雪的微波微波辐射信号产生影响,以及积雪的物理属性(积雪密度和积雪粒径)也会随着时间而产生变化,该研究者利用致密介质模型(Dense Media RadiativeTransfer Model,DMRT)模拟积雪粒径和密度的变化,使用SSM/I被动微波亮温差和实测积雪深度发展了雪水当量的反演模型,将积雪属性的变化对亮温的影响融入到积雪参数的反演过程中。也有研究者结合静态和动态算法各自的优势,形成了动、静结合的积雪深度反演算法[56,57]

TGI=1CTground-TairD(t)dt,(13)

D(t)=-αTairCddt(ΔTb19h-37h),(14)

式中:C为比例常数,20 ℃/m;Tground为积雪的底层温度;Tair为空气温度;D(t)为积雪深度;ΔTb19h-37h为19和37 GHz的水平极化亮温差;α为经验系数。

相较于静态算法,动态算法考虑积雪属性的变化,在某些地区的积雪深度或雪水当量的估算中精度有所提高,但是普适性受到了限制,在不同的地区得到的参数也会不同,主要是因为植被、大气和地形异质性的影响。

3.2 基于微波积雪模型的反演算法

为了可以更准确地描述微波在积雪内传输特征,目前建立了多种微波积雪模型。HUT(The Helsinki University of Technology)模型和积雪辐射传输模型[58]是一种半经验模型,该模型的基本假设是积雪中热辐射的散射以前向散射为主,然后对散射到前向的辐射能量比例以一个固定的经验系数q=0.96度量。此外HUT模型中考虑了森林覆盖度和大气的影响。在Roy等[59]的研究中发现HUT模型雪水当量的估算结果高于基于亮温差的线性回归算法,反演误差小于300 mm。Tsang等[60]应用致密介质辐射传输理论模型(Dense Media Radiative Transfer, DMRT)计算积雪中电磁波的有效传播常数, 并据此修正积雪的消光系数、散射系数和反照率,以此来准确反映积雪的微波辐射特性。Chen等[61]借助DMRT 模型和其他数据提高反演积雪深度和雪水当量的精度,并很好地模拟了在不同积雪粒径情况下亮温差和积雪深度的关系。多层积雪的微波辐射传输(Microwave Emission Model of Layered Snowpacks,MEMLS)模型[62]是一种采用六流技术描述积雪层内多次散射和吸收过程,并考虑积雪层之间的界面散射,研究发现该模型较好地模拟了积雪的微波辐射亮温,也可以模拟出亮温差在积雪深度达到50 cm左右时的饱和现象。

积雪模型一般可以较好地模拟出微波在积雪层内的辐射传输过程,以及对积雪各个参数的变化所引起的辐射亮温的变化。目前所提出的积雪模型一定程度上对积雪的辐射传输做了简化处理,而且模型中的参数有时很难通过实测来获取,从而限制了模型在大范围内使用。

3.3 基于先验知识的非线性反演算法

大量的研究表明,微波亮温与积雪参数之间是非线性函数关系,是多对多的复杂函数关系。因此发展一个显式的积雪参数反演关系式是不现实的,需要引入非线性的方法,如:神经网络、支持向量机、决策树、贝叶斯方法和遗传算法等机器学习算法来提高积雪参数的估算精度[63]。到目前为止,这些非线性的方法已经较为成功地应用于积雪深度和雪水当量的反演估算研究中。

3.3.1 神经网络

神经网络方法已经应用到了各个领域:控制和优化、模式识别和图像处理、预测预报等,目前神经网络也被应用于地表参数(包括土壤湿度、积雪深度、雪水当量等)估算研究中。Davis等[64]使用神经网络训练DMRT并反演积雪的4个参数(即积雪粒径、积雪深度、积雪密度和积雪温度),其中使用了SSM/I的5个观测值(19和37 GHz的水平和垂直极化以及22 GHz垂直极化亮温),估算结果显示积雪密度误差小于10%,雪水当量误差为9%~57%。Tedesco等[65]利用神经网络技术反演了积雪深度和雪水当量,并与其他4种积雪反演算法的估算结果作对比,研究结果显示神经网络估算积雪深度和雪水当量精度最高,Tabari 等[66]在伊朗Samsami盆地使用神经网络估算的积雪深度和雪水当量得到了同样的结论。此外,Forman等[67]在北美积雪覆盖条件下使用神经网络模拟估算被动微波不同频率和极化方式下的亮温,并对比分析了AMSR-E观测结果与神经网络模拟结果,模拟结果产生了接近于零的偏差,而且通过在积雪积累期和积雪融化期所做的神经网络模拟实验,研究结果证明神经网络可以作为大陆尺度数据同化的高效的计算方法。

多项研究表明微波亮温差随着积雪深度的增加而增加,但是当积雪深度超过一定值时,积雪深度的反演结果会有很大的偏差[41,68,69],单一的线性回归算法已经无法反演深雪。神经网络可以克服大尺度中存在的各种复杂问题,如通过学习和归纳大量数据知识进行非线性建模、分类以及关联,并且不需要在建模时对物理过程有过多的先验知识或了解[63,70]。神经网络尽管有这些优点,但是也有自身不可回避的问题:首先,对输入参数的要求必须是相关性较小,否则输出结果会存在很大的误差;其次,神经网络的结构对于高精度的输出结果也很重要;最后,神经网络对于训练样本的依赖都将限制神经网络的进一步应用。

3.3.2 支持向量机

支持向量机(Support Vector Machine, SVM)在图像分类中应用较为广泛,现在很多研究者已经将该方法应用于地学中,解决地学中的非线性问题。Liang等[47]集成了被动微波遥感亮温和反射率数据,然后使用SVM回归算法反演新疆地区的积雪深度。通过与其他积雪深度反演算法的对比分析得出基于SVM方法的积雪深度反演算法可以以较高精度估算积雪深度。Xiao等[48]使用被动微波亮温数据和气象台站资料以及其他辅助数据,并运用支持向量回归(Support Vector Regression, SVR)算法建立了基于不同植被类型和不同积雪期情况下的积雪深度反演模型,实验结果显示,该研究所提出的算法与其他现有的4种算法(Chang算法,SPD算法、神经网络算法和线性回归算法)相比,可以提高积雪深度反演结果精度,并在一定程度上减少“积雪饱和效应”。此外Forman等[71]使用SVM模拟估算北美地区积雪覆盖条件下AMSR-E不同频率和不同极化方式下(10.65,18.7,36.5 GHz水平和垂直极化)的亮温数据,其后又与基于神经网络算法估算的被动微波亮温作对比,研究发现基于SVM的估算结果优于神经网络的估算结果,因此,SVM是一种替代神经网络的更好的估算方法。再者,Xue等[72]在北美积雪覆盖条件下使用被动微波遥感数据对比分析了人工神经网络(Artificial Neural Network,ANN)和SVM估算积雪参数时的预测敏感度,研究结果发现不论深浅雪区域,有无森林覆盖地区,以及积雪积累和融化期,基于SVM算法的结果都很敏感。这个主要是由于SVM的模型结构相比于人工神经网络具有优势,对积雪属性的变化更敏感,可以做出更加准确的回馈效果。

3.3.3 其他机器学习算法

相对于神经网络,相关的研究表明决策树的优势在于有清楚的规则并可以训练得更快,且决策树的规则简单容易理解[63,70]。Balk等[73]使用二元决策树方法和地理统计技术对山区积雪空间分布特征做了建模分析,结果显示该方法可以提升山区雪水当量的预测。Davis等[64]在其研究中使用SMMR被动微波数据和贝叶斯迭代方法反演积雪参数,研究结果显示该方法的反演结果优于线性亮温梯度算法的估算结果。武黎黎等[74]使用改进的HUT积雪辐射传输模型(The Improved Helsinki University of Technology,IMPHUT)模拟18.7和36.5 GHz水平极化亮温,然后利用遗传算法反演积雪深度,反演结果显示基于IMPHUT模型的反演雪深结果精度优于HUT模型和Chang算法,误差、RMSE、平均误差比HUT模型的3个指标均减少一半左右,且反演雪深与实测雪深一致性较高。

基于先验知识的非线性反演算法较好地描述了微波亮温和积雪参数之间的非线性关系,它克服了线性算法在不同地区应用时的局限性。虽然该类型算法的使用范围广、反演精度高,但反演过程中缺少详实积雪物理模型过程参与[35],而且机器学习算法对算法自身结构的依赖度很高[72]

3.4 数据融合与数据同化

由于在积雪反演过程中存在各种影响反演精度的因素,例如,被动微波的空间分布率低,微波探测的深雪饱和效应,植被、水分等,使得基于被动微波遥感数据的反演结果并不能如实反映积雪属性的地面积雪实际信息[75]。站点实测可以直接获得积雪属性的“真值”,但是限于点观测,难以表达大空间范围内积雪变化特征;遥感观测具有多时相、宏观、全天候等特点,但是在不连续的时间尺度上只能获取某个瞬间的地面积雪信息;模型模拟具有明确的物理机制,其可以对过去、现在及未来的积雪参数进行模拟,但这是限定在特定时空尺度下对积雪参数进行的模拟,而且模型模拟大都是对实际积雪属性的变化做了一定简化处理,因此影响了模型模拟的精度[76]。卫星资料、地面站点资料及模型模拟都具有各自优势和局限性,根据不同来源的积雪资料进行时空分布和变化分析时可能存在着差异,会得出不同的结论[75]。为了综合不同来源观测资料的优势,实现各种资料源的优势互补,提高积雪数据的质量,众多研究人员提出不同数据源之间的融合和同化方法[77],例如,观测资料与模型模拟之间,观测资料与遥感资料之间,遥感资料与模型模拟之间,观测资料、遥感资料和模型模拟三者之间。

3.4.1 观测资料与模型模拟

Liston等[78]采用直接将积雪深度转化后的雪水当量值同化到区域大气模型系统(Regional Atmospheric Modeling System)模拟中,即把积雪的观测值直接代入到耦合的陆地—大气模型模拟结果中,改进雪水当量的估算结果,研究结果显示该方法可以显著提高积雪模型的积雪过程模拟。加拿大气象中心使用积雪深度实时实测数据和简化的积雪融化与积累期积雪模型,生成了全球逐日积雪深度再分析数据集[79],与北半球积雪深度实测值相比每个月估算值的RMSE在10~20 cm,偏差一般小于5 cm。而且在北美陆地数据同化系统(North American Land Data Assimilation System,NLDAS)中,也是将地面站点实测积雪数据同化到陆面过程模式中[80],结果显示在所有区域内模型估算都会低估最大雪水当量值,估算值与实测值的差异最大可以达到1 000 mm,东部地区一般会在100 mm以内。

3.4.2 观测资料与遥感资料

Takala等[40]提出了一种数据同化算法,同化地面实测积雪深度数据和被动微波辐射数据,并计算北半球30年长时间序列季节性的雪水当量数据,该数据集使用前苏联、芬兰以及加拿大的雪水当量观测值作为验证数据集。研究结果显示该算法具有较高的可行性,可以提高估算雪水当量的精度,在芬兰地区雪水当量估计值的RMSE均小于40 mm;欧亚大陆区域的RMSE和偏差会随着时间而变化,当雪水当量小于150 mm时RMSE和偏差分别在30~40 mm和-3~9 mm变化;在加拿大地区RMSE大概为40 mm。赵亮等[81]提出了一种融合被动微波遥感数据和地面测站数据动态反演积雪深度的方法,该反演方法可以在不同时空条件下根据测站观测雪深,灵活调整积雪深度反演系数,而且该算法在观测站稀少的西部高山地区的反演结果具有较高空间分辨率,与站点实测相比、判识有无雪的准确率高于80%。

3.4.3 遥感资料与模型模拟

Andreadis等[82]运用集合卡尔曼滤波(Ensemble Kalman Filter,EnKF)将遥感观测数据同化到水文变量渗透能力模型(Variable Infiltration Capacity hydrological model,VIC)中,使用1999—2003年4个冬季的MODIS积雪覆盖范围产品更新VIC模拟的雪水当量。在此过程中应用简单的积雪消融模型反演雪水当量—积雪面积,研究发现在深雪部分估算的雪水当量误差更大,对低海拔高度积雪融化期地区的雪水当量精度提高幅度大,对高海拔积雪积累期精度提高幅度不是很大。此外,为了更新积雪的状态信息,Durand等[83]将被动微波传感器SSM/I和AMSR-E多个波段的亮温以及宽波段albedo观测数据使用EnKF同时同化至陆面过程模式中估算雪水当量,其中该研究中使用集成陆面过程模式SSiB3中简单积雪—大气—土壤传输模型(Simple Snow-Atmosphere-Soil,SAST),研究结果显示,该方法对研究积雪属性和观测值之间的复杂关系具有很好的效果,实验结果显示经同化后的结果对积雪面积识别率可达到90%以上,显著提高了雪水当量估算的精度,雪水当量估算值的RMSE可以低至32 mm。车涛等[84]使用EnkF将被动微波亮温数据同化至积雪过程模型中,使用积雪深度地面实测数据作为同化反演结果的验证数据,通过对实验区7个站点的数据分析,结果显示该同化算法在积雪积累期可以提高估算积雪深度的精度,同化后结果的偏差和RMSE分别是-1.13 cm和4.60 cm,但是在积雪融化期并不能提高积雪深度估算精度,森林、降水以及模型所需的驱动数据都会影响同化结果的精度。

3.4.4 观测资料、遥感资料和模型模拟

Pulliainen[85]同化卫星微波辐射数据和地面观测数据来估算积雪深度和雪水当量。该同化算法基于HUT模型,并运用贝叶斯方法对卫星数据与地面实测数据赋权重。实验结果显示通过数据同化技术并使用SSM/I和AMSR-E数据估算北欧和芬兰地区积雪深度和雪水当量时,与实测插值后结果相比数据同化可以提高积雪深度和雪水当量的反演精度,但是由于该算法对积雪粒径很敏感,所以该模型在长时间序列或大空间尺度上应用时存有一定的不足。

4 被动微波卫星遥感积雪产品

目前,使用被动微波遥感数据反演得到的积雪产品主要应用于:①作为大尺度气候模型的输入和验证数据;②天气预报及中尺度模型;③数值天气预报;④气候变化的监控与监测;⑤水文监测和模拟融雪径流等;⑥农业方面:霜冻旱涝灾害预报与预警;⑦冰盖融化的判识;⑧湖面冰盖冻结与融化[86]。基于不同积雪深度和雪水当量反演算法可以得到不同的积雪数据产品,现在已经有很多种积雪深度数据产品,如不同时间尺度、不同空间尺度和不同数据格式,但是本文中主要介绍3种空间尺度范围下的积雪深度数据产品:中国区域、北半球尺度和全球尺度(表4)。

表4   积雪产品数据集

Table 4   Snow product dataset

序号数据名称空间范围空间分辨率时间范围时间
分辨率
获取地址
1中国雪深长时间序列
数据集
中国25 km(或0.25°)1978.10.24-2016.12.31逐日http:∥westdc.westgis.ac.cn
2FY3-MWRI雪深雪水
当量产品
全球25 km2011.7.15-逐日http:∥www.nsmc.org.cn
3AMSR-E积雪产品全球25 km2002.6.19-2011.11.3逐日http:∥nsidc.org/
4SMMR、SSM/I 和
SSMIS积雪产品
全球25 km1978.11.11-逐日http:∥nsidc.org/
5GlobSnow-2积雪产品北半球25 km1979—2012年逐日http:∥www.globsnow.info/
6加拿大气象中心逐日
积雪深度分析数据
全球24 km1998.08.01-2016.12.31逐日http:∥nsidc.org/
7兰德公司月平均积雪
深度数据集
全球(不包含
非洲和南美)
4°×5°1950—1976年逐月http:∥nsidc.org/

新窗口打开

4.1 积雪产品生成的算法

中国雪深长时间序列数据集使用的是车涛等[54]中国区域对Chang算法修正后的反演算法。中国地区积雪深度反演公式如公式(10)和(11):SMMR传感器下的被动微波数据使用公式(10)反演积雪深度,SSM/I和SSMIS下的被动微波数据使用公式(11)反演积雪深度。需要注意的是,使用车涛的雪深反演算法前,会基于Dai等[87]的研究将3种传感器下的微波亮温数据交叉定标。

FY3-MWRI雪深雪水当量数据产品使用的积雪深度反演算法有2种:一种是全球积雪深度反演算法,该算法是半经验型算法,与AMSR-E积雪深度反演算法相同(公式(9));另一种是区域积雪深度反演算法,该算法也是一种半经验型算法,但是该算法只适用于中国区域(公式(12))。

AMSR-E的积雪产品可以提供全球逐日、5天和逐月3种类型的积雪产品,该数据集的积雪反演算法是在Chang算法的基础上发展起来的,数据处理时首先会剔除湿雪像元,然后使用MODIS数据将非积雪像元掩膜掉。因为算法考虑了森林的影响,所以会基于森林和非森林区域分别建立反演算法。最后使用公式(9)估算积雪深度。

SMMR积雪产品空间覆盖南、北纬85°之间区域,SMMR积雪产品是在时空上做了插值处理,以极地方位立体投影形式显示,数据限制在0.5°×0.5°经纬格网内,数据中只有陆地区域,其中海洋和海湾地区数据被掩膜。SMMR,SSM/I和SSMIS积雪产品是美国NSIDC依据NASA算法[50,88]使用SMMR,SSM/I 和SSMIS被动微波传感器亮温数据生成的长时间序列(1978年至今)全球积雪数据产品。

GlobSnow-2数据集是欧洲太空局(European Space Agency,ESA)提供的积雪产品,包括积雪面积和雪水当量,雪水当量反演算法——数据同化方法[85]使用到了NSIDC的被动微波亮温数据(SMMR,SSM/I,AMSR-E)辅助以时间序列融化探测算法,整体算法在文献[40]中有详细介绍。

加拿大气象中心逐日积雪深度数据来自于实时地面的积雪深度实测值,使用最优插值法和一个简单的积雪融化和积累期的积雪模型,其中积雪模型使用的是来自于加拿大预测模型(Canadian Forecast Model)的气温分析数据和降水预测数据[79]。19世纪80年代初,兰德公司将所有可以获取到的气象站点的每月积雪深度集成到一个全球数字数据集——兰德公司月平均积雪深度数据集,然后以4°纬度×5°经度进行了网格划分。

4.2 积雪产品的精度

戴礼云等[38,68]在中国北方地区,用站点实测对比了积雪产品1(即中国雪深长时间序列数据集)、3(即AMSR-E)和5(即GlobSnow-2积雪产品),发现积雪产品3的误差较大即高估了雪水当量,主要是由于该产品的反演算法中积雪粒径和雪密度的信息不是非常准确;因为产品5使用了数据同化算法,同化了地面台站的实测数据,很明显产品5的精度高于产品3;相较于产品3,产品1在该研究区域的精度是相对较高,而且研究发现森林地区的积雪产品精度都相对不高,但是李小兰等[75]在研究中发现,产品1和中国区域的地面台站实测资料相比,在不同的区域,误差存在很大的差异。产品4(即SMMR,SSM/I 和SSMIS积雪产品)低估了前苏联地区积雪深度,而在中国的内蒙古地区对积雪深度和积雪面积存在明显的高估[89,90],这主要是由于我国的积雪密度偏低,深霜层较为发育。Liu等[91]在全球尺度下对比分析了积雪产品3(AMSR-E积雪产品)、4(SMMR,SSM/I和SSMIS积雪产品)和5(GlobSnow-2积雪产品)的雪水当量精度,结果显示产品5的雪水当量估算精度比产品3和4的都高,产品3和4更易受到积雪饱和效应的影响,在雪水当量大于120 mm时会显著低估。

5 影响积雪深度反演精度的因素

5.1 积雪的变质作用

由于受多种因素的影响,在运用被动微波遥感进行积雪监测时存在很多局限性。一个很大的影响因素是积雪内的液态水,它抑制了微波传感器探测雪的能力[92]。随着积雪中液体水含量的增加(意味着积雪介电常数的增大),微波辐射的吸收将逐渐超过微波散射而在衰减作用中占主导地位,导致积雪的散射特征减弱。在一定程度上,湿雪的存在会使积雪深度或雪水当量与微波亮温的变化没有关系[93,94]

由于积雪粒径的大小和微波波长很接近,可以有效地散射从地球表面发出的微波辐射。而积雪粒径越大,散射作用就越强。例如,以亮温差为主导的积雪深度线性反演算法中,积雪粒径偏大会导致亮温差越大,积雪深度估计值偏大[24]。而在同一层积雪的粒径会随着时间在积雪的变质作用下逐渐增大;在垂直剖面上,每个积雪层的粒径也会不一样;底层的积雪层积雪粒径最大,即深霜层是整个积雪剖面上粒径最大的。当积雪粒径发生改变后,其会改变积雪的微波辐射特性[51]

了解积雪粒径和密度对准确反演积雪深度和雪水当量很重要,而积雪密度在积雪变质的过程中也会发生变化。根据现有的研究发现欧亚大陆地区的积雪密度普遍比北美地区的积雪密度低,原苏联地区的积雪密度为0.21~0.31 g/cm3,北美地区的积雪密度为0.24~0.31 g/cm3[25],而中国地区的积雪密度更低,为0.16 g/cm3[95,96] ,深霜层也较为发育。在积雪的垂直方向上,顶层雪为新雪,其密度最小;从垂直剖面自上而下,积雪密度逐渐增大,积雪密度可以从0.12 g/cm3增大到0.22 g/cm3[68],因为下层积雪正经历着积雪压实,积雪粒径增大。

5.2 积雪下垫面

由于被动微波遥感数据的空间分辨率较低,在一个像元内会存在多种地物类型,如裸地、森林、草地等,植被又对积雪的微波辐射信号具有衰减作用,这就使得像元内地物的异质性增加了微波遥感反演积雪深度或雪水当量的复杂度[29,50,54,97]。Vander等[98]在其研究中指出植被的存在使微波信号对于积雪深度的敏感度减少23%~63%。对于不同地表覆盖类型,其被动微波辐射的衰减效应不同,在不同的植被覆盖度下的微波辐射衰减也不同。有研究者已经基于不同的地表覆盖类型或植被类型建立了不同的积雪深度或雪水当量的反演估算模型[37,48,51,90,99,100],或在积雪深度或雪水当量的反演方程中引入森林覆盖度提高积雪参数的反演精度[50,51,54]。为了能够准确对积雪进行定量或者建模研究,需要对每种地表覆盖类型或不同植被覆盖度下的积雪做研究。

对混合像元的研究,周胜男等[101]评估了混合像元内优势地物类型下AMSR-E积雪深度的反演精度,研究结果显示当植被由高到低再到无时(森林、灌木、草原和裸地),积雪深度的高估程度不断减少。现有的研究表明采用混合像元分解会使积雪的反演精度得到一定程度的提高[37]

5.3 其他影响因素

冻土、沙漠等地物的微波辐射信号对识别积雪微波辐射信号存在干扰。积雪的反演是积雪越厚,微波散射越强,不同频率之间的亮温差越大,但是由于积雪的微波辐射信号特征与降雨、冻土以及沙漠的具有相似的信号,会高估积雪深度或雪深当量[54,102]

在青藏高原或其他高海拔地区,由于大气稀薄从地表传输到卫星传感器的微波信号衰减可能较小,会高估这些高海拔地区的积雪深度或雪水当量[103,104]。之前的研究采用被动微波亮温数据反演积雪深度或雪水当量时,一般都默认反演过程中大气作用的存在,然而在高海拔地区(如青藏高原),空气稀薄,Savoie等[103]将青藏高原地区调整到低海拔地区,相当于增加了大气对于微波辐射信号的影响。也有研究者利用简化的辐射传输方程和从几个台站收集的大气探空资料对微波亮温数据进行了大气校正,研究发现经大气校正后的微波亮温可以提高积雪面积判识的精度[105]

复杂地形会影响积雪微波散射信号的分布,使得在25 km像元内的微波亮温并不能如实反映地面积雪信息,大大限制了卫星传感器接受到的积雪散射信号。在积雪深度或雪水当量反演时,复杂地形会影响积雪深度的反演精度[41,106~108]。例如,青藏高原地区地形差异很大,山体阴坡和阳坡同类地物的微波亮温差异都很大[15]。因此复杂地形地区的积雪研究成为了需要解决的问题,但有研究者在做积雪反演研究时对山区做出剔除处理。

此外,微波信号的穿透深度也会影响深雪的反演精度,微波信号不是无限穿透所有深度的积雪,蒋玲梅[86]在研究中发现,积雪粒径、含水量、积雪密度、积雪温度等都会影响微波在积雪内的穿透深度,也会随着微波频率的变化发生变化。其研究发现随着频率的增加,积雪的穿透深度不断减小。当使用被动微波亮温数据反演积雪深度时,就会存在饱和效应,即当积雪深度达到某个阈值时,微波亮温不会发生大的变化[25,69]

6 结 语

以上综述了基于被动微波遥感的积雪深度和雪水当量的反演研究进展。简述了被动微波遥感反演积雪的理论基础,并简要介绍了用于反演研究所用的被动微波遥感数据,随后较详细地介绍了4种类型的积雪深度和雪水当量反演算法(基于统计的线性反演算法,基于微波积雪模型的反演算法,基于先验知识的非线性反演算法,及数据融合与数据同化)。同时也介绍了目前的几种积雪数据产品,包括中国雪深长时间序列数据集,FY3-MWRI雪深雪水当量产品,AMSR-E积雪产品,SMMR,SSM/I和SSMIS积雪产品,GlobSnow-2积雪产品,加拿大气象中心逐日积雪深度分析数据,兰德公司月平均积雪深度数据集。最后对影响积雪深度的几个主要影响因素做了简要分析。现阶段被动微波遥感技术仍是我们认识积雪(冰冻圈中最为活跃也最为重要的要素之一)的主要手段,但是现有的基于被动微波遥感获取积雪参数的方式方法仍然有很多不确定性。存在这些不确定性的原因是:①被动微波遥感空间分辨率太粗;②不同区域积雪自身物理属性(密度、粒径、含水量、雪层结构等)的异质性对积雪的微波辐射和散射信号造成影响。而要解决反演中的不确定性问题,需要加强以下几个方面的研究:

(1)微波传感器接收到的亮温对积雪粒径、含水量、积雪密度、植被、地形等变化敏感,浓密的植被大大减弱了向上微波辐射信号,地形的高低起伏增大了卫星传感器接受到的积雪辐射信号的复杂性,而目前所使用的积雪反演方法在某种程度上经常会低估实际值,因而利用被动微波积雪监测中如何减小植被、地形等地表属性以及积雪的物理属性的影响有待进一步研究。

(2)因被动微波遥感数据的粗分辨率而带来的混合像元问题,导致了基于被动微波遥感反演积雪参数时并不能准确描述地表真实积雪信息。所以将其他高分辨率遥感影像数据或产品,如MODIS,Landsat,Lidar和SAR等数据,与被动微波遥感数据融合处理,使得融合处理后的数据更好地表达被动微波遥感数据粗分辨率像元内的异质性信息以及提高多源数据的利用率,实现优势互补,弥补各自传感器数据的缺陷。使用多源遥感数据融合可以更加准确地了解积雪属性(密度、粒径、深霜层、雪层结构)的特征,经数据融合处理生成的高精度积雪遥感产品可用于小区域尺度的高精度的水资源评估、雪灾监测与气象预报等领域。

(3)现有主流的积雪深度和雪水当量反演算法采用的微波频率主要是18 GHz 或19 GHz以及37 GHz,而现有研究结果显示目前的反演算法存在一个反演积雪深度阈值的瓶颈,即当雪深达到50 cm左右时亮温差逐渐趋于饱和,需要尝试探索除以上常用频率波段以外频率下的数据,如可以采用穿透深雪能力较强的10 GHz波段以及利用监测浅雪较好的89 GHz 或更高频波段的亮温数据。

(4)数据同化可以破解积雪物理过程不明确、被动微波数据分辨率低以及无法长时间持续监测积雪变化等问题。微波辐射传输模型在积雪参数反演估算过程中的使用和发展,更加有利于了解积雪物理特性和提高积雪参数反演的精度。在数据同化方法体系下同化积雪过程模型、站点观测数据、卫星遥感观测(主被动,光学,雷达等遥感观测)等多源数据,可为提高积雪深度和雪水当量的估算精度提供新的方法。
