北祁连西段熬油沟组玄武岩地球化学特征及构造意义

刘懿馨1, 侯克选2, 沙鑫1, 马蓁1, 王金荣1*

1.兰州大学地质科学与矿产资源学院 甘肃省西部矿产资源重点实验室(兰州大学),甘肃 兰州 730000
2.河北省众联能源环保科技有限公司,河北 石家庄 050000

Geochemical Characteristics and Tectonic Significance of Aoyougou Group Basalts in Western North Qilian

Liu Yixin1, Hou Kexuan2, Sha Xin1, Ma Zhen1, Wang Jinrong1*

1.School of Earth Sciences, Lanzhou University, Key Laboratory of Mineral Resources in Western China, Lanzhou 730000, China
2.Zhong-Lian Environmental Protection and Scientific Technology Co. Ltd., Shijiazhuang Hebei 050000,China

中图分类号:  P588.145

文献标识码:  A

文章编号:  1001-8166(2018)02-0189-17

通讯作者:  *通信作者:王金荣(1958-),男,福建莆田人,教授,主要从事构造地质学的教学科研工作.E-mail:jrwang@lzu.edu.cn

收稿日期: 2017-07-20

修回日期:  2017-12-18

网络出版日期:  2018-02-20

版权声明:  2018 地球科学进展 编辑部

基金资助:  甘肃省矿产资源补偿费项目“甘肃省肃南卡瓦铁矿综合研究”(编号:甘财建【2014】99号)中央高校基本科研业务费(编号:lzujbky-2016-197)资助

作者简介:

First author:Liu Yixin(1988-),female,Qin’an City,Gansu Province,Ph.D student. Research areas include petrotectonics.E-mail:liuyx16@lzu.edu.cn

作者简介:刘懿馨(1988-),女,甘肃秦安人,博士研究生,主要从事岩石大地构造研究.E-mail:liuyx16@lzu.edu.cn

展开

摘要

北祁连造山带是一典型的板块缝合带,其中镶嵌着众多大小不一的由前震旦系变质岩系组成微陆壳残块,为解析北祁连前造山构造过程提供了重要的研究载体。北祁连西段卡瓦—祁青一带分布有较为完整的中元古界长城系朱龙关群熬油沟组火山岩—碎屑岩—碳酸盐岩建造。岩石地球化学研究表明,熬油沟组玄武岩主量元素含量变化较为稳定,具高K2O(4.27%~6.07%),TFe2O3(10.49%~13.01%),TiO2(1.96%~2.90%)以及中等的MgO(5.37%~6.71%,Mg# 48~51),CaO(2.57%~ 5.51%),为钾玄碱性玄武岩。岩石Cr和Ni含量随着Mg#降低而减小、CaO与CaO/Al2O3呈正相关,明显富集轻稀土元素(LREE)和大离子亲石元素(LILE),轻微正Eu异常,高含量的高场强元素(Nb,Ta,Ti),以及元素对Gd/Yb(2.5~3.0),Zr/Y(8.6~10.2),Ta/Yb(0.96~1.23),Ti/Yb(5 074~6 021),Zr/Yb(81~97),Ce/Nb(1.87),Zr/Nb(6.41)值均揭示了熬油沟组玄武岩具有洋岛玄武岩(OIB)地球化学特征。结合区域地质背景研究表明,熬油沟组碱性玄武岩源于类似于OIB的深部富集地幔,在岩浆作用过程中发生过橄榄石和单斜辉石的分离结晶作用以及一定程度的大陆地壳物质的混染作用,形成于大陆裂谷背景,并认为其是对中元古代Columbia超大陆裂解的响应,进一步为中元古代华北克拉通裂解与Columbia超大陆裂解事件的关系提供了重要的岩石学证据。

关键词: 玄武岩 ; OIB ; 富集地幔 ; 分离结晶 ; 大陆裂谷

Abstract

The North Qilian orogenic belt is a typical plate suture zone, which is studded with numerous different sizes of fragments of micro-continental crust consisting of pre-Sinian metamorphic rocks and the North Qilian orogenic belt provides important study carrier for studying the pre-orogenic tectonic process of the North Qilian. The relatively complete volcanic-clastic-carbonate rocks formation of Zhulongguan Group, Changchengian System, Mesoproterozoic are distributed in the Kawa-Qiqing area, Western North Qilian orogenic belt. Geochemical characteristics of the Aoyougou Group basalts in the North Qilian indicated that the contents of major element were relatively stable, high K2O contents(4.27%~6.07%), TFe2O3(10.49%~13.01%),TiO2(1.96%~2.90%)and middle MgO(5.37%~6.71%,Mg# 48~51), CaO(2.57%~5.51%)content. Thus, the Aoyougou Group basalts belong to potassium alkaline basalt. The contents of Cr and Ni of the basalts decreased with the decreasing of Mg#, and there was a positive correlation between CaO and CaO/Al2O3, Furthermore, the Eu anomaly of samples was slightly negative, high contents of high field strength elements (HFSE, Nb, Ta, Ti), and the ratios of Gd/Yb(2.5~3.0), Zr/Y(8.6~10.2), Ta/Yb(0.96~1.23), Ti/Yb(5 074~6 021), Zr/Yb(81~97), Ce/Nb(1.87), Zr/Nb(6.41)indicated that the Aoyougou Group basalts had obvious OIB-type magmatic affinity. In combination with the regional geological background, the study results showed that Aoyougou Group alkaline basalt generated from deep enrichment mantle similar to the source of OIB, with fractional crystallization of olivine and monoclinic pyroxene and a certain degree of contamination of continental crust in the process of magmatism, formed in the background of continental rift, might response to the Proterozoic Columbia supercontinent rifting, which further provides important petrological evidences for the relationship between North China Craton rifting events and Columbia supercontinent rifting during Proterozoic.

Keywords: Basalts ; OIB ; Enriched mantle ; Fractional crystallization ; Continental rift.

0

PDF (9490KB) 元数据 多维度评价 相关文章 收藏文章

本文引用格式 导出 EndNote Ris Bibtex

刘懿馨, 侯克选, 沙鑫, 马蓁, 王金荣. 北祁连西段熬油沟组玄武岩地球化学特征及构造意义[J]. 地球科学进展, 2018, 33(2): 189-205 https://doi.org/10.11867/j.issn.1001-8166.2018.02.0189

Liu Yixin, Hou Kexuan, Sha Xin, Ma Zhen, Wang Jinrong. Geochemical Characteristics and Tectonic Significance of Aoyougou Group Basalts in Western North Qilian[J]. Advances in Earth Science, 2018, 33(2): 189-205 https://doi.org/10.11867/j.issn.1001-8166.2018.02.0189

1 引言

位于青藏高原东北部的北祁连造山带是一典型的板块缝合带,记录了从新元古代到早古生代的大陆裂解、洋盆扩张、大洋俯冲、大陆闭合拼贴的完整的威尔逊旋回[1~15],其最大的特点是在早古生代增生杂岩中镶嵌着众多大小不一的由前震旦系变质岩系组成的陆壳残块[16],故被认为是一条典型的增生型造山带[17~20]。长期以来,国内外学者主要侧重于新元古代—早古生代祁连古大洋形成与演化的研究,并取得较为一致的认识[5~8,13~15,17,20~25],但对于前震旦纪北祁连的研究则显得相对薄弱且分歧较大,主要集中在中祁连地块基底地层格架的讨论方面[26~35]。少数学者对陆壳残块中的元古宙火山岩系及变质岩系做了初步研究,左国朝等[16]认为北祁连造山带西段陆壳残块可分为裂谷型残块、活动大陆边缘型残块及海底孤岛型陆壳残块,是华北古大陆西南缘阿拉善地块在早古生代裂解后残留的块体,并以此认为早古生代北祁连构造格局表现为洋、海峡(裂谷)、岛屿(陆壳残块)及海底高原并存的局面;冯备战等[36]通过北祁连西段古元古代北大河群斜长角闪岩年代学和地球化学特征研究认为,斜长角闪岩(原岩为玄武岩)形成于与地幔柱有关的大陆裂谷环境,但付国民等[28]则认为其是古元古代华北克拉通与柴达木克拉通之间存在的古洋盆俯冲消减作用的产物;王忠良[37]根据中祁连西段的托赖岩群岩石组合、岩石地球化学和年代学等的研究认为,祁连地块的基底主体起始于太古代—古元古代,形成于中元古代;徐晓春等[38]认为走廊南山朱龙关群玄武岩(Sm-Nd等时线年龄为1 770.9 Ma)形成于大陆板内环境;毛景文等[39]在熬油沟地区朱龙关群下部辉绿岩墙获得的锆石年龄为1 840~1 784 Ma;夏林圻等[9]研究认为在北祁连西段镜铁山矿田镜铁山群下部铁矿层中碧玉岩的Sm-Nd等时限年龄为(1 309±80)Ma,上部(东水峡地区)碱性玄武岩Sm-Nd等时限年龄为(1 032.7±64.9)Ma,并认为后者形成于大陆板内环境,源于地幔柱岩浆作用的产物,是北祁连新元古代—寒武纪洋盆打开的前兆;张招崇等[40]认为北祁连西段早元古代变质火山岩形成于裂陷槽构造背景,分布在熬油沟地区的蛇绿岩之辉绿岩锆石高灵敏度高分辨率离子探针质谱法(Sensitive High Resolution Ion Microprobe,SHRIMP)年龄为1 777 Ma,并被认为其所代表的洋盆闭合于中元古代早期(1 466 Ma)[41],但近年来的研究认为,祁连山西段熬油沟蛇绿岩是新元古代—早古生代北祁连大洋演化的产物,形成于早古生代,熬油沟蛇绿岩中的辉长岩和二只哈拉蛇绿岩中辉长岩LA-ICP-MS锆石U-Pb年龄分别为480~504 Ma和(497±3.2)Ma[42~44]。由此可见,北祁连西段元古宙火山活动广泛发育从下元古界北大河岩群的变质火山岩系、中元古界朱龙关岩群下部熬油沟组和上部桦树沟组基性火山岩,到新元古代大陆溢流玄武岩,不同学者从不同角度开展了研究,取得了许多重要的认识,但也存在许多亟待解决的科学问题,特别是北祁连造山带内部镶嵌着众多大小不一的前震旦系变质岩系,其构造属性存在较大的分歧。许志琴等[17]认为其是中祁连地体推覆而来的飞来峰;冯益民[45]将其视为外来移置的滑覆体;左国朝等[16]则认为其是早古生代时期华北古大陆裂解的陆壳残留体。若是陆壳残留体其构造含义是什么?北祁连古—中元古代构造岩浆演化过程仍缺乏高精度的年代学及岩石地球化学的系统研究,且认识存在分歧;祁连地块的构造属性是与华北克拉通还是与扬子克拉通更具亲缘性?同时,对北祁连前寒武纪变质岩系的构造属性与中祁连的对比研究缺乏系统性。因此,本文通过对北祁连西段卡瓦—祁青地区中元古界长城系朱龙关岩群熬油组中的玄武岩岩石学及岩石地球化学的研究,查明熬油沟组玄武岩性质、成因、构造动力学过程,为构建北祁连前寒武纪构造演化体制及确定祁连地块的构造属性提供重要的地质依据。

2 地质背景

研究区位于北祁连造山带西段南部的祁青—卡瓦一带(图1),区内分布有熬油沟—卡瓦蛇绿岩带[27,42,44],其代表着祁连古大洋南向俯冲形成的弧后盆地的残留体[44]。除了蛇绿岩分布外,其最大的特点是在早古生代岩系中镶嵌着前震旦系变质岩系组成陆壳残块[16],主要由下元古界北大河岩群、中元古界朱龙关岩群、蓟县系、上元古界青白口系等组成(图1),表现为较完整的元古宙沉积层序,其中北大河岩群中的斜长角闪岩原岩为玄武岩,Sm-Nd等时线年龄为1 980 Ma[39],被认为是古元古代晚期柴达木与华北克拉通之间古洋盆俯冲消减的产物 [28],但从其岩石组合(玄武岩—石英岩—石英片岩—碳酸盐岩—黏土岩)来看,并不支持其形成于岛弧环境的认识。

朱龙关岩群由下部熬油沟组和上部桦树沟组组成,主要出露于祁青、卡瓦、牛毛泉子、头道沟、小柳沟及镜儿泉—九个青羊一带,层位及横向延伸相对稳定,与下伏北大河岩群及上覆桦树沟组均呈断层接触 。熬油沟组下部以变石英砂岩和粉砂质千枚岩,粉砂质板岩夹泥钙质板岩,夹透镜状赤铁菱铁矿体为主,自下向上岩石粒度变细,化学沉积物含量增加,在夹皮沟铁矿一带,在岩性上变化很大,除了夹多层厚层火山岩,碳酸盐型变质岩(灰岩和硅质岩)增加外,且产有数层透镜状赤铁矿;上部岩性变化较大,火山岩发育程度不一致,由下而上具有火山岩逐渐减少、碳酸盐岩逐渐增多的变化规律。碳酸盐岩中发育有数层赤铁矿层,含矿层位稳定,延伸达数十公里。总体上表现为一套中低级变质的碎屑岩—海相碳酸盐岩(含赤铁矿层)—火山岩(玄武岩)建造。毛景文等[39]分别对朱龙关群下部侵入的辉长岩和辉绿岩进行单颗粒锆石测年,年龄分别为(1 784±2)Ma~(1 840±2)Ma和(1 777±28)Ma[41];徐晓春等[47]在北大河地区朱龙关群中获得的玄武岩Sm-Nd等时线年龄为1 770.9 Ma;夏林析等[9]测得3个泉朱龙关群下部基性熔岩年龄为(1 780.7±50)Ma;俞伯达[48]获得了肃北县大泉一带的玄武岩Sm-Nd同位素年龄为1 529 Ma,并以此年龄作为熬油沟组与桦树沟组之界线。故可以初步认定熬油沟组玄武岩年龄应在1 784~1 529 Ma,形成于中元古代早—中期,这与区域地层年代的归属吻合。桦树沟组岩石类型主要由一套浅变质碎屑岩、碳酸岩盐夹中基性火山岩构成,是区域上沉积变质型铁矿、层控再造型铜矿的赋矿地层。

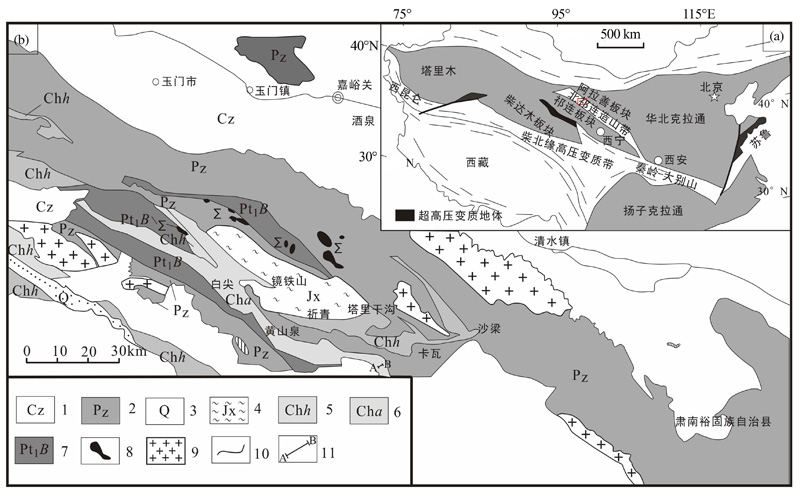

图1   研究区地质简图(据参考文献[15,46]修改)
(a)北祁连西段卡瓦地区大地构造纲要图(据参考文献[15]修改);(b)卡瓦一带地层分布图(据参考文献[46]修改).1.中新生界;2.古生界;3.第四系;4. 青白口系;5.长城纪桦树沟组;6.长城纪熬油沟组;7.古元古代北大河岩群;8.基性—超基性岩;9.中酸性侵入岩体;10.地质界线;11.图2剖面位置(采样位置见图2)

Fig.1   Geology sketch of the research area(modified after references[15,46])
(a)Structure outline map of Western North Qilian (modified after reference [15]). (b) Stratigraphic map of Kawa region (modified after reference [46]).1:Middle Cenozoic. 2:Paleozoic. 3:Quaternary. 4:Qingbaikou System. 5:Huashugou Group, Changcheng Period. 6:Aoyougou Group, Changcheng Period. 7:Paleoproterozoic Beidahe terrain. 8:Mafic-ultramafic rocks. 9:Neutral-acid intrusion. 10:Geology boundary. 11:Samples and geological section location of Fig.2

3 样品采集与分析方法

玄武岩样品位于熬油沟组顶部,采自北祁连西段古浪峡以北、卡瓦铁矿区II矿段南,与上下凝灰质砂岩为整合接触关系(图2),样品新鲜蚀变弱。在野外地质调查和岩石薄片鉴定的基础上,选取新鲜玄武岩岩石样品,经过表面杂质清洗粗碎,在无污染玛瑙研钵中将样品研磨至200目以下,送实验室进行测试。全岩主量元素、微量元素和稀土元素的测试在西安地质矿产研究所实验测试中心进行。主量元素利用荷兰帕纳科公司生产的Axios4.0kw 顺序式-X射线荧光光谱仪(XRF)测试,测试结果利用曲线法校正,精度一般优于1%。稀土元素的测定使用Series II型电感耦合等离子体质谱仪(ICP-MS) (美国热电公司生产)完成,微量元素分析仪器为等离子体质谱仪(ICP-MS)和Xios4.0kw X-荧光光谱仪(XRF),分析精度优于5%。样品处理的详细方法、流程及分析参见参考文献[49]。

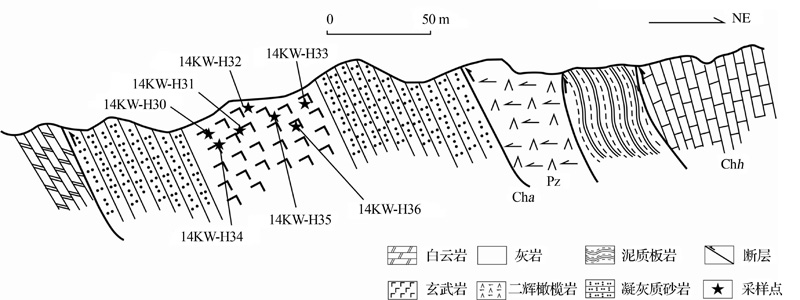

图2   熬油沟组—桦树沟组地质剖面图及采样点(剖面位置见图1)

Fig.2   Aoyougou-Huashugou Group geological sectionmap and sample position (the position of section map are shown in Fig.1)

4 岩石学特征

熬油沟组火山岩与地层为整合接触,岩石类型主要为辉石玄武岩、玄武岩,少量安山玄武岩及火山碎屑岩。玄武岩的风化面为浅灰色,新鲜面为灰黑色,隐晶质和间粒结构,致密块状构造。玄武岩矿物组成主要为斜长石(约 55vol.%)(vol.%为体积百分数)、单斜辉石(约 43vol.%)及少量角闪石(图3),副矿物主要为磷灰石、磁铁矿等。其中斑晶约25%,主要为斜长石,半自形—自形长板状结构,粒径为0.6~2 mm,聚片双晶发育少数发生绿泥石化,基质约75%,具间粒结构,多为细板条状斜长石,粒径为0.02~0.5 mm,双晶发育,分布杂乱,呈多角格架状,其间分布着约20%的单斜辉石颗粒,粒度小于0.2 mm,以及少许磁铁矿、钛铁矿石颗粒,粒度小于0.05 mm,偶见的杏仁体为方解石和石英,呈圆形、椭圆形,大小为0.2~0.5 mm。

图3   玄武岩及其镜下特征(正交5X)
Cpx.单斜辉石;Pl.斜长石

Fig.3   Basalts with its microscopic photasl (perpendicular 5X)
Cpx:Clinopyroxene. Pl:Plagioclase

5 地球化学特征

5.1 主量元素

岩石主量元素分析结果见表1。熬油沟组玄武岩样品的烧失量(Loss On Ignition,LOI)为6.05wt.%~7.27wt.%(wt.%为重量百分含量),表明岩石遭受到了蚀变作用。经烧失量剔除后进行百分化重新计算后,岩石中SiO2含量为44.87wt.%~48.31wt.%,TiO2含量为2.01wt.%~2.91wt.%, Al2O3为15.43wt.%~16.26wt.%, CaO为2.58wt.%~3.91wt.%(样品14-KW-H33达5.98wt.%),富钾贫钠,Na2O为1.09wt.%~2.76wt.%,K2O为4.35wt.%~6.11wt.%,MgO含量中等(5.67wt.%~6.74 wt.%),Mg#值(Mg#= 100×Mg/(Mg+Fe2+))为48~51,平均为49。Fe含量较高,TFe2O3=10.86wt.%~13.08 wt.%,P2O5为0.49wt.%~0.61wt.%。在全碱分类(TAS)图(图4a)上,样品主要投入碱玄岩、碧玄岩域中。在 Zr/TiO2-Nb/Y图(图4b)和SiO2-K2O图解(图5)中,所有样品均投于碱性玄武岩和钾玄岩系列,故认为其为钾质碱性玄武岩。

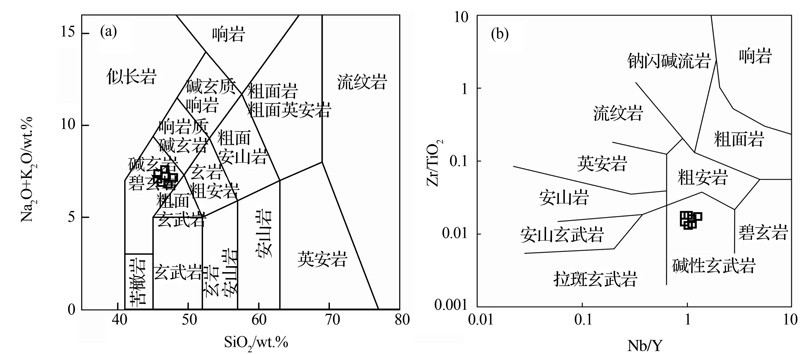

图4   火山岩分类图
(a)火山岩TAS分类图(据参考文献[50]修改); (b)Nb/Y-Zr/TiO2图解(据参考文献[51]修改)

Fig.4   Classification diagrams for volcanic rocks
(a)TAS classification of volcanic rocks(modified after reference [50] ). (b)Nb/Y-Zr/TiO2 diagram (modified after reference [51])

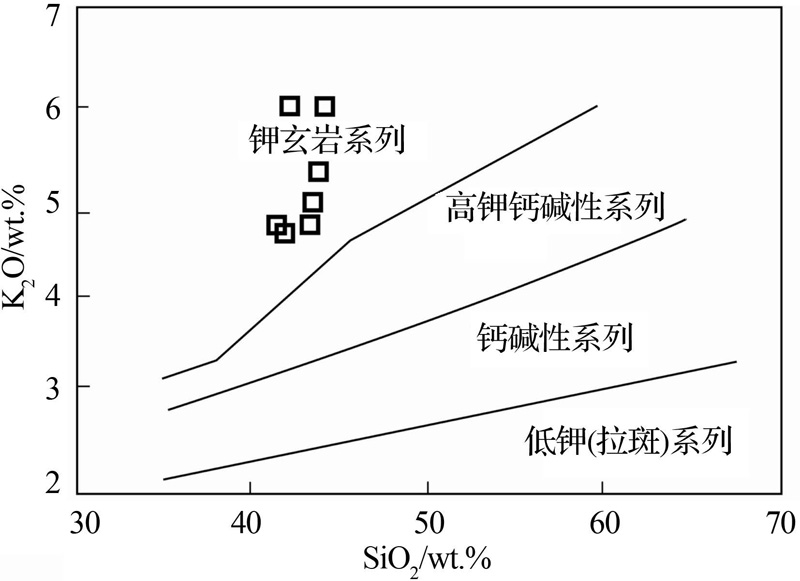

图5   熬油沟组玄武岩SiO2-K2O图解[50]

Fig.5   SiO2-K2O diagram for Aoyougou Group Basalts[50]

5.2 微量元素

岩石微量元素分析结果见表1。玄武岩稀土元素(Rare Earth Element,REE)总量较高,为192×10-6~241 ×10-6,轻稀土元素(Light Rare Earth Element,LREE)的含量为139×10-6~184×10-6,重稀土元素(Heavy Rare Earth Element,HREE)的含量为46×10-6~58×10-6。在稀土元素球粒陨石标准化配分图(图6)上,岩石中等富集LREE、LREE/HREE=2.60~3.53,(La/Yb)N=6.92~9.44,弱的正Eu异常(δEu=1.02~1.12),配分曲线整体呈右倾分布,表明REE之间发生了分馏作用,其配分模式与洋岛玄武岩(Ocean Island Basalt,OIB)的一致(图6)。在微量元素原始地幔标准化蛛网图(图7)上,玄武岩富集大离子亲石元素(K,Rb和Ba),除了Ba,K和Sr元素外,在微量元素标准化蛛网图上的所有元素的分布均类似于OIB(图7)。Ba,K和Sr为活动性强的元素,其配分异常部分可能与岩石后期蚀变作用或地壳混染作用有关。

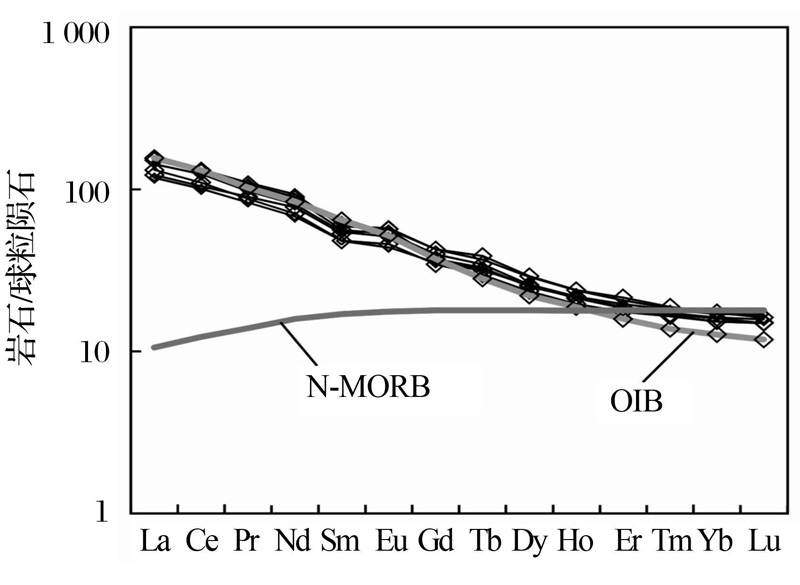

图6   熬油沟组玄武岩REE球粒陨石标准化配分图(标准化值来自参考文献[52])

Fig.6   Chondrite-normalized rare earth element patterns diagram of Aoyougou Group Basalts (normalized value from reference[52])

表1   北祁连西段熬油沟组玄武岩主微量元素(%)、微量元素(×10-6)分析结果

Table 1   The contents of major (%) and trace elements (×10-6)of Aoyougou Group Basalts in the Western North Qilian

样号14-KW-H3014-KW-H3114-KW-H3214-KW-H3314-KW-H3414-KW-H3514-KW-H36
SiO244.8644.5645.6445.5648.0746.7846.64
Al2O315.6416.1515.7215.1615.4715.7115.59
TiO22.902.432.502.301.962.552.39
TFe2O313.0110.9911.3010.5810.4911.5311.04
MnO0.650.850.720.460.460.630.55
MgO6.716.355.685.995.375.805.75
CaO2.572.993.225.513.562.743.67
Na2O1.911.081.721.611.602.072.57
K2O4.336.075.365.136.014.954.27
P2O50.490.560.540.510.470.560.52
LOI6.417.277.016.406.056.126.59
Total99.4899.3099.4199.2199.5199.4499.58
Mg#48514850484848
Ba1 2803 8102 3801 7902 0401 8901 290
Rb42.8067.2083.0068.4086.8064.6040.00
Cs2.993.493.322.893.183.212.75
Th3.123.193.653.133.373.713.30
U0.800.730.780.940.770.800.79
Nb43.9036.2036.9042.0036.9037.9039.00
Ta3.552.752.783.022.862.882.98
Pb4.273.814.033.193.816.153.08
Sr211.00275.00312.00307.00250.00257.00236.00
Zr272.00236.00236.00264.00238.00248.00252.00
Hf6.815.595.966.275.806.046.19
P2 1402 4462 3582 2272 0522 4462 271
Cr246.00165.00181.00223.00123.00170.00207.00
Ni134.0096.1093.30107.0054.8094.9091.10
Co50.2039.6038.8037.4028.0045.0034.60
V274.00229.00220.00204.00169.00236.00213.00
Sc24.9020.6021.8015.5016.7024.2020.60
Ga24.0021.2021.2022.3020.7021.5021.30
La27.9029.0036.9035.8033.9036.8031.10
Ce61.6063.8081.2079.4075.9078.2067.20
Pr7.858.5310.409.829.2510.208.28
Nd31.2035.6042.8040.2037.1041.2032.40
Sm7.438.249.158.698.479.407.46
Eu2.543.303.333.102.963.282.66
Gd7.237.568.768.177.628.757.07
Tb1.181.191.381.291.231.451.11
Dy6.586.447.306.536.367.395.96
Ho1.231.201.341.231.221.351.11
Er3.243.063.423.063.123.562.90
Tm0.460.420.470.430.440.480.42
Yb2.892.602.912.722.752.962.60
Lu0.430.380.420.380.400.410.38
Y30.1027.5031.0026.4025.5031.8024.80
∑REEEE191.86198.82240.78227.22216.22237.23195.45
LREE138.52148.47183.78177.01167.58179.08149.10
HREE53.3450.3557.0050.2148.6458.1546.35
LREE/HREE2.602.953.223.533.453.083.22
δEu1.021.121.061.051.051.041.05
δCe0.860.860.870.870.880.870.87
(La/Yb)N6.928.009.109.448.848.928.58
Nb /U54.8849.5947.3144.6847.9247.3849.37

注:Mg#=100×Mg/(Mg+Fe2+)(原子数), FeO=0.899×TFe2O3,δEu=EuN/(SmN×GdN)1/2,δCe = CeN/(LaN×NdN)1/2;测试单位:西安地质矿产研究所实验测试中心

新窗口打开

6 讨论

6.1 岩石成因

熬油沟组碱性玄武岩最突出的特点是富钾贫钠以及具有较高的高场强元素含量(TiO2 为2.01wt.%~2.91wt.%,Nb为 36×10-6~43 ×10-6,Ta为 2.75×10-6~3.55 ×10-6),岩石在REE球粒陨石标准化配分图(图6)上表现为明显富集LREE,其配分曲线完全与OIB的一致;在微量元素原始地幔标准化图上(图7),除了活动性元素Ba,K和Sr等元素外(应该与岩石后期蚀变作用或地壳混染作用有关),其他亦与OIB的一致,提示其源区应为类似于OIB的富集地幔。众所周知,分配系数接近、化学性质类似的元素之间的比值不受部分熔融程度和结晶分异作用的影响,能够有效地反映岩石源区的地球化学特性以及岩浆作用过程。岩石具有高Gd/Yb(2.5~3.0),Zr/Y(8.6~10.2),Ta/Yb(0.96~1.23)值,揭示其源区应为富集地幔,较高的Ce/Nb均值1.87(OIB为1.63~2.11)、Nb/U均值49(OIB为48)、Hf/Nb均值0.16(OIB为0.14~0.19)、Zr/Nb均值6.41(OIB为5.80~8.08)[53]与典型的OIB微量元素比值一致,显示出熬油沟组玄武岩具有明显的OIB亲缘性。玄武岩石中Nb,Zr和Y的丰度可区分富集地幔源区、过渡型地幔源区和亏损地幔源区。在Zr/Nb-Ce/Y图解(图8)和TiO2/Yb-Nb/Yb图解(图9)及Zr-Nb和Zr-Y图解(图10)上,熬油沟组玄武岩样品全部落入了OIB区域和富集型地幔区域,表现为OIB的地球化学特征。另外,Ta/Yb-Th/Yb和Ta/Yb-Nb/Yb图解常用来判别地幔源区和岩浆上升过程中流体或熔体对微量元素的贡献,未遭受后期影响的岩石应落入地幔序列。地幔柱是洋岛玄武岩浆的重要动力学背景之一[55,57]。利用δNb值能够较好地区分地幔柱、亏损地幔和壳源基性岩浆,前者大于0,后两者小于0[58]。熬油沟组玄武岩样品的δNb(0.31~0.51)大于0,表明北祁连熬油沟组玄武岩可能与地幔热柱岩浆作用有关。

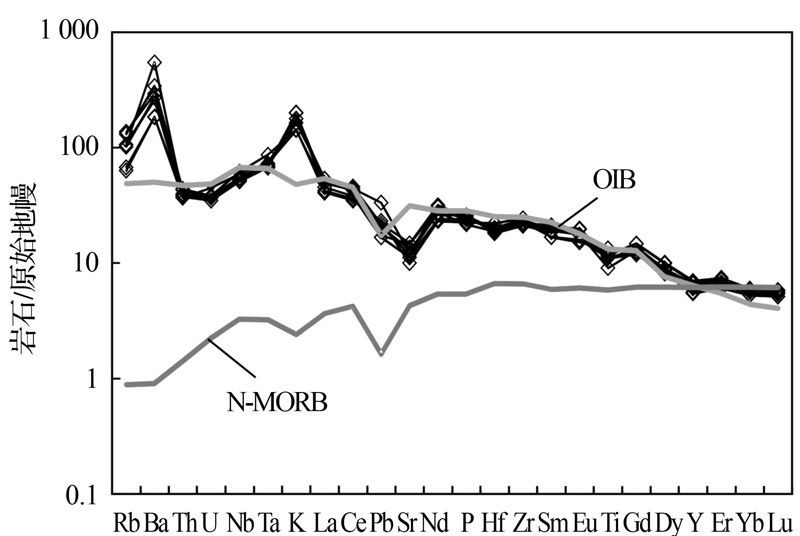

图7   熬油沟组玄武岩微量元素原始地幔标准化蛛网图(标准化值来自参考文献[52])

Fig.7   Primitive-mantle-normalised multi-element diagram of Aoyougou Group Basalts (normalized value from reference [52])

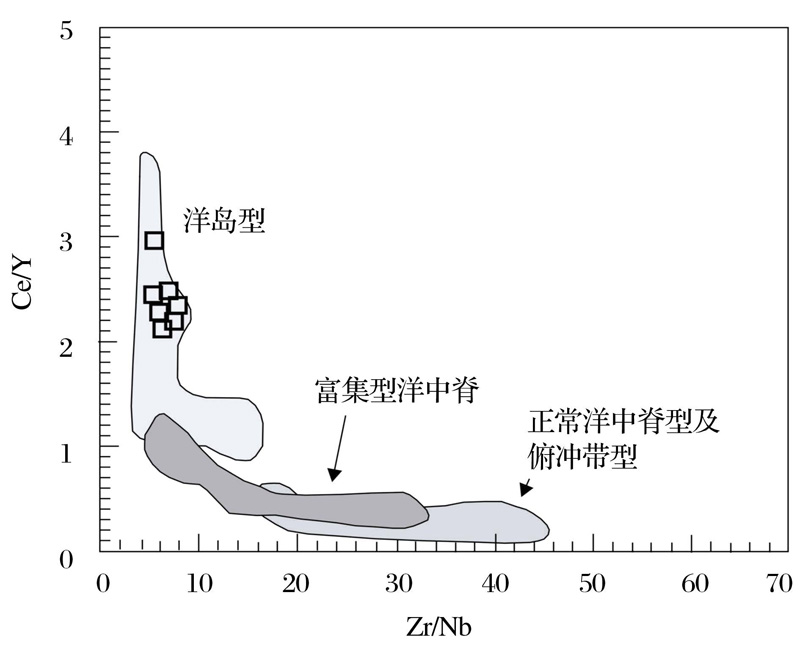

图8   玄武岩Zr/Nb-Ce/Y变异图[54]

Fig.8   Zr/Nb-Ce/Y variation diagram of basalts[54]

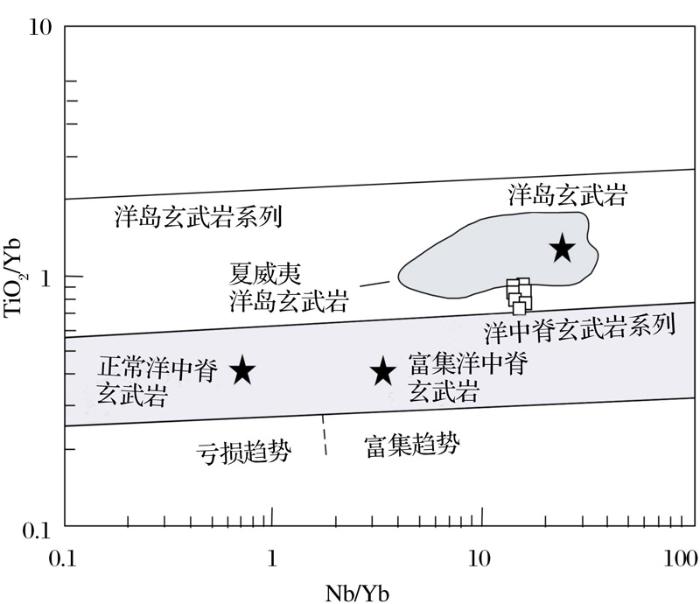

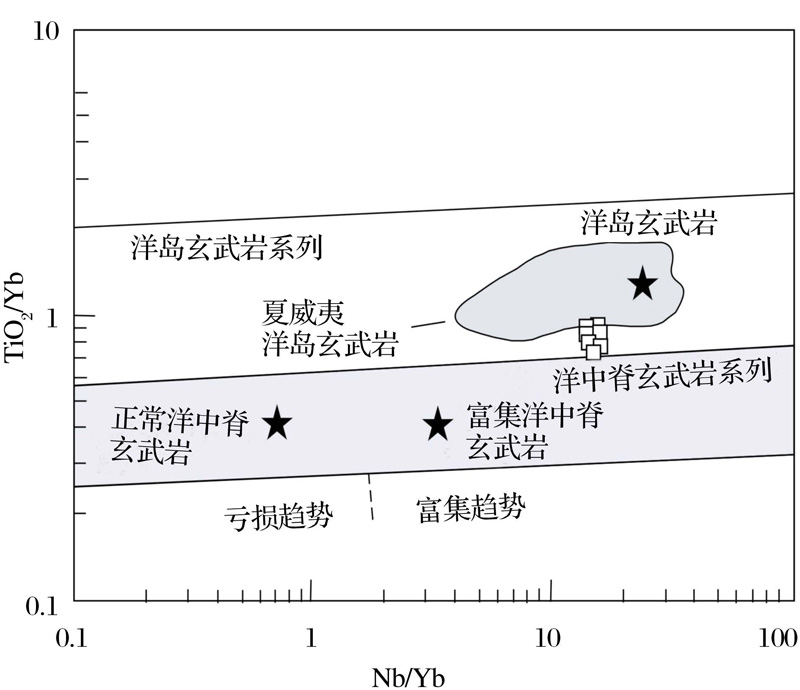

图9   玄武岩Nb/Yb-TiO2/Yb变异图[55]

Fig.9   Nb/Yb-TiO2/Yb variation diagram of basalts[55]

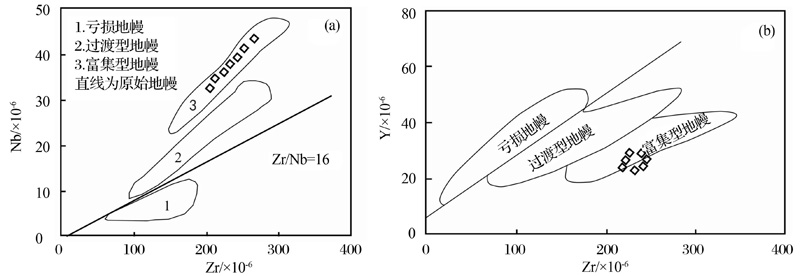

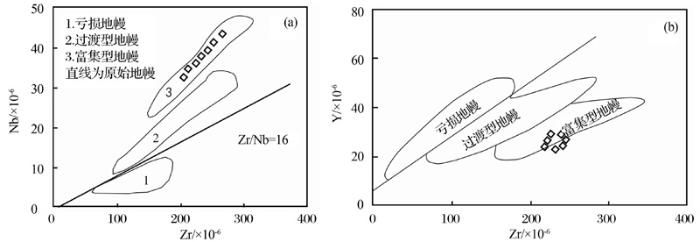

图10   玄武岩源区判别图
(a)熬油沟组玄武岩Zr-Nb图;(b)Zr-Y图解[56];直线为原始地幔

Fig.10   Resource discrimination diagrams of basalts
(a)Zr-Nb. (b)Zr-Y diagram of Aoyougou Group basalts[56]. Straight line represents the PM

微量元素Yb相对石榴子石是相容元素,而La和Sm是不相容元素,因此La/Sm-Sm/Yb图解可以很好地区分石榴子石相橄榄岩和尖晶石相橄榄岩源区的玄武岩[59]。熬油沟组玄武岩在La/Yb-Sm/Yb图解(图11a)上可以看出,该玄武岩样品落入接近于石榴石二辉橄榄岩熔融演化曲线上,并且其熔融程度为3%~5%。在La/Sm-Sm/Yb图解中,全部样品同样落在石榴石二辉橄榄岩熔融演化曲线之间,并表现出富集地幔洋岛玄武岩的演化趋势,部分熔融的程度在10%左右(图11b)。

在Nb/Th-Nb/La变异图(图12)上,玄武岩样品呈正相关关系,说明在岩浆演化过程中加入了少量的地壳物质[62],推测北祁连西段熬油沟组玄武岩在形成过程中遭受了一定程度的地壳物质混染。

熬油沟组碱性玄武岩主量元素含量变化范围较为稳定,具有中等的Al2O3含量以及正常大洋玄武岩的Mg#值,但CaO及相容元素(Cr,Ni和V)含量较低、TFe2O3含量较高,且样品Cr和Ni含量与Mg#哈克图解、CaO vs.CaO/Al2O3图解上具有良好的正相关性,表明在玄武岩浆作用过程中发生过橄榄石及单斜辉石的分离结晶作用。然而,轻微的正Eu异常指示了在玄武岩浆作用过程中没有发生斜长石分离结晶作用。

综上所述,熬油沟组碱性玄武岩源于深部富集地幔(类似于OIB源区),深部地幔物质在上升过程中通过减压导致源岩发生部分熔融,熔融程度应在10%以下,在岩浆作用过程中早期发生过橄榄石、单斜辉石的分离结晶作用,但没有斜长石的分离结晶。此外,玄武岩浆在上侵过程中受到一定程度的大陆地壳混染作用。

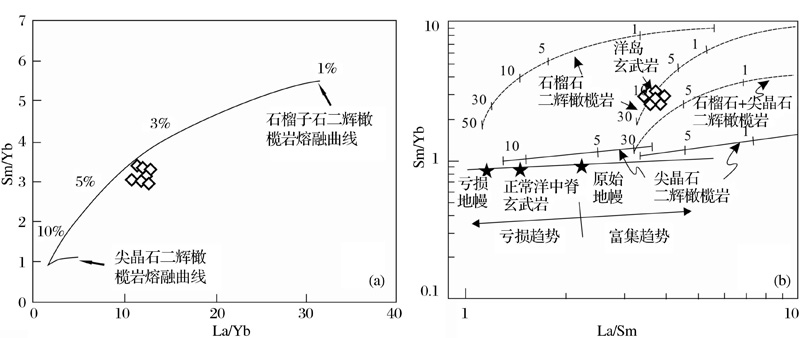

图11   岩石部分熔融演化图
(a)熬油沟组玄武岩La/Yb-Sm/Yb[60];(b) La/Sm-Sm/Yb图解[61]

Fig.11   Partial melting evolution diagram
(a)La/Yb-Sm/Yb diagram[60]. (b) La/Sm-Sm/Yb[61] diagram of Aoyougou Group basalts

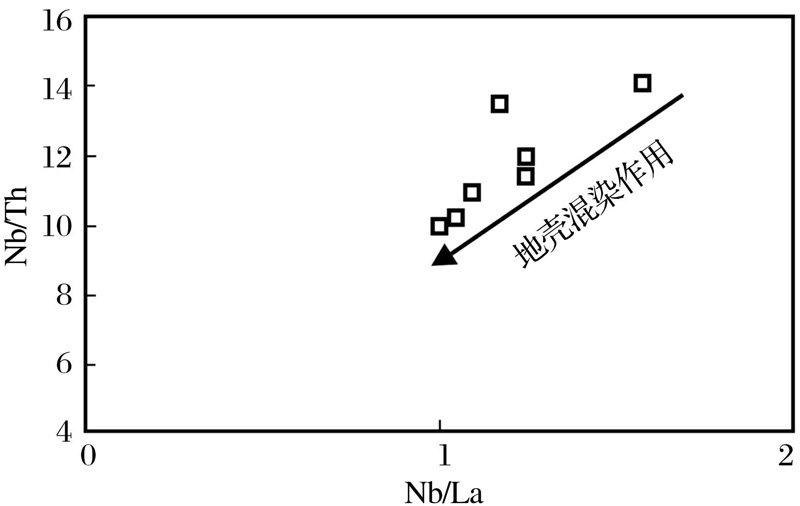

图12   Nb/La-Nb/Th变异图(据参考文献[55]修改)

Fig.12   Nb/La-Nb/Th variation diagram(modified after reference[55])

6.2 岩石形成的构造背景

玄武岩浆类型、性质与其源区、部分熔融深度及程度密切相关,而岩浆作用过程又受到板块构造背景所控制。碱性玄武岩的形成可以发生在多种大地构造背景下,即板内环境(包括裂谷、洋岛环境)、大陆弧、大洋弧和碰撞后弧环境[63]。上文已明确得出北祁连熬油沟组玄武岩类似于OIB,源于深部富集地幔的部分熔融。研究表明板内玄武岩(Within Plate Basalt, WPB)、过渡型洋中脊玄武岩(Transitional-Middle Ocean Ridge Basalt, T-MORB)和富集型洋中脊玄武岩(Enriched-Middle Ocean Ridge Basalt, E-MORB)的Nb丰度大于12×10-6,Ta大于0.7×10-6,Nb/La>1,Hf/Ta<5,La/Ta<15,Ti/Y>350。而岛弧玄武岩(Island Arc Basalt, IAB)和部分亏损型洋中脊玄武岩(Normal-Middle Ocean Ridge Basalt, N-MORB)则表现为相反的地球化学特征[63]。由于不相容元素在岩浆演化过程中比较稳定,且受后期地质作用过程的影响比较小,因而常被运用到岩浆源区的示踪、判断火成岩形成的大地构造背景。熬油沟组玄武岩Nb丰度为36.2×10-6~43.9×10-6,Ta丰度为2.75×10-6~3.55×10-6,Nb/La(1.02~1.57)>1,Hf/Ta(1.92~2.14)<5,La/Ta(7.86~13.27)<15,Ti/Y(461~578)>350,表明熬油沟组玄武岩可能形成于板内环境(WPB)[64]。在Th/Yb-Ta/Yb(图13a)、Zr-Zr/Y(图13b)、Hf/3-Th-Ta(图13c)和Ti/100-Zr-Y*3构造环境判别图(图13d)也指示了熬油沟组玄武岩形成于板内构造环境。

板内构造环境主要包括大陆内的正常地壳和衰退地壳及大洋岛[69]。熬油沟组玄武岩与凝灰岩、凝灰质砂岩呈整合产出,为一套陆源碎屑岩—碳酸盐岩—火山岩建造,其特征提示应形成于大陆环境,不是洋岛环境。在MgO-Al2O3-TFeO和Ce/Nb-Th/Nb图解中,玄武岩样品也全部落入大陆玄武岩序列和大陆溢流玄武岩域中(图14),同时上文认为熬油沟组玄武岩岩浆演化过程中发生过一定程度的大陆地壳混染作用进一步佐证了这一认识。前人对该地区同一时期的火山岩研究结果表明,朱龙关群在长城系早期发生了裂陷并形成多条裂谷,北祁连西段古元古代北大河群斜长角闪岩年代学和地球化学特征研究认为,它们形成于与地幔柱有关的大陆裂谷环境[69]。中祁连西段的托赖岩群岩石组合、岩石地球化学和年代学等特征表明祁连地块的基底主体萌起始于太古代—古元古代,形成于中元古代[36,37]且走廊南山朱龙关群火山岩形成于陆内裂谷环境;张招崇等[40]认为北祁连西段北大河群中元古代变质火山岩形成于裂陷槽构造背景。由此可见,熬油沟组玄武岩形成于陆内裂谷环境与区域大地构造背景是一致的,符合地质实际。

6.3 构造意义

在地质发展史中,地球经历了多次超大陆旋回,2.9~2.2 Ga的Kenorland超大陆、1.9~1.2 Ga的Nuna 或Columbia超大陆、1.1~0.7 Ga的Rodinia超大陆及300~200 Ma的Pangea超大陆假说[70]。其中Columbia超大陆假说认为在中元古代早期(1.9~1.5 Ga)由Nena,Ur和Atlantic等3个大陆块体群汇聚形成了Columbia超大陆,于中元古代中期(约1.5 Ga)再次发生裂解,并在新元古代(约1.0 Ga)这些破裂的大陆块体又重新汇聚形成Rodinia超大陆[71~74]

前人对中国华北古大陆做了大量研究,陆松年等[73]通过对吕梁—中条造山运动(2.0~1.8 Ga)和大规模裂解事件(1.8~1.6 Ga)的性质、特点和同位素年龄数据的研究,认为哥伦比亚超大陆汇聚峰期与吕梁—中条造山运动的时限相一致, 在造山及裂解事件的性质、特点和时代等特征上,华北与北美、西伯利亚和西北欧有更大的相似性,故此华北古大陆应属于哥伦比亚超大陆的组成部分, 并可能是Nena大陆块体群的一员。此后,地质学家[75~79]通过同位素年代学、地层学、岩石地球化学、地球物理学等方法对华北板块元古宙岩石组合的研究认为,华北板块隶属于哥伦比亚超大陆构造演化过程的一部分。扬子板块是我国前寒武纪最大的三大板块之一,起源于古太古代[80],其广泛存在的1.8~2.0 Ga的构造热事件[81~89],可能与Columbia超大陆再造有关[90,81]

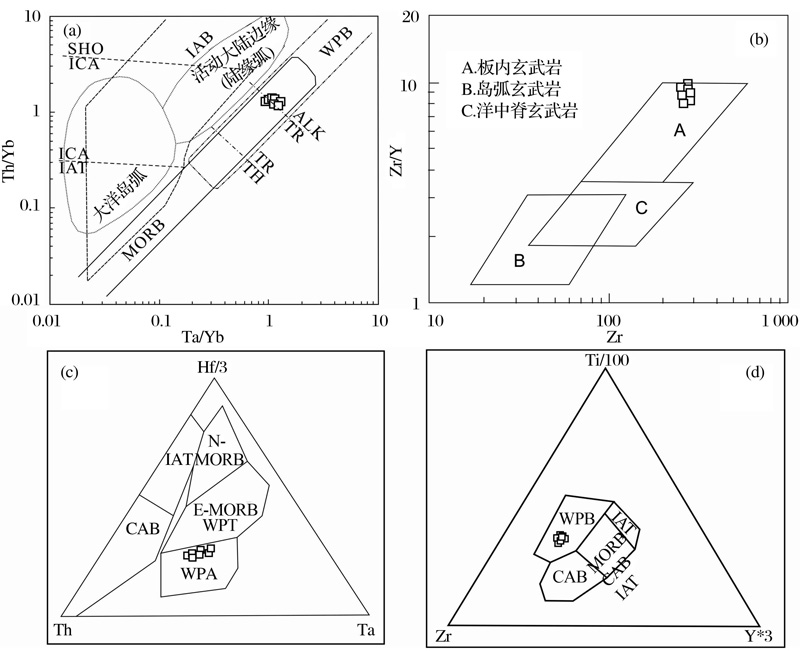

图13   熬油沟组玄武岩构造背景判别图
(a)玄武岩Th/Yb-Ta/Yb[65];(b)Hf/3-Th-Ta[66];(c)Zr-Zr/Y[67];(d)Ti/100-Zr-Y*3[68]

Fig.13   Tectonic setting discrimination diagrams for Aoyougou Groups Basalts
(a)Th/Yb-Ta/Yb diagram[65]. (b)Hf/3-Th-Ta diagram[66]. (c)Zr-Zr/Y diagram[67]. (d)Ti/100-Zr-Y*3 diagram[68]

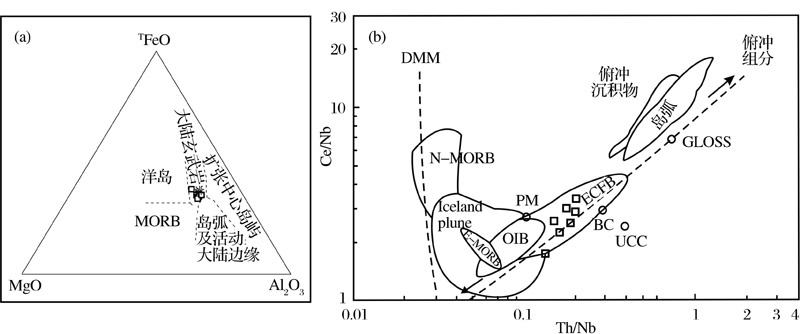

图14   熬油沟组玄武岩构造背景判别图
(a)玄武岩MgO-Al2O3-TFeO[67];(b) Ce/Nb-Th/Nb构造判别图[12];PM.原始地幔;DMM.亏损地幔端员;N-MORB.N型洋中脊玄武岩;E-MORB.E型洋中脊玄武岩;OIB.洋岛玄武岩;BC.平均大陆壳;UCC.大陆上地壳;GLOSS.全球俯冲沉积物组成;Iceland plume.冰岛地幔柱;ECFB.峨眉山大陆溢流玄武岩

Fig.14   Tectonic setting discrimination diagrams for Aoyougou Groups basalts
(a) MgO-Al2O3-TFeO diagram[67]. (b) Ce/Nb-Th/Nb diagram[12]. PM: Primitive Mantle.DMM: Depleted mantle. N-MORB: Normal mid-ocean ridge basalt. E-MORB:Enriched mid-ocean ridge basalt. OIB: Oceanic island basalt.BC:Average continental crust. UCC:Upper continental crust. GLOSS:Global subducted sediments. ECFB: Emei Mountain continental flood basalt

关于祁连山地块构造属性有2种不同的认识:①祁连地块在新元古代末由华北板块裂解出来,与华北克拉通有很大亲缘性[4,5,91,92];②祁连地块与扬子板块有较大的亲缘性[29,36]。但是,目前许多学者更倾向于由Rodinia超大陆裂解事件导致祁连—柴达木地块是从华北克拉通裂解出来的[15,26]认识。北祁连造山带最大的特点是在早古生代岩系中镶嵌着众多大小不一的由前震旦系变质岩系组成的陆壳残块[16],研究区位于由中—上元古界组成的镜铁山—托勒山北坡陆壳残块上,下元古界代表性地层为北大河群、中元古界长城系的朱龙关群和蓟县系花儿地组和海原群。北大河群斜长角闪岩形成于与地幔柱有关的大陆裂谷环境[67]或裂陷槽构造背景[38],认为北祁连造山带的基底从克拉通向大陆裂谷构造体制转换大致发生在早—中元古代的分界时限(约1 777 Ma)[41,93,94]。之后,北祁连山西段火山作用明显加强,范围扩大,主要分布在朱龙关岩群的熬油沟和桦树沟组,位于北大河岩群之上的朱龙关岩群中下部的基性熔岩Sm-Nd等时线年龄为1 770~1 840 Ma[9,47],在岩性、层序及时代上相当于朱龙关群上部的镜铁山岩群碧玉岩Sm-Nd等时线年龄为(1 309±50)Ma[9]。此外,位于塔里木克拉通的东南缘大红山一带A型花岗岩(锆石LA-ICP-MS测年,获得二长花岗岩的w(207Pb)/w(206Pb)加权平均年龄为(1 732.3±7.4)Ma,形成于岩石圈伸展的构造背景[95],柴北缘的欧龙布鲁克微陆块中发现有环斑花岗岩((1 776±33)Ma)和基性岩墙((1 852±15)Ma)[96],上述构造岩浆事件均反映了中元古代早期祁连地块及其邻区处于伸展的构造背景,提示大陆进入裂解的演化阶段。赵国春等[97]研究表明全球规模的造山事件可能发生在古元古代末期,部分克拉通可能在中元古代早期就开始大陆裂解,华北克拉通1.7~1.8 Ga侵位的基性岩墙群记录了该超大陆的裂解事件[98,99]。因此,北祁连西段中元古代早—中期熬油沟组碱性玄武岩所指示的大陆裂谷岩浆作用与Columbia超大陆裂解事件的时限[71~74]以及华北克拉通裂解事件[71]相吻合,是对Columbia超大陆裂解事件的响应,进一步为华北克拉通在中元古代裂解事件[98,100,101]与Columbia超大陆全球性的裂解事件之间的联系提供了重要的岩石学依据。

7 结论

北祁连西段中元古界长城系朱龙关岩群熬油沟组碱性玄武岩具有OIB的地球化学特征,是深部富集地幔(类似于OIB源区)上升、减压过程中发生部分熔融的产物,熔融程度应小于10%,在岩浆作用过程中发生过橄榄石、单斜辉石的分离结晶作用,但没有斜长石的分离结晶。

熬油沟组碱性玄武岩与凝灰岩、凝灰质砂岩、碳酸盐岩呈整合产出,为一套陆源碎屑岩—碳酸盐岩—火山岩建造,形成于大陆裂谷环境,其是对Columbia超大陆裂解事件的响应,进一步为中元古代早—中期华北克拉通裂解事件[96,98,99]与Columbia超大陆裂解事件之关系提供重要的岩石学证据。

致 谢:感谢甘肃省地质矿产开发局第四勘查院丁书宏院长,陈世强、付强、胡小春等工程师在野外工作期间给予大力的支持和帮助,参加野外工作的还有研究生霍永豪、边鹏等;感谢2位匿名评审人认真细致的审阅,并提出许多建设性的建议和意见。

The authors have declared that no competing interests exist.
