# 内孤立波悬浮海底沉积物研究进展

1.山东省海洋环境地质工程重点实验室(中国海洋大学),山东 青岛 266100
2.青岛海洋科学与技术国家实验室海洋地质过程与环境功能实验室,山东 青岛 266061
3.海洋环境与生态教育部重点实验室,山东 青岛 266100
4.山东省城乡建设勘察设计研究院,山东 济南 250031

# Review of the Seabed Sediment Resuspension by Internal Solitary Wave

Tian Zhuangcai12, Guo Xiujun13*, Yu Le1, Jia Yonggang123, Zhang Shaotong12, Qiao Luzheng4

1.Shandong Provincial Key Laboratory of Marine Environment and Geological Engineering, Ocean University of China, Qingdao Shandong 266100, China
2.Laboratory for Marine Geology, Qingdao National Laboratory for Marine Science and Technology, Qingdao Shandong 266061, China
3.Key Laboratory of Marine Environment & Ecology, Ministry of Education, Qingdao Shandong 266100, China
4.Shandong Province Urban and Rural Construction Investigation and Design Institute, Ji’nan 250031, China

Abstract

Internal Solitary Waves (ISWs) are nonlinear, large amplitude motions of the interface between two fluids with different densities in the stratified ocean. Because of their strong vertical and horizontal current velocity, and the vortex, turbulent mixing caused by breaking, they affect marine environment, seabed sediment and man-made structures in the ocean. In the paper, we systematically analyzed and summarized the ISW-induced shoaling break mechanisms, models of suspension, and seabed dynamical response. Then, we discussed the ISW-induced sediment resuspension criteria, forming bottom and intermediate nepheloid layer and the capacity to suspend sediments in the seabed, and further put forward the unsolved problems based on the conducted work and related achievements. In shallow seas with complex terrain variations, shoaling can cause ISWs to deform, break, and split. Studies on the propagation of ISWs of depression over sloping topography have shown that an adverse pressure gradient causes the rotation of the flow separation, which produces vortices, and this results in global instability of the boundary layer and ISW burst. The separation vortices increase the bottom shear stress, vertical velocity, and near-bottom Reynolds stress, which leads to sediment resuspension and transport in the flow and vortex core. Although episodic, ISW-induced resuspension is hypothesized to be important enough to shape the topography. Shoaling ISWs may erode, resuspend and transport mud-like sediments, first towards shore by boluses, and subsequently offshore through the generation of intermediate nepheloid layers. Shoaling ISWs might be an important mechanism of muddy sediment dispersal along continental shelves. Furthermore, recent hypotheses suggest that sediment mobilization and transport caused by internal waves in general, and ISWs in particular, may be at the origin of some sedimentary structures found in the sedimentary rock record and also the hummocky-cross stratification. Observed on-shelf propagating frontal ISW most likely interacts with the sand waves, sediment waves or sand dunes. ISWs contribute to their generation, as they are trailed by considerable shear-induced turbulence and high-frequency internal waves close to the buoyancy frequency. This work is of great value for further understanding the process of ISW-induced sediment resuspension, transportation, and the capacity to suspend sediments in the seabed. It helps further study of the dynamic process of marine ecological environment dynamic process by ISW and the deep sea sedimentation process.

Keywords： Internal solitary waves ; Shoaling break ; Sediment ; Dynamical response ; Resuspension.

0

Tian Zhuangcai, Guo Xiujun, Yu Le, Jia Yonggang, Zhang Shaotong, Qiao Luzheng. Review of the Seabed Sediment Resuspension by Internal Solitary Wave[J]. Advances in Earth Science, 2018, 33(2): 166-178 https://doi.org/10.11867/j.issn.1001-8166.2018.02.0166

## 1 引言

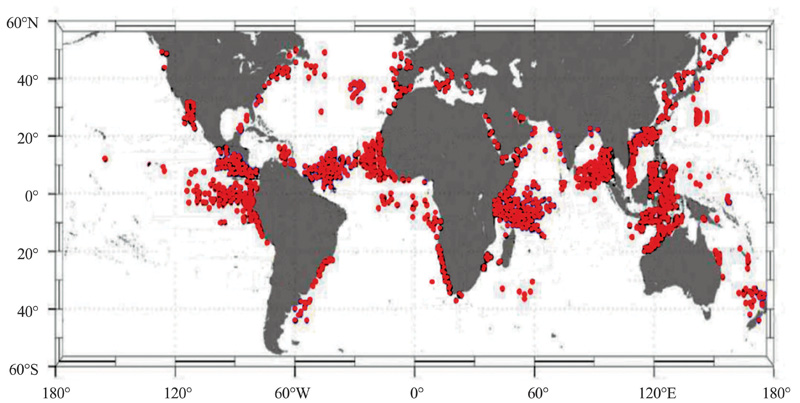

Fig.1   Distribution of internal solitary waves in the world[3]

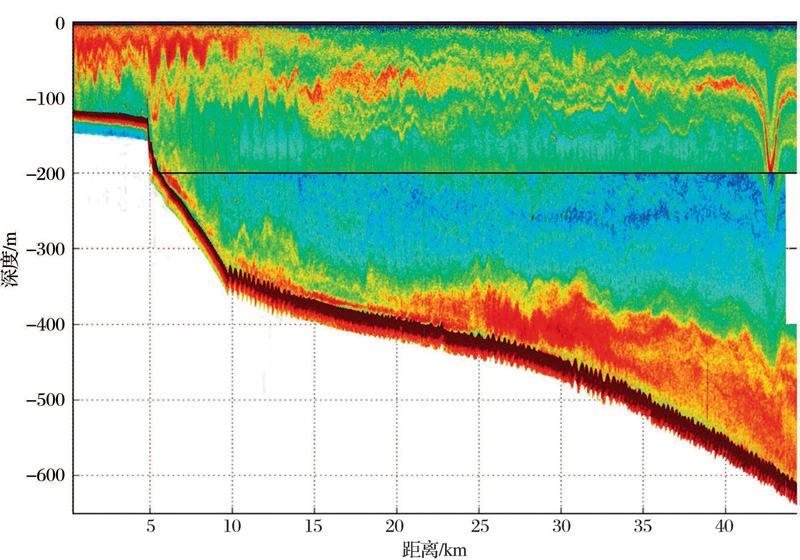

Fig.2   ISWs resuspend the seabed sediment and form the nephloid layer to nearly 200 m in the slope of northern South China Sea[25]

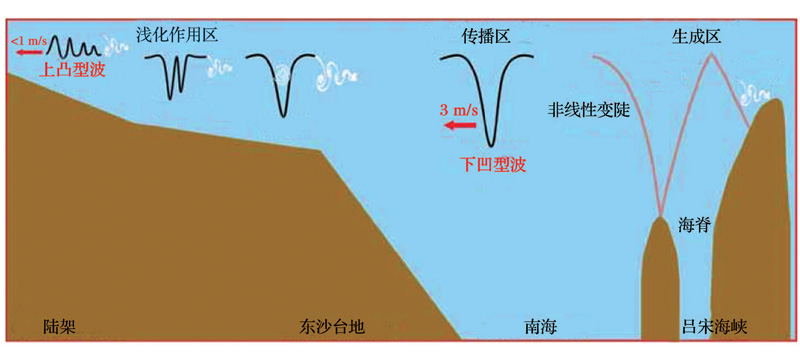

Fig.3   The processes of propagation of ISW in the South China Sea[23]

## 2 内孤立波向岸传播的破碎机制

(a)对流不稳定[43];(b)剪切不稳定[46]

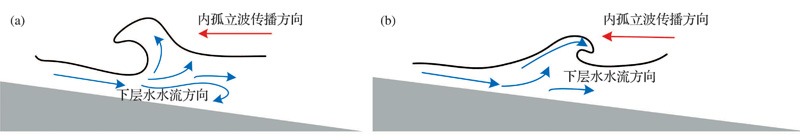

Fig.4   Schematic diagram of ISW breaking
(a) Convective instability[43]. (b) Shear instability[46]

## 3 内孤立波悬浮沉积物机制

### 3.1 内孤立波悬浮海底沉积物的方式

(1)在平坦、光滑、水动力复杂的海底,内孤立波主要通过局地形成的强海流起动沉积物,通常认为当海流剪切力大于沉积物临界剪切应力时,沉积物便会悬浮[18,52,53]

(2)在平坦、光滑、安静的海底,内孤立波主要通过产生局地涡旋悬浮沉积物[50,51,54]

(3)当内孤立波由深水区向浅水区传播时会发生破碎,此时在坡面上内孤立波以涡旋形式爬坡并起动沉积物。Hosegood等[55]通过解释Faeroe-Shetland海峡陆架内波的观测资料描述了第三种悬浮过程,并在室内实验[56]和数值模拟[50]中得到重现。现在,越来越多的研究者关注第三种悬浮方式,认为内孤立波爬坡破碎过程中沉积物发生的再悬浮最为剧烈[20,56,57]

### 3.2 内孤立波破碎过程沉积物再悬浮模式

(1)涡应力和湍流破裂导致沉积物再悬浮,涡流从底面喷射低速流体,这个再悬浮模式类似于涡流或漩涡结构侵蚀沉积物边界[56](图5),即垂向速度引起的雷诺应力垂向拖动沉积物,沉积物再悬浮主要受到底部剪切力和垂向流速引起的应力作用[50,56]。内孤立波向岸传播的破碎过程中,波谷流速增加,并向前插,造成重力失稳,底层水流沿斜坡向下分裂,在波谷后面发展成顺时针旋转的涡旋,涡应力和湍流破裂导致沉积物再悬浮并产生一个或多个倾斜通道。

(2)沿斜坡的水流和涡旋共同再悬浮沉积物[35,58],涡旋流可以增加底部剪应力、垂向流速和近地雷诺应力,底部剪应力将垂向流速与湍流涡旋相结合,进而再悬浮沉积物。其中数值模拟发现底部剪切力是再悬浮的控制因素[35],而通过室内实验三维瞬时速度场的剖面测量发现[36],内孤立波通过时,当内孤立波诱导的底部应力达到最大时,再悬浮没有发生,在波谷后半幅部分影响下的反压力梯度区域,当垂向速度场达到最大时,沉积物发生再悬浮,且垂向速度将沉积物向上推进水体(图6)。

(3)底部水流将沉积物悬浮带入涡旋[120],涡旋前缘区域的水平流速增大,并产生垂向的水流,底流悬浮沉积物,垂向水流将其向上输运进入涡旋。通过现场试验对内孤立波破碎时形成的涡旋结构进行研究发现[20],强的底流将沉积物悬浮进入涡旋,并向上运移,可以形成一个夹带沉积物的涡流环(图7)。

Fig.5   Schematic diagram of eddy-stress and turbulent bursting[56]

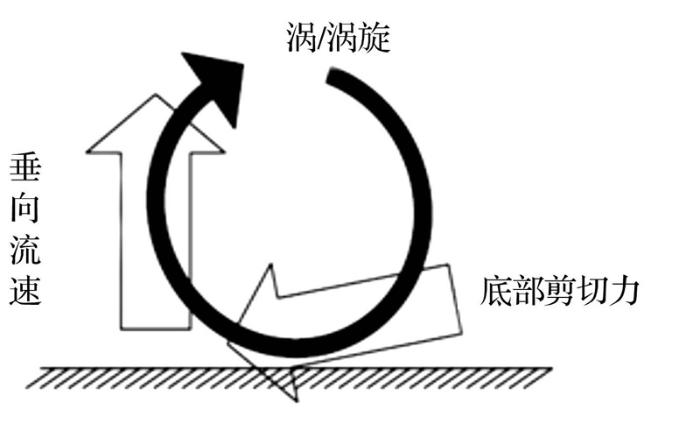

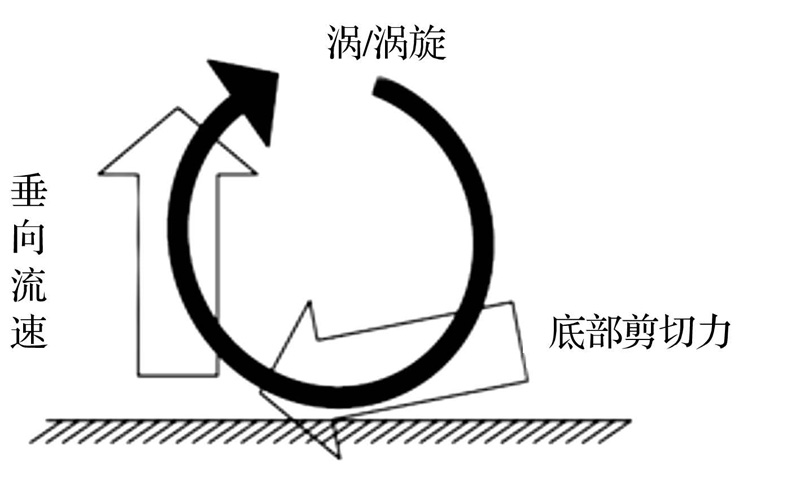

Fig.6   Schematic diagram of sediment resuspension by the bottom current and vortex[35]

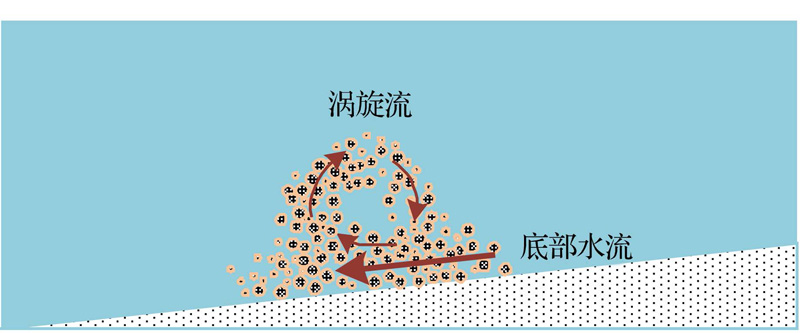

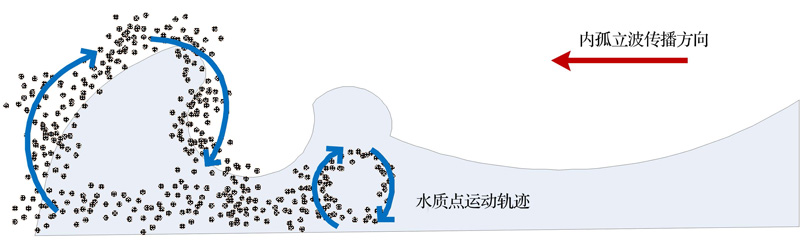

Fig.7   Schematic diagram of the vortex motion[20]

### 3.3 内孤立波诱发海床沉积物动力响应

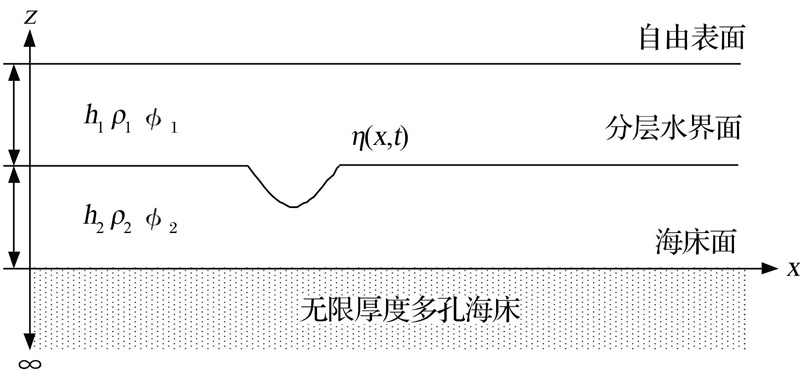

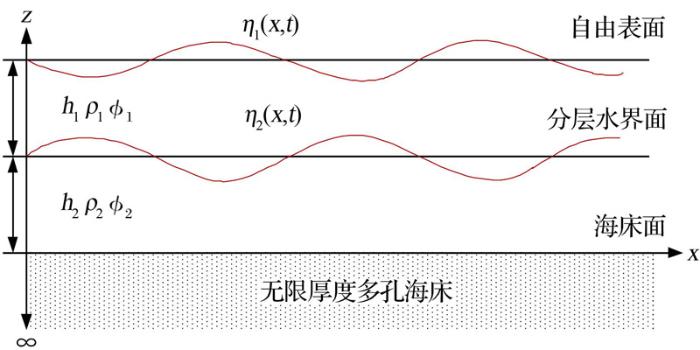

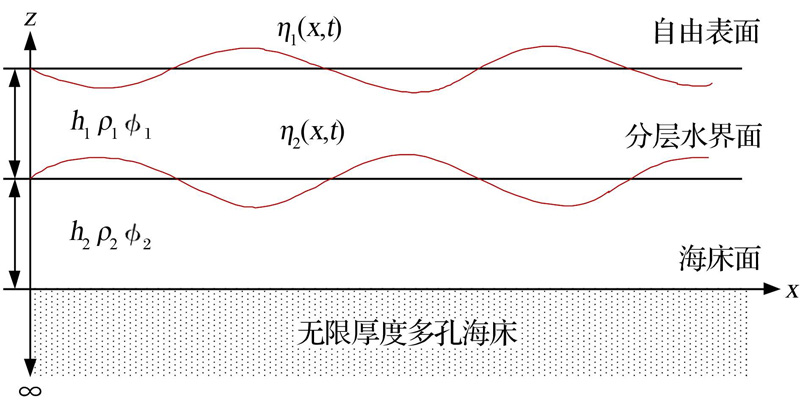

Fig.8   Two-layer fluid wave, ISW-seabed interaction on a porous infinite thickness seabed[64]

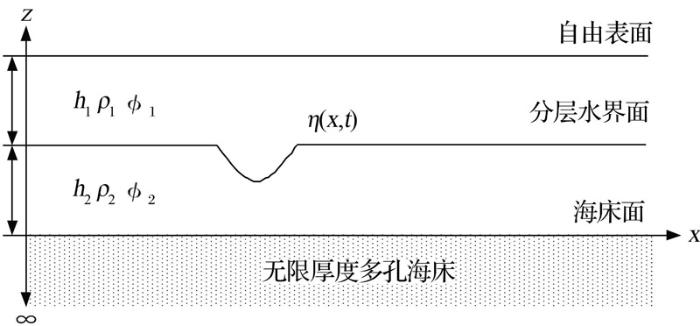

Fig.9   Two-layer fluid ISW-seabed interaction on a porous infinite thickness seabed[68]

## 4 内孤立波悬浮沉积物判定理论

$θISW=ρ2Wmax2(ρs-ρ2)gd50,$(1)

Tian等[34]通过室内实验模拟内孤立波悬浮斜坡沉积物,发现公式(1)与其实验结果相差很大,该公式计算结果偏保守[34,75],同时也有人提出该公式仅考虑垂向流速,并不适用于海洋环境[76]

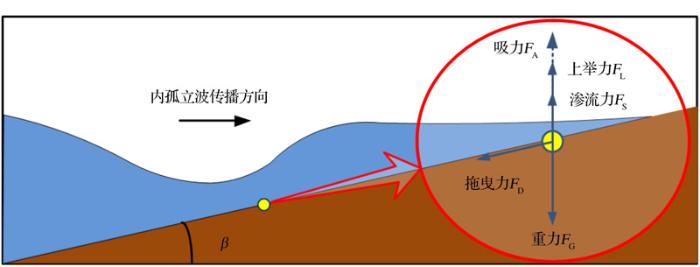

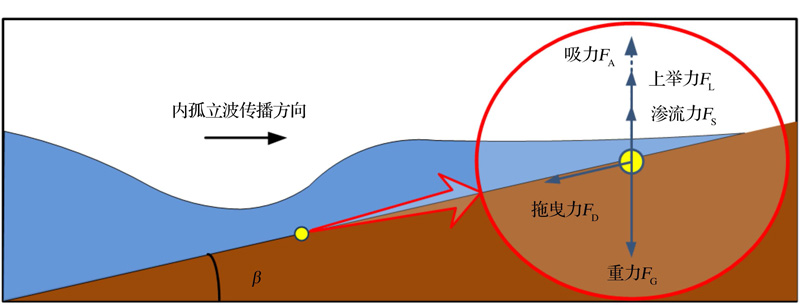

Fig.10   Stress distributions of sediment particle in the ISW breaking process

## 5 内孤立波对海底塑造能力分析

### 5.2 内孤立波对底质改造能力分析

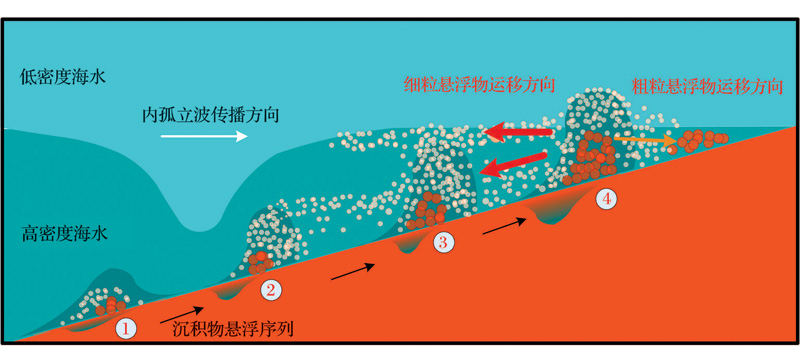

Fig.11   Transport trend of suspended sediment by ISW[35,55]

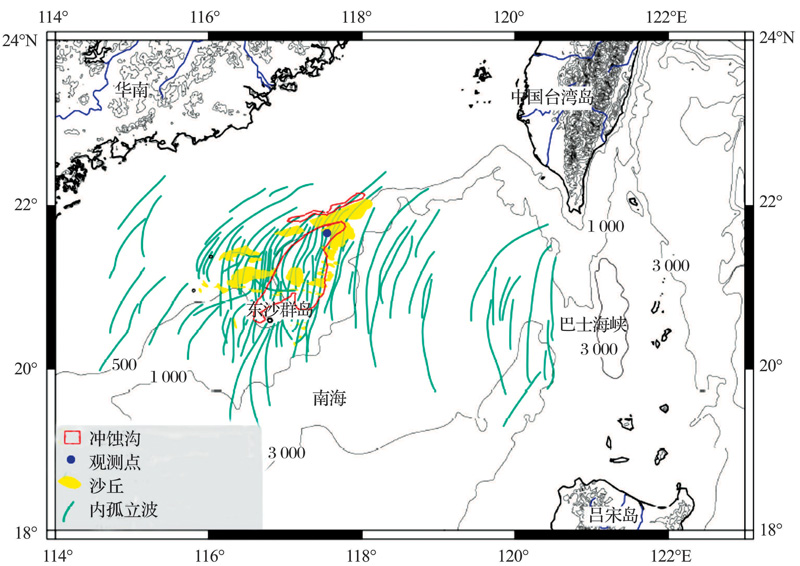

Fig.12   Distribution of ISW, sand wave and scour channels in the northern South China Sea[25,88,95]

## 6 结论和展望

(1)内孤立波向岸传播的破碎机制主要是剪切不稳定和对流不稳定,2种破碎机制的判据已经得到详细研究。内孤立波破碎过程以及未破碎情况下悬浮沉积物的方式主要有3种,其中,内孤立波向岸传播爬坡破碎并悬浮沉积物的方式是现在研究的焦点,并被认为是内孤立波悬浮沉积物最为剧烈的方式。但是,内孤立波破碎过程悬浮沉积物的模式已有3种不同的观点,至今没达成一致的看法,有待通过细致的室内实验和现场观测,进一步研究确定垂向流速和底部剪应力对沉积物再悬浮的作用。

(2)内孤立波悬浮沉积物的判别理论缺乏更多的研究,已有的判别理论没有得到广泛的认可。由于垂向流速的作用不够清楚,而内孤立波诱发海床动力响应的研究进展缓慢,尚缺乏现场观测对成果的验证,以确定渗流力对再悬浮的影响程度,因此,更多的研究应该集中在确定垂向流速的作用和渗流力的影响,借鉴泥沙动力学的研究理论,探索内孤立波悬浮海底沉积物的具体作用机制。

(3)内孤立波悬浮海底沉积物可以形成底部和中间雾状层,并沿斜坡向下输运沉积物,通过形成海底沙波和输运沉积物来塑造陆坡形态,影响深海沉积过程。但是对于雾状层输运沉积物的输运距离、输运量、输运机制以及与海底地形改变的关系缺乏定量的认识,影响因素也没有定量的评价。需要设计完整的现场观测方案,通过长期观测,并综合海底地形的改变和悬浮沉积物输运量的测量,得到直接的证据,确定内孤立波对海底的改造能力。

(4)南海是最大振幅内孤立波的发生海域,海底沙波、沉积物波等地貌广泛发育,内孤立波具有塑造陆坡形态的潜力,需要对内孤立波引起的地质灾害进行关注和预防,这个过程不能仅靠波土相互作用理论所能描述的,需要多学科交叉的融入与渗透。

The authors have declared that no competing interests exist.
