佟小雪
, 王长乐
Tong Xiaoxue, Wang Changle
中图分类号: P618.31
文献标识码: A
文章编号: 1001-8166(2018)02-0152-14
通讯作者:
收稿日期: 2017-10-12
修回日期: 2017-11-27
网络出版日期: 2018-02-20
版权声明: 2018 地球科学进展 编辑部
基金资助:
作者简介:
First author:Tong Xiaoxue(1993-), female, Tangshan City, Hebei Province, Ph.D student. Research areas include BIF iron ore deposit.E-mail:xiaoxuetong1993@mail.iggcas.ac.cn
作者简介:佟小雪(1993-),女,河北唐山人,博士研究生,主要从事BIF型矿床研究.E-mail: xiaoxuetong1993@mail.iggcas.ac.cn
展开
摘要
条带状铁建造 (BIF)原生矿物组成有助于约束其沉积相和沉积环境,当前主要认为三价铁氢氧化物或铁硅酸盐微粒 (主要成分为铁蛇纹石或黑硬绿泥石) 可能是BIF原生矿物的主要成分,在后期成岩或变质作用过程中转变为赤铁矿、磁铁矿、菱铁矿等矿物。根据BIF的矿物组合可将其沉积相划分为氧化物相、硅酸盐相和碳酸盐相。通过沉积地层学和地球化学等方法研究,以古元古代大氧化事件为标志将沉积相总结为“缺氧还原”和“分层海洋”2种相模式:大氧化事件前,古海洋整体处于缺氧还原环境,BIF沉积相从远岸到近岸呈赤铁矿相—磁铁矿相—碳酸盐相分布,如南非West Rand群BIF (2.96~2.78 Ga) 和Kuruman BIF (约2.46 Ga);大氧化事件期间及之后,古海洋上部氧化、下部还原,BIF沉积相与之前截然相反,从远岸到近岸呈碳酸盐相—磁铁矿相—赤铁矿相分布,如中国袁家村BIF (2.2~2.3 Ga) 和加拿大Sokoman铁建造 (约1.88 Ga)。总体看来,只有特定的沉积环境才能形成这种特殊的地质历史上不再重复出现的沉积建造,而原生矿物组成的甄别和推导、沉积相的形成机制、BIF沉淀条件的准确限定和微生物活动与BIF的关联等问题是推测古海洋环境的关键所在,也是目前亟待解决的问题。
关键词：
Abstract
The primary mineral compositions of BIF are regarded as ferric oxyhydroxide or iron silicate nanoparticles (mainly greenalite and stilpnomelane ) whichcan transform into minerals like hematite, magnetite and siderite. On the basis of predominant iron minerals, three distinctive sedimentary facies are recognized in BIF: oxide facies, silicate facies and carbonate facies. Marked by the Great Oxidation Event (GOE, 2.4~2.2 Ga), sedimentary facies can be divided into two models: “anoxic and reducing” model and “stratified ocean” model. The ancient ocean was anoxic and reducing before GOE, and under this circumstance, BIF was distributed from the distal to proximal zones transforming from hematite facies through magnetite facies to carbonate facies, such as West Rand Group BIF (2.96~2.78 Ga) and Kuruman BIF (~2.46 Ga) in south Africa. However, the ancient ocean was a stratified ocean during and after GOE, which means that shallow seawater was oxidizing while deeper seawater was reducing, leading to an opposite sedimentary facies distribution compared to the former one: BIF was distributed from the distal to proximal zones transforming from carbonate facies through magnetite facies to hematite facies, such as Yuanjiacun BIF in China (~2.3 Ga) and Sokoman iron formation in Canada (~1.88 Ga). Overall, BIF is an unrepeatable formation in geological history, which can only form in specific sedimentary environment. The key point to speculate the paleo-ocean environment, namely the problems to be solved at the moment, is to identify and derive the primary mineral compositions, to make sure the genetic mechanism of sedimentary facies especially silicate facies, to restrict the sedimentary conditions and to study microbial activities contacting with BIF.
Keywords：
条带状铁建造 (Banded Iron Formation, BIF) 主要分布于早前寒武纪 (3.2~1.9 Ga)的古老克拉通内,通常由富铁和富硅条带组成,且全铁的质量百分含量大于15%[1,2]。BIF是早期地球最具独特性且规模巨大的海洋化学沉积岩,故对其研究可用来揭示古海洋和大气的氧化还原状态和原始生命活动[3~8]。然而,BIF在沉积后普遍会经历成岩、变质及热液等作用改造[5],导致其矿物组成的连续转变、矿物颗粒粒径的变化和原始沉积结构的破坏,且现代海洋缺乏可与BIF类比的岩相建造,从而致使BIF原生矿物及演变机制、沉积相成因及过程等方面的研究存在极大争议,造成目前对古海洋环境存在不同认识[9~14]。因此,对BIF现存矿物成因的研究、原始矿物组成的推导和沉积相模式的建立是当前研究古海洋环境和生物活动的重点和难点。
为此,在系统总结近年来国内外BIF成因资料的基础上,本文对BIF中矿物特征和成因、沉积相及沉积模式等方面的研究进展进行了详细梳理和综合整理,指出了当前存在的问题和今后的研究方向,以期为早前寒武纪古环境的研究提供有用信息。
根据BIF的构造—沉积环境,Gross[15]将其划分为阿尔戈玛型 (Algoma型) 和苏必利尔湖型 (Superior型)。二者矿物组成有一定差异,Superior型BIF通常变质程度较低 (常为绿片岩相),主要由燧石 (石英)、磁铁矿、赤铁矿、菱铁矿、铁蛇纹石和黑硬绿泥石等矿物组成;而Algoma型BIF变质程度相对较高 (常为高绿片岩相—角闪岩相,部分可至麻粒岩相),因而其矿物组成除石英和磁铁矿之外,还含有少量阳起石和镁铁闪石等[7,16]。除以上2种主要形成于早前寒武纪 (3.2~1.9 Ga) 的BIF之外,还有新元古代 (0.8~0.6 Ga ) 的拉皮坦型 (Rapitan型) BIF,其成因与“雪球事件”密切相关,未经历作用或变质程度较低 (绿片岩相),典型矿床如巴西Urucum地区BIF、埃及Um Anab和 Wadi Karim地区BIF以及中国江西新余地区BIF等[17~22]。值得注意的是,该类型BIF条带不发育、与冰碛岩相关且主要矿物为赤铁矿和碧玉,明显区别于早前寒武纪的BIF,因此,本文着重论述典型Algoma型 和Superior型BIF矿物及沉积相的相关问题。
BIF现存矿物是成岩或变质作用过程中的产物[23~26],不同类型的沉积相与变质相直接控制BIF形成不同的矿物组合[27]。鉴于Superior型BIF变质程度普遍较低且分布范围广,因此目前关于矿物成因的研究主要集中于古元古代Superior型BIF,如西澳哈默斯利Dales Gorge BIF,南非德兰士瓦BIF和中国山西袁家村BIF等[12,13,28,29]。下面将对BIF主要组成矿物的成因进行阐述。
燧石在BIF中普遍存在,在较强变质的BIF中多以石英形式出现。石英和燧石常被认为是早期沉淀的硅质在成岩或变质过程中重结晶的产物[5]。由于显生宙之前海洋中普遍缺乏能消耗硅的生物,因而前寒武纪海水硅浓度异常高 (约2 mmol),大约为现代海洋 (约0.1 mmol) 的数十倍,接近无定形硅的饱和浓度[30,31]。因此,硅可因蒸发作用或温度变化导致过饱和而沉淀[32,33],或者与固相含铁矿物 (如三价铁氢氧化物) 同沉淀[34,35]。当前,可利用燧石或石英的原位硅和氧同位素特征 (δ30Si和δ18O) 来判别其成因,如Delvigne等[36] 发现南非2.95 Ga Pongola BIF单条带的硅同位素值 (δ30Si) 自下而上由-2.27‰升至-0.53‰,认为这种趋势由2个连续的同位素分馏过程造成:①在沉淀过程中,溶解的硅[Si(OH)4] 被三价铁氢氧化物吸附沉淀,此过程优先吸附28Si,造成古海水中δ30Si升高;②在早期成岩过程中,发生去吸附作用,此过程将所有的硅质都释放至孔隙水中,导致硅局部过饱和而形成硅质层,此过程优先沉积28Si。上述2个过程会造成硅质层的δ30Si为负值,残余的孔隙水会逐渐富30Si,致使随后再沉积的硅质层中δ30Si相对于下部硅质层较高。然而,Krapež等[23]和Pickard等[37]发现哈默斯利盆地的BIF中层状燧石中普遍存在侵蚀面,条带不连续或呈透镜体、结核状产出,且局部可见交代部分含铁矿物的现象,进而推测燧石可能形成于压实之前的早期成岩过程,是在水岩界面附近硅质交代早期沉积物的产物,而非直接沉淀成因。
赤铁矿在BIF中分布较为广泛,形态多样,关于其是否为原生成因是当前关注的热点。早期学者发现BIF中赤铁矿可呈微小球状体 (3~5 nm)[38,39],与现代红海沉积物中的赤铁矿形态相似[40],据此认为赤铁矿可能是原始沉积的三价铁氢氧化物在早期成岩过程中发生脱水的产物[5,41,42],且脱水过程应当发生于中性—弱碱性 (pH=7~8)、低碳的环境[43]。
近年来部分学者认为BIF中赤铁矿成因具有多样性[10,12,25]。如Rasmussen等[10]通过详细的岩相学观察,发现哈默斯利盆地Dales Gorge BIF中黑硬绿泥石和铁白云石等矿物微粒从边缘到中心被赤铁矿交代,说明赤铁矿应形成于其他矿物的氧化作用。Sun等[12]同样基于岩相学和矿物学研究发现,加拿大2.7 Ga Abitibi绿岩带Hunter Mine BIF和南非2.46 Ga Kuruman BIF中的赤铁矿可分为以下3类:①分布于富铁条带中,由纳米级赤铁矿微粒 (3~5 nm) 组成集合体 (约200 nm);②位于富铁和富硅条带过渡带内,以次微米级赤铁矿微粒分散于燧石基质中;③ 赋存于富硅条带中,呈针状、放射状和纤维状,并沿裂隙交代黑硬绿泥石或碳酸盐。结合矿物组构分析,进一步发现前2种形态的赤铁矿一般呈纳米—微米级粒度、非定向分布,且与典型赤铁矿的晶格间距一致,因而推测二者应为原生矿物,是由早期形成的三价铁氢氧化物脱水形成,而第三种为交代成因的次生赤铁矿[12]。
磁铁矿是BIF中最主要的含铁矿物,目前大部分学者认为其是三价铁氧化物或氢氧化物在成岩和变质过程中发生转变的产物[5,38,39,44,45]。该认识的主要岩相学证据是在BIF中可见磁铁矿沿赤铁矿边缘生长的现象[6,46]。关于磁铁矿具体的形成机制主要有以下4种认识:
(1) 形成于微生物异化还原反应过程
大量岩相学、同位素证据及实验模拟结果表明,磁铁矿为三价铁氢氧化物经微生物异化还原作用 (Dissimilatory Iron Reduction, DIR) 形成[39,44,47~49],其可能的反应式为:CH3COO-+24Fe(OH)3(水铁矿) + OH-→8Fe3O4(磁铁矿) + 2HC+37H2O[50]。主要证据有以下3点:①Johnson等[49]通过实验模拟发现,由DIR作用形成的磁铁矿的δ56Fe值与哈默斯利和德兰士瓦BIF中的δ56Fe值相似,均为负值,并认为在2.5 Ga左右磁铁矿主要是通过DIR作用形成;②Li等[44]通过对Dales Gorge BIF中磁铁矿的晶体化学分析显示,其晶格常数、Fe2+/Fe3+值与实验中DIR作用产生的磁铁矿极为相似;③Li等[39]通过实验发现微生物DIR作用可使磁铁矿增大将近1 μm。
(2) 形成于三价铁氢氧化物与海水中Fe2+反应过程
在温度低于200 ℃且贫硫、贫有机碳的条件下,三价铁氢氧化物与Fe2+反应也可形成磁铁矿[45,49],反应式为:2Fe(OH)3(水铁矿) + Fe2+ → Fe3O4(磁铁矿) + 2H2O + 2H+。部分BIF中磁铁矿铁同位素值可提供佐证,如加拿大1.88 Ga Sokoman BIF中磁铁矿的铁同位素值为-0.5‰~0.5‰,反映磁铁矿可能由Fe2+离子还原三价铁氢氧化物而形成[11]。
(3) 形成于早期菱铁矿的氧化过程
实验证明[51],菱铁矿在一定温压条件下(T=450 ℃,P=2 MPa)发生氧化形成磁铁矿,反应方程式如下:12FeCO3(菱铁矿) + 2H2O → 4Fe3O4(磁铁矿)+11CO2 + CH4。部分学者发现磁铁矿有沿着菱铁矿或铁白云石边缘生长的现象,为该反应的发生提供了证据[26]。
(4) 形成于赤铁矿和菱铁矿的变质反应过程
赤铁矿和菱铁矿在温度和压力较高的条件下发生反应可形成磁铁矿,方程式为:3FeCO3(菱铁矿) + Fe2O3(赤铁矿) → Fe3O4(磁铁矿) + CO2(T=480~650 ℃,P=5~12 MPa)[52]。由于磁铁矿广泛分布于不同变质级别的BIF中,且目前并未发现其同时交代赤铁矿和菱铁矿的现象,因此,该种途径可能仅为磁铁矿形成的次要机制,而成岩过程中三价铁氢氧化物与Fe2+或微生物反应可能为磁铁矿形成的主要方式。
Li等[14]通过实验模拟缺氧环境下三价铁氢氧化物与热液Fe2+反应,认为早太古代BIF中的磁铁矿是原生矿物,可由富Fe2+的热液与沉淀的三价铁氢氧化物在水体中反应直接形成。实验中可见一种处于亚稳态的中间产物——绿锈 (Green Rust,GR,一种含Fe2+,Fe3+和OH-的盐类矿物),该物质在大于50 ℃条件下会转变为磁铁矿。仔细来看,该实验结果仍存在3点争议:①反应的发生并非仅局限于水体中,也可能发生于沉积后早期成岩过程;②未考虑前寒武纪海洋高Si浓度的影响;③实验反应的温度较低,一般来讲,热液相比于太古代海水 (55~85 ℃)[53],温度明显偏高 (>250 ℃)[54]。
菱铁矿是较低变质级别BIF中常见的碳酸盐矿物,在后期成岩或变质作用过程中可转化为铁白云石和方解石等[5,55]。早期学者认为菱铁矿类似于海相碳酸盐岩,当水中存在溶解的二氧化碳时,可能与Fe2+结合形成菱铁矿[56~58]。
当前,大部分岩相学、地球化学和同位素证据说明菱铁矿是成岩作用的产物[46,59]。如菱铁矿沿磁铁矿边缘生长;菱铁矿中可见燧石和赤铁矿的包裹体[5,46];Fischer等[59]研究发现南非Kaapvaal克拉通的BIF中菱铁矿的碳同位素值 (-14‰~-3‰) 与其上覆碳酸盐矿物的碳同位素值 (0‰) 明显不同。随后,Heimann 等[55] 通过对比南非2.46 Ga Kuruman BIF中的菱铁矿及其下部Gamohaan建造中钙镁碳酸盐岩的铁、碳和氧同位素发现,菱铁矿的δ56Fe值多变,介于+1‰~-1‰;δ13C值为-2.6‰~-12‰,低于海相碳酸盐岩的值;而δ18O值偏高,可达+21‰。这些特征说明菱铁矿并非直接沉积成因,可能是由早期形成的三价铁氢氧化物在有机碳存在的情况下经微生物DIR作用而生成。
硅酸盐矿物在BIF中广泛分布,矿物种类主要取决于其经历的变质程度高低。低级变质条件下,多形成铁蛇纹石、黑硬绿泥石和铁滑石等矿物,在Superior型BIF中常见,如哈默斯利盆地Dales Gorge BIF[10] 和山西袁家村BIF[28];高级变质条件下,多形成黑云母、角闪石甚至辉石等矿物,常见其交代早期硅酸盐或碳酸盐矿物,多存在于Algoma型BIF中,如内蒙古固阳地区BIF以角闪石为主[60],而西非南部喀麦隆Bikoula BIF[61]和中国辽北清原地区小莱河BIF[62]则以辉石为主。
大部分学者认为硅酸盐应是在成岩或变质作用过程中形成的。近年来,部分学者认为铁硅酸盐微粒可能是原生矿物,如铁蛇纹石和黑硬绿泥石等[5,24,31,63,64]。如Rasmussen等[24]应用扫描电镜、透射电镜等方法研究西澳2.5 Ga Dales Gorge BIF发现,在燧石结核中存在大量黑硬绿泥石球形微粒,大小较为均一 (5~20 μm),边部被硅质环绕,推测黑硬绿泥石的形成应早于硅质胶结,可能为原生沉积矿物。随后Rasmussen等[63]对西澳哈默斯利盆地其他BIF、含铁石英岩和含铁泥岩等进行观察发现,在薄层状燧石条带中同样发现有大量分散分布的纳米级铁硅酸盐微粒 (主要成分为黑硬绿泥石和铁蛇纹石)。然而Haugaard等[65]对哈默斯利盆地Joffre BIF及其围岩进行研究发现,二者均有黑硬绿泥石颗粒和火山碎屑,因此认为黑硬绿泥石可能与火山灰物质的混染有关,而非原生沉积。Tosca等[64]通过实验模拟认为,铁蛇纹石可在碱性、富硅铁及缺氧环境下形成,该实验条件可与前寒武纪海洋环境类比,说明铁蛇纹石可能为原始成因。由于铁蛇纹石的形成往往会消耗一定硅质,可能造成古海水中硅质不饱和而缺乏二氧化硅的沉淀,因而在一些硅酸盐相BIF局部可见硅酸盐和磁铁矿条带而无石英条带的现象。
探索原生矿物信息是BIF研究最基本的内容之一,这不仅有助于理解BIF的沉淀机制和条带的形成过程[24,33],而且可精细约束BIF各沉积相的内在联系[56]。当前,关于BIF原始沉积物的认识主要有以下4种观点:
(1)认为BIF早期最主要的原生矿物为三价铁的氢氧化物和硅质,可能有少量含铁碳酸盐或硅酸盐[6,26,31,38,66],这些物质经由后期的成岩和变质作用演变为现今可见的矿物组合 (图1)。BIF中常见赤铁矿微粒和燧石,可支持此观点[1,41,67,68]。赤铁矿一般粒径较细,小于0.5 μm,常孤立分布于硅质条带中,沿原始沉积层理展布[68],综合说明其应为原始沉积的三价铁的氢氧化物脱水的产物[41,42,46]。
(2)认为BIF原始沉积的产物主要由贫铝含水的铁硅酸盐和铁的氢氧化物组成,可与现代海底黑烟囱附近的富铁沉积物类比[23,69]。Krapež等[23]通过分析哈默斯利Brockman BIF现存矿物成分和形态结构等,认为原始矿物应由富铁蒙脱石、铁氢氧化物和菱铁矿等组成。富铁蒙脱石可在后期地质作用过程中转化为铁蛇纹石或黑硬绿泥石[70],硅质在早期成岩过程中对原始沉积物进行交代。

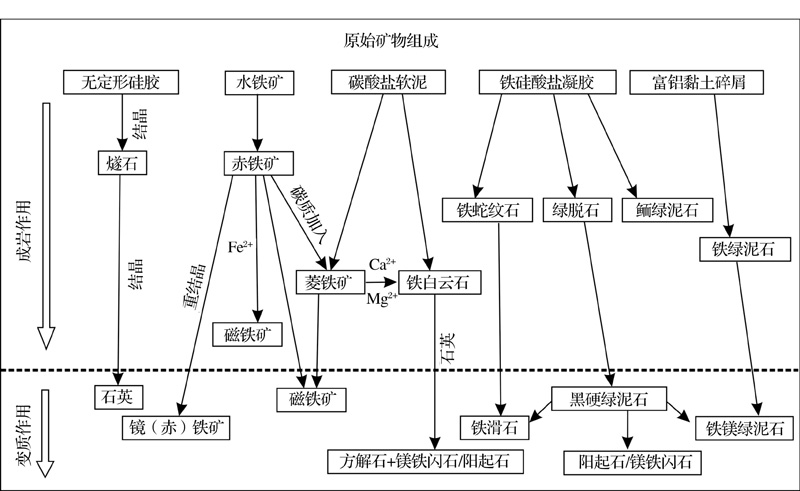

图1 华北克拉通古元古代袁家村BIF矿物共生次序图 (据参考文献[26]修改)
Fig.1 Schematic paragenetic sequence for the Yuanjiacun BIF in the North China Craton (modified after reference[26])
(3)与上述观点不同的是,强调铁硅酸盐颗粒为BIF最为主要的原生矿物。Rasmussen等[13,24,63] 采取光学显微镜、扫描电镜和透射电镜对西澳哈默斯利盆地和南非德兰士瓦盆地BIF展开详细的岩相学观察,结果显示BIF中均存在铁硅酸盐微粒,成分为黑硬绿泥石或铁蛇纹石。因这些铁硅酸盐矿物常见被石英包裹,推测其为原生沉积矿物,沉积成岩过程中被硅质胶结。并且,Rasmussen等[10,13,25]进一步的岩相学证据显示,赤铁矿可呈铁硅酸盐晶形假象 (图2),且在铁硅酸盐微粒的部分空洞中存在自形的赤铁矿晶体,因而推测赤铁矿可能为铁硅酸盐微粒后期发生氧化所致。Konhauser等[31]和Tosca等[64]通过对前寒武纪海洋环境的模拟实验发现,铁硅酸盐可在古海水中由二价铁离子和无定形硅直接反应生成。
(4)认为GR可能是BIF的原始沉积物[71],其分子式是[F
图2 反射光下赤铁矿从边缘向中心逐步交代黑硬绿泥石微粒[
(a)燧石 (ch) 条带中的黑硬绿泥石微粒 (stp);(b),(c)黑硬绿泥石微粒边缘被赤铁矿 (hem) 交代;(d),(e)赤铁矿包裹黑硬绿泥石核;(f)赤铁矿完全交代黑硬绿泥石
Fig.2 Reflected Light (RL) image showing that hematite replaces stilpnomelane microgranules from margin to cores and finally turns into solid hematite microgranules[
(a) Stilpnomelane microgranule (stp) in chert (ch). (b),(c) Stilpnomelane microgranules (stp) surrounded by thin, discontinuous rims of hematite (hem). (d),(e) Thick rims of hematite (hem) around stilpnomelane core. (f) Hematite microgranule
尽管BIF沉积后会经历一系列成岩和变质作用,但其稀土元素和铁同位素组成仍可用来指示古海洋的氧化还原条件[49,72]。
研究表明,形成于古元古代大氧化事件 (the Great Oxidation Event, GOE) 之前的大部分BIF缺乏Ce负异常,说明当时古海水整体处于缺氧状态,如西非中太古代的Bikoula BIF,中国鞍本地区BIF (约2.55 Ga) 等[61,73~77]。少量BIF显示出Ce负异常,如巴西米纳斯吉拉斯地区2.65 Ga的Itabira BIF[78]和中国五台地区2.54 Ga的王家庄BIF,说明局部水体为弱氧化[79]。
GOE期间及之后,全球大气氧含量急剧升高,该时段形成的BIF通常显示出正、负Ce异常,较大变化范围的Y/Ho值和LREE/HREE值,说明古海洋是上部氧化、下部还原的分层海洋,其稀土元素特征主要受控于水体中的铁锰氢氧化物载体的形成和溶解[73],如中国山西2.3 Ga的袁家村BIF[28],加拿大苏必利尔湖地区1.88 Ga 的Gunflint BIF和Biwabik BIF[73]。具体机制为,Mn2+在水体上部发生氧化,形成铁锰氢氧化物,同时优先吸附轻稀土 (LREE),Ho和Ce4+,促使表层水体具有负Ce异常、高Y/Ho值和低LREE/HREE值[54,80];当铁锰氢氧化物进入下部缺氧水体时,会发生还原性溶解并释放吸附元素,从而导致局部水体LREE,Ho和Ce4+浓度的显著升高,显示出正Ce异常、低Y/Ho值和高LREE/HREE值[81]。
但也有个别学者认为3.2 Ga之前就出现了海洋的氧化还原分层现象。如Huston等[4] 认为3.2 Ga之前,既存在层状硫酸盐矿床 (形成环境一般较为氧化且高硫),也存在阿尔戈玛型BIF (缺氧还原且低硫),定性推测3.2 Ga前的古海洋是分层的;Satkoski等[82]通过对南非3.2 Ga Manzimnyama BIF铁同位素研究发现,沉积于浅水环境下BIF的δ56Fe平均为0.18‰,接近热液的δ56Fe值 (0‰),说明近岸处水体氧化程度较高;而较深水环境下BIF的δ56Fe值相对较高,平均为0.55 ‰,说明远岸处水体氧化程度较低。
James[1]最早根据矿物组合将BIF沉积相划分为氧化物相、硅酸盐相、碳酸盐相和硫化物相。其中,氧化物相的主要含铁矿物为磁铁矿和赤铁矿,碳酸盐相的主要含铁矿物是菱铁矿和铁白云石,硅酸盐相的矿物组成较复杂,主要取决于沉积后的变质程度,主要为黑硬绿泥石、铁蛇纹石和角闪石等。硫化物相以出现黄铁矿为特征,由于其具有较高的硅质碎屑含量,所以常被描述为黄铁矿化的黑色页岩。虽然硫化物相与其他各相BIF联系紧密,但对于其中黄铁矿的沉积成因仍存在较大争议[83]。当前,大部分学者认为硫化物相,包括黄铁矿化页岩和含硫化物燧石等,不能当作BIF沉积相的一类[6,67,84]。因此,本文将BIF主要划分为以下3相,主要特征见表1。
表1 BIF沉积相主要特征 (据参考文献[1]修改)
Table 1 Principal characters of BIF sedimentary facies (modified after reference[1])
| 沉积相 | 碳酸盐相 | 硅酸盐相 | 氧化物相 | |
|---|---|---|---|---|
| 磁铁矿亚相 | 赤铁矿亚相 | |||
| 岩石学特征 | 灰色,风化后呈土黄色, 燧石和碳酸盐互层 | 浅绿—墨绿色,不同比例的 燧石、硅酸盐形成条带 | 深灰色,磁铁矿 和燧石互层 | 灰黑色或灰红色,赤铁矿与灰色燧石或浅红色的碧玉形成条带 |
| 形成位置 | 近岸处或海底喷口附 近,与碳质来源有关 | 一般为陆架中部,有机碳贫 乏环境 | 深水盆地环境或 陆架中部 | 近岸浅水处或深水有机碳贫乏环境 |
| 主要含铁 矿物 | 菱铁矿和铁白云石等 富铁碳酸盐 | 随变质程度的变化而不同,可能为铁蛇纹石、黑硬绿泥石、铁滑石、绿泥石、角闪石等 | 磁铁矿 | 赤铁矿 |
| 其他含铁 矿物 | 黄铁矿、磁铁矿、黑硬 绿泥石、铁滑石 | 含铁碳酸盐、磁铁矿 | 铁蛇纹石、黑硬绿泥石、铁滑石、含铁碳酸盐 | 磁铁矿 |
| 金属矿物含量范围 | 20%~35% | 20%~30% | 25%~35% | 30%~40% |
| 区别性特征 | 可见沉积缝合线构造 | 硅酸盐矿物种类可判定 变质程度 | 强磁性 | 常见鲕粒结构 |
| 典型矿床 | 南非Kuruman BIF,南 非West Rand 群的BIF | 加拿大Michipicoten BIF, 中国鞍本地区BIF | 西格陵兰Isua BIF,中国冀东司家营BIF等 | 西澳哈默斯利盆地BIF,中国袁家村BIF等 |
BIF的沉积作用与古海洋的氧化还原条件密切相关,总体看来,BIF的沉积相模式以古元古代大氧化事件为界 (2.4~2.2 Ga) 可分为“缺氧还原”和“分层海洋”环境2类。
5.2.1 “缺氧还原”环境下的沉积相模式
在GOE之前,古海洋整体处于缺氧还原状态,Fe2+氧化成Fe3+的机制主要为生物产氧氧化、微生物新陈代谢氧化、紫外线光氧化等,国内外学者应用不同的氧化机制建立沉积相模式,以南非Kuruman BIF(约2.46 Ga)和West Rand群BIF(2.96~2.78 Ga)为例,沉积相从远岸到近岸依次为赤铁矿—磁铁矿—碳酸盐相。
Klein等[56]基于南非2.46 Ga Kuruman BIF的岩相地层学和地球化学研究,认为BIF的沉积与海侵过程相关,大陆有机碳的输入控制了沉积相的展布。其中,在海侵序列中,海平面上升,导致热液中的Fe2+上升到透光区内,与生物光合作用产生的氧气反应形成铁氧化物或氢氧化物,最终沉积转变为赤铁矿相和磁铁矿相BIF;由于透光带位置较浅,致使少量碳质可到达深部大陆架,从而在近岸处可形成碳酸盐相BIF。在海退过程中,透光带位置较深,近岸处可沉积大量微生物灰岩,进而促使深水盆地的碳质输入增强,从而在远岸处形成炭质页岩。
Beukes等[67]基于最新地层关系和地球化学数据,对早期Kuruman BIF沉积模型进行重新修改 (图3)。相比于早期模型,主要有4点不同:①透光区无绝对数值限定;②浅部碳酸盐岩和深部BIF均存在Eu正异常,说明高温热液对整个盆地水体有强烈影响,深部和浅部水体在较大范围内发生充分混合;③浅水碳酸盐岩缺乏Ce负异常,说明古海洋表面氧逸度较低,推测Fe2+的氧化机制为微需氧的化能自养铁氧化细菌氧化,而非自由氧;④三价铁氢氧化物是唯一含铁原生沉积物,菱铁矿应为成岩作用过程中微生物异化还原作用所致。
南非中太古代(2.96~2.78 Ga) West Rand群BIF与Kuruman BIF具有相似的沉积相分布,Smith等[85]针对性地开展了岩相学、沉积学和地球化学特征研究,认为沉积相与热液柱位置、碳质供应和微生物作用等密切相关 (图4)。具体来看,海侵过程中,富Fe2+海底热液上升运移,在微需氧铁氧化细菌作用下氧化形成三价铁氢氧化物沉积[31,66]。这些细菌可存在于热液与周围海水的接触界面附近。在远岸处,热液由于浮力作用未与海底三价铁氢氧化物长时间接触,且有机碳输入较少,因此三价铁氢氧化物可直接脱水转变为赤铁矿;而在近岸处,有机碳含量逐渐升高,三价铁氢氧化物与之反应形成菱铁矿 (或有少量磁铁矿),并且,热液柱与沉积物的长期接触可造成Fe2+与三价铁氢氧化物发生非氧化还原反应形成磁铁矿[45]。

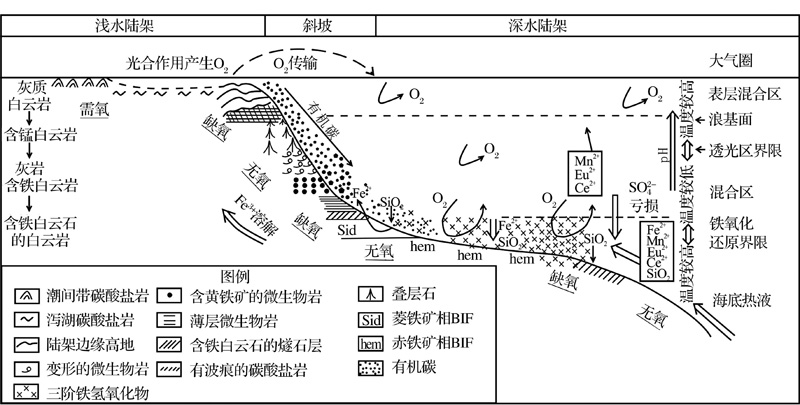

图3 Kuruman BIF的沉积模式 (据参考文献[67]修改)
Fig.3 Model for deposition of Kuruman banded iron formation (modified after reference[67])
5.2.2 “分层海洋”环境下的沉积模式
在GOE期间及之后,古海洋上部氧化下部还原,BIF沉积相从远岸到近岸主要为碳酸盐—磁铁矿—(硅酸盐)—赤铁矿相。下面以GOE期间2.3 Ga袁家村BIF和GOE之后1.88 Ga Sokoman铁建造为例简述相应的沉积相模式。
Wang等[28]对中国山西袁家村BIF进行了详细的岩相学和地球化学研究发现, BIF从远岸到近岸为碳酸盐—硅酸盐—磁铁矿—赤铁矿相分带 (图5)。赤铁矿相局部发育鲕粒和豆粒状赤铁矿,且具有Ce负异常、LREE/HREE值变化范围较大等特征,综合说明其是在相对氧化的高能浅水环境下沉积。其余相的BIF整体以条纹、条带状构造为主,无Ce异常或正Ce异常,可能形成于浪基面以下的稳定还原水体。其中,富碳酸盐相BIF具有较大的Eu正异常,说明其距热液喷口相对较近,可能位于盆地深部,且距离海岸线越远,碳酸盐矿物含量越高,说明沿着这个方向有机碳的输入逐渐增加[67,87],可能是海底热液喷口提供大量营养物(如V,Fe,Co和Zn),导致附近发育微生物而发生DIR作用,形成菱铁矿等矿物。而在远离热液喷口的地方,有机碳的输入速度急剧降低,从而致使三价铁氢氧化物聚集在这些地方,随后转变为赤铁矿或磁铁矿。

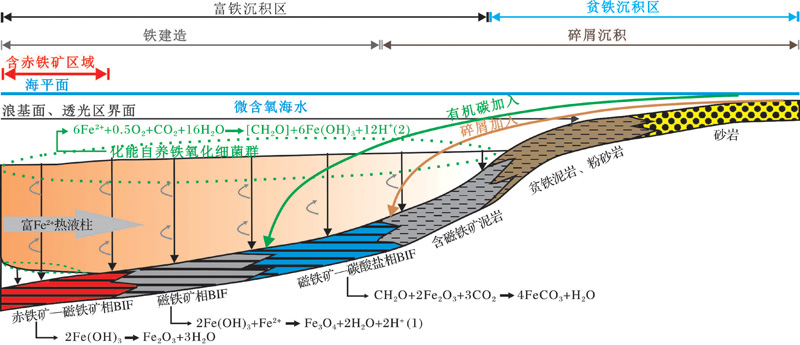

图4 West Rand群中与页岩相关铁建造的沉积模型[
反应(1)引自参考文献[45],反应(2)引自参考文献[66]
Fig.4 Simplified depositional model for the shale-associated iron formation of the West Rand Group[
Reaction (1) adapted from reference[45] and reaction (2) taken from reference[66]

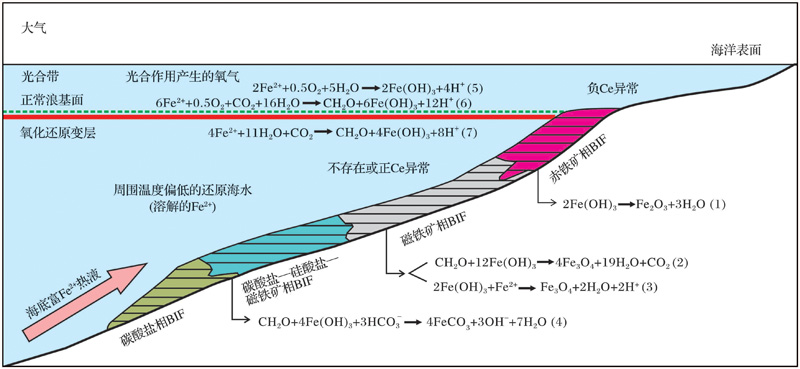

图5 袁家村BIF沉积相的沉淀模型[
反应(2)和(3)分别源自参考文献[67]和[45];反应(4)据参考文献[55]修改;反应(6)来自参考文献[66]; 反应(7)来自参考文献[86]
Fig.5 Conceptual depositional model for the Paleoproterozoic Yuanjiacun BIF[
Reactions (2) and (3) are adapted from reference [67] and [45], respectively; Reaction (4) is modifed after reference[55]; Reaction (6) is from reference[66], and reaction (7) is adapted from reference[86]
加拿大1.88 Ga的Sokoman铁建造与中国袁家村BIF较为相似,Pufahl等[81]通过详细的岩相学研究发现,该建造从远岸到近岸依次为富磁铁矿—铁硅酸盐铁建造、富赤铁矿的粒状铁建造 (Granular Iron Formation, GIF)、含叠层石的燧石岩等 (图6)。富赤铁矿GIF发育内碎屑结构和板状交错层理,应是受波浪和潮汐再作用而形成,且存在明显的Ce负异常,说明其可能形成于富氧的潮间带或潮上带。富磁铁矿—硅酸盐铁建造呈条带状—条纹状构造,缺乏Ce负异常,局部发育正Ce异常和相对较高的LREE/HREE值,综合说明其应形成于浪基面下部的缺氧还原水体[11]。相比于袁家村BIF,区别主要为以下2点:一是此模式中碳酸盐相缺乏,可能是由于碳质供给不足;二是此模式中发育富赤铁矿GIF,且磁铁矿—硅酸盐相BIF的正Ce异常较强,说明此时存在明显的氧化还原分层。
综合上述,古海洋氧化还原状态、碳质来源、热液作用、微生物作用等是影响BIF沉积相分布的主要因素。GOE前后BIF的沉积模式截然不同,可能是由于古海洋氧化还原条件发生变化以及不同的有机碳来源,如在 Kuruman 盆地中,碳质来源于近岸处陆架上光合作用的生物,而袁家村盆地的碳质来源可能是海底热液喷口附近发育的微生物[22]。

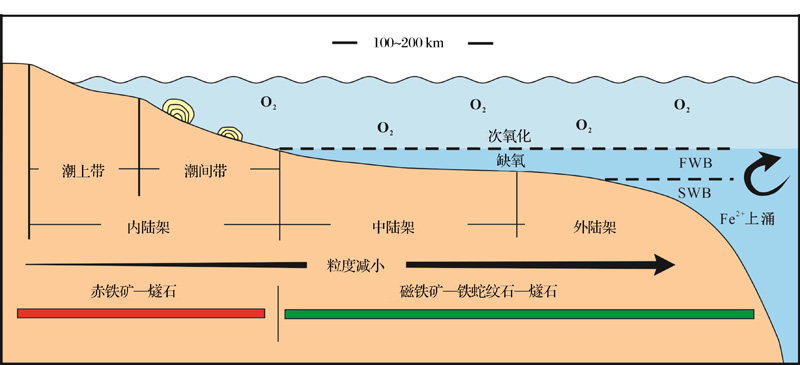

图6 加拿大Sokoman铁建造沉积相图(据参考文献[81]修改)
SWB为风暴浪基面;FWB为好天气浪基面
Fig.6 Conceptual depositional model for Sokoman iron formation in Canada (modified after reference[81])
SWB: Storm Wave Base. FWB: Fair-weather Wave Base
总体而言,当前早前寒武纪BIF沉积环境的研究工作主要基于现存矿物成因、原生矿物组合及演化、沉积相模式的建立等方面,并取得了一系列研究进展,但仍存在一些有待解决的问题:
(1) BIF原生矿物的精细识别。原生矿物的形成条件是恢复古海洋环境的重要依据,但目前对三价铁氢氧化物、铁硅酸盐微粒等观点仍存在较大争议,可应用SEM与TEM结合单矿物微区原位技术[88]来综合分析矿物成分,或进行实验模拟来探索原生矿物信息。
(2) 硅酸盐相形成机制的详细分析。氧化物相和碳酸盐相主要与古海洋氧化还原状态和碳质来源相关,而硅酸盐相BIF的形成机制仍不清楚,是今后应该探讨的方向。
(3) 微生物活动与BIF沉积作用的关联。微生物在BIF中难寻踪迹,其种类、形态、营养物质来源、生存环境及对BIF沉积作用的影响等问题,是当前研究的热点和难点,可进行微生物实验,模拟铁沉淀过程,探索微生物活动对铁沉淀机制的影响。
(4) BIF沉淀条件的准确限定。古海洋的pH,Eh和水体深度等方面缺少综合、定量的研究。不同的氧化还原指标 (稀土或铁同位素等) 对氧的敏感度不同,反映出的氧化还原状态有所区别,因此,可使用多种指标综合分析古海洋的氧化—还原条件, 如应用稀土元素和U元素含量变化,Fe和U-Th-Pb同位素分析等方法。
致 谢:感谢辽宁省冶金地质勘查局地质勘查研究院文屹、姚良德、刘明军工程师和中国科学院地质与地球物理研究所张帮禄、柯强博士在文章撰写过程中的帮助,感谢审稿人对文章提出的宝贵修改意见及建议,在此表示衷心感谢!
The authors have declared that no competing interests exist.
