地球科学进展  2018 , 33 (12): 1237-1247 https://doi.org/10.11867/j.issn.1001-8166.2018.12.1237

综述与评述

河流筑坝对生源物质循环的改变研究进展*

邓浩俊1, 陶贞1*, 高全洲12, 姚玲1, 冯雍1, 李银花1

1.中山大学地理科学与规划学院,广东省城市化与地理环境空间模拟重点实验室,广东 广州 510275
2.广东省地质过程与矿产资源探查重点实验室,广东 广州 510275

Research Advance of Changing Biogenic Substance Cycling in River Systems by Damming*

Deng Haojun1, Tao Zhen1*, Gao Quanzhou12, Yao Ling1, Feng Yong1, Li Yinhua1

1.Geography and Planning School of Sun Yat-Sen University,Guangdong Provincial Key Laboratory for Urbanization and Geosimulation,Guangzhou 510275,China
2.Key Laboratory of Mineral Resource & Geological Processes of Guangdong Province,Guangzhou 510275,China;

中图分类号:  P592

文献标识码:  A

文章编号:  1001-8166(2018)12-1237-11

通讯作者:  *通信作者:陶贞(1965-), 女, 河南沁阳人, 教授,主要从事全球变化及其区域响应研究.E-mail:taozhen@mail.sysu.edu.cn

收稿日期: 2018-09-3

网络出版日期:  2018-12-10

版权声明:  2018 地球科学进展 编辑部

基金资助:  *国家自然科学基金项目“雅砻江下游梯级筑坝对河流生源物质性质和输出的改变机制研究”(编号:41771216)和“湿热流域源区坡面径流及壤中流驱动的碳的生物地球化学循环”(编号:41871014)资助.

作者简介:

First author:Deng Haojun(1990-),male,Guangzhou City,Guangdong Province,Ph.D student. Research areas include riverine carbon cycle and global change. E-mail:junnyinfujian@163.com

作者简介:邓浩俊(1990-), 男, 广东广州人, 博士研究生,主要从事河流碳循环与全球变化研究.E-mail:junnyinfujian@163.com

展开

摘要

河流筑坝将异养的自然河流转变成自养的“蓄水河流”(下称水库),使得河流生源物质循环过程和输向海洋的物质性质及其通量发生变化。由于生源要素碳(C)、氮(N)、磷(P)、硅(Si)在生物过程中的行为不同,导致水库中生源要素有机碳(OC)、P和Si的循环效率不同,依次是Si>OC>P;而全球尺度上水库对生源要素的滞留效率表现为N>C>P>Si。水库的沉积埋藏作用构成河流OC的净汇。元素生态化学计量特征与稳定同位素组成联合使用可有效示踪生源物质在水库中的迁移转化过程。随着人类对清洁能源需求的增加,河流水库群建设强度将会增大,梯级筑坝下流域系统生源物质动力学的变化规律及其生态环境累积效应等科学问题应引起生物地球化学循环研究领域的关注。

关键词: 生源要素 ; 滞留效应 ; 化学计量特征 ; 浮游植物 ; 筑坝

Abstract

River damming transforms allotropic natural rivers into autotrophic 'impound river' (referred to "reservoir"), which changes the processes of river biogenic substance cycle and the matter properties as well as export flux from land to ocean, thus becoming one of the key problems of element biogeochemical cycle. Due to the different behavior of biogenic substances (C, N, P, Si) in biological processes, biogenic substances cycle efficiency is different, in turns, Silicon (Si)>Organic Carbon (OC)>Phosphorus (P). The migration and transformation processes of C and Si are significantly affected by phytoplankton and water retention time. Nitrogen (N) and P are mainly affected by water pH, temperature, Dissolved Oxygen (DO) and retention time. The retention efficiency of biogenic substances is shown as N>C>P>Si at the global scale. Besides, the sedimentation and burial processes of reservoirs constitute the net sink of OC in rivers. River damming alters the stoichiometric characteristics of water elements, nutrient constraints, aquatic communities composition and the coupling effect of C/N/P/Si. The stable isotopic compositions of C, N and Si can effectively trace the source, migration and transformation of biogenic matter. A combination of elements stoichiometric characteristics and stable isotopic composition could effectively indicate the change of source materials in reservoirs. With the increasing demand for clean energy, the intensity of river damming and reservoir construction will increase. Thus, a series of scientific problems including changing law of biogenic substance migration and transformation dynamic, as well as accumulation effect of ecological environment in watershed systems by river cascade damming, should need to be concerned in the biogeochemistry cycle study.

Keywords: Biogenic substance ; Retention efficiency ; Stoichiometric characteristics ; Phytoplankton ; Damming.

0

PDF (2462KB) 元数据 多维度评价 相关文章 收藏文章

本文引用格式 导出 EndNote Ris Bibtex

邓浩俊, 陶贞, 高全洲, 姚玲, 冯雍, 李银花. 河流筑坝对生源物质循环的改变研究进展*[J]. 地球科学进展, 2018, 33(12): 1237-1247 https://doi.org/10.11867/j.issn.1001-8166.2018.12.1237

Deng Haojun, Tao Zhen, Gao Quanzhou, Yao Ling, Feng Yong, Li Yinhua. Research Advance of Changing Biogenic Substance Cycling in River Systems by Damming*[J]. Advances in Earth Science, 2018, 33(12): 1237-1247 https://doi.org/10.11867/j.issn.1001-8166.2018.12.1237

河流连接着陆地和海洋两大生态系统,在地球表层系统物质循环和能量流动过程中起着重要的作用。据统计,全球河流每年向海洋输送的溶解态物质和颗粒态物质占陆地向海洋输送量的90%,构成了海洋生态系统外源输入的主体[1]。其中,河流每年输入海洋的生源要素碳(C)、氮(N)、磷(P)和硅(Si)通量分别为1 000 Tg[2]、37 Tg、4 Tg [3]和510 Tg[4],维持着海洋生态系统的健康发展。

随着人类扰动地表能力的增强,河流筑坝不断增多,而建坝最活跃的时期是20世纪中后期。截至目前,全球河流建坝有1 600多万座,以获取电能为主要功能的大坝建设仍在进行[5]。河流建坝将异养的自然河流转变成自养的“蓄水河流”(下称水库),改变了河流的连续性和水文情势,干扰了自然河流生源物质的生物地球化学循环过程,导致输向海洋的淡水、沉积物和营养物质及其通量均发生相当大的变化[6,7,8]。据模型预测,全球大坝拦截了26%的沉积物通量[6],引起河口、三角洲、海岸带生态系统的营养结构和功能发生变化,进而导致近岸水产业衰退、珊瑚壳体变化等一系列生态环境问题[9]

随着人类扰动地表能力的增强,河流筑坝不断增多,而建坝最活跃的时期是20世纪中后期。截至目前,全球河流建坝有1 600多万座,以获取电能为主要功能的大坝建设仍在进行[5]。河流建坝将异养的自然河流转变成自养的“蓄水河流”(下称水库),改变了河流的连续性和水文情势,干扰了自然河流生源物质的生物地球化学循环过程,导致输向海洋的淡水、沉积物和营养物质及其通量均发生相当大的变化[6,7,8]。据模型预测,全球大坝拦截了26%的沉积物通量[6],引起河口、三角洲、海岸带生态系统的营养结构和功能发生变化,进而导致近岸水产业衰退、珊瑚壳体变化等一系列生态环境问题[9]

随着人类扰动地表能力的增强,河流筑坝不断增多,而建坝最活跃的时期是20世纪中后期。截至目前,全球河流建坝有1 600多万座,以获取电能为主要功能的大坝建设仍在进行[5]。河流建坝将异养的自然河流转变成自养的“蓄水河流”(下称水库),改变了河流的连续性和水文情势,干扰了自然河流生源物质的生物地球化学循环过程,导致输向海洋的淡水、沉积物和营养物质及其通量均发生相当大的变化[6,7,8]。据模型预测,全球大坝拦截了26%的沉积物通量[6],引起河口、三角洲、海岸带生态系统的营养结构和功能发生变化,进而导致近岸水产业衰退、珊瑚壳体变化等一系列生态环境问题[9]

随着人类扰动地表能力的增强,河流筑坝不断增多,而建坝最活跃的时期是20世纪中后期。截至目前,全球河流建坝有1 600多万座,以获取电能为主要功能的大坝建设仍在进行[5]。河流建坝将异养的自然河流转变成自养的“蓄水河流”(下称水库),改变了河流的连续性和水文情势,干扰了自然河流生源物质的生物地球化学循环过程,导致输向海洋的淡水、沉积物和营养物质及其通量均发生相当大的变化[6,7,8]。据模型预测,全球大坝拦截了26%的沉积物通量[6],引起河口、三角洲、海岸带生态系统的营养结构和功能发生变化,进而导致近岸水产业衰退、珊瑚壳体变化等一系列生态环境问题[9]

比较河流和湖泊两大自然生态系统,水库生源要素循环机制研究不多且集中于单个水库对单个生源要素的影响研究。筑坝对河流生源物质迁移转化和滞留效应机制仍缺乏系统深入的研究。本文将综述河流筑坝对生源要素C,N,P,Si的迁移、转化、输出通量、化学计量特征以及稳定同位素组成的影响,提出未来河流梯级筑坝对地球表层生物地球化学循环改变的可能主要研究方向和热点科学问题。

1 水库生源要素的迁移转化机制

水库生源要素(C,N,P和Si)的来源(包括内源和外源)不同,其性质和功能支配它们在水库中发生的物理沉降、化学溶解、矿化和生物吸收等过程存在差异,进而导致各生源要素的滞留效率和化学计量特征发生变化。水库中C,N,P和Si的主要存在形式见表1

表1   水库生源要素的主要存在形式

Table 1   The main forms of biogenic elements in reservoirs

元素存在形式参考文献
CPOC,PIC,DOC,DIC[10]
NPON,DON,DIN(NOx-N和NH4-N)[11]
PTDP,POP,EP,UPP[12]
SiDSi,PSi,SSi,BSi[13]

注:POC:Particle Organic Carbon,颗粒有机碳;PIC:Particle Inorganic Carbon,颗粒无机碳;DOC:Dissolved Organic Carbon,溶解有机碳;DIC:Dissolved Inorganic Carbon,溶解无机碳;PON:Particle Organic Nitrogen,颗粒有机氮;DON:Dissolved Organic Nitrogen,溶解有机氮;DIN:Dissolved Inorganic Nitrogen,溶解无机氮(NOx-N和NH4-N:硝态氮和氨态氮);TDP:Total Dissolved Phosphorus,总溶解磷;POP:Particle Organic Phosphorus,颗粒有机磷;EP:Exchangeable Phosphorus,可交换磷;UPP:Unreactive Particle Phosphorus,非活性磷;DSi:Dissolved Silicon,溶解硅;PSi:Particle Silicon,颗粒硅;SSi:Sediment Silicon,沉积硅;BSi:Biogenic Silicon,生物硅

新窗口打开

1.1 有机碳的迁移转化

碳在水库中的迁移、转化过程包括POC和PIC的沉降、POC和DOC的微生物矿化、浮游植物生长吸收DIC以及随水库水体的排泄输出(图1a)。假设水库中浮游植物生长吸收DIC的过程受P限制[15,16]。那么水库内源POC的通量(Tg/a)可以根据公式(1)进行计算[14]:

POC内源=Pmax×[TDP]Ks+[TDP],(1)

式中:Pmax为营养饱和状态下内源POC的最大值(Tg/a);[TDP]为水库中TDP含量(g/L),Ks为TDP的半饱和恒量。

根据公式(1)估算2000年全球水库浮游植物生长吸收DIC形成POC为14.4 Tg,占水库总有机碳(Total Organic Carbon,TOC)的15%[14]

水库中POC的沉积埋藏和矿化过程受水体滞留时间和水温的制约。Maavara等[14]根据公式(2)和(3)分别估算了全球水库POC的埋藏通量(Fb, Tg/a)和矿化通量(Fm, Tg/a):

Fb=Fin×ai[1-11+αi×τr],(2)Fm=Fin×bi[1-11+βi×T×τr],(3)

式中:Fin为入库POC通量(Tg/a),T为水库年平均水温(℃),τr为水体滞留时间(a),aibi为无量纲系数,αiβi分别为矿化、沉积一阶损失率系数。

据估算,2000年全球水库POC矿化通量为20.9 Tg,沉积通量为26.2 Tg(图1)。河流筑坝减少了输向海岸带的有机碳(Organic Carbon,OC)通量,在全球尺度上水库构成河流OC的净汇[14]

水库TOC的迁移转化率(Recycling Efficiency,RE)可根据公式(4)计算[13]:

RE= 外源TOC矿化+内源POC矿化外源TOC输入+内源POC固定×100%, (4)

根据公式(4)估算出全球水库TOC的循环效率为22.3%。

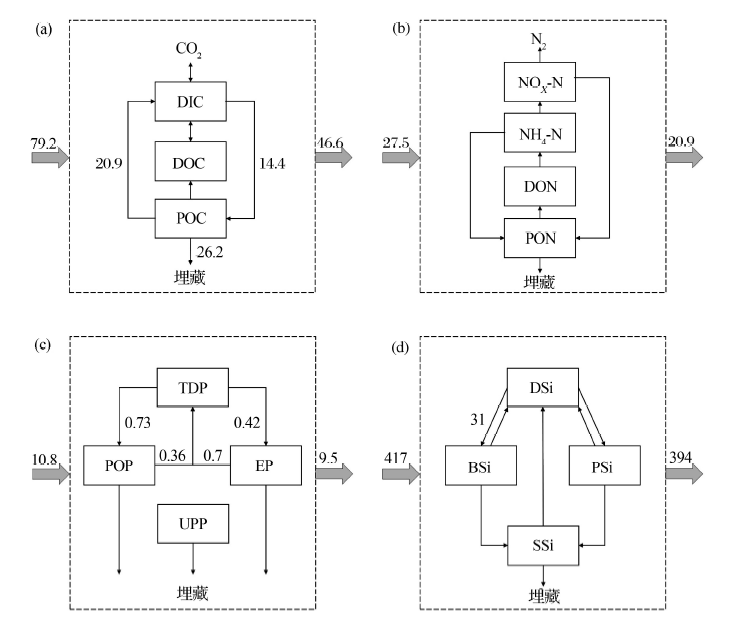

图1   水库生源要素循环过程
宽箭头为入库、出库通量,虚线方框内为水库内各要素循环过程,图中数值单位均为Tg/a;(a)据参考文献[14]修改,(b)据参考文献[11,17]修改,(c)据参考文献[12]修改,(d) 据参考文献[13]修改

Fig.1   Biogenic elements cyclic processes in reservoirs
The wide arrow refers to influx and outflux, and the dotted box is element cyclic process, all fluxes are given in units of Tg/a; (a) modified after reference[14], (b) modified after references[11,17], (c) modified after reference[12], (d) modified after reference[13]

1.2 氮的迁移转化

目前,关于水库中N循环过程研究较少。水库中N循环过程包括硝化作用、反硝化作用、氨化作用、矿化作用和沉积埋藏(图1b)。水库溶解氧(Dissolved Oxygen,DO)含量决定了水库的硝化和反硝化作用,Han等[17]根据水库N含量(Cni)、DO和水温(T)建立了硝化和反硝化作用计算公式:

Rden(Rnif)=Cni×f(DO)×f(T)(5)

根据公式(5)计算出新加坡Upper Peirce水库硝化速率为0.77 g/(m3·a),反硝化速率为0.63 g/(m3·a)。

N周转率( h-1)是评价N循环效率的重要指标。根据N吸收速率(U吸收,为藻类生长吸收的无机氮(mg/(L·h)))和N含量(Nmass,为无机氮含量(mg/L))进行计算:

T周转速率=U吸收Nmass(6)

据估算,Upper Peirce水库NH4-N转化速率为0.030.06 h-1,硝酸盐转化速率较低,为0.00050.0009 h-1。截止目前,全球尺度的水库N循环研究尚未报道。

1.3 磷的迁移转化

水库P的迁移转化包括溶解、沉降、固定、吸附、解吸和矿化作用(图1c)[12]。其中,P的吸附和解吸作用显著受水体pH和DO的影响[18]。Maavara等[12]根据公式(7)计算了不同形态P的入库通量( Fiin,Tg/a):

Fiin=Q×[TP]in×aiin,(7)

式中:Q为入库流量(m3/s),[TP]in为入库TP含量(mg/L), aini为不同形态P所占的比率(%)。Vollenweider[19]根据水体的滞留时间对湖泊P滞留效应(RX)进行估算:

RX=1-11+σ+τr,(8)

式中:σ为第一阶段P在水体中的损失速率(a),τr为水体的滞留时间(a)。根据公式(7)和(8),按照全球每年TP入库通量10.8 Tg计算,全球水库每年TDP固定和吸附通量分别为0.73和0.42 Tg,POP矿化通量为0.36 Tg,EP解吸通量为0.7 Tg[12]。适当修改公式(4)[13],计算得出TP的循环效率为20.4%。

1.4 硅的迁移转化

水库Si通过生物固定、溶解和沉积埋藏等过程发生迁移转化(图1d)。水库浮游植物硅藻生长过程吸收的DSi可转化为BSi,BSi产量(mol/(m2·a))可以根据公式(9)进行估算[13]:

BSi固定=Rmax×[DSi]Ks+[DSi],(9)

式中:Rmax为硅藻最大生产率状态下的吸收量(mol/ (m2·a)),[DSi]为DSi含量(mol/m2),Ks为硅藻生物吸收DSi的半饱和恒量。Maavara等[13]根据全球17个水库的Rmax值(0.514.7 mol/ (m2·a))建立了Rmax与DSi之间的关系,如公式(10)所示:

Rmax=10.837×DSiin0.8126(r=0.91),(10)

式中:DSiin为输入水库的DSi通量(mol/a)。

根据公式(9)和(10)估算,全球水库硅藻光合作用形成的BSi约为516 Gmol,按全球水库面积(3.7×105 km2)[5]计算,水库硅藻吸收率为1.4 mol/ (m2 ·a),高于海洋硅藻的吸收率(0.60.8 mol/ (m2·a))[20]。水库Si迁移转化率(RE)可根据公式(11)计算:

RE=PSi矿化+SSi矿化PSi输入+BSi产生×100%,(11)

据公式(11)计算得出:全球水库Si的循环率较高,可达62%[13]

2 水库对生源要素的滞留效应

河流筑坝导致入库水体流速减缓、滞留时间延长,改变了天然河流的物理、化学和生物学特征及其动态。这一变化有利于浮游植物生长,促进C,N,P和Si的固定和沉积,发挥了水库对河流生源要素的滞留、沉积作用,进而改变河流输出物质的组成和通量。然而,不同生源要素在水库中的滞留性质和滞留通量存在差异。

2.1 水库生源要素滞留的定量计算方法

计算水库滞留生源要素效率和通量的方法通常采用质量平衡法:

F输入-F输出-F滞留=0,(12)

式中:F输入F输出F滞留分别为某种生源要素输入、输出和滞留通量(kg/a)。水库生源要素的滞留率(RM)可按照公式(13)计算:

RM=F输入-F输出F输入×100%(13)

Harrison等[21]根据水体滞留时间(Rt/a),建立了溶解无机磷 (Dissolved Inorganic Phosphorus, DIP)的滞留效率计算公式:

DIP滞留=0.85×(1-e(-0.0087×Rt))(14)

对全球湖泊和水库N的滞留量(Tg/a)估算,Harrison等[22]则利用了NiRReLa(Nitrogen Retention in Reservoirs and Lakes)模型:

N滞留=N输入×(1-exp-VfH1),(15)

式中:N输入为N入库通量(kg/a),VfH1分别为沉积速率(m/a)和水力负荷(m/a)。

Vörösmarty等[23]也根据滞留时间和库容建立沉积物滞留效率(R)模型:

R=1mRjQjQm,(16)

式中:Qm为流域输入流量(m3/s),RjQj分别为每个小流域水库的滞留效率(%)和入库流量(m3/s)。

另外,常用的流域分布式水文模型(Soil and Water Assessment Tool,SWAT)也用于估算水库对TN和TP的滞留效应[24]。但是上述模型在计算水库对各生源要素的滞留效应时,均忽视了水库中各要素迁移转化过程的影响。

2.2 水库对生源要素的滞留效率和滞留量

据模型估算,全球水库对OC滞留量最高(48 Tg/a),其次为Si(22.3 Tg/a),N和P滞留量相对较低,分别为6.5 Tg/a和1.3 Tg/a。全球水库OC,TN,TP和Si的滞留率分别为13%,24%,12%和5.3%[12,13,16,22](图2)。

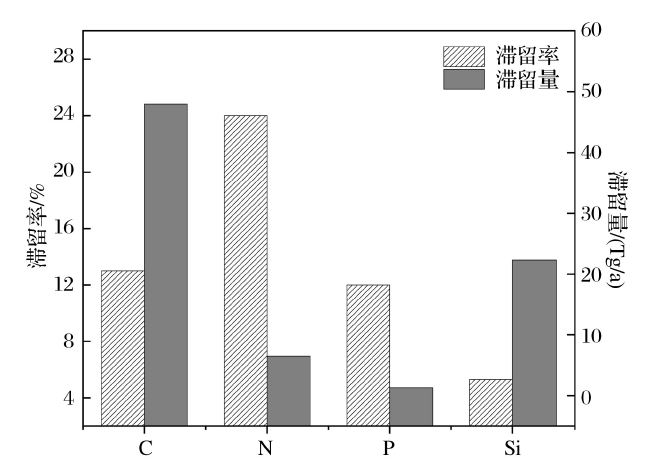

图2   全球水库生源要素滞留率和滞留量[12,13,16, 22]

Fig.2   Biogenic element retention efficiency in global scale reservoir[12,13,16,22]

统计分布在不同大陆上20个水库(分别是亚洲11个,欧洲5个,美洲3个和非洲1个)的实测数据得出:水库对不同生源要素的平均滞留率从大到小依次是P(39%) >C(30.5%)>N(28.4%)> Si(22.5%)(图3),均高于依据模型估算的全球尺度水库生源要素的滞留率(图2)。TOC滞留效率接近,分别为31%和30%[25,26]。比较发现:大型水库(如罗马尼亚的铁门水库和我国的三峡水库)的N滞留效率较低(分别为5%和1%),低于中小型水库的相应值(7.8%54%)[25,34]。我国乌江渡水库(-19.7%)和东南沿海山区梯级水库(1%)对TP滞留效率较低,其他水库P的滞留效率变化于12%72%[25,27,31,32,34,40];水库对Si的滞留率为-7.3%72%,其中BSi(44%和72%)较DSi(-7.3%42%)具有更高的滞留效率[25,30,31,41,46]

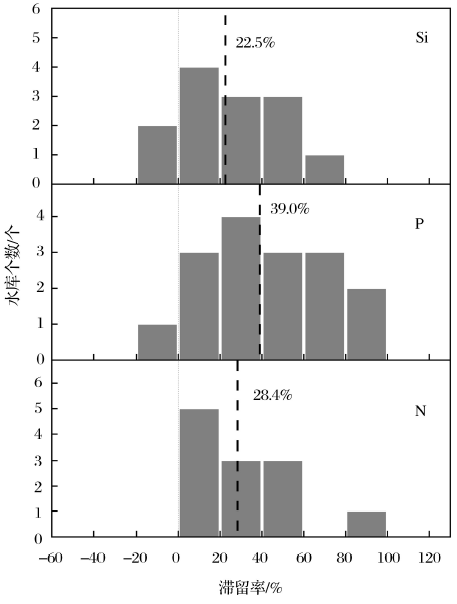

图3   单个水库的滞留效率
虚线为平均滞留率;N数据来源于参考文献[25,34];P数据来源于参考文献[25,27,31,32,34,40];Si数据来源于参考文献[25,30,31,41,46]

Fig.3   Retention efficiency of regional reservoir
Dotted line isaverage retention rate;N data from references[25,34];P data from references[25,27,31,32,34,40];Si data from references[25,30,31,41,46]

对比三峡水库、乌江渡水库、铁门大坝和法国Marne, Seine和Aube 水库群(M.S.A水库群)不同生源要素的滞留量,发现水库对不同元素的滞留量均呈现出:N,Si>P(图4)。而且三峡水库和乌江渡水库滞留N的量明显小于法国M.S.A水库群和罗马尼亚的铁门水库的相应值,表明我国长江流域河

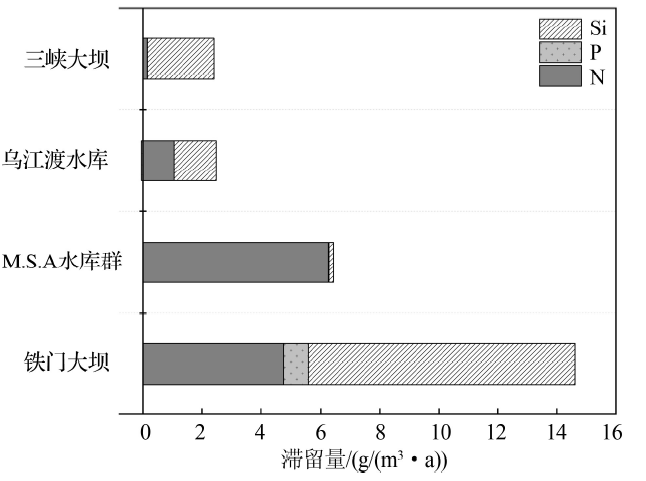

图4   不同元素滞留量的差异[27,29,30,32,42,46]

Fig.4   The difference of elements retention efficiency[27,29,30,32,42,46]

流水质较好。另外,水库对生源物质的滞留率可能受制于水库的运行时间。例如,我国乌江上游洪家渡(2003年)和索风营水库(2006年)DSi的出库量大于入库量;而筑坝较早的乌江渡水库(1978年)DSi滞留率可达22.8%,大约每年滞留3.5×103 t,表现为明显的汇[44]

梯级筑坝对河流系统生源物质的迁移转化及其输出通量存在累积效应[47,48]。Ouyang等[24]利用SWAT模型估算黄河上游梯级水库运行降低了TN和TP的下泄排放量,分别从15.4×103 t和1 996 t(1977年)减少至0.4×103 t和328 t(2006年),滞留效果显著。

3 水库改变生源要素的生态化学计量特征

生源要素从河流输向海洋的过程中,元素生态化学计量特征的变化影响水域水生生物结构及其生产力。Redfield等[49]早在1963年就提出水体浮游植物生长的最适C∶ N∶ P∶ Si 为106∶ 16∶ 1∶ 16。筑坝不同程度地减少了生源要素的输出通量,导致大坝下游水体N∶ P∶ Si值改变[50]从而引起下游浮游植物种群结构演替,非硅藻属浮游植物种类疯长促发水体富营养化等一系列生态环境问题。

3.1 水库改变营养元素限制状况

N和P是限制自养生物生长的主要元素,N∶ P可作为限制性养分判断指标之一。在湖泊和海洋生态系统中,缺N的生态系统N∶ P<20,而缺P的生态系统N∶ P>50,当N∶ P在2050则指示水体N和P都可能不足[51]。水库出入库水体的元素化学计量特征与其元素限制状况有关:在缺N水库系统中,出库水体N∶ P是入库水体的2倍,这是由于缺N的水库系统对P的滞留效率高于N所导致[52,53]。水库营养程度不同,其生态化学计量特征变化存在差异。在富营养化的水库中,出库水体N∶ P是入库的25倍,其中P的滞留率(约90%)较N的相应值(约50%)高,此时库区水体N∶ P<20,属于N缺乏;在中营养化的水库中,由于P含量降低,水库的滞留率差异不大,导致其入库、出库和滞留的N∶ P高于富营养水库,此时P成为生物生长的制约因子[54]

3.2 水库改变水生生物群落组成

水体的生态化学计量特征变化影响水生生物群落结构和组成。Schindler等[55]对富营养化湖泊37年的观察,发现减少N输入不能改善湖泊富营养化。湖泊中N∶ P降低会改变湖泊浮游植物群落结构(具有固N功能的蓝藻大量生长)应对湖泊缺N的情况。乌江梯级水库随着流域N输入的增加和Si滞留的增强,下游水库Si∶ N下降导致库区蓝藻增加,改变了原有水库浮游植物群落结构[56]。Turner[57]研究发现当Si∶ DIN<1时鞭毛藻超过硅藻。筑坝减少河流DSi向河口的输出通量从而改变河口近岸的生物群落组成,如罗马尼亚铁门大坝的修建减少了多瑙河输入黑海80%的DSi通量,导致黑海浮游植物中硅藻比例减少,非硅藻成为优势种[58]。三峡大坝拦截大量泥沙和长江中下游地区化肥使用量的增加,长江口水域Si∶ N持续下降(1999年为1.66,2003年为1.09和2004年为0.42),引起甲藻赤潮频发[59]

3.3 改变水库碳硅耦合效应

硅酸盐类矿物化学风化过程中消耗大气CO2并被碳酸盐化释放出DSi(呈H2SiO4形态)和其他元素(主要是K,Na,Ca,Mg等),产生的DSi和HC O3-,可以被河流、湖泊和水库中的浮游植物吸收利用形成有机体。因此,水体中DSi∶ HC O3-受浮游植物生长过程和硅藻活力的影响[60]。对全球175条河流水化学数据研究发现DSi∶ Na+与HC O3-∶ Na+,87Sr∶ 86Sr与DSi∶ HC O3-存在显著正相关(p<0.01),得出DSi∶ HC O3-值可以作为推断河流物质来源的代用指标;对美国和英国的湖泊研究发现DSi∶ HC O3-与Chl a存在显著的负相关(p<0.05),表明湖泊浮游植物生长改变原有水体中DSi含量和DIC的含量和组成[61]。Li等[62]对澳大利亚lower湖(水库)的生态化学计量学特征研究表明,DSi与HC O3-、DSi∶ Na+与HC O3-∶ Na+均具有显著的相关性(p<0.05),表明水库中碳硅耦合效应显著。此外,DSi∶ HC O3-值与水体生物理化因子如电导率、总溶解固体、Chl a,TN和TP均具有显著的相关性(p<0.05),表明水体C∶ Si可指示水体生态环境的变化状况。

4 同位素示踪技术的应用

在地球表层生物地球化学循环研究中,稳定同位素技术是非常有效的示踪方法。由于水库水文情势、理化特征和生物学特征与天然河流不同,导致输入水库的生源要素发生不同程度的同位素分馏。因此,元素稳定同位素组成能示踪水库生源物质的迁移和转化过程。C,N和Si稳定同位素组成在水库生物地球化学循环研究中的应用较多,目前关于P稳定同位素组成的研究鲜有报道。C,N和Si稳定同位素组成表达式如表2

表2   C,N和Si稳定同位素组成表达式

Table 2   C, N and Si stable isotopic composition equation

同位素组成表达式参考文献
δ13CDICδ13C=Rsample-RPDBRPDB×1 000
式中:Rsample为样品13C/12C,RPDB参考标准为大气CO2
[31]
δ15Nδ15N=Rsample-RstandardRstandard×1 000
式中:Rsample为样品15N/14N,Rstandard参考标准为大气N2
[63]
δ30Siδ30Si=Rsample-RNBS-28RNBS-28×1 000
式中:Rsample为样品30Si/28Si,RNBS-28为NBS-28标准
[4]

新窗口打开

4.1 碳同位素组成的应用

对5个水库入库、库中和出库的δ13CDIC数据[31,64,65]进行显著性分析,发现库区水体的δ13CDIC值显著地(p<0.05)高于入库和出库水体(图5)。这是由于库区浮游植物生长优先吸收具有较高δ13C值的HC O3-(δ13C=0‰)的结果[66],而光热条件较差的水库底层水体生物作用不强烈,与入库水体的δ13C值接近,下泄水以底层水体为主,故具有较低的δ13C值。对文献中7个水库的δ13CDIC值(-9.41‰-4.5‰)与水库年龄[31,64,65]进行相关性分析表明:库龄与δ13CDIC值呈负相关(p>0.05)。

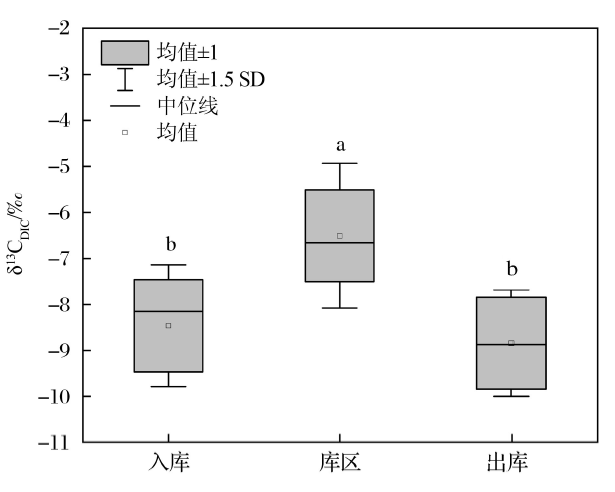

图5   水库入库、库区和下泄水的δ13CDIC值(数据源于参考文献[31,64,65] )
不同的小写字母指示数据之间存在显著的差异(p<0.05)

Fig.5   The δ13CDIC value of influx,outflux and in reservoir(data from references[31,64,65])
Different small letters indicate statistically significant differences(p<0.05)

4.2 氮同位素组成的应用

不同转化机制中N稳定同位素的分馏效应存在差异,如矿化作用的分馏效应为-1‰1‰、同化作用为-27‰1‰、硝化作用为-29‰-12‰、反硝化作用为-40‰-15‰[63]

研究表明:澜沧江梯级水库中悬浮颗粒物的δ15N值(变化于2.3‰11.8‰)明显较水库上游自然河道段的相应值(变化于4.5‰6.7‰)增重,但是在小湾水库、漫湾水库和大朝山水库库区由于藻类吸收同化作用使得悬浮颗粒物δ15N出现变轻的现象[67]。这可能是由于水体中悬浮颗粒物的陆生植物(δ15N 值在2‰7‰)与水生植物(δ15N值在-15‰20‰)来源比例差异所致。

4.3 硅同位素组成的应用

硅酸盐矿物风化过程中存在着 Si 同位素动力学分馏,使得较多的30 Si 进入水循环,导致陆地河流、湖泊水体和海水的δ30Si 值较大。

全球河流δ30SiDSi值为-0.14‰4.66‰(n=544),平均值为1.28‰±0.68‰[4]。全球湖泊δ30SiDSi值为0.53‰2.55‰,平均值为1.11‰±0.53‰(n=65)(图6)。地下水δ30SiDsi值为-1.9‰2.07‰,平均值为0.19‰±0.9‰[4]。肯尼亚 Masinga水库库中δ30SiDSi值为2.23‰[7](图6的虚线值),高于全球河流和湖泊的平均值但位于湖泊δ30SiDSi值区间内,可见水库和湖泊有相近的分馏效应。Ding等[68,69]研究了黄河、长江河流悬浮物的δ30SiSPM值(分别为-0.02‰±0.20‰和-0.34‰±0.19‰)。

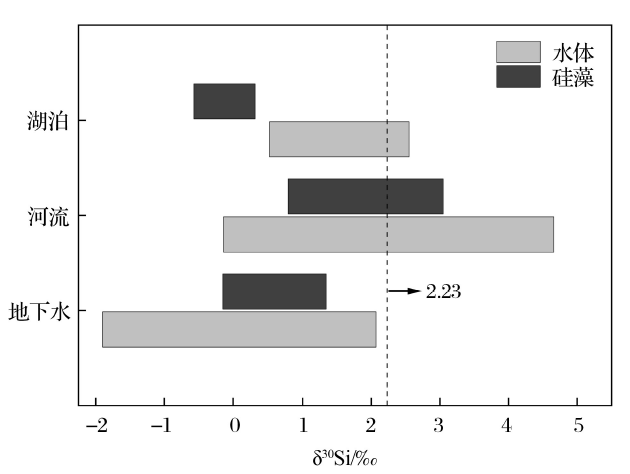

图6   湖泊、河流和地下水的δ30Si值分布[4,7,68,71]

Fig.6   The distribution of δ30Si value in lake, river and groundwater[4,7,68,71]

δ30Si硅藻能指示浮游植物的生产力和对硅酸的利用效率,在海洋和陆地生态系统的C和Si循环中具有重要的指示作用[70]。比较海洋生态系统,陆地生态系统硅藻同位素的研究不多见。研究表明陆地淡水硅藻δ30Si硅藻值变化于-0.57‰3.059‰(n=36)(图6)。其中,湖泊中硅藻δ30Si硅藻值(-0.57‰0.32‰)较地下水(-1.9‰2.07‰)和河流水(-0.14‰4.66‰)低。但关于水库硅藻的δ30Si硅藻值未见报道。

考虑到水库环境存在多种地表过程的耦合作用,增加了水库生物地球化学循环的复杂性。为准确识别水库水体生源物质的来源和迁移转化,建议联合使用多种同位素组成深入探讨水库生物地球化学循环的机制,为陆地—海洋生态系统耦合作用提供基础数据。

5 展 望

筑坝改变河流生源要素的性质和输出通量,减少陆源营养物质向海洋生态系统的输入,进而扰动全球生态系统的安全。截止目前,前人在水库生源物质的循环过程、滞留效应、化学计量特征、同位素组成的应用等方面获得一定的研究成果,然而随着河流水资源开发强度的增加,水库群生物地球化学研究才刚刚起步,需要科学家持续不断的努力探讨河流筑坝对流域生源要素动力学的改变。具体应关注以下几个方面:

(1)深入探究水库生源要素的循环过程和滞留机制。水库生源要素C,N,P和Si的来源、迁移转化过程涉及水文学、地球化学、生物学等多学科内容,将来研究应运用多学科的理论和方法,厘清生源要素循环过程和滞留机制。

(2)加强水库碳的源/汇变化及其影响机制研究。综合运用元素生态化学计量特征和稳定同位素组成研究水库C,N,P和Si的耦合循环,是深入探讨水库储存转移C的能力及影响机制的关键。

(3)关注河流水库群建设对流域生源要素动力学改变的累积效应。随着人类对清洁能源需求的增大,河流水库群建设(干支流筑坝、干流梯级筑坝)势在必行,梯级筑坝下流域系统生源物质的迁移转化、输出通量变化规律及其生态环境累积效应是生物地球化学研究领域应关注的科学问题。

The authors have declared that no competing interests exist.
