地球科学进展  2018 , 33 (11): 1142-1153 https://doi.org/10.11867/j.issn.1001-8166.2018.11.1142.

碎屑磷灰石对沉积物源判别的指示*

张硕, 简星*, 张巍

厦门大学近海海洋环境科学国家重点实验室,海洋与地球学院,福建 厦门 361102

Sedimentary Provenance Analysis Using Detrital Apatite: A Review*

Zhang Shuo, Jian Xing*, Zhang Wei

State Key Laboratory of Marine Environmental Science, College of Ocean and Earth Sciences, Xiamen University, Fujian Xiamen 361102, China

中图分类号:  P597.3

通讯作者:

*通信作者:简星(1987-),男,江西上高人,副教授,主要从事沉积地质学及沉积地球化学研究.E-mail:xjian@xmu.edu.cn

收稿日期: 2018-06-15

修回日期:  2018-10-12

网络出版日期:  2018-11-20

版权声明:  2018 地球科学进展 编辑部

基金资助:  国家自然科学基金项目“闽江不同季节入海悬浮沉积物的物源分析:来自微量元素和Sr-Nd同位素的约束”(编号:41806052)福建省自然科学基金项目“闽江口沉积物的Nd同位素组成与物源示踪”(编号:2017J05067)资助.

作者简介:

First author:Zhang Shuo(1995-), male, Hanzhong City, Shaanxi Province, Master student. Research areas include sedimentary geology and sedimentary geochemistry. E-mail: zhangshuomarine@163.com

作者简介:张硕(1995-),男,陕西汉中人,硕士研究生,主要从事沉积地质学及沉积地球化学研究.E-mail:zhangshuomarine@163.com

展开

摘要

基于单颗粒碎屑磷灰石原位分析的物源分析是沉积地质学研究的一种重要手段。磷灰石中Sr,Y和稀土等微量元素含量由SiO2含量和所在熔体中的分配系数控制,微量元素的含量在不同岩石的磷灰石中差异较大,可作为指示其母岩类型的重要指标。磷灰石在物源分析中的应用可归纳为以下3个方面:①元素地球化学,特征元素包括Sr、Y、稀土元素(REE)等;②同位素地球化学,包括Sr-Nd同位素、Lu-Hf同位素等;③单颗粒多法定年,即同颗粒磷灰石进行(U-Th)/He、裂变径迹和U-Pb定年分析。综合上述3个方面可获得磷灰石的母岩类型、形成条件和后期演化、源区抬升剥蚀史、沉积区沉降史等信息。尽管碎屑磷灰石的热年代学目前在沉积物源研究中运用广泛,但基于碎屑磷灰石元素及同位素地球化学(包括磷灰石U-Pb同位素定年)的沉积物源判别仍处于起步阶段,在沉积地质学、盆地分析、构造地质学等研究领域具有广阔的应用前景。

关键词: 磷灰石 ; 物源分析 ; 元素地球化学 ; 同位素地球化学 ; 多法定年

Abstract

In situ analysis of detrital apatite is a significant approach to sedimentary provenance analysis, which is an important aspect in sedimentary geology study. Several trace elements such as Sr, Y and Rare Earth Elements (REEs) concentrate in apatites, and the distribution of these elements depends on the content of SiO2 and the distribution coefficient of the melt, thus the trace element abundances is obviously different in different rocks. These features can be used to indicate parent-rocks of detrital apatites in sedimentary rocks. The approaches and proxies of detrital apatite to sedimentary provenance analysis can be summarized as follows. ①elemental geochemistry, such as Sr, Y, REEs, the approaches including chondrite-normalised REE distribution patterns of apatites, Classification and Regression Tree (CART) and discriminant plots of REE parameters; ②isotopic geochemistry, including Sr-Nd and Lu-Hf isotopes; ③Multi-dating, including low-temperature thermochronology such as (U-Th)/He (AHe)and Fission Track (AFT) dating, and high-temperature thermochronology such as U-Pb dating. Based on an integrated analysis using these methods, we can get various and comprehensive geological information such as the rock type, formation conditions and evolution of source rocks, the history of uplift and exhumation of source areas and even the subsidence history of sedimentary basins. Although the low-temperature thermochronology of detrital apatite is widely used in sedimentary provenance analysis, the elemental and isotopic geochemistry, as well as the U-Pb dating, remains to be developed. These approaches are supposed to have wide application prospects in several research areas such as tectonics, sedimentary geology basin analysis and even paleoclimatology.

Keywords: Apatite ; Provenance ; Elemental geochemistry ; Isotopic geochemistry ; Multi-dating.

0

PDF (5503KB) 元数据 多维度评价 相关文章 收藏文章

本文引用格式 导出 EndNote Ris Bibtex

张硕, 简星, 张巍. 碎屑磷灰石对沉积物源判别的指示*[J]. 地球科学进展, 2018, 33(11): 1142-1153 https://doi.org/10.11867/j.issn.1001-8166.2018.11.1142.

Zhang Shuo, Jian Xing, Zhang Wei. Sedimentary Provenance Analysis Using Detrital Apatite: A Review*[J]. Advances in Earth Science, 2018, 33(11): 1142-1153 https://doi.org/10.11867/j.issn.1001-8166.2018.11.1142.

1 引 言

沉积物源分析的内容主要包括源区母岩类型及岩石组合判别、构造背景重建、古地理及古气候恢复以及沉积区沉积体系再现等方面[1]。传统的分析方法包括重矿物方法、黏土矿物学方法、岩石学方法和全岩元素地球化学方法等[2],但是这些常规的分析方法得到的往往是物源供给平均效应的结果,并不适用于沉积源区多元化的沉积条件[3]。随着技术条件的不断提高,特别是激光剥蚀等离子质谱技术(LA-ICP-MS)在固体地学领域的广泛运用,碎屑单矿物的元素地球化学、同位素、热年代学的研究为克服上述方法的缺陷提供了可能,同时也使得沉积学研究朝着定量的方向发展,已成为沉积学研究的热点。碎屑锆石因其高稳定性在沉积物源研究中运用最为广泛[4],碎屑磷灰石的热年代学也是沉积物源分析研究中常见的手段[5],但对其元素、同位素地球化学示踪方法的关注不多。

磷灰石作为碎屑沉积岩中常见的重矿物,可来源于三大类岩石,在花岗岩、花岗伟晶岩、榴辉岩、磷块岩等岩石中较为常见。磷灰石(Ca5[PO4]3(OH,F,Cl))富集Sr,Y和稀土元素(Rare Earth Element, REE)等不相容元素,而且微量元素的含量受SiO2含量和所在熔体中的分配系数所控制,因此微量元素的含量在不同岩石的磷灰石中差异较大,可作为指示其母岩类型的重要指标[6]。此外,磷灰石的热年代学——(U-Th)/He定年体系(AHe)和裂变径迹定年体系(Apatite Fission Track, AFT)能够反映磷灰石冷却的低温热历史信息[7],磷灰石的U-Pb年龄可以反映晶体的高温热历史信息[8],将二者结合能够提供磷灰石更完整的热历史信息[9]。值得注意的是,与锆石相比,磷灰石具有相对弱稳定性,即在酸性地表水条件下较易风化[10],可作为初次沉积旋回的代表矿物,能够直接反映源区信息[11]。近年来已有利用碎屑磷灰石的地球化学和热年代学进行物源分析的报道,如Malusà等[12]对意大利波河物源分析的研究中,系统地对碎屑磷灰石进行了元素地球化学、Sm-Nd同位素和热年代学研究。但稳定克拉通背景下的沉积物可能会经历多次沉积旋回,不稳定组分易丢失,使用碎屑磷灰石进行沉积物源示踪可能产生错误的结果。本文主要介绍来自不同类型岩石的磷灰石地球化学特征,结合国内外的最新研究进展,对碎屑磷灰石在物源分析中的应用进行总结。

2 磷灰石矿物学特征

磷灰石属磷酸盐矿物,是重要的含磷矿物,六方晶系,链状结构;空间群 C6h2-R6 3/m,晶胞参数a0=0.943~0.938 nm,c0=0.688~0.686 nm,单胞分子数Z=2[13]。无色,含杂质常为浅绿色、黄绿色、褐色,含有机质呈灰黑色,白色条痕,玻璃光泽,摩氏硬度5,{0001} 不完全解理,断口不平坦,相对密度3.18~3.21[14]。晶形与产出环境有关:外生成因的磷灰石多为轴面纤维状;内生成因的磷灰石晶形与温度相关:从高温到低温,其形态总体上有长柱状—短柱状—板状的转化趋势[15]。一轴晶,纵断面柱状,横断面六边形,单偏光下无色正交偏光下I级灰,折射率N0=1.629~1.667,Ne=1.624~1.666,正中凸起,平行消光[16]

3 磷灰石矿物化学

磷灰石化学式为Ca5[PO4]3(OH,F,Cl),Ca2+可被Ce3+,Sr2+,Na+,Y,Mn,Th和REE等类质同象替换[6,17],[PO4]33-常被C O32-,Si O44-,S O42-类质同象替换,按附加阴离子分为氟磷灰石Ca5[PO4]3F、氯磷灰石 Ca5[PO4]3Cl和羟基磷灰石Ca5[PO4]3OH 3个亚种,其中氟磷灰石自由能最小而最为常见,因此一般所指的磷灰石为氟磷灰石[18]。此外,还有碳磷灰石Ca5[PO4,CO3(OH)]3 、锰磷灰石(Ca,Mn)5 [PO4]3(F,OH)等。火成岩中,磷灰石F含量随岩石分异程度的增加而增加,Cl与之相反,在低分异度岩石中含量更丰富[6,19]

磷灰石微量元素组成常用LA-ICP-MS测定。岩浆岩中的磷灰石大部分元素没有成分分带,但是Th和U等元素存在分带,在外围存在一个约20 μm厚的包壳,其U和Th含量与磷灰石中U和Th整体含量存在明显差异[20,21,22,23],因而会影响U-Pb定年和(U-Th)/He定年。为避免U和Pb成分分带带来的误差,Spiegel等[24]提出将磷灰石最外围的20 μm磨蚀掉之后再进行测试。高压—超高压变质带中的磷灰石存在明显的成分分带,以REE为例,新疆西南天山榴辉岩中的磷灰石除Lu之外,其余REE的含量从边部到核部升高数倍至2个数量级[25],大别—苏鲁榴辉岩的磷灰石中从边部到核部轻稀土元素(Light Rare Earth Element, LREE)含量上升3~5倍,重稀土元素(Heavy Rare Earth Element, HREE)含量下降2~4倍[26]。因此在进行LA-ICP-MS分析时必须要考虑成分分带带来的影响,在对碎屑磷灰石进行测试时,尽可能选取相同或相似位置的测试点位。

磷灰石富集S和Y等不相容元素,且微量元素含量的变化与全岩SiO2含量有关,表明母岩的分异程度为磷灰石化学组成的主要控制因素,例如分异过程中Y,Mn和HREE在逐渐富集,而Sr含量逐渐降低[27],因此通过元素含量特征或二元图解来判断母岩类型是完全可行的。磷灰石U和Th含量较低,而且Th含量在高分异度岩石的磷灰石中含量更低,原因是独居石在结晶过程中会吸收Th和LREE。U与之相反,在花岗岩和花岗伟晶岩中含量为20×10-6~25×10-6,在辉绿岩中为2.3×10-6~4.2×1 0-6[6,28]

REE在磷灰石中较为富集,∑REE含量取决于母岩中的REE组成,其中碳酸岩中的磷灰石REE含量最高,可达数个百分点[28],最小值出现于花岗伟晶岩和辉绿岩[6]。磷灰石REE球粒陨石标准化配分模式则取决于母岩性质特别是分异程度[15,29]

磷灰石中常见流体包裹体以及锆石、独居石、榍石等矿物包裹体,挑选样品时尽量避免选取有包裹体的磷灰石,在进行测试时,测试点位必须避开包裹体。

4 不同岩石中的磷灰石特征

磷灰石广泛存在于三大岩类中,下面从3个方面论述各类型岩石中的磷灰石矿物学和矿物化学特征。

4.1 岩浆岩及铁矿床

Hoche等[30] 认为岩浆岩中磷灰石的晶习和形态与其形成条件有关,等径粒状磷灰石多形成于近平衡条件,岩浆结晶晚期磷灰石可形成于矿物之间,自形程度较差;针状磷灰石形成于快速冷凝或远离平衡条件的环境。磷灰石在碱性岩中紧密堆积,常与霞石和长石共生。磷灰石在基性岩中与磁铁矿或钛铁矿共生,有时出现于斑晶中。花岗岩中的磷灰石多为细针状出现于造岩矿物间隙中[31]。铁矿床中的磷灰石晶体颗粒较大,如内蒙古黑鹰山铁矿中磷灰石粒径从数毫米到数厘米,最大者为14 cm×2 cm[32];江苏宁芜陶村铁矿中磷灰石粒径为0.5~2 mm,少量达5 mm[33];河南舞阳赵案庄铁矿中磷灰石粒径为0.3~1.5 mm[34]

矿物化学上,大部分岩浆岩中的磷灰石为氟磷灰石,橄榄岩捕掳体中可见桃红色的羟基磷灰石[6]。微量元素能够通过类质同象替换进入到磷灰石中,因此不同岩浆岩中磷灰石的微量元素差异明显,可作为判别磷灰石来源的重要依据[29]

磷灰石中∑REE含量取决于母岩中的REE组成,其中碳酸岩中的磷灰石REE含量最高,可达数个百分点,最小值出现于花岗伟晶岩和辉绿岩[6,28]。此外,各岩石中磷灰石的REE球粒陨石标准化配分模式也有较大差别(图1),球粒陨石数据来自参考文献[44]。

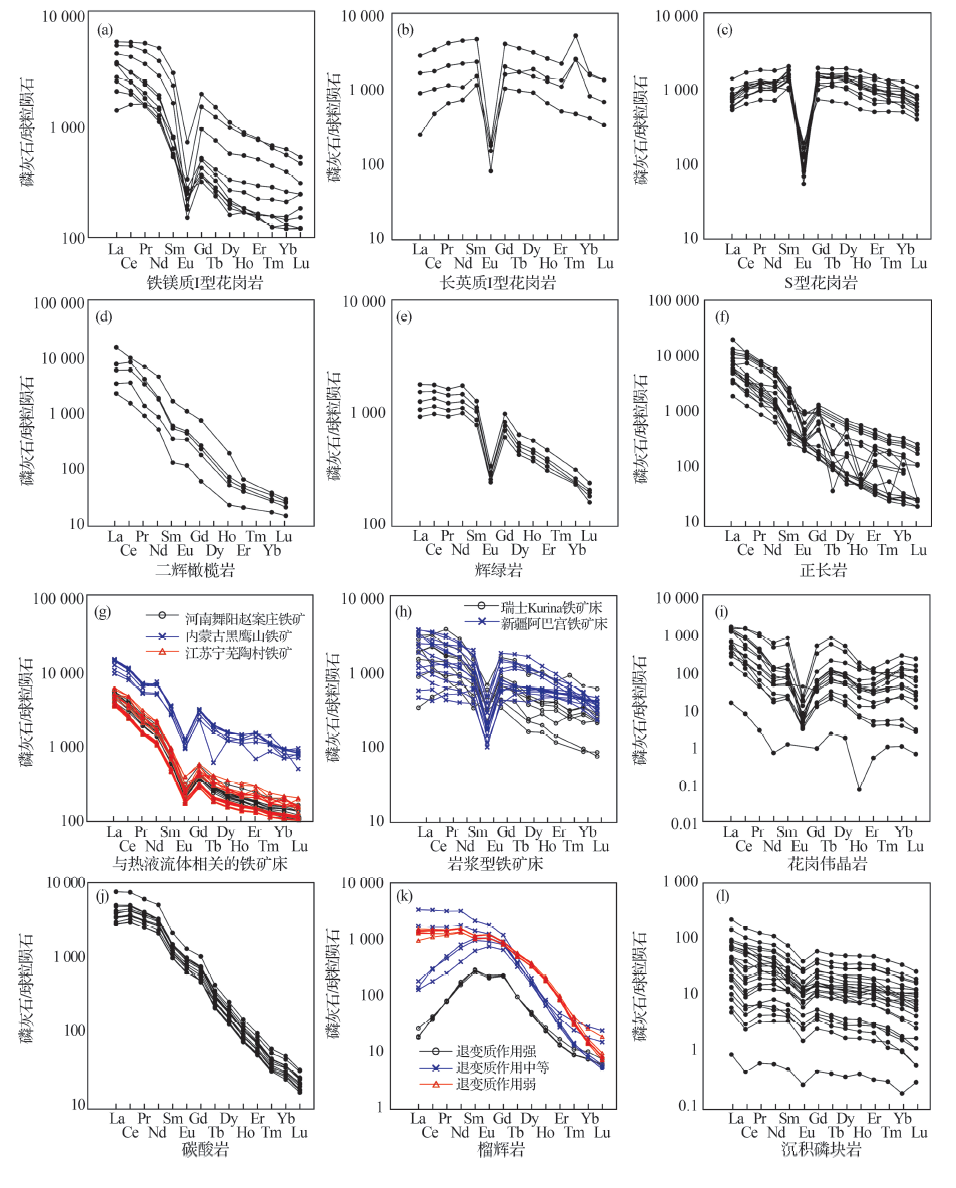

图1   各类型岩石中磷灰石REE球粒陨石标准化配分模式图
(a)~(c) 数据来自参考文献[19];(d),(e) 数据来自参考文献[6];(f) 数据来自参考文献[35,36];(g)数据来自参考文献[32,33,34];(h)数据来自参考文献[37,38];(i)数据来自参考文献[39];(j)数据来自参考文献[40];(k)数据来自参考文献[41];(l)数据来自参考文献[42,43]

Fig.1   Chondrite-normalised REE distribution patterns of apatites from different rock types
The data in (a)~(c) comes from reference[19]; The data in (d),(e) comes from reference[6]; The data in (f) comes from references[35,36];The data in (g) comes from references[32~34]; The data in (h) comes from references[37,38]; The data in (i) comes from reference[39];The data in (j) comes from reference[40]; The data in (k) comes from reference[41]; The data in (l) comes from references[42,43]

4.2 变质岩

磷灰石是高压—超高压变质带中常见的矿物,在退变质过程中仍能够稳定存在。目前对变质岩磷灰石的研究主要集中于榴辉岩。

榴辉岩中的磷灰石最显著的辨别特征是晶体中的出溶结构。近年来所报道的磷灰石出溶结构包括磁铁矿、黄铁矿、磁黄铁矿、独居石、锶重晶石等,其宽度在1~10 μm,长度几微米到几十微米,多呈柱状或棒状,长宽比大于10∶ 1[45,46,47]

榴辉岩中磷灰石以高Cu和Ti为特征。REE特别是LREE含量很高,∑REE的范围很大,南天山超高压变质带中为12×10-6~657×10-6,苏鲁榴辉岩中为296×10-6~6 965×10-6[24,41],REE球粒陨石标准化配分模式图解如图1k所示。榴辉岩中磷灰石的REE配分模式与母岩的退变质程度有关,退变质程度越高,∑REE特别是LREE含量越低。

4.3 沉积岩

磷灰石在沉积岩中主要产出于碎屑沉积岩和磷块岩,但由于弱稳定性,碎屑沉积岩中的磷灰石无法再经历剥蚀搬运作用进入沉积物中,因此本文只讨论磷块岩中的磷灰石特征。

磷块岩中的磷灰石粒径为0.01~1 mm,多呈柱状或粒状,可见半月形、S形、弯钩形等弯曲变形形态,常与石英伴生[48]。其REE球粒陨石标准化配分模式如图1l所示,沉积磷块岩中的磷灰石REE配分模式图较为平直,REE分馏不明显,Eu具有中等负异常,部分磷灰石具有弱—中等Ce负异常。

5 碎屑磷灰石物源示踪方法

沉积岩中碎屑磷灰石的微量元素地球化学、多法定年、Sr-Nd同位素、Lu-Hf同位素等方法可以广泛地运用于沉积物源分析研究中,下面对这些方法进行简要介绍。

5.1 磷灰石微量元素地球化学

前文已述及磷灰石中微量元素含量范围很大,且不同来源的磷灰石微量元素差异较大,因此可根据微量元素含量及元素之间的比值对磷灰石母岩进行判别。Belousova等[6]利用分类回归树(Classification and Regression Tree, CART)对磷灰石母岩进行判别。本文依据前人部分数据对其中一张CART进行改进(图2)。图2以微量元素含量或比值作为依据,对磷灰石母岩进行逐步分类,直至确定其母岩类型,该图有2个优点:①准确度高,准确率除花岗伟晶岩为79%之外,其余岩石类型均在95%以上;②所用元素种类少,易于建立较大数据库进行对比。

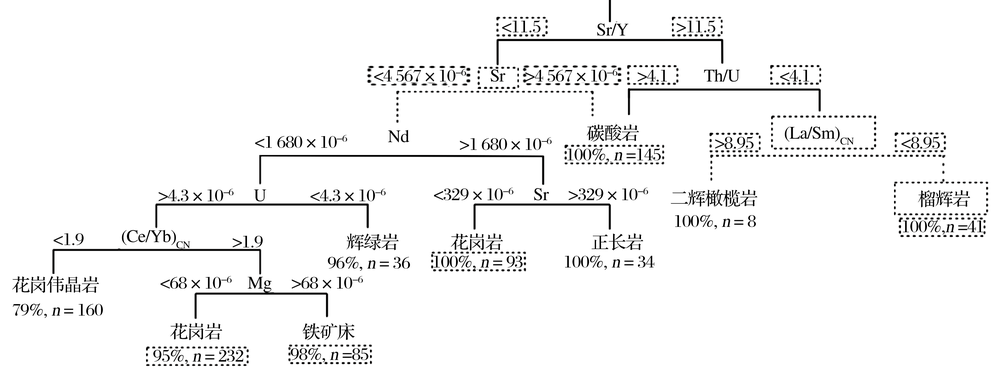

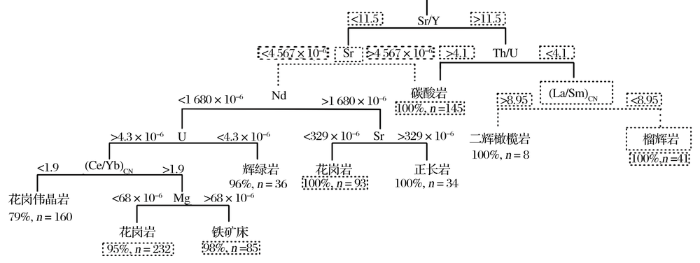

图2   辨别磷灰石母岩类型的分类回归树
虚线部分为本文改动或增加部分,增加部分数据来源:榴辉岩数据来自参考文献[25,41];碳酸岩数据来自参考文献[40,49];花岗岩数据来自参考文献[19,50];铁矿床数据来自参考文献[33,37]

Fig.2   CART for the recognition of apatites from different rock types
The dotted lines mean the modified or added, the data in added part: The data in eclogite comes from references[25,41]; The data in carbonatite comes from references[40,49]; The data in granite comes from references[19,50]; The data in iron deposit comes from references[33,37]

由于稀土元素对成岩环境的反应极为敏感,来源不同的磷灰石稀土配分模式差异较为明显,详见图1,因此可以用稀土配分模式来反映母岩类型。

Belousova等[6]根据磷灰石的稀土特征参数及微量元素含量,分别绘制了Sr-Y图解、 Y-Eu/Eu*图解、Mn-Sr图解、(Ce/Yb)N-/∑REE图解,上述图解的组合使用能够对大部分的磷灰石母岩类型进行有效判别,但是该图解存在一定缺陷:①该图解中只包含了部分岩浆岩,并未涉及到沉积岩及变质岩;②部分岩石如花岗岩和花岗伟晶岩在4个图解中均具有较大的重合区域因而无法对其进行辨别。

本文参照上述图解,分别作出(Gd/Yb)N-δEu图解、(La/Sm)N-(La/Yb)N图解、(La/Yb)N-∑REE图解(图3)。

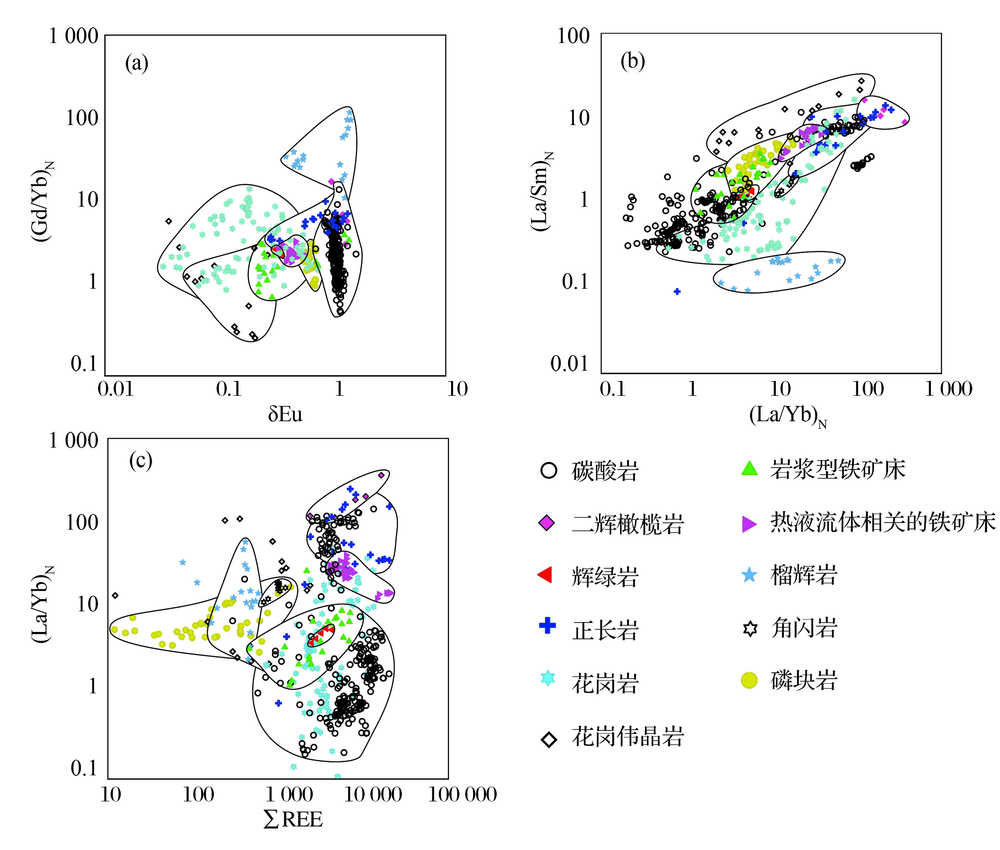

图3   不同岩石类型的二元判别图解(a)(Gd/Yb)N-δEu图解;(b)(La/Sm)N -(La/Yb)N图解;(c)(La/Yb)N-∑REE图解;碳酸岩数据来自参考文献[40,49];二辉橄榄岩、辉绿岩数据来自参考文献[6];正长岩数据来自参考文献[35,36];花岗岩数据来自参考文献[19,50~52];花岗伟晶岩数据来自参考文献[39];岩浆型铁矿床数据来自参考文献[37,38];热液流体相关的铁矿床数据来自参考文献[32,33,34];榴辉岩数据来自参考文献[41];角闪岩数据来自参考文献[53];磷块岩数据来自参考文献[42,43]

Fig.3   Fields of apatite composition from different rock types, proposed as discriminant plots (a) Plot of (Gd/Yb)N-δEu, (b) Plot of (La/Sm)N -(La/Yb)N, (c) Plot of (La/Yb)N-∑REE. The data in carbonatite comes from references [40,49]; The data in lherzolite and dolerite comes from reference[6]; The data in syenite comes from references[35,36]; The data in carbonatite comes from references[19,50~52]; The data in granitic pegmatite comes from reference[39]; The data in magmatic iron deposit comes from references[37,38]; The data in hydrothermal iron deposit comes from references[32~34]; The data in eclogite comes from reference[41];The data in amphibolite comes from reference[53]; The data in phosphorite comes from references[42,43]

通过上述图解可对绝大部分的磷灰石母岩类型进行判别,但个别类型岩石来源的磷灰石无法完全辨别,如正长岩和橄榄岩在3个二元图解中均具有较大面积的重合,辉绿岩区域在3个图解中完全被岩浆型铁矿覆盖,其原因可能有2种:①部分类型岩石来源的磷灰石数据量较小;②母岩中磷灰石的形成、演化的条件差异较小。因此,如果在物源判别中磷灰石落到上述重合区域内,应当再使用其他方法对母岩进行辨别。

目前已有利用磷灰石的元素地球化学特征判别沉积物来源的报道,Morton等[54]对南里海盆地古库纳河和古伏尔加河的物源分析中,利用LA-ICP-MS测定碎屑磷灰石中的元素含量,发现古伏尔加河沉积层的碎屑磷灰石母岩类型中花岗岩类占到了42%~63%,辉绿岩占到了19%~20%;古库纳河沉积层中高分异度岩石较少,花岗岩类贡献率为10%~32%,辉绿岩占11%~19%,铁矿石占19%~20%,个别组中二辉橄榄岩占26%;Malusà等[12]测定了意大利波河流域中碎屑磷灰石的微量元素含量,发现与External地块相比,来源于阿尔卑斯山中部Lepontine穹隆的碎屑磷灰石HREE富集而Ce和U丰度值较低。

5.2 磷灰石多法定年

多法定年是指对同一单矿物颗粒进行多种手段定年获取不同的年代学年龄,从而获得源区和沉积区的热历史[55],目前磷灰石多法定年常用的手段为三法定年和单颗粒双法定年。若将磷灰石多法定年和其他定年方法结合,源区结晶—抬升冷却信息和沉积区的沉降—抬升历史信息将更加完整(图4a)。Carrapa等[55]在对Andean Puna中央高原始新世沉积物的研究中首次使用了磷灰石三法定年。本文将分别对磷灰石的低温热年代学、U-Pb定年和多法定年在物源分析中的应用进行介绍。

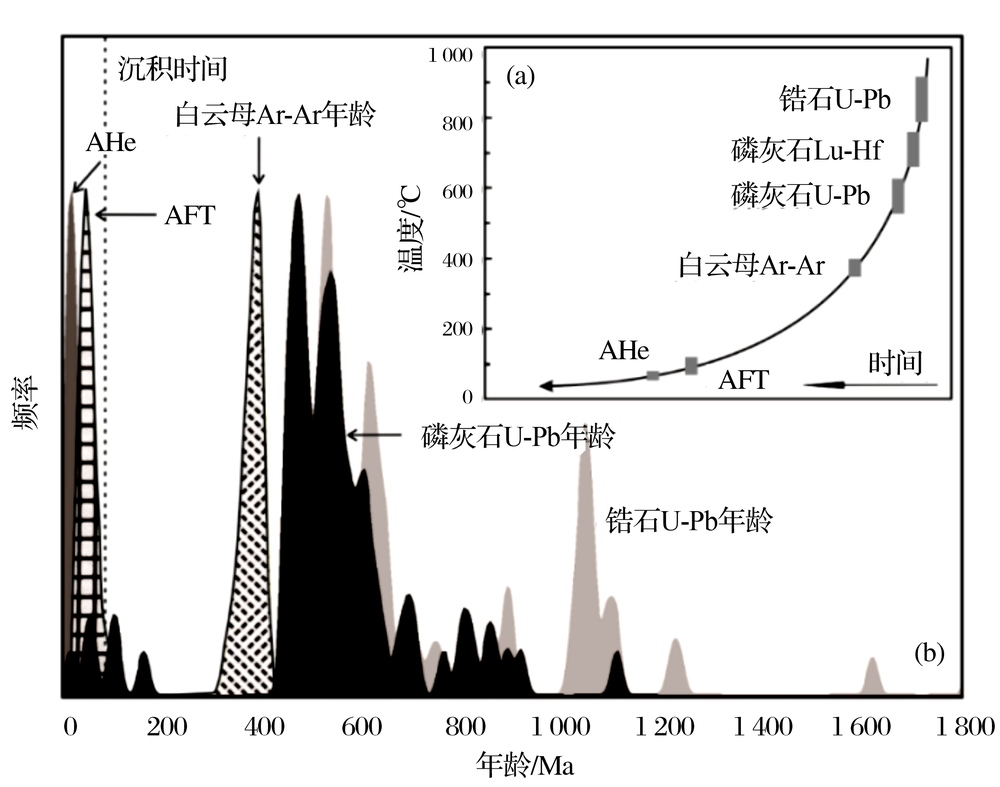

图4   磷灰石多法定年示意图
(a)岩石抬升、剥蚀过程中的热历史轨迹;(b)多法定年峰值图;数据来自参考文献[55,56]

Fig.4   Illustration of Multi-dating of detrital apatite
(a)The track of thermal history during lifting and exhumation;(b)The density diagrams of multi-dating; The data comes from references[55,56]

5.2.1 磷灰石低温热年代学

磷灰石是低温热年代学研究中应用最广泛的矿物之一[57],能够记录岩石在抬升过程最后阶段的低温热历史,对其他同位素定年系统形成补充,提供更加完整的热历史数据。目前磷灰石热年代学最常用的手段是(U/Th)-He定年和裂变径迹定年。

AHe体系封闭温度是已知定年体系中最低的,仅为70 ℃左右[58,59],因此可反映地质作用冷却过程最后阶段的信息[60,61]。但是AHe定年过程复杂、周期长、成本高、精度低等局限性进一步制约了该方法的发展[62]。付山岭等[63]报道了原位(U-Th)/He同位素定年技术,为解决上述问题提供了可靠选择,或成为未来AHe定年的新方向。AFT的封闭温度为120 ℃左右,可用于重塑地壳上部3~5 km内数百万年以来的热历史[64]

近年来,已有学者将磷灰石的热年代学应用于物源分析当中。如Stock等[65]利用AHe概率密度函数(Probability Density Function, PDFs)对美国加利福尼亚州内华达山脉Inyo Creek和Lone Pine Creek水系沉积物进行来源判别,Inyo Creek水系沉积物AHe的PDFs预测峰值(31 Ma)与测定峰值(33 Ma)相似,表明源区侵蚀速率一致和砾石随水流的快速搬运与堆积,Lone Pine Creek水系沉积物AHe的PDFs预测峰值(62 Ma)与测定峰值(41 Ma)相差较大,表明沉积物多源于低海拔流域,缺乏年龄较老的沉积物是由于高海拔地区沉积物堆积于冰斗和快速抬升过程中的快速剥蚀;常健等[66]在塔里木盆地北缘与南天山构造—沉积耦合关系的研究中,测得塔北隆起地层和南天山AFT年龄分别为10~24 Ma和11~16 Ma,AFT良好的对应关系表明塔北隆起地层中的磷灰石来自南天山和库车坳陷北缘。

5.2.2 磷灰石U-Pb定年

磷灰石U-Pb体系封闭温度为450~550 ℃[11,67],记录了磷灰石通过该温度段的时间,除了能获得磷灰石的高温热历史之外,还可以根据冷却速率推断其结晶时间,如Danišík等[9]测得德国Schwarzwald矿床磷灰石U-Pb年龄为(289.5±4.5)Ma,根据半径为0.5 mm左右的磷灰石冷却时间为10 ℃/Ma[68],推算其结晶年龄为(289.5±4.5)~(314±6) Ma。磷灰石U-Pb年龄可与低温热年代学信息相结合,成为物源分析的重要手段。

随着技术的不断提高,关于磷灰石的原位U-Pb测年方法近年来也有报道。周红英等[69]结合前人研究,利用LA-MC-ICP-MS建立了磷灰石微区原位U-Pb同位素定年新方法,该方法克服了传统磷灰石U-Pb定年中普通铅含量高、放射性成因铅含量低、分析流程复杂等缺陷,从而获得了较为精确的磷灰石U-Pb年龄。

5.2.3 磷灰石多法定年

相比于锆石,磷灰石具有弱稳定性,即在酸性地表水条件下较易风化,因此可作为初次沉积旋回的代表矿物,直接反映源区信息,对于解释多旋回或多源区沉积来源具有一定优势。Carrapa等[55]和Decelles等[56]对Andean Puna中央高原始新世沉积物来源和盆地沉降史的研究中,将碎屑磷灰石三法定年(即U-Pb、AFT和AHe)、碎屑锆石U-Pb定年和碎屑白云母Ar-Ar定年结合,确定其源岩形成于前寒武—早显生宙时期,在志留纪—早石炭世发生抬升冷却,自早—中白垩世以来抬升速度加快并于始新世开始发生剥蚀,结果如图4b所示。Olivetti等[70]利用AFT和磷灰石U-Pb双法定年,对南极洲Victoria盆地沉积物进行物源判别,结果显示AFT年龄小于40 Ma,磷灰石U-Pb年龄的2个峰值为530和610 Ma,与Victoria南部600 km之外的Beardmore和Scott冰盖相对应;Zattin等[71]对南极洲西罗斯海沉积物物源判别的研究中,利用磷灰石U-Pb年龄和AFT年龄将源区物质分为快速冷却和缓慢冷却2类,快速冷却的火成磷灰石表明始新世—渐新世在Mount Morning大火成岩省前部存在一个未知的火山。缓慢冷却的磷灰石的AFT年龄比临近的中央山脉年轻,表明沉积物大部分来自Discovery Accommodation带,仅少部分来自Royal Society山脊,而AFT和AHe之间的差值表明始新世中央山脉的中等—快速的冷却事件。

5.3 磷灰石同位素地球化学

磷灰石的Sr和Nd含量较高而Rb含量较低,因此Sr-Nd同位素可以提供相应的地球化学信息,但是磷灰石中的Sr会有显著的成分分带现象[72,73]。侯可军等[74]利用LA-MC-ICP-MS技术,建立了磷灰石原位Sr-Nd同位素分析方法,可以避免成分分带带来的影响,提供更加精确的地球化学信息。

磷灰石Lu-Hf同位素常用LA-MC-ICP-MS方法测定,与传统的热电离质谱法相比,具有适用范围广、精确度高、流程简单、周期短的优点[75]。Cherniak[76]认为磷灰石中REE的封闭温度大于等于700 ℃,Barfod等[77]在美国纽约州Adirondack洼地的研究中认为磷灰石中Lu-Hf体系的封闭温度为675~700 ℃。根据上述研究,David等[8]保守估计磷灰石中Lu-Hf体系的封闭温度为675~750 ℃。磷灰石Lu-Hf年龄能够表示其形成年龄,而且与母岩全岩Lu-Hf年龄具有一致性[78],因此可表示母岩的形成年龄,在一些母岩年龄较难测定时,磷灰石Lu-Hf为一种有效的解决途径。目前未见有碎屑磷灰石Lu-Hf体系应用于物源分析中的报道,但碎屑锆石Lu-Hf体系已被用于物源分析中[79,80],由于磷灰石Lu-Hf年龄可表征母岩年龄,对母岩时代的限定存在一定潜力,或在将来成为物源分析的手段之一。

此外磷灰石的Sm-Nd、O-S、O-C同位素能够反映其形成时的地质环境[81,82,83],主要应用于矿床成因分析、岩浆演化、变质及退变质作用、沉积条件再造等方面,在物源分析方面具有一定潜力,如Malusà等[12]对意大利波河河流沉积物的研究中,首次报道了磷灰石Sm-Nd同位素在物源分析当中的应用。

6 结 语

碎屑磷灰石作为初次沉积旋回的代表矿物,蕴藏着大量的源区信息,是非常重要的物源指针,随着分析技术的进步和精度的提高特别是原位分析技术的出现,碎屑磷灰石在物源分析中的作用日渐增强。

由于不同来源的磷灰石具有明显差异,因此可以利用沉积区的碎屑磷灰石进行物源判别。碎屑磷灰石在物源判别中的应用可归纳为以下几个方面:①元素地球化学方面: CART、REE参数二元图解投图和REE球粒陨石标准化配分模式;②年代学方面:AHe年龄、AFT年龄和U-Pb年龄及多法定年;③同位素方面:磷灰石的Sr-Nd同位素、Lu-Hf同位素等。

目前,国内在碎屑磷灰石物源判别的研究处于起步和探索阶段,并且存在一些问题亟需解决:①磷灰石的地球化学数据库仍需扩大,部分岩石特别是低级变质岩的磷灰石还需要开展大量的研究工作;②关于磷灰石U-Pb年龄的意义仍需要进一步确认;③部分类型岩石中的磷灰石存在成分分带,应确定一种方法避免成分分带对元素地球化学和年代学的研究带来影响。这些问题或成为碎屑磷灰石物源分析研究的新方向。

The authors have declared that no competing interests exist.
