过去50年深海钻探计划(DSDP)、大洋钻探计划(ODP)及综合大洋钻探计划(IODP)等国际间综合深海钻探计划的实施,使我们对地球和海洋的认识取得了显著进步。海底井控观测装置(CORK)的研发和应用是上述深海钻探计划带给我们的最宝贵财富之一。目前地球科学和海洋科学已由过去的间断性观测模式升级为现在的连续性原位观测模式,海底CORK观测系统为地球科学、海洋科学与生命科学领域的科学家对海底洋壳复杂而又相互关联的深部过程进行数秒至数十年时间尺度的研究提供了新手段和新机遇。通过对海底CORK观测系统的发展演变、在ODP和IODP航次中的使用以及在此过程中获得的科学经验和教训进行总结,对CORK系统如何应用于我国洋壳地质学、水文学、微生物学及生物地球化学过程研究提出看法。
关键词：
Abstract
In the past 50 years, we have witnessed remarkable progress in our understanding of the Earth and ocean system, as a result of the internationally integrated deep ocean drilling programs, the Deep Sea Drilling Program (DSDP), the Ocean Drilling Program (ODP), and the Integrated Ocean Drilling Program (IODP). One of the legacies of the deep ocean drilling programs is the development and applications of the CORK, Circulation Obviation Retrofit Kit. Earth and ocean sciences have been shifting from a traditional discontinuous, expeditionary mode toward a mode of sustained in situ observations today. The seafloor CORK observatories offer Earth, ocean and life scientists new opportunities to study multiple, interrelated deep marine subsurface processes, over time scales ranging from seconds to decades. Here, we first provided a concise examination of the development history of the CORKs, then described the first installations of ODP CORKs, the evolution of different models of CORK, and finally, summarized the scientific lessons learned in the installation and operation effort of the CORKs. In the end, we offered our perspectives on using CORKs to study geological, hydrogeological, microbiological, and biogeochemical processes in the deep marine subsurface biosphere, particularly pertaining to China’s efforts in establishing and enhancing its deep-sea and deep-biosphere research and monitoring programs.
Keywords：
洋壳含水层是地球上最大和最为连续的含水层,其含水量与冰盖和冰川的含水量相当,它构成了所谓的“海底之下的大洋”[1,2],同时也是深部生物圈的主要组成部分[3](图1)。但是海底是“漏”的[5]:海水在海底沉积物和洋壳玄武岩中流动,并在洋壳内的断层、裂隙以及其他可渗透性通道中活跃地进行循环,由此形成了海洋与洋壳间的流体、热量、溶质和生物物质交换和再分配[6,7,8,9];每200 ka全部海水在这种洋壳大规模动态通道系统中完成一次循环[10]。因此,研究洋壳水文地质学、地壳深部生物圈以及海水、岩石与生物之间的相互作用,进而探索海底资源的形成与分布、元素循环及全球气候变化,具有重大理论与实际意义。
深海钻探计划(Deep-Sea Drilling Program,DSDP,1968—1983年)、大洋钻探计划(Ocean Drilling Program,ODP,1983—2003年)和综合(国际)大洋钻探计划(Integrated/International Ocean Drilling/Discovery Program,IODP,2003—2013年;2013—2023年)开展的50年是地球科学特别是海洋科学极富成效和创造力的50年。科学家能在全球范围内定期取回海底沉积物芯和玄武质洋壳岩芯样品,这为地球科学和生命科学带来了前所未有的思维变革。这期间还涌现出了诸多新的理论,包括板块构造学说的发现、全球气候变化的阐明、海底热液口及其所支撑的生物群(化能合成)的解密等;尤其引人瞩目的是,在这期间我们已经认识到在深部生物圈(包括大洋沉积物以及结晶洋壳)中还存在一个巨大的海底生物群[11]。海底井控观测装置(Circulation Obviation Retrofit Kit,CORK)技术的发展,使其已广泛应用于洋壳水文地质学、微生物学及生物地球化学等的长期研究中,该装置可实现对洋壳温度、压力、流体通量及微生物群落的实时观测和原位实验。本文首先对CORK的发展历程做简要回顾,其次对CORK首次在ODP和IODP航次中的布放以及不同类型CORK的变革和发展进行阐述,同时总结在CORK布放和操作过程中获得的经验教训,最后,对CORK如何应用于洋壳水文地质学、微生物学及生物地球化学研究提出自己的观点。
大洋科学钻探使地球科学取得了突破性进展,此外,深海科学钻探还在专业钻探和取芯工具及技术的研发应用方面为我们积累了非凡财富。这些特殊的工具和技术有助于科研人员获取不同环境条件下的高质量岩芯或沉积物芯样品,同时还可实施海底原位长期系列观测,CORK的开发利用便是其中最好的范例之一,我们称之为“深海钻探计划之子”。
深海钻探开始的最初20年,大多数DSDP和ODP钻孔在取样后均被遗弃,仅1%~3%的钻孔配备了用于后期进行仪器设备布放的再入圆锥筒(reentry cone)[12]。即便如此,科学家依然能够获得沉积物芯或岩芯样品,并在对这些未封闭的DSDP和ODP钻孔中渗透层与洋底海水间立面流热状态进行监测和解译方面积累了丰富经验[12,13,14,15]。然而,通过深海钻探仅能获取钻探点的洋壳样品,而洋壳地质、地热、水文、微生物生态和生物地球化学过程是区域性和全球尺度的,这些过程不但改变着洋壳成分,也改变着洋壳含水层中循环流体的化学成分[16]。因此,遗弃这些钻孔是科学界的重大损失[17]。研究发现,钻孔中的流体可通过沉积物渗透到玄武质洋壳或基底,进而对洋壳地热、水文以及微生物系统产生严重扰动,同时也导致了流体、溶质和微生物在海底沉积物与基底及其上的海水间的活跃交换[3,15]。很显然,将海底钻孔封闭起来是非常必要的,这样一方面可以阻止上述交换过程的发生,恢复海底地热和水文系统平衡,另一方面,也使我们的洋壳原位观测(温度、压力、水文参数等)成为可能。此外,为了更好地研究洋壳水文系统,获取空间上和时间上连续的观测数据也十分必要。
1989年,当Carson,Becker 和Davis在一张餐巾纸上绘出CORK的最初草图时,“海底井控观测装置”的概念也应运而生(图2),这是深海海底钻探在取样和观测技术上的革命性发展。这张草图作为插图被用在上述作者1990年分别向加拿大地质调查局和美国国家自然科学基金会提交的2份项目申请书中,这2个项目是他们申请资助在1991年首次布放CORK。1991年夏天,ODP139航次在Middle Valley扩张中心成功完成了最早的2个CORK的布放[18]。
CORK是Circulation Obviation Retrofit Kit的首字母缩写,由ODP执行主管Glen Foss提出[15]。最初CORK的结构和功能均与红酒瓶的软木塞有某种程度相似。“CO”是“封闭”钻孔的意思,意即对钻孔进行控制,阻止洋壳地层与海底海水间发生流体交换;如果钻入洋壳水文地质条件活跃地层的钻孔没有封闭,这种交换的发生是可以预期的。“RK”是“(重新)进入”的意思,指不论是近期的新钻孔还是20年前的老钻孔,通过再入圆锥筒均可再入钻孔并安装仪器设备进行科学实验和观测[15]。
图3展示了不同型号CORK装置的基本结构,其主要组成包括:①再入圆锥筒与套管系统(Reentry Cone and Casing system,RECC);②CORK主体,用于封闭钻孔顶部的套管;③长期数据记录仪与传感器链。RECC系统是永久性海底装置,最多可装配4个相互嵌套的套管,起着支撑海底松散沉积物、使观测设备到达深部地层的作用。为提高钻孔长期观测、采样及数据收集的质量,RECC系统允许反复进行钻孔加深及观测设备的布放。由此,我们可根据需要将CORK配置为初始CORK,ACORK或其他类型CORK。 此外,为阻止钻孔与海水或洋壳地层间的水和物质交换,还需对钻孔深部套管进行水泥封闭。
过去几十年间,已有数十个CORK被布放于不同海域的海底,科学家通过这些装置获得了大量研究数据,研制海底观测设备的技术手段也在此过程中不断提升。随着科技进步与观测系统应用范围的扩大,CORK已在初始CORK研发的基础上衍生出了另外4个新的版本[15,19,20],简述如下:
初始CORK:这是最初的单封闭型CORK,是由再入圆锥筒形成的单一的、在垂向上无分隔的钻孔密封装置,温、压监测器及数据记录仪连接在被再入圆锥筒密封的钻孔中;该装置通过再入圆锥筒上的一个阀门进行流体采集,主要应用于洋壳水文观测(图3a)。ODP实施过程中已有14套该类观测装置布放于被沉积物覆盖的年轻洋壳或海底俯冲带中[15]。

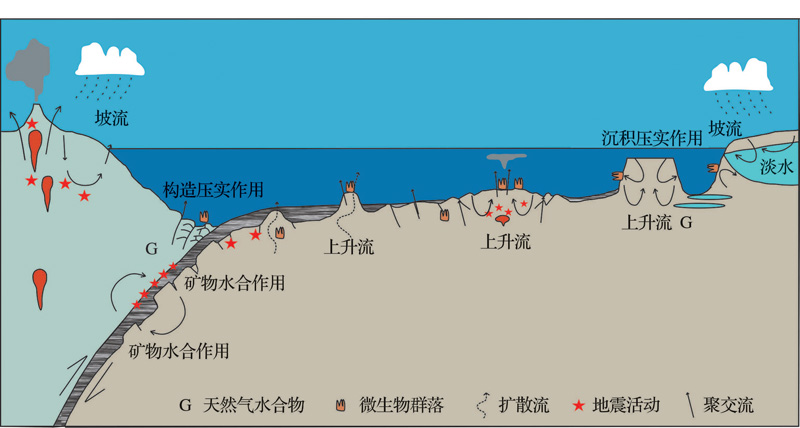

图1 全球海底水文地质系统活动特征示意图(据参考文献[
Fig.1 A scheme showing characteristic marine hydrogeologic systems that may occur throughout the global ocean(modified after reference[4])

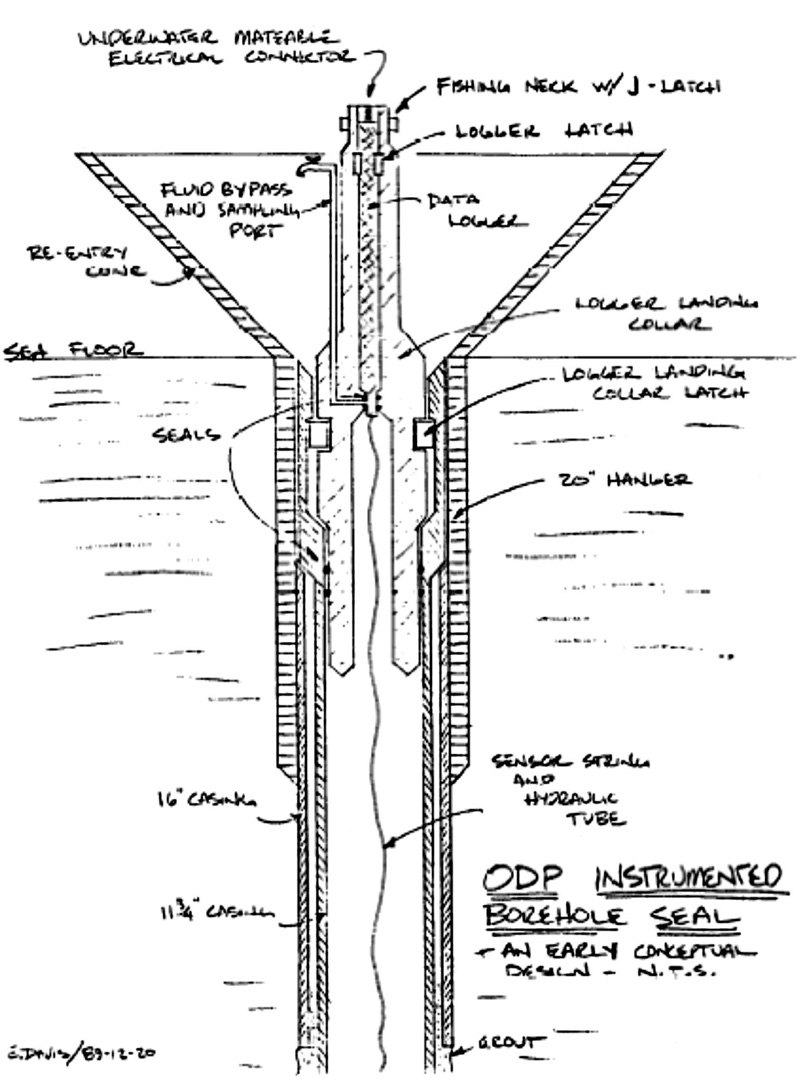

图2 Carson B,Becker K和Davis E于1989年在餐巾纸上绘制的最早的海底井控观测装置概念示意图[
Fig.2 The early conceptual sketch of the instrumented borehole seal, drawn on a dinner napkin by B. Carson, K. Becker, and E. Davis in 1989[
然而,科学家很快意识到,这类海底钻孔密封装置获得的监测数据为整个钻孔不同层位的平均值,无法对不同深度地层进行分层研究。于是,1998年开始,4种新型CORK相继问世——ACORK,CORK Ⅱ,有缆型CORK和L-CORK。
ACORK:改进型(advanced)CORK(图3b)。用多个分隔器(packer)在单一钻孔内将所钻洋壳在垂向上分隔成互不连通的观测层位[11,15,20],套管外的传感器链穿过分隔器,将不同层位获取的数据传输至装置顶部。套管中央还可单独携带一条传感器链。2套ACORK已于2001年布放于Nankai海槽增生楔地层中(ODP196航次)[21]。
CORK Ⅱ:是一类增加了地震/地层应变量监测器的钻孔观测系统。如图3c所示,CORK Ⅱ通常使用直径较小的分隔器、透流窗(screen)和脐带取样管(umbilical),它们被安装在直径11.43 cm的套管上,而11.43 cm套管则悬挂在IODP标准40.64~27.3 cm的套管内[12]。目前已有2套CORK Ⅱ布放于哥斯达黎加俯冲边界上 (ODP205航次)[22]。
有缆型CORK(Wireline CORK,图3d):是一种有缆绳连接的多分隔观测系统[22],通过常规科考船上的专控运载工具在可以多次进入的钻孔中进行布放[23]。这类多功能多分层观测系统配备有透流窗[24]、电热调节器链[25]、长期流体采样器[26]、原位微生物实验设备[27] 或应变监测仪[28]。2套有缆型CORK已于2001年布放在哥斯达黎加裂谷南部的新生洋脊上[22]。

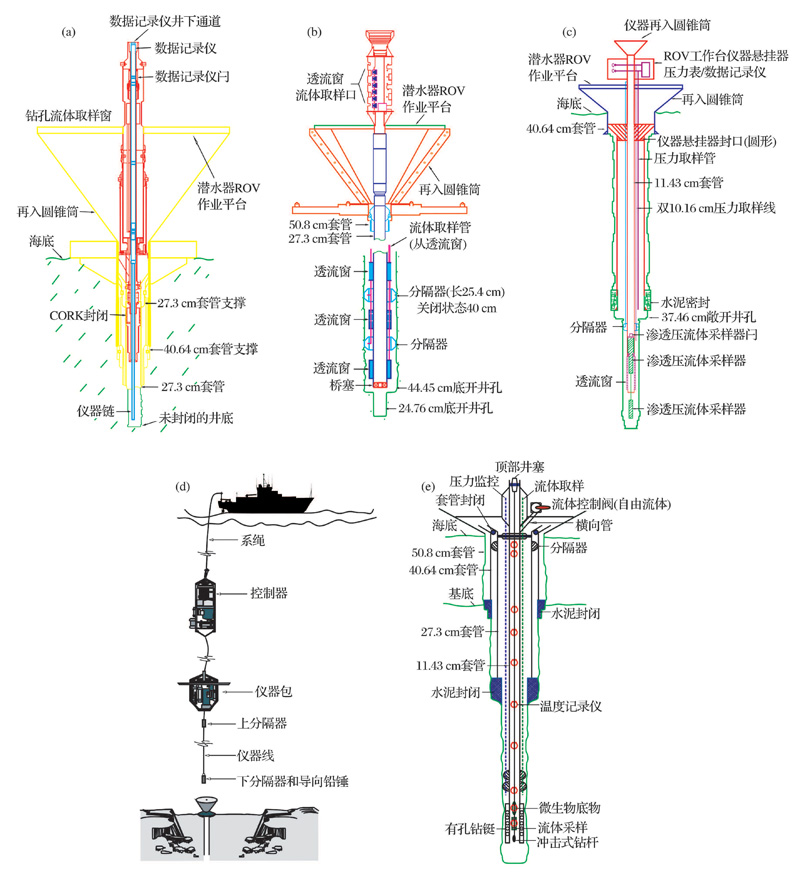

图3 CORK观测系统工程示意图(据参考文献[
(a)初始CORK;(b)改进型CORK;(c)CORK II;(d)有缆型CORK;(e)L-CORK
Fig.3 Engineering schematic of the CORKs (modified after reference[15])
(a) The original CORK; (b) ACORK; (c) CORK II; (d) Wireline CORK; (e) L-CORK
L-CORK(Lateral CORK)和天才井塞(genius plug):L-CORK由CORK II发展而来,因其使用更为方便且更具确定性和保障性而被称为天才井塞(图3e)。其主要有5个方面的改进[9,29]:①增加了一个与CORK主体上端管道连接的直径10.2 cm的球阀,由此便可安装感应流量计,从而提供一个与钻孔内传感器和采集器相接的新通道。②增加了一个顶部阀门,用于避免出现IODP301航次所遇到的安装顶部井塞的问题[9]。③增加了备用充气型和遇水膨胀型分隔器,强化了对钻孔的密封。膨胀型分隔器长1.5 m,材质为FREECAP FSC11聚合体。④CORK布放机制的改变:将钻孔中所有渗透压流体采样器(OsmoSampler)置于带孔的、有环氧树脂涂层的钻铤中,从而避免因暴露在套管外而被埋藏。安装钻铤的另外2个好处是:增加套管的强度(ODP 195和206航次、IODP301航次CORK安装的失败可能与此有关)[9];其内外所涂的环氧树脂可减少微生物学和地球化学研究过程中的污染问题[27]。⑤增设了耦合器系统和相关的新阀门,可通过脐带取样管采集钻孔内流体。IODP327航次于2012年在胡安·德富卡洋脊(Juan de Fuca Ridge)1362A和1362B站位布放了L-CORK,用于研究地壳演化、洋壳水文地质学、地球化学循环、微生物生态和生物地球化学过程 (图4)[9,10]。
上述分布在不同海域、时间上可进行长期连续观测的CORK在科学研究中具有十分重要的应用价值[17],可以帮助我们:①获取可靠的孔隙水压力数据;②通过测定地层对潮汐和海底地震载荷的响应,取得洋壳地层弹性与水文特性资料[24,30];③通过大范围、长期连续观测,获取如地震、滑塌、深部海底紊流等瞬时事件记录,并通过数据来分析该类事件发生前的环境变化[24,31];④找到与幕式流体流动或地震前兆有关的温度异常[25,32];⑤获取流体化学成分及地层渗透率实时变化数据[32];⑥通过直接注入特定化学成分的流体或采集深部流体,对海底地层中微生物群落及其生命过程进行研究[27,33]。Becker等[15]对可以安装在CORK上的各类实验设备进行了总结。
自CORK首次在ODP139和146航次布放成功后,截止2011年,ODP和IODP已先后布放了28个CORK观测站用于开展海底探测和研究工作(图5)[16]。这些CORK观测系统主要用于研究固体地球和地球物理[34]、洋壳水文地质学(包括示踪实验[29] 和区域水文学响应[35]、流体地球化学和流体迁移[8,16,36~39])及深部生物圈微生物学和生物地球化学[27,40~42]。CORK 布放和研究最多的区域是胡安·德富卡洋脊(图5)。IODP327航次在此洋脊东侧的U1362B钻孔基底上部注入示踪剂,并进行了单孔和跨孔示踪实验(图4)[10]。 Geoffrey等[16]通过在此洋脊进行连续4年的钻孔流体采样,研究了海水—玄武岩—微生物间的相互作用。他们将CORK安装在穿过262 m厚沉积物和108 m厚玄武岩的基底上,通过研究该洋脊东侧洋壳海水的补给排泄揭示了该区域的热力学、水文学和地球化学过程以及微生物代谢。

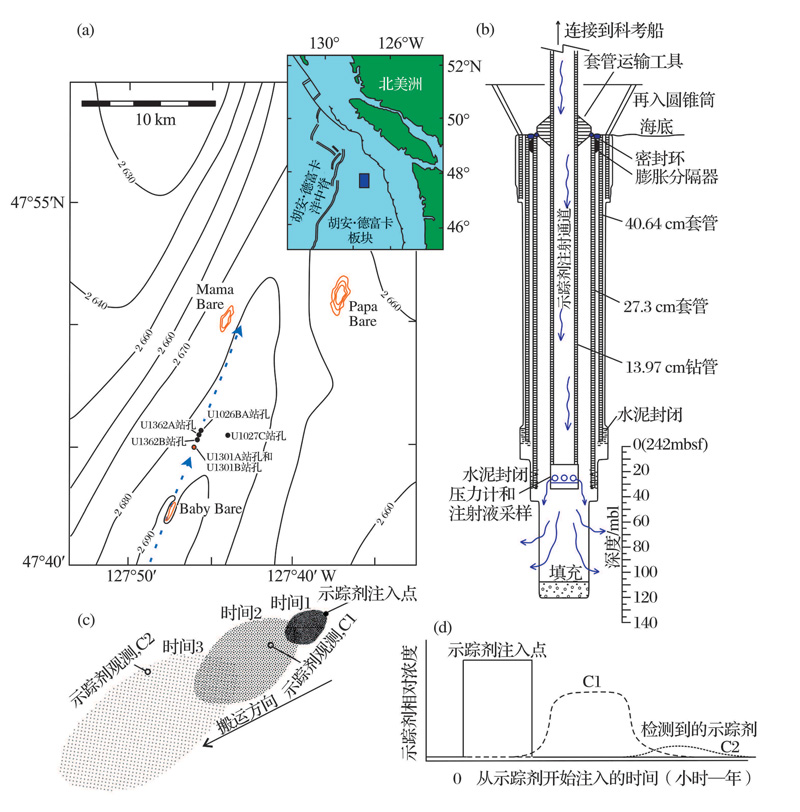

图4 IODP327航次在胡安·德富卡洋脊东侧进行的跨钻孔示踪实验(据参考文献[
(a)CORK观测站位置及跨钻孔示踪实验的海底地形图:示踪剂溶液注入U1362B钻孔中,利用整合在CORK观测系统中的自动取样器在U1301A,U1301B,U1362A,1026B和U1362B钻孔中对示踪剂的到达进行观测,蓝色虚线箭头指示推断流体在基底流动的趋势方向;内插图中的蓝色方框指示了主图的分布区域;主图等高间隔为10 m,红色轮廓表示基底露头;(b) 有限时间内注入示踪剂导致羽流形成的示意图;(c) 所注入示踪剂的穿透曲线;(d) U1362B钻孔示踪剂注入几何简图
Fig.4 Cross-hole tracer experiment at the eastern flank of the Juan de Fuca Ridge during IODP Expedition 327 (modified after reference[10])
(a) Bathymetric map illustrating the locations of borehole observatories at the site. Tracer solution was injected in Hole U1362B. Tracer arrival was monitored with automated samplers integrated with CORK observatories in Holes U1301A, U1301B, U1362A, and 1026B and also in Hole U1362B. Blue dashed arrows indicates general direction of inferred fluid flow in basement. Blue rectangle in the insert shows the area of themain figure. Contour interval = 10 m, red contours = basement outcrops; (b) Tracer is injected for a finite time, leading to formation of a plume; (c) Breakthrough curves of the injected tracer; (d) Schematic illustration of tracer injection geometry in Hole U1362B
Becker等[15]对这些年在ODP 和IODP的CORK布放与使用过程中获得的教训和经验进行了总结:
(1)CORK密封性和管道系统质量:CORK系统密封性的好坏是能否正确观察到瞬时及平均压力状态的关键。CORK的密封部位以及不同部位的管道(套管与地层之间、分隔器周围或钻孔附近没有封闭的辅助钻孔)均有可能产生渗露,这将会导致压力损失。要尽最大努力确保整个装置完全无泄漏。系统封闭性测试可通过热液系统观测来实现。
(2)系统顺应性:填充于CORK套管中的流体、ACORK与CORKⅡ取样管的压缩率以及分隔器或密封装置的顺应性均可导致压力信号失真。因此,进行系统设计时需尽量缩小液压管直径并清除其中的空气或其他游离气体。目前尚不清楚分隔器对系统稳定性的影响,但其可能导致低渗透率地层中的高频信号失真。
图5 位于洋壳流体流动区域观测站点的CORK布放位置分布图[
JdF. 胡安·德富卡洋脊东侧(ODP168航次、IODP301和327航次); MV. Middle Valley(ODP139航次);Van和Or. Cascadia边缘(ODP146和IODP328航次);CR. 哥斯达黎加(ODP205航次);Bar. 巴巴多斯海岭(ODP156航次);NP. North Pond(ODP174B和IODP336航次);Nan.日本南海海槽(ODP196航次、IODP319和332航次);SCh.海山岛南部(ODP195航次)
Fig.5 Locations of CORK deployments, these observatories are located in regions where fluid flows through the oceanic crust[
JdF: Eastern flank of Juan de Fuca Ridge (Leg 168 and Expeditions 301 and 327); MV: Middle Valley (Leg 139); Van and Or: Cascadia margin (Leg 146 and Expedition 328); CR: Costa Rica (Leg 205); Bar: Barbados Ridge (Leg 156); NP: North Pond (Leg 174B and Expedition 336); Nan: Nankai Trough (Leg 196 and Expeditions 319 and 332); SCh: South Chamorro Seamount (Leg 195)
(3)采样及系统压力损耗:采集流体样品时,除非将采样器密封在取样地层中,否则利用CORK系统采集流体样品通常都会导致系统渗漏。在具有多个分隔器的CORK系统中,海底流体采样可通过一个小口径通道进行,通过对该通道进行适当平衡维护以使流体保持一定流速,这样可将采样器与海底间的转换时间最大限度缩短到可以接受的程度,但也不能无限度缩短,否则会造成压力丢失或热结构失真。渗漏的存在给低渗透率海底地层研究提出了巨大挑战。
(4)海水的侵入及扰动:在打钻过程以及钻孔完成而未密封之前,低温、高密度海水侵入地层会对地层造成较大扰动,高渗透率地层尤其如此。这种非原生流体会影响温度和压力的测量、置换地层水并影响原始地层流体样品的采集。选择自然的超疏水站点有助于规避上述问题,尽可能缩短钻孔开始钻入地层与钻孔密封之间的时间也可减弱上述影响,还可通过桥塞封堵或分隔器密封主套管底部周边来将上述影响最小化。
没有海底观测网的建立所提供的连续时间序列观测系统,将很难研究很多地球构造动力学体系。同样,空间上分布的CORK观测网对重建钻孔内海底地层原位状态平衡、了解洋壳水文地质状况及过程也是必不可少的。海底观测网的建立还有可能在全球地质灾害评估及监测方面发挥关键作用,这些灾害大多与沿大陆边缘的孕震区有关。此外,微生物学、生态学及生物地球化学研究也可能大多受益于这些依赖于空间和时间过程的时间序列观测网。比如,最近对深部生物圈的研究已经表明,洋壳中存在不同的微生物种群:古菌、细菌及其休眠芽孢[43,44,45,46,47,48,49]。因此,海底CORK观测系统可为地球科学和生命科学领域的研究者们提供独特的新手段和新机遇,以探究洋壳复杂的,与地质、水文、化学、生物及地球化学有关的过程,这些过程的时间尺度可从数秒到数十年,空间尺度可从海底表层沉积物到洋壳深部;同时,通过CORK观测网,科学家还可进行区域和流域尺度过程的相关对比研究。海底CORK观测网将为我们提供上述各种过程区域分布的、位置固定的时间序列观测,这将是对地球科学和生命科学研究中系统研究法的重要贡献。
首个长期海底观测站布放于胡安·德富卡洋脊(ODP139航次),持续14个月的压力记录显示,在洋脊渗透性极强的上基底中存在着滞留时间极短的高通量侧向流体活动[50,51]。首个跨钻孔观测系统(ODP168航次)和首个三维CORK观测系统(IODP301航次)同样展布于胡安·德富卡洋脊,它们继续向人们展示了高通量侧向流体及其高渗透性特性,它们还记录了与地震活动和潮汐有关的瞬变流[35]。根据以往CORK布放和使用已取得的经验和教训,我们推荐2种适合在西太平洋边缘(包括我国在内)建立CORK观测系统的模式:独立式CORK观测系统和电缆连接式CORK观测系统。
(1)独立式CORK观测系统(Stand-Alone CORKs, SACOs):一套CORK装置可满足独立海底观测站所需的所有基本要素,包括长期不间断进行海底地球动力学和水文学测量的稳定工作平台、在海底洋壳进行微生物学实验的实验室。然而,由于SACOs需要配备独立的动力和数据装置,这使得其与地面进行双向通讯和状态参数传输的能力受限,其实时或近实时数据的传输量也受到限制。高速光通讯调制解调器可为CORK获得的数据实施水下远程通讯传输[52]。水下光通讯调制解调器可为我们提供200 m范围内10 Mbps的高速数据传输,在该距离内的ROVs或AUVs无需直接连线或进行设备收回便可进行通讯[52]。
(2)电缆连接式CORK观测系统(Cabled CORK Observatories,CCOs):该观测系统通过光电连接器和电缆2种控制方式实现海底与陆地间的实时数据传输,从而帮助我们获得连续不间断的海底时间序列数据。CCOs相当于固定在海底的实验室,它不间断地产出实时数据,还可进行交互式原位实验,甚至还具有监测海底事件并作出响应的能力。我们可对通过电缆网与陆地相连的传感器包进行标准化,从而测量海底的关键化学和物理参数(温度、压力、氧气浓度和pH值等)。
海底CORK观测网的建立,为科学家对海底生物圈进行数秒到数十年时间尺度的地质学、地热学、水文学、化学、微生物学与生物地球化学过程基础研究提供了手段,这是地球科学、海洋科学以及生命科学获得新发现、取得重大进展的重要基础。这些不同学科领域取得的发现和进展,已在诸如地震等自然灾害评估与减防、深部海底微生物在全球微生物地球化学循环与全球气候变化中的作用、矿物及生物资源的形成与分布、宇宙生命的形成及演化等诸多方面带来了重大影响。例如,深部生物圈可能代表着地球上最大的生态环境聚集地,它向海底和陆地表面下方延伸达数千米范围,其体积比地球洋盆的体积至少高出2个数量级,可能蕴藏着地球上巨大的生物量[53]。深部生物圈微生物对地球上的生物地球化学循环具有关键性的影响,包括碳循环、能量流动、物质循环和气候变化等[3]。由于深部生物圈中蕴育着大量人们尚未探知的生物地球化学过程,因而使得针对深部微生物系统的动态变化过程的调查成为地球科学和生命科学研究最具生命力的领域之一。CORK观测站的建立为采集深部生物圈流体(水、气体)样品、进行微生物原位培养和观测,进而研究深部生物圈微生物介导的生物地球化学过程提供了前所未有的崭新平台。利用我国自己的资源和人材构建海底CORK观测系统,还将为国家培养一大批高精尖海洋科技人才,为我国海洋科学飞速发展、尽快跻身世界海洋强国行列奠定坚实基础。
