郯庐断裂带肥东段早白垩世中期走滑运动的年代学证据
韩雨( ), 牛漫兰 *( ), 朱光, 吴齐, 李秀财, 王婷
  1. 合肥工业大学资源与环境工程学院, 安徽 合肥 230009
  • 出版日期:2015-09-16
  • 通讯作者: 牛漫兰 E-mail:hanyu120@126.com;hfnml@163.com
  • 基金资助:
    国家自然科学基金项目“郯庐断裂带南段晚中生代岩浆活动的成因与机制”（编号：41172201）资助

Geochronological Evidence for the Middle Early Cretaceous Strike-slip Movement from the Feidong Segment of the Tan-Lu Fault Zone

Yu Han, Manlan Niu, Guang Zhu, Qi Wu, Xiucai Li, Ting Wang

  1. School of Resource and Environmental Engineering, Hefei University of Technology, Hefei 230009, China
  • Online:2015-09-16 Published:2015-09-16
全文 ( 2 )

郯庐断裂带肥东段西韦地区和桃花源地区出露了大规模的北北东向韧性剪切带。桃花源地区韧性剪切带显示出2期构造变形的叠加。野外构造和显微构造分析皆指示为左行走滑韧性剪切带。糜棱岩中石英与长石的变形行为指示其变形温度分别为400~450 ℃和500 ℃。通过对这两处走滑剪切带内糜棱岩化花岗岩脉的锆石LA-ICP-MS定年,获得了3个样品的侵位年龄分别为（133.2±1.9）Ma,（131.3±2.0）Ma,（130.3±2.0）Ma。再结合已有的研究成果,认为在128~124 Ma（早白垩世中期）郯庐断裂带发生过左行走滑活动。综合分析表明,郯庐断裂带在晚侏罗世和早白垩世中期分别经历了2期左行走滑活动,而期间和之后的早白垩世则处于伸展活动之中。伸展活动持续较长,控制发育了西侧的合肥盆地及断裂带内一系列岩浆活动;而区域挤压背景下出现的走滑活动则相对短暂。这些演化规律显示该断裂带在晚侏罗世—早白垩世呈现为交替式的走滑和伸展活动。新发现的早白垩世中期走滑活动,与太平洋区伊泽纳崎板块板块运动方向的调整相对应,是大洋板块运动方向短暂调整的构造响应。

关键词: 郯庐断裂带, 变形岩脉, 锆石U-Pb定年, 早白垩世走滑活动, 韧性剪切带

A large-scale NNE-striking ductile shear belts are exposed inXiwei and Taohuayuan areasfrom the Feidongsegment of the Tan-Lu Fault zone. There is two phases of deformation in the ductile shear belt from Taohuayuan areas. Field structures and microstructures indicate sinistral ductile shear sense. Deformation behaviors of quartz and feldspar in mylonites from the shear belts demonstrate that deformation temperatures are 400~450 ℃ and ca. 500 ℃, respectively. Three mylonitized granite dikes in the ductile shear zone were dated by the zircon LA-ICP-MS method, and obtained weighted mean ages of (133.2±1.9) Ma,(131.3±2.0) Ma, and (130.3±2.0) Ma, respectively. Combined with previous research results, a sinistralstrikeslip of 128~124 Ma（middle Early Cretaceous）was identified. These results furtherimply that the strike-slip movement of the Tan-Lu Fault Zone took place in Late Jurassic and middle Early Cretaceous respectively since collision of the North and South China plates, and the fault zone was under the setting of extension in earlier and later Early Cretaceous. Extensional movement of the fault zone controlled the development of the Hefei basin to the west and magmatism along the fault zone, and the extensional movement lasted longer than the strike-slip movement. The Tan-Lu Fault Zone presented alternative the strike-slip and extensional movement from the late Jurassic to Early Cretaceous. The middle Early Cretaceous sinistralstrike-slip is a tectonic response to short-term adjustment of the Izanagi Plate motion directions and has a close relationship.

Key words: Tan-Lu Fault Zone, Deformed dikes, Zircon U-Pb dating, Sinistral strike-slipping in middle Early Cretaceous, Ductile shear belt

中图分类号:

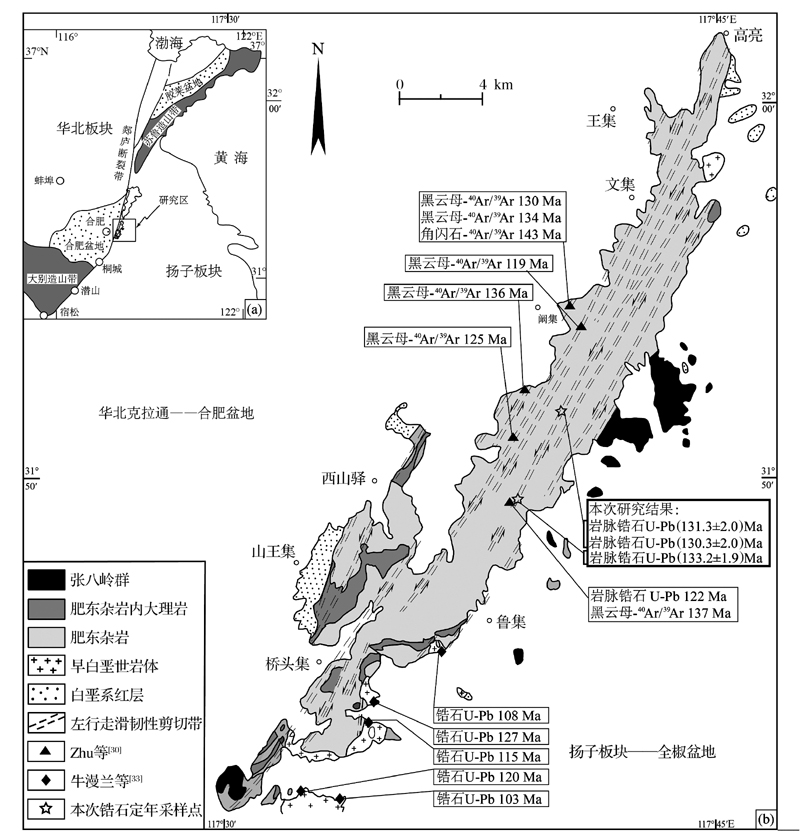

图1 郯庐断裂带肥东段地质简图及相关年代学数据
Fig.1 Simplified geological maps of the Feidong segment of the Tan-Lu Fault Zone and related chronology date

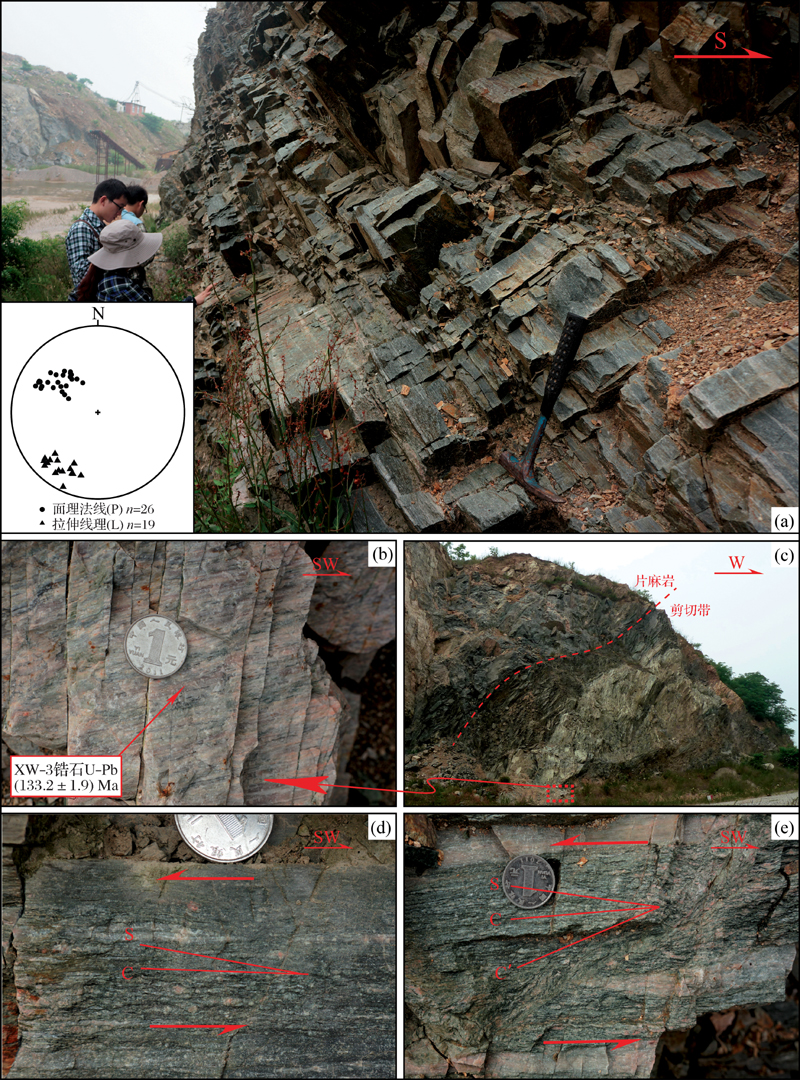

图2 西韦地区郯庐走滑韧性剪切带野外照片与变形组构赤平投影 （a）北东走向走滑韧性剪切带;（b）定年岩脉（XW-3）变形现象;（c）剪切带与围岩接触关系及定年岩脉XW-3空间位置;（d）S-C组构指示剪切带为左行;（e）S-C组构组构及Cˊ构造指示剪切带为左行走滑
Fig.2 Field photos of the ductile shear belt and the fabric stereographic projection in Xiwei area （a）NE-striking ductile shear belt;（b）Deformation of the granite dike（XW-3）;（c）Contactrelationship between the shear belt and surrounding rock, position of the granite dike（XW-3）; （d）S-Cfebricindicate sinistral shear sense; （e）S-C and Cˊfebricindicate sinistral shear sense
图3 郯庐断裂带肥东段西韦和桃花源地区糜棱岩显微照片 （a）西韦地区糜棱岩中石英成条带状,长石变形行为主要是显微破碎,书斜构造指示剪切方向为左行;（b）西韦地区定年样品XW-3镜下特征,细粒化显著,长石边缘的石英被塑性拉长形成拖尾;（c）桃花源地区糜棱岩基质中主要为长石、石英、黑云母,残斑主要为长石和少量的黑云母、石英;（d）桃花源地区糜棱岩中的长石边缘发生明显的动态重结晶,σ型残斑指示剪切方向为左行;（e）定年样品TY-7镜下特征,初糜棱岩中石英发生明显的动态重结晶,长石发生显微破碎与边缘动态重结晶;（f）定年样品TY-8镜下特征,初糜棱岩中石英发生动态重结晶并形成S-C组构,长石发生明显的塑性拉长
Fig.3 Photomicrographs of mylonites fromXiwei and Taohuayuan areas in the Feidong segment of the Tan-Lu Fault Zone （a）Quartz is mainly strip-shaped andthe deformation behavior of feldspar is mainly microscopic broken in mylonites fromXiwei, feldspar is broken to domino-style and indicates sinistral shear sense;（b）Mylonite XW-3with σ-type feldspar porphyroclast surrounded by Elongated quartz; （c）Mylonite from Taohuayuan,the matrix is dominated feldspar, recrystallized quartzand fine biotite. The porphyroclast is mainly composed of feldspar, quartz, biotite; （d）Aσ-type feldspar porphyroclast surrounded by dynamically recrystallized feldspar indicates sinistral shear sense; （e）Protomylonite TY-7, Quartz dynamic recrystallization, feldspar porphyroclast surrounded by dynamically recrystallized feldspar;（f）Protomylonite TY-8 with quartz dynamic recrystallization and S-C fabricsindicates sinistral shear sense
表1 郯庐断裂带肥东段西韦和桃花源地区糜棱岩显微镜下鉴定表
Table1 Results of microscopic identification for mylonites from Xiwei and Taohuayuan areas in the Feidongsegment of the Tan-Lu Fault Zone
样品号 采样位置 岩石类型 矿物组合 石英动态重结晶形式 长石变形行为 估计变形温度
XW6-1 西韦 糜棱岩 P（15%）：Feld+Qz M（85%）：Feld+Qz+Bi SR 显微破碎+
塑性拉长		 400~450℃
XW6-2 西韦 超糜棱岩 P（5%）：Feld M（95%）：Feld+Qz+Bi+MS SR 显微破碎为主 400℃±
XW6-3 西韦 糜棱岩 P（25%）：Feld+Qz+Hb M（75%）：Feld+Qz+Bi SR+GBM 显微破碎+
塑性拉长		 400~450℃
XW6-4 西韦 糜棱岩 P（35%）：Feld+Qz+Hb M（65%）：Feld+Qz+Bi SR 显微破碎为主 400℃±
XW-2 西韦 超糜棱岩 P（90%）：Feld+Qz M（10%）：Feld+Qz+Bi+MS SR 显微破碎为主 400℃±
XW-3
定年岩脉		 西韦 糜棱岩 P（40%）：Feld M（60%）：Qz+ Feld +Bi SR 显微破碎为主 400℃±
XW-4 西韦 糜棱岩 P（40%）：Feld+Hb+Bi M（60%）：Feld+Qz+Bi SR 显微破碎为主 400℃±
TY-2 桃花源 糜棱岩 P（20%）：Feld+Qz+Hb M（80%）：Feld+Qz+Bi SR+GBM 塑性拉长与
部分动态重结晶		 500℃±
TY-4 桃花源 糜棱岩 P（30%）：Feld+Qz M（70%）：Feld+Qz+Bi SR+GBM 塑性拉长与
部分动态重结晶		 500℃±
TY-6 桃花源 糜棱岩 P（15%）：Feld M（85%）：Feld+Qz+Bi SR+GBM 塑性拉长与
部分动态重结晶		 500℃±
TY-7
定年岩脉		 桃花源 初糜棱岩 P（70%）：Feld+Qz M（30%）：Qz+ Feld +Bi SR+GBM 显微破碎+
塑性拉长		 450℃±
TY-8
定年岩脉		 桃花源 初糜棱岩 P（80%）：Feld+Qz+Bi M（20%）：Qz+ Feld +Bi SR 塑性拉长与
部分动态重结晶		 500℃±
TY-10 桃花源 初糜棱岩 P（80%）：Feld+Qz+Bi M（20%）：Qz+Feld+Bi SR+GBM 塑性拉长与
部分动态重结晶		 500℃±

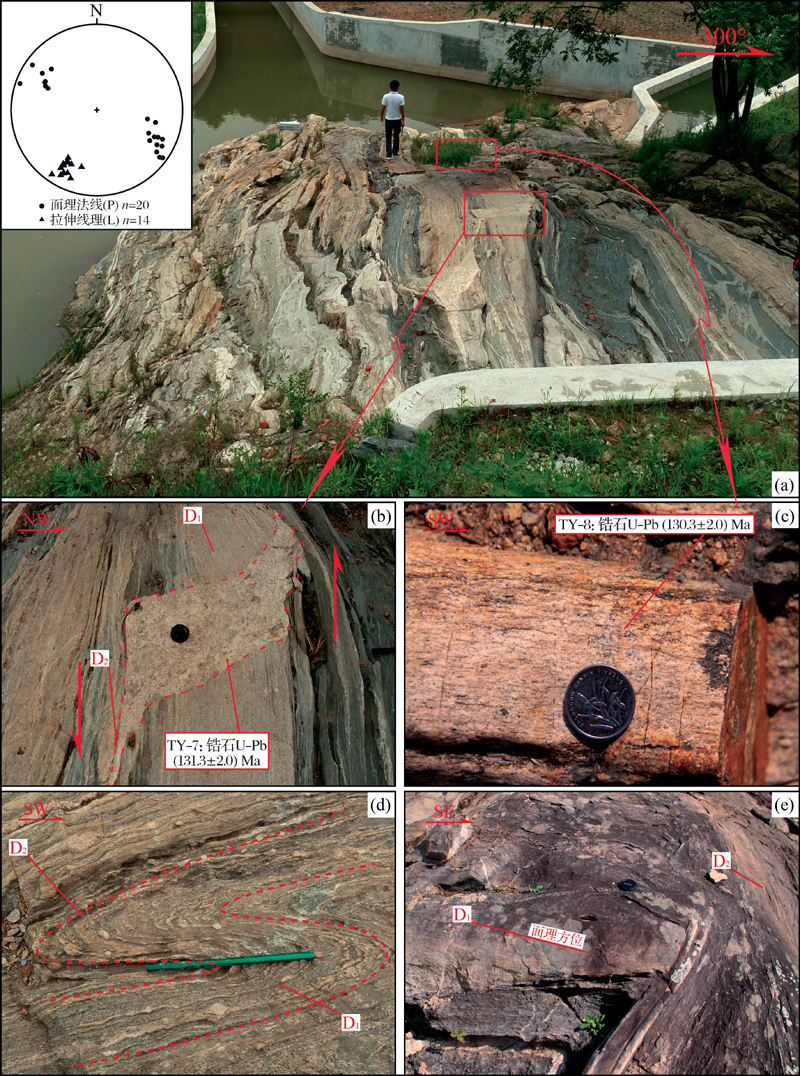

图4 桃花源地区郯庐走滑韧性剪切带野外照片与变形组构赤平投影 （a）韧性剪切带远景;（b）切穿早期面理的伟晶花岗岩脉（TY-7）在后期变形中布丁化,拖尾指示左行;（c）定年变形岩脉（TY-8）的变形现象;（d）剪切带内早期面理褶皱呈S形;（e）早期糜棱面理被后期构造错断;D1:第一期变形;D2:第二期变形
Fig.4 Field photos of the ductile shear belt and the fabric stereographic projection in Taohuayuan area （a）Photo ofthe ductile shear belt;（b）The pegmatite dike（TY-7）cut across early mylonite foliationand deformed by D2, Elongated dike indicatesinistral shear sense; （c）Deformation of the granite dike（TY-8）;（d）S-shaped foldofearly mylonite foliation; （e）early mylonite foliation(D1) are deformed by D2; D1:The first phase of deformation ; D2:The second phase of deformation

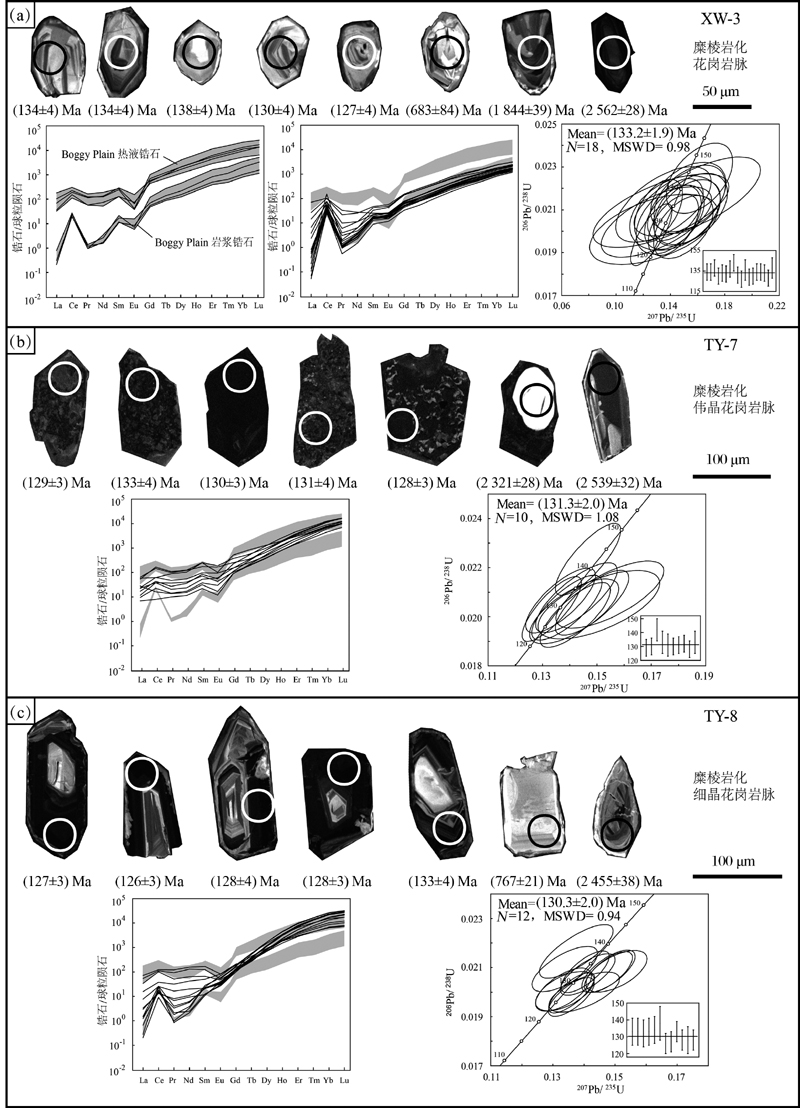

图5 糜棱岩化岩脉锆石CL图像、锆石稀土元素球粒陨石标准化配分曲线和锆石U-Pb年龄谐和图 Boggy Plain岩浆锆石与热液锆石数据引自参考文献[ 61 ];球粒陨石标准化数据引自参考文献[ 62 ]
Fig.5 The CL images,chondrite-normalized REE patterns and U-Pb concordia diagrams of zircons from the mylonitized granite dikes Magmatic and hydrothermal zircon information of Boggy Plain from reference[ 61 ]; Chondrite-normalize values from reference[ 62 ]
表2 肥东韧性剪切带内糜棱岩化岩脉中锆石LA-ICP-MS U-Pb测试结果
Table 2 LA-ICP-MS Zircon U-Pb isotopic date for the mylonitized dikesfrom the ductile shear zoneofFeidong Segment
分析点号 Th(ppm) U(ppm) Yh/U 同位素比值 年龄(Ma)
207Pb/206Pb 1σ 207Pb/235U 1σ 206Pb/238U 1σ 207Pb/206Pb 1σ 207Pb/ 235U 1σ 207Pb/ 235U 1σ
样品XW-3
1 408 353 1.16 0.0503 0.003 0.1437 0.0084 0.021 0.0006 207 118 136 7 134 4
2 107 129 0.83 0.1664 0.0055 10.2384 0.358 0.4513 0.0133 2522 32 2457 32 2401 59
3 89 1346 0.07 0.1128 0.0039 4.8301 0.1648 0.3151 0.0085 1844 39 1790 29 1766 42
4 1350 817 1.65 0.0457 0.003 0.1312 0.0072 0.021 0.0006 -18 101 125 6 134 4
5 133 155 0.86 0.0523 0.0042 0.1531 0.0113 0.0216 0.0007 299 156 145 10 138 4
6 477 288 1.65 0.0942 0.0032 2.5443 0.0897 0.1984 0.0055 1513 42 1285 26 1167 29
7 379 340 1.11 0.0519 0.0029 0.1422 0.0076 0.0203 0.0006 281 105 135 7 130 4
8 242 1008 0.24 0.1486 0.0047 8.3872 0.2586 0.4135 0.011 2330 28 2274 28 2231 50
9 230 217 1.06 0.0547 0.0039 0.1523 0.0099 0.0209 0.0006 401 133 144 9 133 4
10 279 253 1.1 0.051 0.0034 0.1429 0.009 0.0207 0.0006 240 129 136 8 132 4
11 821 237 3.47 0.113 0.0038 5.0555 0.1629 0.327 0.0089 1848 32 1829 27 1824 43
12 124 147 0.84 0.054 0.0042 0.1542 0.0107 0.0215 0.0007 370 145 146 9 137 4
13 249 259 0.96 0.0527 0.0034 0.1614 0.01 0.0225 0.0007 316 126 152 9 143 4
14 164 194 0.84 0.0509 0.0041 0.1388 0.0098 0.0206 0.0007 235 145 132 9 131 4
15 291 297 0.98 0.0461 0.0027 0.126 0.0062 0.0198 0.0006 125 120 6 127 4
16 285 228 1.25 0.0461 0.0051 0.1349 0.0143 0.0213 0.0007 223 128 13 136 5
17 239 249 0.96 0.0545 0.0034 0.1495 0.009 0.0202 0.0006 390 120 141 8 129 4
18 198 201 0.99 0.0461 0.0061 0.1297 0.0166 0.0204 0.0007 247 124 15 130 4
19 366 320 1.15 0.0461 0.0072 0.1331 0.0204 0.021 0.0007 281 127 18 134 4
20 39 48 0.83 0.1073 0.0093 4.4768 0.3602 0.3027 0.0097 1753 164 1727 67 1705 48
21 357 571 0.63 0.0543 0.0024 0.2961 0.0124 0.0402 0.0011 384 72 263 10 254 7
22 144 175 0.82 0.0558 0.0044 0.1547 0.0111 0.021 0.0007 443 146 146 10 134 4
23 187 146 1.28 0.0533 0.0056 0.1434 0.0136 0.0209 0.0007 342 204 136 12 133 4
24 142 211 0.67 0.0461 0.0071 0.1276 0.0192 0.0201 0.0007 279 122 17 128 4
25 100 192 0.52 0.0623 0.0031 0.5054 0.0241 0.0601 0.0017 683 84 415 16 376 10
26 37 269 0.14 0.1538 0.0055 7.9497 0.3892 0.3715 0.0153 2389 46 2225 44 2036 72
27 116 153 0.76 0.0536 0.0066 0.1597 0.019 0.0216 0.0008 353 280 150 17 138 5
28 100 127 0.79 0.1704 0.0056 12.3199 0.3938 0.5326 0.0145 2562 28 2629 30 2752 61
样品TY-7
1 150 3478 0.04 0.0508 0.0028 0.1416 0.0067 0.0202 0.0005 231 126 134 6 129 3
2 85 3119 0.03 0.0495 0.0023 0.139 0.0053 0.0204 0.0005 170 107 132 5 130 3
3 654 7243 0.09 0.0487 0.0026 0.1468 0.0049 0.0223 0.0006 133 48 139 4 142 4
4 241 6566 0.04 0.0497 0.0026 0.1425 0.0061 0.0208 0.0006 182 119 135 5 133 4
5 75 42 1.79 0.0627 0.0042 1.1239 0.0689 0.1317 0.0039 697 118 765 33 798 22
6 100 335 0.3 0.1479 0.0045 7.8475 0.2432 0.3846 0.0102 2321 28 2214 28 2098 48
7 136 4712 0.03 0.0534 0.0036 0.1507 0.0091 0.0205 0.0006 344 155 143 8 131 4
8 240 10100 0.02 0.0476 0.002 0.1334 0.0045 0.0203 0.0005 80 95 127 4 130 3
9 309 9156 0.03 0.0523 0.0024 0.1482 0.0055 0.0206 0.0005 297 106 140 5 131 3
10 472 8341 0.06 0.048 0.0022 0.1367 0.0052 0.0207 0.0005 98 105 130 5 132 3
11 172 172 1 0.1682 0.0059 11.6946 0.3922 0.5196 0.0145 2539 32 2580 31 2698 61
12 206 4988 0.04 0.0513 0.0024 0.1421 0.0053 0.0201 0.0005 256 108 135 5 128 3
13 286 7167 0.04 0.0537 0.0032 0.1548 0.0081 0.0209 0.0006 358 136 146 7 133 4
14 60 36 1.68 0.0672 0.0042 1.2233 0.0709 0.1366 0.0042 844 105 811 32 825 24
样品TY-8
1 184 198 0.93 0.1244 0.0044 6.46 0.2128 0.3738 0.0101 2020 34 2040 29 2047 48
2 192 129 1.49 0.1295 0.0045 6.659 0.2248 0.3789 0.0103 2091 36 2067 30 2071 48
3 106 3757 0.03 0.0496 0.002 0.1404 0.0051 0.0208 0.0006 176 59 133 5 133 4
4 76 286 0.27 0.1546 0.0056 8.0739 0.3297 0.3826 0.0125 2397 43 2239 37 2088 58
5 81 148 0.55 0.16 0.0057 9.6518 0.3389 0.4459 0.0122 2455 38 2402 32 2377 54
6 43 2274 0.02 0.0485 0.0023 0.1479 0.0057 0.0209 0.0006 124 64 140 5 133 4
7 61 3893 0.02 0.0494 0.0024 0.1412 0.0058 0.0207 0.0006 168 114 134 5 132 4
8 14 1349 0.01 0.0523 0.0027 0.1504 0.0065 0.0209 0.0006 300 119 142 6 133 4
9 25 926 0.03 0.0474 0.0031 0.1813 0.0099 0.0278 0.001 68 145 169 9 177 6
10 80 129 0.62 0.1149 0.0041 4.8973 0.1711 0.3139 0.0086 1878 40 1802 29 1760 42
11 34 1607 0.02 0.0464 0.0028 0.1339 0.007 0.0209 0.0006 16 130 128 6 134 4
12 42 2054 0.02 0.0461 0.003 0.1375 0.0078 0.0217 0.0007 145 131 7 138 5
13 95 3916 0.02 0.0498 0.0022 0.1359 0.0049 0.0198 0.0005 185 104 129 4 126 3
14 61 3582 0.02 0.0498 0.0026 0.127 0.0057 0.0185 0.0005 186 121 121 5 118 3
15 86 64 1.35 0.0616 0.0035 1.1174 0.0615 0.1263 0.0037 660 102 762 29 767 21
16 79 3697 0.02 0.0494 0.0018 0.136 0.0049 0.02 0.0005 169 56 129 4 127 3
17 34 3593 0.01 0.0515 0.0022 0.1478 0.0051 0.0208 0.0006 263 102 140 5 133 3
18 82 3291 0.02 0.0508 0.0031 0.1401 0.0075 0.02 0.0005 231 139 133 7 128 3
19 18 1859 0.01 0.0481 0.0026 0.1334 0.0059 0.0201 0.0006 106 119 127 5 128 4
20 103 6495 0.02 0.0529 0.0041 0.1639 0.0119 0.0225 0.0006 325 179 154 10 143 4
21 48 2556 0.02 0.0484 0.0026 0.1338 0.0062 0.02 0.0005 121 121 128 6 128 3
22 180 1460 0.12 0.1444 0.0082 7.1032 0.3088 0.3569 0.0132 2280 101 2124 39 1967 63
23 69 2111 0.03 0.1354 0.0055 6.8583 0.2147 0.3675 0.0096 2169 73 2093 28 2017 45
24 687 457 1.5 0.1231 0.0041 5.8493 0.1957 0.3494 0.0095 2002 35 1954 29 1931 45
25 71 1126 0.06 0.142 0.0047 7.5847 0.2651 0.3913 0.011 2252 37 2183 31 2129 51
26 199 391 0.51 0.1508 0.0052 7.9626 0.2612 0.3817 0.0102 2355 33 2227 30 2084 48
27 29 657 0.04 0.1447 0.0059 7.0767 0.2236 0.3548 0.0092 2284 72 2121 28 1957 44
表3 肥东韧性剪切带中内糜棱岩化岩脉中锆石稀土元素分析结果
Table 3 The REE element compositionof Zirconsfor the mylonitized dikesfromthe ductile shear zone ofFeidong Segment
点号 La
(ppm)		 Ce
(ppm)		 Pr
(ppm)		 Nd
(ppm)		 Sm
(ppm)		 Eu
(ppm)		 Gd
(ppm)		 Tb
(ppm)		 Dy
(ppm)		 Ho
(ppm)		 Er
(ppm)		 Tm
(ppm)		 Yb
(ppm)		 Lu
(ppm)		 稀土
总量		 Eu/
Eu*		 Ce/
Ce*		 (Lu/Gd)
N		 (Sm/La)
N
样品XW-3
1 0.95 48.72 0.38 3.11 3.47 1.55 16.65 5.42 65.99 26.38 130.34 30.45 318.45 70.61 404.01 0.62 19.53 33.08 3.66
2 2.68 55.14 2.90 21.20 17.65 5.57 51.73 13.81 129.99 42.54 171.18 33.80 297.46 54.09 602.29 0.56 4.76 8.16 6.58
3 0.01 4.52 0.01 0.06 0.59 0.19 3.46 1.43 20.93 9.57 52.46 13.74 158.91 36.80 143.78 0.41 110.11 82.91 61.75
4 0.09 104.16 0.20 3.05 5.35 2.62 29.91 9.29 106.29 40.17 188.93 42.89 425.97 90.80 623.75 0.63 185.77 23.68 58.03
5 0.02 16.69 0.10 1.42 2.37 1.22 10.48 3.25 37.83 15.64 77.43 17.78 192.63 42.56 226.77 0.75 102.01 31.69 145.24
6 0.20 50.87 0.40 5.64 9.94 3.14 42.89 12.60 133.13 46.22 207.51 44.15 429.69 87.20 643.88 0.47 43.06 15.86 49.80
7 0.03 39.88 0.11 1.39 2.94 1.46 14.60 4.71 56.94 22.45 108.89 24.68 257.81 56.42 334.49 0.68 168.73 30.15 104.00
8 0.01 12.94 0.06 1.02 2.37 0.07 15.16 5.89 82.14 34.71 170.90 38.88 368.79 72.34 436.49 0.04 128.53 37.22 256.80
9 0.14 38.31 0.14 1.76 3.03 1.53 15.65 5.24 63.40 25.67 123.60 28.29 288.79 61.89 368.63 0.68 67.49 30.85 22.06
10 0.06 35.30 0.11 1.86 2.96 1.18 14.27 4.59 55.27 21.68 102.78 23.13 240.11 51.36 314.57 0.55 105.65 28.07 52.35
11 6.42 129.76 5.06 48.08 44.33 11.62 131.60 30.90 270.12 80.88 293.29 54.31 458.80 81.90 1188.26 0.47 5.48 4.85 6.90
12 0.01 19.68 0.09 1.10 2.03 0.89 9.28 3.05 34.73 13.74 65.75 16.02 167.95 37.47 203.85 0.63 140.29 31.48 160.15
13 0.04 35.44 0.10 1.67 2.94 1.01 14.88 4.75 56.97 23.95 117.96 28.21 295.54 63.14 351.06 0.47 141.47 33.10 82.27
14 0.04 23.95 0.10 1.98 2.62 1.26 12.24 3.48 42.11 17.40 87.25 21.27 226.25 51.68 265.37 0.68 95.83 32.94 73.25
15 18.07 68.64 3.28 13.47 4.02 1.44 14.53 4.29 51.62 21.31 104.04 25.01 264.82 58.28 388.00 0.58 2.15 31.29 0.22
16 6.74 67.43 2.19 12.50 7.57 3.47 33.23 10.54 119.73 46.55 207.63 44.43 437.14 88.72 650.73 0.67 4.23 20.83 1.12
17 0.10 30.89 0.12 1.47 2.55 1.12 11.25 3.59 42.99 16.99 80.73 18.82 200.34 42.63 253.25 0.64 65.41 29.57 24.49
18 0.58 28.67 0.30 2.30 2.80 1.26 12.87 3.79 45.76 18.26 91.44 22.10 228.11 50.58 280.72 0.64 16.46 30.67 4.82
19 3.65 50.83 0.98 5.53 3.61 1.57 16.88 5.32 63.13 25.33 120.20 28.18 290.71 63.22 388.44 0.62 6.46 29.22 0.99
20 0.05 16.08 0.05 0.44 1.31 0.28 6.75 2.26 28.80 11.49 52.36 11.79 119.48 25.63 157.28 0.28 80.99 29.60 28.74
21 11.19 45.19 3.99 21.47 9.86 0.51 39.89 14.27 166.54 65.12 283.58 57.08 511.63 96.30 815.01 0.08 1.63 18.83 0.88
22 0.16 19.99 0.12 1.65 2.48 1.22 11.06 3.31 42.00 16.83 81.63 19.63 209.45 46.77 246.83 0.71 34.82 33.00 15.29
23 1.67 39.07 0.59 5.54 6.74 2.97 31.21 9.09 101.99 37.47 163.65 34.15 325.65 65.48 499.62 0.63 9.45 16.37 4.04
24 0.20 24.43 0.17 1.92 2.59 0.92 11.10 3.75 44.06 17.07 84.77 19.33 204.94 43.98 254.29 0.52 31.48 30.90 12.74
25 16.11 65.26 2.81 11.92 5.51 2.08 33.96 12.09 156.67 64.45 299.13 64.60 617.64 123.58 858.17 0.47 2.33 28.39 0.34
26 0.00 7.59 0.06 1.04 1.69 0.18 11.06 3.60 41.71 16.11 72.97 15.34 149.82 30.86 202.20 0.12 #DIV/0! 21.77 #DIV/0!
27 0.05 19.22 0.05 0.72 1.41 0.70 7.04 2.12 27.37 11.22 56.29 13.53 147.47 34.17 173.87 0.68 87.36 37.85 26.37
28 1.96 44.17 1.27 10.36 10.89 3.40 39.41 11.03 111.71 37.12 152.09 30.79 272.52 51.66 505.84 0.50 6.74 10.23 5.56
样品TY-7
1 6.53 28.98 4.19 22.75 13.23 2.97 25.59 8.25 108.64 50.54 310.02 91.52 1226.48 324.36 997.56 0.49 1.33 98.88 2.03
2 8.08 12.14 1.53 8.46 5.76 1.13 21.88 8.59 112.44 51.12 288.80 76.78 904.65 225.20 821.93 0.31 0.83 80.28 0.71
3 16.88 47.38 10.21 58.22 46.03 7.08 128.84 37.78 391.29 128.79 594.74 143.43 1565.01 316.52 1927.20 0.28 0.87 19.16 2.73
4 18.77 112.52 11.37 69.49 32.19 11.81 61.93 15.69 192.48 85.22 482.46 128.02 1461.11 342.08 1564.05 0.81 1.85 43.09 1.72
5 0.04 10.83 0.19 2.81 2.92 1.03 11.91 3.65 42.64 16.69 80.05 18.80 201.82 44.54 236.09 0.53 30.15 29.18 73.08
6 0.38 11.59 0.44 3.10 4.71 0.68 16.65 5.63 62.06 22.98 101.20 21.29 200.31 38.79 289.49 0.23 6.82 18.18 12.34
7 6.83 47.77 5.43 30.87 17.85 6.56 37.84 11.12 137.70 64.66 392.77 113.20 1358.26 338.50 1211.10 0.77 1.89 69.79 2.61
8 2.72 16.89 1.61 9.50 6.81 2.03 27.29 13.27 230.82 124.17 771.37 210.40 2379.24 534.01 1950.90 0.46 1.94 152.63 2.50
9 4.89 32.83 3.08 20.09 15.51 3.80 55.17 22.87 352.37 166.06 936.38 237.76 2560.37 550.27 2401.07 0.40 2.04 77.80 3.17
10 3.32 28.68 2.33 13.19 9.68 4.14 37.21 14.73 232.06 113.51 647.87 168.32 1829.99 406.99 1682.04 0.67 2.48 85.33 2.92
11 1.57 50.11 1.75 11.81 9.77 2.69 32.10 8.44 92.16 32.69 147.81 33.92 339.67 67.71 492.55 0.46 7.28 16.46 6.22
12 1.98 5.89 1.13 6.28 4.00 0.80 21.70 9.28 147.88 78.11 482.74 136.00 1609.59 384.65 1280.43 0.26 0.95 138.26 2.02
13 15.60 128.49 12.55 70.70 46.80 13.14 92.65 24.73 286.16 123.52 705.38 193.84 2286.13 547.68 2261.26 0.61 2.21 46.11 3.00
14 0.04 10.00 0.12 1.81 2.12 0.80 8.77 2.77 31.81 12.71 61.40 14.29 154.94 34.03 180.67 0.57 36.14 30.25 57.28
样品TY-8
1 0.01 37.85 0.08 1.45 2.36 0.65 11.44 3.17 32.82 11.30 47.13 9.81 91.24 17.73 175.80 0.38 359.56 12.09 281.40
2 0.01 38.07 0.09 2.17 3.20 0.62 14.70 4.13 41.41 14.24 59.05 11.49 101.84 19.12 208.29 0.27 290.21 10.15 278.79
3 0.02 2.89 0.05 0.77 1.87 2.05 20.38 11.09 197.98 102.80 583.48 139.73 1364.45 246.10 1309.19 1.01 21.19 94.21 78.73
4 0.02 7.89 0.04 0.57 1.26 0.11 8.24 3.15 41.74 17.11 81.82 18.51 182.41 35.51 215.97 0.11 64.40 33.61 54.61
5 0.01 6.88 0.04 0.93 1.92 0.11 9.97 3.04 32.65 11.58 49.48 10.39 97.94 19.04 146.03 0.08 115.05 14.90 358.23
6 0.14 5.81 0.10 0.57 0.97 0.78 10.46 6.89 160.56 104.30 705.98 196.74 2097.36 412.21 1605.53 0.75 11.55 307.57 6.71
7 6.64 36.09 4.55 31.31 9.74 1.56 16.36 5.67 107.11 68.68 470.86 136.03 1530.29 319.05 1213.66 1.02 1.58 152.17 1.47
8 0.40 4.16 0.38 2.58 1.76 1.05 12.47 6.69 111.68 56.14 309.11 75.89 759.60 143.05 725.38 0.69 2.56 89.49 4.39
9 0.06 3.14 0.06 0.71 1.38 0.75 10.51 5.72 112.54 62.67 382.86 100.46 1028.60 200.49 881.34 0.61 12.35 148.81 22.53
10 0.04 11.84 0.02 0.23 0.46 0.16 1.65 0.45 4.65 1.71 8.95 2.26 27.89 7.41 39.81 0.56 105.29 35.03 12.29
11 0.93 8.13 0.79 4.76 1.67 0.89 11.87 5.69 92.99 45.24 245.39 59.88 600.22 111.12 589.36 0.61 2.28 73.01 1.79
12 4.16 32.82 2.49 15.28 5.14 1.41 11.79 5.19 109.82 69.83 480.08 136.00 1496.96 300.26 1174.28 0.55 2.46 198.71 1.24
13 0.18 8.36 0.19 1.46 1.59 0.98 13.59 7.61 162.02 99.72 659.83 180.33 1930.97 382.95 1518.80 0.65 10.93 219.82 8.80
14 1.92 12.21 1.55 10.12 3.88 2.42 19.31 8.49 125.01 54.47 266.02 60.70 563.62 101.05 667.14 0.85 1.71 40.82 2.02
15 0.03 19.07 0.18 3.51 7.12 0.31 32.59 10.19 116.16 41.59 176.01 35.07 302.65 57.14 498.95 0.06 69.12 13.68 282.54
16 0.03 7.71 0.04 0.50 0.83 1.15 14.32 10.08 224.86 137.31 876.69 229.07 2362.31 457.81 1960.39 1.02 51.27 249.49 25.08
17 0.35 4.71 0.32 2.22 0.92 0.87 10.62 6.28 120.84 61.41 348.61 88.76 906.23 169.52 815.43 0.86 3.40 124.54 2.63
18 8.95 40.00 5.96 37.95 13.22 2.43 22.20 5.61 97.18 55.50 367.28 104.48 1184.32 246.36 1007.13 0.43 1.32 86.55 1.48
19 0.17 4.50 0.16 1.33 1.71 1.16 11.94 7.11 146.89 92.43 622.53 179.93 2023.77 417.71 1487.56 0.79 6.61 272.83 9.94
21 0.08 5.01 0.08 0.89 2.19 1.67 17.74 11.08 224.04 132.58 835.74 222.86 2331.28 442.92 1896.89 0.82 14.86 194.81 27.94
22 0.57 6.16 0.44 3.08 3.07 0.35 13.94 4.46 49.05 17.23 73.80 15.95 150.78 28.77 216.87 0.16 2.97 16.10 5.39
23 3.36 20.17 2.50 16.12 7.69 0.83 19.35 3.81 22.00 4.59 13.03 2.15 17.34 2.90 118.50 0.21 1.67 1.17 2.29
24 0.05 48.65 0.17 3.57 7.27 4.41 45.70 16.75 193.14 69.87 292.38 59.32 532.61 92.45 833.73 0.74 130.33 15.78 151.71
25 0.00 2.08 0.03 0.93 2.03 0.05 11.88 3.92 41.28 14.39 61.61 12.58 117.10 23.08 173.86 0.03 #DIV/0! 15.16 #DIV/0!
26 0.00 6.29 0.12 3.47 8.20 0.18 38.82 11.61 116.36 36.63 135.19 24.06 197.09 32.33 413.29 0.03 88.45 6.50 767.00
27 0.49 3.48 0.26 2.21 2.45 0.18 21.17 8.72 85.72 22.53 67.80 10.45 79.77 13.19 238.67 0.08 2.34 4.86 4.96
[1] Watson M P, Hayward A B, Parkinson D N, et al.Plate tectonics history, basin development and petroleum source rock deposition onshore China[J]. Marine and Petroleum Geology, 1987, 4(3): 205-225.
[2] Xu Jiawei, Zhu Guang, Tong Weixing, et al.Formation and evolution of the Tancheng-Lujiang wrench fault system: A major shear system to the northern of the Pacific Ocean[J]. Tectonophysics, 1987, 134: 273-310.
[3] Okay A I, Sengor A M C. Evidence for intracontinental thrust related exhumation of the ultra-high-pressure rocks in China[J]. Geology, 1992, 20: 411-414.
[4] Zhang Zh M, Liou J G, Coleman R G.An outline of the plate tectonics of China[J]. Geological Society of America Bulletin, 1984, 95: 295-312.
[5] Wan Tianfeng, Zhu Hong, Zhao Lei, et al.Formation and evolution of Tancheng-Lujiang fault zone:A review[J]. Geoscience, 1996, 10(2): 159-168.
[万天丰, 朱鸿, 赵磊, 等. 郯庐断裂带的形成与演化: 综述[J]. 现代地质, 1996, 10(2): 159-168.]
[6] Wang Xiaofeng, Li Zhongjian, Chen Bolin, et al.Formation and evolution ofthe Tan-Lu strike-slip fault system and its geological significance[C]∥Zheng Yadong, ed. Proceedings of 30th International Geological Congress. Beijing:Geological Publishing House, 1998:176-196.
[王小凤,李中坚, 陈柏林, 等. 郯庐断裂系的形成演化及其地质意义[C]∥郑亚东,编.第30届国际地质大会论文集. 北京: 地质出版社, 1998:176-196.]
[7] Zhu Guang, Wang Yongsheng, Niu Manlan,et al.Synorogenic movement of the Tan-Lu Fault zone[J]. Earth Science Frontiers, 2004, 11(3): 169-182.
[朱光,王勇生,牛漫兰,等.郯庐断裂带的同造山运动[J]. 地学前缘, 2004, 11(3): 169-182.]
[8] Yin An, Nie Shangyou.An indentation model for the North and South China collision and the development of the Tan-Lu and Honam Fault system, eastern Asia[J]. Tectonics, 1993, 12(4): 801-813.
[9] Lin Jinlu, Fuller M.Paleomagnetism, North and South China collision, and the Tan-Lu fault[J]. Philosophical Transactions of the Royal Society, London, 1990, A331: 589-598.
[10] Gilder Stuart A, Hervé Leloup P, Courtillot Vincent, et al.Tectonic evolution of the Tancheng-Lujiang (Tan-Lu) fault via middle Triassic to Early Cenozoic paleomagnetic data[J]. Journal of Geophysical Research, 1999, 104: 15 365-15 390.
[11] Xiao Wenjiao, Zhou Yaoxiu, Yang Zhenyu, et al.Multiple rotation and amalgamation processes of Dabie-TanLu-Sulu orogen[J]. Advances in Earth Science, 2000, 15(2): 147-153.
[肖文交, 周烑秀, 杨振宇, 等. 大别—郯庐—苏鲁造山带复合旋转拼贴作用[J]. 地球科学进展, 2000, 15(2): 147-153.]
[12] Li Zhengxiang.Collision between the north and south blocks: A crust-detachment model for suturing in the region east of the Tan-Lu fault[J].Geology, 1994, 22: 739-742.
[13] Chung Sun Lin.Trace element and isotope characteristics of Cenozoic basalts around the Tanlu fault with implications for the eastern plate boundary between North and South China[J]. The Journal of Geology, 1999, 107: 301-312.
[14] Xu Jiawei, Zhu Guang.Tectonic models of the Tan-Lu Fault zone, eastern China[J]. International Geology Review, 1994, 36: 771-784.
[15] Zhu Guang, Song Chuanzhong, Wang Daoxuan, et al.Studies on 40Ar/39Ar thermochronology of strike-slip time of the Tan-Lu faultzone and their tectonic implications[J]. Science in China (Series D), 2001, 31(3): 250-256.
[朱光, 宋传中, 王道轩, 等. 郯庐断裂带走滑时代的40Ar/39Ar年代学研究及其构造意义[J]. 中国科学:D辑,2001, 31(3): 250-256.]
[16] Niu Manlan, Zhu Guang, Liu Guosheng, et al.Tectonic setting and deep processes of Mesozoic magmatism in middle-south segment of the Tan-Lu fault[J]. Chinese Journal of Geology, 2002, 37(4): 393-404.
[牛漫兰, 朱光, 刘国生, 等.郯庐断裂带中—南段中生代岩浆活动的构造背景与深部过程[J]. 地质科学, 2002, 37(4): 393-404.]
[17] Liu Guosheng, Zhu Guang, Song Chuanzhong, et al.Compressional structures of the Tan-Lu Fault zone and inversion of the Hefei Basin neogene[J]. Geology of Anhui, 2002, 41(2): 81-85.
[刘国生, 朱光, 宋传中, 等. 郯庐断裂带新近纪以来的挤压构造与合肥盆地的反转[J]. 安徽地质, 2002, 41(2): 81-85.]
[18] Tang Jiafu, Xu Wei.No huge strike slip in the southern sector of the Tancheng-Lujiang fault—Tectonic from Anhui Province[J]. Geological Review, 2002, 48(5): 449-456.
[汤加富, 许卫. 郯庐断裂带南段并无巨大平移——来自安徽境内的证据[J]. 地质论评, 2002, 48(5): 449-456.]
[19] Lin Wei, Michel Faure, Wang Qingchen, et al.Triassic polyphase deformation in the Feidong-Zhangbaling Massif (eastern China) and its place in the collision between the North China and South China blocks[J]. Journal of Asian Earth Sciences, 2005, 25:121-136.
[20] Mercier J L, Hou M J, Vergely P, et al.Structural and stratigraphical constraints on the kinematics history of the southern Tan-Lu fault zone during the Mesozoic Anhui Province, China[J]. Tectonophysics, 2007, 439: 33-66.
[21] Chen Xuanhua, Wang Xiaofeng, Zhang Qing,et al.Geochronologic study on the formation and evolution of Tan-Lu fault[J]. Journal of Chang Chun University of Science and Technology, 2000, 30(3): 215-220.
[陈宣华, 王小凤, 张青, 等. 郯庐断裂带形成演化的年代学研究[J]. 长春地质学院学报, 2000, 30(3): 215-220.]
[22] Zhu Guang, Niu Manlan, Liu Guosheng, et al.Structural, magmatic and sedimentary events of the Tan-Lu Fault Belt during its early cretaceous strike-slip movement[J]. Acta Geological Sinica, 2002, 76(3): 325-334.
[朱光, 牛漫兰, 刘国生, 等. 郯庐断裂带早白垩世走滑运动中的构造、岩浆、沉积事件[J]. 地质学报,2002, 76(3): 325-334.]
[23] Wang Yongsheng, Zhu Guang, Song Chuanzhong, et al.40Ar/39Ar geochronology records of transition fron strike-slip to extention in the Tan-Lu fault zone on eastern terminal of the Dabie mountains[J]. Chinese Journal of Geology, 2006, 41(2): 242-255.
[王勇生, 朱光, 宋传中, 等. 大别山东端郯庐断裂带由走滑向伸展运动转换的40Ar/39Ar年代学记录[J]. 地质科学, 2006, 41(2): 242-255.]
[24] Zhang Yueqiao, Dong Shuwen.Mesozoic tectonic evolution history of the Tan-Lu Fault zone, China: Advances and new under-standing[J]. Geological Bulletin of China, 2008, 27(9): 1 371-1 390.
[张岳桥, 董树文. 郯庐断裂带中生代构造演化史: 进展与新认识[J]. 地质通报, 2008, 27(9): 1 371-1 390.]
[25] Hacker Bradley R, Rratschbacher Lothar, Webb Laura, et al.Exhumation of ultrahigh-pressure continental crust in east central China: Late Triassic-Early Jurassic tectonic unroofing[J]. Journal of Geophtsical Research, 2000,105: 13 339-13 364.
[26] Zhang Qing, Teyssier C, Dunlap J, et al.Oblique collision between North and South China recorded in Zhangbaling and Fucha Shan (Dabie-Sulu transfer zone)[J].Geological Society of America, 2007, 434: 167-206.
[27] Zhu Guang, Liu Guosheng, Niu Manlan, et al.Syn-collisional transform faulting of the Tan-Lu Fault Zone, East China[J].International Journal of Earth Sciences, 2009, 98: 135-155.
[28] Wang Yu.The onset of the Tan-Lu fault movement in eastern China: Constraints from zircon (SHRIMP) and 40Ar/39Ar dating[J]. Terra Nova, 2006, 18: 423-431.
[29] Sun Xiaomeng, Liu Yongjiang, Sun Qingchun, et al.40Ar/39Ar geochronology evidence of srike-slipmovement in Dunhua Mishan Fault zone[J]. Journal of Jilin University, 2008, 38(6): 965-972.
[孙晓猛, 刘永江, 孙庆春, 等.敦密断裂带走滑运动的40Ar/39Ar年代学证据[J]. 吉林大学学报, 2008, 38(6): 965-972.]
[30] Zhu Guang, Wang Yongsheng, Liu Guosheng, et al.40Ar/39Ar dating of strike-slip motion on the Tan-Lu Fault zone, East China[J]. Journal of Structural Geology, 2005, 27: 1 379-1 398.
[31] Zhu Guang, Niu Manlan, Xie Chenglong, et al.Sinistral to normal faulting along the Tan-Lu Fault zone: Evidence for geodynamic switching of the East China continentalmargin[J]. The Journal of Geology, 2010, 118: 277-293.
[32] Zhu Guang, Jiang Dazhi, Zhang Bilong, et al.Destruction of the eastern North China Craton in a backarc setting: Evidence from crustal deformation kinematics[J]. Gondwana Research, 2012,22: 86-103.
[33] Niu Manlan, Zhu Guang, Xie Chenglong, et al.LA-ICP-MS zircon U-Pbages of the granites from the southern segment of the Zhangbaling uplift along the Tan-Lu Fault zone and their tectonic significances[J]. Acta Petrologica Sinica,2008, 24(8): 1 839-1 847.
[牛漫兰, 朱光, 谢成龙, 等. 郯庐断裂带张八岭隆起南段花岗岩LA-ICP MS锆石U-Pb年龄及其构造意义[J]. 岩石学报, 2008, 24(8): 1 839-1 847.]
[34] Shi Yonghong, Zhu Guang, Wang Daoxuan, et al.Analysis of sodic amphiboles in the blueschists from the Zhangbaling group across the central part of Anhui Province and its implication for the metamorphic P-T conditions[J]. Acta Mineralogica Sinica, 2007, 27(2): 179-188.
[石永红, 朱光, 王道轩, 等.皖中张八岭群“蓝片岩”中钠质角闪石及其变质P-T条件分析[J]. 矿物学报, 2007, 27(2): 179-188.]
[35] Bureau of Geology and Mineral Resources of Anhui Province. Stratigraphy(Lithostratic) of Anhui Province[M]. Wuhan: China University of Geosciences Press,1997: 83-118.
[安徽省地质矿产局. 安徽省岩石地层[M]. 武汉:中国地质大学地质出版社, 1997: 83-118.]
[36] Shi Yonghong, Zhu Guang, Wang Daoxuan.Metamorphic P-T evolution for the garnet amphiboles from Feidong group in the south of Zhangbaling uplift across Tan-Lu fault and its influence on tectonics[J]. Acta Petrologica Sinica, 2009, 25(12):3 335-3 345.
[石永红, 朱光, 王道轩.郯庐断裂带张八岭隆起南段肥东群石榴角闪岩变质P-T 演化史及对其构造属性的制约[J]. 岩石学报, 2009, 25(12): 3 335-3 345.]
[37] Xu Shutong, Jiang Laili, Liu Yican, et al.Tectonic framework and evolution of the Dabie Mountains in Anhui, eastern China[J]. Acta Geological Sinica, 1992,66(1): 5-13.
[徐树桐, 江来利, 刘贻灿, 等. 大别山区(安徽部分)的构造格局和演化过程[J]. 地质学报, 1992, 66(1): 5-13.]
[38] Xu Shutong, Wu Weiping, Lu Yiqun, et al.Low-grade metamorphic in southern Dabie Mountain: The Susong and Zhangbaling group[J]. Geology of Anhui, 2010, 20(1): 5-13.
[徐树桐, 吴维平, 陆益群, 等. 大别山南部的低级变质岩: 宿松群和张八岭群[J]. 安徽地质, 2010, 20(1): 5-13.]
[39] Jiang Huichao, Wang Xucheng, Zhou Zuyi, et al.Zircon U-Pb dating and tectonic relevance for igneous rocks in Sulu orogeny[J]. Journal of Tongji University, 2012, 40(2): 297-303.
[姜慧超, 王绪诚, 周祖翼, 等. 苏鲁造山带岩浆岩的锆石U-Pb定年及构造意义[J]. 同济大学学报, 2012, 40(2): 297-303.]
[40] Kang Tao, Liu Xiaoyan, Wang Juan, et al.Analysis of metamorphic attribution and geochronology for the Feidongterrane in the east of the Tan-Lu Fault[J]. Acta Petrologica Sinica,2013,29(9): 3 142-3 158.
[康涛, 刘晓燕, 王娟, 等.郯庐断裂东侧肥东地块变质属性及年代学研究[J]. 岩石学报, 2013, 29(9): 3 142-3 158.]
[41] Zhao Tian, Zhu Guang, Lin Shaoze, et al.Protolith ages and deformation mechanism of metamorphic rocks in the Zhangbaling uplift segment of the Tan-Lu Fault zone[J]. Science in China (Series D), 2014,44(10): 2 112-2 129.
[赵田, 朱光, 林少泽, 等. 郯庐断裂带张八岭隆起段变质岩的原岩时代与变形机制[J]. 中国科学:D辑, 2014, 44(10): 2 112-2 129.]
[42] Li Shuguang, Liu Deliang, Chen Yizhi, et al.Time of the blueschis belt formation in central China[J]. Scientia Geologica Sinica, 1993, 28: 21-27.
[李曙光, 刘德良, 陈移之, 等. 中国中部蓝片岩的形成时代[J]. 地质科学, 1993, 28: 21-27.]
[43] Zhu Guang, Niu Manlan, Liu Guosheng, et al.40Ar/39Ar dating for the strike-slip movement on the Feidong part of the Tan-Lu Fault belt[J]. Acta Geological Sinica, 2005, 79(3): 303-316.
[朱光, 牛漫兰, 刘国生, 等. 郯庐断裂带肥东段走滑运动的40Ar/39Ar法定年[J]. 地质学报, 2005, 79(3): 303-316.]
[44] Zhu Guang, Xu Youde, Liu Guosheng, et al.Structural and deformation characteristics of strike-slippings along the middle-southern sector of the Tan-Lu Fault zone[J]. Chinese Journal of Geology, 2006, 41(1): 226-241.
[朱光, 徐佑德, 刘国生, 等. 郯庐断裂带中—南段走滑构造特征与变形规律[J]. 地质科学, 2006, 41(1): 226-241.]
[45] Niu Manlan.40Ar/39Ar dating of biotite from the Mesozoic intrusions in Zhangbaling area and its geological significance[J]. Chinese Journal of Geology, 2006, 41(2): 217-225.
[牛漫兰. 张八岭地区中生代岩体中黑云母的40Ar/39Ar年龄及其地质意义[J]. 地质科学, 2006, 41(2): 217-225.]
[46] Xie Chenglong, Zhu Guang, Niu Manlan, et al.LA-ICP-MS Zircon U-Pb ages of the mesozoic volcanic rocks from Chuzhou area and their tectonic significances[J]. Geological Review, 2007, 53(5): 642-655.
[谢成龙, 朱光, 牛漫兰, 等. 滁州中生代火山岩LA-ICP MS锆石U-Pb年龄及其构造地质学意义[J]. 地质论评, 2007, 53(5): 642-655.]
[47] Zi Feng, Wang Qiang, Dai Shengqian, et al.Geochronology and geochemistry of Chuzhou and Shangyaopuadakitic intrusive rocks in the eastern area of Anhui Province:Implications for petrogenesis and mineralization[J]. Acta Petrologica Sinaca, 2007, 23(6): 1 485-1 500.
[资锋, 王强, 戴圣潜, 等. 皖东滁州、上腰铺埃达克质侵入岩年代学及地球化学特征: 岩石成因与成矿意义[J]. 岩石学报, 2007, 23(6): 1 485-1 500.]
[48] Zi Feng, Wang Qiang, Tang Gongjian, et al.SHRIMPU-Pbzircon geochronology and geochemistry of the Guandian pluton in central Anhui,China:Petrogenesis and geodynamic implications[J]. Geochimica, 2008, 37(5): 462-480.
[资锋, 王强, 唐功建, 等. 皖中管店岩体的SHRIMP锆石U-Pb年代学与地球化学:岩石成因和动力学意义[J]. 地球化学, 2008, 37(5): 462-480.]
[49] Ma Fang, Xue Huaimin.SHRIMP zircon U-Pb age of late Mesozoic volcanic rocks from the Chuzhou Basin, eastern Anhui Province, and its geological significance[J]. Acta Petrologica et Mineralogica, 2011, 30(5): 924-934.
[马芳, 薛怀民. 皖东滁州盆地晚中生代火山岩的SHRIMP 锆石U-Pb年龄及其地质意义[J]. 岩石矿物学杂志, 2011, 30(5): 924-934.]
[50] Liu Shengao, Li Shuguang, Guo Sushu, et al. The Cretaceous adakitic-basaltic-granitic magma sequence on south-eastern margin of the North China Craton: Implications for lithospheric thinning mechanism[J]. Lithos, 2012, 134/135: 163-178.
[51] Hu Zilong, Yang Xiaoyong, Duan Liuan, et al.Geochronological and geochemical constraints on genesis of the adakitic rocks in Outang, South Tan-Lu Fault Belt (Northeastern Yangtze Block)[J]. Tectonophysics, 2014, 626: 86-104.
[52] Chen Haiyun, Shu Liangshu, Zhang Yunyin, et al.Mesozoic-Cenozoic Tectonic evolution of the Hefei Basin[J].Geological Journal of China Universities, 2004, 10(2): 250-256.
[陈海云, 舒良树, 张云银, 等.合肥盆地中新生代构造演化[J]. 高校地质学报, 2004, 10(2): 250-256.]
[53] Li Yunping, Wu Shiguo, Han Wengong, et al.A study on geophysical features of deep structures of the Hefei Basin and the southern Tan-Lu fault zone[J]. Chinese Journal of Geophysics, 2006, 49(1): 115-122.
[李云平, 吴时国, 韩文功, 等. 合肥盆地和郯庐断裂带南段深部地球物理特征研究[J]. 地球物理学报, 2006, 49(1): 115-122.]
[54] Zhu Guang, Piao Xuefeng, Zhang Li, et al.Evolution of extensional direction in the Hefei Basin and its dynamic mechanism[J]. Geological Review, 2011, 57(2): 153-166.
[朱光, 朴学峰, 张力, 等. 合肥盆地伸展方向的演变及其动力学机制[J]. 地质论评, 2011, 57(2): 153-166.]
[55] Micheal S, Holger S, Renée H, et al.The eastern Tonale fault zone: A ‘natural laboratory’ for crystal plastic deformation of quartz over a temperature range from 250 to 700 ℃[J]. Journal of Geology, 2002, 24: 1 861-1 884.
[56] Mancktelow Neil S, Pennacchioni Giorgio.The influence of grain boundary fluids on the microstructure of quartz-feldspar mylonnites[J]. Journal of Structural Geology,2004, 26: 47-46.
[57] Passchier Cees W, Trouw Rudolph A J. Microtectonics[M]. Berlin: Springer, 2005:24-66.
[58] Xiang Biwei, Zhu Guang, Wang Yongsheng, et al.Mineral deformation thermometer for mylonitization[J]. Advances in Earth Science, 2007, 22(2): 126-135.
[向必伟, 朱光, 王勇生, 等. 糜棱岩化过程中矿物变形温度[J]. 地球科学进展,2007, 22(2): 126-135.]
[59] Liu Yongsheng, Gao Shan, Hu Zhaochu.Reappraisement and refinement of zircon U-Pb isotope and trace element analyses by LA-ICP-MS[J]. Chinese Science Bulletin, 2010, 55(15): 1 535-1 546.
[60] Anderson. Correction of common lead in U-Pb analyses that donot report 204Pb[J]. Chemical Geology, 2002, 192: 59-79.
[61] Hoskin P W O. Trace-element composition of hydrothermal zircon and the alteration of Hadean zircon[J]. Geochimica et Cosmochimica Acta, 2005, 69: 637-648.
[62] Boynron W V.Geochemistry of the rare earth elements: Meteoritestudies[M]∥Henderson P, ed. Rare Earth Element Geochemistry. Amsterdam-Oxford-New York-Tokyo: Elsevier, 1984: 91-94.
[63] Lei Weiyan, Shi Guanghai, Liu Yingxin, et al.Research progress on trace element characteristics of zircons of different origins[J]. Earth Science Frontier, 2013, 20(4): 273-284.
[雷玮琰, 施光海, 刘迎新, 等. 不同成因锆石的微量元素特征研究进展[J]. 地学前缘, 2013, 20(4): 273-284.]
[64] Zheng Yongfei, Zhang Shaobing.Formation and evolution of the Precambrian continental crust in south China[J]. Chinese Science Bulletin, 2007, 52(1): 1-10.
[郑永飞, 张少兵. 华南前寒武纪大陆地壳的形成和演化[J]. 科学通报,2007, 52(1): 1-10.]
[65] Liu Guosheng, Zhu Guang, Niu Manlan, et al.Meso-cenozoic evolution of the Hefei Basin (eastern part) and its presponse to activities of the Tan-Lu fault zone[J]. Chinese Journal of Geology, 2006, 12(2): 256-269.
[刘国生, 朱光, 牛漫兰, 等. 合肥盆地东部中—新生代的演化及其对郯庐断裂带活动的响应[J]. 地质科学, 2006, 12(2): 256-269.]
[66] Huang Fang, Li Shuguang, Dong Feng, et al.High-Mg adakitic rocks in the Dabieorogen, central China: Implications for foundering mechanism of lower continental crust[J]. Chemical Geology, 2008, 255: 1-13.
[67] Zhang Chao, Ma Changqian, Holtz Francois.Origin of high-Mg adakitic magmatic enclaves from the Meichuan pluton, southern Dabieorogen(central China): Implications for delamination of the lower continental crust and melt-mantle interaction[J]. Lithos, 2010, 119: 467-484.
[68] He Yongsheng, Li Shuguang, Hoefs Jochen, et al.Post-collisional granitoids from the Dabieorogen: New evidence for partial melting of a thickened continental crust[J]. Geochimica et Cosmochimica Acta, 2011, 75: 3 815-3 838.
[69] He Yongsheng, Li Shuguang, Hoefs Jochen, et al. Sr-Nd-Pb isotopic compositions of Early Cretaceous granitoids from the Dabieorogen: Constraints on the recycled lower continental crust[J]. Lithos, 2013, 156/159: 204-217.
[70] Niu Manlan, Zhu Guang, Xie Chenglong, et al.Geochemistry of Late Mesozoic intrusions from the southern segment of Zhangbaling uplift along the Tan-Lu fault zone and its implications for the lithospheric thinning[J]. Acta Petrologica Sinica,2010,26(9): 2 783-2 804.
[牛漫兰, 朱光, 谢成龙, 等. 郯庐断裂带张八岭隆起南段晚中生代侵入岩地球化学特征及其对岩石圈减薄的指示[J]. 岩石学报, 2010, 26(9): 2 783-2 804.]
[71] Xie Chenglong, Zhu Guang, Niu Manlan, et al.Zircon U-Pb geochronology of the Late Mesozoic volcanic rocks from the Chaohu-Lujiang segment of the Tan-Lu fault zone[J].Chinese Journal of Geology, 2008, 43(2): 294-308.
[谢成龙, 朱光, 牛漫兰, 等. 郯庐断裂带巢湖—庐江段晚中生代火山岩的锆石U-Pb年代学[J]. 地质科学, 2008, 43(2): 294-308.]
[72] Shi Xuefa, Yan Quanshu.Magmatism of typical marginal basins (or back-arc basins) in the West Pacific[J]. Advances in Earth Science, 2013, 28(7): 737-750.
[石学法,鄢全树. 西太平洋典型边缘海盆的岩浆活动[J]. 地球科学进展, 2013, 28(7): 737-750.]
[73] Wu Jianhua, Xie Kairui, Wu Rengui, et al.The new progress in the study of Mesozoic rhyolite-trachyte assemblageand hydrothermal-type uranium mineralization in eastern China[J]. Advances in Earth Science, 2014, 29(12): 1 372-1 382.
[巫建华,解开瑞,吴仁贵,等.中国东部中生代流纹岩—粗面岩组合与热液型铀矿研究新进展[J]. 地球科学进展, 2014, 29(12): 1 372-1 382.]
[74] Zhu Rixiang, Zheng Tianyu.Destruction geodynamics of the North China Craton and its Paleoproterozoic plate tectonics[J]. Chinese Science Bulletin,2009, 14(14): 1 950-1 961.
[朱日祥,郑天愉.华北克拉通破坏机制与古元古代板块构造体系[J].科学通报, 2009, 14(14): 1 950-1 961.]
[75] Engebretson D C, Cox A, Gorden R G.Relative motions between oceanic and continental plates in the Pacific Basin[J]. The Geological Society of America (Special Paper), 1985, 206: 1-59.
[1] 韩雨, 牛漫兰, 朱光, 吴齐, 李秀财, 王婷. 郯庐断裂带肥东段早白垩世中期走滑运动的年代学证据[J]. 地球科学进展, 2015, 30(8): 922-939.
[2] 裴先治,刘战庆,丁仨平,李佐臣,李高阳,李瑞保,王 飞,李夫杰. 甘肃天水地区百花岩浆杂岩的锆石LA-ICP-MS U-Pb定年及其地质意义[J]. 地球科学进展, 2007, 22(8): 818-827.
[3] 杨晓勇. 论韧性剪切带研究及其地质意义[J]. 地球科学进展, 2005, 20(7): 765-771.
[4] 肖文交,周火兆秀,杨振宇,赵西西. 大别—郯庐—苏鲁造山带复合旋转拼贴作用[J]. 地球科学进展, 2000, 15(2): 147-153.
阅读次数
全文


摘要

网站版权所有 © 《地球科学进展》编辑部
地址：甘肃省兰州市天水中路8号
QQ：114723517
电话：0931-8762293　E-mail：adearth@lzb.ac.cn
陇ICP备2021001824号-5　 甘公网安备62010202000687
