边界断裂时空差异演化对断陷盆地的控制作用——以松辽盆地南部伏龙泉断陷为例
刘玉虎 1( ),曹春辉 2,李瑞磊 1,朱建峰 1,徐文 1,黄兰 1,栾颖 1
  1. 1.中国石油化工股份有限公司东北油气分公司,吉林 长春 130062
    2.中国科学院西北生态环境资源研究院,甘肃 兰州 730000
  • 收稿日期:2019-11-25 修回日期:2019-12-28 出版日期:2020-01-20
  • 基金资助:
    中国石化科技项目“松南断陷有效储层形成机理及评价预测技术”(P18060-5)

The Control of the Spatial and Temporal Differential Evolution of Boundary Faults on Faulted Basins

Yuhu Liu 1( ),Chunhui Cao 2,Ruilei Li 1,Jianfeng Zhu 1,Wen Xu 1,Lan Huang 1,Ying Luan 1

  1. 1.Northeast Oil and Gas Branch,Sinopec,Changchun 130062,China
    2.Northwest Institute of Eco-Environment and Resources,Chinese Academy of Sciences,Lanzhou 730000,China
  • Received:2019-11-25 Revised:2019-12-28 Online:2020-01-20 Published:2020-02-27
  • About author:Liu Yuhu (1986-), male, Qingyang City, Gansu Province, Senior Engineer. Research areas include structural analysis and petroleum geology research of petroliferous basin. E-mail: liuyuhu2008@163.com
  • Supported by:
    the Sinopec Science and Technology Project "Effective reservoir formation mechanism and evaluation and prediction technology of Songnan fault depression"(P18060-5)

断陷盆地边界断裂普遍具有分段生长特点, 定量表征断层的生长过程及组合模式对盆地形成演化及油气成藏研究具有重要意义。以松辽盆地南部伏龙泉断陷为例,应用三维地震资料,采用断层—位移长度分析方法,对边界断层分段生长与演化过程进行了系统研究,分析了边界断裂时空差异演化对断陷盆地的控制作用。研究表明:伏龙泉断陷边界断裂分段生长控制形成了串联式半地堑;沙河子至营城期断裂差异演化控制沉积中心由南向北迁移;反转期边界断裂逆冲形成断展背斜,逆冲活动强弱控制了背斜圈闭的构造幅度高低;边界断裂性质的转化,相应控制了盆地构造格局由同期串联式半地堑向断展背斜带的演变。

The boundary faults of faulted basins generally have segmental growth characteristics. Quantitative analysis of fault growth processes and combined models is of great significance for basin formation and evolution and hydrocarbon accumulation. Taking the Fulongquan fault depression in the southern part of the Songliao Basin as an example, using the 3D seismic data and using the fault-displacement length analysis method, the segmental growth and evolution process of the boundary fault is systematically studied, and the control effect of the spatial and temporal differential evolution of boundary faults on faulted basins is analyzed. The study shows that the segmental growth control of the boundary fault of Fulongquan fault depression forms a series of semi-mantle shoals; the sedimentary center of the Shahezi-Yingcheng fault is controlled to migrate from south to north; The slanting and thrusting activities control the height of the anticline trap; the transformation of the boundary fault property controls the evolution of the basin's tectonic pattern from the tandem semi-mantle to the faulted anticline.

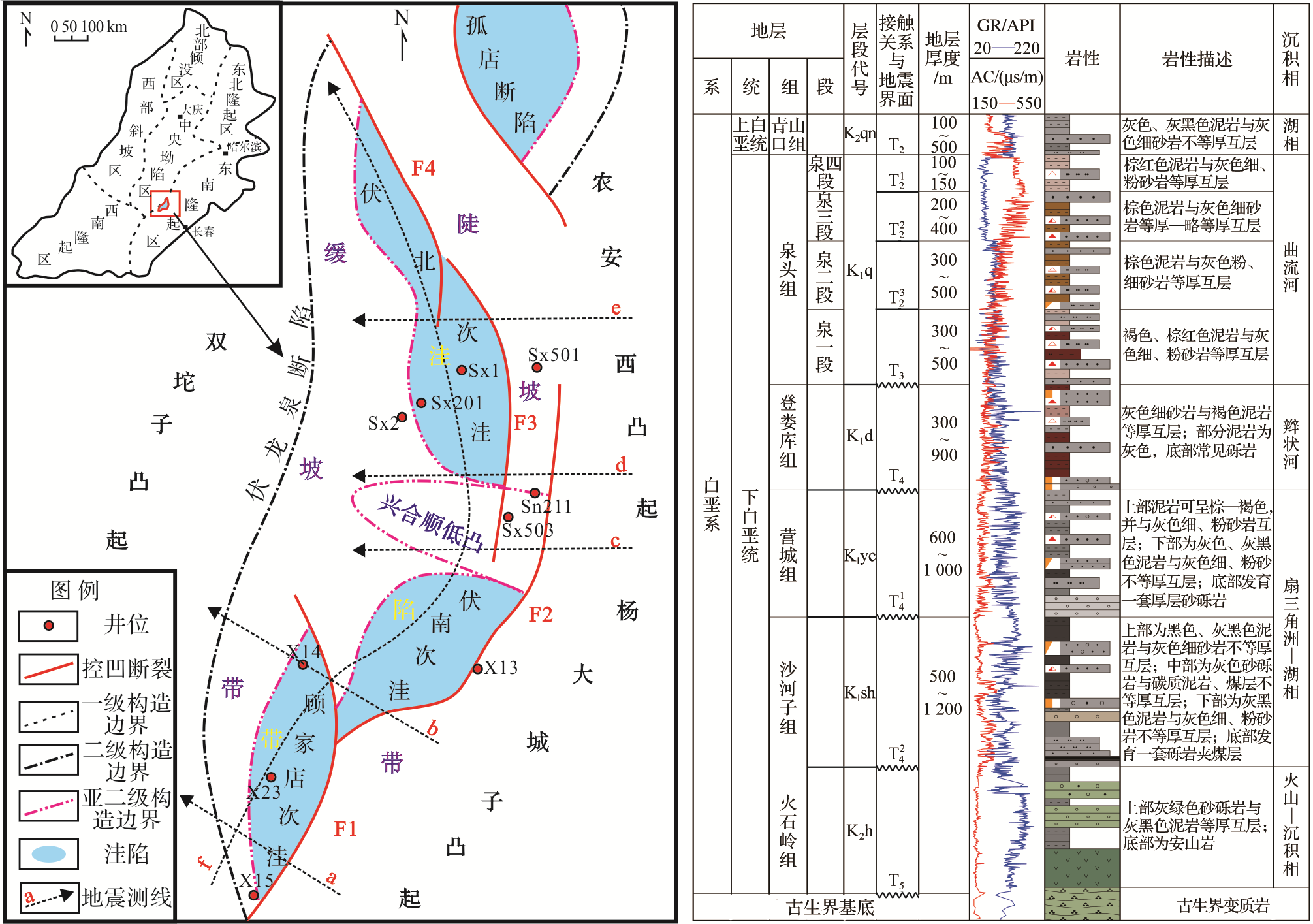

图1 伏龙泉断陷构造位置及地层综合柱状图
Fig.1 Comprehensive histogram of the structural location and stratigraphy of the Fulongquan fault depression
表1 伏龙泉断陷边界断裂要素表
Table 1 Table of boundary fault elements in the Fulongquan fault depression

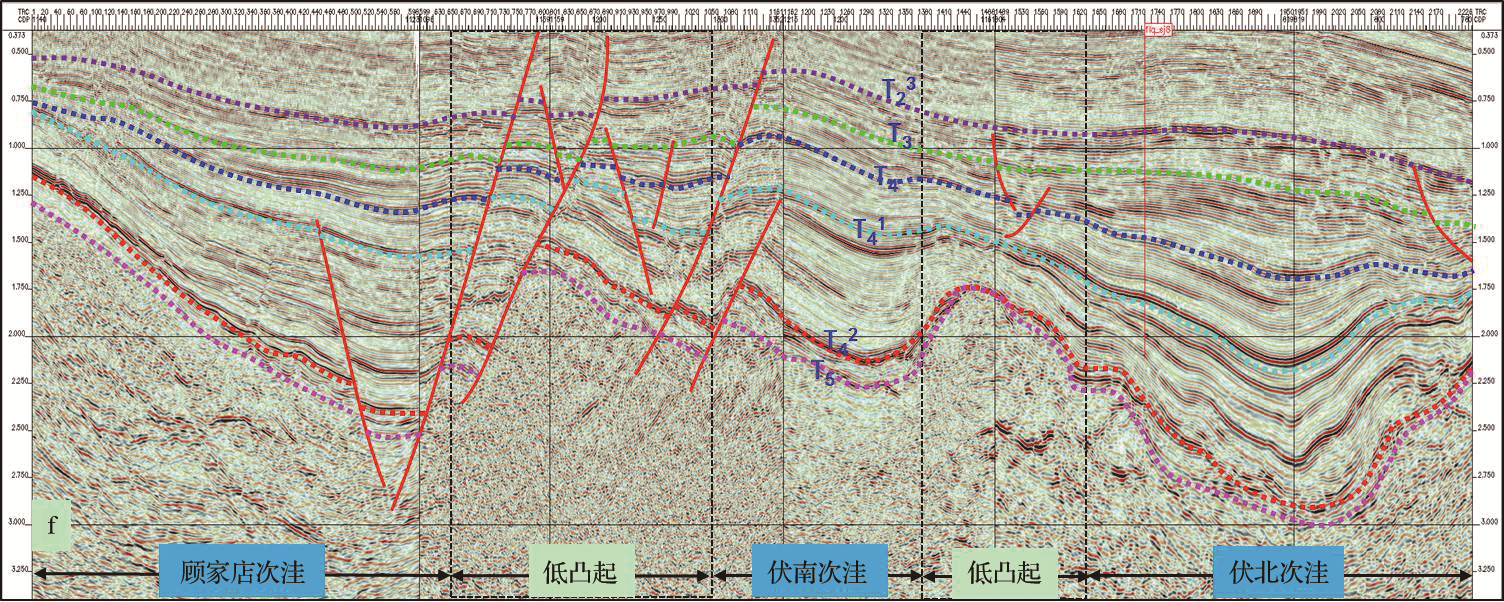

图2 伏龙泉断陷过边界断裂主测线地震剖面
Fig. 2 Seismic section of the main survey line of the boundary fault in the Fulongquan fault depression

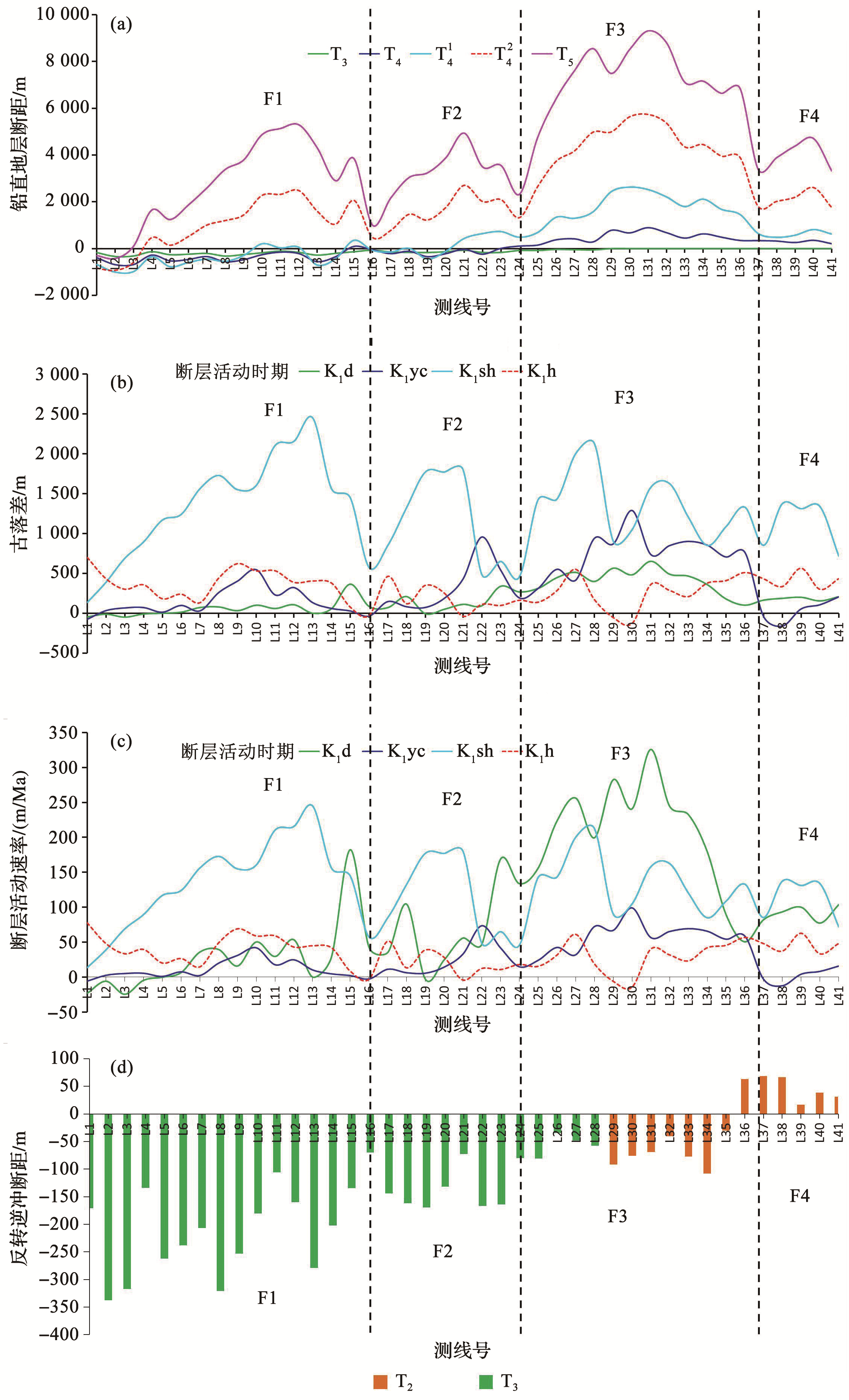

图3 伏龙泉断陷边界断裂生长活动历史
(a)边界断裂现今位移—距离剖面;(b)边界断裂不同沉积期古落差—距离剖面;(c)边界断裂活动速率;(d)边界断裂反转逆冲断距
Fig. 3 History of fault growth activities at the boundary of the Fulongquan fault depression
(a) Current displacement-distance profiles of boundary faults; (b) Paleo-difference-distance profiles of boundary faults in different depositional periods; (c) Boundary fault activity rate; (d) Boundary fault inversion thrust distance

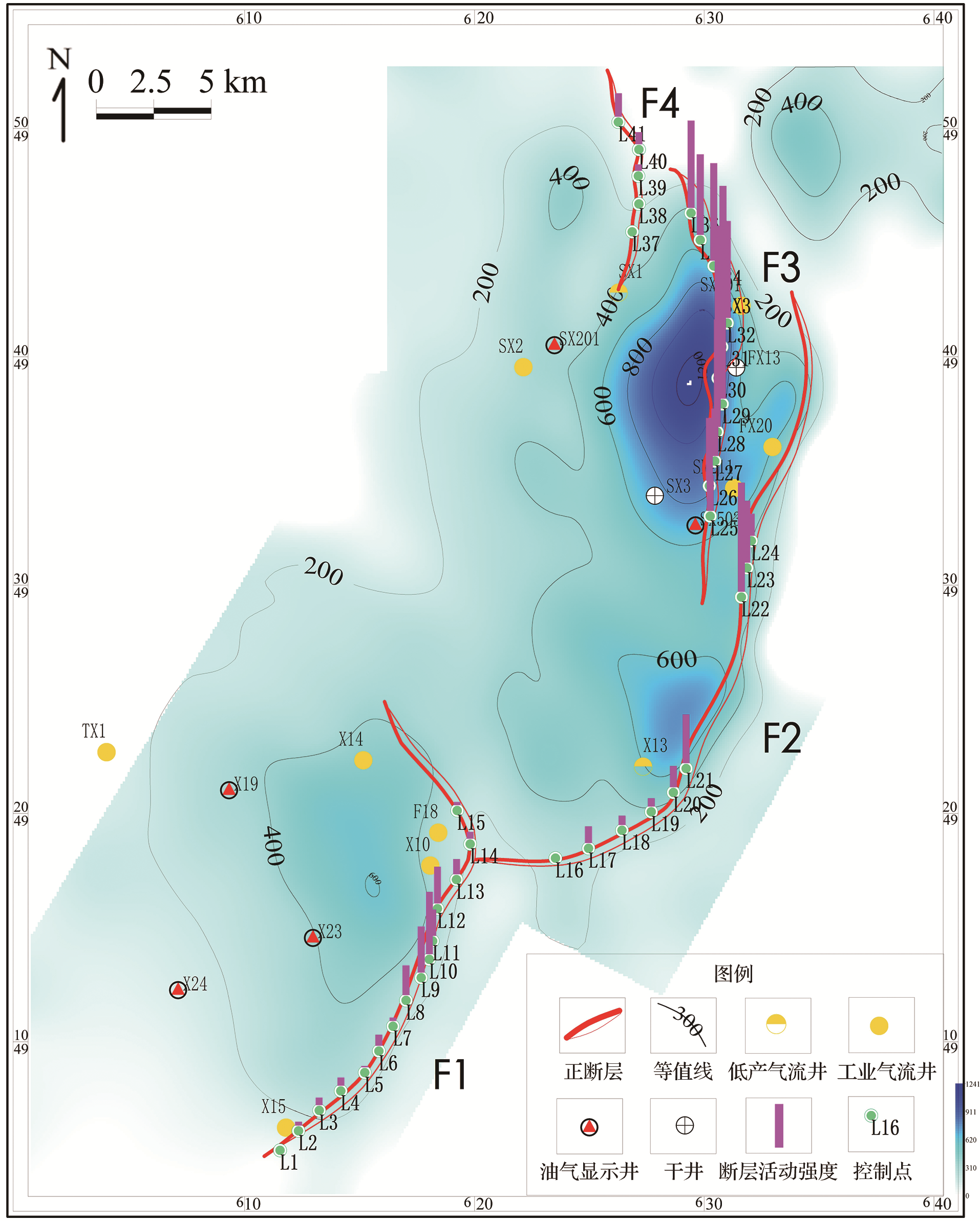

图4 伏龙泉断陷沙河子组边界断裂活动强度与地层厚度叠合图
Fig. 4 Overlapping map of boundary fault activity intensity and stratigraphic thickness of Shahezi Formation in Fulongquan fault depression

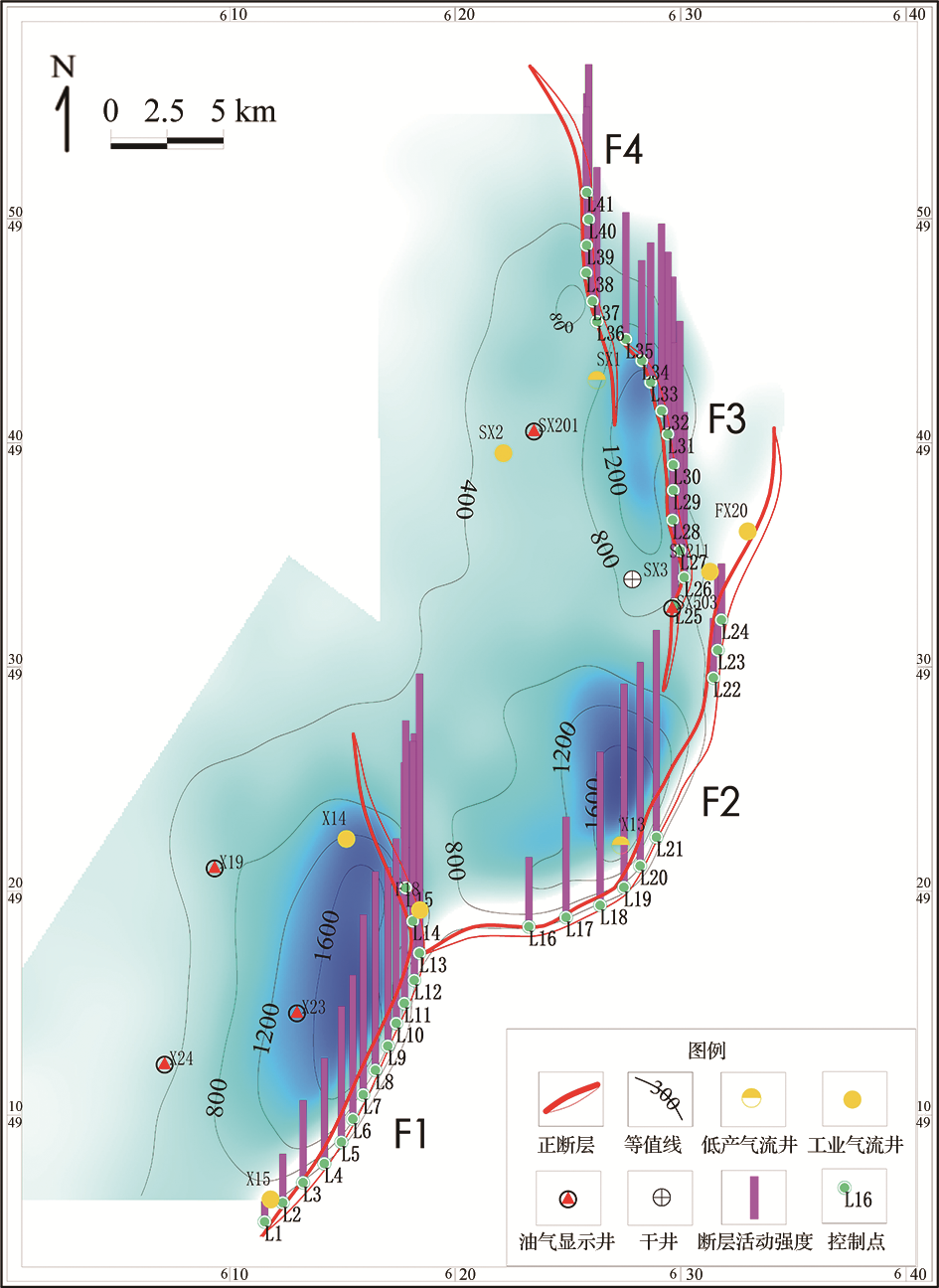

图5 伏龙泉断陷营城组边界断裂活动强度与地层厚度叠合图
Fig. 5 Overlapping map of boundary fault intensity and stratigraphic thickness of Yingcheng Formation in Fulongquan fault depression
图6 伏龙泉断陷同期半地堑串联式平面组合模式
Fig. 6 The planar combination model of Half-graben cascade in the same period of the Fulongquan fault depression

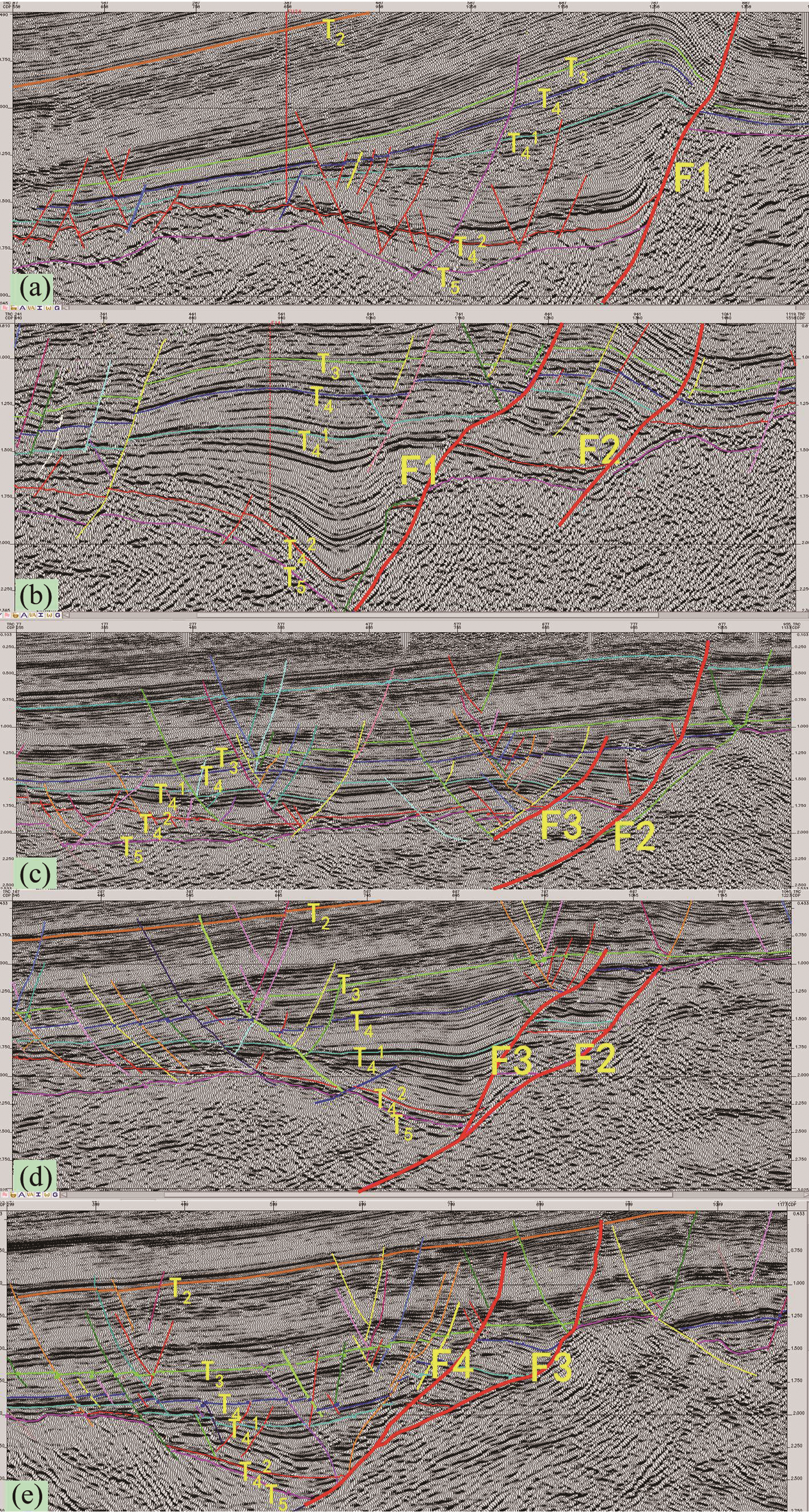

图7 伏龙泉断陷过3个次洼地震剖面
Fig.7 The seismic profiles through three sub-sag in the Fulongquan fault depression

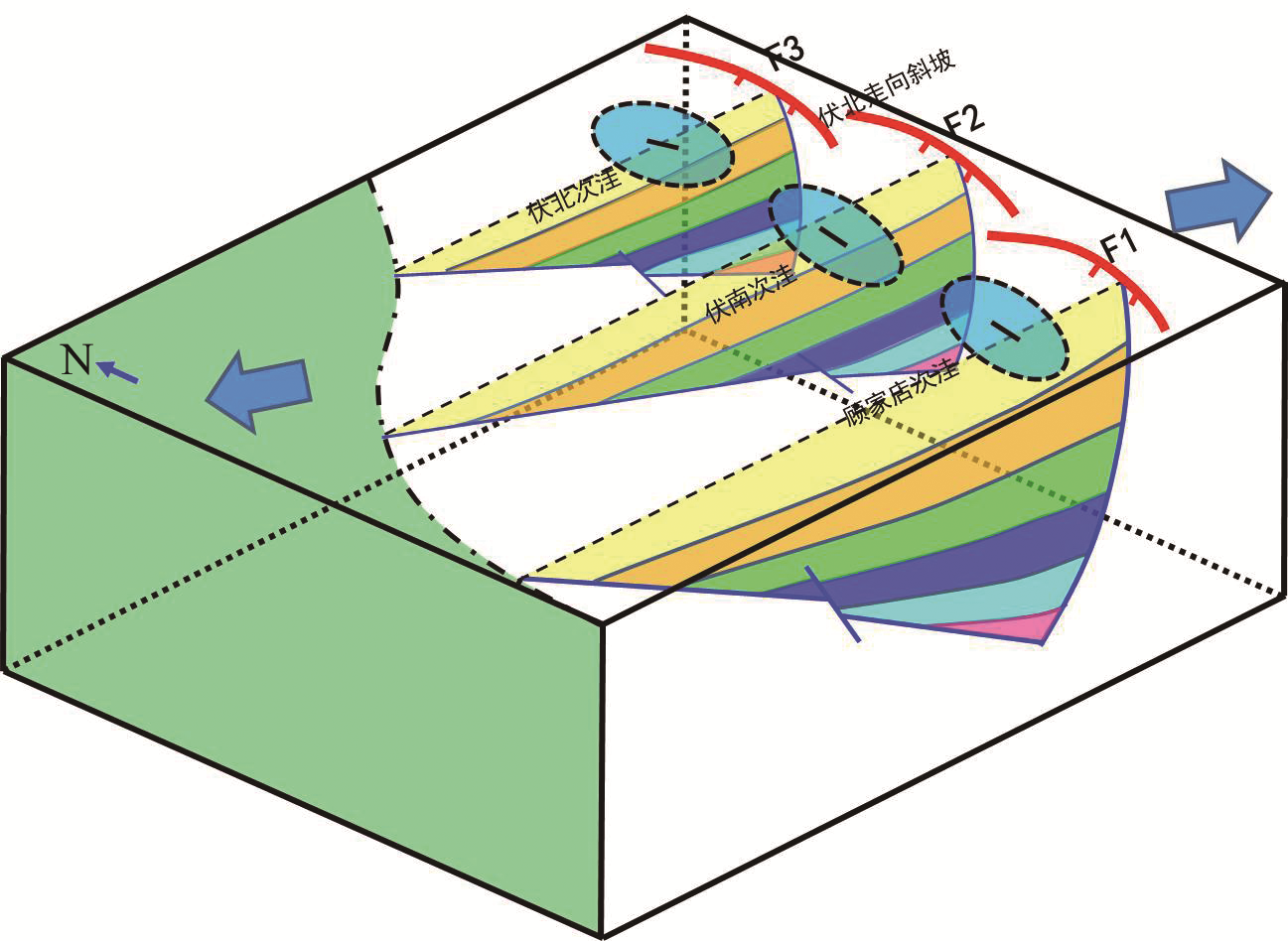

图8 伏龙泉断陷伸展期构造变形场模式
Fig. 8 Model of tectonic deformation field during the extension of the Fulongquan fault depression

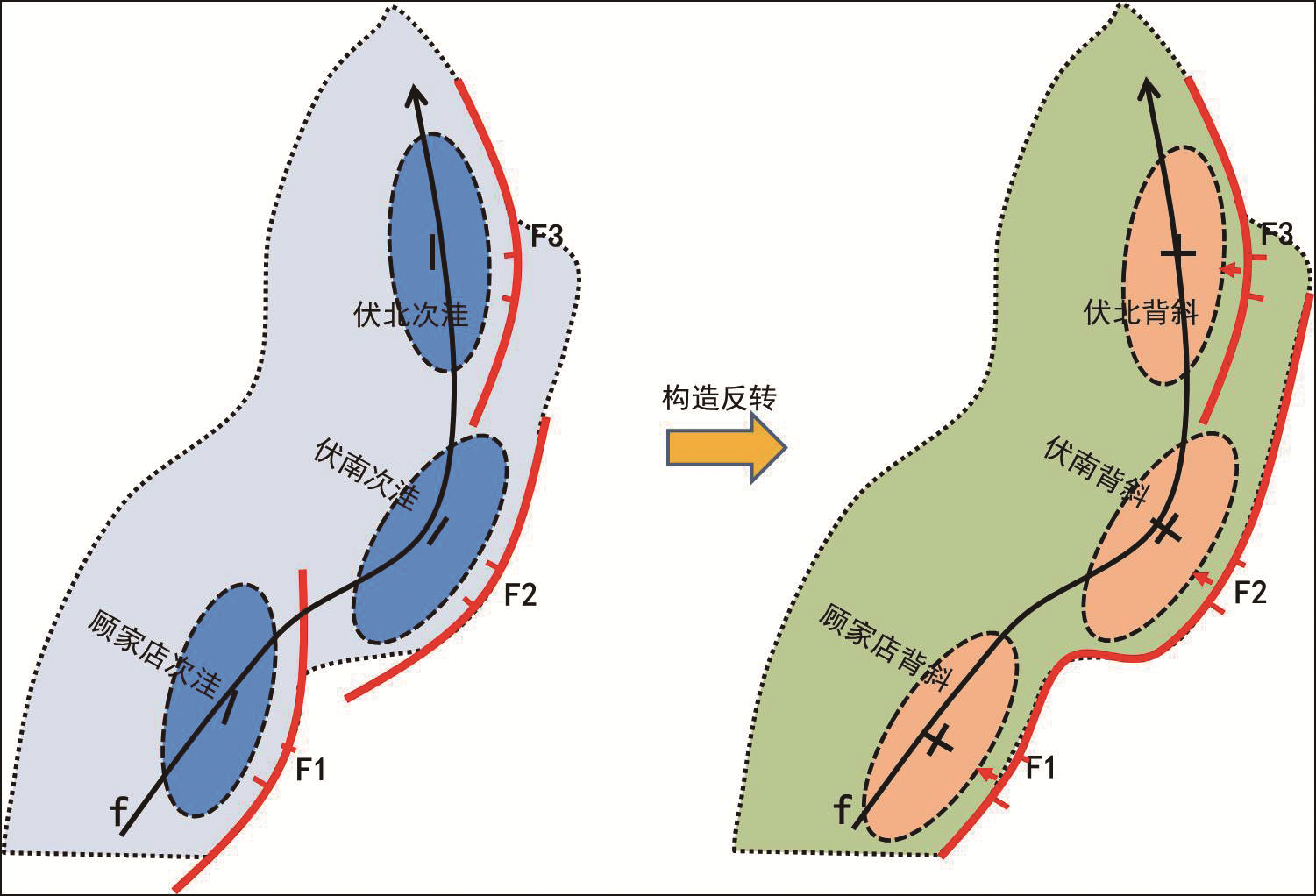

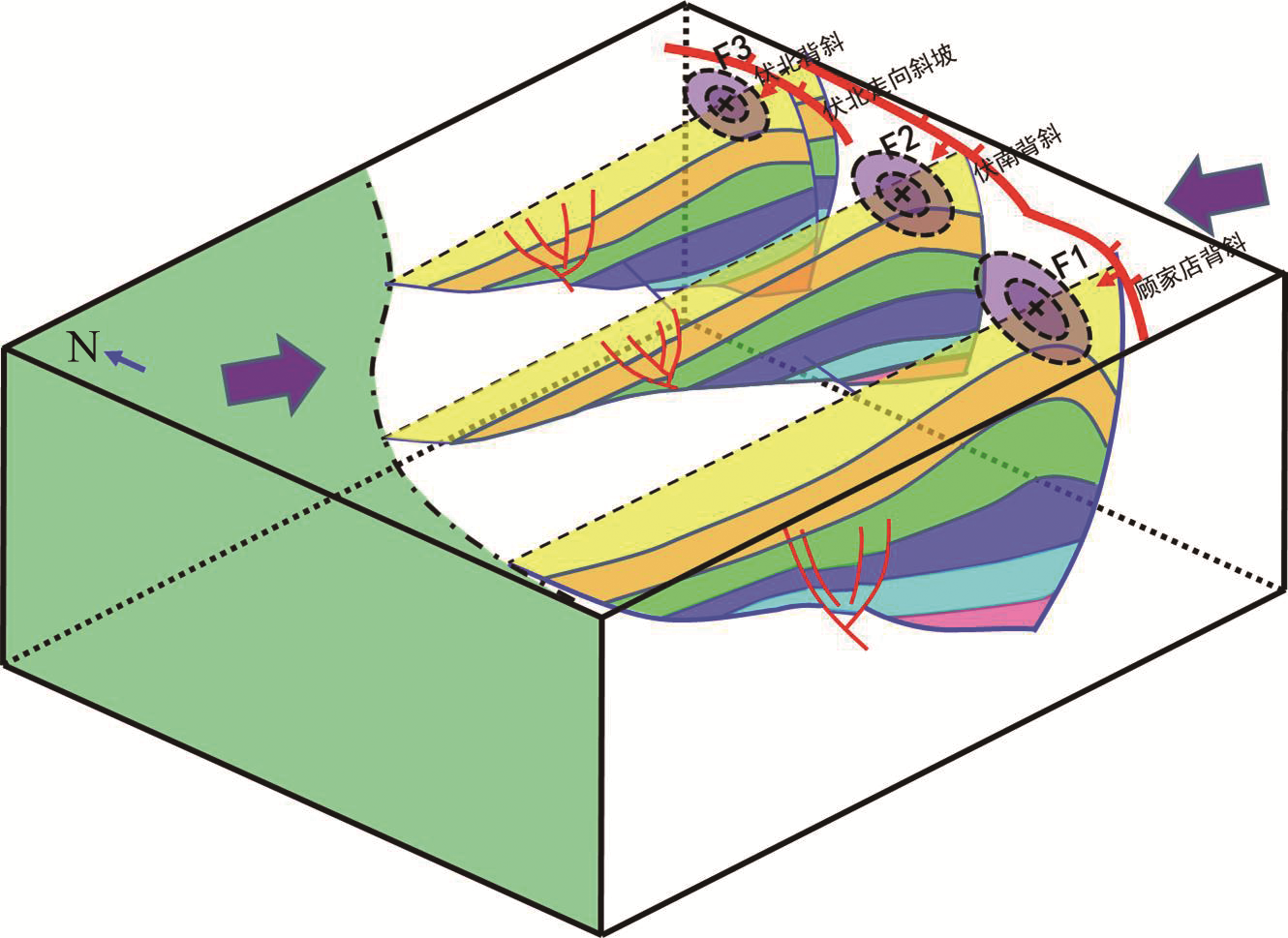

图9 伏龙泉断陷反转期构造变形场模式
Fig. 9 Model of tectonic deformation field during the inversion period of the Fulongquan fault depression
