干燥脱水过程中纤维加筋固化淤泥的强度特性
Strength Characteristics of Fiber Reinforced Solidified Sludge During Drying
通讯作者: 唐朝生(1980-),男,湖南衡阳人,教授,主要从事环境岩土工程和工程地质方面的教学和研究. E-mail:tangchaosheng@nju.edu.cn
收稿日期: 2018-11-16 修回日期: 2019-01-27 网络出版日期: 2019-05-22
基金资助: |
|
Corresponding authors: Tang Chaosheng(1980-), male, Hengyang County, Hunan Province, Professor. Research areas include teaching and research work in environmental geotechnical engineering and engineering geology. E-mail:tangchaosheng@nju.edu.cn.
Received: 2018-11-16 Revised: 2019-01-27 Online: 2019-05-22
作者简介 About authors
淤泥是一种天然含水率高且力学性质极差的固体废弃物,采取有效的技术方法进行快速脱水和增强可以实现淤泥资源化和高效利用。选取离散短丝聚丙烯纤维作为加筋材料,水泥和粉煤灰作为固化材料,通过开展无侧限抗压试验,研究了纤维加筋固化淤泥在干燥路径中强度的变化,并分析了干燥过程中不同目标含水率状态(分别为45
关键词:
Sludge is a kind of solid waste with high natural moisture content and extremely poor mechanical properties. Adopting effective technical methods for rapid dewatering and increasing strength is an important prerequisite for realizing the utilization and efficient utilization of sludge resources. In this paper, discrete short-staple polypropylene fiber was selected as the reinforced material, cement and fly ash were used as the solidified materials. The unconfined compression test was carried out to study the strength change of the fiber reinforced solidified sludge in the drying path, and the drying was analyzed. The influence mechanism of different target moisture content states(5
Keywords:
本文引用格式
王玥, 唐朝生, 吕超, 王鹏, 荣德政, 王宏胜.
Wang Yue, Tang Chaosheng, Lü Chao, Wang Peng, Rong Dezheng, Wang Hongsheng.
1 引 言
淤泥处理处置中面临的两大主要问题是含水率高和强度低。目前,对淤泥的处理多采用化学加固的方法,即在土中加入水泥[4,5]和石膏[6]等无机材料以及化学浆液[7],再加入粉煤灰[8,9]和矿渣等辅助材料。水泥等无机固化剂加入到污泥当中起到骨架构建体的作用,在污泥中形成坚硬网格骨架,中和污泥的电荷及吸附架桥,改善絮体的形成面。而其余辅助固化材料如粉煤灰等主要是为了填充固化/稳定化后产物的孔隙形成完整的胶结体,使之能够获得更高的强度,以及对于重金属的封存起到增强的作用[10]。然而对淤泥进行单一的化学固化,固化成本高,固化效果不理想。同水泥和石灰等化学固化剂相比,纤维具有强度高、分散性好、易搅拌及不影响土体生态环境等优点[11]。研究表明,在土体中加入纤维,土体的抗压、抗剪、抗拉强度及承载力能得到显著提升,除此之外还能显著提高土体在干燥环境中的蒸发速率[12,13,14,15,16],这对于提高土体的脱水效率有重要意义,也为淤泥脱水增强提供了新的思路。
固化淤泥的力学强度不仅与其固化方式有关,而且还受到淤泥成分、初始含水率、固化剂掺量及龄期[17]等因素的影响。其中,含水率对淤泥力学性质的影响是广大学者研究的重点之一。如张春雷等[18]综合分析直接剪切试验和无侧限抗压试验结果发现,固化后淤泥的无侧限抗压强度随着初始含水率的升高呈乘幂关系降低。淤泥的初始含水率越高,固化后塑性越强,黏聚力越低。固化淤泥的强度主要来源于水化物的作用。Consoli等[19]研究了含水率对固化淤泥土强度特性的影响,发现含水率对固化淤泥强度的作用主要是改变了固化淤泥体系的结构。徐日庆等[20]对温州半岛浅滩工程海堤淤泥质地基进行加固试验,发现含水率减少5.8
为此,本文提出采用纤维物理加筋技术结合传统的化学固化作用对淤泥进行处理,并对处理好的试样进行持续的干燥脱水到不同的含水率,通过开展无侧限抗压试验,研究了试样在干燥过程中强度的变化规律,重点分析了含水率和纤维掺量对淤泥处理效果的影响。相关研究成果对指导实际工程中的淤泥处置和资源化利用具有参考意义。
2 试验材料与方法
2.1 试验材料
表1 淤泥的物理性质指标
Table 1
比重 | 天然含水率/ | 液限/ | 塑限/ | 有机质/ |
---|---|---|---|---|
2.48 | 46.92 | 61.2 | 36.8 | 4.6 |
表2 聚丙烯纤维的物理力学参数
Table 2
类型 | 密度 /(g/cm3) | 直径 /mm | 平均长度 /mm | 耐酸碱性 | 分散性 |
---|---|---|---|---|---|
束状单丝 | 0.91 | 0.020~0.048 | 12 | 极强 | 极好 |
2.2 试样制备与试验方法
首先将初始含水率为92
28天后,称量固化完成后试样的质量,并测试对应的含水率,将其作为固化后淤泥的初始含水率(约为46
3 试验结果与分析
3.1 含水率对纤维加筋固化淤泥强度的影响
试验中,不同纤维掺量、不同含水率条件下试样的应力—应变曲线呈现相似的规律,选取素土(未掺入纤维)和纤维掺量为0.1

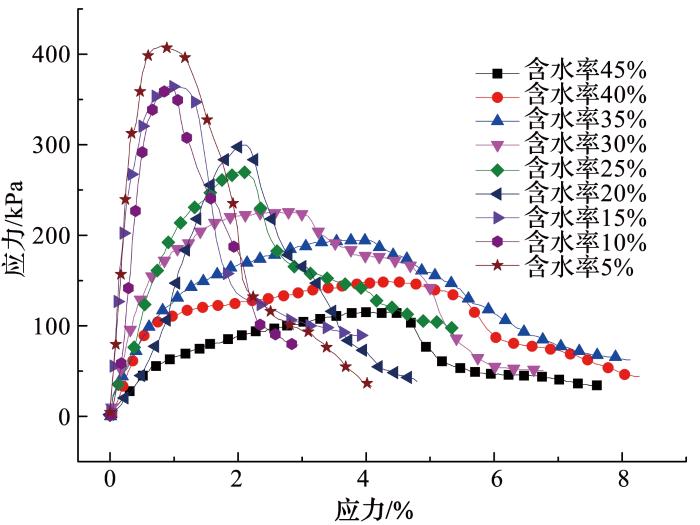

图 1
图 1
素土样在不同含水率条件下的应力—应变曲线
Fig. 1
Stress-strain curves of samples without fiber reinforcement

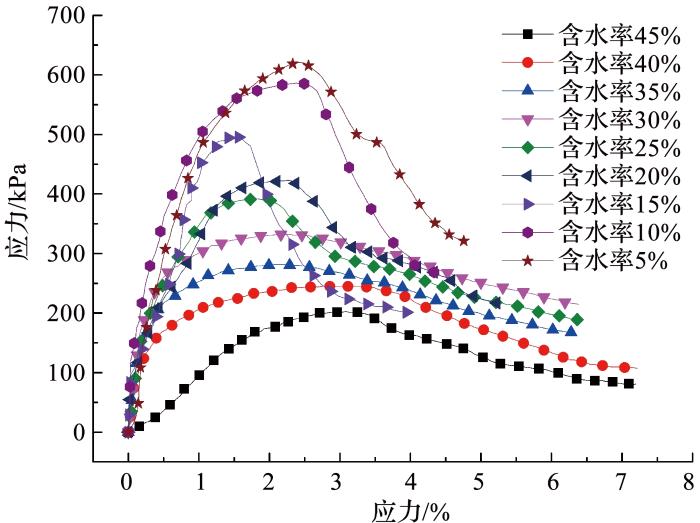

图 2
图 2
纤维掺量为0.1
Fig.2
Stress-strain curves of samples with 0.1
图3给出了不同纤维掺量下固化淤泥在干燥过程中无侧限抗压强度随含水率的变化特征。从图3中可以看出,在相同纤维掺量下,随着含水率的降低,固化淤泥的强度不断增加。当素土的含水率从45

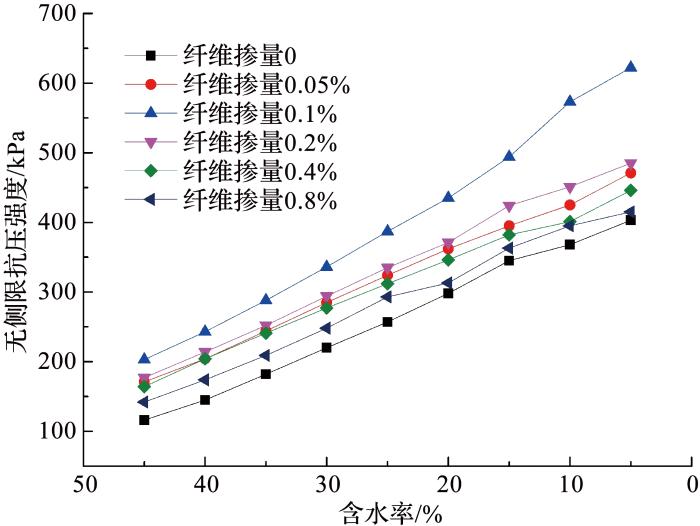

图 3
图 3
不同纤维掺量下含水率与无侧限抗压强度的关系
Fig. 3
Relationship between moisture content and unconfined compressive strength under different fiber dosages
3.2 纤维掺量对纤维加筋固化淤泥强度的影响
图4给出了不同含水率条件下纤维掺量对固化淤泥强度的影响。淤泥试样经过固化后的含水率在45

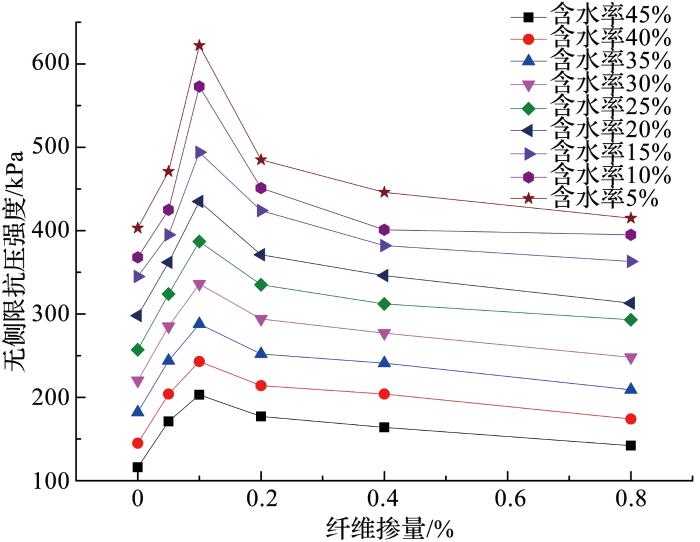

图 4
图 4
不同含水率条件下纤维掺量对固化淤泥强度的影响
Fig. 4
Effect of fiber content on the strength of solidified sludge under different moisture content
3.3 干燥脱水过程中纤维加筋对固化淤泥强度的影响
为了分析含水率变化对纤维加筋固化淤泥强度的影响,假设同一含水率条件下0.1
图 5
图 5
含水率对纤维加筋固化淤泥效果的影响
Fig. 5
Effect of moisture content on the effect of fiber reinforced solidified sludge
4 结 论
本文以疏浚淤泥为研究对象,提出采用纤维加筋技术结合水泥以及粉煤灰的化学固化作用对初始高含水率的淤泥进行处理,并研究了干燥脱水过程中纤维加筋固化淤泥力学强度的演化特性,分析了含水率和纤维掺量对淤泥处理效果的影响,得到以下几点结论:
(1)干燥脱水过程中淤泥的含水率对其强度有显著的影响。随着含水率的降低,试样的强度能够成倍增加。在实际工程中,从经济高效角度考虑,可优先考虑降低固化后淤泥的含水率以改善淤泥的力学性质。
(2)在传统的化学固化处理淤泥中加入纤维可以进一步提高淤泥的峰值强度和残余强度,且强度值随纤维掺量的增加呈现先上升后下降的趋势,最优纤维掺量为0.1
(3)随着含水率的降低,固化淤泥的破坏形式由塑性破坏向脆性破坏发展,且破坏应变逐渐减小,而纤维的掺入可使固化淤泥的整体结构性增强,减小峰值强度损失,提升固化淤泥的破坏韧性,这对改善工程结构的安全性有重要积极意义。
(4)纤维加筋对固化淤泥强度的贡献随含水率的减小而逐渐增加,主要是因为纤维—淤泥界面作用力在低含水率条件下能得到更佳的激发。
(5)采用纤维物理加筋与化学固化相结合的淤泥处理方法,并进一步进行干燥脱水处理,能起到显著的增强效果,该方法简单易行,具有一定的推广应用价值。
