地球科学进展

地球科学进展 ›› 2015, Vol. 30 ›› Issue (9): 904 -914.

上一篇    下一篇

黑潮化学物质输入东海的途径与通量
刘伟 1, 2, 3( ), 宋金明 1, *( ), 袁华茂 1, 李学刚 1, 李宁 1, 段丽琴 1, 左九龙 1, 3
  1. 1.中国科学院海洋研究所海洋生态与环境科学重点实验室,山东 青岛266071
    2.山东省分析测试中心,山东 济南 250014
    3.中国科学院大学,北京 100049
  • 出版日期:2015-09-16
  • 通讯作者: 宋金明 E-mail:ll_liuwei@163.com;jmsong@qdio.ac.cn
  • 基金资助:
    中国科学院战略性先导科技专项“黑潮向近海生源要素的输送”（编号：XDA11020102）;国家自然科学基金委员会—山东省人民政府联合项目“海洋生态环境变化的生物地球化学机制”（编号：U1406403）资助

Pathway and Flux of Inputting Chemical Substances from the Kuroshio to the East China Sea

Wei Liu 1, 2, 3, Jinming Song 1, Huamao Yuan 1, Xuegang Li 1, Ning Li 1, Liqin Duan 1, Jiulong Zuo 1, 3

  1. 1. Key Laboratory of Marine Ecology and Environmental Sciences, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071
    2 .Shandong Analysis and Test Center, Jinan 250014
    3. University of Chinese Academy of Sciences, Beijing 10049
  • Online:2015-09-16 Published:2015-09-16
全文 ( 6 )

在对黑潮水文特征分析的基础上,探讨了黑潮对中国近海化学物质输入途径,归纳总结了黑潮对东海生源要素、痕量元素、同位素及其他化学物质的输入特征,提出了黑潮对中国近海化学物质输入研究应着重关注的问题。主要的结论包括：吕宋海峡、中国台湾东北部及日本九州西南海域是黑潮向中国近海输送化学物质的3个关键区域;黑潮表层水向东海陆架的扩展、次表层水和中层水的涌升以及黑潮季节性流轴摆动是黑潮向东海输送化学物质的基本途径。黑潮主体生源要素的浓度随深度的增加而增大。黑潮对东海生源要素的影响夏季最弱、春季次之、秋冬季最强,其对东海生源要素的输入通量要远高于河流、大气等其他输入源,并且各水层中以中层水的生源要素输入通量为最大。痕量元素在黑潮主体的分布、对东海的输入通量等方面均表现出了与生源要素的差异,各痕量元素的分布及输入通量随痕量元素的不同而不尽相同,其中次表层水的涌升在对邻近海域痕量元素分布的影响中起到了重要作用。同位素可指示黑潮对东海陆架的入侵程度及变化规律,并与营养盐等有一定的相关性。黑潮是东海微量温室气体N2O,CH4等其他化学物质的重要输入源,进而对东海生态环境产生影响。进一步研究应着重从系统性外海观测、痕量元素及同位素等化学物质调查、黑潮对中国近海输入化学物质的控制过程等方面深入开展。关键词：黑潮; 东海; 化学物质; 输入途径; 通量

关键词: Kuroshio, The East China Sea, Chemical substances, Inputting pathway, Flux.

The inputting pathway of chemical substances from the Kuroshio to China Margin seas and inputting characteristics of biogenic elements, trace elements, isotopes and other chemical substances from the Kuroshio to the East China Sea (ECS) were reviewed on the basis of hydrological analysis of the Kuroshio, and some important issues which should be concerned in this research field were put forward in the end. Luzon Strait, Sea off Northeastern Taiwan and Southwestern Kyushu are the critical areas for the Kuroshio input. Extension of the Kuroshio surface water, upwelling of the Kuroshio subsurface water and intermediate water, seasonal axial swing are the basic means for the input of chemical substances. The concentration of biogenic elements in the Kuroshio water increases with depth. For biogenic elements in the ECS, the influence of the Kuroshio is the weakest in summer, then in spring, and strongest in autumn and winter. The influx of biogenic elements from the Kuroshio is higher than other sources like river and atmosphere, and the intermediate water owns the largest share among all layers. The distribution and influx to the ECS of trace elements show difference with biogenic elements, and differ from each other under the impact of the upwelling of Kuroshio subsurface water. Isotopes can indicate the incursion of the Kuroshio and show certain correlation with nutrition. The Kuroshio is also an important source for some green house gas like N2O, CH4, which will further affect the ecosystem of the ECS. The future research should focus on systematical offshore observation, investigation of chemical substances like trace elements and isotopes, controlling process of chemical substances input from the Kuroshio to China margin seas.

Key words: Kuroshio, The East China Sea, Chemical substances, Inputting pathway, Flux.

中图分类号:

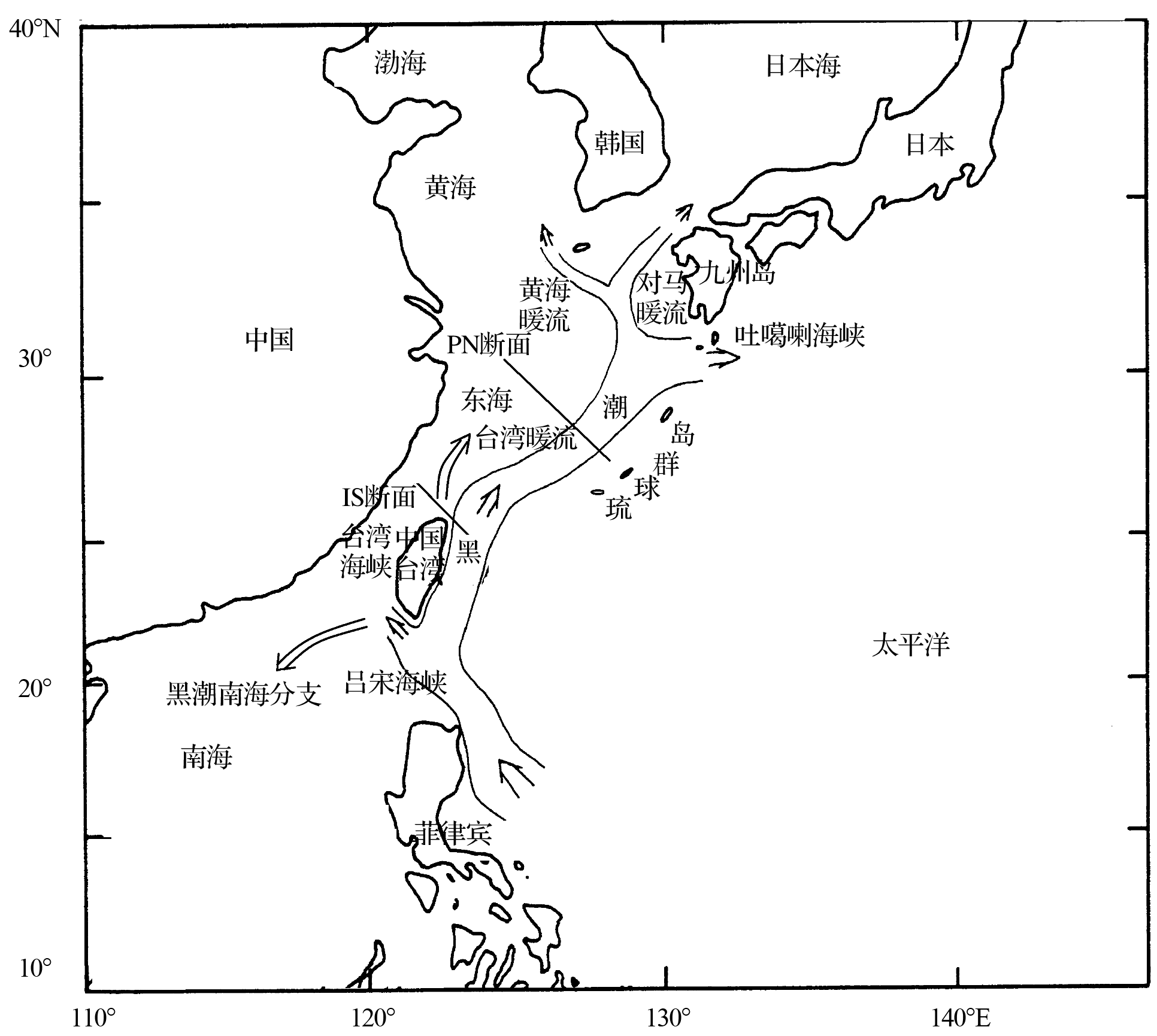

图1 黑潮主体及分支示意图(修改自参考文献[ 5 ])
Fig.1 Main stream and branch of the Kuroshio(modified from reference [ 5 ])

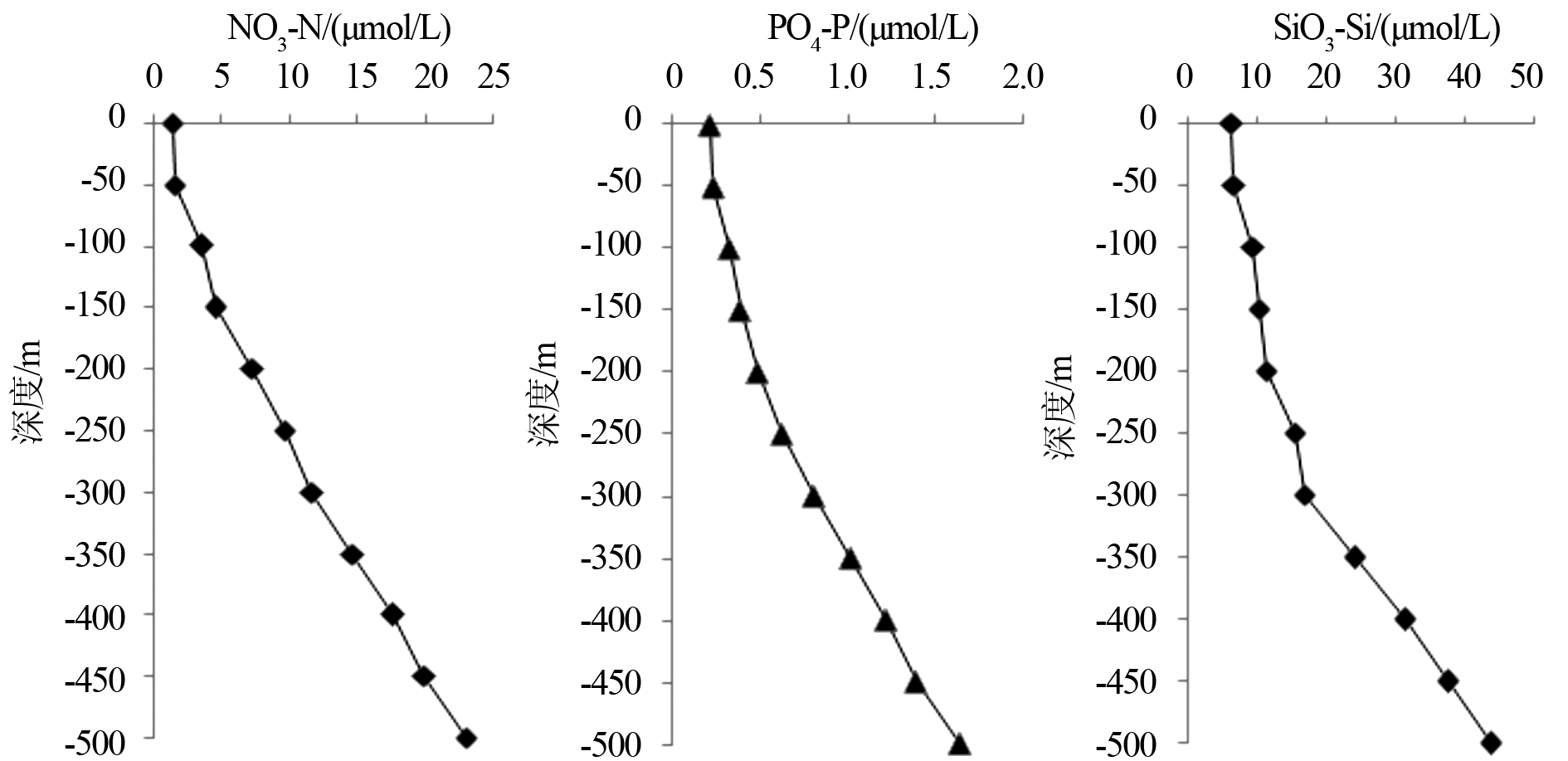

图2 东海黑潮区水体NO 3-N,PO 4-P,SiO 3-Si的垂直分布 [ 26 ]
Fig.2 Vertical distribution of NO 3-N,PO 4-P,SiO 3-Si of the Kuroshio water in the ECS [ 26 ]
表1 黑潮对东海生源要素的输入通量
Table 1 Influx of biogenic elements from the Kuroshio to the ECS
研究区域 黑潮输入通量最大值/(kmol/s) 参考文献
NO3-N PO4-P SiO3-Si
东海陆架 12.6 0.46 23.7 [14]
PN断面 9.4 0.7 18.2 [30]
中国台湾东北部海域 7.1 0.46 10.1 [31]

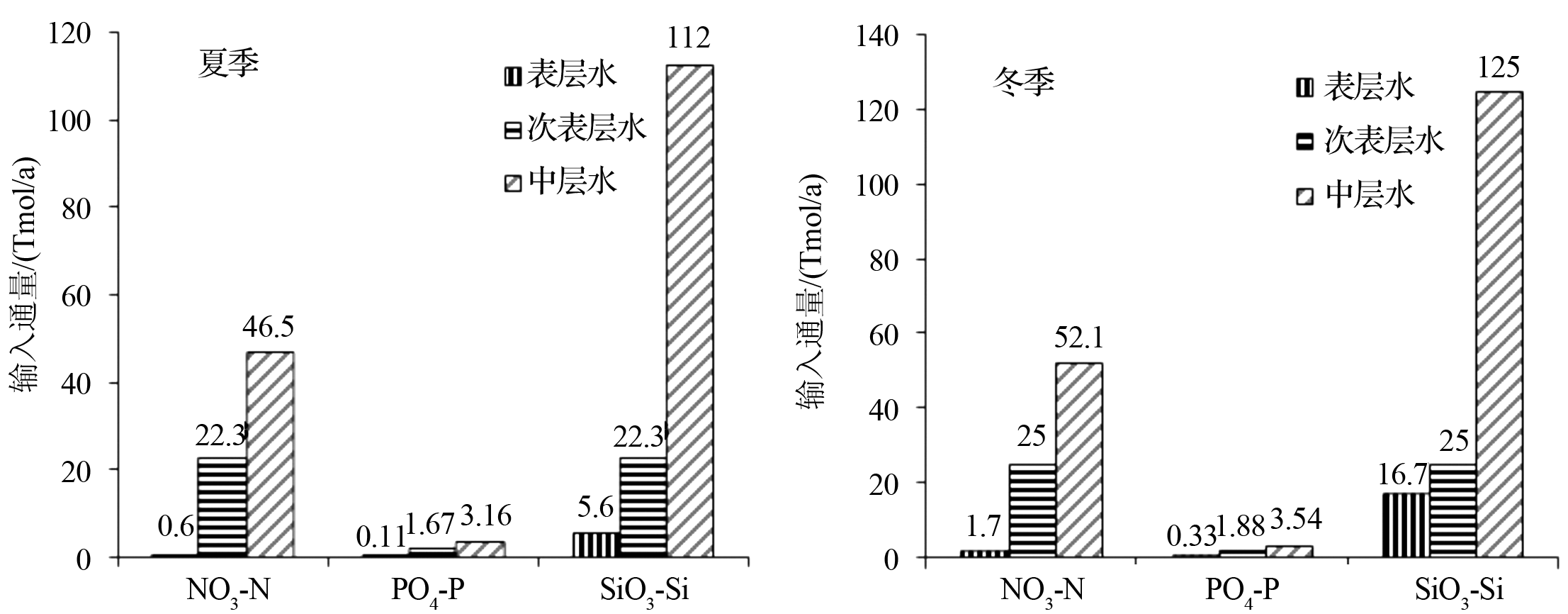

图3 黑潮各水层对东海生源要素的输入通量 [ 32 ]
Fig.3 Influx of biogenic elements from each layer of the Kuroshio to the ECS [ 32 ]
表2 黑潮主体海水溶解态的痕量元素
Table 2 Dissolved trace elements of the Kuroshio main stream water
元素名称 浓度/（nmol/L） 浓度垂直变化 类型[ 36 ] 参考文献
As 11.2~19.7 表层低、次表层高 表层富集型 [37, 38]
Pb 0.2~0.8 表层低、次表层高、向下再降低 [39]
IO3- 260~420 表层低、次表层高 [40]
I- 9~160 表层高、次表层低
Mn 1~15 表层高、次表层低 [41]
Al 10~30 表层高、次表层低 中层极小值型 [42]
Cd 0.04~1.45 自表层向下逐渐增加 营养盐型
(表层低深层高)		 [43]
W 0.061~0.107 表层略高 保守型
(均匀分布)		 [44]
Mo 92~105 表层略高
V 31~38 表底层基本一致
U 12~15 表底层基本一致
表3 黑潮对东海痕量元素的输入通量
Table 3 Influx of trace elements from the Kuroshio to the ECS
元素名称 输入通量/（mol /a） 黑潮输入通量位次 参考文献
黑潮 河流 台湾暖流 大气
As 4.79×108 0.24×108 14.12×108 0.60×108 2 [37, 46, 47]
Al 3.70×108 5.92×108 6.62×108 4.55×108 4 [42, 48, 49]
Mn 6.0×107 3.1×107 / / 1 [41]
I- 3.7×109 0.03×109 1.2×109 / 1 [40]
IO3- 12.3×109 0.03×109 3.1×109 / 1
表4 黑潮各水层对东海痕量元素的输入通量
Table 4 Influx of trace elements from each layer of the Kuroshio to the ECS
元素名称 输入通量/（mol /a） 输入通量比 参考文献
表层水 次表层水 （表层/次表层）
Al 1.26×108 2.44×108 1/1.94 [42]
Mn 4.0×107 2.0×107 2/1 [41]
I- 3.6×109 0.1×109 36/1 [40]
IO3- 5.7×109 6.6×109 1/1.16
表5 黑潮区域部分溶解态同位素研究结果
Table 5 Research results of some dissolved isotopes in the Kuroshio area
同位素名称 浓度分布 相关性 主要研究结论 参考文献
10Be 黑潮主体浓度很高,约700~800原子/克,向近岸方向逐渐降低 与营养盐相关性显著 在东海PN断面上,黑潮水入侵东海陆架最远可以到达124°E的位置 [50]
18O 黑潮主体18O丰度很高,特征值0.20‰~0.45‰,高于邻近海域 与盐度显著正相关 在中国台湾东北部海域,夏季黑潮水仅影响到陆架坡折以外海域 [51]
226Ra 黑潮主体浓度低,向近岸方向逐渐增大 与营养盐、盐度相关性不明显 夏季黑潮水对东海陆架的入侵限于陆架边缘,而冬季表层水向岸入侵明显 [14, 52]
210Po 黑潮主体浓度低,向近岸方向逐渐增大 与营养盐、盐度相关性不明显 秋季黑潮对陆架的入侵更为明显,大于夏季和冬季 [53]
210Pb
[1] Guan Bingxian.Kuroshio—A world famous ocean strong current[J]. Marine Sciences, 1978, 2:1-6.
[管秉贤. 黑潮——一支世界著名的大洋强流[J]. 海洋科学,1978, 2:1-6.]
[2] Su Jilan.Dynamic mechanism of circulation current in the China Marigin Seas[J]. Acta Oceanologica Sinica, 2001, 23(4):1-16.
[苏纪兰. 中国近海的环流动力机制研究[J].海洋学报, 2001, 23(4):1-16.]
[3] Song Jinming.Biogeochemical Processes of Biogenic Elements in China Marginal Seas[M]. Berlin: Springer-Verlag Berlin, 2010.
[4] Zhang L, Liu Z, Zhang J, et al.Reevaluation of mixing among multiple water masses in the shelf: An example from the East China Sea[J]. Continental Shelf Research,2007, 27(15):1 969-1 979.
[5] Hsueh Y.The Kuroshio in the East China Sea[J]. Journal of Marine Systems, 2000, 24:131-139.
[6] Duan Jing, Chen Zhaohui, Wu Lixin.Study on intraseasonal variation of current at the source region of Kuroshio by analyzing the buoy observation data[J]. Advances in Earth Science, 2014, 29(4):523-530.
[段静, 陈朝晖, 吴立新. 黑潮源区海流季节内变化观测分析[J]. 地球科学进展, 2014, 29(4):523-530.]
[7] Nitani H.Beginning of the Kuroshio[M]∥Stommel H, Yoshida K,eds. Kuroshio: Its Physical Aspects. Seattle:University of Washington Press, 1972:129-163.
[8] Sun Xiangping.The China Margin Seas[M]. Beijing: China Ocean Press,2008.
[孙湘平. 中国近海区域海洋[M]. 北京:海洋出版社, 2008.]
[9] Tang Yuxiang.Analysis of the regional variability of the Kuroshio in the East China Sea[J]. Acta Oceanologica Sinica, 1995, 17(4):22-29.
[汤毓祥. 东海黑潮区域性变异的分析[J]. 海洋学报, 1995, 17(4):22-29.]
[10] Wang Zheng, Hou Yiyun, Le Kentang, et al.Advances in study on the Kuroshio in the source region[J]. Studia Marina Sinica, 2007,48:35-41.
[王铮,侯一筠,乐肯堂,等. 源区黑潮研究进展[J]. 海洋科学集刊, 2007,48:35-41.]
[11] Guo X Y, Miyazawa Y, Yamagata T.The Kuroshio onshore intrusion along the shelf break of the East China Sea:The origin of the Tsushima warm current[J]. Journal of Physical Oceanography, 2006,36(12):2 205-2 231.
[12] Lin C Y, Shyu C Z, Shih W H.The Kuroshio fronts and cold eddies off northeastern Taiwan observed by NOAA-AVHRR imageries[J]. Terrest, Atmoshp Ocean Science, 1992, 3:225-242.
[13] Zhu Wenwu.Temporal and Spatial Variation of Interaction between Kuroshio Water and Shelf in the East China Sea[D]. Shanghai: Shanghai Normal University, 2011.
[朱文武. 东海黑潮水和东海陆架水相互作用的时空变化[D]. 上海:上海师范大学, 2011.]
[14] Zhang J, Liu S M,Ren J L, et al.Nutrient gradients from the eutrophic Changjiang (Yangtze River) Estuary to the oligotrophic Kuroshio waters and re-evaluation of budgets for the East China Sea Shelf[J]. Progress in Oceanography, 2007, 74:449-478.
[15] Lu Xi, Song Jinming, Yuan Huamao, et al.Carbon distribution and exchange of Kuroshio and adjacent China Sea shelf: A review[J]. Advances in Earth Science, 2015, 30(2):214-225.
[卢汐, 宋金明, 袁华茂, 等. 黑潮与毗邻陆架海域的碳交换[J]. 地球科学进展, 2015, 30(2):214-225.]
[16] Zhao Ruixiang, Liu Zhiliang.The seasonal variation of the Kuroshio subsurface water intrusion northeast of Taiwan[J]. Acta Oceanologica Sinica, 2014,35(1):20-27.
[赵瑞祥,刘志亮. 台湾东北部黑潮次表层水入侵的季节变化规律[J]. 海洋学报, 2014,35(1):20-27.]
[17] Wang Guiyun, Zang Jiaye.Content and distribution of chemical parameters in the East Chia Sea[C]∥Research Thesis of the Kuroshio. Beijing: China Ocean Press, 1987:267-284.
[王桂云,臧家业.东海海洋化学要素含量及其分布[C]∥黑潮调查研究论文集.北京:海洋出版社, 1987: 267-284.]
[18] Chen Y, Hu D, Wang F.Long-term variabilities of thermodynamic structure of the East China Sea Cold Eddy in summer[J]. Chinese Journal of Oceanology and Limnology, 2004, 22: 224-230.
[19] Naik H, Chen C-T A. Biogeochemical cycling in the Taiwan Strait[J]. Estuarine Coastal and Shelf Science, 2008, 78: 603-612.
[20] Wang Yuheng, Dong Henglin, Ren Dianyong.The distribution and interrelation of Kuroshio chemical parameters in spring and autumn[J]. Acta Oceanologica Sinica, 1992,14(3): 65-75.
[王玉衡, 董恒霖, 任典勇. 春秋季黑潮及其邻近海区化学要素的分布和相互关系的探讨[J].海洋学报, 1992, 14(3): 65-75.]
[21] Hu Po, Hou Yiyun, Le Kentang, et al.Study advances on the Kuroshio in the East China Sea and currents in the region east of Ryukyu Islands[J]. Studia Marina Sinica, 2007, 48:28-33.
[胡珀, 侯一筠, 乐肯堂,等. 东海黑潮及琉球群岛以东海流研究进展[J]. 海洋科学集刊, 2007, 48:28-33.]
[22] Isobe A.Recent advances in ocean-circulation research on the Yellow Sea and East China Sea shelves[J]. Journal of Oceanogr, 2008, 64(4): 569-584.
[23] Lin Kui, Chen Zeshi, Guo Binghuo, et al.Seasonal transport and exchange between the Kuroshio water and shelf water[J]. Journal of Oceanography of Huanghai ＆ Bohai Seas, 1995, 13(4):1-8.
[林葵, 陈则实, 郭炳火,等. 东海黑潮水与陆架水的季节性输运和交换[J]. 黄渤海海洋, 1995, 13(4):1-8.]
[24] Chen C, Ruo R, Paid S, et al.Exchange of water masses between the East China Sea and the Kuroshio off northeastern Taiwan[J]. Continental Shelf Research, 1995, 15: 19-39.
[25] Wang Yuheng, Dong Henglin, Ren Dianyong.Nutrient and chemical characteristic of the East China Sea in summer and winter[J]. Acta Oceanologica Sinica, 1992, 14(4):51-60.
[王玉衡, 董恒霖, 任典勇. 夏、冬季东海营养盐锋区及水系化学特征的研究[J]. 海洋学报, 1992, 14(4):51-60.]
[26] Liu Chao, Kang Jiancheng, Wang Guodong, et al.Monthly spatial variation of nutrients and nutrient limitation in Kuroshio of East China Sea[J]. Resources Science, 2012,34(7): 1 375-1 381.
[刘超, 康建成,王国栋,等. 东海黑潮区营养盐及其限制作用的月际空间分异[J]. 资源科学, 2012,34(7): 1 375-1 381.]
[27] Chen C-T A. Chemical and physical fronts in the Bohai, Yellow and East China seas[J].Journal of Marine Systems, 2009, 78: 394-410.
[28] Wang B D, Wang X L,Zhan R.Nutrient conditions in the Yellow Sea and the East China Sea. Estuarine[J]. Coastal and Shelf Science, 2003, 58: 127-136.
[29] Guo X Y, Zhuo X H, Wu Q S, et al.The Kuroshio nutrient stream and its temporal variation in the East China Sea[J]. Journal of Geophysical Reasearch, 2012, 117:1-17.
[30] Zhao L, Guo X Y.Influence of cross-shelf water transport on nutrients and phytoplankton in the East China Sea: A model study[J]. Ocean Science, 2011,7: 27-43.
[31] Liu K K, Tang T Y, Gong G C, et al.Cross-shelf and along-shelf nutrient fluxes derived from flow fields and chemical hydrography observed in the southern East China Sea off northern Taiwan[J]. Continental Shelf Research, 2000, 20: 493-523.
[32] Chen C-T A, Wang S L. Carbon, alkalinity and nutrient budgets on the East China Sea continental shelf[J]. Journal of Geophysical Research—Oceans, 1999, 104: 20 675-20 686.
[33] Fang T H.Phosphorus speciation and budget of the East China Sea[J]. Continental Shelf Research,2004, 24:1 285-1 299.
[34] Gong Yao, Chen Hongtao, Yao Qingzhen, et al.Distributions and sources of silicate in the Sourthen Yellow Sea and East China Sea[J]. Periodical of Ocean University of China, 2012,42(10):75-80.
[巩瑶, 陈洪涛, 姚庆祯, 等.中国东部边缘海冬季硅酸盐的分布特征及主要来源[J]. 中国海洋大学学报:自然科学版, 2012, 42(10):75-80.]
[35] Morel F M M, Price N M. The biogeochemical cycles of trace metals in the oceans[J]. Science,2003,300(5 621): 944-947.
[36] Bruland K W.Trace elements in sea-water[M]∥Riley J, Chester R, eds. Chemical Oceanography. London: Academic Press, 1983, 8:157-220.
[37] Ren J L, Zhang J, Li D D, et al. Behavior of dissolved inorganic arsenic in the Yellow Sea and East China Sea[J]. Deep-Sea Research Part II: Topical Studies in Oceanography 2010, 57: 1035-1046.
[38] Cheng Yan.Behavior of Dissolved Arsenic in the Jiaozhou Bay, East China Sea and Part of South China Sea[D]. Qingdao: Ocean University of China, 2005.
[程岩. 胶州湾、东海及南海部分海区中溶解态砷的行为[D].青岛:中国海洋大学, 2005.]
[39] Li Y, Yang R J, Zhang A B, et al.The distribution of dissolved lead in the coastal waters of the East China Sea[J]. Marine Pollution Bulletin, 2014,85(2):700-709.
[40] Wong G T F, Hung C C, Gong G C. Dissolved iodine species in the East China Sea—Acomplementary tracer for upwelling water on the shelf[J]. Continental Shelf Research, 2004,24:1 465-1 484.
[41] Wei C L, Wong G T F, Sun S J, et al. Extractable manganese in the southeastern East China Sea shelf and the Okinawa Trough[J]. Oceanologica Acta, 2001, 24(Suppl.):99-111.
[42] Ren J L, Zhang J, Li J B, et al.Dissolved aluminum in the Yellow Sea and East China Sea-Al as a tracer of Changjiang (Yangtze River) discharge and Kuroshio incursion[J]. Estuarine, Coastal and Shelf Science, 2006, 68:165-174.
[43] Hsu S C, Lin F J, Jeng W L, et al.Spatial distribution of cadmium over a cyclonic eddy in the southern East China Sea[J]. Journal of Marine Systems, 2003, 39:153-166.
[44] Sohrin Y, Matsui M, Nakayama E.Contrasting behavior of tungsten and molybdenum in the Okinawa Trough, the East China Sea and the Yellow Sea[J]. Geochimica et Cosmochimica Acta, 1999, 63:3 457-3 466.
[45] Abe K, Ishihi Y, Watanab Y.Dissolved copper in the Yellow Sea and the East China Sea—Cu as a tracer of the Changjiang discharge[J]. Deep-Sea Research Part II:Topical Studies in Oceanography,2003, 50:327-337.
[46] Liu S M, Zhang J, Chen S Z, et al.Inventory of nutrient compounds in the Yellow Sea[J]. Continental Shelf Research, 2003, 23: 1 161-1 174.
[47] Wong G T F, Chao S Y, Li Y H, et al.The Kuroshio edge exchange processes (KEEP) study—An introduction to hypotheses and highlights[J]. Continental Shelf Research, 2000,20:335-347.
[48] Hung J J, Chen C H, Gong G C, et al.Distributions, stoichiometric patterns and cross-shelf exports of dissolved organic matter in the East China Sea[J]. Deep-Sea Research Part II:Topical Studies in Oceanography, 2003, 50(6):1 127-1 145.
[49] Uematsu M, Wang Z F, Uno I.Atmospheric input of mineral dust to the western North Pacific region based on direct measurements and a regional chemical transport model[J]. Geophysical Research Letters, 2003, 30(6):1 342-1 344.
[50] Yang Y L, Kusakabe M, Southon J R.10Be profiles in the East China Sea and the Okinawa Trough[J]. Deep-Sea Research Part II: Topical Studies in Oceanography, 2003, 50(2):339-351.
[51] Du Jinqiu, Chen Min, Cao Jianping, et al.Oxygen isotope in seawater and its hydrological implication in the southern Yellow Sea and the East China Sea[J]. Oceanologia et Limnologia Sinica,2012,43(6):1 057-1 066.
[杜金秋,陈敏,曹建平,等. 南黄海和东海海水18O 的组成及其意义[J]. 海洋与湖沼,2012,43(6):1 057-1 066.]
[52] Zhang Lei.Radium Isotopes in Changjiang Estuary/East China Sea and Their Application in Analysis of Mixing Among Multiple Water Masses[D]. Shanghai: East China Normal University,2007.
[张磊. 长江口、东海的镭同位素及其在水团混合分析中的应用[D]. 上海:华东师范大学, 2007.]
[53] Ma Qiang.Geochemical Behaviors of 210Po and 210Pb and Their Application in the China Marginal Seas[D]. Xiamen:Xiamen University, 2013.
[马嫱. 中国边缘海210Po、210Pb地球化学行为及其应用[D]. 厦门: 厦门大学,2013.]
[54] Zhang G L, Zhang J, Ren J L, et al.Distributions and sea-to-air fluxes of methane and nitrous oxide in the North East China Sea in summer[J]. Marine Chemistry, 2008, 110: 42-55.
[55] Song Guisheng.Studies on the Distributions and the Sea-Air Fluxes of Methyl Chloride and Methyl Bromide in the East China Sea and the Yellow Sea[D]. Qingdao: Ocean University of China, 2008.
[宋贵生. 东海和黄海中氯甲烷和溴甲烷的分布与海—气通量研究[D]. 青岛:中国海洋大学, 2008.]
[56] Yang G P, Zhuang G C, Zhang H H, et al. Distribution of dimethylsulfide and dimethylsulfoniopropionate in the Yellow Sea and the East China Sea during spring: Spatio-temporal variability and controlling factors[J]. Marine Chemistry, 2012, 138/139:21-31.
[1] 刘伟, 宋金明, 袁华茂, 李学刚, 李宁, 段丽琴, 左九龙. 黑潮化学物质输入东海的途径与通量[J]. 地球科学进展, 2015, 30(8): 904-914.
