福岛核污染水中的人工放射性核素及其在海洋环境中的迁移转化行为

张福乐, 王锦龙, 黄德坤, 于涛, 杜金洲

Artificial Radionuclides in the Fukushima Nuclear Contaminated Water and Their Migration and Transformation Behaviors in the Marine Environment

Fule ZHANG, Jinlong WANG, Dekun HUANG, Tao YU, Jinzhou DU

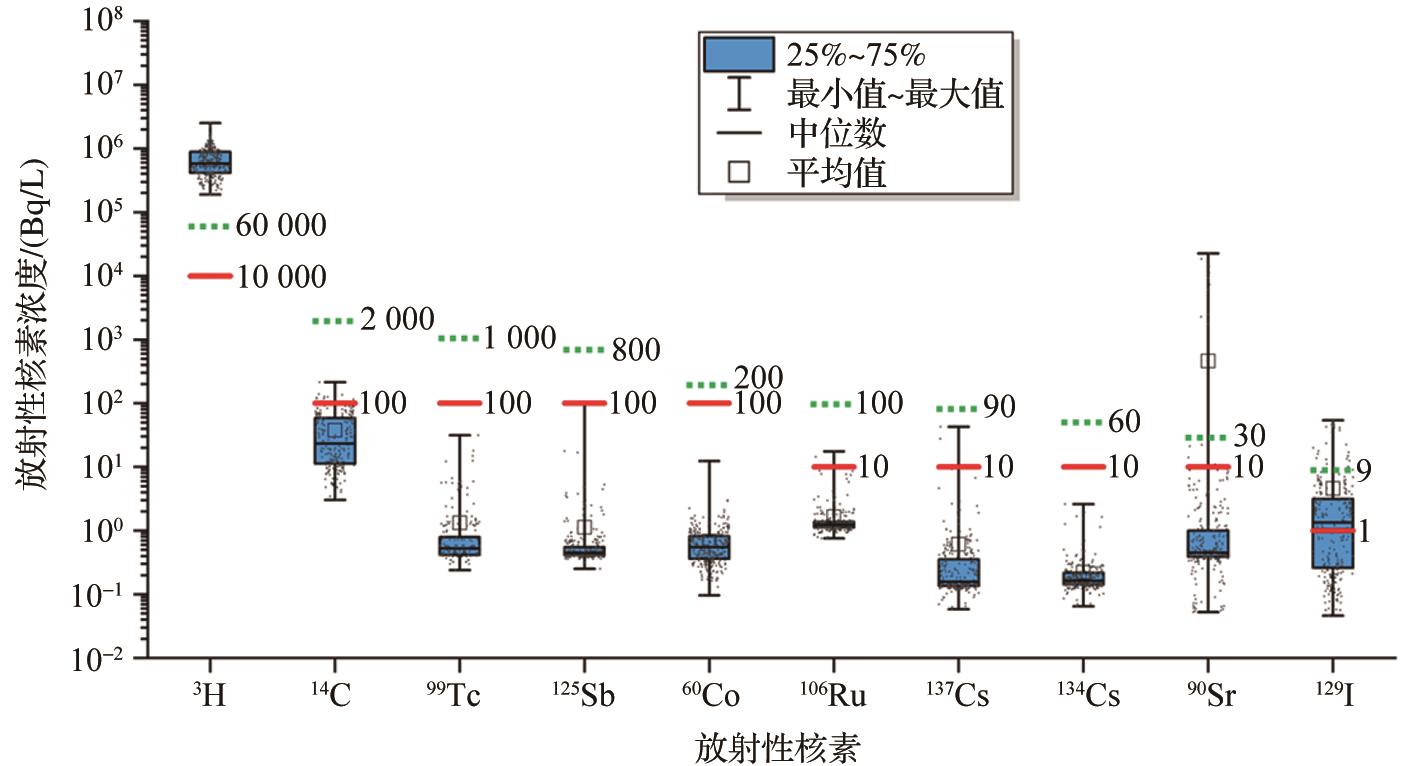

图2 2023年3月31日福岛核污染水中放射性核素浓度水平［14］ 实线和虚线分别代表世界卫生组织推荐的饮用水中各核素的限制浓度和日本法律允许的最大排放浓度

Fig. 2 Box and whisker plots of radionuclide levels in the Fukushima Nuclear Contaminated Water （as of March 31， 2023）［14］ The solid line and dashed line indicate the limitation concentration of radionuclides in drinking-water recommended by WHO and maximum release concentrations allowed by Japanese law
