地球科学进展 ›› 2025, Vol. 40 ›› Issue (6): 635 -646. doi: 10.11867/j.issn.1001-8166.2025.043

研究论文 上一篇    下一篇

顾及环境相似性的中国北方沙尘强度空间模拟与人口暴露评估
马学海1(), 周亮1,2,3(), 车涛4, 黄春林4, 高鸿1,2,3, 孙钦珂1,2,3
  1. 1. 兰州交通大学 测绘与地理信息学院,甘肃 兰州 730070
    2. 地理国情监测技术应用国家地方联合 工程研究中心,甘肃 兰州 730030
    3. 甘肃省地理国情监测工程实验室,甘肃 兰州 730030
    4. 中国科学院西北生态环境资源研究院,甘肃 兰州 730000
  • 收稿日期:2025-04-23 修回日期:2025-05-30 出版日期:2025-06-10
  • 通讯作者: 周亮

Spatial Simulation of Dust Intensity and Population Exposure in Northern China Based on Environmental Similarity

Xuehai MA1(), Liang ZHOU1,2,3(), Tao CHE4, Chunlin HUANG4, Hong GAO1,2,3, Qinke SUN1,2,3

  1. 1. School of Surveying, Mapping and Geoinformatics, Lanzhou Jiaotong University, Lanzhou 730070, China
    2. National and Local Joint Engineering Research Center for the Application of Geographic National Conditions Monitoring Technology, Lanzhou 730030, China
    3. Gansu Provincial Geographic National Conditions Monitoring Engineering Laboratory, Lanzhou 730030, China
    4. Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou 730000, China
  • Received:2025-04-23 Revised:2025-05-30 Online:2025-06-10 Published:2025-08-04
  • Contact: Liang ZHOU
  • Supported by:
    the National Key Research & Development Program-Intergovernmental International Science and Technology Innovation Cooperation Project(2024YFE0198602); The Lanzhou Science and Technology Plan Project(2024-3-93)

沙尘天气在干旱及半干旱地区日趋频繁,已对生态环境与居民健康造成严重威胁。沙尘对人口的危害不仅取决于气候变化,还与人口规模和沙尘空间分布密切相关。目前仍缺少对于沙尘人口暴露的长时序和系统性的评估。依据环境相似性理论,整合沙尘站点数据与9种环境因子数据,运用随机森林方法构建沙尘强度模拟模型,结合人口数据建立沙尘人口暴露风险指数系统评估2000—2020年中国北方沙尘强度及人口暴露风险的时空演变规律。结果表明:①沙尘强度模型决定系数均大于0.6(p<0.01),对模型贡献度最高的3个因子分别为干旱指数、风速和归一化植被指数。②中国北方沙尘强度呈现显著空间异质性。极高、高和较高强度的沙尘主要集中于西北地区,而华北和东北地区以极低、低和较低强度为主。研究期内沙尘强度总体降低53%,累计有1.9×106 km2的极高、高和较高强度的沙尘区域转化为极低、低和较低强度的沙尘区域。③中国北方3.5亿人口遭受沙尘威胁,沙尘人口暴露高风险区集中于人口密集的京津冀、陕晋南部以及沙尘强度高的新疆南部地区。研究区沙尘人口暴露风险显著下降,暴露于极高、高和较高强度的沙尘人数减少0.73亿人。上述结论揭示了中国北方地区沙尘人口暴露风险的时空分布特征,为地方政府制定针对性的沙尘防治和应对措施提供了科学依据。

The frequent occurrence of sand and dust causes serious harm to the ecological environment and public health in arid and semiarid regions. The risk of population exposure depends not only on climate change but also on the population size and spatial distribution of sand and dust. However, systematic evaluations of long-term exposure to dust are still insufficient. Based on the theory of environmental similarity, this study integrated data from sand and dust monitoring stations and nine environmental variables. Using the random forest method to construct a simulation model of sand and dust intensity, combined with population data to establish a sand and dust population exposure risk index system, and evaluated the spatiotemporal evolution of sand and dust intensity and population exposure risk in northern China from 2000 to 2020. The results showed that the coefficients of determination of the dust intensity model were all greater than 0.6 (p<0.01). The three most influential factor with the highest contribution to the model were the drought index, wind speed, and NDVI. Sand and dust intensities in the study area showed significant spatial heterogeneity. The extremely high, high, and high intensities of sand and dust were mainly concentrated in Northwest China, while the extremely low, low, and low intensities of sand and dust were mainly concentrated in North and Northeast China. During the study period, the sand and dust intensity decreased by 53%, and the extremely high- , high- , and high-intensity sand and dust areas of 1.9×106 km2 were transformed into very low, low, and low sand and dust areas. In northern China, 350 million people are exposed to dust and sand, and high-risk areas of dust exposure are concentrated in the Beijing-Tianjin-Hebei region, southern Shaanxi and Shanxi provinces with high population density, and southern Xinjiang with high dust intensity. The overall risk of exposure to sand and dust in the study area decreased significantly, with 73 million people exposed to extremely high, high, and high-intensity sand and dust. The findings reveal the spatial and temporal distribution characteristics of sand and dust exposure risk in northern China and provide a scientific basis for local governments to formulate targeted sand and dust prevention and control measures.

中图分类号:

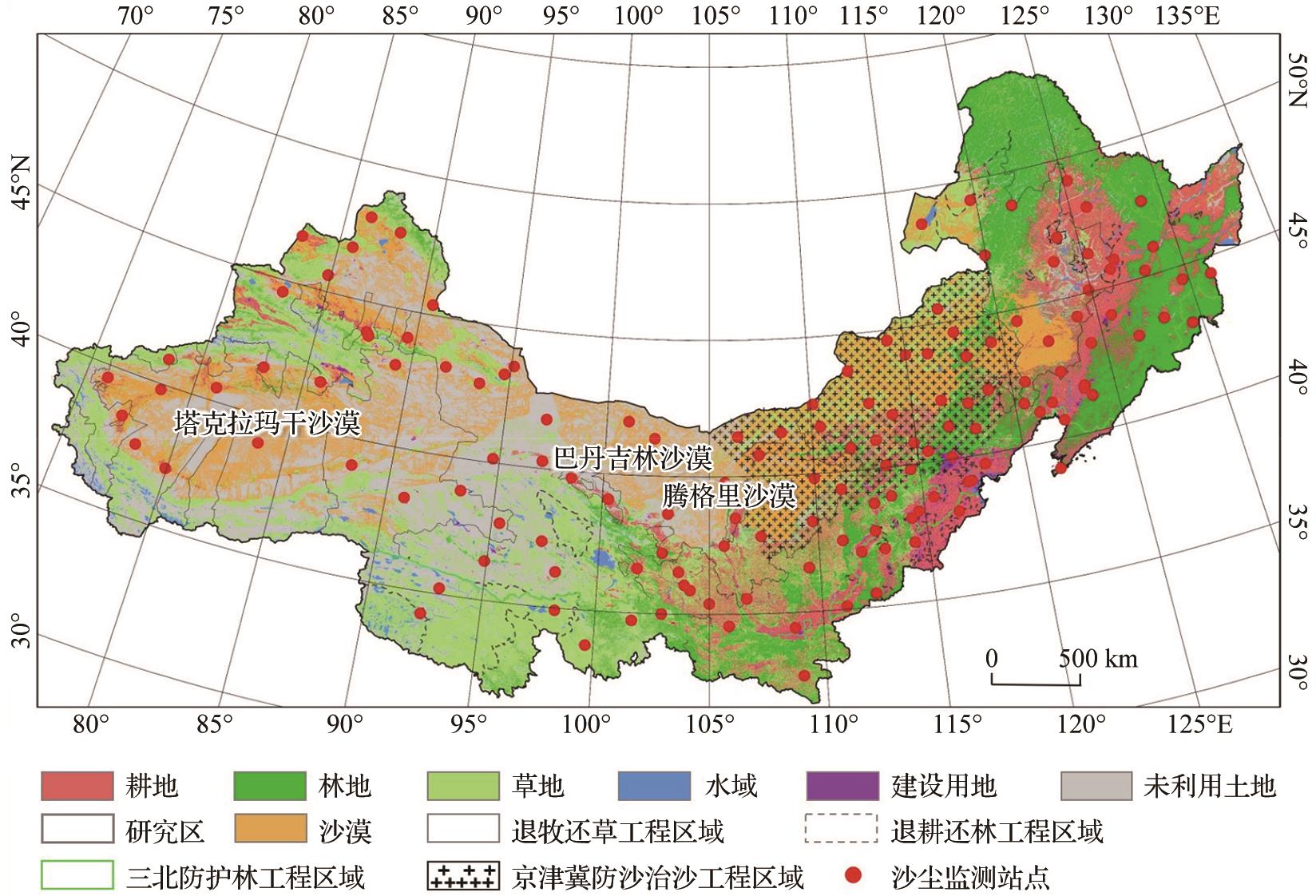

图1 中国北方概况图
Fig. 1 Overview map of northern China
表1 环境因子数据
Table 1 Environmental factor data

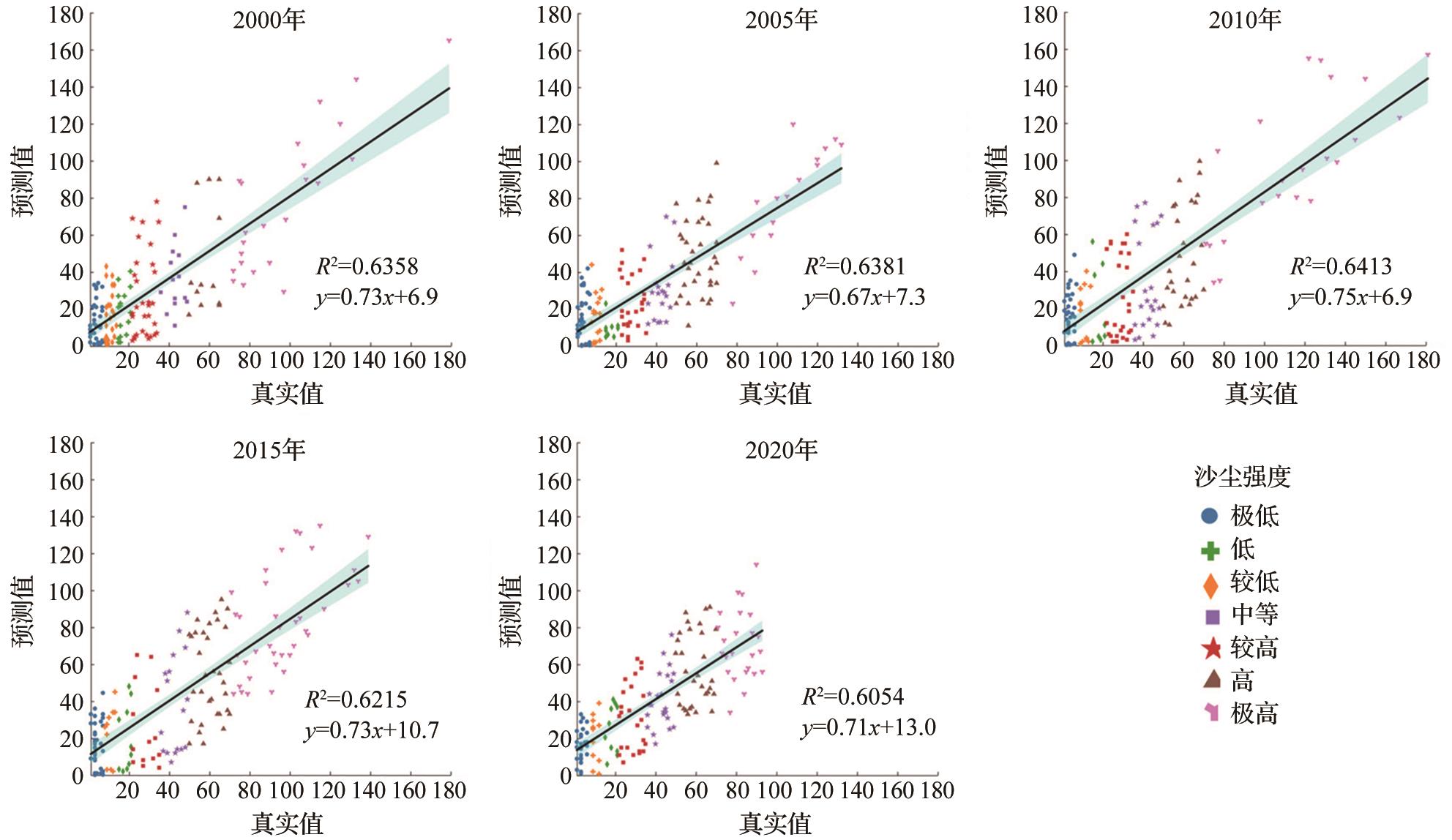

图2 20002020年随机森林模型精度散点图
Fig. 2 Scatter plot of model accuracy from 2000 to 2020

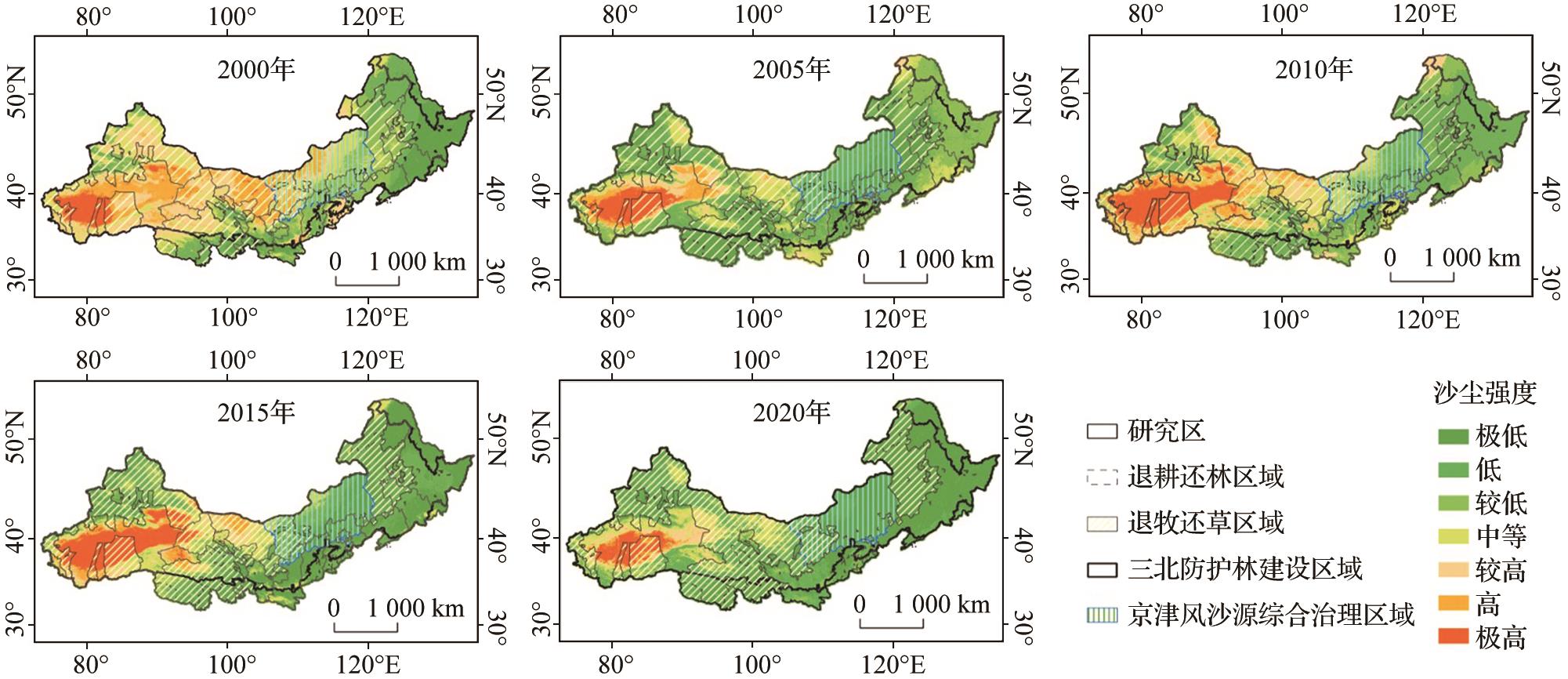

图3 20002020年中国北方沙尘强度分布图
Fig. 3 Dust intensity distribution in northern China from 2000 to 2020

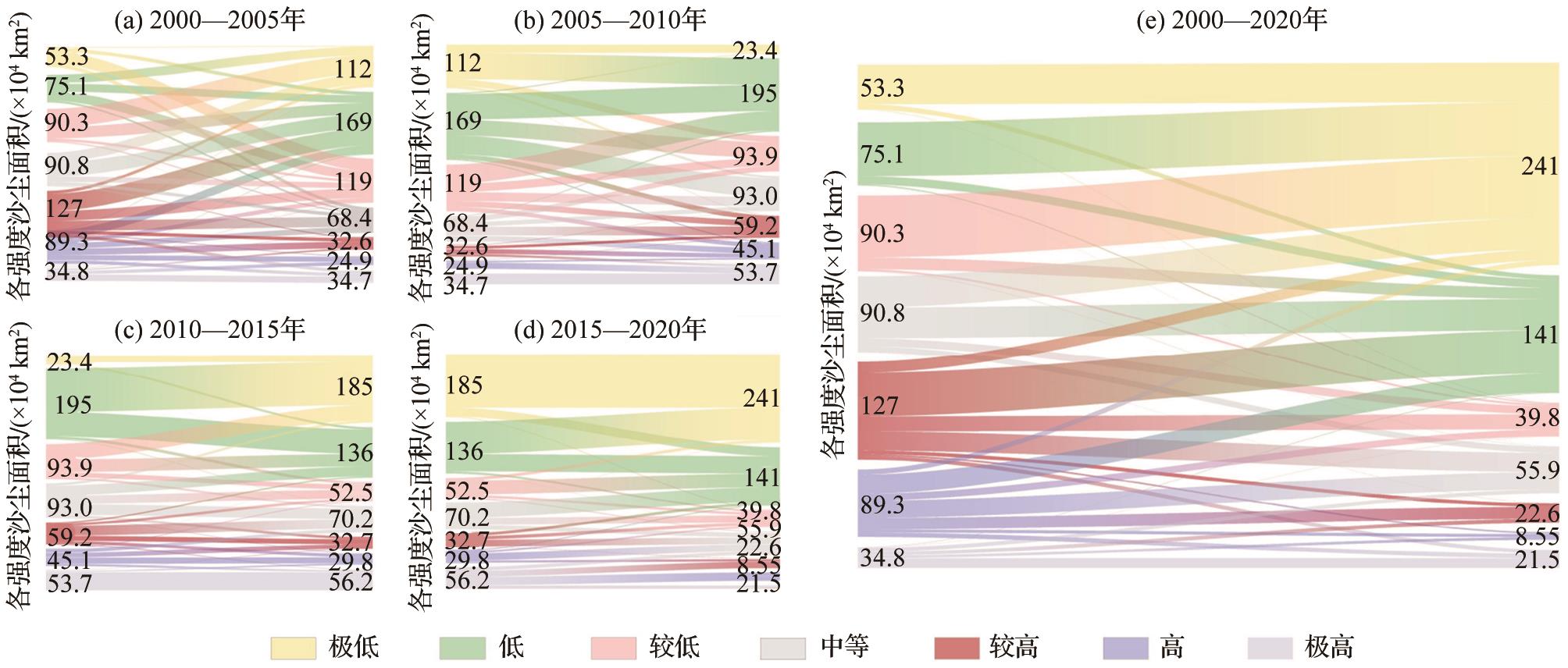

图4 20002020年中国北方各强度沙尘面积变化主要方向及面积
Fig. 4 The main direction and area of dust area of different intensities in northern China from 2000 to 2020

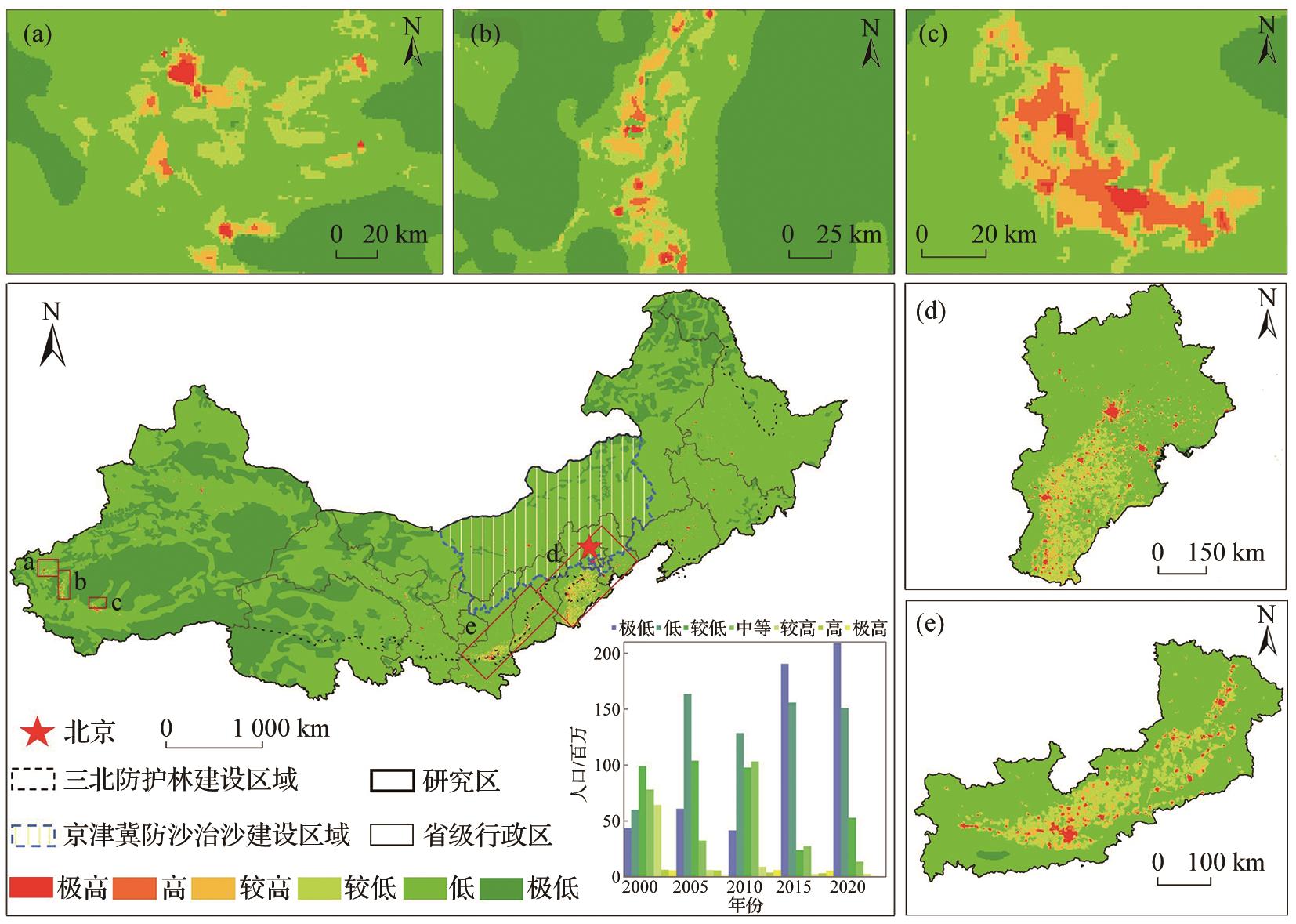

图5 20002020年中国北方沙尘人口暴露风险等级图 (a) 喀什市、阿图什市、疏附县和疏勒县;(b) 和田市、墨玉县、洛浦县和和田县;(c) 泽普县、莎车县和叶城县;(d) 京津冀地区;(e) 陕西和山西南部地区。
Fig. 5 Population exposure risk level of sand and dust in northern China from 2000 to 2020 (a) Kashgar City, Artush City, Shufu County, Shule County; (b) Hotan City, Moyu County, Luopu County, Hotan County; (c) Zepu County, Yache County, Yecheng County; (d) Beijing-Tianjin-Hebei region; (e) Shaanxi and the southern region of Shanxi.

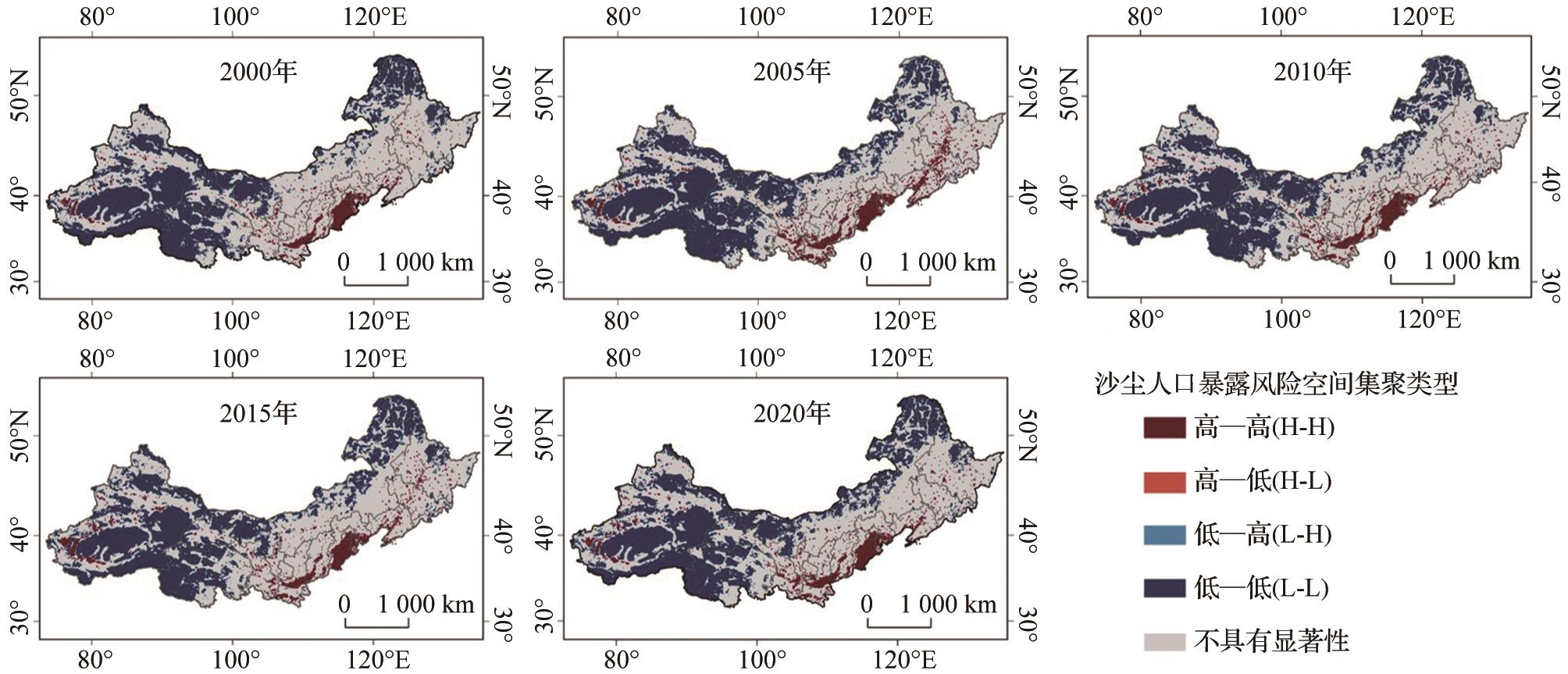

图6 20002020年中国北方沙尘人口暴露风险空间集聚特征
Fig. 6 Spatial agglomeration characteristics of sand and dust exposure risk in northern China from 2000 to 2020

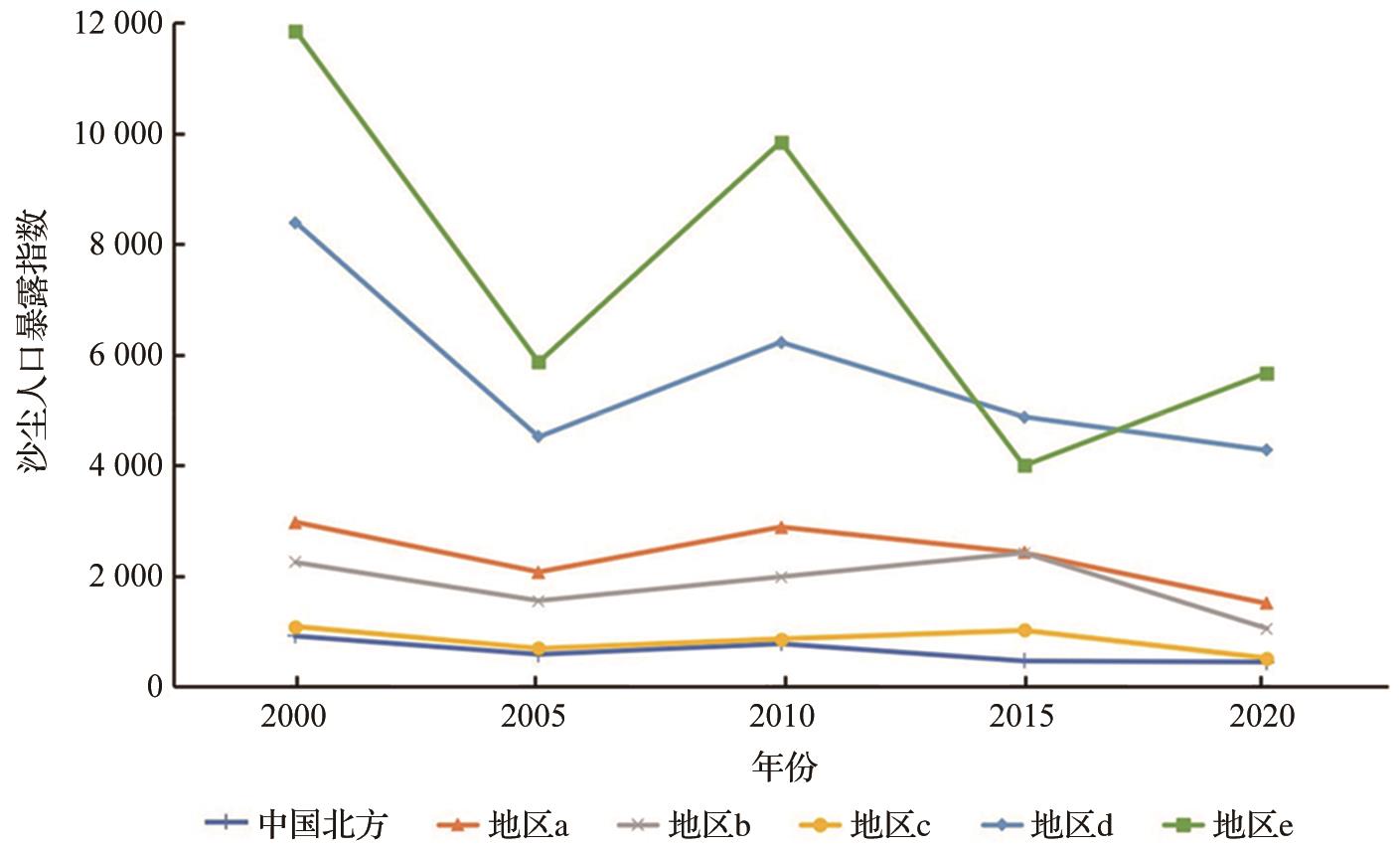

图7 20002020年高风险区年均沙尘人口暴露指数图 地区a:喀什市、阿图什市、疏附县和疏勒县;地区b:和田市、墨玉县、洛浦县和和田县;地区c:泽普县、莎车县和叶城县;地区d:京津冀地区;地区e:陕西和山西南部地区。Region a: Kashgar City, Artush City, Shufu County, Shule County; Region b: Hotan City, Moyu County, Luopu County, Hotan County; Region c: Zepu County, Yache County, Yecheng County; Region d: Beijing-Tianjin-Hebei region; Region e: Shaanxi and the southern region of Shanxi.
Fig. 7 Annual average population exposure index of sand and dust in high-risk areas from 2000 to 2020
[1]
CHEN Fahu XIE Tingting YANG Yujie, et al. Discussion on the problem of “warming and humidification” in the arid region of northwest China and its future trend[J]. Science China Earth Science2023(6): 1 246-1 262.
陈发虎, 谢亭亭, 杨钰杰, 等. 我国西北干旱区“暖湿化”问题及其未来趋势讨论[J]. 中国科学:地球科学2023(6): 1 246-1 262.
[2]
IPCC. Climate change 2022: impacts, adaptation and vulnerability. Contribution of Working Group III to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change[M]. Cambridge: Cambridge University Press, 2022.
[3]
AN L C CHE H Z XUE M, et al. Temporal and spatial variations in sand and dust storm events in East Asia from 2007 to 2016: relationships with surface conditions and climate change[J]. Science of the Total Environment2018633: 452-462.
[4]
YOU X Y. Lethal dust storms blanket Asia every spring: now AI could help predict them[J]. Nature2024. DOI: 10.1038/d41586-024-01076-7 .
[5]
WANG W SAMAT A ABUDUWAILI J, et al. Machine learning-based prediction of sand and dust storm sources in arid Central Asia[J]. International Journal of Digital Earth202316(1): 1 530-1 550.
[6]
GUO Zecheng WEI Wei SHI Peiji, et al. Spatiotemporal changes of land desertification sensitivity in the arid region of northwest China[J]. Acta Geographica Sinica202075(9): 1 948-1 965.
郭泽呈, 魏伟, 石培基, 等. 中国西北干旱区土地沙漠化敏感性时空格局[J]. 地理学报202075(9): 1 948-1 965.
[7]
ZHANG C YAN M L DU H, et al. Mortality risks from a spectrum of causes associated with sand and dust storms in China[J]. Nature Communications202314(1). DOI: 10.1038/S41467-023-42530-W .
[8]
UNCCD. Stepping back from the precipice: transforming land management to stay within planetary boundaries: special report on land[R]. Potsdam Institute for Climate Impact Research, 2024.
[9]
CHEN F H CHEN S Q ZHANG X, et al. Asian dust-storm activity dominated by Chinese dynasty changes since 2000 BP[J]. Nature Communications202011(1). DOI: 10.1038/s41467-020-14765-4 .
[10]
FU Bojie LIU Yanxu WANG Shuai, et al. Science to improve the relationship between man and nature in desertification areas[J]. Bulletin of Chinese Academy of Sciences2024(12): 2 027-2 036.
傅伯杰, 刘焱序, 王帅, 等. 科学改善荒漠化地区人与自然关系[J]. 中国科学院院刊2024(12): 2 027-2 036.
[11]
WU C L LIN Z H SHAO Y P, et al. Drivers of recent decline in dust activity over East Asia[J]. Nature Communications202213(1). DOI: 10.1038/s41467-022-34823-3 .
[12]
GAO J DING T GAO H. Dominant circulation pattern and moving path of the Mongolian Cyclone for the severe sand and dust storm in China[J]. Atmospheric Research2024, 301. DOI: 10.1016/J.ATMOSRES.2024.107272 .
[13]
FILONCHYK M. Characteristics of the severe March 2021 Gobi Desert dust storm and its impact on air pollution in China[J]. Chemosphere2022, 287. DOI: 10.1016/J.CHEMOSPHERE.2021.132219 .
[14]
YUAN Tiangang CHEN Siyu KANG Litai, et al. Spatiotemporal distribution characteristics and trends of sand and dust intensity in the sand and dust source areas of northern China from 1961 to 2010[J]. Journal of Arid Meteorology201634(6): 927-935.
元天刚, 陈思宇, 康丽泰, 等. 1961—2010年中国北方沙尘源区沙尘强度时空分布特征及变化趋势[J]. 干旱气象201634(6): 927-935.
[15]
YANG Jie ZHAO Tianliang CHENG Xugeng, et al. Temporal and spatial variations of sandstorm and the related meteorological influences over northern China from 2000 to 2019[J]. Acta Scientiae Circumstantiae202141(8): 2 966-2 975.
杨婕, 赵天良, 程叙耕, 等. 2000—2019年中国北方地区沙尘暴时空变化及其相关影响因素[J]. 环境科学学报202141(8): 2 966-2 975.
[16]
HUANG Zhongwei LIU Qiantao DONG Qingqing, et al. Eastward transport of African dust and its climatic and environmental impacts[J]. Advances in Earth Science202540(1): 1-14.
黄忠伟, 刘千滔,董青青, 等. 非洲沙尘东传的规律及其气候环境效应[J]. 地球科学进展202540(1): 1-14.
[17]
LI Jiachen JU Tianzhen LI Bingnan, et al. The impact of two sandstorms in northern China on a typical large city: the case of Lanzhou and Beijing[J]. Arid Land Geography202548(5):789-800.
李佳宸, 巨天珍, 李丙南, 等. 中国北方地区两次沙尘暴对典型大城市的影响——以兰州市和北京市为例[J]. 干旱区地理202548(5):789-800.
[18]
YIN Z C WAN Y ZHANG Y J, et al. Why super sandstorm 2021 in north China?[J]. National Science Review20219(3). DOI: 10.1093/NSR/NWAB165 .
[19]
AKHLAQ M SHELTAMI T R MOUFTAH H T. A review of techniques and technologies for sand and dust storm detection[J]. Reviews in Environmental Science and Bio/Technology201211(3): 305-322.
[20]
SONG L L BI X H ZHANG Z Y, et al. Impact of sand and dust storms on the atmospheric environment and its source in Tianjin-China[J]. Science of the Total Environment2022, 825. DOI: 10.1016/J.SCITOTENV.2022.153980 .
[21]
XU X K LEVY J K LIN Z H, et al. An investigation of sand-dust storm events and land surface characteristics in China using NOAA NDVI data[J]. Global and Planetary Change200652(1/2/3/4): 182-196.
[22]
YANG Y Q HOU Q ZHOU C H, et al. Sand/dust storm processes in northeast Asia and associated large-scale circulations[J]. Atmospheric Chemistry and Physics20088(1): 25-33.
[23]
ZHU Axing. A brief discussion on the three laws of geography[J]. Geography Education2023(1): 3-7.
朱阿兴. 简论地理学三定律[J]. 地理教育2023(1): 3-7.
[24]
TAN J WU X Q ZENG F J, et al. Effects of crop residue on wind erosion due to dust storms in Hotan Prefecture, Xinjiang, China[J]. Soil and Tillage Research2022, 221. DOI: 10.1016/j.still.2022.105387 .
[25]
LI Y KANG S C ZHANG X L, et al. Dust dominates the summer melting of glacier ablation zones on the northeastern Tibetan Plateau[J]. The Science of the Total Environment2023, 856(Pt. 2). DOI: 10.1016/j.scitotenv.2022.159214 .
[26]
WANG W HE S F GUO H, et al. Sand and dust storm risk assessment in arid central Asia: implications for the environment, society, and agriculture[J]. International Journal of Disaster Risk Science202415(5): 703-718.
[27]
LIANG P CHEN B YANG X P, et al. Revealing the dust transport processes of the 2021 mega dust storm event in northern China[J]. Science Bulletin202267(1): 21-24.
[28]
HASHIZUME M KIM Y NG C F S, et al. Health effects of Asian dust: a systematic review and meta-analysis[J]. Environmental Health Perspectives2020128(6). DOI: 10.1289/EHP5312 .
[29]
YANG Y WANG Z L LOU S J, et al. Strong ozone intrusions associated with super dust storms in East Asia[J]. Atmospheric Environment2022, 290. DOI: 10.1016/j.atmosenv.2022.119355 .
[30]
JIA Mingrui ZHANG Jintao WANG Fang. Changes in thermal comfort conditions throughout the Belt-and-Road Region in response to nationally committed emission reductions under the Paris Agreement[J]. Advances in Earth Science202237(5): 505-518.
贾明瑞, 张晋韬, 王芳. 《巴黎协定》未来气候情景下“一带一路”沿线区域气候舒适度预估[J]. 地球科学进展202237(5): 505-518.
[31]
LI Yaohui ZHANG Shuyu. Review of the research on the relationship between sand-dust storm and arid in China[J]. Advances in Earth Science200722(11): 1 169-1 177.
李耀辉, 张书余. 我国沙尘暴特征及其与干旱关系的研究进展[J]. 地球科学进展200722(11): 1 169-1 177.
[32]
ZHANG Zhengcai PAN Kaijia LIANG Aimin, et al. Progress on process and mechanism of sand and dust emission on Gobi[J]. Advances in Earth Science201934(9): 891-900.
张正偲, 潘凯佳, 梁爱民, 等. 戈壁沙尘释放过程与机理研究进展[J]. 地球科学进展201934(9): 891-900.
[33]
JIANG Xin FENG Qiaomei ZHOU Lihong, et al. Wind speed enhancement as the primary cause of sand-dust days increase in China over recent years [J]. Chinese Science Bulletin2024(3): 356-361.
江鑫, 冯巧梅, 周俐宏, 等. 风速加强可能是近年中国沙尘日数增加的主要因素[J]. 科学通报2024(3): 356-361.
[34]
DING Hanyong KANG Hanqing Jingjing . Impact of soil moisture products on the simulation results of super sandstorms during March of 2021 in North China [J]. Journal of Desert Research202444(2): 172-184.
丁涵泳, 康汉青, 吕晶晶. 土壤湿度产品对2021年3月华北强沙尘暴模拟结果的影响[J]. 中国沙漠202444(2): 172-184.
[35]
WANG S G WANG J Y ZHOU Z J, et al. Regional characteristics of three kinds of dust storm events in China[J]. Atmospheric Environment200539(3): 509-520.
[36]
RICHARD C D EDWARDS T C BEARD K H, et al. Random forests for classification in ecology[J]. Ecology200788(11): 2 783-2 792.
[37]
HUANG L ZHU Y H ZHAI H H, et al. Recommendations on benchmarks for numerical air quality model applications in China—part 1: PM2.5 and chemical species[J]. Atmospheric Chemistry and Physics202121(4): 2 725-2 743.
[38]
LI Y X SVENNING J C ZHOU W Q, et al. Green spaces provide substantial but unequal urban cooling globally[J]. Nature Communications202415(1). DOI: 10.1038/s41467-024-51355-0 .
[39]
HUANG Lin ZHU Ping XIAO Tong, et al. The sand fixation effects of three-north shelter forest program in recent 35 years[J]. Scientia Geographica Sinica201838(4): 600-609.
黄麟, 祝萍, 肖桐, 等. 近35年三北防护林体系建设工程的防风固沙效应[J]. 地理科学201838(4): 600-609.
[40]
QIN Haojun YANG Xiaojun MA Li, et al. Characteristics and causes of regional sandstorms in northwest China from 2000 to 2020[J]. Journal of Desert Research202242(6): 53-64.
秦豪君, 杨晓军, 马莉, 等. 2000—2020年中国西北地区区域性沙尘暴特征及成因[J]. 中国沙漠202242(6): 53-64.
[41]
TOBÍAS A QUEROL X ROQUÉ M, et al. Short-term exposure to desert dust and sandstorms and all-cause and cause-specific mortality and morbidity: a systematic review and meta-analysis[J]. Environment International2025, 196. DOI: 10.1016/j.envint.2025.109277 .
